Secondary 4 Pure Physics Quiz - Mechanics

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40
Topic: Mechanics (Kinematics, Dynamics, Turning Effect of Forces, Pressure)

Instructions:

• Answer all 20 questions.
• Show your working clearly where calculations are required.
• Use $g = 10 \text{ m/s}^2$ unless stated otherwise.
• Write units in your final answers.
• This quiz is generated from syllabus-first LLM-inferred templates. It is not derived from any specific past-year exam.

---

Section A: Kinematics (Questions 1–5)

1. [2 marks] A car travels 120 m in 8.0 s at constant speed. Calculate its average speed.

---

2. [1 mark] State the definition of acceleration.

---

3. [2 marks] A bus increases its velocity from $4.0 \text{ m/s}$ to $16.0 \text{ m/s}$ in 6.0 s. Calculate its acceleration.

---

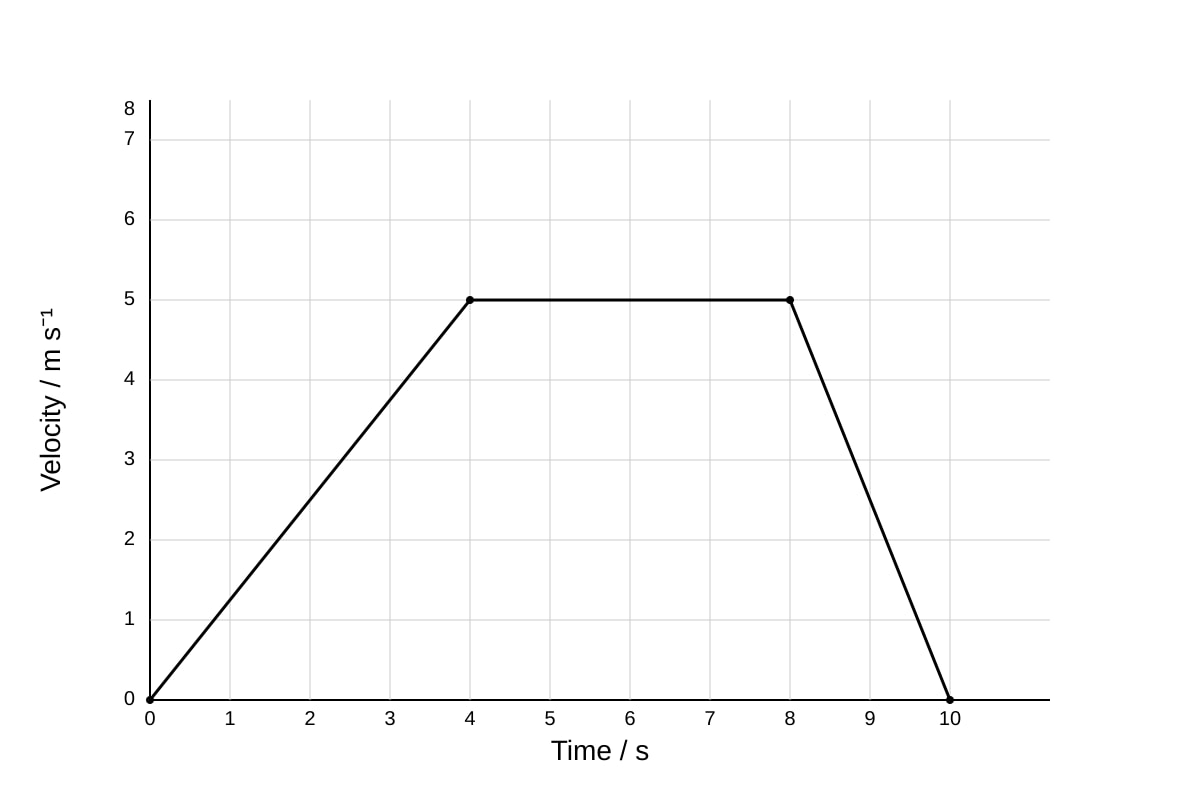

4. [3 marks] The velocity-time graph below shows the motion of a cyclist.

Image pending generation: graph for Q4.

(a) Find the acceleration during the first 4 s. [1]
(b) Calculate the total distance travelled. [2]

---

5. [2 marks] An object is dropped from rest near Earth. State its acceleration and explain whether mass affects it.

---

---

Section B: Dynamics (Questions 6–10)

6. [1 mark] State Newton’s first law of motion.

---

7. [2 marks] A net force of 12 N acts on a 3.0 kg block. Calculate its acceleration.

---

8. [2 marks] Differentiate between mass and weight in one sentence each.

---

9. [3 marks] A skydiver of mass 70 kg falls. At one instant, air resistance is 300 N upwards. (a) Calculate his weight. [1]
(b) Find the net force and state the direction. [2]

---

10. [2 marks] Explain what is meant by terminal velocity using forces.

---

---

Section C: Turning Effect of Forces (Questions 11–15)

11. [1 mark] Define the moment of a force about a pivot.

---

12. [2 marks] A force of 20 N is applied 0.30 m from a pivot. Calculate the moment.

---

13. [3 marks] A uniform rod of length 2.0 m and weight 10 N is pivoted at its centre. A 6 N weight is hung 0.50 m to the left. Where must a 4 N weight be placed on the right to balance it?

---

14. [2 marks] State the principle of moments for a body in equilibrium.

---

15. [2 marks] A tall narrow object is easier to topple than a short wide one. Explain using centre of gravity.

---

---

Section D: Pressure (Questions 16–20)

16. [1 mark] Define pressure in words and give the formula.

---

17. [2 marks] A 500 N man stands on a floor with shoes of total area $0.020 \text{ m}^2$. Calculate the pressure he exerts.

---

18. [2 marks] A liquid of density $800 \text{ kg/m}^3$ has depth 4.0 m. Calculate the pressure due to the liquid ($g=10$).

---

19. [3 marks] In a hydraulic press, a force of 50 N is applied on a piston of area $0.010 \text{ m}^2$. The output piston has area $0.10 \text{ m}^2$. (a) State Pascal’s principle. [1]
(b) Calculate the output force. [2]

---

20. [2 marks] A manometer is connected to a gas supply. The liquid level difference is 0.15 m of water (density $1000 \text{ kg/m}^3$). Calculate the excess pressure of the gas over atmospheric ($g=10$).

---

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

Secondary 4 Pure Physics Quiz - Mechanics: Answer Key

Topic: Mechanics
Total Marks: 40
Note: Answers are teaching notes for students. $g = 10 \text{ m/s}^2$ used.

---

Q1 [2 marks]
Average speed = distance / time = $120 / 8.0 = 15 \text{ m/s}$.
Teaching: Speed is scalar; just divide total distance by total time.

Q2 [1 mark]
Acceleration is the rate of change of velocity with time.
Teaching: Vector quantity; units $\text{m/s}^2$.

Q3 [2 marks]
$a = (v - u)/t = (16.0 - 4.0)/6.0 = 12.0/6.0 = 2.0 \text{ m/s}^2$.
Teaching: Use final minus initial velocity.

Q4 [3 marks]
(a) [1] Acceleration = $(8 - 0)/4 = 2.0 \text{ m/s}^2$.
(b) [2] Distance = area under graph = triangle (½×4×8=16) + rectangle (4×8=32) + triangle (½×2×8=8) = 56 m.
Teaching: Area under v-t graph is displacement.

Q5 [2 marks]
Acceleration = $10 \text{ m/s}^2$ downward; mass does not affect it (ignoring air resistance) because all fall at same rate.
Teaching: Free fall acceleration near Earth ≈ 10 m/s².

Q6 [1 mark]
A body stays at rest or uniform velocity unless acted on by net external force.
Teaching: Inertia.

Q7 [2 marks]
$a = F/m = 12 / 3.0 = 4.0 \text{ m/s}^2$.
Teaching: Newton’s second law $F = ma$.

Q8 [2 marks]
Mass: amount of matter, constant, kg. Weight: force of gravity on mass, $W=mg$, N.
Teaching: Weight changes with planet; mass does not.

Q9 [3 marks]
(a) [1] $W = mg = 70 × 10 = 700 \text{ N}$.
(b) [2] Net = $700 - 300 = 400 \text{ N}$ downward.
Teaching: Weight down, drag up; unbalanced force downward.

Q10 [2 marks]
Terminal velocity is when air resistance equals weight, net force zero, constant velocity.
Teaching: No acceleration, forces balanced.

Q11 [1 mark]
Moment = force × perpendicular distance from pivot.
Teaching: Turning effect, unit N m.

Q12 [2 marks]
Moment = $20 × 0.30 = 6.0 \text{ N m}$.
Teaching: Perpendicular distance used.

Q13 [3 marks]
Left moment = $6 × 0.50 = 3.0 \text{ N m}$. Right must equal: $4 × d = 3.0 → d = 0.75 \text{ m}$ from pivot.
Teaching: Principle of moments; rod weight acts at pivot so no moment.

Q14 [2 marks]
Sum of clockwise moments = sum of anticlockwise moments for equilibrium.
Teaching: No resultant turning effect.

Q15 [2 marks]
Tall narrow has higher CG; easier to move CG outside base when tilted → topples. Wide base lowers CG / larger support.
Teaching: Stability increases with lower CG and wider base.

Q16 [1 mark]
Pressure = force per unit area; $P = F/A$.
Teaching: Pa = N/m².

Q17 [2 marks]
$P = 500 / 0.020 = 25\,000 \text{ Pa}$.
Teaching: Total area both shoes.

Q18 [2 marks]
$P = hρg = 4.0 × 800 × 10 = 32\,000 \text{ Pa}$.
Teaching: Liquid pressure depends on depth, density.

Q19 [3 marks]
(a) [1] Pressure applied to enclosed fluid is transmitted equally.
(b) [2] $F_2 = F_1 × A_2/A_1 = 50 × 0.10/0.010 = 500 \text{ N}$.
Teaching: Pascal’s principle; force multiplied by area ratio.

Q20 [2 marks]
$\Delta P = hρg = 0.15 × 1000 × 10 = 1500 \text{ Pa}$.
Teaching: Manometer measures pressure difference via column height.
