Questions

TuitionGoWhere Practice Paper - Pure Physics Secondary 4

TuitionGoWhere Practice Paper (AI) — Version 1 of 5

Subject: Pure Physics
Level: Secondary 4
Paper: Practice Paper (Topic: Electricity & Magnetism)
Duration: 60 minutes
Total Marks: 60
Name: ________________________
Class: ________
Date: ____________

Instructions:

Answer all questions in the spaces provided.
Show all working clearly where calculations are required.
Use SI units in your answers.
Section A: 10 short questions (2 marks each). Section B: 6 structured questions (4 marks each). Section C: 4 extended questions (5 marks each).
This is syllabus-first practice content generated from LLM-inferred templates; it is not derived from any specific past-year exam.

Section A (20 marks: Questions 1–10, 2 marks each)

1. A transformer has a primary coil of 400 turns and a secondary coil of 100 turns. The primary voltage is 240 V. Calculate the secondary voltage assuming an ideal transformer.

2. State one advantage of a circuit breaker over a fuse in a household circuit.

3. A coil is connected to a galvanometer. A north pole of a magnet is pushed quickly into the coil. State what is observed on the galvanometer.

4. State the function of the neutral wire in a 230 V AC mains circuit.

5. Calculate the total resistance of two resistors, 6 Ω and 3 Ω, connected in parallel.

6. A current of 2.0 A flows through a 12 V heater. Calculate the power dissipated.

7. State Lenz’s law of electromagnetic induction in one sentence.

8. A 230 V appliance has a power rating of 1840 W. Calculate the current it draws.

9. Give one reason why the earth wire is important for a metal-cased appliance.

10. A step-up transformer increases voltage from 50 V to 250 V. If the primary current is 10 A, calculate the secondary current assuming 100% efficiency.

Section B (24 marks: Questions 11–16, 4 marks each)

11. A household has three appliances: 2000 W kettle, 1500 W iron, and 800 W fan connected to a 230 V supply protected by a 13 A fuse. (a) Calculate the total current drawn when all operate. [2] (b) Determine if the fuse will blow. [1] (c) Suggest one safety improvement. [1]

12.

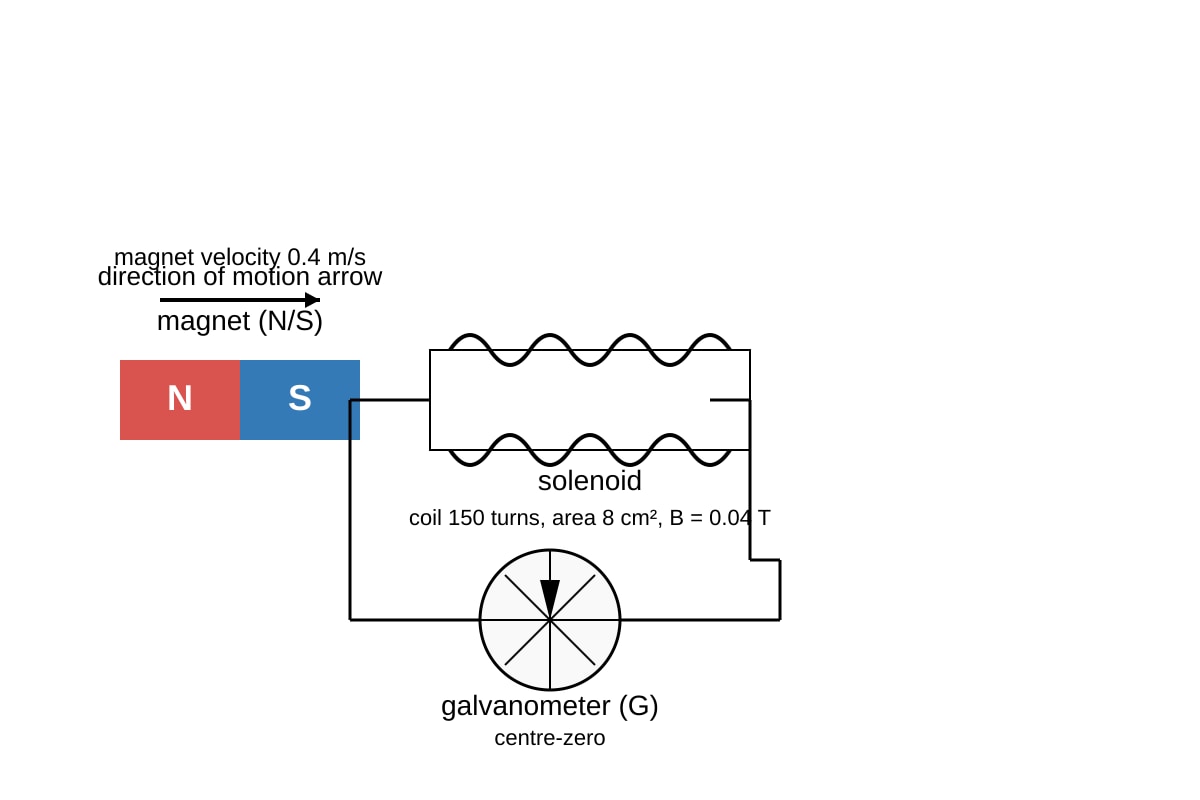

Experimental Setup for Q12 (SEC4 Pure Physics)

Generated experimental_setup for Q12.

A student moves a magnet as shown. (a) State Faraday’s law. [1] (b) Calculate induced EMF using $EMF = B \ell v$ style approximation with given values. [2] (c) Predict reading if magnet reversed. [1]

13. A series circuit has a 9 V battery and two resistors of 4 Ω and 5 Ω. (a) Calculate total resistance. [1] (b) Calculate current. [1] (c) Calculate p.d. across the 5 Ω resistor. [2]

14. Explain how a transformer works using the principle of electromagnetic induction. Include the roles of primary, secondary, and core. [4]

15.

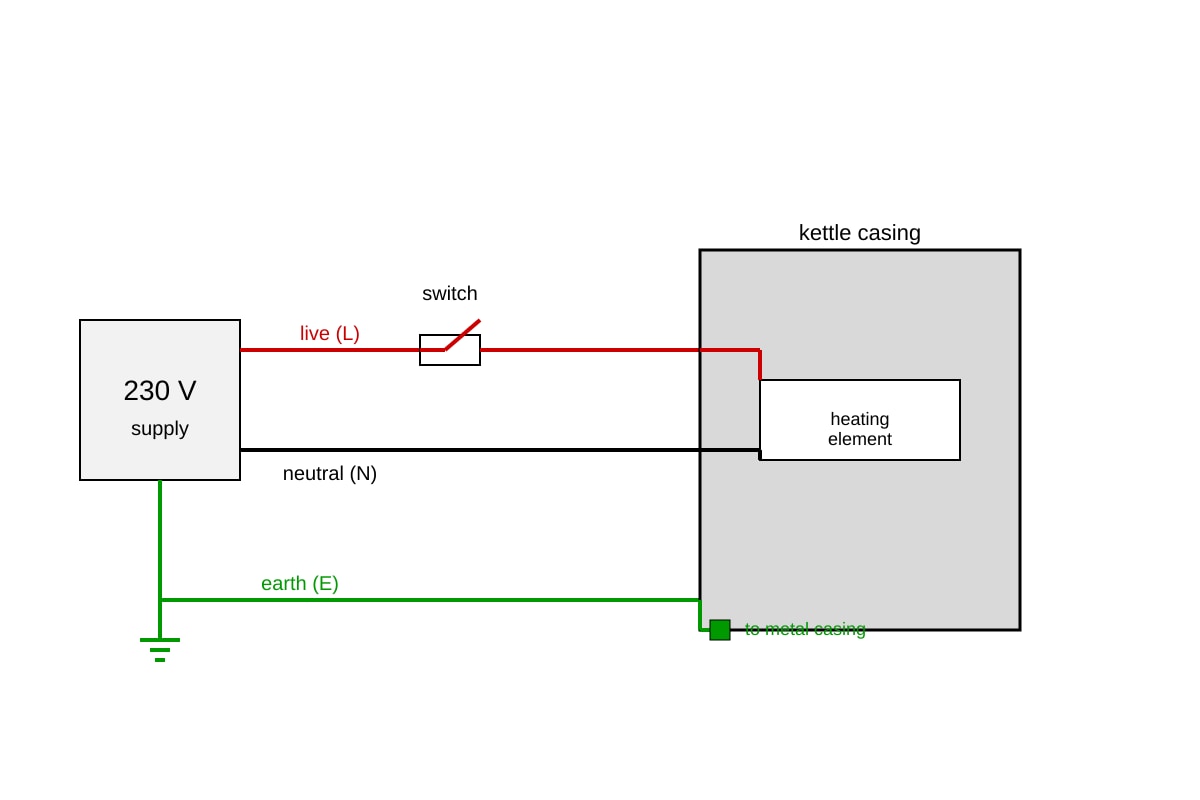

Diagram for Q15 (SEC4 Pure Physics)

Generated diagram for Q15.

Using the diagram, (a) state the function of the earth wire. [1] (b) Explain how the switch protects the user. [1] (c) State what happens if live wire touches casing without earth. [2]

16. A 12 V battery charges a capacitor indirectly via motor; instead, calculate: A DC motor draws 3 A at 24 V. (a) Calculate input power. [1] (b) If efficiency is 80%, calculate useful mechanical power. [2] (c) State one energy loss. [1]

Section C (16 marks: Questions 17–20, 5 marks each)

17. A step-down transformer has 1000 primary turns, 200 secondary turns, primary voltage 250 V, primary current 0.5 A, efficiency 80%. (a) Calculate secondary voltage. [1] (b) Calculate ideal secondary current. [1] (c) Calculate actual secondary current with efficiency. [2] (d) State one reason for energy loss. [1]

18.

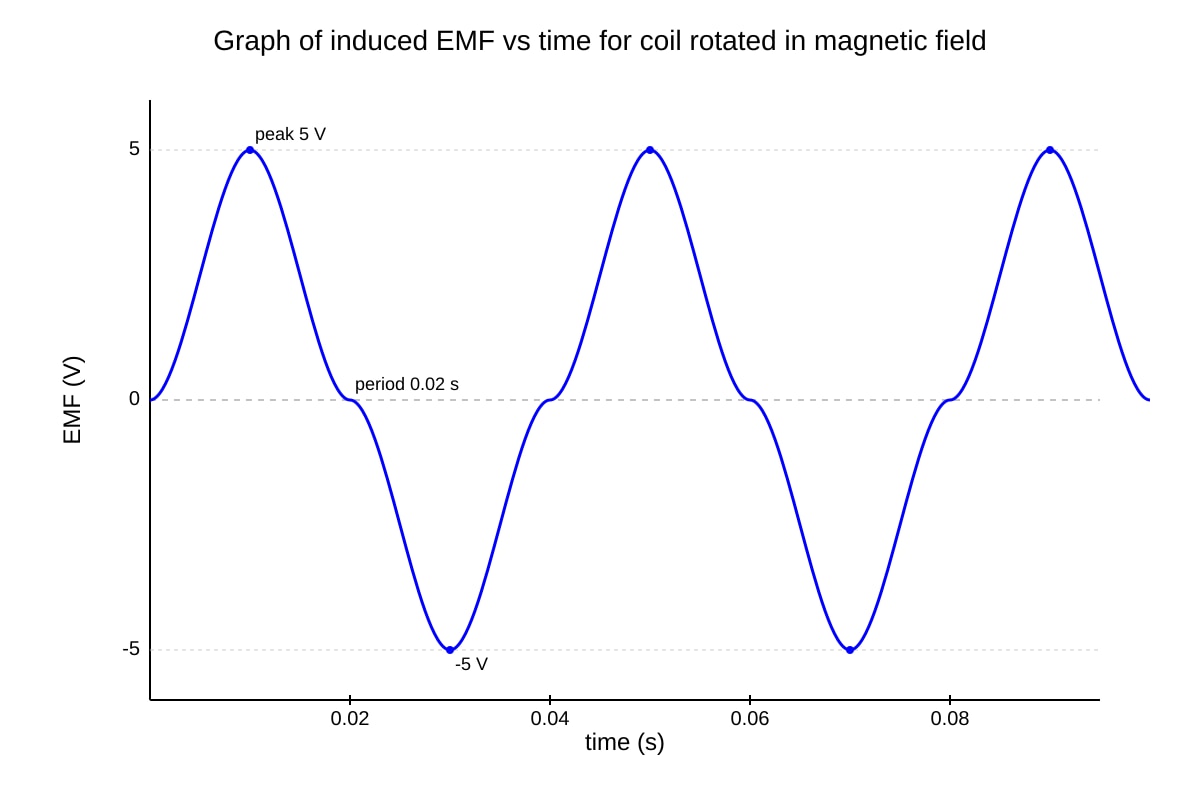

Graph for Q18 (SEC4 Pure Physics)

Generated graph for Q18.

(a) From the graph, state if output is AC or DC. [1] (b) Calculate frequency. [1] (c) Explain how rotation speed affects EMF. [2] (d) State one use of such generator. [1]

19. A student connects 3 identical resistors of 6 Ω in (i) series, (ii) parallel to a 12 V source. (a) Calculate total resistance each case. [2] (b) Calculate current each case. [2] (c) State which arrangement gives more power and why. [1]

20. A power transmission line uses step-up transformer 2 kV to 20 kV, efficiency 95%, secondary current 5 A. (a) Calculate secondary power. [1] (b) Calculate primary power. [1] (c) Calculate primary current. [2] (d) State why high voltage used. [1]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Pure Physics Secondary 4 (Answers)

Version 1 of 5 — Answer Key & Teaching Notes

Section A (20 marks)

Q1 [2] Secondary turns $N_s = 100$ , primary $N_p = 400$ , $V_p = 240$ V. Ideal transformer: $\frac{V_s}{V_p} = \frac{N_s}{N_p}$ $V_s = 240 \times \frac{100}{400} = 60$ V. Teaching: Step-down because fewer secondary turns. Answer: 60 V.

Q2 [2] A circuit breaker can be reset and reused; a fuse must be replaced after blowing. Teaching: Both protect from overcurrent, but breaker is convenient. Accept: faster response, reusable.

Q3 [2] Galvanometer needle deflects momentarily to one side. Teaching: Moving magnet changes flux, inducing EMF/current (Faraday). Direction depends on pole.

Q4 [2] Returns current to supply at approximately zero potential; completes circuit. Teaching: Not same as earth; neutral is path for normal current.

Q5 [2] $\frac{1}{R} = \frac{1}{6} + \frac{1}{3} = \frac{1}{2}$ , so $R = 2\ \Omega$ . Teaching: Parallel lowers total resistance. Answer: 2 Ω.

Q6 [2] $P = IV = 2.0 \times 12 = 24$ W. Teaching: Power = current × voltage. Answer: 24 W.

Q7 [2] Induced current direction opposes the change producing it. Teaching: Lenz’s law is about opposition (conservation of energy).

Q8 [2] $I = P/V = 1840 / 230 = 8.0$ A. Teaching: Rearrange $P = IV$ . Answer: 8.0 A.

Q9 [2] Carries fault current to earth, blowing fuse/breaker, preventing shock. Teaching: Protects user if live touches metal case.

Q10 [2] Ideal: $V_p I_p = V_s I_s$ → $50 \times 10 = 250 \times I_s$ → $I_s = 2.0$ A. Teaching: Step-up voltage steps down current. Answer: 2.0 A.

Section B (24 marks)

Q11 [4] (a) Total $P = 2000+1500+800 = 4300$ W; $I = 4300/230 = 18.7$ A [2] (b) 18.7 A > 13 A → fuse blows [1] (c) Use 30 A fuse or fewer appliances together [1]

Q12 [4] (a) Induced EMF ∝ rate of change of magnetic flux [1] (b) Approx $EMF = N \times B \times A \times (v/\text{length})$ ; using given: $A = 8\times10^{-4}$ m², $EMF \approx 150 \times 0.04 \times 8\times10^{-4} \times 0.4 / 0.1 \approx 0.019$ V (accept range) [2] (c) Opposite deflection [1]

Q13 [4] (a) $R = 4+5 = 9\ \Omega$ [1] (b) $I = 9/9 = 1.0$ A [1] (c) $V = IR = 1.0 \times 5 = 5.0$ V [2]

Q14 [4] Primary AC produces changing flux in core [1]; core links to secondary [1]; changing flux induces EMF in secondary (Faraday) [1]; ratio set by turns [1].

Q15 [4] (a) Carries fault current to earth [1] (b) Switch on live isolates appliance from source [1] (c) User touching casing gets shock; earth prevents by blowing fuse [2]

Q16 [4] (a) $P = 24 \times 3 = 72$ W [1] (b) $0.8 \times 72 = 57.6$ W [2] (c) Heat loss in coils [1]

Section C (16 marks)

Q17 [5] (a) $V_s = 250 \times 200/1000 = 50$ V [1] (b) Ideal $I_s = 0.5 \times 1000/200 = 2.5$ A [1] (c) $0.8 \times 250 \times 0.5 = 50 \times I_s$ → $I_s = 2.0$ A [2] (d) Heating in coils / eddy currents [1]

Q18 [5] (a) AC (sinusoidal) [1] (b) $f = 1/0.02 = 50$ Hz [1] (c) Faster rotation → faster flux change → higher EMF [2] (d) Power supply / grid generator [1]

Q19 [5] (a) Series $18\ \Omega$ , parallel $2\ \Omega$ [2] (b) Series $12/18 = 0.67$ A, parallel $12/2 = 6$ A [2] (c) Parallel: more current → more power ( $P = V^2/R$ ) [1]

Q20 [5] (a) $P_s = 20k \times 5 = 100$ kW [1] (b) $P_p = 100/0.95 = 105.3$ kW [1] (c) $I_p = 105.3k / 2k = 52.6$ A [2] (d) Reduces current, reduces $I^2R$ loss [1]
