Questions

TuitionGoWhere Practice Paper - Pure Biology Secondary 4

TuitionGoWhere Practice Paper (AI)
Version: 4 of 5
Subject: Pure Biology
Level: Secondary 4
Paper: Practice Paper (Topic: Cells & Biomolecules)
Duration: 45 minutes
Total Marks: 40
Name: ________________________
Class: ____________
Date: ____________

Instructions

This practice paper contains 20 questions on Cells & Biomolecules.
Answer all questions in the spaces provided.
Marks for each question are shown in brackets.
Use blue or black pen. Diagrams may be drawn in pencil.

Section A: Recall and Identification (Questions 1–6) [6 marks]

Name the cell structure that contains chlorophyll and is the site of photosynthesis. [1]
Which type of cell in the root absorbs water from the soil? [1]
State the chemical elements present in a protein. [1]
Name the biological molecule that is tested using iodine solution. [1]
What term describes the movement of water molecules from a region of higher water potential to a region of lower water potential through a partially permeable membrane? [1]
Using the lock-and-key model, what part of the enzyme binds to the substrate? [1]

Section B: Structured Response and Interpretation (Questions 7–14) [20 marks]

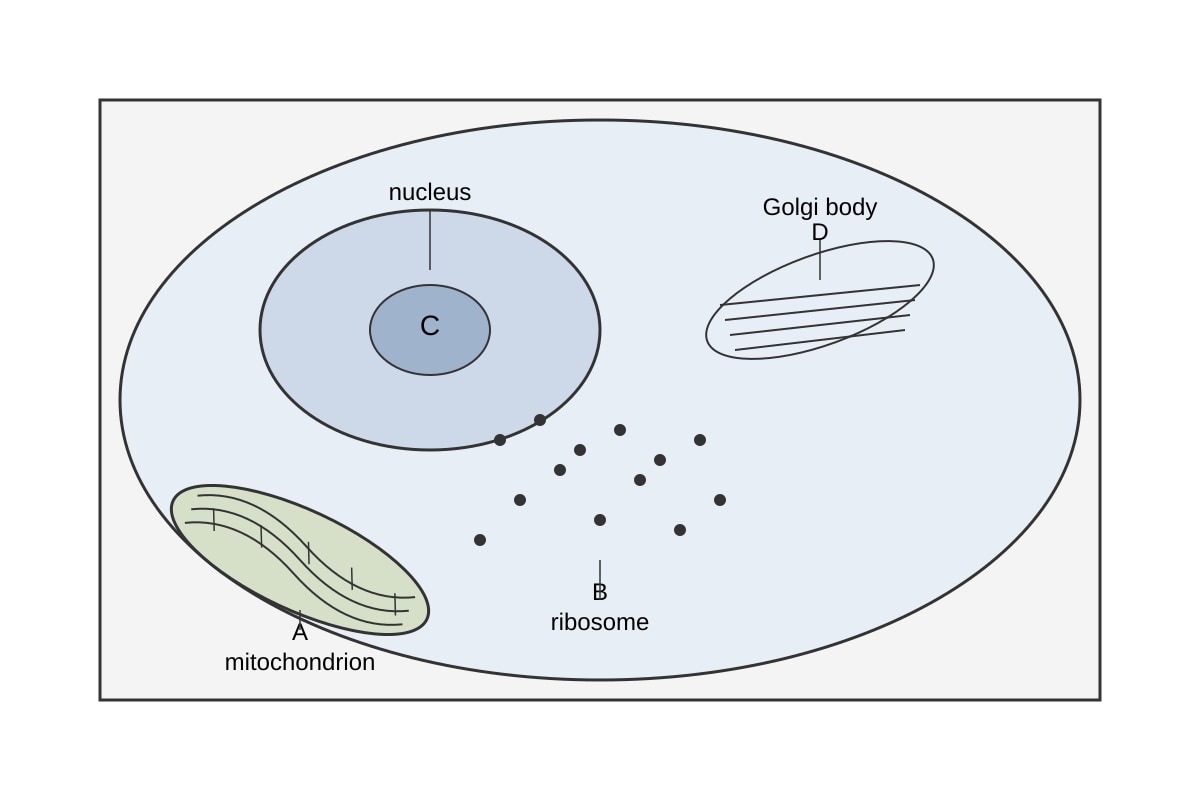

The diagram below shows an electron micrograph of an animal cell.

Diagram for Q7 (SEC4 Pure Biology)

Generated diagram for Q7.

(a) Which labelled structure is the site of ATP production? [1]
(b) State one function of structure B. [1]

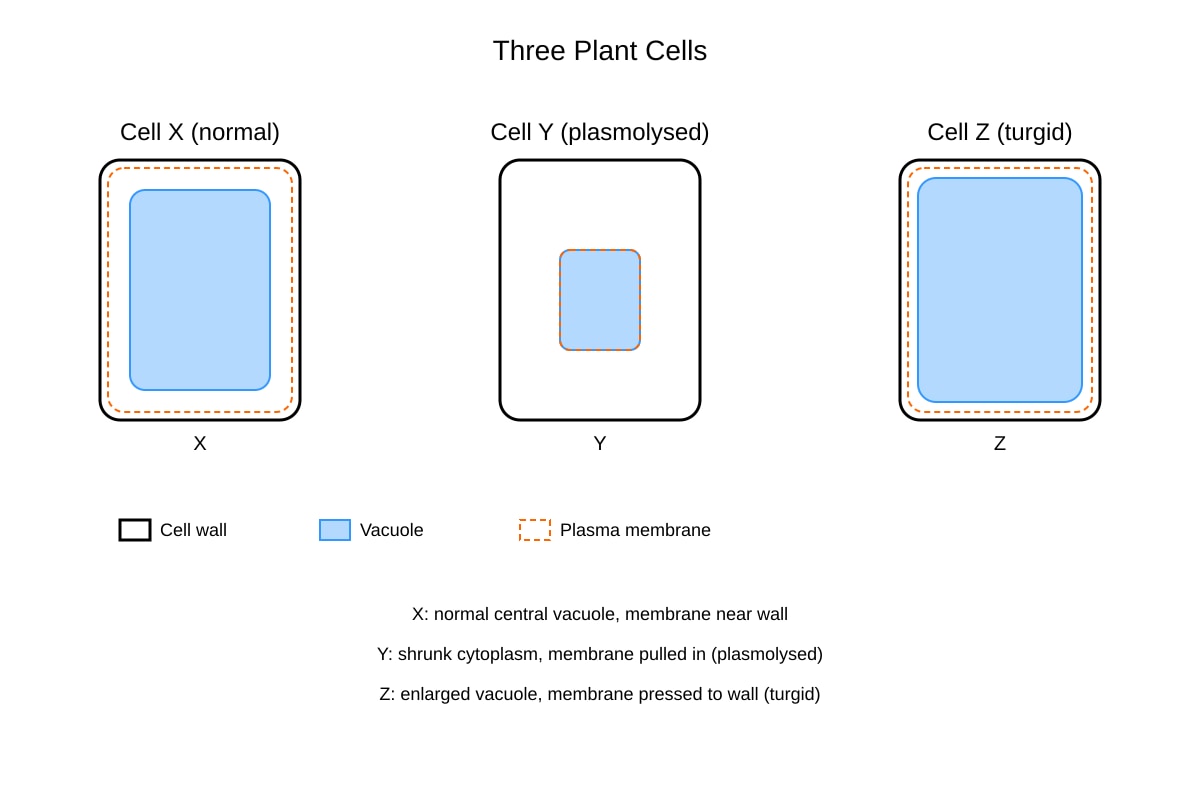

A student placed three identical plant cells into three different sucrose solutions. After 30 minutes, the cells appeared as shown.

Diagram for Q8 (SEC4 Pure Biology)

Generated diagram for Q8.

(a) Which cell was placed in a hypertonic solution? [1]
(b) Explain your answer. [2]

Complete the table below by naming the transport mechanism for each substance movement. [3]

Substance movement	Transport mechanism
Oxygen from alveolus to blood
Glucose from intestine to blood
Water from soil to root hair cell

Describe how a red blood cell would be affected if placed in a solution with a lower water potential than its cytoplasm. [3]
A food sample was tested as follows:

Added Benedict's solution and heated: no colour change.
Added biuret solution: purple colour formed.
Added iodine solution: no colour change.
State which biomolecule is present and which is absent. [3]

Explain why the wall of the small intestine is folded into villi and microvilli. [2]

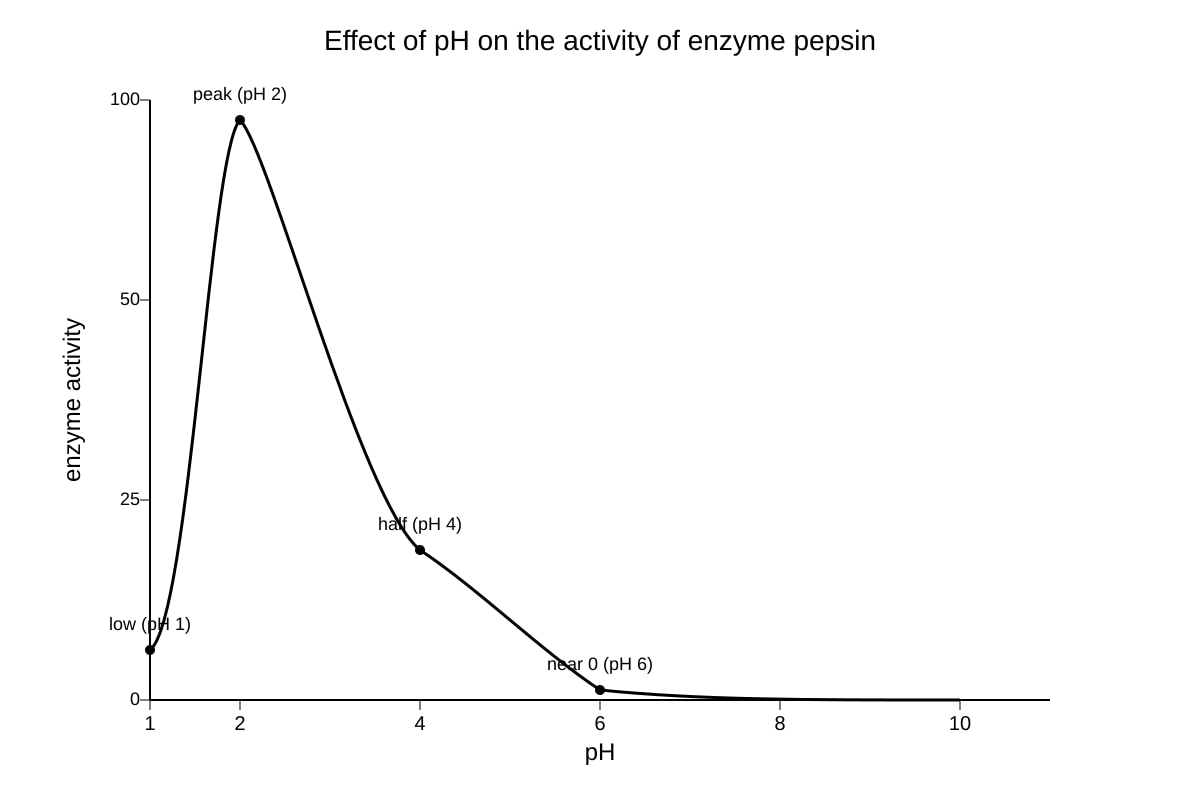

The graph shows the effect of pH on the activity of enzyme pepsin.

Graph for Q13 (SEC4 Pure Biology)

Generated graph for Q13.

(a) State the optimum pH for pepsin. [1]
(b) Explain why activity is low at pH 8. [2]

State two structural differences between a typical plant cell and a typical animal cell. [2]

Section C: Application and Data (Questions 15–20) [14 marks]

An investigation studied the effect of temperature on amylase activity. The table shows time taken to digest starch at different temperatures.

Temperature (°C)	Time to digest starch (min)
20	12
30	6
40	3
50	5
60	10

(a) Describe the trend from 20°C to 40°C. [1]
(b) Explain why time increases at 60°C. [2]

A cell membrane is partially permeable. Define diffusion and state one example in the human body. [3]

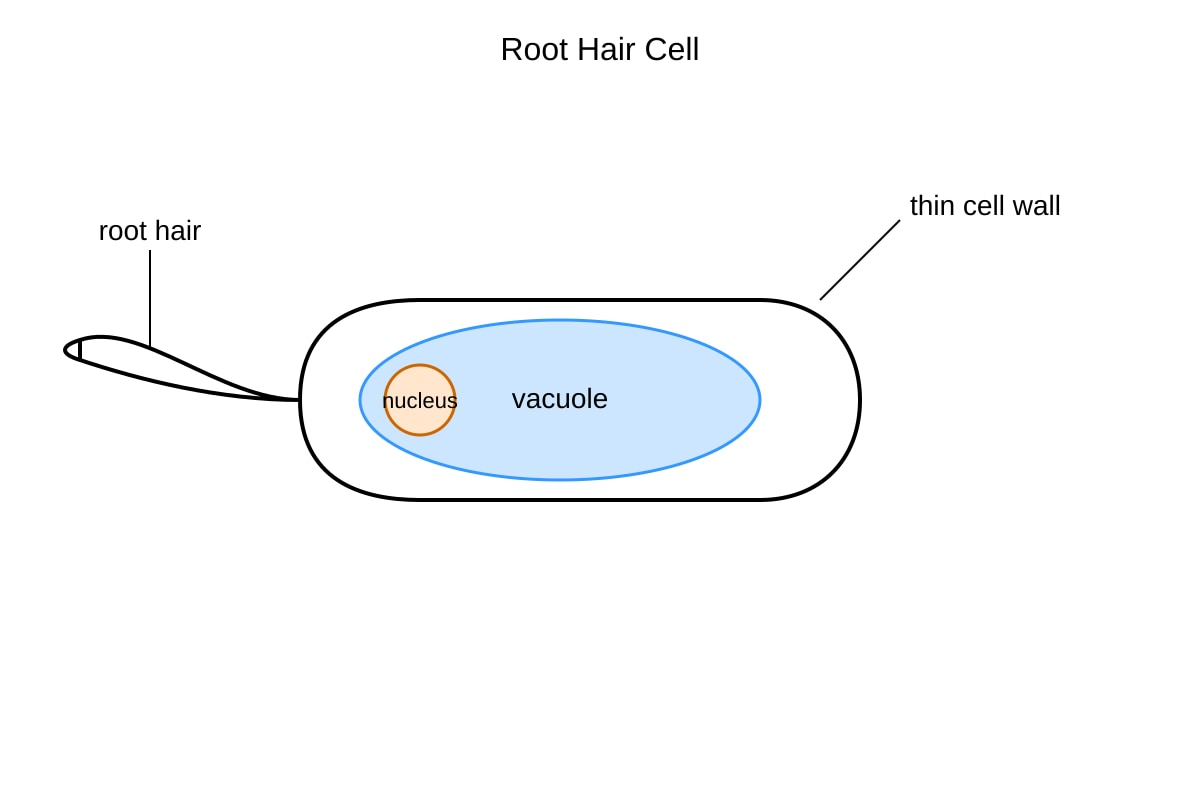

The diagram shows a specialised cell.

Diagram for Q17 (SEC4 Pure Biology)

Generated diagram for Q17.

Explain how this cell is adapted for water absorption. [3]

Compare active transport and diffusion in terms of energy use and direction of movement. [3]
A student tested a leaf for starch. After boiling, decolourising, and adding iodine, the leaf turned blue-black. What does this show? [1]
Enzyme X has an optimum temperature of 37°C. Predict and explain the effect on its activity if body temperature rises to 42°C. [2]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Pure Biology Secondary 4 (Answers)

Version: 4 of 5
Total Marks: 40

Section A

Chloroplast [1]
Teaching note: Chloroplasts contain chlorophyll which absorbs light energy for photosynthesis.
Root hair cells [1]
Teaching note: Root hair cells are specialised epidermal cells with long projections increasing surface area for water uptake.
Carbon, hydrogen, oxygen, nitrogen (sometimes sulphur) [1]
Teaching note: Proteins are made of amino acids containing C, H, O, N; some have S.
Starch [1]
Teaching note: Iodine solution turns blue-black in presence of starch.
Osmosis [1]
Teaching note: Osmosis is diffusion of water through partially permeable membrane.
Active site [1]
Teaching note: In lock-and-key model, substrate fits into enzyme's active site.

Section B

(a) A (mitochondrion) [1]
(b) Protein synthesis [1]
Teaching note: Ribosomes (B) are sites of protein synthesis; mitochondria (A) produce ATP via respiration.
(a) Y [1]
(b) Y is plasmolysed; water moved out of cell into hypertonic solution by osmosis, cytoplasm shrank from cell wall [2]
Marking: 1 for identifying plasmolysis, 1 for osmosis explanation.

Oxygen: Diffusion [1]
Glucose: Active transport [1]
Water: Osmosis [1]
Teaching note: Oxygen moves down gradient; glucose against gradient needs energy; water via osmosis.

Water moves out by osmosis; cell shrinks and becomes crenated [3]
Marks: 1 movement out, 1 shrinkage, 1 crenation term.
Present: protein (biuret purple). Absent: reducing sugar (Benedict no change), starch (iodine no change) [3]
1 mark each.
Increases surface area for absorption of digested food [2]
1 for surface area, 1 for absorption link.
(a) pH 2 [1]
(b) Above optimum pH, enzyme denatures; active site changes shape, cannot bind substrate [2]
Plant cell has cell wall and chloroplasts; animal cell does not. Plant cell has large central vacuole; animal cell has small/no vacuole. [2]
1 mark per difference.

Section C

(a) Time decreases as temperature increases (faster digestion) [1]
(b) At 60°C amylase denatures; active site lost, reaction slows [2]
Diffusion: movement of particles from high to low concentration without energy. Example: oxygen from alveoli to blood [3]
1 def, 1 no energy, 1 example.
Long projection increases surface area; large vacuole maintains water potential gradient; thin wall shortens diffusion path [3]
1 each point.
Active transport uses ATP, moves against gradient. Diffusion no energy, down gradient [3]
1 energy, 1 direction each.
Starch is present (photosynthesis occurred) [1]
Activity decreases; enzyme denatures at 42°C, active site lost [2]
