Secondary 4 Elementary Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ______________
Date: ______________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40
Instructions: Answer all 20 questions. Show your working clearly. Calculators are allowed. Take $g = 9.8\ \text{m/s}^2$ where needed (not required here). Use $\pi = 3.142$ only if instructed. Give answers to 3 significant figures where not specified.

---

Section A: Basic Trigonometric Ratios and Right-Angled Triangles (Questions 1–5)

1. In a right-angled triangle, the side opposite $\angle X$ is $5\ \text{cm}$ and the hypotenuse is $13\ \text{cm}$. Find $\sin \angle X$. [2]

Answer: _______________________

2. A ladder of length $10\ \text{m}$ leans against a wall. The foot of the ladder is $6\ \text{m}$ from the wall. Find the angle the ladder makes with the ground. [2]

Answer: _______________________

3. In right-angled triangle $PQR$, $\angle R = 90^\circ$, $PR = 8\ \text{cm}$, $QR = 15\ \text{cm}$. Find $\tan \angle P$. [2]

Answer: _______________________

4. A tree casts a shadow of $12\ \text{m}$ when the angle of elevation of the sun is $40^\circ$. Find the height of the tree. [2]

Answer: _______________________

5. In right-angled triangle $ABC$, $\angle B = 90^\circ$, $AB = 7\ \text{cm}$, $BC = 24\ \text{cm}$. Find the length of $AC$. [2]

Answer: _______________________

---

Section B: Sine and Cosine Rules, and Non-Right Triangles (Questions 6–10)

6. In triangle $DEF$, $DE = 9\ \text{cm}$, $EF = 7\ \text{cm}$, and $\angle E = 60^\circ$. Find the length of $DF$. [3]

Answer: _______________________

7. In triangle $XYZ$, $XY = 10\ \text{cm}$, $YZ = 14\ \text{cm}$, $XZ = 8\ \text{cm}$. Find $\angle Y$ using the cosine rule. [3]

Answer: _______________________

8. In triangle $ABC$, $\angle A = 50^\circ$, $\angle B = 70^\circ$, and $BC = 12\ \text{cm}$. Find the length of $AC$ using the sine rule. [3]

Answer: _______________________

9. A triangle has sides $5\ \text{cm}$, $6\ \text{cm}$, and $7\ \text{cm}$. Find the area of the triangle using the formula $\frac{1}{2}ab\sin C$. [3]

Answer: _______________________

10. In triangle $PQR$, $PQ = 11\ \text{cm}$, $\angle P = 35^\circ$, $\angle Q = 75^\circ$. Find $PR$. [3]

Answer: _______________________

---

Section C: Circle Properties and Angle Theorems (Questions 11–15)

11. In the diagram, $A, B, C, D$ lie on a circle with centre $O$. $AC$ is a diameter. If $\angle ABC = 90^\circ$, state the theorem used. [1]

Image pending generation: diagram for Q11.

Answer: _______________________

12. Points $A, B, C, D$ are on a circle. Chord $AC$ subtends $\angle ABC$ and $\angle ADC$ at the circumference. If $\angle ABC = 52^\circ$, find $\angle ADC$. [2]

Image pending generation: diagram for Q12.

Answer: _______________________

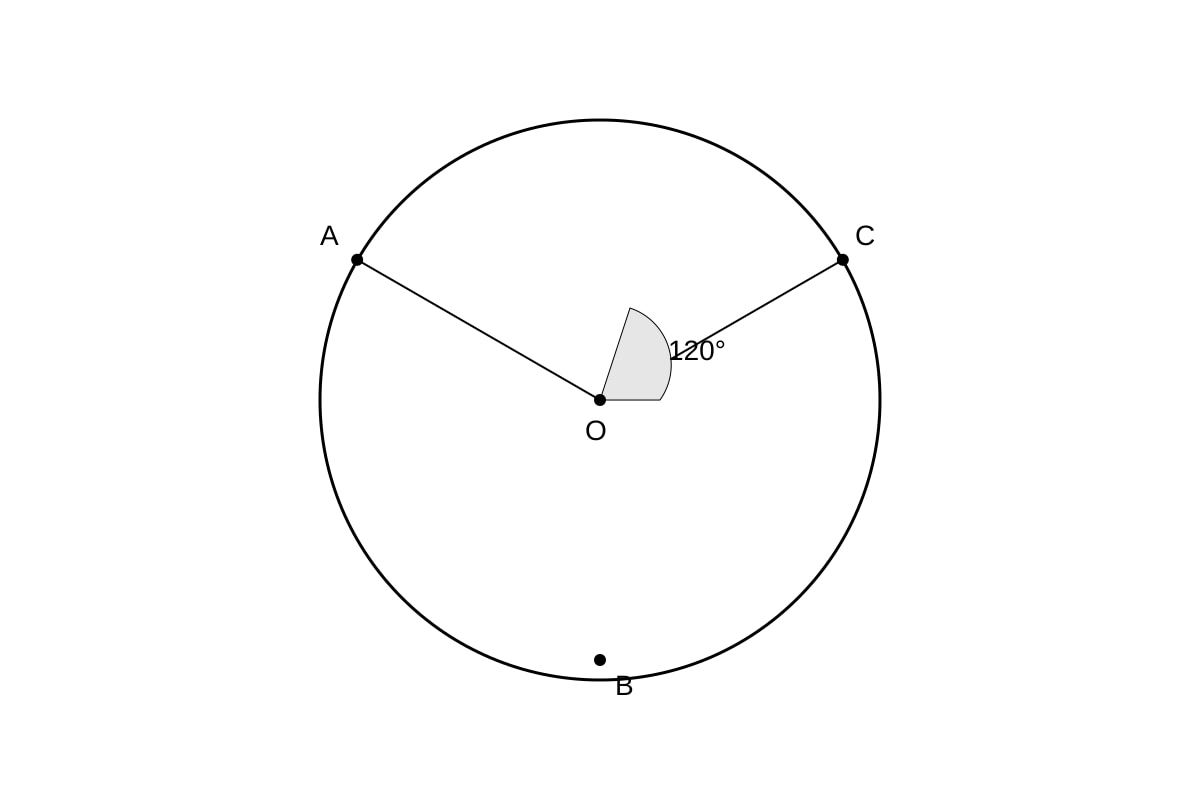

13. In the diagram, $O$ is the centre of the circle. $A, B, C$ are on the circle and $\angle AOC = 120^\circ$. Find $\angle ABC$. [2]

Image pending generation: diagram for Q13.

Answer: _______________________

14. $ABCD$ is a cyclic quadrilateral. $\angle BAD = 100^\circ$. Find $\angle BCD$. [2]

Image pending generation: diagram for Q14.

Answer: _______________________

15. A tangent $TP$ touches a circle at $P$. $OP$ is a radius. State the angle between $TP$ and $OP$. [1]

Image pending generation: diagram for Q15.

Answer: _______________________

---

Section D: Similarity, 3D Trigonometry, and Applied Problems (Questions 16–20)

16. Triangles $ABC$ and $DEF$ are similar. $AB = 4\ \text{cm}$, $DE = 10\ \text{cm}$, and the area of $ABC$ is $12\ \text{cm}^2$. Find the area of $DEF$. [3]

Answer: _______________________

17. Explain why triangles $BCR$ and $PCS$ are similar if $BC \parallel PS$ and $\angle BCR$ is shared. [2]

Image pending generation: diagram for Q17.

Answer: _______________________

18. A flagpole stands on horizontal ground. From a point $20\ \text{m}$ away, the angle of elevation to the top is $30^\circ$. Find the height of the flagpole. [2]

Answer: _______________________

19. In the diagram, $V$ is the top of a tower and $A, B$ are points on the ground with $AB = 50\ \text{m}$. $\angle VAB = 90^\circ$, $\angle VBA = 60^\circ$. Find the height $VA$. [3]

Image pending generation: diagram for Q19.

Answer: _______________________

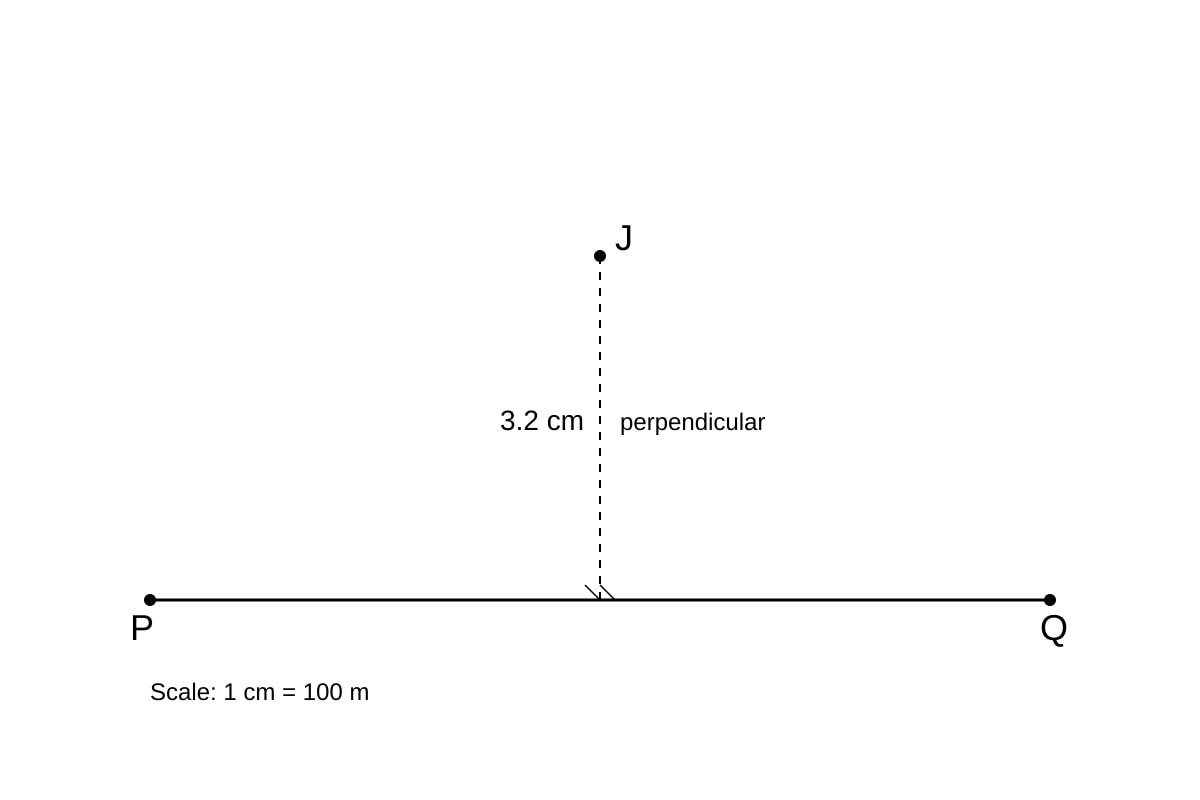

20. A yacht travels from $P$ to $Q$ in a straight line. A jetty $J$ is not on the line. By drawing a perpendicular from $J$ to $PQ$, measure the shortest distance if scale is $1\ \text{cm} = 100\ \text{m}$ and drawn distance is $3.2\ \text{cm}$. [2]

Image pending generation: diagram for Q20.

Answer: _______________________

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

Secondary 4 Elementary Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 40
Instructions for use: Each answer shows step-by-step working. Marks are as per quiz.

---

Section A

1. [2 marks]
$\sin \angle X = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{5}{13}$
Answer: $\frac{5}{13}$ or $0.385$
Teaching: Sine ratio is opposite ÷ hypotenuse. No further calc needed.

2. [2 marks]
Let $\theta$ be angle with ground. $\cos \theta = \frac{6}{10} = 0.6$
$\theta = \cos^{-1}(0.6) \approx 53.1^\circ$
Answer: $53.1^\circ$
Teaching: Adjacent (ground) over hypotenuse (ladder) → cosine.

3. [2 marks]
$\tan \angle P = \frac{QR}{PR} = \frac{15}{8} = 1.875$
Answer: $1.875$
Teaching: Tan = opposite (QR) / adjacent (PR) from angle P.

4. [2 marks]
$\tan 40^\circ = \frac{h}{12} \Rightarrow h = 12 \tan 40^\circ \approx 12 \times 0.8391 = 10.07\ \text{m}$
Answer: $10.1\ \text{m}$ (3 s.f.)
Teaching: Angle of elevation, opposite = height, adjacent = shadow.

5. [2 marks]
By Pythagoras: $AC = \sqrt{7^2 + 24^2} = \sqrt{49+576} = \sqrt{625} = 25\ \text{cm}$
Answer: $25\ \text{cm}$

---

Section B

6. [3 marks]
Cosine rule: $DF^2 = DE^2 + EF^2 - 2(DE)(EF)\cos E$
$= 9^2 + 7^2 - 2(9)(7)\cos 60^\circ = 81+49 - 126(0.5) = 130 - 63 = 67$
$DF = \sqrt{67} \approx 8.19\ \text{cm}$
Answer: $8.19\ \text{cm}$

7. [3 marks]
$\cos Y = \frac{XY^2 + YZ^2 - XZ^2}{2(XY)(YZ)} = \frac{100+196-64}{2(10)(14)} = \frac{232}{280} = 0.8286$
$\angle Y = \cos^{-1}(0.8286) \approx 34.0^\circ$
Answer: $34.0^\circ$

8. [3 marks]
Sine rule: $\frac{AC}{\sin B} = \frac{BC}{\sin A}$
$\angle C = 180 - 50 - 70 = 60^\circ$ (not needed directly)
$AC = \frac{12 \sin 70^\circ}{\sin 50^\circ} = \frac{12 \times 0.9397}{0.7660} \approx 14.7\ \text{cm}$
Answer: $14.7\ \text{cm}$

9. [3 marks]
Let $a=5, b=6, c=7$. $\cos C = \frac{25+36-49}{2(5)(6)} = \frac{12}{60}=0.2$
$C = \cos^{-1}(0.2) \approx 78.46^\circ$
Area $= \frac{1}{2}(5)(6)\sin 78.46^\circ = 15 \times 0.9798 = 14.7\ \text{cm}^2$
Answer: $14.7\ \text{cm}^2$

10. [3 marks]
$\angle R = 180 - 35 - 75 = 70^\circ$
Sine rule: $\frac{PR}{\sin Q} = \frac{PQ}{\sin R}$
$PR = \frac{11 \sin 75^\circ}{\sin 70^\circ} = \frac{11 \times 0.9659}{0.9397} \approx 11.3\ \text{cm}$
Answer: $11.3\ \text{cm}$

---

Section C

11. [1 mark]
Theorem: Angle in a semicircle is $90^\circ$ (Thales' theorem).
Answer: Angle in a semicircle is a right angle.

12. [2 marks]
Angles in same segment are equal. $\angle ADC = \angle ABC = 52^\circ$
Answer: $52^\circ$

13. [2 marks]
Angle at centre = $2 \times$ angle at circumference (same arc).
$\angle ABC = \frac{1}{2} \times 120^\circ = 60^\circ$
Answer: $60^\circ$

14. [2 marks]
Opposite angles in cyclic quadrilateral sum to $180^\circ$.
$\angle BCD = 180^\circ - 100^\circ = 80^\circ$
Answer: $80^\circ$

15. [1 mark]
Tangent perpendicular to radius at point of contact → $90^\circ$.
Answer: $90^\circ$

---

Section D

16. [3 marks]
Linear scale factor $k = \frac{10}{4} = 2.5$
Area scale factor $= k^2 = 6.25$
Area $DEF = 12 \times 6.25 = 75\ \text{cm}^2$
Answer: $75\ \text{cm}^2$

17. [2 marks]
$\angle BCR$ is common to both triangles.
Since $BC \parallel PS$, $\angle CBR = \angle CPS$ (corresponding angles).
Thus $\triangle BCR \sim \triangle PCS$ by AA similarity.
Answer: Shared angle and corresponding angles give AA.

18. [2 marks]
$\tan 30^\circ = \frac{h}{20} \Rightarrow h = 20 \tan 30^\circ = 20 \times 0.5774 = 11.55\ \text{m}$
Answer: $11.5\ \text{m}$ (3 s.f.)

19. [3 marks]
In right triangle $VAB$, $\tan 60^\circ = \frac{VA}{AB} = \frac{VA}{50}$
$VA = 50 \tan 60^\circ = 50 \times 1.732 = 86.6\ \text{m}$
Answer: $86.6\ \text{m}$

20. [2 marks]
Drawn perpendicular = $3.2\ \text{cm}$; scale $1\ \text{cm} = 100\ \text{m}$
Distance = $3.2 \times 100 = 320\ \text{m}$
Answer: $320\ \text{m}$

---

Common mistakes to flag:

• Using wrong ratio (sin/cos/tan) in right triangles.
• Forgetting area scale factor is square of length scale.
• Confusing angle at centre vs circumference (factor of 2).
• Not stating theorem name in circle questions.
