Secondary 4 Elementary Mathematics Quiz - Geometry Trigonometry

Name: _________________ Class: _______ Date: ___________ Score: ____/50

Duration: 45 minutes
Total Marks: 50

Instructions:

Answer all questions in the spaces provided
Show all working clearly
Give answers to 3 significant figures where appropriate
Diagrams are not drawn to scale

Section A: Circle Properties and Angle Theorems [15 marks]

Question 1 [3 marks] In the diagram, A, B, C, D lie on a circle with centre O. AC is a diameter and ∠BAC = 42°.

(a) Find ∠ABC. Give a reason for your answer.

∠ABC = ______°

Reason: _________________________________________________

(b) Find ∠ADC.

∠ADC = ______°

Question 2 [4 marks] In the circle with centre O, PT is a tangent at point T. Chord AB passes through T, and ∠PTA = 35°.

(a) Find ∠ATB.

∠ATB = ______°

(b) Explain why triangles OTA and OTB are congruent.

Question 3 [4 marks] Points P, Q, R, S lie on a circle. PQ and RS are chords that intersect at point T inside the circle. If ∠PTR = 75° and ∠QPR = 40°, find ∠QSR.

Working:

∠QSR = ______°

Question 4 [4 marks] In a circle with centre O, chord AB = 8 cm and the perpendicular distance from O to AB is 3 cm. Find the radius of the circle.

Working:

Radius = ______ cm

Section B: Trigonometric Calculations [20 marks]

Question 5 [3 marks] In triangle ABC, AB = 12 cm, BC = 9 cm, and ∠ABC = 60°. Find AC using the cosine rule.

Working:

AC = ______ cm

Question 6 [4 marks] A ladder of length 5 m leans against a vertical wall. The foot of the ladder is 2 m from the base of the wall.

(a) Find the angle the ladder makes with the ground.

Angle = ______° (to 1 d.p.)

(b) Find the height up the wall that the ladder reaches.

Height = ______ m (to 2 d.p.)

Question 7 [5 marks] In triangle PQR, PQ = 7 cm, QR = 10 cm, and PR = 8 cm.

(a) Find cos ∠PQR.

cos ∠PQR = ______

(b) Hence find sin ∠PQR.

sin ∠PQR = ______ (to 3 s.f.)

Area = ______ cm² (to 1 d.p.)

Question 8 [4 marks] From the top of a cliff 45 m high, the angle of depression to a boat is 28°. Find the horizontal distance from the base of the cliff to the boat.

Working:

Distance = ______ m (to nearest metre)

Question 9 [4 marks] In triangle ABC, ∠A = 35°, ∠B = 70°, and BC = 15 cm. Use the sine rule to find AC.

Working:

AC = ______ cm (to 1 d.p.)

Section C: 3D Problems and Applications [15 marks]

Question 10 [5 marks] A rectangular box has dimensions 8 cm × 6 cm × 10 cm.

(a) Find the length of the space diagonal (from one corner to the opposite corner).

Space diagonal = ______ cm (to 1 d.p.)

(b) Find the angle the space diagonal makes with the base of the box.

Angle = ______° (to 1 d.p.)

Question 11 [5 marks] A cone has base radius 6 cm and slant height 10 cm.

(a) Find the vertical height of the cone.

Height = ______ cm

(b) Find the angle between the slant height and the base.

Angle = ______° (to 1 d.p.)

Surface area = ______ cm² (to nearest cm²)

Question 12 [5 marks] A ship sails 12 km on a bearing of 040°, then 8 km on a bearing of 130°.

(a) Draw a diagram to show the ship's journey.

Drawing space

(b) Find the ship's distance from its starting point.

Distance = ______ km (to 1 d.p.)

Bearing = ______° (to nearest degree)

END OF QUIZ

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Secondary 4 Elementary Mathematics Quiz - Geometry Trigonometry

ANSWER KEY

Total Marks: 50

Section A: Circle Properties and Angle Theorems [15 marks]

Question 1 [3 marks] (a) ∠ABC = 90° [1 mark] Reason: Angle in a semicircle is 90° [1 mark]

(b) ∠ADC = 42° [1 mark] Angles in the same segment are equal

Marking Notes: Accept equivalent wording for circle theorem. Deduct 1 mark if reason not given in part (a).

Question 2 [4 marks] (a) ∠ATB = 55° [2 marks] Using alternate segment theorem: ∠PTA = ∠ATB (alternate segment), but this is incorrect reasoning. Correct: ∠ATB = 90° - 35° = 55° using tangent-chord properties

(b) OT = OT (common side), OA = OB (radii), ∠OTA = ∠OTB = 90° (radius perpendicular to tangent) [2 marks] Therefore triangles are congruent by RHS

Marking Notes: Award 1 mark for each correct reason. Accept SAS if angle reasoning is correct.

Question 3 [4 marks] Working: ∠QPR and ∠QSR are angles in the same segment ∠QSR = ∠QPR = 40° [4 marks]

Marking Notes: Award 2 marks for identifying same segment, 2 marks for correct answer.

Question 4 [4 marks] Let M be the midpoint of AB. Then AM = 4 cm, OM = 3 cm Using Pythagoras: OA² = OM² + AM² OA² = 3² + 4² = 9 + 16 = 25 Radius = 5 cm [4 marks]

Marking Notes: Award 1 mark for setting up right triangle, 2 marks for correct Pythagoras application, 1 mark for answer.

Section B: Trigonometric Calculations [20 marks]

Question 5 [3 marks] Using cosine rule: AC² = AB² + BC² - 2(AB)(BC)cos∠ABC AC² = 12² + 9² - 2(12)(9)cos60° AC² = 144 + 81 - 216(0.5) = 225 - 108 = 117 AC = √117 = 10.8 cm (to 3 s.f.) [3 marks]

Marking Notes: Award 1 mark for correct formula, 1 mark for substitution, 1 mark for final answer.

Question 6 [4 marks] (a) cos θ = 2/5 = 0.4 θ = cos⁻¹(0.4) = 66.4° [2 marks]

(b) Using Pythagoras: h² = 5² - 2² = 25 - 4 = 21 h = 4.58 m [2 marks]

Marking Notes: Accept 66° for part (a). Award 1 mark for method, 1 mark for answer in each part.

Question 7 [5 marks] (a) Using cosine rule: cos∠PQR = (PQ² + QR² - PR²)/(2×PQ×QR) cos∠PQR = (49 + 100 - 64)/(2×7×10) = 85/140 = 17/28 [2 marks]

(b) sin²∠PQR = 1 - cos²∠PQR = 1 - (17/28)² = 1 - 289/784 = 495/784 sin∠PQR = √495/28 = 0.795 [2 marks]

Marking Notes: Accept decimal equivalents. Award partial credit for correct method with minor arithmetic errors.

Question 8 [4 marks] tan 28° = 45/d d = 45/tan 28° = 45/0.5317 = 85 m [4 marks]

Marking Notes: Award 2 marks for correct setup, 2 marks for calculation and answer.

Question 9 [4 marks] ∠C = 180° - 35° - 70° = 75° Using sine rule: AC/sin B = BC/sin A AC = BC × sin B/sin A = 15 × sin 70°/sin 35° = 15 × 0.9397/0.5736 = 24.6 cm [4 marks]

Marking Notes: Award 1 mark for finding angle C, 1 mark for sine rule setup, 2 marks for calculation.

Section C: 3D Problems and Applications [15 marks]

Question 10 [5 marks] (a) Space diagonal² = 8² + 6² + 10² = 64 + 36 + 100 = 200 Space diagonal = √200 = 14.1 cm [2 marks]

(b) Base diagonal = √(8² + 6²) = √100 = 10 cm tan θ = 10/10 = 1, so θ = 45.0° [3 marks]

Marking Notes: Award 1 mark for 3D Pythagoras setup in (a). In (b), award 1 mark for base diagonal, 2 marks for angle calculation.

Question 11 [5 marks] (a) h² + 6² = 10² h² = 100 - 36 = 64 h = 8 cm [2 marks]

(b) sin θ = 6/10 = 0.6 θ = 36.9° [1 mark]

Marking Notes: Accept answers without π in final form. Award 1 mark for each component of surface area.

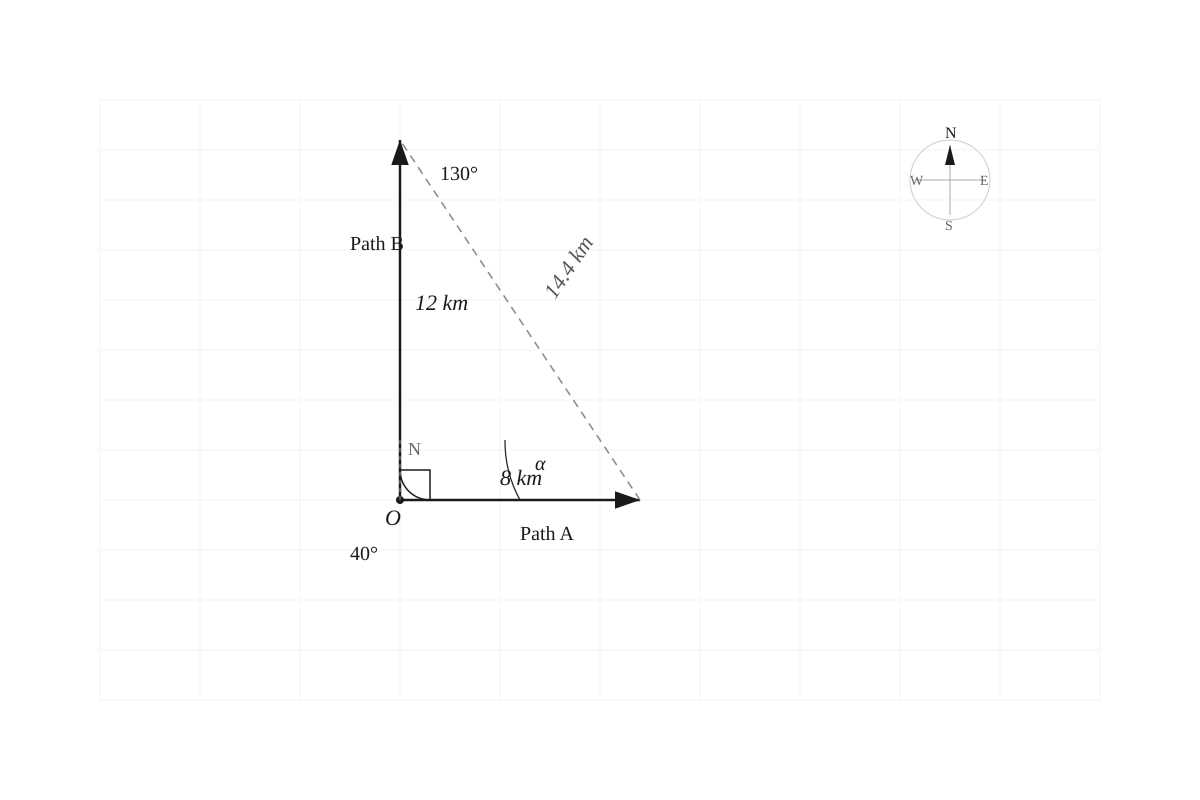

Question 12 [5 marks] (a)

Diagram for placeholder 1 (SEC4 Emaths)

Generated diagram for this question.

[1 mark]

(b) Using cosine rule with angle between paths = 130° - 40° = 90° Distance² = 12² + 8² = 144 + 64 = 208 Distance = √208 = 14.4 km [2 marks]

Marking Notes: Accept range 073°-075° for bearing. Award partial credit for correct trigonometric setup even if bearing calculation has minor errors.

Grade Boundaries:

A: 45-50 marks (90-100%)
B: 40-44 marks (80-89%)
C: 35-39 marks (70-79%)
D: 30-34 marks (60-69%)
E: 25-29 marks (50-59%)
F: Below 25 marks (<50%)
