Secondary 4 Elementary Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ______________
Date: ______________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40

Instructions:

Answer all 20 questions.
Show your working clearly where required.
Use a calculator where appropriate. Give answers to 3 significant figures unless stated.
Write units where necessary.

Section A: Basic Trigonometric Ratios and Angles (Questions 1–5)

1. In a right-angled triangle, the side opposite ∠X is 5 cm and the hypotenuse is 13 cm. Find $\sin \angle X$ . [2]

Answer: _______________________

2. A right-angled triangle has adjacent side 8 m and hypotenuse 10 m to angle ∠Y. Find $\cos \angle Y$ . [2]

Answer: _______________________

3. Given $\tan \angle Z = \frac{3}{4}$ , and the adjacent side is 12 cm, find the length of the opposite side. [2]

Answer: _______________________

4. Find the size of acute angle ∠P if $\sin \angle P = 0.5$ . Give your answer in degrees. [2]

Answer: _______________________

5. A ladder leans against a wall. The ladder is 5 m long and makes an angle of $30^\circ$ with the ground. Find the height up the wall. [2]

Answer: _______________________

Section B: Triangle Similarity and Properties (Questions 6–10)

6. Explain why triangles ABC and DEC are similar if ∠BAC = ∠EDC and ∠ABC = ∠DEC. [2]

Answer: _______________________

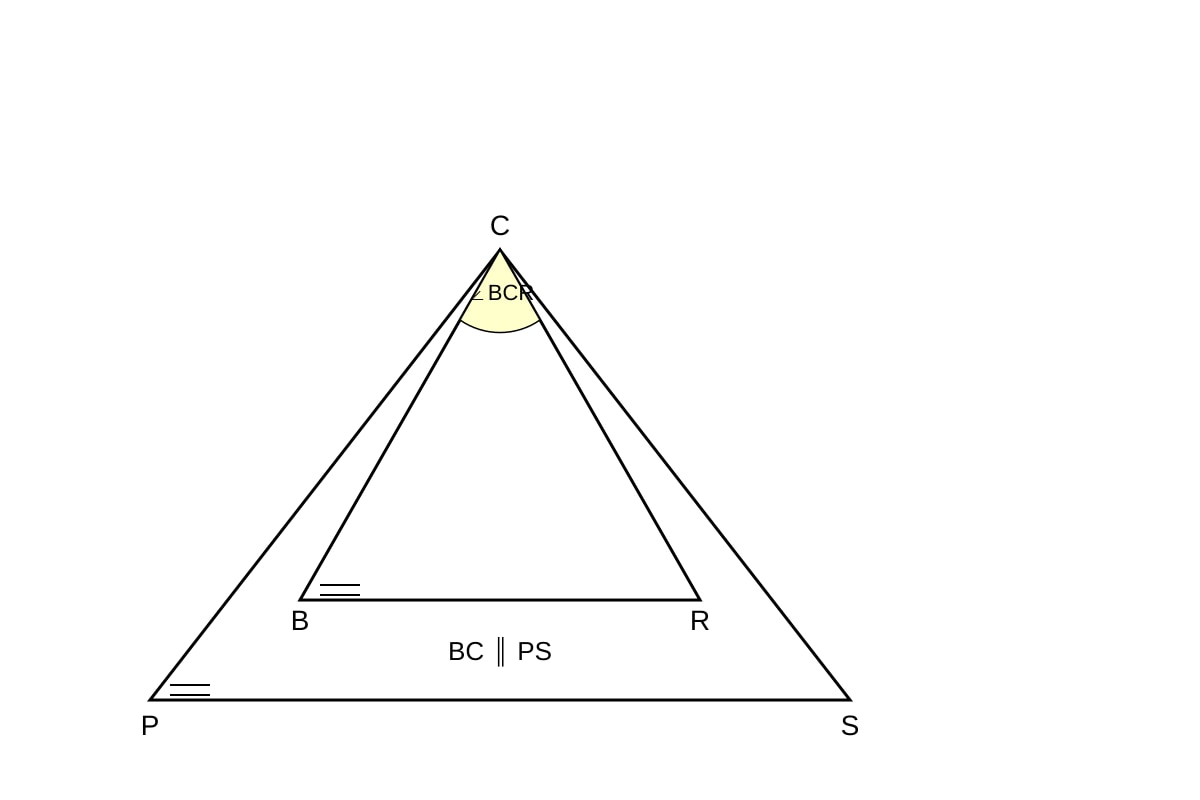

7. In the figure below, BC ∥ PS, and ∠BCR is shared by triangles BCR and PCS. Explain why △BCR ~ △PCS. [2]

Diagram for Q7 (SEC4 Emaths)

Generated diagram for Q7.

Answer: _______________________

8. Triangles PQR and STU are similar with PQ = 4 cm, ST = 6 cm. If QR = 5 cm, find TU. [2]

Answer: _______________________

9. State the test (AA, SAS, or SSS) used to prove similarity in Q6. [1]

Answer: _______________________

10. A triangle has all sides equal to 6 cm. Show it is equilateral. [1]

Answer: _______________________

Section C: Applied and Composite Trigonometry (Questions 11–15)

11. A yacht travels from point A to point B. By drawing a perpendicular from a jetty J to line AB, measure the closest distance if scale is 1 cm : 100 m and measured length is 3.2 cm. [2]

Answer: _______________________

12. In triangle ADC, AD = 7 cm, DC = 25 cm, AC = 24 cm. Show it is right-angled at A, then find $\sin \angle ADC$ . [3]

Answer: _______________________

13. Given $\frac{AB}{AD} = \frac{1}{2}$ and ∠ADB is acute in right triangle ABD with right angle at B, explain why ∠ADB = $\frac{\pi}{6}$ rad. [2]

Answer: _______________________

14. From a point 50 m from a building, the angle of elevation to the top is $40^\circ$ . Find the building height. [2]

Answer: _______________________

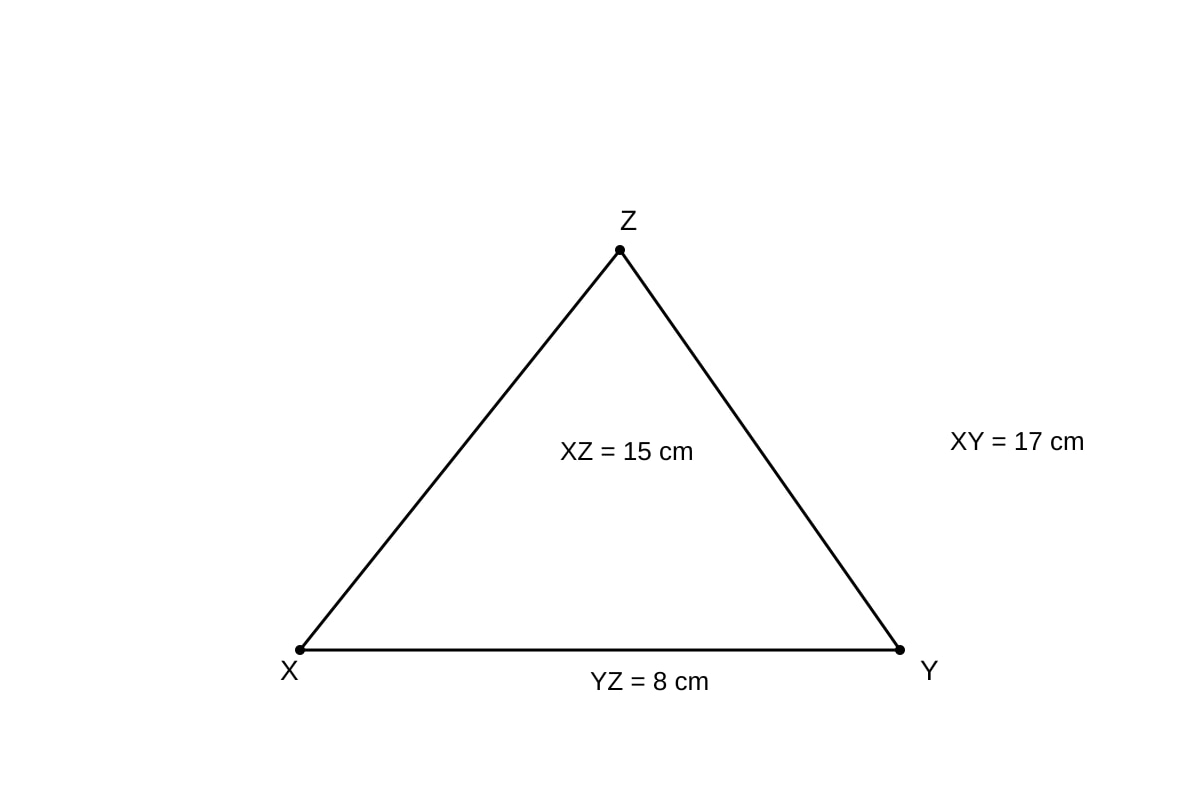

15. In the diagram, find $\cos \angle XYZ$ given XZ = 15 cm, XY = 17 cm, YZ = 8 cm. [2]

Diagram for Q15 (SEC4 Emaths)

Generated diagram for Q15.

Answer: _______________________

Section D: Extended Reasoning (Questions 16–20)

16. A triangle has angles $50^\circ$ , $60^\circ$ , and $70^\circ$ . A second triangle has angles $50^\circ$ and $60^\circ$ . Prove they are similar. [2]

Answer: _______________________

17. In the figure, a flagpole of height h stands on level ground. From a point 30 m away, angle of elevation is $35^\circ$ . Find h. [2]

Answer: _______________________

18. Given $\sin \theta = \frac{5}{13}$ in a right triangle, find $\cos \theta$ and $\tan \theta$ . [3]

Answer: _______________________

19. Use the sine rule to find side a in triangle with A = $30^\circ$ , B = $45^\circ$ , b = 10 cm. [3]

Answer: _______________________

20. A circle has chord AB = 8 cm, distance from centre O to chord is 3 cm. Find radius. [3]

Answer: _______________________

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Answer Key: Secondary 4 Elementary Mathematics Quiz - Geometry Trigonometry

Total Marks: 40
Topic: Geometry Trigonometry

Section A

Q1. [2 marks]
$\sin \angle X = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{5}{13}$
Teaching: Sine ratio is opposite over hypotenuse. Correct identification gives 2 marks.
Answer: $\frac{5}{13}$

Q2. [2 marks]
$\cos \angle Y = \frac{\text{adjacent}}{\text{hypotenuse}} = \frac{8}{10} = \frac{4}{5}$
Teaching: Cosine is adjacent/hypotenuse; simplify fraction.
Answer: $\frac{4}{5}$ or 0.8

Q3. [2 marks]
$\tan \angle Z = \frac{\text{opp}}{\text{adj}} \Rightarrow \frac{3}{4} = \frac{\text{opp}}{12} \Rightarrow \text{opp} = 12 \times \frac{3}{4} = 9$ cm
Teaching: Rearrange tangent ratio.
Answer: 9 cm

Q4. [2 marks]
$\sin \angle P = 0.5 \Rightarrow \angle P = \sin^{-1}(0.5) = 30^\circ$
Teaching: Use inverse sine on calculator.
Answer: $30^\circ$

Q5. [2 marks]
Height = $5 \times \sin 30^\circ = 5 \times 0.5 = 2.5$ m
Teaching: Ladder is hypotenuse, height is opposite to angle.
Answer: 2.5 m

Section B

Q6. [2 marks]
Two angles equal: ∠BAC = ∠EDC and ∠ABC = ∠DEC, so by AA similarity, △ABC ~ △DEC.
Teaching: AA needs two pairs of equal angles.
Answer: AA similarity.

Q7. [2 marks]
∠BCR is common. BC ∥ PS ⇒ ∠CBR = ∠CPS (corresponding angles). Thus △BCR ~ △PCS by AA.
Teaching: Shared angle + corresponding from parallel lines.
Answer: AA similarity with reasons.

Q8. [2 marks]
Scale factor = ST/PQ = 6/4 = 1.5. TU = QR × 1.5 = 5 × 1.5 = 7.5 cm.
Teaching: Similar triangles sides in proportion.
Answer: 7.5 cm

Q9. [1 mark]
AA
Answer: AA

Q10. [1 mark]
All sides equal ⇒ equilateral by definition.
Answer: All sides 6 cm ⇒ equilateral.

Section C

Q11. [2 marks]
Distance = 3.2 cm × 100 m/cm = 320 m.
Teaching: Scale conversion.
Answer: 320 m

Q12. [3 marks]
Check: $7^2 + 24^2 = 49 + 576 = 625 = 25^2$ ⇒ right at A.
$\sin \angle ADC = \frac{AC}{DC} = \frac{24}{25}$
Marking: 1 for right-angle proof, 2 for sin.
Answer: $\frac{24}{25}$

Q13. [2 marks]
In right △ABD, $\sin \angle ADB = \frac{AB}{AD} = \frac{1}{2} \Rightarrow \angle ADB = \sin^{-1}(0.5) = \frac{\pi}{6}$ rad.
Teaching: Ratio matches known sine value.
Answer: $\frac{\pi}{6}$ rad

Q14. [2 marks]
$h = 50 \times \tan 40^\circ \approx 50 \times 0.8391 = 41.96$ m ≈ 42.0 m
Answer: 42.0 m

Q15. [2 marks]
$\cos \angle XYZ = \frac{YZ}{XY} = \frac{8}{17}$ (adjacent to Y is YZ, hyp is XY)
Answer: $\frac{8}{17}$

Section D

Q16. [2 marks]
Third angle of second triangle = $180 - 50 - 60 = 70^\circ$ , matches first ⇒ AA similarity.
Answer: AA by angle sum.

Q17. [2 marks]
$h = 30 \times \tan 35^\circ \approx 30 \times 0.7002 = 21.0$ m
Answer: 21.0 m

Q18. [3 marks]
Opp = 5, Hyp = 13 ⇒ Adj = $\sqrt{13^2 - 5^2} = 12$ .
$\cos \theta = 12/13$ , $\tan \theta = 5/12$ .
Marking: 1 each.
Answer: $\cos = 12/13$ , $\tan = 5/12$

Q19. [3 marks]
$\frac{a}{\sin 30^\circ} = \frac{10}{\sin 45^\circ} \Rightarrow a = \frac{10 \sin 30^\circ}{\sin 45^\circ} = \frac{10 \times 0.5}{0.7071} \approx 7.07$ cm
Answer: 7.07 cm

Q20. [3 marks]
Half chord = 4 cm. Radius $r = \sqrt{4^2 + 3^2} = 5$ cm.
Teaching: Perpendicular from centre bisects chord.
Answer: 5 cm
