TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 4

TuitionGoWhere Practice Paper (AI) — Version 4 of 5

Subject: Elementary Mathematics
Level: Secondary 4
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 60 minutes
Total Marks: 50
Name: ________________________
Class: ________
Date: ________

Instructions:

1. Answer all questions in the spaces provided.
2. Show all working clearly. Marks are awarded for correct methods and final answers.
3. Calculators may be used.
4. Give answers to 3 significant figures where not exact, unless stated otherwise.
5. This practice paper is generated from syllabus-first inferred templates. It is not an official examination paper.

---

Section A (Questions 1–8) — Short Answer [16 marks]

1. In right-angled triangle $PQR$, $\angle PRQ = 90^\circ$, $PR = 5$ cm and $QR = 12$ cm. Find the length of $PQ$. [2]

2. Find the value of $\cos 60^\circ$. [1]

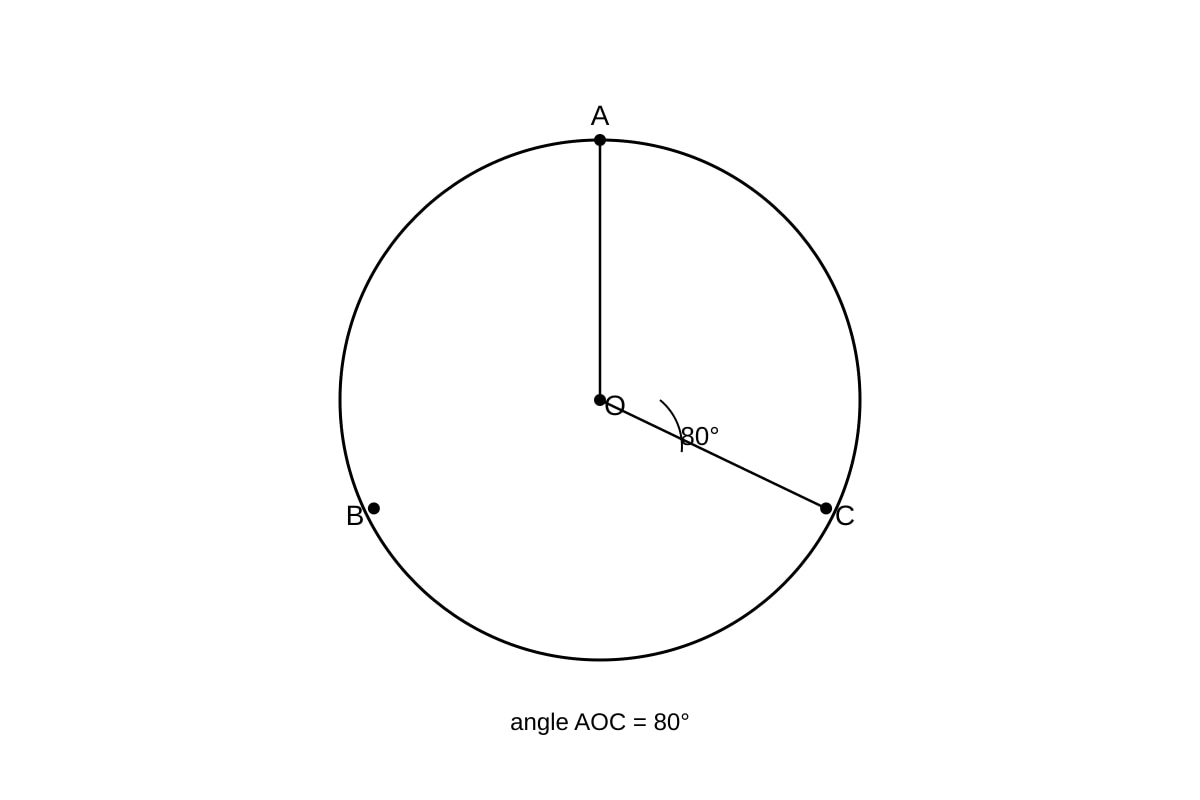

3. In the diagram below, $O$ is the centre of the circle and $A$, $B$, $C$ lie on the circle. $\angle AOC = 80^\circ$. Find $\angle ABC$.

Image pending generation: diagram for Q3.

[2]

4. Triangle $ABC$ is similar to triangle $DEF$. $AB = 4$ cm, $DE = 10$ cm, and the area of $\triangle DEF$ is $75$ cm². Find the area of $\triangle ABC$. [2]

5. A ladder leans against a wall. The foot of the ladder is $2.4$ m from the wall and the ladder is $6$ m long. Find the angle the ladder makes with the ground. [2]

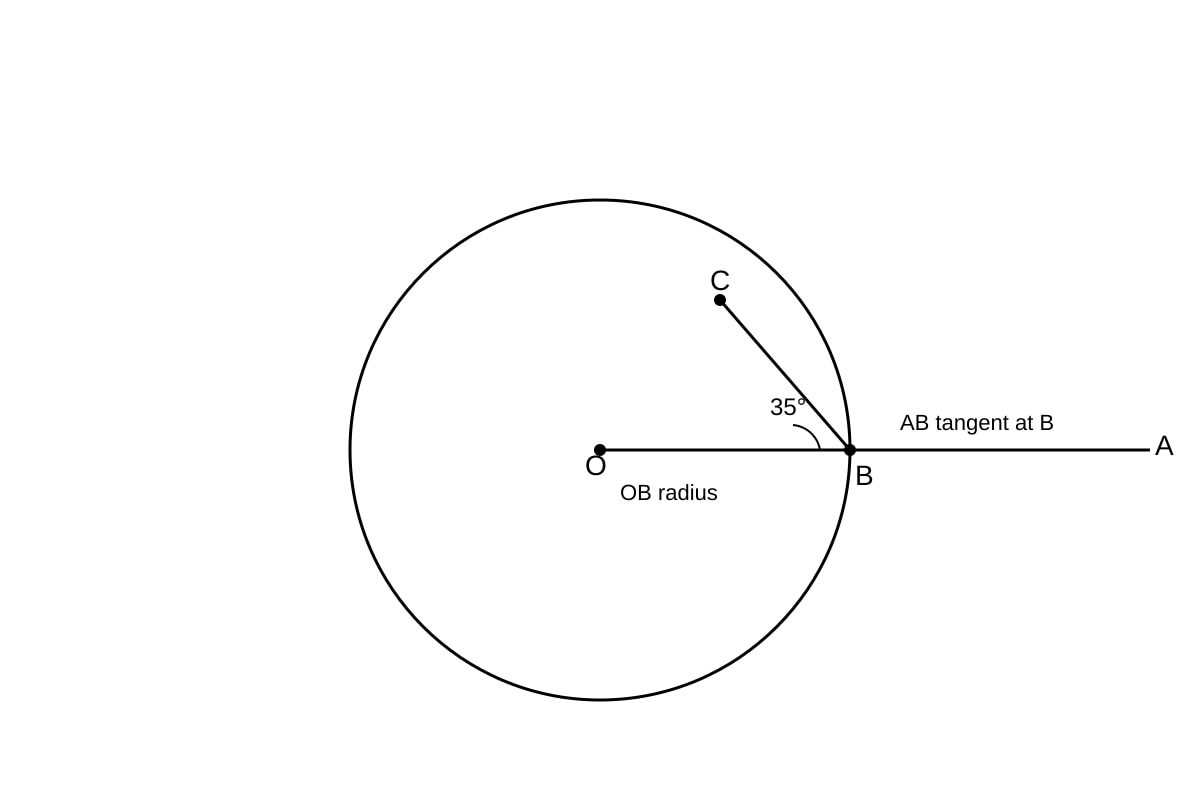

6. In the diagram, $AB$ is a tangent to the circle at $B$. $O$ is the centre. $\angle OBC = 35^\circ$. Find $\angle ABO$.

Image pending generation: diagram for Q6.

[2]

7. Using the sine rule, find the missing side $x$ in triangle $XYZ$ where $YZ = 8$ cm, $\angle X = 30^\circ$, $\angle Y = 45^\circ$. [2]

8. State the angle property: "The angle in a semicircle is always ______." [1]

---

Section B (Questions 9–14) — Structured Response [20 marks]

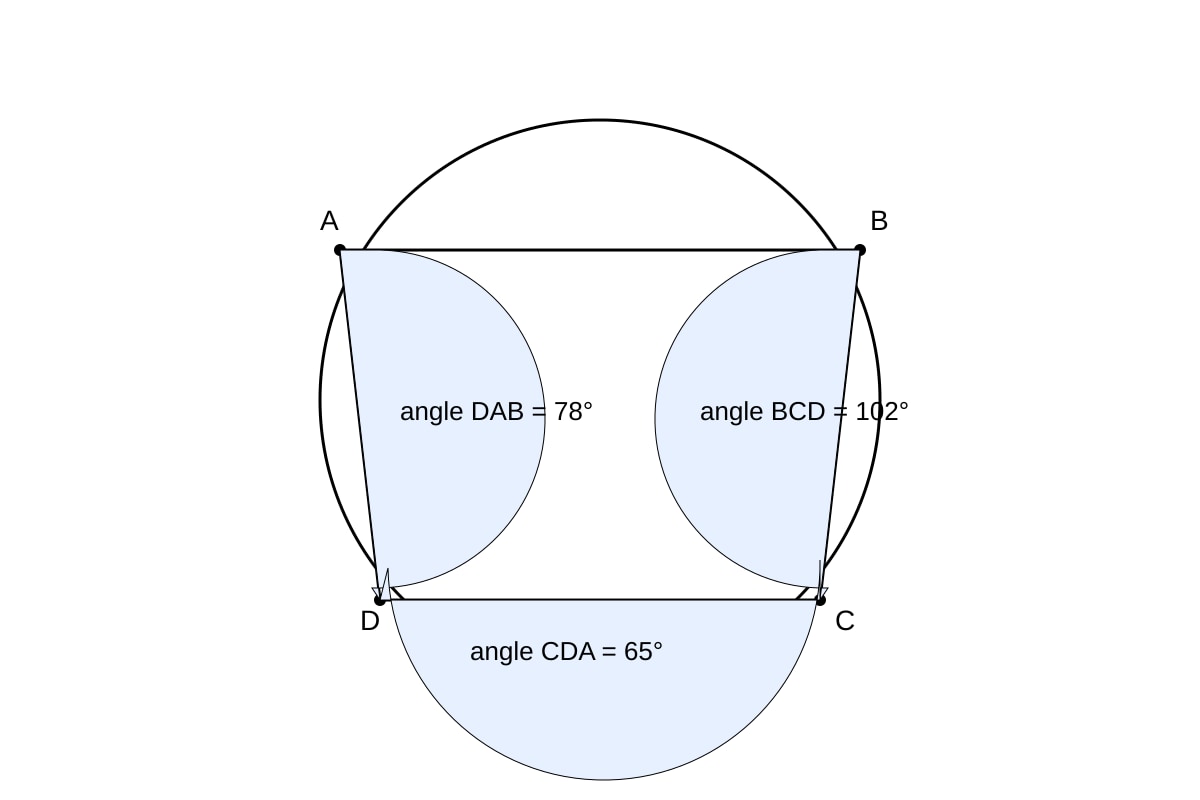

9. In the diagram, $ABCD$ is a cyclic quadrilateral. $\angle DAB = 78^\circ$ and $\angle BCD = 102^\circ$.
(a) State why $ABCD$ is cyclic using the angle property. [1]
(b) Find $\angle ABC$ if $\angle CDA = 65^\circ$. [2]

Image pending generation: diagram for Q9.

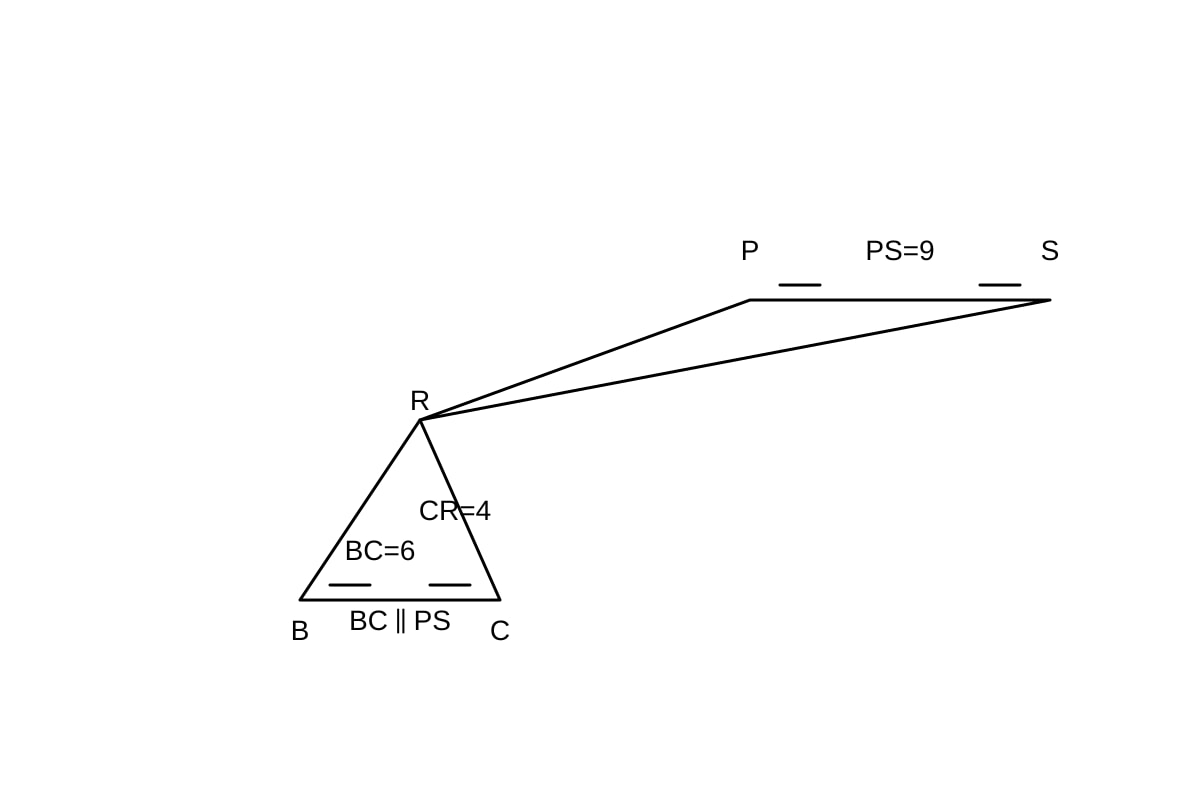

10. Triangles $BCR$ and $PCS$ are shown. $BC \parallel PS$ and $\angle BCR$ is shared with $\angle PCS$.
(a) Explain why $\triangle BCR \sim \triangle PCS$. [2]
(b) If $BC = 6$ cm, $CR = 4$ cm, $PS = 9$ cm, find $CS$. [2]

Image pending generation: diagram for Q10.

11. In $\triangle PQR$, $PQ = 7$ cm, $QR = 10$ cm, $PR = 5$ cm.
(a) Use the cosine rule to find $\angle PQR$. [3]
(b) Hence find the area of $\triangle PQR$. [2]

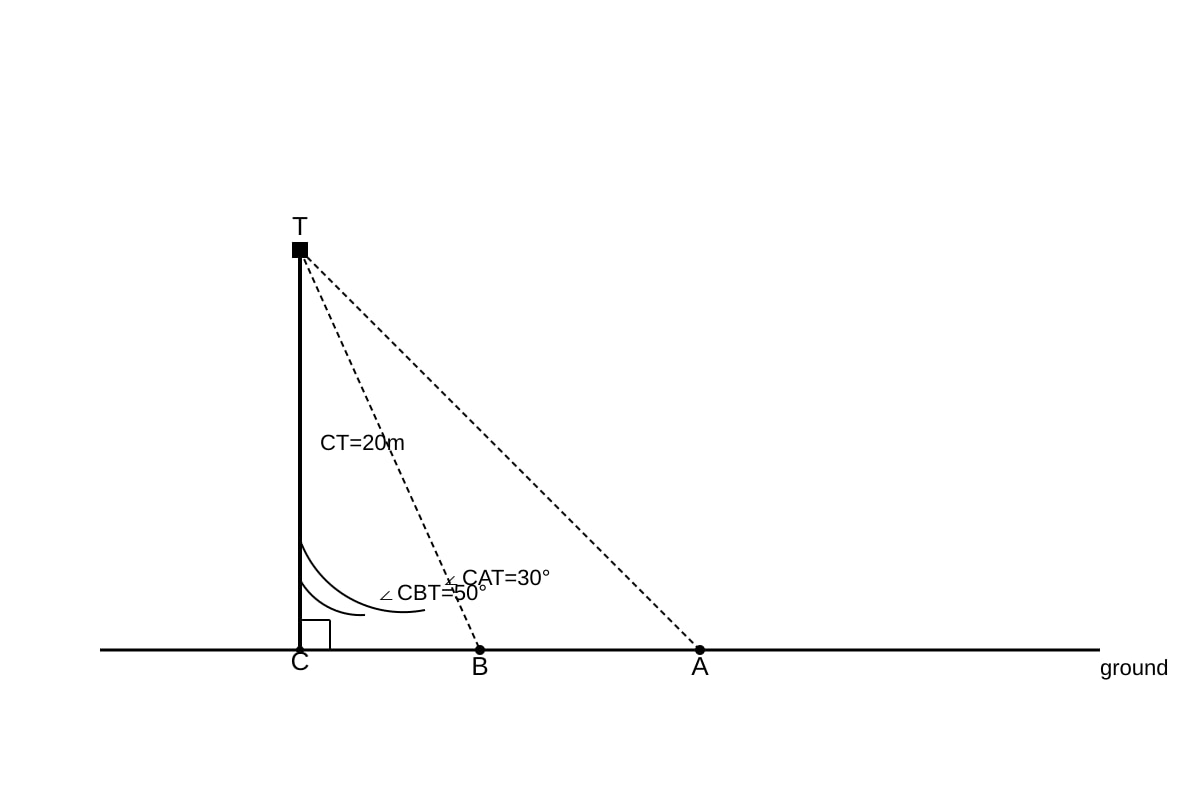

12. A vertical tower $CT$ of height $20$ m stands on level ground. From point $A$, the angle of elevation to $T$ is $30^\circ$. From point $B$ (closer to tower), the angle of elevation is $50^\circ$. $A$, $B$, and $C$ are collinear.
(a) Find distance $AC$. [2]
(b) Find distance $AB$. [1]

Image pending generation: diagram for Q12.

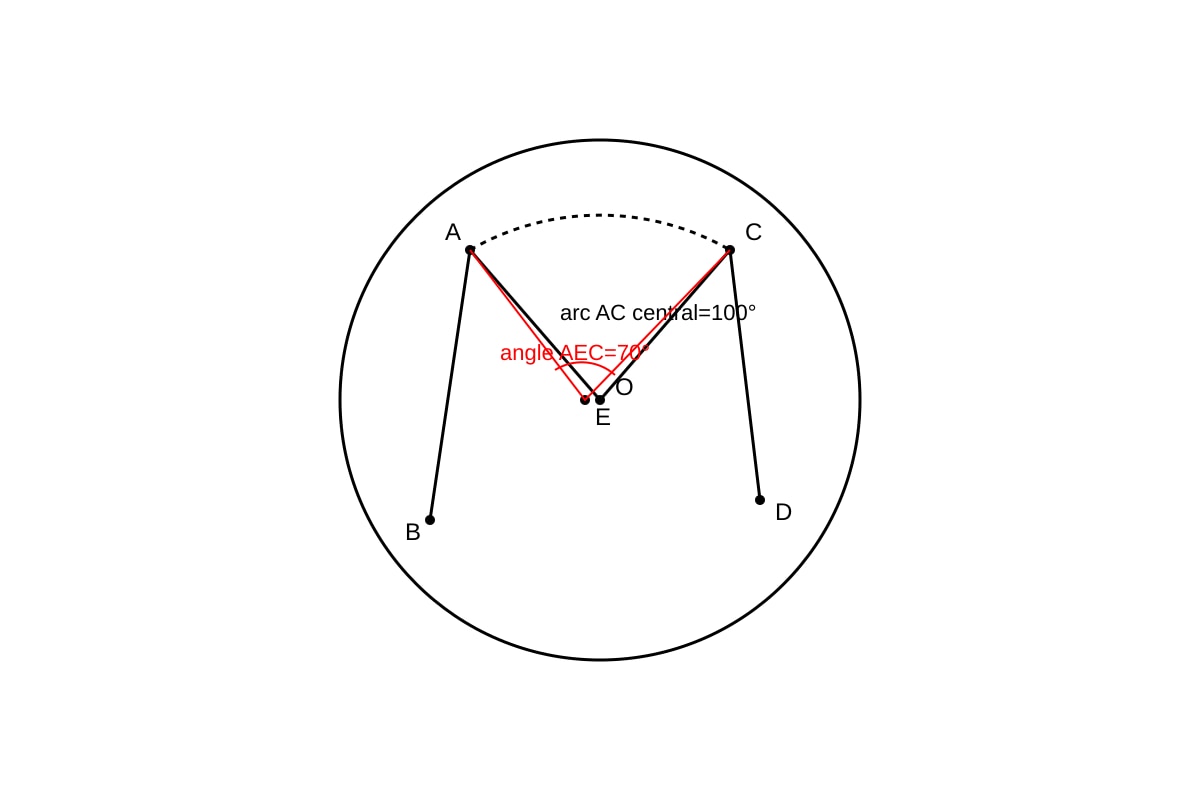

13. In the figure, $O$ is the centre of the circle. $AB$ and $CD$ are chords intersecting at $E$ inside the circle. $\angle AEC = 70^\circ$ and arc $AC$ subtends $100^\circ$ at centre. Find $\angle BED$. [3]

Image pending generation: diagram for Q13.

14. Given $\frac{XY}{XZ} = \frac{1}{2}$ and $\angle XYZ = 90^\circ$, explain why $\angle XZY = 30^\circ$. [3]

---

Section C (Questions 15–20) — Problem Solving [14 marks]

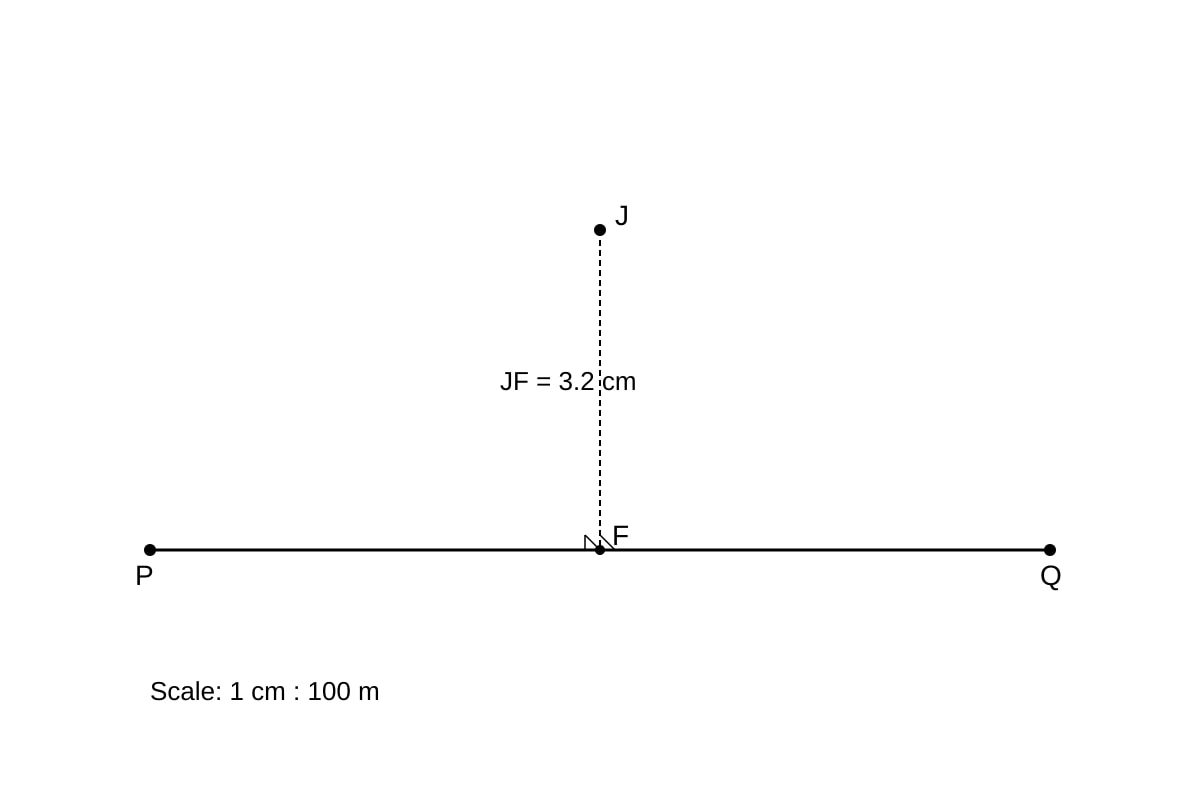

15. A yacht sails from $P$ to $Q$ in a straight line. A jetty $J$ is not on the line. By drawing a perpendicular from $J$ to $PQ$, measure the shortest distance if scale is $1$ cm : $100$ m and the drawn perpendicular is $3.2$ cm. [2]

Image pending generation: diagram for Q15.

16. In $\triangle ABC$, $AB = 8$ cm, $BC = 6$ cm, $AC = 10$ cm. Show that $\triangle ABC$ is right-angled and find $\sin \angle ABC$. [3]

17. Two similar cones have heights $9$ cm and $12$ cm. The smaller cone has volume $81\pi$ cm³. Find the volume of the larger cone. [3]

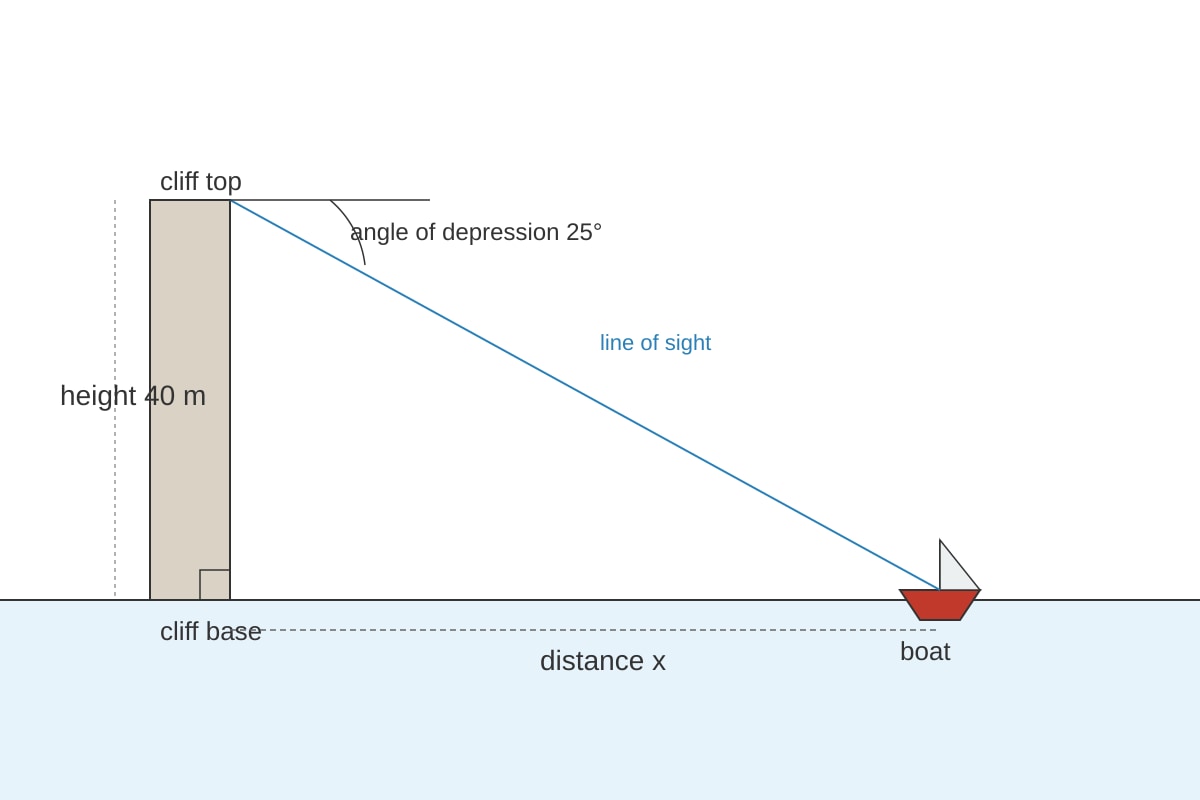

18. From the top of a cliff $40$ m high, the angle of depression to a boat is $25^\circ$. Find the horizontal distance from the cliff base to the boat. [2]

Image pending generation: diagram for Q18.

19. In the diagram, $ABCD$ is a rectangle and $E$ is on $CD$. $AD = 4$ cm, $DE = 3$ cm, $CE = 2$ cm. Find $\tan \angle AED$. [2]

Image pending generation: diagram for Q19.

20. A triangle has sides $5$, $12$, and $13$ units. Prove it is right-angled and find the cosine of the smallest angle. [2]

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper Answer Key — Elementary Mathematics Secondary 4 (Version 4)

Total Marks: 50

---

Section A Answers (16 marks)

Q1. [2]
Using Pythagoras: $PQ^2 = PR^2 + QR^2 = 5^2 + 12^2 = 25 + 144 = 169$
$PQ = \sqrt{169} = 13$ cm.
Teaching note: In a right triangle, hypotenuse² = sum of squares of the other two sides. Mark: 1 for method, 1 for answer.

Q2. [1]
$\cos 60^\circ = \frac{1}{2}$.
Teaching note: Standard trigonometric ratio from special triangle (equilateral split). Mark: 1 for correct value.

Q3. [2]
$\angle ABC = \frac{1}{2} \times \angle AOC = \frac{1}{2} \times 80^\circ = 40^\circ$.
Teaching note: Angle at circumference is half the angle at centre subtended by same arc. Mark: 1 for identifying theorem, 1 for answer.

Q4. [2]
Linear scale factor $k = \frac{DE}{AB} = \frac{10}{4} = 2.5$.
Area scale factor $= k^2 = 6.25$.
Area $\triangle ABC = \frac{75}{6.25} = 12$ cm².
Teaching note: Similar figures: area ratio = (length ratio)². Mark: 1 for scale factor, 1 for area.

Q5. [2]
$\cos \theta = \frac{2.4}{6} = 0.4$
$\theta = \cos^{-1}(0.4) \approx 66.4^\circ$.
Teaching note: Adjacent/hypotenuse = cos. Use calculator inverse cos. Mark: 1 method, 1 answer.

Q6. [2]
Tangent perpendicular to radius: $\angle OBA = 90^\circ$.
In $\triangle OBC$, $OB = OC$ (radii) so $\angle OCB = 35^\circ$, $\angle BOC = 110^\circ$.
$\angle ABO = 90^\circ$ (tangent-radius property).
Teaching note: Actually AB is tangent at B, so AB ⊥ OB, thus ∠ABO = 90°. Given ∠OBC=35° is extra; answer is 90°. Mark: 1 property, 1 answer.

Q7. [2]
$\angle Z = 180^\circ - 30^\circ - 45^\circ = 105^\circ$.
Sine rule: $\frac{x}{\sin 30^\circ} = \frac{8}{\sin 45^\circ}$
$x = \frac{8 \sin 30^\circ}{\sin 45^\circ} = \frac{8 \times 0.5}{0.7071} \approx 5.66$ cm.
Teaching note: Sine rule: a/sin A = b/sin B. Mark: 1 for angles, 1 for x.

Q8. [1]
$90^\circ$ (or a right angle).
Teaching note: Theorem: angle in semicircle is right angle. Mark: 1.

---

Section B Answers (20 marks)

Q9. [3]
(a) [1] Opposite angles sum to $180^\circ$: $78+102=180$, so cyclic.
(b) [2] $\angle ABC = 180^\circ - 65^\circ = 115^\circ$ (opposite angles supplementary).
Teaching note: Cyclic quad: opposite angles add to 180°. Mark: 1+2.

Q10. [4]
(a) [2] $\angle BCR = \angle PCS$ (same angle); $\angle CBR = \angle CPS$ (corresponding, BC∥PS). AA similarity.
(b) [2] Ratio $BC:PS = 6:9 = 2:3$, so $CS = CR \times \frac{3}{2} = 4 \times 1.5 = 6$ cm.
Teaching note: Similar triangles sides proportional. Mark: 2+2.

Q11. [5]
(a) [3] $\cos PQR = \frac{7^2+10^2-5^2}{2\times7\times10} = \frac{49+100-25}{140} = \frac{124}{140} = 0.8857$
$\angle PQR = \cos^{-1}(0.8857) \approx 27.7^\circ$.
(b) [2] Area $= \frac{1}{2} \times 7 \times 10 \times \sin 27.7^\circ \approx 16.3$ cm².
Teaching note: Cosine rule then area formula. Mark: 3+2.

Q12. [3]
(a) [2] $AC = \frac{20}{\tan 30^\circ} = \frac{20}{0.5774} \approx 34.6$ m.
(b) [1] $BC = \frac{20}{\tan 50^\circ} \approx 16.8$ m, $AB = 34.6 - 16.8 = 17.8$ m.
Teaching note: Angle of elevation, right triangle tan = opp/adj. Mark: 2+1.

Q13. [3]
Arc AC central = 100° → ∠ABC = 50° (circumference half).
∠AEC = 70° → in △AEC, ∠EAC = 180-70-50 = 60°.
Vertically opposite ∠BED = ∠AEC = 70°.
Teaching note: Intersecting chords, angles from arcs. Mark: 3.

Q14. [3]
$\sin \angle XZY = \frac{XY}{XZ} = \frac{1}{2}$ → $\angle XZY = \sin^{-1}(0.5) = 30^\circ$.
Teaching note: Right triangle sin = opp/hyp. Mark: 1 ratio, 2 conclusion.

---

Section C Answers (14 marks)

Q15. [2]
Distance = $3.2 \times 100 = 320$ m.
Teaching note: Scale multiply. Mark: 2 for correct conversion.

Q16. [3]
$8^2+6^2 = 64+36=100 = 10^2$ → right at B.
$\sin \angle ABC = \frac{AC}{AC?}$ wait: opposite to ∠B is AC=10, hyp=10? Actually right at B so hyp=AC=10, opp to ∠ABC is AC=10 → sin = 10/10 = 1.
Teaching note: Pythagoras converse; sin = opp/hyp = 1. Mark: 2 proof, 1 sin.

Q17. [3]
$k = 12/9 = 4/3$, vol ratio $= (4/3)^3 = 64/27$.
Vol large $= 81\pi \times 64/27 = 192\pi$ cm³.
Teaching note: Volume scale = k³. Mark: 1 k, 2 vol.

Q18. [2]
$\tan 25^\circ = \frac{40}{x}$ → $x = \frac{40}{\tan 25^\circ} \approx 85.8$ m.
Teaching note: Angle of depression = angle of elevation. Mark: 2.

Q19. [2]
In right △ADE, $\tan \angle AED = \frac{AD}{DE} = \frac{4}{3}$.
Teaching note: tan = opp/adj. Mark: 2.

Q20. [2]
$5^2+12^2=25+144=169=13^2$ → right. Smallest angle opp 5: $\cos = \frac{12}{13}$.
Teaching note: Cos = adj/hyp. Mark: 1 proof, 1 cos.
