Secondary 4 Elementary Mathematics Practice Paper 3

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 4

TuitionGoWhere Practice Paper (AI) — Version 3 of 5

Subject: Elementary Mathematics
Level: Secondary 4
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 60 minutes
Total Marks: 50
Name: ________________________
Class: ____________
Date: ____________

Instructions:

• Answer all questions in this practice paper.
• Show your working clearly where required.
• Calculators may be used.
• Take $\pi = 3.142$ if needed unless stated otherwise.
• This is a syllabus-first practice paper generated from LLM-inferred templates. It is not derived from any specific past-year examination.

---

Section A (Questions 1–8, 16 marks)

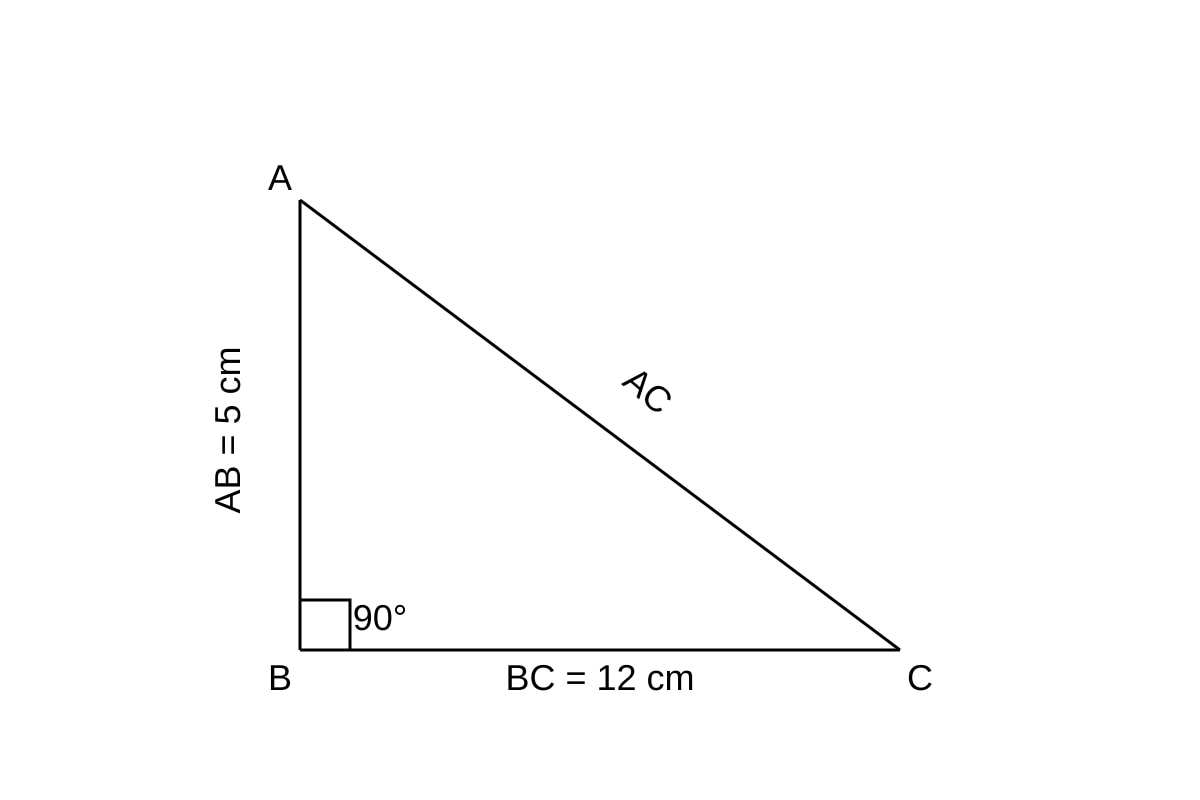

1. In the diagram below, $ABC$ is a right-angled triangle with $\angle ABC = 90^\circ$. $AB = 5$ cm and $BC = 12$ cm. Find the length of $AC$.

Image pending generation: diagram for Q1.

[2]

2. Find $\sin \angle PQR$ in the right-angled triangle $PQR$ where $\angle PRQ = 90^\circ$, $PR = 7$ cm and $QR = 24$ cm.

[2]

3. State the angle at the centre theorem: the angle subtended by an arc at the centre of a circle is _______ the angle subtended at the circumference.

[1]

4. In the diagram, $O$ is the centre of a circle. $A$, $B$, $C$ lie on the circle and $\angle AOC = 80^\circ$. Find $\angle ABC$.

Image pending generation: diagram for Q4.

[2]

5. Explain why triangles $XYZ$ and $PQR$ are similar if $\angle X = \angle P = 50^\circ$ and $\angle Y = \angle Q = 60^\circ$.

[2]

6. A ladder leans against a wall. The foot of the ladder is 4 m from the wall and the ladder is 5 m long. Find the angle the ladder makes with the ground.

[2]

7. In the diagram, $AB$ is a chord of a circle with centre $O$. $M$ is the midpoint of $AB$ and $OM = 3$ cm, $OA = 5$ cm. Find the length of $AB$.

Image pending generation: diagram for Q7.

[2]

8. Triangle $DEF$ has $DE = 6$ cm, $EF = 8$ cm, $DF = 10$ cm. Show that $\angle DEF = 90^\circ$.

[1]

---

Section B (Questions 9–14, 18 marks)

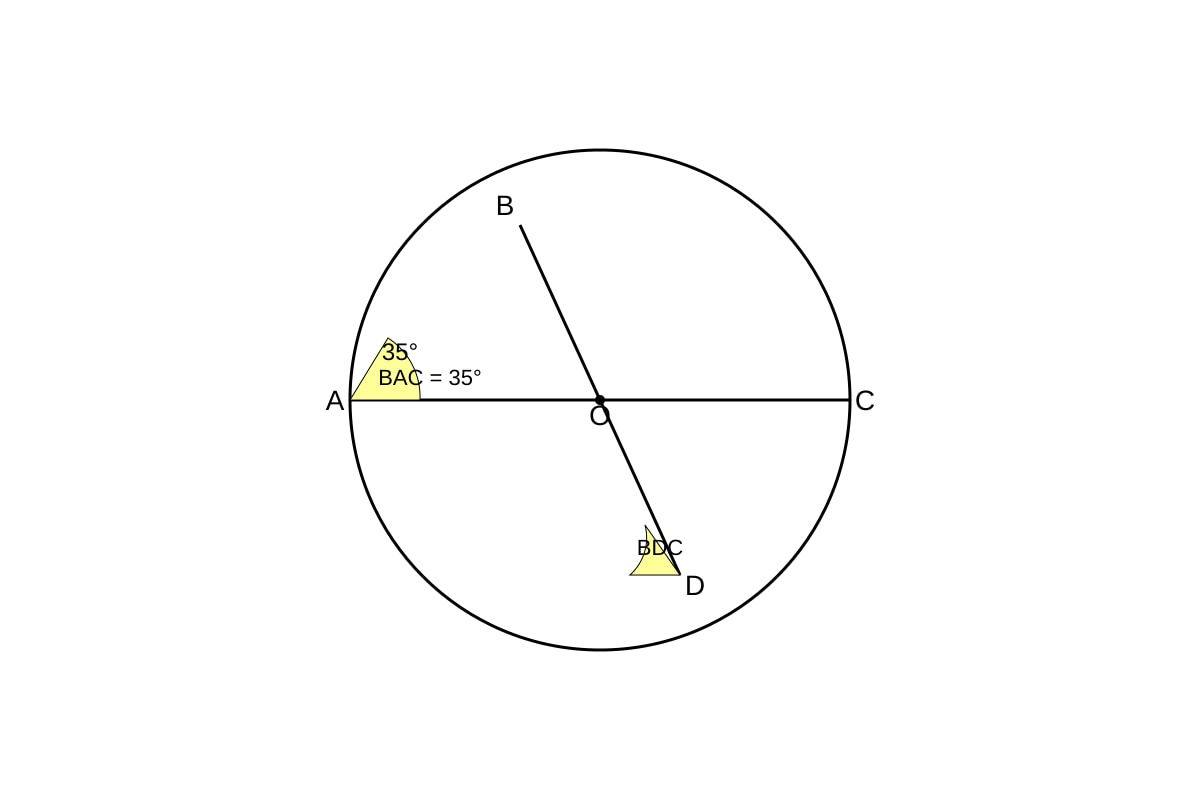

9. In the diagram, $A$, $B$, $C$, $D$ lie on a circle with centre $O$. $AC$ is a diameter and $BD$ is a chord. Given $\angle BAC = 35^\circ$, find $\angle BDC$ and explain your reasoning using circle theorems.

Image pending generation: diagram for Q9.

[3]

10. In triangle $ABC$, $AB = 8$ cm, $BC = 6$ cm, $AC = 10$ cm. Find $\sin \angle ABC$.

[3]

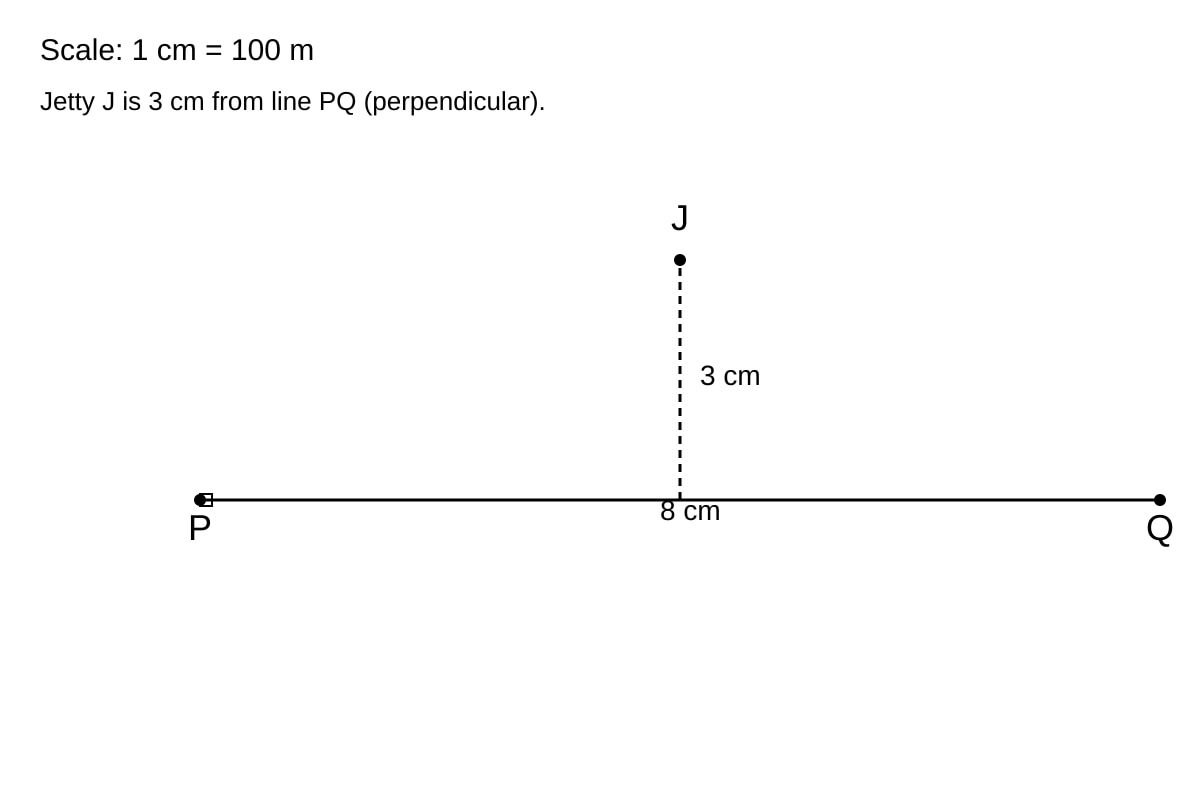

11. A yacht travels from point $P$ to point $Q$ in a straight line. A jetty $J$ is located near the path. By drawing a suitable perpendicular from $J$ to line $PQ$ on the diagram, measure and write down the closest distance from the jetty to the yacht’s path. Use the scale 1 cm : 100 m.

Image pending generation: diagram for Q11.

[2]

12. Given that $\frac{AB}{AD} = \frac{1}{2}$ and $\angle ABD = 90^\circ$, explain why $\angle ADB = \frac{\pi}{6}$ radian.

[2]

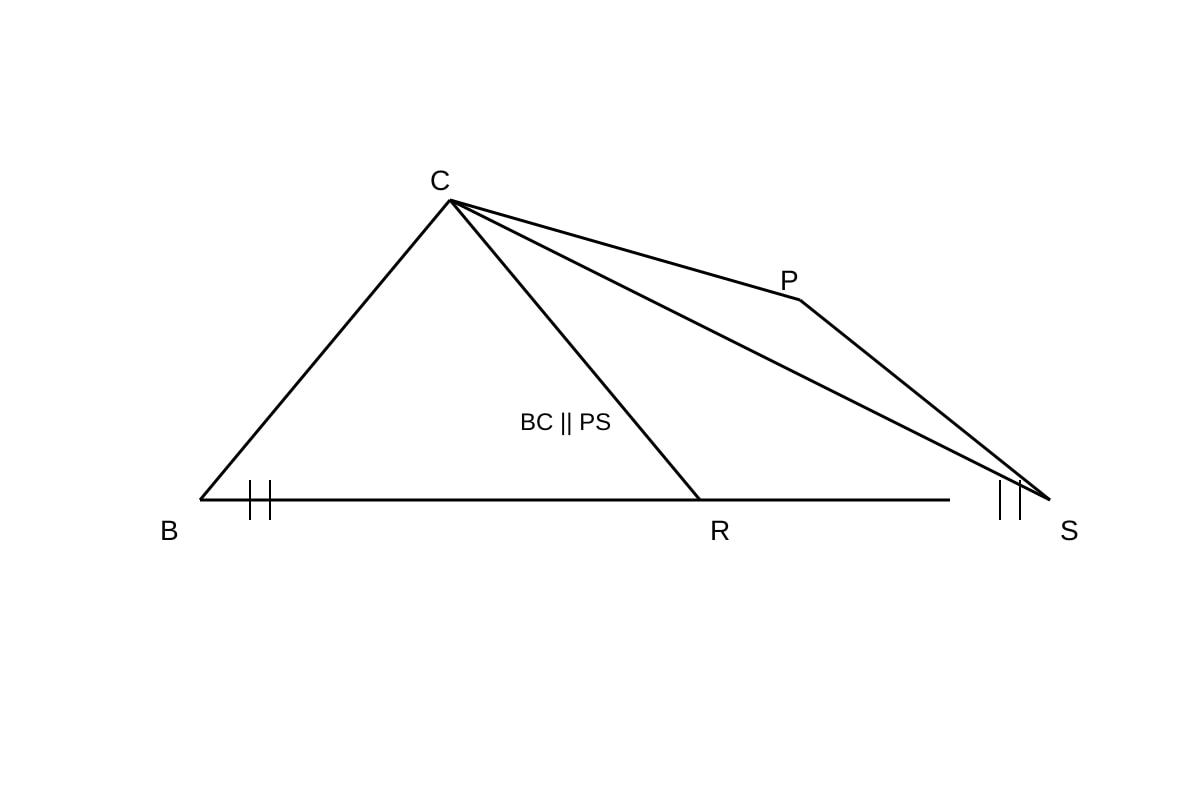

13. In the diagram, $BC \parallel PS$ and $\angle BCR$ is shared by triangles $BCR$ and $PCS$. Explain why $\triangle BCR \sim \triangle PCS$.

Image pending generation: diagram for Q13.

[3]

14. In triangle $LMN$, $LM = 9$ cm, $MN = 12$ cm, $\angle LMN = 90^\circ$. Find the value of $\tan \angle MLN$.

[2]

15. (Removed from count; see Section C)

---

Section C (Questions 15–20, 16 marks)

15. A vertical flagpole $FT$ of height 20 m stands on level ground. From point $G$ on the ground, the angle of elevation to the top $T$ is $30^\circ$. Find the distance $FG$.

[2]

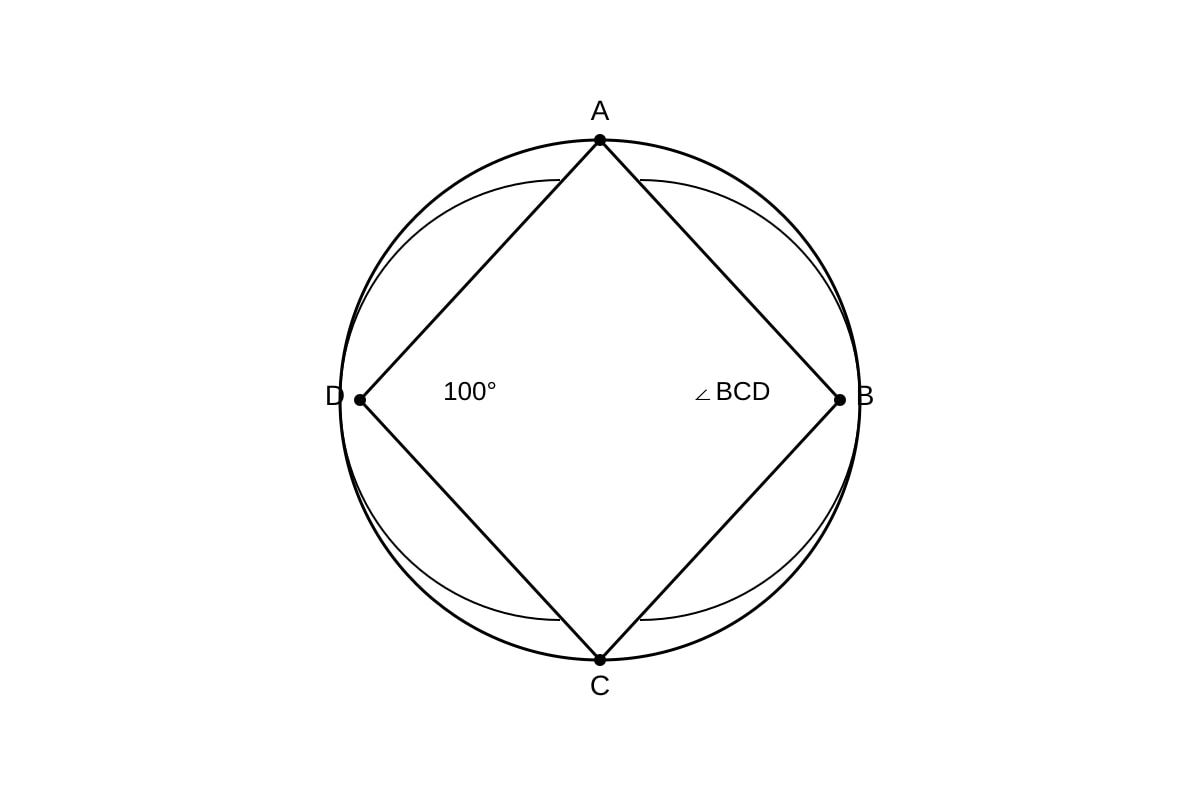

16. In the diagram, $ABCD$ is a cyclic quadrilateral. $\angle DAB = 100^\circ$. Find $\angle BCD$ and give the theorem used.

Image pending generation: diagram for Q16.

[2]

17. Triangle $PQR$ has sides $PQ = 5$, $QR = 5$, $PR = 5$. Hence show that triangle $PQR$ is equilateral.

[2]

18. A drone flies from $X$ to $Y$ which are 120 m apart horizontally. The angle of depression from $X$ to $Y$ is $15^\circ$. Find the vertical height difference between $X$ and $Y$.

[3]

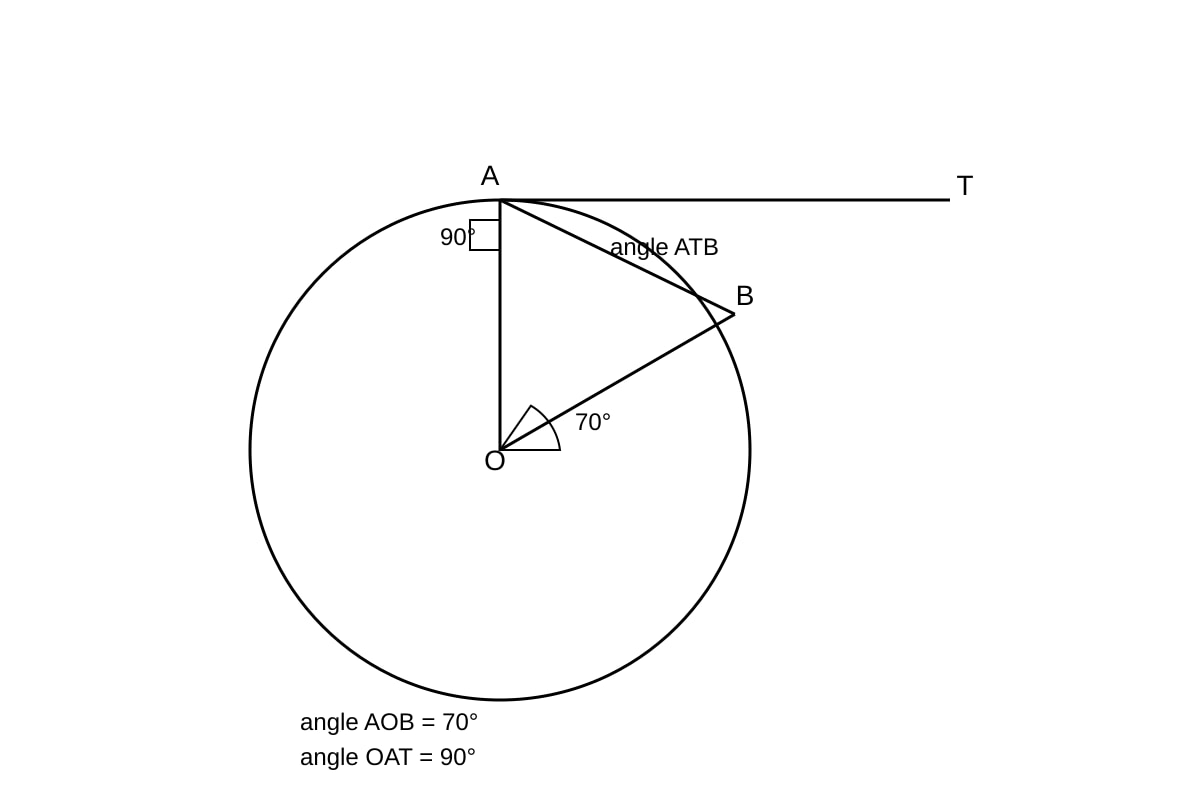

19. In the diagram, $O$ is the centre of the circle and $TA$ is a tangent at $A$. $\angle OAT = 90^\circ$ and $\angle AOB = 70^\circ$ where $B$ is on the circle. Find $\angle ATB$.

Image pending generation: diagram for Q19.

[3]

20. A triangular garden plot has sides 7 m, 24 m, 25 m. A second similar plot is made with scale factor 2. Find the area scale factor and the longest side of the larger plot.

[4]

---

End of Practice Paper

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 4 (Answers)

Version 3 of 5 — Answer Key

---

Section A (16 marks)

Q1. [2 marks]

• By Pythagoras’ theorem: $AC^2 = AB^2 + BC^2 = 5^2 + 12^2 = 25 + 144 = 169$
• $AC = \sqrt{169} = 13$ cm
• Answer: $13$ cm
• Teaching note: In a right-angled triangle, the hypotenuse squared equals sum of squares of the other two sides. Common mistake: adding without squaring.

Q2. [2 marks]

• $PQ = \sqrt{PR^2 + QR^2} = \sqrt{7^2 + 24^2} = \sqrt{49+576} = \sqrt{625} = 25$ cm
• $\sin \angle PQR = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{PR}{PQ} = \frac{7}{25}$
• Answer: $\frac{7}{25}$
• Note: Opposite to $\angle PQR$ is $PR$; hypotenuse is $PQ$.

Q3. [1 mark]

• Answer: twice (or 2 times)
• Teaching note: Angle at centre is twice angle at circumference subtended by same arc.

Q4. [2 marks]

• $\angle ABC = \frac{1}{2} \angle AOC = \frac{1}{2} \times 80^\circ = 40^\circ$
• Answer: $40^\circ$
• Theorem: Angle at centre is twice angle at circumference.

Q5. [2 marks]

• Two angles of $\triangle XYZ$ equal two angles of $\triangle PQR$ ($\angle X = \angle P$, $\angle Y = \angle Q$).
• By AA similarity criterion, $\triangle XYZ \sim \triangle PQR$.
• Answer: AA similarity (two pairs of equal angles).

Q6. [2 marks]

• $\cos \theta = \frac{\text{adjacent}}{\text{hypotenuse}} = \frac{4}{5} = 0.8$
• $\theta = \cos^{-1}(0.8) \approx 36.87^\circ$
• Answer: $36.9^\circ$ (1 d.p.)
• Note: Angle with ground uses adjacent = distance from wall.

Q7. [2 marks]

• $OM \perp AB$, so $\triangle OMA$ right-angled at $M$.
• $AM = \sqrt{OA^2 - OM^2} = \sqrt{5^2 - 3^2} = \sqrt{25-9} = \sqrt{16} = 4$ cm
• $AB = 2 \times AM = 8$ cm
• Answer: $8$ cm
• Theorem: Perpendicular from centre to chord bisects chord.

Q8. [1 mark]

• $6^2 + 8^2 = 36 + 64 = 100 = 10^2$, so by converse of Pythagoras, $\angle DEF = 90^\circ$.
• Answer: Shown.

---

Section B (18 marks)

Q9. [3 marks]

• $\angle BAC$ and $\angle BDC$ are angles in the same segment subtended by chord $BC$.
• Angles in same segment are equal.
• Therefore $\angle BDC = \angle BAC = 35^\circ$.
• Marks: 1 for identifying theorem, 2 for correct angle and reasoning.
• Answer: $35^\circ$

Q10. [3 marks]

• $AB^2 + BC^2 = 64 + 36 = 100 = AC^2$, so $\angle ABC = 90^\circ$.
• $\sin \angle ABC = \sin 90^\circ = 1$.
• Answer: $1$
• Alternative: cosine rule gives $\cos \angle ABC = 0$.

Q11. [2 marks]

• Perpendicular from $J$ to $PQ$ measures 3 cm on drawing.
• Actual distance = $3 \times 100 = 300$ m.
• Answer: $300$ m
• Marking: 1 for correct perpendicular, 1 for scaled distance.

Q12. [2 marks]

• In right triangle $ABD$, $\sin \angle ADB = \frac{AB}{AD} = \frac{1}{2}$.
• $\angle ADB = \sin^{-1}(0.5) = \frac{\pi}{6}$ rad.
• Answer: Explained via inverse sine.

Q13. [3 marks]

• $\angle BCR$ is common to both triangles.
• Since $BC \parallel PS$, $\angle CBR = \angle CPS$ (corresponding angles).
• Two angles equal $\Rightarrow \triangle BCR \sim \triangle PCS$ by AA.
• Marks: 1 shared, 1 corresponding, 1 conclusion.

Q14. [2 marks]

• $\tan \angle MLN = \frac{\text{opposite}}{\text{adjacent}} = \frac{MN}{LM} = \frac{12}{9} = \frac{4}{3}$.
• Answer: $\frac{4}{3}$

---

Section C (16 marks)

Q15. [2 marks]

• $\tan 30^\circ = \frac{FT}{FG} = \frac{20}{FG}$
• $FG = \frac{20}{\tan 30^\circ} = \frac{20}{0.5774} \approx 34.6$ m
• Answer: $34.6$ m

Q16. [2 marks]

• Opposite angles in cyclic quadrilateral sum to $180^\circ$.
• $\angle BCD = 180^\circ - 100^\circ = 80^\circ$.
• Theorem: Opposite angles of cyclic quadrilateral are supplementary.

Q17. [2 marks]

• All three sides equal ($PQ = QR = PR = 5$).
• By definition, triangle with three equal sides is equilateral.
• Answer: Shown.

Q18. [3 marks]

• $\tan 15^\circ = \frac{\text{vertical diff}}{120}$
• Vertical diff = $120 \times \tan 15^\circ = 120 \times 0.2679 \approx 32.1$ m
• Answer: $32.1$ m

Q19. [3 marks]

• $\angle OAB = \frac{1}{2}(180^\circ - 70^\circ) = 55^\circ$ (isosceles $OAB$)
• $\angle TAB = 90^\circ - 55^\circ = 35^\circ$
• In $\triangle TAB$, $\angle ATB = 180^\circ - 35^\circ - 55^\circ = 90^\circ$? Wait: $TA$ tangent, $OA \perp TA$, $OB=OA$, $\angle OBA = 55^\circ$, $\angle TBA = 90^\circ - 55^\circ = 35^\circ$, so $\angle ATB = 180^\circ - 90^\circ - 35^\circ = 55^\circ$ (using $\triangle TAB$ with $\angle TAB=90^\circ$). Correct: $\angle ATB = 55^\circ$.
• Answer: $55^\circ$

Q20. [4 marks]

• Original sides 7, 24, 25 (right triangle). Scale factor $k=2$.
• Area scale factor = $k^2 = 4$.
• Longest side new = $25 \times 2 = 50$ m.
• Marks: 2 for area factor, 2 for side.
• Answer: Area scale factor 4, longest side 50 m.

---

End of Answer Key
