TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 4

TuitionGoWhere Practice Paper (AI) — Version 2 of 5

Subject: Elementary Mathematics
Level: Secondary 4
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 60 minutes
Total Marks: 40
Name: ________________________
Class: ________
Date: ________

Instructions:

Answer all questions in this paper.
Show all working clearly where required.
Calculators may be used.
Give non-exact answers correct to 3 significant figures unless stated otherwise.
This practice paper is generated from syllabus-first LLM-inferred templates. It is not derived from any official past-year examination.

Section A (Questions 1–8) — Short Answer [16 marks]

1. In a right-angled triangle, the side opposite ∠X is 5 cm and the hypotenuse is 13 cm. Find $\sin \angle X$ . [2]

2. A ladder leans against a wall. The foot of the ladder is 4 m from the wall and the ladder is 5 m long. Find the angle the ladder makes with the ground. [2]

Diagram for Q2 (SEC4 Emaths)

Generated diagram for Q2.

3. Triangle ABC is similar to triangle DEF. AB = 6 cm, DE = 9 cm, and BC = 8 cm. Find EF. [2]

4. Points A, B, C lie on a circle with centre O. ∠AOC = 120° at the centre. Find ∠ABC at the circumference subtended by the same arc. [2]

5. In triangle PQR, PQ = 7 cm, QR = 24 cm, PR = 25 cm. State, with reason, the type of triangle PQR. [2]

6. A triangle has sides 3 cm, 4 cm, and 5 cm. Find $\cos$ of the angle opposite the 5 cm side. [2]

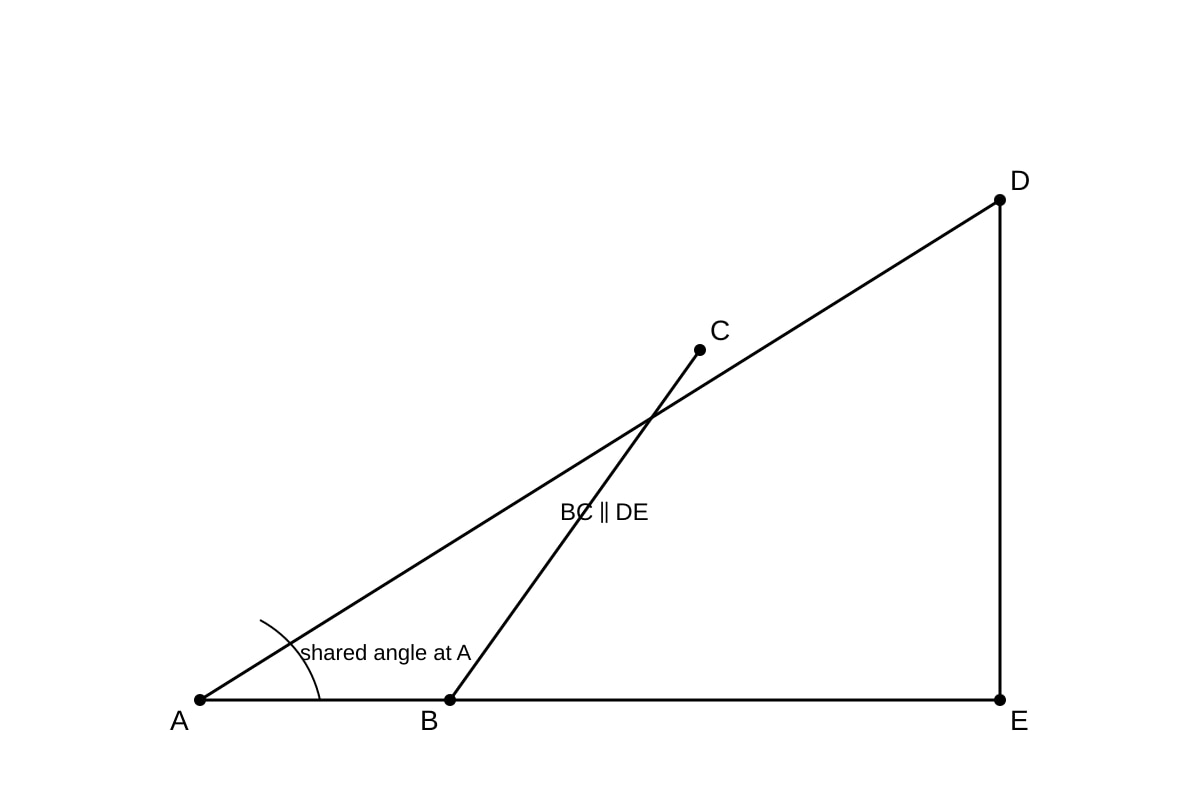

7. In the diagram, BC is parallel to DE. Explain why triangles ABC and ADE are similar. [2]

Diagram for Q7 (SEC4 Emaths)

Generated diagram for Q7.

8. Find the length of the perpendicular from point P to line QR if the area of triangle PQR is 30 cm² and QR = 10 cm. [2]

Section B (Questions 9–14) — Structured Response [16 marks]

9. In triangle ABC, AB = 8 cm, BC = 6 cm, AC = 10 cm. (a) Show that ∠ABC = 90°. [2] (b) Hence find $\sin \angle BAC$ . [1]

10. A, B, C, D lie on a circle with centre O. AC is a diameter. ∠BAC = 30°. (a) Find ∠ABC. [1] (b) Find ∠BDC, explaining your reasoning. [2]

11. In triangle XYZ, XY = 9 cm, XZ = 12 cm, and ∠YXZ = 90°. Point W is on YZ such that XW ⟂ YZ. (a) Find the length of YZ. [1] (b) Find the length of XW. [2]

12. The ratio $\frac{AB}{AD} = \frac{1}{2}$ and triangle ABD is right-angled at B. Explain why ∠ADB = $\frac{\pi}{6}$ rad. [2]

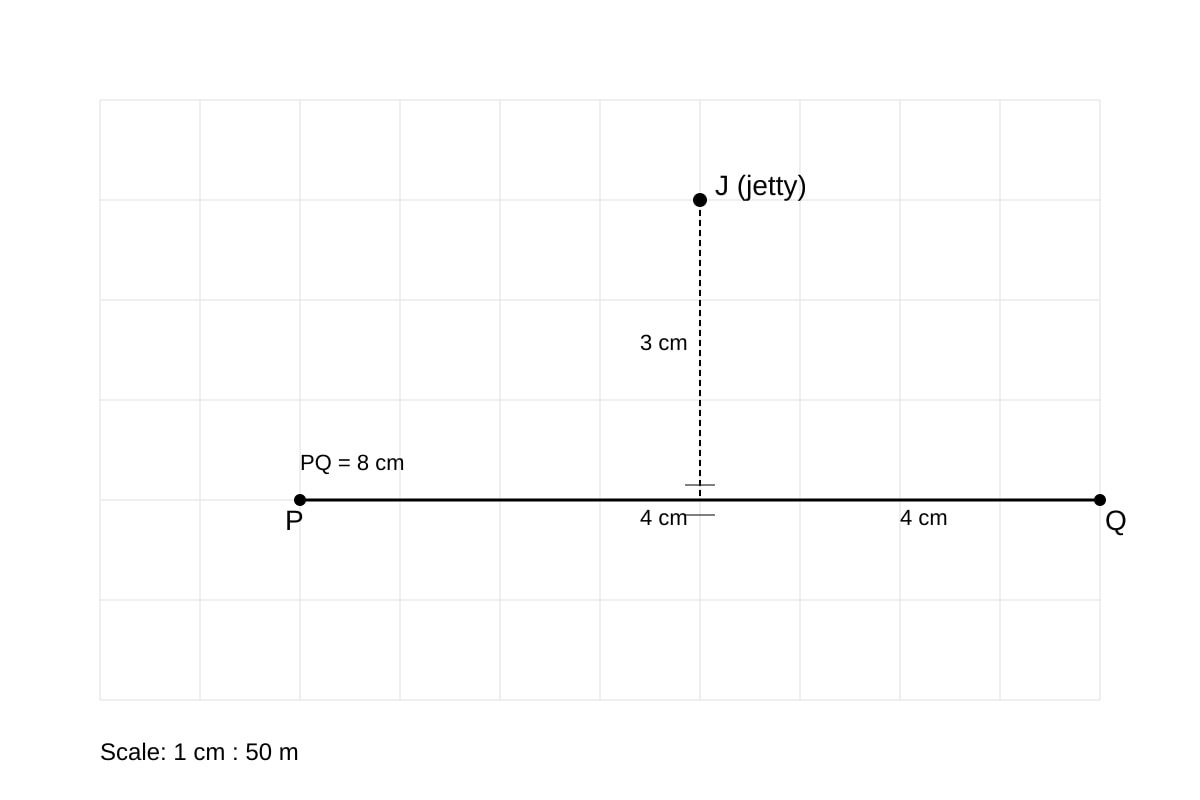

13. A yacht travels from P to Q in a straight line. By drawing a perpendicular from a jetty J to line PQ, measure the closest distance from J to the path. Use the scale 1 cm : 50 m. [3]

Diagram for Q13 (SEC4 Emaths)

Generated diagram for Q13.

14. Triangle PQR has PQ = 5 cm, PR = 5 cm, QR = 8 cm. (a) Find the height from P to QR. [2] (b) Hence show triangle PQR is isosceles but not equilateral. [1]

Section C (Questions 15–20) — Problem Solving [8 marks]

15. From the top of a 20 m cliff, the angle of depression to a boat is 30°. Find the horizontal distance from the cliff base to the boat. [2]

16. In a circle, chord AB = 8 cm and is 3 cm from the centre. Find the radius of the circle. [2]

17. Triangle ABC ~ triangle DEF with ratio 2:3. If area of ABC is 24 cm², find area of DEF. [1]

18. A right cone has base radius 3 cm and slant height 5 cm. Find the angle between slant height and base radius. [1]

19. In triangle ABC, ∠A = 45°, ∠B = 60°, BC = 10 cm. Use sine rule to find AC. [1]

20. Points A, B, C, D on circle, ∠ABD = 40°, ∠CBD = 35°. Find ∠ADC. [1]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Answer Key — TuitionGoWhere Practice Paper (AI) Version 2

Subject: Elementary Mathematics
Level: Secondary 4
Topic: Geometry & Trigonometry
Total Marks: 40

Section A Answers

1. [2 marks]
$\sin \angle X = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{5}{13}$
Final: $\frac{5}{13}$
Teaching note: Sine ratio is opposite ÷ hypotenuse. No calculator needed as exact fraction.

2. [2 marks]
$\cos \theta = \frac{4}{5} = 0.8$ → $\theta = \cos^{-1}(0.8) \approx 36.9^\circ$
Final: $36.9^\circ$ (3 sf)
Marking: 1 mark for correct ratio, 1 mark for angle.

3. [2 marks]
Scale factor $= \frac{DE}{AB} = \frac{9}{6} = 1.5$
$EF = BC \times 1.5 = 8 \times 1.5 = 12$ cm
Final: 12 cm

4. [2 marks]
Angle at centre = 2 × angle at circumference.
$\angle ABC = \frac{120^\circ}{2} = 60^\circ$
Final: $60^\circ$

5. [2 marks]
$7^2 + 24^2 = 49 + 576 = 625 = 25^2$ → right-angled (Pythagoras converse)
Final: Right-angled triangle

6. [2 marks]
Angle opposite 5 cm is the right angle (since 3-4-5 triangle).
$\cos 90^\circ = 0$
Final: 0

7. [2 marks]
∠A common; ∠ABC = ∠ADE (corresponding, BC ∥ DE) → similar by AA.
Final: AA similarity.

8. [2 marks]
Area $= \frac{1}{2} \times QR \times h$ → $30 = \frac{1}{2} \times 10 \times h$ → $h = 6$ cm
Final: 6 cm

Section B Answers

9. [3 marks total]
(a) [2] $8^2 + 6^2 = 64+36=100 = 10^2$ → ∠ABC = 90°
(b) [1] $\sin \angle BAC = \frac{BC}{AC} = \frac{6}{10} = 0.6$

10. [3 marks]
(a) [1] ∠ABC = 90° (angle in semicircle)
(b) [2] ∠BDC = ∠BAC = 30° (same segment). Reasoning stated.

11. [3 marks]
(a) [1] $YZ = \sqrt{9^2+12^2} = 15$ cm
(b) [2] Area $= \frac{1}{2}\times9\times12 = 54 = \frac{1}{2}\times15\times XW$ → XW = 7.2 cm

12. [2 marks]
$\sin \angle ADB = \frac{AB}{AD} = \frac{1}{2}$ → $\angle ADB = \sin^{-1}(0.5) = \frac{\pi}{6}$ rad.
Right angle at B confirms opposite/hypotenuse used.

13. [3 marks]
Perpendicular drawn; measured 3 cm on paper × 50 = 150 m.
Final: 150 m. 1 mark construction, 2 marks for measurement × scale.

14. [3 marks]
(a) [2] Half QR = 4; height $= \sqrt{5^2 - 4^2} = 3$ cm
(b) [1] PQ = PR = 5 → isosceles; QR = 8 ≠ 5 → not equilateral.

Section C Answers

15. [2] $\tan 30^\circ = \frac{20}{d}$ → $d = \frac{20}{\tan30^\circ} \approx 34.6$ m
16. [2] $r^2 = 3^2 + 4^2 = 25$ → r = 5 cm
17. [1] Area scale = $(3/2)^2 = 2.25$ → $24 \times 2.25 = 54$ cm²
18. [1] $\cos \theta = 3/5$ → $\theta \approx 53.1^\circ$
19. [1] $\frac{AC}{\sin60^\circ} = \frac{10}{\sin45^\circ}$ → AC ≈ 12.2 cm
20. [1] ∠ABC = 75°; ∠ADC = 180°−75° = 105° (cyclic quad)
