TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 4

School: TuitionGoWhere Secondary School (AI)
Subject: Elementary Mathematics
Level: Secondary 4
Paper: Prelim Practice (Version 5 of 5)
Duration: 75 minutes
Total Marks: 80
Name: ___________________________
Class: ___________
Date: ____________

Instructions:

Answer all questions.
Show your working clearly.
Use a calculator where necessary.
Give non-exact answers correct to 3 significant figures unless stated otherwise.
Write units where required.

Section A (Questions 1–8) — Short Answer [24 marks]

1. In a right-angled triangle, the side opposite $\angle P$ is $5$ cm and the hypotenuse is $13$ cm. Find $\sin \angle P$ . [2]

2. A ladder leans against a wall. The foot of the ladder is $4$ m from the wall and the ladder is $5$ m long. Find the angle the ladder makes with the ground. [2]

3. Triangle $ABC$ has $\angle A = 50^\circ$ , $\angle B = 60^\circ$ . State the criterion that proves $\triangle ABC$ is similar to a triangle with angles $50^\circ, 60^\circ, 70^\circ$ . [1]

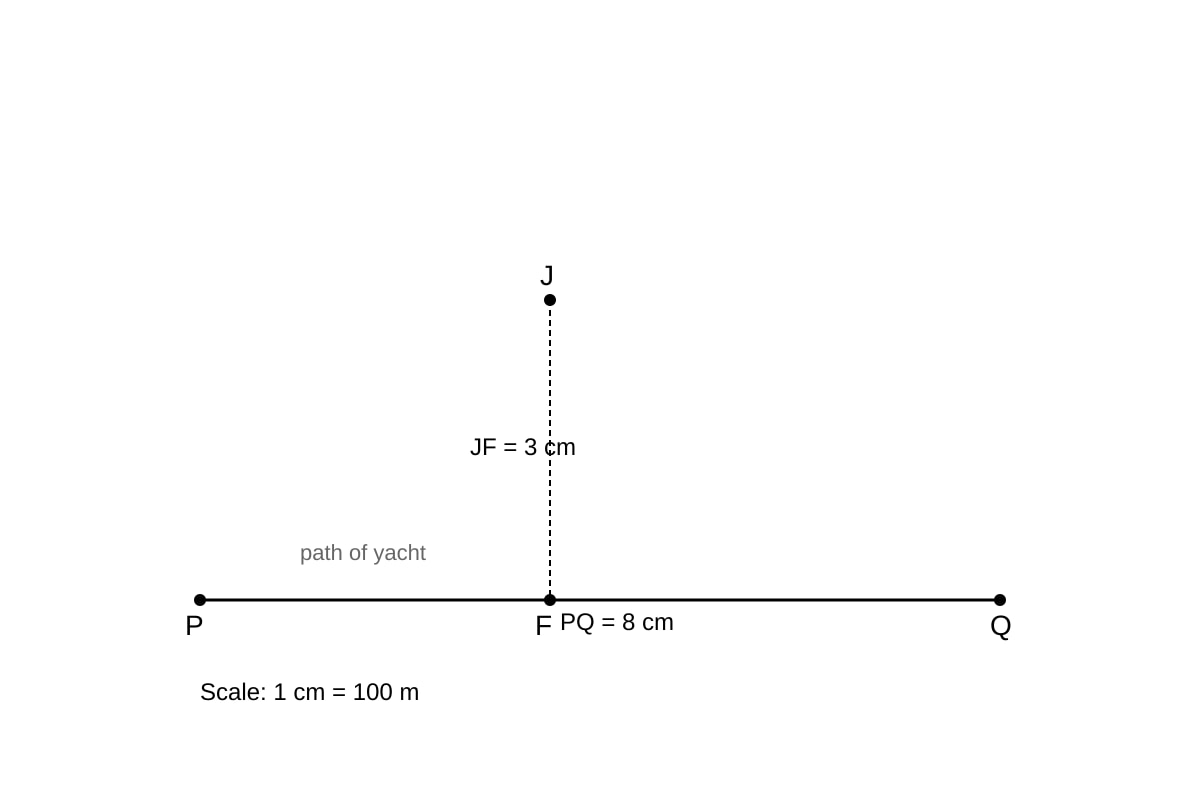

4. A yacht travels from $P$ to $Q$ in a straight line. A jetty $J$ is not on the line. By drawing a perpendicular from $J$ to $PQ$ , measure the shortest distance from $J$ to the path of the yacht.

Diagram for Q4 (SEC4 Emaths)

Generated diagram for Q4.

[2]

5. Given $\cos \angle X = \frac{3}{5}$ , find $\tan \angle X$ without using a calculator. [2]

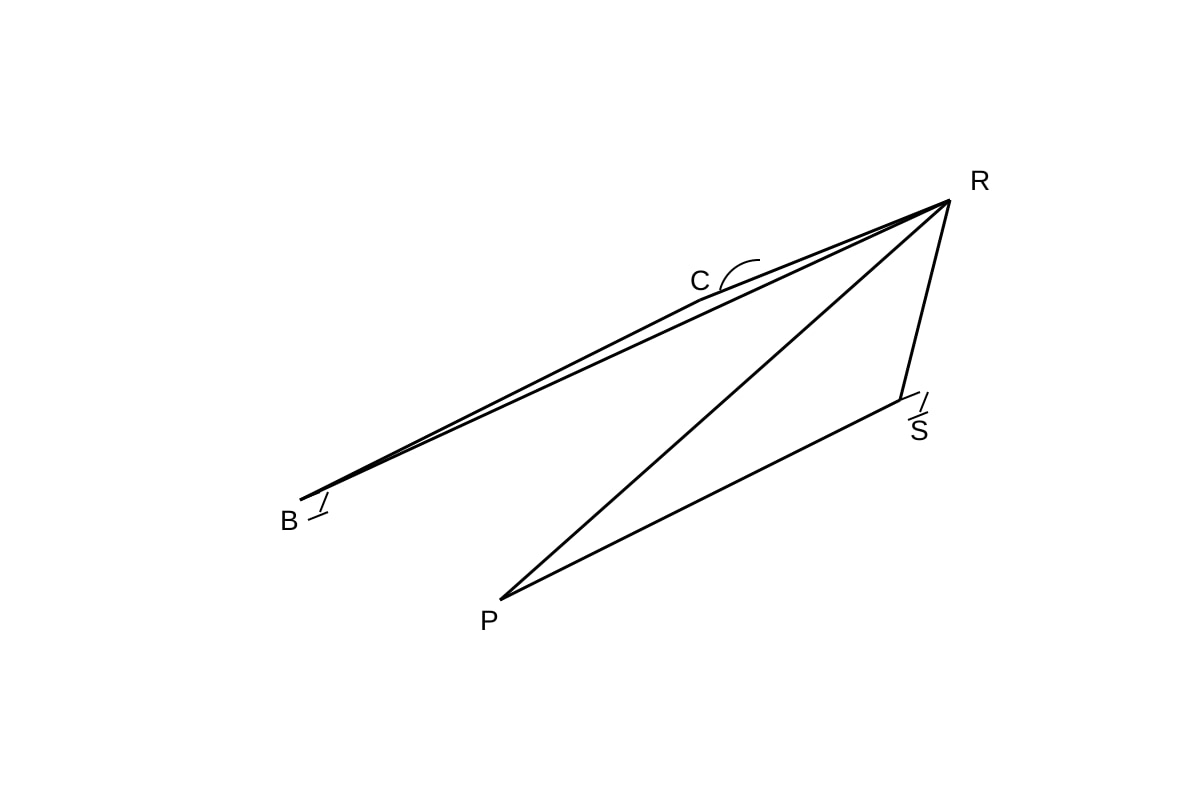

6. In the diagram below, $BC \parallel PS$ and $\angle BCR$ is common to $\triangle BCR$ and $\triangle PCS$ . Explain why the two triangles are similar.

Diagram for Q6 (SEC4 Emaths)

Generated diagram for Q6.

[2]

7. Find the length of the hypotenuse of a right triangle with legs $6$ cm and $8$ cm. [2]

8. A triangle has sides $7$ cm, $24$ cm, $25$ cm. State whether it is a right-angled triangle. [1]

Section B (Questions 9–14) — Structured Response [30 marks]

9. In $\triangle ABC$ , $AB = 9$ cm, $BC = 12$ cm, $\angle B = 90^\circ$ . (a) Find $AC$ . [2] (b) Find $\cos \angle ACB$ . [2]

10. Use the sine rule to find $x$ in the triangle below.

Diagram for Q10 (SEC4 Emaths)

Generated diagram for Q10.

[3]

11. Explain why $\triangle BCR \sim \triangle PCS$ given $BC \parallel PS$ and they share $\angle BCR = \angle PCS$ . [2]

12. Given $\frac{AB}{AD} = \frac{1}{2}$ and $\angle ABD = 90^\circ$ , explain why $\angle ADB = \frac{\pi}{6}$ rad. [3]

13. A vertical pole $CD$ of height $12$ m stands on level ground. From point $A$ , the angle of elevation to $D$ is $30^\circ$ . Find the distance $AC$ . [3]

14. Triangle $XYZ$ has $XY = XZ = 10$ cm and $YZ = 10$ cm. Show that $\triangle XYZ$ is equilateral. [2]

Section C (Questions 15–20) — Problem Solving [26 marks]

15. A ship sails $20$ km north then $15$ km east. Find its distance from the starting point. [3]

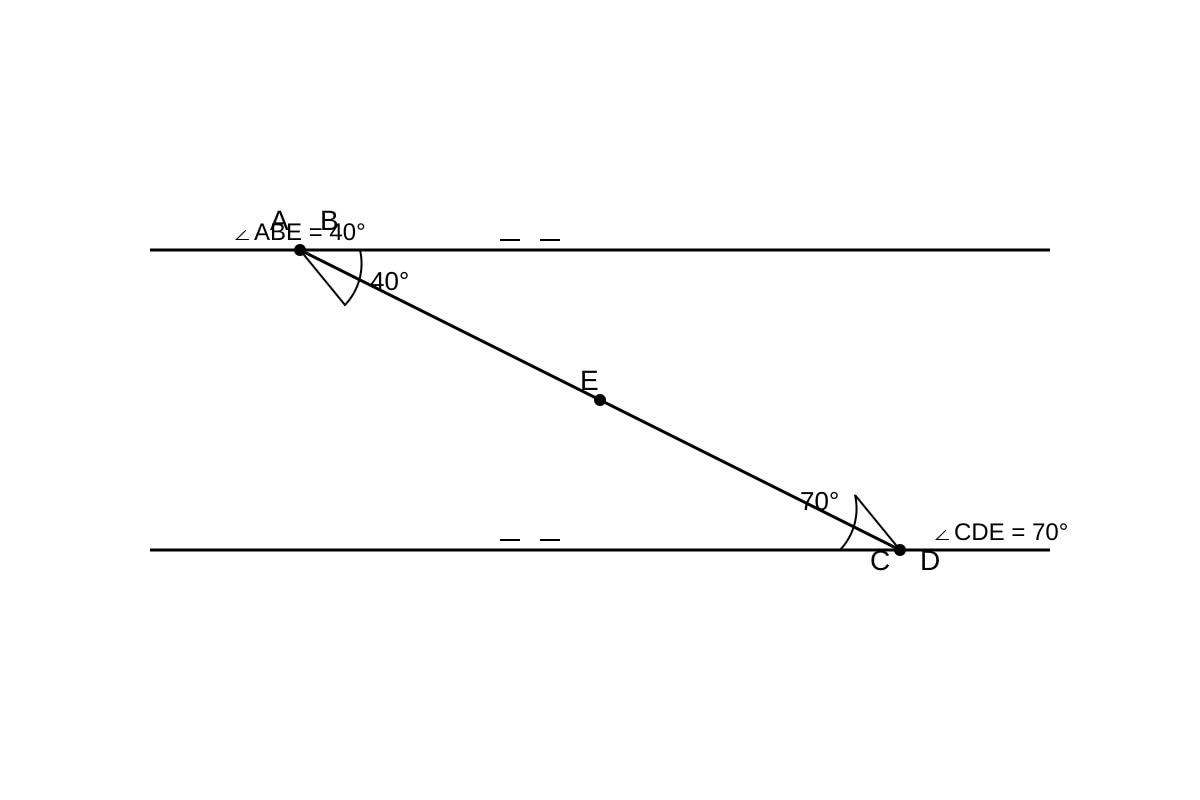

16. In the diagram, $AB \parallel CD$ , $\angle ABE = 40^\circ$ , $\angle CDE = 70^\circ$ . Find $\angle BED$ .

Diagram for Q16 (SEC4 Emaths)

Generated diagram for Q16.

[3]

17. A triangle has sides $5$ , $12$ , $13$ . Find the area using trigonometry (show $\sin$ used). [4]

18. From the top of a $50$ m cliff, the angle of depression to a boat is $25^\circ$ . Find the horizontal distance from the cliff base to the boat. [4]

19. In $\triangle PQR$ , $PQ = 8$ , $PR = 10$ , $QR = 6$ . Prove it is right-angled and find $\sin \angle P$ . [5]

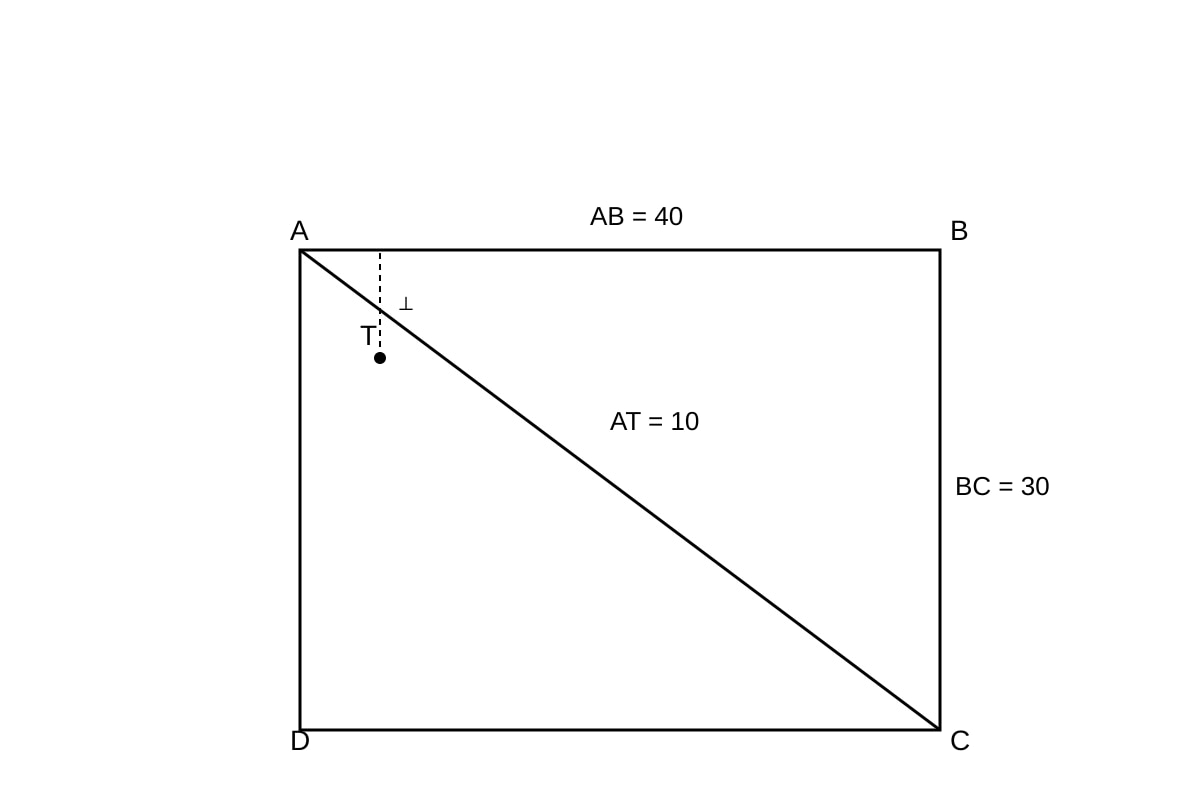

20. A rectangular field is $40$ m by $30$ m. A diagonal path is built. A tree is $10$ m from one corner along the diagonal. Find the shortest distance from the tree to the side of the field using perpendicular measurement.

Diagram for Q20 (SEC4 Emaths)

Generated diagram for Q20.

[4]

End of Paper

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Answer Key — TuitionGoWhere Practice Paper (Version 5)

Subject: Elementary Mathematics
Level: Secondary 4
Total Marks: 80

Section A

1. $\sin \angle P = \frac{5}{13}$
Marks: 2
Teaching: $\sin = \frac{\text{opposite}}{\text{hypotenuse}}$ . Opposite = 5, hyp = 13. No calculator needed. Common mistake: swapping opp and adj.

2. Angle = $\sin^{-1}(4/5) = 53.1^\circ$
Marks: 2
Working: $\cos \theta = 4/5 \Rightarrow \theta = \cos^{-1}(0.8) = 36.9^\circ$ (with ground) OR $\sin \theta = 4/5$ if using opposite. Ladder-foot-wall forms right triangle, ground adj = 4, hyp = 5. $\theta = \cos^{-1}(4/5)=36.9^\circ$ .
Marking: 1 for correct ratio, 1 for angle.

3. AA (Angle-Angle) criterion.
Marks: 1
Two angles equal ( $50^\circ, 60^\circ$ ) ⇒ similar.

4. Distance = $3$ cm × $100$ m/cm = $300$ m.
Marks: 2
From diagram, perpendicular JF = 3 cm. Scale 1 cm = 100 m. Answer 300 m. Mark: 1 construction, 1 measurement+unit.

5. $\tan X = \frac{4}{3}$
Marks: 2
$\cos X = 3/5$ ⇒ adj 3, hyp 5 ⇒ opp = $\sqrt{5^2-3^2}=4$ . $\tan = 4/3$ .

6. $\angle BCR$ shared; $\angle CBR = \angle CPS$ (corresponding, $BC\parallel PS$ ) ⇒ AA similarity.
Marks: 2
1 mark each angle reason.

7. $10$ cm
Marks: 2
$c = \sqrt{6^2+8^2} = \sqrt{100}=10$ .

8. Yes, right-angled ( $7^2+24^2=25^2$ ).
Marks: 1

Section B

9. (a) $AC = \sqrt{9^2+12^2}=15$ cm [2]
(b) $\cos \angle ACB = \frac{12}{15} = 0.8$ [2]

10. Sine rule: $\frac{x}{\sin 45^\circ} = \frac{10}{\sin 30^\circ}$ ⇒ $x = \frac{10 \sin 45^\circ}{\sin 30^\circ} = 14.1$ cm [3]
(1 formula, 1 sub, 1 ans)

11. Shared $\angle BCR = \angle PCS$ ; $\angle CBR = \angle CPS$ (corr, $BC\parallel PS$ ) ⇒ AA. [2]

12. $\frac{AB}{AD}=1/2$ , $\angle ABD=90^\circ$ ⇒ $\sin \angle ADB = AB/AD = 1/2$ ⇒ $\angle ADB = \sin^{-1}(1/2)=\pi/6$ rad. [3]
(1 ratio→sin, 1 inverse, 1 rad)

13. $\tan 30^\circ = 12/AC$ ⇒ $AC = 12/\tan 30^\circ = 20.8$ m [3]

14. All sides = 10 cm ⇒ equilateral by definition. [2]

Section C

15. $d = \sqrt{20^2+15^2}=25$ km [3]

16. Draw BF ∥ ED. $\angle ABF=40^\circ$ , $\angle BFD=70^\circ$ ⇒ $\angle BED = 40+70=110^\circ$ (alt angles). [3]

17. $5,12,13$ right triangle, $\sin$ between legs = 1. Area = $\frac{1}{2}(5)(12)\sin 90^\circ = 30$ . [4]
(1 right, 1 sin, 2 area)

18. $\tan 25^\circ = 50/d$ ⇒ $d = 50/\tan 25^\circ = 107$ m [4]

19. $6^2+8^2=100=10^2$ ⇒ right at Q. $\sin P = QR/PR = 6/10 = 0.6$ . [5]
(2 proof, 1 opp, 1 hyp, 1 ans)

20. Diagonal $AC = 50$ m. T is 10 m from A ⇒ ratio $AT/AC = 1/5$ . Perpendicular to AB: height = $(1/5)×30 = 6$ m. Shortest distance to side AB = 6 m. [4]
(1 diag, 1 ratio, 1 perp, 1 ans)
