TuitionGoWhere Practice Paper – Elementary Mathematics Secondary 4 (PRELIM)

School: TuitionGoWhere Secondary School (AI)
Subject: Elementary Mathematics
Level: Secondary 4
Paper: Prelim Practice Version 4 of 5
Duration: 75 minutes
Total Marks: 60
Name: ___________________________
Class: ____________
Date: ____________

Instructions:

Answer all questions.
Show your working clearly where required.
Calculators may be used.
Give non-exact answers correct to 3 significant figures unless stated otherwise.
Write units where necessary.

Section A (Questions 1–8) — Short Answer [16 marks]

1. In right-angled triangle $PQR$ , $\angle Q = 90^\circ$ , $PQ = 5$ cm and $QR = 12$ cm. Find $\sin \angle R$ . [2]

2. Triangle $ABC$ has $AB = 6$ cm, $BC = 8$ cm, $CA = 10$ cm. Show that $\angle B = 90^\circ$ . [2]

3. A ladder of length $4$ m leans against a wall. The foot of the ladder is $1.5$ m from the wall. Find the angle the ladder makes with the ground. [2]

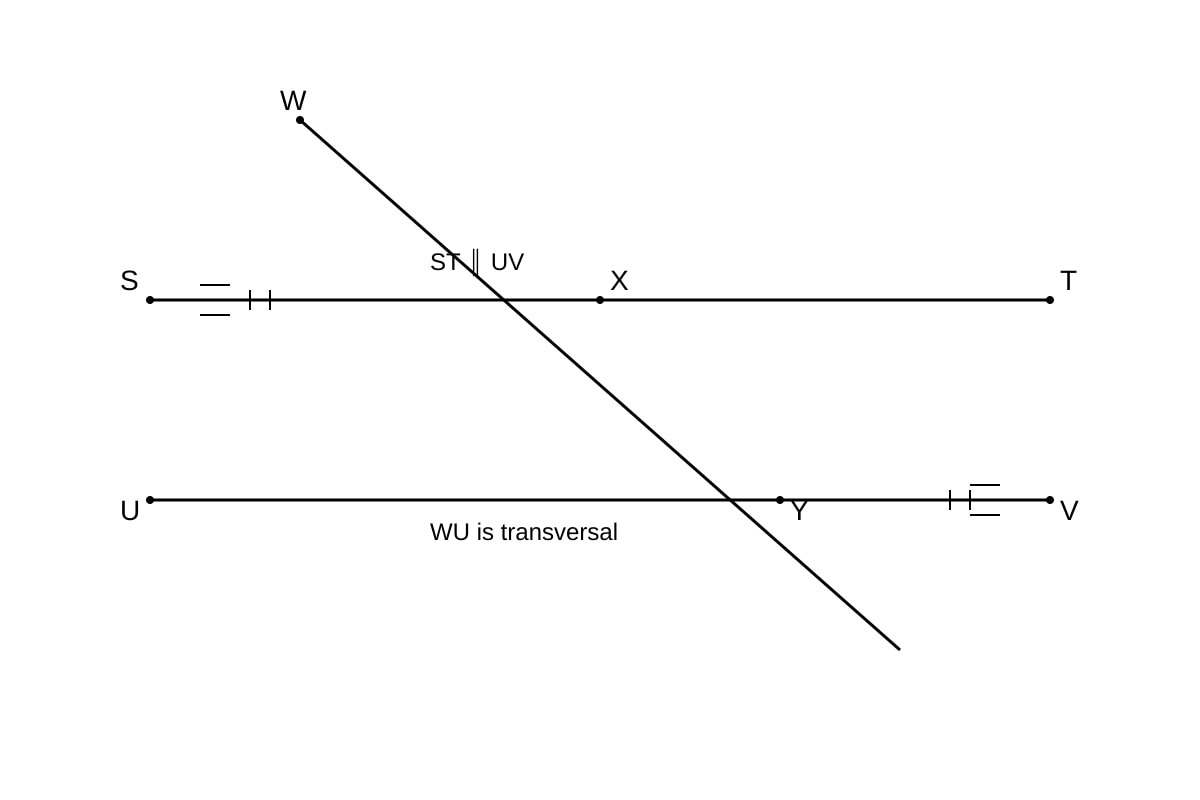

4. In the figure below, $ST \parallel UV$ and $WU$ cuts $ST$ at $X$ . State the pair of corresponding angles formed.

Diagram for Q4 (SEC4 Emaths)

Generated diagram for Q4.

[1]

5. Find the length of the hypotenuse of a right triangle with legs $9$ cm and $12$ cm. [2]

6. Given $\cos \theta = \frac{3}{5}$ , find $\sin \theta$ for acute $\theta$ . [2]

7. A triangle has sides $3$ cm, $4$ cm, $6$ cm. Explain why it is not a right triangle. [2]

8. From the top of a $20$ m cliff, the angle of depression to a boat is $30^\circ$ . Find the horizontal distance from the cliff base to the boat. [3]

Section B (Questions 9–14) — Structured Response [24 marks]

9. (a) Explain why triangles $ABE$ and $CDE$ are similar if $AB \parallel CD$ and they share vertex $E$ . [2]
(b) If $AE = 4$ cm, $CE = 6$ cm and $AB = 5$ cm, find $CD$ . [2]

10. In $\triangle PQR$ , $PQ = 7$ cm, $PR = 10$ cm, $\angle QPR = 40^\circ$ .
(a) Use the cosine rule to find $QR$ . [3]
(b) Hence find $\angle PQR$ . [2]

11. A vertical pole $XY$ of height $8$ m stands on level ground. Point $Z$ is on the ground $6$ m from $Y$ .
(a) Draw and label a right triangle showing the situation. [1]
(b) Find the angle of elevation of $X$ from $Z$ . [2]
(c) Find the distance $XZ$ . [2]

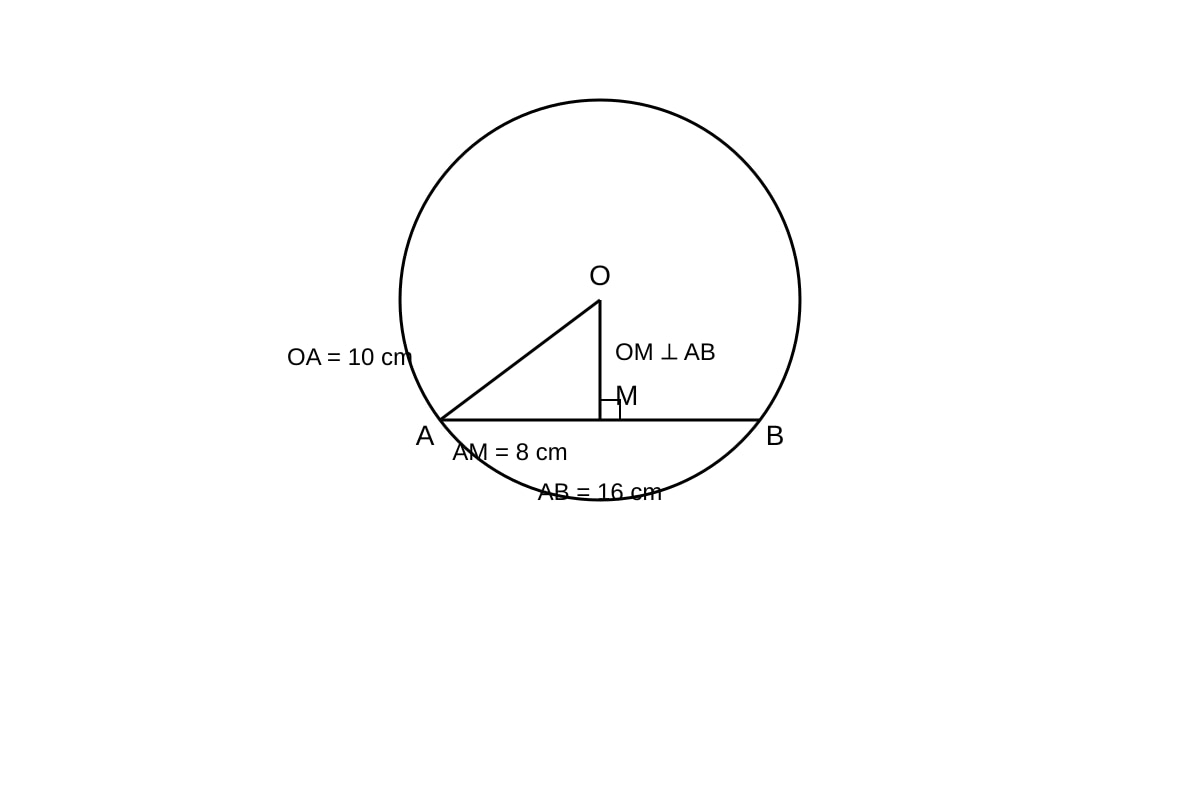

12. In the figure, $O$ is the centre of a circle, $AB$ is a chord, $M$ is midpoint of $AB$ , $OM \perp AB$ . If $AB = 16$ cm and radius $= 10$ cm, find $OM$ .

Diagram for Q12 (SEC4 Emaths)

Generated diagram for Q12.

[3]

13. (a) State the sine rule. [1]
(b) In $\triangle ABC$ , $a = 9$ , $b = 7$ , $\angle A = 50^\circ$ . Find $\angle B$ . [3]

14. A yacht sails from $P$ to $Q$ on a bearing of $060^\circ$ for $5$ km, then to $R$ on bearing $150^\circ$ for $4$ km.
(a) Find $\angle PQR$ . [2]
(b) Find the distance $PR$ . [2]

Section C (Questions 15–20) — Extended Application [20 marks]

15. A triangular plot $ABC$ has $AB = 8$ m, $BC = 11$ m, $CA = 13$ m.
(a) Find the area using Heron’s formula. [3]
(b) Find the shortest distance from $B$ to $AC$ . [2]

16. Template 4 style: In right triangle $ABD$ , $AB = 1$ and $AD = 2$ . Given $\frac{AB}{AD} = \frac{1}{2}$ , explain why $\angle ADB = \frac{\pi}{6}$ rad. [2]
Hence state $\angle ABD$ . [1]

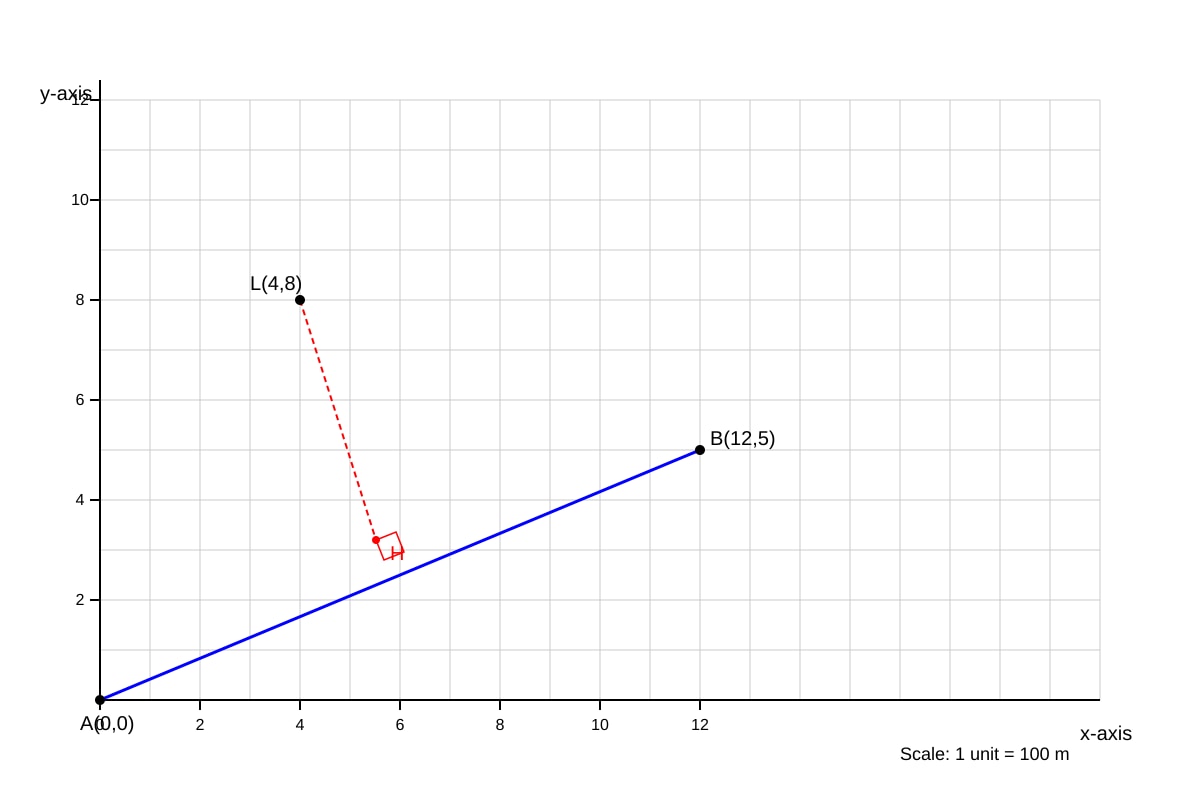

17. Template 1 style: A drone flies from $A(0,0)$ to $B(12,5)$ on a map (1 unit = 100 m). By drawing a perpendicular from a lighthouse $L(4,8)$ to line $AB$ , find the closest distance of the drone’s path to $L$ .

Graph for Q17 (SEC4 Emaths)

Generated graph for Q17.

[3]

18. Template 5 style: In $\triangle PQR$ , $PQ = QR = RP = 9$ cm. Show that $\triangle PQR$ is equilateral. [2]
Find its area. [2]

19. A building casts a shadow of $15$ m when the sun’s elevation is $35^\circ$ .
(a) Find the height of the building. [2]
(b) If the sun’s elevation increases to $50^\circ$ , find the new shadow length. [2]

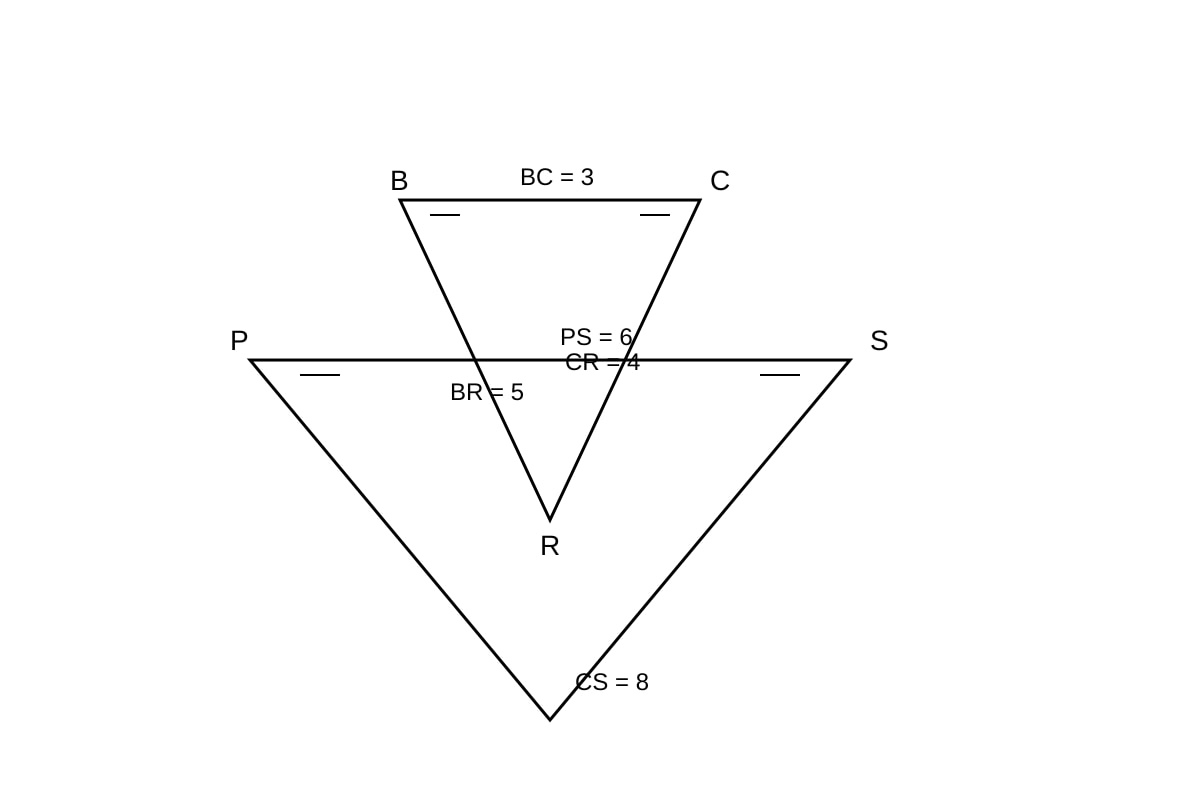

20. Template 2 + 3 style: In the figure, $BC \parallel PS$ , $BR$ and $CS$ meet at $C$ . Given $BC = 3$ , $CR = 4$ , $PS = 6$ , $CS = 8$ .
(a) Explain why $\triangle BCR \sim \triangle PCS$ . [2]
(b) Find $\sin \angle BRC$ given $BR = 5$ . [2]

Diagram for Q20 (SEC4 Emaths)

Generated diagram for Q20.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper – Elementary Mathematics Secondary 4 (PRELIM) Answer Key

Version 4 of 5

Section A

1. [2]
$PR = \sqrt{5^2 + 12^2} = 13$ cm.
$\sin \angle R = \frac{PQ}{PR} = \frac{5}{13}$ .
Teaching note: In right triangle, sine of angle = opposite/hypotenuse. Opposite to ∠R is PQ.
Common mistake: Using QR (adjacent) instead of PQ.

2. [2]
$6^2 + 8^2 = 36 + 64 = 100 = 10^2$ .
Since $AB^2 + BC^2 = CA^2$ , by converse of Pythagoras, $\angle B = 90^\circ$ .
Marking: 1 mark for sum, 1 mark for conclusion.

3. [2]
$\cos \theta = \frac{1.5}{4} = 0.375$ ; $\theta = \cos^{-1}(0.375) \approx 68.0^\circ$ .
Note: Angle with ground uses adjacent (foot distance) over hypotenuse (ladder).

4. [1]
Corresponding angles: $\angle WXS = \angle WYU$ (or $\angle TXW = \angle UYW$ ).
Note: From parallel lines cut by transversal, corresponding angles are equal.

5. [2]
$c = \sqrt{9^2 + 12^2} = \sqrt{81+144} = \sqrt{225} = 15$ cm.

6. [2]
$\sin^2\theta + \cos^2\theta = 1 \Rightarrow \sin\theta = \sqrt{1 - (3/5)^2} = \sqrt{16/25} = 4/5$ .
Acute so positive.

7. [2]
$3^2+4^2=25 \neq 36 = 6^2$ ; not right triangle.
Marking: 1 for check, 1 for reason.

8. [3]
Angle of depression = angle of elevation from boat = $30^\circ$ .
$\tan 30^\circ = \frac{20}{d} \Rightarrow d = \frac{20}{\tan 30^\circ} \approx 34.6$ m.
Marks: 1 (angle), 1 (equation), 1 (answer).

Section B

9. (a) [2] $\angle AEB = \angle CED$ (vertically opposite); $\angle EAB = \angle ECD$ (corresponding, $AB\parallel CD$ ); ∴ similar by AA.
(b) [2] $\frac{CD}{AB} = \frac{CE}{AE} \Rightarrow CD = 5 \times \frac{6}{4} = 7.5$ cm.

10. (a) [3] $QR^2 = 7^2 + 10^2 - 2(7)(10)\cos 40^\circ = 149 - 140(0.766) \approx 42.8$ ; $QR \approx 6.54$ cm.
(b) [2] $\frac{\sin \angle PQR}{10} = \frac{\sin 40^\circ}{6.54} \Rightarrow \angle PQR \approx 87.7^\circ$ .

11. (a) [1] Right triangle XZY with XY vertical 8 m, YZ horizontal 6 m.
(b) [2] $\tan \theta = 8/6 \Rightarrow \theta \approx 53.1^\circ$ .
(c) [2] $XZ = \sqrt{8^2+6^2} = 10$ m.

12. [3] $AM = 8$ cm; $OM = \sqrt{10^2 - 8^2} = \sqrt{36} = 6$ cm.
From right triangle OMA.

13. (a) [1] $\frac{a}{\sin A} = \frac{b}{\sin B} = \frac{c}{\sin C}$ .
(b) [3] $\frac{7}{\sin B} = \frac{9}{\sin 50^\circ} \Rightarrow \sin B = \frac{7\sin 50^\circ}{9} \approx 0.596 \Rightarrow B \approx 36.6^\circ$ .

14. (a) [2] Bearing change = $150-60 = 90^\circ$ ; interior angle at Q = $180-90 = 90^\circ$ ? Actually path turns $90^\circ$ so $\angle PQR = 90^\circ$ .
(b) [2] $PR = \sqrt{5^2+4^2} = \sqrt{41} \approx 6.40$ km.

Section C

15. (a) [3] $s = (8+11+13)/2 = 16$ ; area $= \sqrt{16(8)(5)(3)} = \sqrt{1920} \approx 43.8$ m².
(b) [2] Distance $= 2\times area / AC = 87.6/13 \approx 6.74$ m.

16. [2+1] $\sin \angle ADB = AB/AD = 1/2 \Rightarrow \angle ADB = \pi/6$ rad. $\angle ABD = \pi/2 - \pi/6 = \pi/3$ rad.
Teaching: In right triangle, small angle opposite shorter side.

17. [3] Line AB slope $= 5/12$ . Perpendicular from L to AB: distance formula from point to line $12y-5x=0$ : $d = |12(8)-5(4)|/\sqrt{12^2+5^2} = 76/13 \approx 5.85$ units = 585 m.
Image must show H foot of perpendicular.

18. [2+2] All sides equal 9 cm ⇒ equilateral. Area $= \frac{\sqrt{3}}{4}\times 9^2 \approx 35.1$ cm².

19. (a) [2] $h = 15 \tan 35^\circ \approx 10.5$ m.
(b) [2] $15_{\text{new}} = 10.5 / \tan 50^\circ \approx 8.81$ m.

20. (a) [2] $\angle BCR$ shared; $\angle CBR = \angle CPS$ (corresponding, $BC\parallel PS$ ); similar by AA.
(b) [2] In $\triangle BCR$ , $\sin \angle BRC = BC/BR = 3/5 = 0.6$ .
Note: Opposite BC over hypotenuse BR.
