TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 4 (PRELIM)

School: TuitionGoWhere Secondary School (AI)
Subject: Elementary Mathematics
Level: Secondary 4
Paper: Practice Paper (Prelim Style) – Version 2 of 5
Duration: 60 minutes
Total Marks: 60
Name: ___________________________
Class: ____________
Date: ____________

Instructions

Answer all questions.
Show your working clearly where required.
Calculators may be used.
Give non-exact answers correct to 3 significant figures unless stated otherwise.
Write units where necessary.

Section A (Questions 1–8) [16 marks]

Short-answer and direct calculation questions.

1. In right-angled triangle $PQR$ , $\angle Q = 90^\circ$ , $PQ = 5$ cm and $QR = 12$ cm. Find the length of $PR$ . [2]

2. Given $\triangle ABC$ with $\angle B = 90^\circ$ , $AB = 8$ m, $BC = 15$ m. Find $\tan \angle A$ . [2]

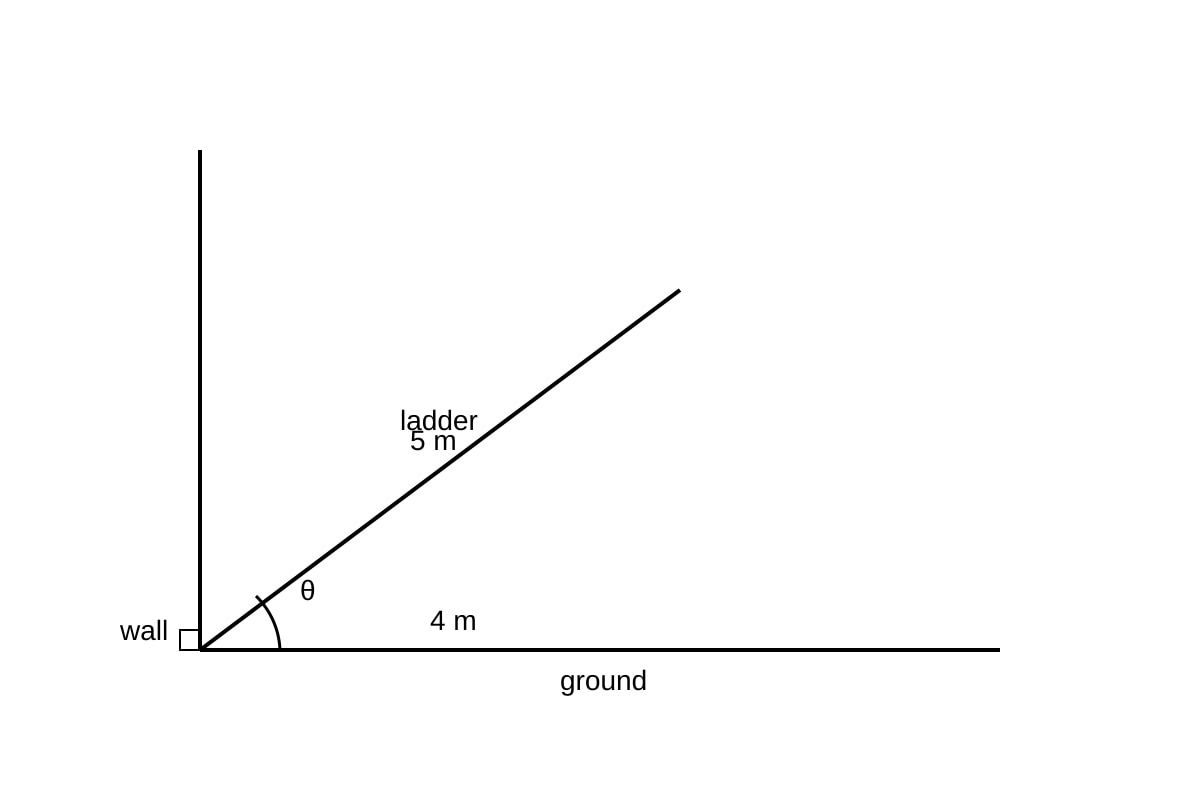

3. A ladder leans against a wall. The foot of the ladder is 4 m from the wall and the ladder is 5 m long. Find the angle the ladder makes with the ground. [2]

Diagram for Q3 (SEC4 Emaths)

Generated diagram for Q3.

4. In $\triangle XYZ$ , $XY = 7$ cm, $YZ = 10$ cm, $\angle XYZ = 60^\circ$ . Use the cosine rule to find $XZ$ . [2]

5. A triangle has sides 6 cm, 8 cm and 10 cm. State, with reason, the type of triangle. [1]

6. Find $\sin 30^\circ + \cos 60^\circ$ . [1]

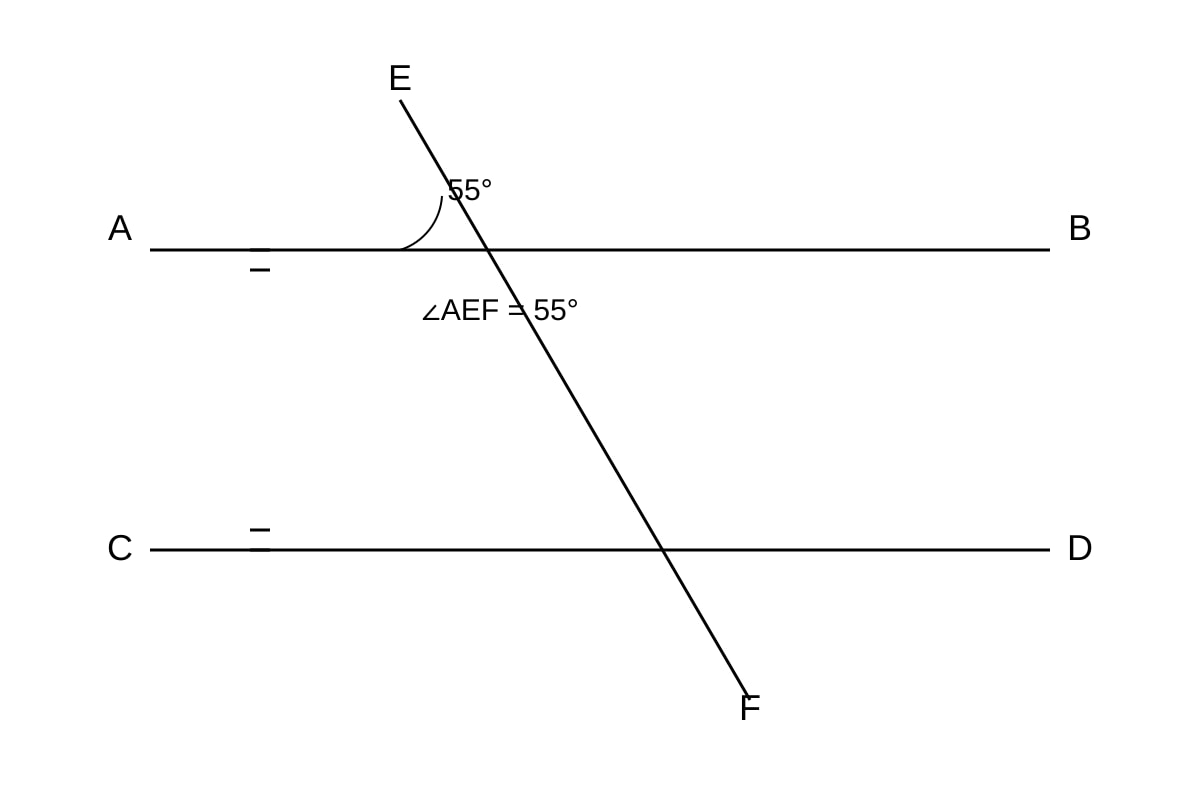

7. In the figure, $AB \parallel CD$ and $EF$ is a transversal. $\angle AEF = 55^\circ$ . Find $\angle EFD$ . [2]

Diagram for Q7 (SEC4 Emaths)

Generated diagram for Q7.

8. A yacht sails from $P$ to $Q$ in a straight line. A jetty $J$ is not on the line. By drawing a perpendicular from $J$ to $PQ$ , measure the shortest distance from $J$ to the path $PQ$ if scale is 1 cm : 100 m and measured length is 3.2 cm. [2]

Section B (Questions 9–14) [24 marks]

Structured response and similarity/trigonometry reasoning.

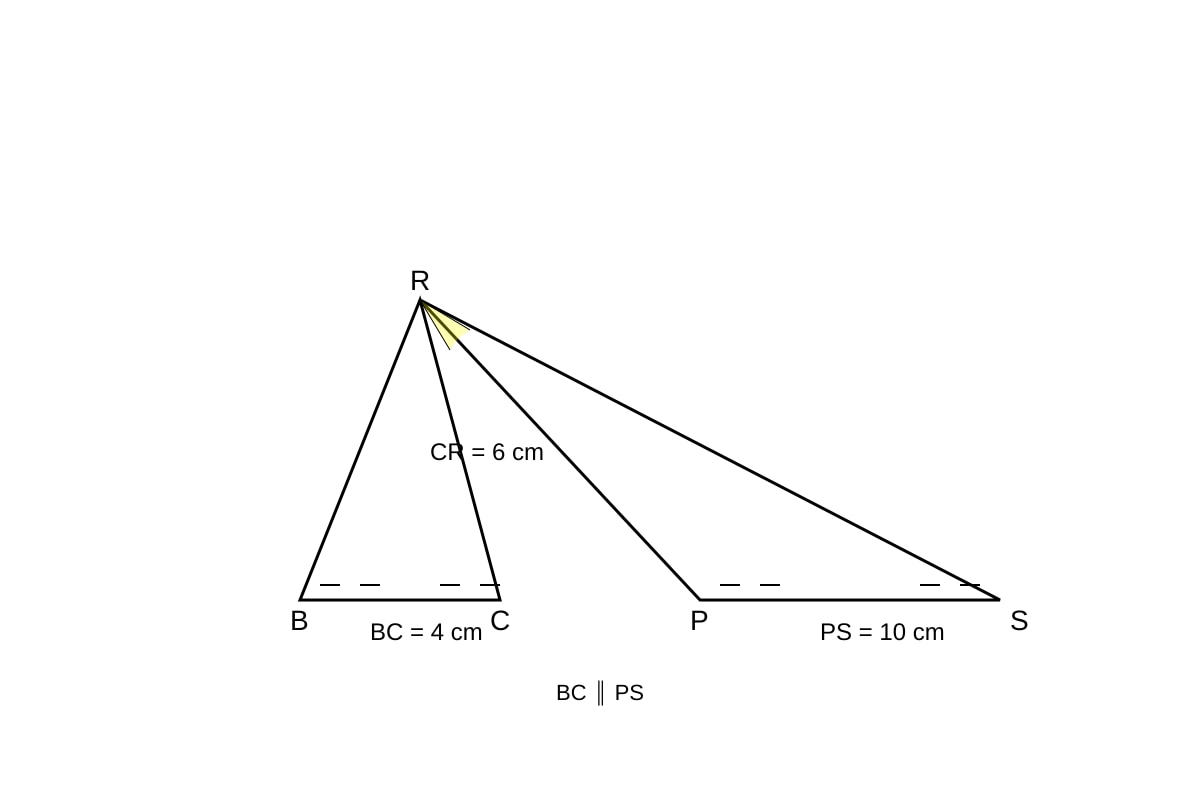

9. (a) Explain why $\triangle BCR$ and $\triangle PCS$ are similar if $BC \parallel PS$ and $\angle BCR$ is shared. [2]
(b) If $BC = 4$ cm, $PS = 10$ cm and $CR = 6$ cm, find $CS$ . [2]

Diagram for Q9 (SEC4 Emaths)

Generated diagram for Q9.

10. In $\triangle ADC$ , $AD = 13$ cm, $CD = 15$ cm, $AC = 14$ cm. Find $\cos \angle ADC$ using cosine rule. [3]

11. Given $\frac{AB}{AD} = \frac{1}{2}$ and $\angle ABD = 90^\circ$ , explain why $\angle ADB = \frac{\pi}{6}$ rad. [2]

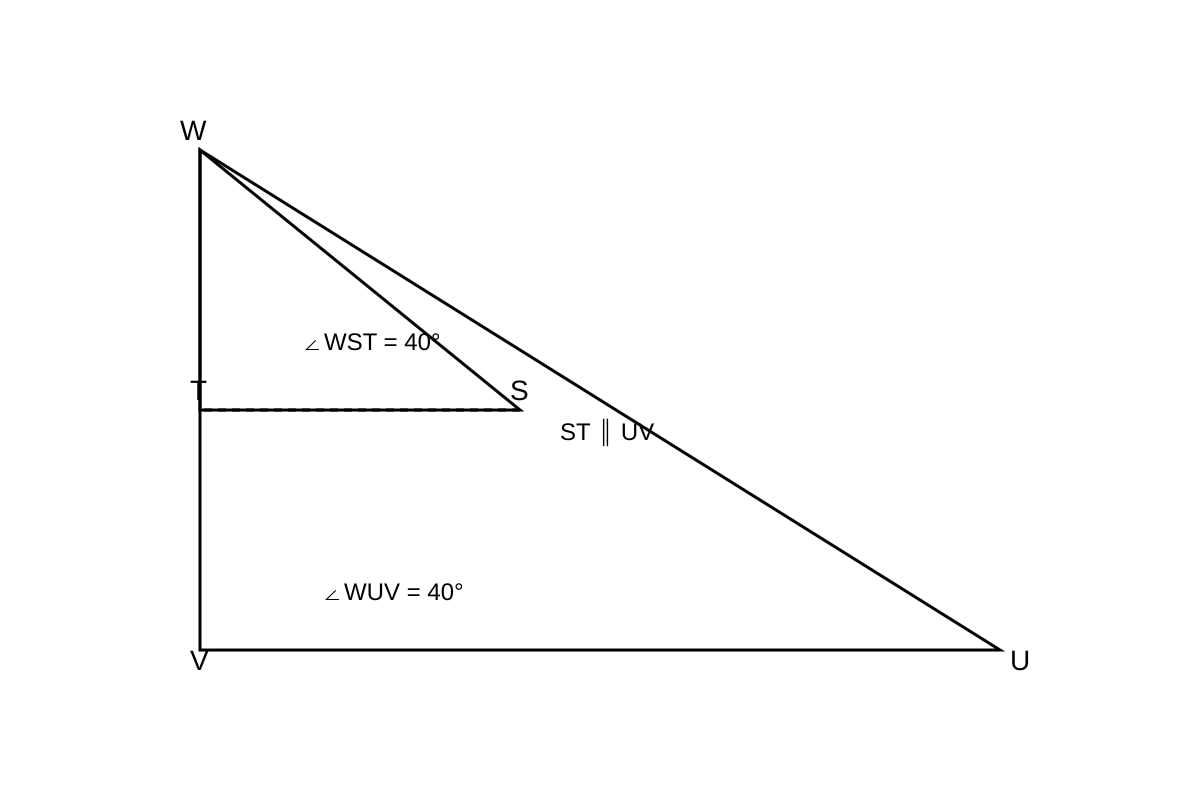

12. In the diagram, $ST \parallel UV$ , $\angle WST = 40^\circ$ , $\angle WUV = 40^\circ$ . Show that $\triangle WST \sim \triangle WUV$ . [2]

Diagram for Q12 (SEC4 Emaths)

Generated diagram for Q12.

13. A triangle has sides $a=9$ , $b=12$ , $c=15$ . (a) Verify it is right-angled. (b) Find $\sin \angle$ opposite side $a$ . [3]

14. From a point 20 m from the base of a tower, the angle of elevation to the top is $35^\circ$ . Find the height of the tower. [2]

Section C (Questions 15–20) [20 marks]

Extended application and proof.

15. In $\triangle PQR$ , $PQ = 9$ cm, $PR = 7$ cm, $QR = 5$ cm. (a) Find $\angle QPR$ using cosine rule. (b) Hence find area of $\triangle PQR$ using $\frac{1}{2}pq\sin R$ . [4]

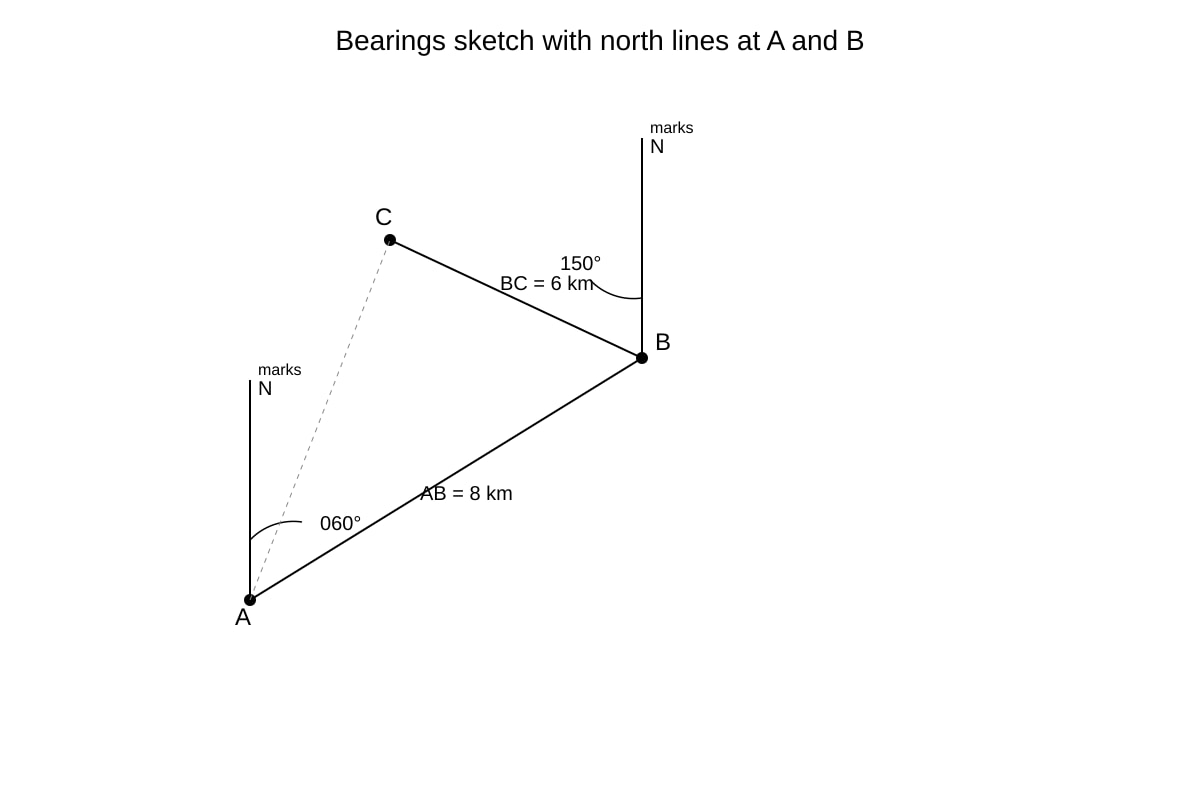

16. A drone flies from $A$ to $B$ on a bearing of $060^\circ$ for 8 km, then to $C$ on bearing $150^\circ$ for 6 km. (a) Draw the path. (b) Find direct distance $AC$ . [4]

Diagram for Q16 (SEC4 Emaths)

Generated diagram for Q16.

17. Prove that $\triangle DEF$ is equilateral if $DE = EF = FD = 10$ cm and $\angle D = 60^\circ$ . [2]

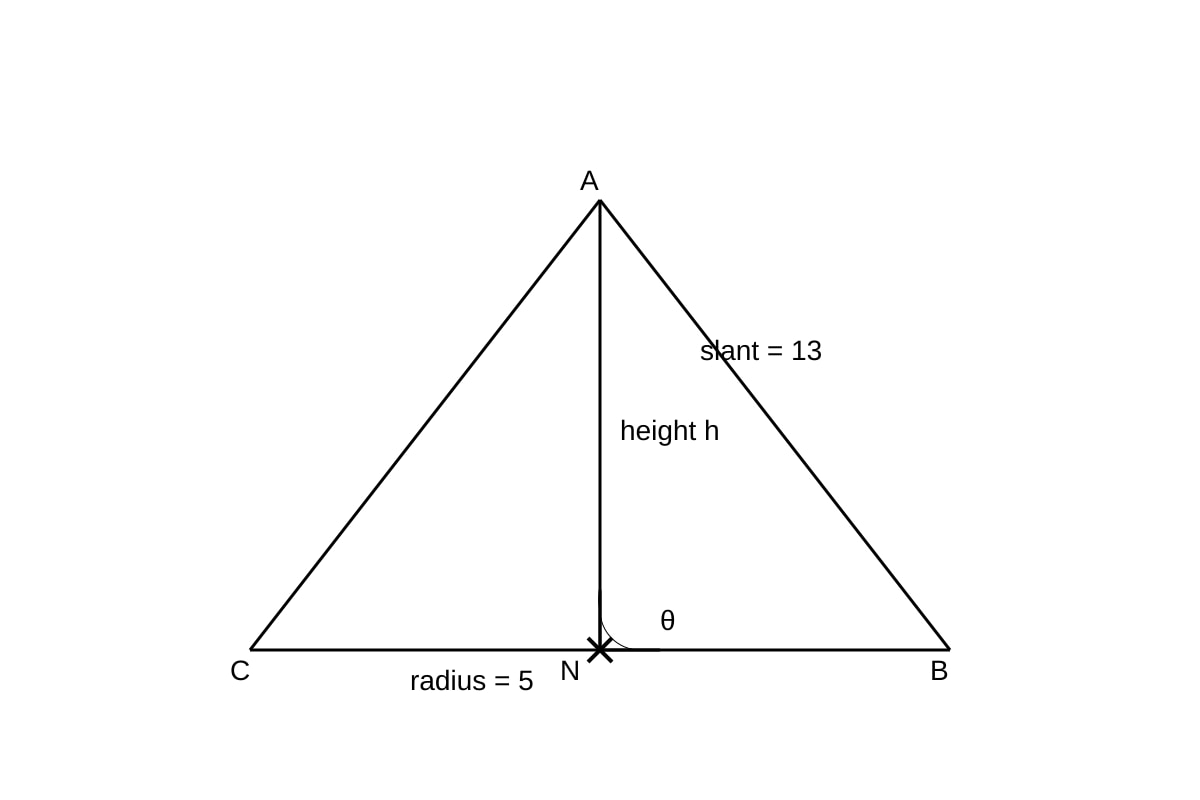

18. A cone has slant height 13 cm and base radius 5 cm. Find the angle between slant height and base radius. [3]

Diagram for Q18 (SEC4 Emaths)

Generated diagram for Q18.

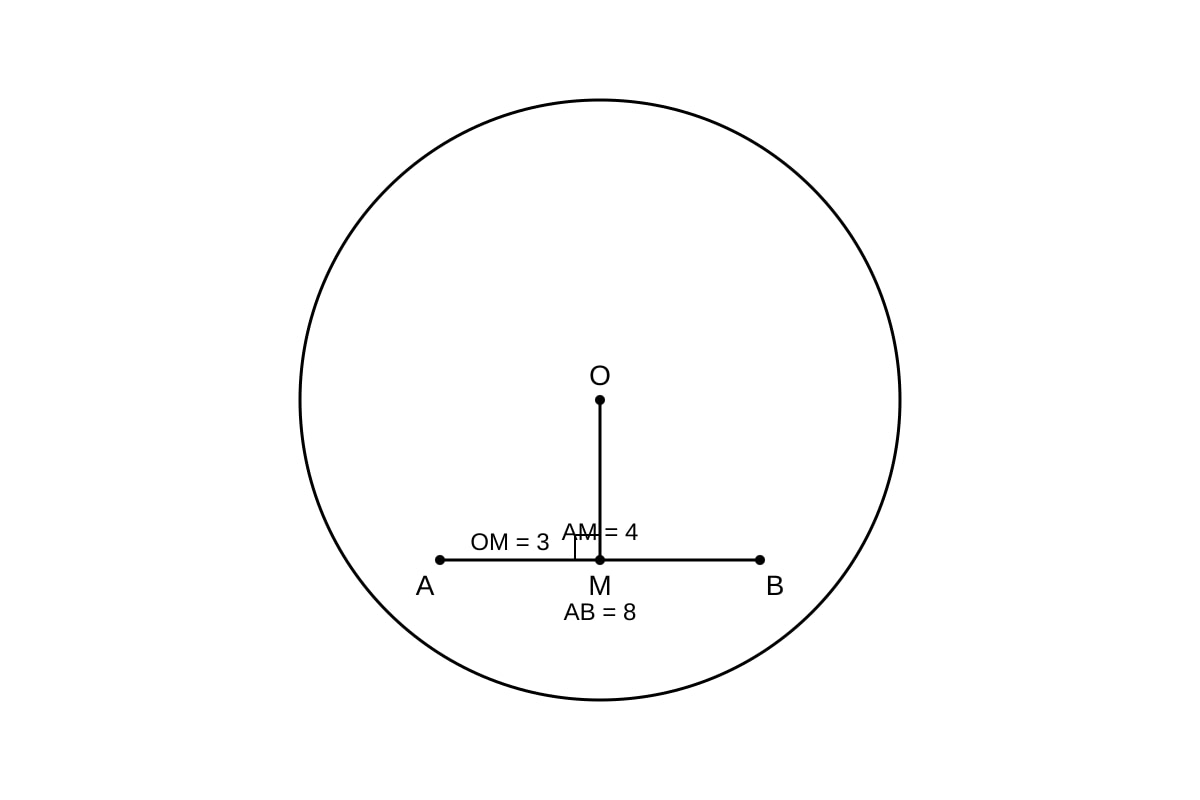

19. In a circle, chord $AB = 8$ cm is 3 cm from centre. Find radius. [3]

Diagram for Q19 (SEC4 Emaths)

Generated diagram for Q19.

20. A triangular plot has sides 11 m, 13 m, 20 m. Find its area using Heron’s formula. [4]

End of Paper

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Answer Key – TuitionGoWhere Practice Paper (Prelim Style) Version 2

Subject: Elementary Mathematics
Level: Secondary 4
Total Marks: 60

Section A

1. [2] $PR = \sqrt{5^2 + 12^2} = \sqrt{25+144} = \sqrt{169} = 13$ cm.
Teaching: Pythagoras theorem for right triangle. Hypotenuse $= \sqrt{\text{sum of squares of legs}}$ .

2. [2] $\tan A = \frac{opp}{adj} = \frac{BC}{AB} = \frac{15}{8} = 1.875$ .
Note: Opposite to ∠A is BC.

3. [2] $\cos \theta = \frac{4}{5}=0.8 \Rightarrow \theta = \cos^{-1}(0.8) \approx 36.9^\circ$ .
From image: adj=4, hyp=5.

4. [2] $XZ^2 = 7^2+10^2-2(7)(10)\cos60^\circ = 49+100-140(0.5)=149-70=79$ ; $XZ=\sqrt{79}\approx 8.89$ cm.

5. [1] Right-angled triangle because $6^2+8^2=36+64=100=10^2$ (Pythagoras converse).

6. [1] $\sin30^\circ=0.5$ , $\cos60^\circ=0.5$ , sum $=1$ .

7. [2] $\angle EFD = \angle AEF = 55^\circ$ (alternate angles, AB∥CD).
From image: parallel lines, transversal.

8. [2] Distance $= 3.2 \text{ cm} \times 100 \text{ m/cm} = 320$ m. Perpendicular gives shortest distance.

Section B

9. [4] (a) ∠BCR shared; ∠CBR = ∠CPS (corr angles, BC∥PS) → similar by AA. [2]
(b) $\frac{BC}{PS}=\frac{CR}{CS} \Rightarrow \frac{4}{10}=\frac{6}{CS} \Rightarrow CS=15$ cm. [2]

10. [3] $\cos D = \frac{13^2+15^2-14^2}{2(13)(15)} = \frac{169+225-196}{390} = \frac{198}{390} = 0.50769 \approx 0.508$ .

11. [2] $\sin \angle ADB = \frac{AB}{AD} = \frac{1}{2}$ (opp/hyp in right △ABD). $\sin^{-1}(0.5)=\frac{\pi}{6}$ rad.

12. [2] ∠W common; ∠WST=∠WUV=40° → similar by AA.

13. [3] (a) $9^2+12^2=81+144=225=15^2$ right. [1] (b) $\sin = \frac{9}{15}=0.6$ . [2]

14. [2] $\tan35^\circ = \frac{h}{20} \Rightarrow h = 20\tan35^\circ \approx 14.0$ m.

Section C

15. [4] (a) $\cos P = \frac{9^2+7^2-5^2}{2(9)(7)} = \frac{81+49-25}{126}=\frac{105}{126}=0.8333 \Rightarrow P\approx33.6^\circ$ . [2]
(b) Area $=\frac{1}{2}(9)(5)\sin Q$ but use given: $\frac{1}{2}(7)(5)\sin P = 17.5\sin33.6^\circ \approx 9.68$ cm². [2]

16. [4] (a) Sketch with bearings. [1] (b) Angle ABC = 150−60=90°, so $AC=\sqrt{8^2+6^2}=10$ km. [3]

17. [2] All sides equal (10 cm) and one angle 60° forces other two 60° → equilateral by definition.

18. [3] $\cos\theta = \frac{5}{13} \Rightarrow \theta = \cos^{-1}(5/13) \approx 67.4^\circ$ .

19. [3] $AM=4$ , $OM=3$ , $r=\sqrt{4^2+3^2}=5$ cm.

20. [4] $s=\frac{11+13+20}{2}=22$ ; Area $=\sqrt{22(11)(9)(2)}=\sqrt{4356}=66$ m².

Common mistakes flagged: mislabel opp/adj; forgetting units; rounding too early; not stating similarity criterion.*
