Secondary 4 Combined Science Physics Preliminary Examination Paper 2
Free Exam-Derived DeepSeek V4 Pro Secondary 4 Combined Science Physics Preliminary Examination Paper 2 practice paper with questions and answers for Singapore students. This page is rendered as a direct URL so the questions and answers can be discovered without pressing in-page buttons.
These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.
Questions
TuitionGoWhere Practice Paper - Combined Science Physics Secondary 4
PRELIMINARY EXAMINATION - Version 2
TuitionGoWhere Secondary School (AI)
Subject: Combined Science Physics (5086/5087) Level: Secondary 4 Paper: Physics Paper 2 (Structured) Duration: 1 hour 15 minutes Total Marks: 65
Name: _________________________ Class: _________________________ Date: _________________________
Instructions to Candidates
- This paper consists of three sections: Section A, Section B, and Section C.
- Answer all questions in the spaces provided.
- Show all working clearly for calculation questions. Marks are awarded for correct method and final answer.
- The number of marks is given in brackets [ ] at the end of each question or part question.
- You may use a calculator.
- Take g = 10 m/s² unless otherwise stated.
Section A: Newtonian Mechanics [22 marks]
Answer all questions in this section.
1. A cyclist travels along a straight road. The velocity-time graph below shows the cyclist's motion over a period of 50 seconds.
Velocity (m/s)
^
| /\
| / \
| / \_____
| /
| /
| /
| /
|/________________________> Time (s)
0 10 20 30 40 50
(a) State the magnitude of the acceleration of the cyclist between t = 0 s and t = 10 s. [1]
Answer: _________________________
(b) Calculate the total distance travelled by the cyclist during the entire 50 seconds. [2]
Answer: _________________________
(c) Describe the motion of the cyclist between t = 20 s and t = 40 s. [1]
Answer: _________________________
2. A wooden crate of mass 25 kg is pushed across a horizontal floor at constant speed by a horizontal force of 75 N.
(a) State the size of the frictional force acting on the crate and explain how you obtain your answer. [2]
Answer: _________________________
Explanation: _________________________
(b) Calculate the work done by the applied force in moving the crate a distance of 8.0 m. [1]
Answer: _________________________
(c) The crate is now pushed up a smooth ramp of length 5.0 m to a height of 2.0 m. Calculate the force required to push the crate up the ramp at constant speed. [2]
Answer: _________________________
3. A student investigates pressure using a rectangular block of mass 2.0 kg with dimensions 0.20 m × 0.10 m × 0.05 m.
(a) Calculate the weight of the block. [1]
Answer: _________________________
(b) The block is placed on a table with its largest face (0.20 m × 0.10 m) in contact with the table. Calculate the pressure exerted on the table. [2]
Answer: _________________________
(c) Explain why the pressure exerted by the block on the table is greater when it rests on its smallest face. [2]
Answer: _________________________
4. A ball of mass 0.50 kg is dropped from a height of 8.0 m above the ground.
(a) Calculate the gravitational potential energy of the ball before it is dropped. [1]
Answer: _________________________
(b) The ball hits the ground with a speed of 11 m/s. Calculate the kinetic energy of the ball just before impact. [1]
Answer: _________________________
(c) Suggest why the loss in gravitational potential energy and the increase in kinetic energy are different, and explain how the law of conservation of energy applies to this situation. [3]
Answer: _________________________
Section B: Thermal Physics and Waves [22 marks]
Answer all questions in this section.
5. A student heats a beaker of crushed ice using a Bunsen burner. The temperature of the ice is recorded every minute until the water begins to boil. The graph below shows the results.
Temperature (°C)
^
| /
| /
| /
| _______/
| /
| /
| /
|______/________________________> Time (min)
0 5 10 15 20 25
(a) State the melting point of the substance. [1]
Answer: _________________________
(b) Describe what happens to the movement and arrangement of the particles between t = 5 min and t = 10 min. [2]
Answer: _________________________
(c) Explain why the temperature remains constant between t = 15 min and t = 20 min, even though heating continues. [2]
Answer: _________________________
(d) The mass of ice used is 0.20 kg. The specific latent heat of fusion of ice is 3.3 × 10⁵ J/kg. Calculate the energy required to melt the ice completely. [2]
Answer: _________________________

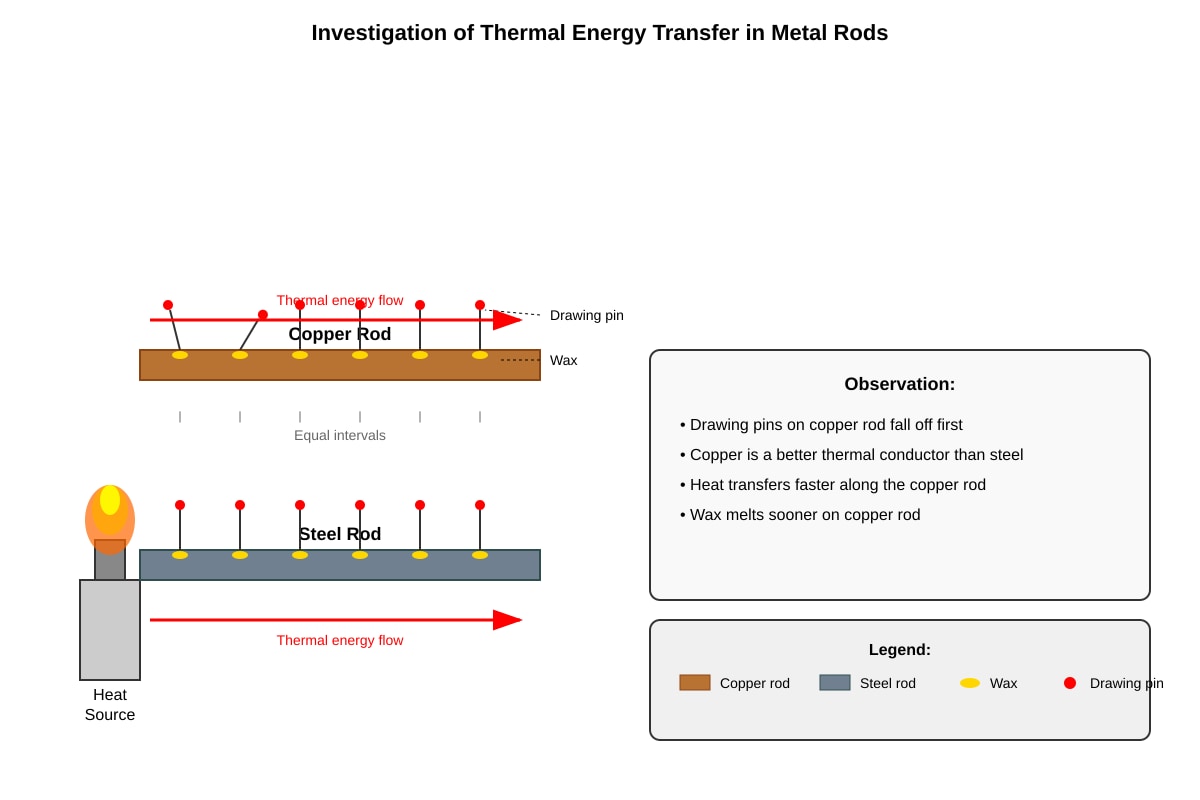

6. A student investigates the transfer of thermal energy using the apparatus shown below. Two metal rods, one copper and one steel, are heated at one end. Drawing pins are attached to the rods using wax at equal intervals.
[Diagram: Two rods heated at one end, drawing pins attached with wax]
(a) State the process by which thermal energy is transferred along each rod. [1]
Answer: _________________________
(b) The drawing pins on the copper rod fall off before those on the steel rod. Explain this observation. [2]
Answer: _________________________
(c) A solar water heater has pipes painted black on its roof panel. Explain why the pipes are painted black. [2]
Answer: _________________________

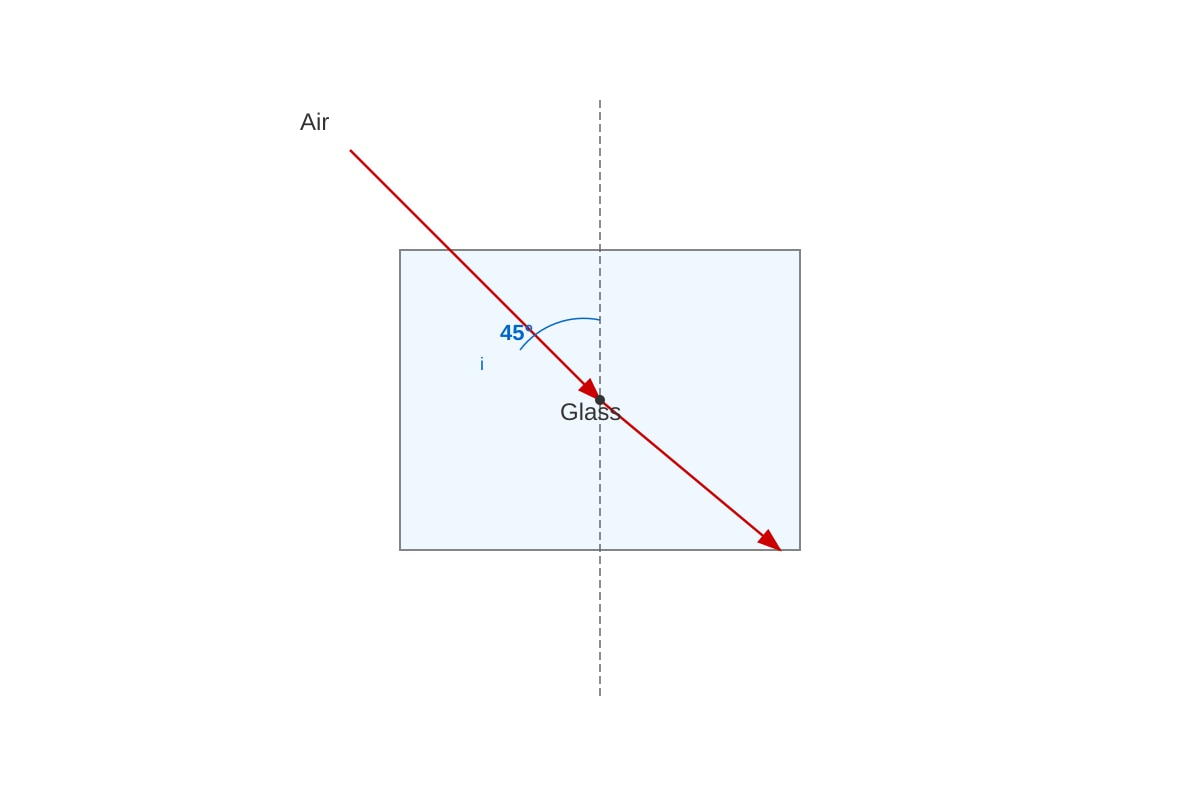

7. A ray of light travels from air into a glass block as shown below.
[Diagram: Ray entering glass block, normal line shown, angle of incidence marked as 45°]
(a) State what happens to the speed and wavelength of the light as it enters the glass block. [2]
Answer: _________________________
(b) The refractive index of the glass is 1.5. Calculate the angle of refraction in the glass. [2]
Answer: _________________________
(c) Complete the ray diagram below to show how a converging lens forms an image of an object placed beyond 2F. Label the image. [2]
[Diagram: Converging lens with principal axis, focal points F and 2F marked, object arrow placed beyond 2F on left side]
8. A student uses a signal generator to produce sound waves of frequency 680 Hz. The speed of sound in air is 340 m/s.
(a) Calculate the wavelength of the sound waves. [2]
Answer: _________________________
(b) State whether the sound waves are longitudinal or transverse, and explain your answer. [2]
Answer: _________________________
Section C: Electricity and Magnetism [21 marks]
Answer all questions in this section.
9. A kitchen appliance has a 2.0 kW heating element and a 40 W lamp connected in parallel to a 240 V mains supply.
(a) Calculate the current flowing through the heating element. [2]
Answer: _________________________
(b) Calculate the total current drawn from the mains supply when both the heating element and lamp are switched on. [2]
Answer: _________________________
(c) The appliance is fitted with a 13 A fuse. Discuss, using suitable calculations, whether this fuse rating is appropriate. [3]
Answer: _________________________

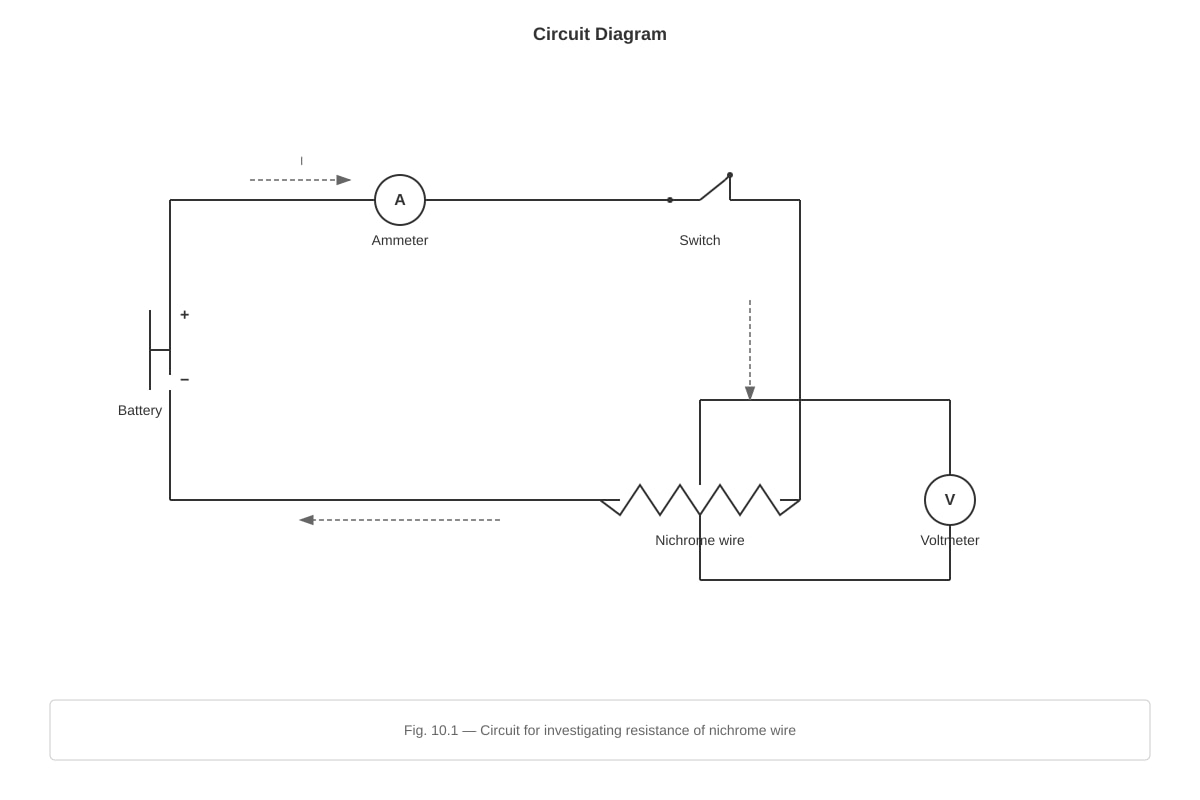

10. A student investigates the resistance of a length of nichrome wire. The circuit diagram is shown below.
[Diagram: Battery, ammeter, voltmeter, nichrome wire, switch in series/parallel arrangement]
(a) Draw the circuit symbol for a voltmeter. [1]
Answer: _________________________
(b) The student records the following readings: current = 0.50 A, potential difference = 3.0 V. Calculate the resistance of the wire. [2]
Answer: _________________________
(c) The student replaces the nichrome wire with a copper wire of the same length and thickness. State and explain how the current in the circuit changes. [2]
Answer: _________________________
11. A transformer is used to step down the mains voltage of 240 V to 12 V for a low-voltage lighting system. The primary coil has 2000 turns.
(a) Calculate the number of turns on the secondary coil. [2]
Answer: _________________________
(b) State one reason why the core of the transformer is made of soft iron. [1]
Answer: _________________________
(c) The lighting system uses a 12 V, 36 W bulb. Calculate the current in the secondary circuit. [2]
Answer: _________________________
(d) Assuming the transformer is 100% efficient, calculate the current in the primary coil. [2]
Answer: _________________________
12. A student rubs a polythene rod with a woollen cloth. The rod becomes negatively charged.
(a) Explain, in terms of electron transfer, how the rod becomes negatively charged. [2]
Answer: _________________________
(b) The charged rod is brought near a thin stream of water flowing from a tap. The water stream bends towards the rod. Explain this observation. [2]
Answer: _________________________
END OF PAPER
Check your work carefully. Ensure all questions are answered and working is shown where required.
Answers
TuitionGoWhere Practice Paper - Combined Science Physics Secondary 4
PRELIMINARY EXAMINATION - Version 2 - ANSWER KEY
TuitionGoWhere Secondary School (AI)
Subject: Combined Science Physics (5086/5087) Level: Secondary 4 Paper: Physics Paper 2 (Structured) Total Marks: 65
Section A: Newtonian Mechanics [22 marks]
1. (a) State the magnitude of the acceleration of the cyclist between t = 0 s and t = 10 s. [1]
Answer: 2.0 m/s²
Marking: 1 mark for correct magnitude with correct units. Accept 2 m/s².
Working: From graph, velocity increases from 0 to 20 m/s in 10 s. a = Δv/Δt = 20/10 = 2.0 m/s².
1. (b) Calculate the total distance travelled by the cyclist during the entire 50 seconds. [2]
Answer: 700 m
Marking: 1 mark for correct method (area under graph or sum of segments), 1 mark for correct answer with units.
Working:
- 0-10 s: Area of triangle = ½ × 10 × 20 = 100 m
- 10-20 s: Area of triangle = ½ × 10 × 20 = 100 m
- 20-40 s: Area of rectangle = 20 × 20 = 400 m
- 40-50 s: Area of triangle = ½ × 10 × 20 = 100 m
- Total = 100 + 100 + 400 + 100 = 700 m
1. (c) Describe the motion of the cyclist between t = 20 s and t = 40 s. [1]
Answer: The cyclist moves at constant velocity / constant speed of 20 m/s.
Marking: 1 mark for "constant velocity" or "constant speed" with value. Accept "uniform motion" or "zero acceleration."
2. (a) State the size of the frictional force acting on the crate and explain how you obtain your answer. [2]
Answer: 75 N
Explanation: The crate moves at constant speed, so acceleration is zero. By Newton's First Law, the net force is zero. Therefore, the frictional force equals the applied force of 75 N.
Marking: 1 mark for correct force value, 1 mark for explanation linking constant speed to zero net force / equilibrium.
2. (b) Calculate the work done by the applied force in moving the crate a distance of 8.0 m. [1]
Answer: 600 J
Marking: 1 mark for correct answer with units.
Working: W = F × d = 75 × 8.0 = 600 J
2. (c) Calculate the force required to push the crate up the ramp at constant speed. [2]
Answer: 100 N
Marking: 1 mark for correct method (work done = mgh or force ratio), 1 mark for correct answer with units.
Working:
- Weight = mg = 25 × 10 = 250 N
- Work done against gravity = mgh = 250 × 2.0 = 500 J
- Work done = Force × distance along ramp
- 500 = F × 5.0
- F = 100 N
Alternative: F = (h/l) × mg = (2.0/5.0) × 250 = 100 N
3. (a) Calculate the weight of the block. [1]
Answer: 20 N
Marking: 1 mark for correct answer with units.
Working: W = mg = 2.0 × 10 = 20 N
3. (b) Calculate the pressure exerted on the table. [2]
Answer: 1000 Pa (or 1.0 × 10³ Pa)
Marking: 1 mark for correct area calculation, 1 mark for correct pressure with units.
Working:
- Area = 0.20 × 0.10 = 0.020 m²
- P = F/A = 20 / 0.020 = 1000 Pa
3. (c) Explain why the pressure exerted by the block on the table is greater when it rests on its smallest face. [2]
Answer: Pressure = Force / Area. The weight (force) is the same in both cases. When the block rests on its smallest face, the contact area is smaller. Since pressure is inversely proportional to area, a smaller area produces a larger pressure.
Marking: 1 mark for stating force/weight is constant, 1 mark for linking smaller area to larger pressure (P ∝ 1/A).
4. (a) Calculate the gravitational potential energy of the ball before it is dropped. [1]
Answer: 40 J
Marking: 1 mark for correct answer with units.
Working: GPE = mgh = 0.50 × 10 × 8.0 = 40 J
4. (b) Calculate the kinetic energy of the ball just before impact. [1]
Answer: 30.25 J (accept 30 J or 30.3 J)
Marking: 1 mark for correct answer with units.
Working: KE = ½mv² = ½ × 0.50 × (11)² = 0.25 × 121 = 30.25 J
4. (c) Suggest why the loss in gravitational potential energy and the increase in kinetic energy are different, and explain how the law of conservation of energy applies to this situation. [3]
Answer: The loss in GPE (40 J) is greater than the gain in KE (30.25 J) because some energy is transferred to the surroundings as thermal energy (heat) and sound due to air resistance acting on the ball as it falls.
The law of conservation of energy states that energy cannot be created or destroyed, only transferred or transformed. In this situation: GPE lost = KE gained + thermal energy transferred to surroundings + sound energy. The total energy remains constant; the "missing" mechanical energy has been dissipated to the environment.
Marking:
- 1 mark: Identifies air resistance/friction as cause of energy difference
- 1 mark: States that energy is dissipated as heat/thermal energy and/or sound
- 1 mark: Applies conservation of energy correctly (total energy constant, GPE = KE + dissipated energy)
Section B: Thermal Physics and Waves [22 marks]
5. (a) State the melting point of the substance. [1]
Answer: 0 °C
Marking: 1 mark for correct temperature with unit.
5. (b) Describe what happens to the movement and arrangement of the particles between t = 5 min and t = 10 min. [2]
Answer: The particles gain kinetic energy and vibrate more vigorously about their fixed positions. The spacing between particles increases slightly as the solid expands. The particles remain in a regular, ordered arrangement (solid state).
Marking: 1 mark for describing increased vibration/movement, 1 mark for describing increased spacing or regular arrangement maintained.
5. (c) Explain why the temperature remains constant between t = 15 min and t = 20 min, even though heating continues. [2]
Answer: During this time, the water is boiling (changing from liquid to gas). The thermal energy supplied is used to overcome the attractive forces between particles and separate them, rather than to increase their kinetic energy. This energy is the latent heat of vaporisation. Since kinetic energy (and therefore temperature) does not increase, the temperature remains constant.
Marking: 1 mark for identifying boiling/state change, 1 mark for explaining energy is used to overcome forces/separate particles (latent heat), not increase kinetic energy.
5. (d) Calculate the energy required to melt the ice completely. [2]
Answer: 6.6 × 10⁴ J (or 66 000 J)
Marking: 1 mark for correct formula (Q = mL), 1 mark for correct answer with units.
Working: Q = mL = 0.20 × 3.3 × 10⁵ = 6.6 × 10⁴ J
6. (a) State the process by which thermal energy is transferred along each rod. [1]
Answer: Conduction
Marking: 1 mark for correct term.
6. (b) The drawing pins on the copper rod fall off before those on the steel rod. Explain this observation. [2]
Answer: Copper is a better conductor of thermal energy than steel. Thermal energy is transferred more quickly along the copper rod, so the wax at each pin position melts sooner. The pins therefore fall off the copper rod first.
Marking: 1 mark for stating copper is a better conductor, 1 mark for linking faster energy transfer to earlier melting of wax.
6. (c) A solar water heater has pipes painted black on its roof panel. Explain why the pipes are painted black. [2]
Answer: Black surfaces are good absorbers of infrared (thermal) radiation. By painting the pipes black, they absorb more thermal radiation from the Sun, which increases the temperature of the water inside the pipes more effectively. This maximises the heating efficiency of the solar water heater.
Marking: 1 mark for stating black surfaces are good absorbers of radiation, 1 mark for linking to increased water heating/efficiency.
7. (a) State what happens to the speed and wavelength of the light as it enters the glass block. [2]
Answer: The speed of light decreases. The wavelength also decreases. (The frequency remains constant.)
Marking: 1 mark for speed decreases, 1 mark for wavelength decreases.
7. (b) Calculate the angle of refraction in the glass. [2]
Answer: 28.1° (accept 28°)
Marking: 1 mark for correct use of Snell's Law, 1 mark for correct answer with unit.
Working:
- n = sin i / sin r
- 1.5 = sin 45° / sin r
- sin r = sin 45° / 1.5 = 0.7071 / 1.5 = 0.4714
- r = sin⁻¹(0.4714) = 28.1°
7. (c) Complete the ray diagram to show how a converging lens forms an image of an object placed beyond 2F. Label the image. [2]
Answer: [Diagram should show:]
- Ray 1: From top of object, parallel to principal axis, refracted through focal point F on right side
- Ray 2: From top of object, through optical centre O, undeviated
- Image formed between F and 2F on right side, inverted, diminished, real
- Image clearly labelled
Marking: 1 mark for correct ray paths (at least two correct rays), 1 mark for correct image position, orientation, and label.
8. (a) Calculate the wavelength of the sound waves. [2]
Answer: 0.50 m
Marking: 1 mark for correct formula, 1 mark for correct answer with units.
Working: v = fλ → λ = v/f = 340 / 680 = 0.50 m
8. (b) State whether the sound waves are longitudinal or transverse, and explain your answer. [2]
Answer: Sound waves are longitudinal waves. In a longitudinal wave, the particles of the medium vibrate parallel to the direction of wave propagation. Sound waves consist of compressions and rarefactions where air particles oscillate back and forth along the direction the sound travels.
Marking: 1 mark for "longitudinal," 1 mark for explanation mentioning particle vibration parallel to wave direction.
Section C: Electricity and Magnetism [21 marks]
9. (a) Calculate the current flowing through the heating element. [2]
Answer: 8.33 A (accept 8.3 A)
Marking: 1 mark for correct formula (I = P/V), 1 mark for correct answer with units.
Working: I = P/V = 2000 / 240 = 8.33 A
9. (b) Calculate the total current drawn from the mains supply when both the heating element and lamp are switched on. [2]
Answer: 8.50 A (accept 8.5 A)
Marking: 1 mark for calculating lamp current, 1 mark for correct total with units.
Working:
- Lamp current: I = 40/240 = 0.167 A
- Total current (parallel): I_total = 8.33 + 0.167 = 8.50 A
9. (c) The appliance is fitted with a 13 A fuse. Discuss, using suitable calculations, whether this fuse rating is appropriate. [3]
Answer: The total current drawn when both components are operating is 8.50 A. The 13 A fuse is rated well above the normal operating current, which means the fuse will not blow during normal use. However, the fuse rating should be slightly above the normal current to prevent nuisance blowing, but low enough to protect the circuit. A 13 A fuse allows significantly more current than 8.50 A before blowing, meaning the circuit could carry excess current without protection. A 10 A fuse would be more appropriate as it is above the normal 8.50 A but provides better protection against overload.
Marking:
- 1 mark: Correct calculation of total current (8.50 A)
- 1 mark: Comparison with fuse rating and identification that 13 A is higher than necessary
- 1 mark: Discussion of appropriateness (either arguing it's acceptable with reasoning, or suggesting a lower rating with justification)
Accept either reasoned conclusion:
- "Acceptable because 13 A > 8.50 A so fuse won't blow during normal operation, and provides safety margin"
- "Not ideal because 13 A is too high; a 10 A fuse would provide better protection while still above operating current"
10. (a) Draw the circuit symbol for a voltmeter. [1]
Answer: A circle with a "V" inside.
Marking: 1 mark for correct symbol (circle with V).
10. (b) Calculate the resistance of the wire. [2]
Answer: 6.0 Ω
Marking: 1 mark for correct formula (R = V/I), 1 mark for correct answer with units.
Working: R = V/I = 3.0 / 0.50 = 6.0 Ω
10. (c) State and explain how the current in the circuit changes. [2]
Answer: The current increases. Copper has a much lower resistivity (is a better conductor) than nichrome. Replacing the nichrome wire with a copper wire of the same dimensions reduces the resistance of the circuit. Since the voltage remains the same, by Ohm's Law (I = V/R), a lower resistance results in a larger current.
Marking: 1 mark for stating current increases, 1 mark for explanation linking lower resistance of copper to increased current.
11. (a) Calculate the number of turns on the secondary coil. [2]
Answer: 100 turns
Marking: 1 mark for correct formula (Vp/Vs = Np/Ns), 1 mark for correct answer.
Working: Vp/Vs = Np/Ns → 240/12 = 2000/Ns → Ns = (12 × 2000)/240 = 100 turns
11. (b) State one reason why the core of the transformer is made of soft iron. [1]
Answer: Soft iron is easily magnetised and demagnetised / Soft iron concentrates and directs the magnetic field / Soft iron reduces energy losses from eddy currents (if laminated).
Marking: 1 mark for any valid reason.
11. (c) Calculate the current in the secondary circuit. [2]
Answer: 3.0 A
Marking: 1 mark for correct formula (I = P/V), 1 mark for correct answer with units.
Working: I = P/V = 36/12 = 3.0 A
11. (d) Assuming the transformer is 100% efficient, calculate the current in the primary coil. [2]
Answer: 0.15 A
Marking: 1 mark for correct method (Pp = Ps or IpVp = IsVs), 1 mark for correct answer with units.
Working:
- For 100% efficiency: Pp = Ps
- Ip × Vp = Is × Vs
- Ip × 240 = 3.0 × 12
- Ip = 36/240 = 0.15 A
Alternative: Ip/Is = Vs/Vp → Ip/3.0 = 12/240 → Ip = 0.15 A
12. (a) Explain, in terms of electron transfer, how the rod becomes negatively charged. [2]
Answer: When the polythene rod is rubbed with the woollen cloth, electrons are transferred from the cloth to the rod. The rod gains electrons and therefore becomes negatively charged. The cloth loses electrons and becomes positively charged.
Marking: 1 mark for stating electrons transfer from cloth to rod, 1 mark for linking gain of electrons to negative charge.
12. (b) The charged rod is brought near a thin stream of water flowing from a tap. The water stream bends towards the rod. Explain this observation. [2]
Answer: The negatively charged rod induces a charge separation in the water molecules (polarisation). The positive ends of the water molecules are attracted towards the rod, while the negative ends are repelled. Since the positive ends are closer to the rod, the net electrostatic force is attractive, causing the water stream to bend towards the rod.
Marking: 1 mark for mentioning induction/polarisation of water molecules, 1 mark for explaining net attractive force due to charge separation.
END OF ANSWER KEY
Total marks: 65
