TuitionGoWhere Practice Paper - Combined Science Physics Secondary 4

PRELIMINARY EXAMINATION - Version 1

TuitionGoWhere Secondary School (AI)

Subject: Combined Science Physics (5086/5087) Level: Secondary 4 Paper: Physics Theory Paper Duration: 1 hour 15 minutes Total Marks: 65

Name: _________________________ Class: _________________________ Date: _________________________

Instructions to Candidates

This paper consists of three sections: Section A, Section B, and Section C.
Answer all questions in the spaces provided.
Write your name, class, and date in the spaces above.
The number of marks is given in brackets [ ] at the end of each question or part question.
You may use a calculator.
Show all working for calculation questions. Marks will be awarded for correct method even if the final answer is incorrect.
Where appropriate, use the value of g = 10 m/s².

Section A: Multiple Choice (10 marks)

Answer all questions. Circle the correct answer for each question.

1. A student measures the length of a metal rod using a metre rule. The reading is 24.7 cm. What is the uncertainty in this measurement?

A. ±0.05 cm B. ±0.1 cm C. ±0.5 cm D. ±1.0 cm

[1 mark]

2. A car travels at a constant speed of 20 m/s for 30 seconds. What is the total distance travelled?

A. 0.67 m B. 50 m C. 600 m D. 6000 m

[1 mark]

3. A wooden block is pushed across a horizontal table at constant speed. Which statement about the forces acting on the block is correct?

A. The applied force is greater than the frictional force. B. The frictional force is greater than the applied force. C. The applied force equals the frictional force. D. No forces act on the block because it moves at constant speed.

[1 mark]

4. Which of the following is a scalar quantity?

A. Velocity B. Acceleration C. Force D. Mass

[1 mark]

5. A student investigates the cooling of hot water in a beaker. The temperature is recorded every minute. Which graph shape would you expect to see?

A. A straight line sloping downwards at constant rate B. A curve sloping downwards, becoming less steep over time C. A straight horizontal line D. A curve sloping upwards, becoming steeper over time

[1 mark]

6. An electric kettle has a power rating of 2400 W and operates at 240 V. What is the current flowing through the kettle?

A. 0.1 A B. 10 A C. 100 A D. 576 000 A

[1 mark]

7. A ray of light travels from air into glass. Which statement about the ray is correct?

A. It speeds up and bends towards the normal. B. It slows down and bends towards the normal. C. It speeds up and bends away from the normal. D. It slows down and bends away from the normal.

[1 mark]

8. Which colour surface is the best absorber of infrared radiation?

A. White and shiny B. White and dull C. Black and shiny D. Black and dull

[1 mark]

9. A simple pendulum completes 20 oscillations in 16 seconds. What is the period of the pendulum?

A. 0.8 s B. 1.25 s C. 16 s D. 320 s

[1 mark]

10. In a 3-pin plug, what is the function of the earth wire?

A. To carry current to the appliance B. To complete the circuit C. To provide a low-resistance path for fault current D. To increase the power of the appliance

[1 mark]

Section B: Structured Questions (35 marks)

Answer all questions in the spaces provided.

11. A student investigates the motion of a trolley rolling down a ramp. The velocity-time graph below shows the motion of the trolley for the first 8 seconds.

Velocity (m/s)
^
|
6 |                    ___________
|                   /           \
4 |                  /             \
|                 /                \
2 |                /                  \
|               /                     \
0 |______________/______________________\______> Time (s)
0       2       4       6       8

(a) State the magnitude of the acceleration of the trolley between t = 0 s and t = 4 s.

___________________________________________________________________________ [1]

(b) Describe the motion of the trolley between t = 4 s and t = 6 s.

___________________________________________________________________________ [1]

(c) Calculate the total distance travelled by the trolley in the first 8 seconds.

___________________________________________________________________________ [3]

(d) The trolley has a mass of 0.5 kg. Calculate the resultant force acting on the trolley between t = 0 s and t = 4 s.

___________________________________________________________________________ [2]

12. A student heats a beaker of crushed ice using a Bunsen burner. The temperature of the ice is recorded every minute until the water begins to boil. The graph below shows the results.

Temperature (°C)
^
|
100 |                              /
|                              /
80 |                              /
|                              /
60 |                              /
|                              /
40 |                              /
|                              /
20 |           /-----------------
|          /
0 |_________/
|________/_____________________________> Time (min)
0   2   4   6   8   10  12  14

(a) State the melting point of the ice.

___________________________________________________________________________ [1]

(b) Explain why the temperature remains constant between t = 4 min and t = 8 min, even though heating continues. Describe your answer in terms of the movement and arrangement of particles.

___________________________________________________________________________ [3]

(c) The mass of the ice is 0.20 kg. The specific latent heat of fusion of ice is 3.34 × 10⁵ J/kg. Calculate the energy required to melt all the ice.

___________________________________________________________________________ [2]

(d) After all the ice has melted, the water is heated from 0°C to 100°C. The specific heat capacity of water is 4200 J/(kg°C). Calculate the energy required for this temperature change.

___________________________________________________________________________ [2]

13. A student sets up an electrical circuit with a 12 V battery, a switch, and two identical lamps connected in parallel.

(a) Draw a circuit diagram for this arrangement. Label all components.

___________________________________________________________________________ [2]

(b) Each lamp has a resistance of 24 Ω. Calculate the total resistance of the circuit.

___________________________________________________________________________ [2]

(c) Calculate the total current drawn from the battery when both lamps are switched on.

___________________________________________________________________________ [2]

(d) One of the lamps is removed from its holder. State and explain what happens to the brightness of the remaining lamp.

___________________________________________________________________________ [2]

14. A student investigates the reflection of light using a plane mirror. A ray of light strikes the mirror at an angle of incidence of 35°.

(a) State the angle of reflection.

___________________________________________________________________________ [1]

(b) State two characteristics of the image formed by a plane mirror.

___________________________________________________________________________ [2]

(c) The student replaces the plane mirror with a convex mirror. State one use of a convex mirror and explain why it is suitable for this use.

___________________________________________________________________________ [2]

15. A household electric iron has a power rating of 1800 W and operates at 240 V.

(a) Calculate the current flowing through the iron when it is operating normally.

___________________________________________________________________________ [2]

(b) The iron is used for 2 hours. Calculate the electrical energy consumed in kilowatt-hours (kWh).

___________________________________________________________________________ [2]

(c) The cost of electricity is $0.25 per kWh. Calculate the cost of using the iron for 2 hours.

___________________________________________________________________________ [1]

Section C: Data-Based and Extended Response Questions (20 marks)

Answer all questions in the spaces provided.

16. A student investigates the relationship between the force applied to a spring and its extension. The results are shown in the table below.

Force (N)	Extension (cm)
0	0.0
2	1.5
4	3.0
6	4.5
8	6.0
10	8.5

(a) Plot a graph of force (y-axis) against extension (x-axis) on the grid below. Draw the best-fit line.

[Grid provided - 4 marks]

(b) Using your graph, determine the extension when the force is 5.0 N.

___________________________________________________________________________ [1]

(c) State Hooke's Law.

___________________________________________________________________________ [1]

(d) Explain whether the spring obeys Hooke's Law for all the forces tested. Use data from the table to support your answer.

___________________________________________________________________________ [2]

17. A student reads an article about energy efficiency in homes. The article states:

"Double-glazed windows reduce heat loss from homes. The gap between the two glass panes is filled with argon gas, which has a lower thermal conductivity than air. The inner surfaces of the glass are also coated with a thin layer that reflects infrared radiation back into the room."

(a) Explain how double-glazed windows reduce heat loss by conduction.

___________________________________________________________________________ [2]

(b) Explain how double-glazed windows reduce heat loss by convection.

___________________________________________________________________________ [2]

(c) Explain how the infrared-reflecting coating reduces heat loss by radiation.

___________________________________________________________________________ [2]

(d) A homeowner replaces single-glazed windows with double-glazed windows. The total area of the windows is 15 m². The U-value (measure of heat loss) decreases from 5.0 W/(m²°C) to 1.8 W/(m²°C). The temperature difference between inside and outside is 20°C. Calculate the reduction in heat loss per second.

___________________________________________________________________________ [3]

18. A student investigates the efficiency of an electric motor lifting a mass. The motor lifts a 2.0 kg mass through a vertical height of 1.5 m in 4.0 seconds. The motor operates at 12 V and draws a current of 1.5 A.

(a) Calculate the useful work done by the motor in lifting the mass.

___________________________________________________________________________ [2]

(b) Calculate the electrical energy supplied to the motor during the 4.0 seconds.

___________________________________________________________________________ [2]

(c) Calculate the efficiency of the motor.

___________________________________________________________________________ [2]

(d) Suggest one reason why the efficiency is less than 100%.

___________________________________________________________________________ [1]

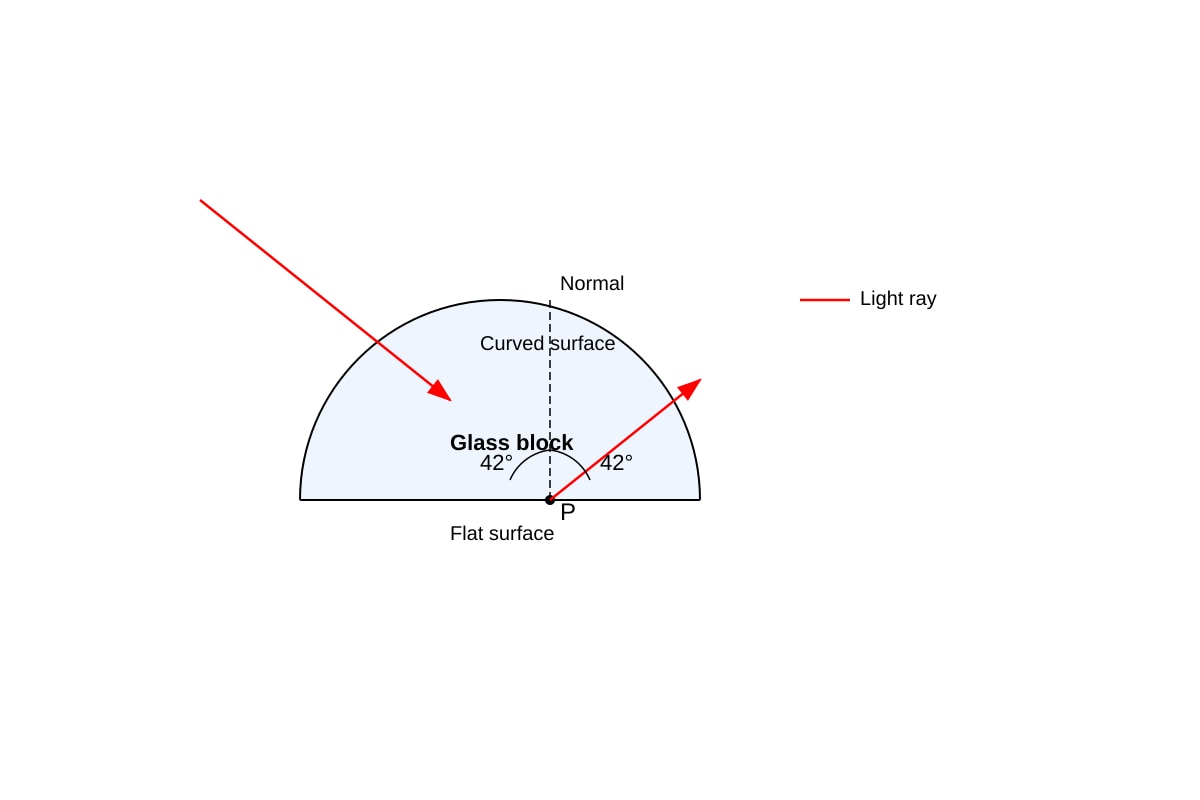

19. A student investigates the refraction of light through a semicircular glass block. The diagram below shows a ray of light entering the curved surface of the block and striking the flat surface at point P.

[Diagram: Semicircular block with ray entering curved surface, travelling to flat surface at point P. Angle of incidence at P marked as 42°. Normal at P shown.]

(a) The critical angle for the glass is 41°. State what happens to the ray when it reaches point P.

___________________________________________________________________________ [1]

(b) Explain your answer to part (a).

___________________________________________________________________________ [1]

(c) State one condition necessary for total internal reflection to occur.

___________________________________________________________________________ [1]

(d) Name one practical application of total internal reflection.

___________________________________________________________________________ [1]

20. A student reads about different methods of generating electricity. The table below shows information about three methods.

Method	Energy Source	CO₂ emissions (g/kWh)	Reliability
Coal-fired power station	Coal	820	High
Wind turbine	Wind	11	Variable
Nuclear power station	Uranium	12	High

(a) Using data from the table, compare the environmental impacts of coal-fired and nuclear power stations.

___________________________________________________________________________ [2]

(b) Explain why wind turbines are described as having "variable" reliability.

___________________________________________________________________________ [1]

(c) A small wind turbine generates 500 W of electrical power when the wind speed is 12 m/s. The kinetic energy of the wind passing through the turbine blades per second is 2000 J. Calculate the efficiency of the wind turbine.

___________________________________________________________________________ [2]

(d) Suggest one advantage and one disadvantage of using wind turbines to generate electricity, other than those mentioned in the table.

Advantage: _________________________________________________________________

Disadvantage: ______________________________________________________________

___________________________________________________________________________ [2]

END OF PAPER

Check your answers carefully before submitting.

Answers

TuitionGoWhere Practice Paper - Combined Science Physics Secondary 4

PRELIMINARY EXAMINATION - Version 1 - ANSWER KEY

TuitionGoWhere Secondary School (AI)

Subject: Combined Science Physics (5086/5087) Level: Secondary 4 Paper: Physics Theory Paper Total Marks: 65

Section A: Multiple Choice (10 marks)

Question	Answer	Explanation
1	B	The uncertainty of a metre rule reading is ±0.1 cm (half the smallest division of 0.1 cm).
2	C	Distance = speed × time = 20 m/s × 30 s = 600 m
3	C	At constant speed, acceleration = 0, so net force = 0. Applied force = frictional force.
4	D	Mass is a scalar quantity (magnitude only). Velocity, acceleration, and force are vectors.
5	B	Rate of cooling decreases as temperature difference decreases (Newton's law of cooling).
6	B	I = P/V = 2400 W / 240 V = 10 A
7	B	Light slows down when entering a denser medium (glass) and bends towards the normal.
8	D	Black, dull surfaces are the best absorbers (and emitters) of infrared radiation.
9	A	Period = total time / number of oscillations = 16 s / 20 = 0.8 s
10	C	The earth wire provides a low-resistance path to ground for fault current, protecting users from electric shock.

Marking: 1 mark each. Total = 10 marks.

Section B: Structured Questions (35 marks)

Question 11: Motion Analysis (7 marks)

(a) Acceleration between t = 0 s and t = 4 s [1 mark]

Acceleration = gradient = (6 - 0) / (4 - 0) = 1.5 m/s²
Answer: 1.5 m/s²
Award 1 mark for correct value with units.

(b) Motion between t = 4 s and t = 6 s [1 mark]

The trolley moves at constant velocity / constant speed of 6 m/s.
Answer: Constant velocity of 6 m/s (accept: zero acceleration, uniform motion)
Award 1 mark for correct description.

(c) Total distance travelled in first 8 seconds [3 marks]

Distance = area under velocity-time graph
Area from 0-4 s: triangle = ½ × 4 × 6 = 12 m
Area from 4-6 s: rectangle = 2 × 6 = 12 m
Area from 6-8 s: triangle = ½ × 2 × 6 = 6 m
Total distance = 12 + 12 + 6 = 30 m
Answer: 30 m
Award 1 mark for correct method (area under graph), 1 mark for correct calculation of areas, 1 mark for correct final answer with units.

(d) Resultant force between t = 0 s and t = 4 s [2 marks]

F = ma
a = 1.5 m/s² (from part a)
F = 0.5 kg × 1.5 m/s² = 0.75 N
Answer: 0.75 N
Award 1 mark for correct formula and substitution, 1 mark for correct answer with units.

Question 12: Thermal Physics (8 marks)

(a) Melting point of ice [1 mark]

Answer: 0°C
Award 1 mark for correct value.

(b) Explanation of constant temperature during melting [3 marks]

During melting, the energy supplied is used to overcome the forces of attraction between particles / to break the bonds between particles.
The particles move from fixed positions in a regular lattice arrangement to a less ordered arrangement where they can slide past each other.
The spacing between particles increases.
The kinetic energy of the particles does not increase, so the temperature remains constant.
Answer: Energy is used to break bonds/overcome forces between particles, not to increase kinetic energy. Particles become less ordered, spacing increases.
Award 1 mark for stating energy breaks bonds/overcomes forces, 1 mark for describing change in arrangement, 1 mark for stating kinetic energy/temperature does not increase.

(c) Energy to melt ice [2 marks]

Q = mL
Q = 0.20 kg × 3.34 × 10⁵ J/kg
Q = 6.68 × 10⁴ J (or 66,800 J)
Answer: 6.68 × 10⁴ J
Award 1 mark for correct formula and substitution, 1 mark for correct answer with units.

(d) Energy to heat water from 0°C to 100°C [2 marks]

Q = mcΔθ
Q = 0.20 kg × 4200 J/(kg°C) × 100°C
Q = 84,000 J (or 8.4 × 10⁴ J)
Answer: 8.4 × 10⁴ J
Award 1 mark for correct formula and substitution, 1 mark for correct answer with units.

Question 13: Electrical Circuits (8 marks)

(a) Circuit diagram [2 marks]

Correct parallel arrangement with battery, switch, and two lamps.
All components correctly labelled.
Award 1 mark for correct parallel arrangement, 1 mark for correct labels.

(b) Total resistance [2 marks]

For parallel: 1/R_total = 1/R₁ + 1/R₂
1/R_total = 1/24 + 1/24 = 2/24 = 1/12
R_total = 12 Ω
Answer: 12 Ω
Award 1 mark for correct formula, 1 mark for correct answer with units.

(c) Total current [2 marks]

I = V/R
I = 12 V / 12 Ω = 1.0 A
Answer: 1.0 A
Award 1 mark for correct formula and substitution, 1 mark for correct answer with units.

(d) Effect of removing one lamp [2 marks]

The remaining lamp stays at the same brightness.
In a parallel circuit, each branch receives the full voltage of the battery. Removing one branch does not affect the voltage across the other branch.
Answer: Brightness remains the same because voltage across remaining lamp is unchanged.
Award 1 mark for stating brightness unchanged, 1 mark for correct explanation (voltage unchanged in parallel).

Question 14: Light and Reflection (5 marks)

(a) Angle of reflection [1 mark]

Angle of reflection = angle of incidence = 35°
Answer: 35°
Award 1 mark for correct value.

(b) Two characteristics of image in plane mirror [2 marks]

Any two from: virtual, upright, laterally inverted, same size as object, same distance behind mirror as object is in front.
Answer: Virtual and same size as object (accept any two correct characteristics).
Award 1 mark for each correct characteristic.

(c) Use of convex mirror and explanation [2 marks]

Use: rear-view mirror in vehicles / security mirror in shops / blind corner mirror.
Explanation: convex mirror gives a wider field of view / allows a larger area to be seen.
Answer: Rear-view mirror (or other valid use) because it provides a wider field of view.
Award 1 mark for valid use, 1 mark for correct explanation.

Question 15: Practical Electricity (5 marks)

(a) Current through iron [2 marks]

I = P/V
I = 1800 W / 240 V = 7.5 A
Answer: 7.5 A
Award 1 mark for correct formula and substitution, 1 mark for correct answer with units.

(b) Energy consumed in kWh [2 marks]

E = Pt
E = 1.8 kW × 2 h = 3.6 kWh
Answer: 3.6 kWh
Award 1 mark for correct conversion to kW, 1 mark for correct answer with units.

(c) Cost of using iron [1 mark]

Cost = 3.6 kWh × $0.25/kWh =$ 0.90
Answer: $0.90
Award 1 mark for correct answer.

Section C: Data-Based and Extended Response Questions (20 marks)

Question 16: Hooke's Law Investigation (8 marks)

(a) Graph plotting [4 marks]

Correct axes: Force (N) on y-axis, Extension (cm) on x-axis.
Appropriate scales chosen.
All points plotted correctly (±½ small square).
Best-fit straight line drawn through origin and points up to 8 N.
Award 1 mark for correct axes and labels, 1 mark for appropriate scales, 1 mark for correct plotting, 1 mark for correct best-fit line.

(b) Extension at 5.0 N [1 mark]

From graph: approximately 3.8 cm (accept 3.7-3.9 cm)
Answer: 3.8 cm
Award 1 mark for correct reading from graph.

(c) Hooke's Law [1 mark]

The extension of a spring is directly proportional to the applied force, provided the elastic limit is not exceeded.
Answer: Extension is directly proportional to force (up to the elastic limit).
Award 1 mark for correct statement including proportionality.

(d) Does the spring obey Hooke's Law for all forces? [2 marks]

No, the spring does not obey Hooke's Law for all forces.
For forces 0-8 N, extension is proportional to force (e.g., 2 N → 1.5 cm, 4 N → 3.0 cm, 6 N → 4.5 cm, 8 N → 6.0 cm - all in ratio).
At 10 N, extension is 8.5 cm, which is more than the expected 7.5 cm (if proportional). The elastic limit has been exceeded.
Answer: No. For 0-8 N, extension is proportional to force. At 10 N, extension is greater than expected, showing the elastic limit has been exceeded.
Award 1 mark for stating no, 1 mark for using data to explain (identifying deviation at 10 N).

Question 17: Energy Efficiency in Homes (9 marks)

(a) Reduction of heat loss by conduction [2 marks]

The argon gas between the panes has lower thermal conductivity than air.
This reduces the rate of heat transfer by conduction through the window.
The gap between panes also means heat must conduct through two layers of glass and the gas gap, increasing the total thickness.
Answer: Argon has lower thermal conductivity, reducing conduction. The gas gap increases the distance heat must travel.
Award 1 mark for mentioning lower thermal conductivity of argon, 1 mark for linking to reduced conduction.

(b) Reduction of heat loss by convection [2 marks]

The narrow gap between the glass panes restricts the movement of gas particles.
This reduces/prevents convection currents from forming in the gap.
Answer: Narrow gap prevents/reduces convection currents in the gas between panes.
Award 1 mark for mentioning narrow gap, 1 mark for linking to reduced/absent convection currents.

(c) Reduction of heat loss by radiation [2 marks]

The infrared-reflecting coating reflects infrared radiation back into the room.
This reduces the amount of thermal radiation that escapes through the window.
Answer: Coating reflects infrared radiation back into the room, reducing radiative heat loss.
Award 1 mark for mentioning reflection of infrared, 1 mark for linking to reduced heat loss.

(d) Reduction in heat loss per second [3 marks]

Heat loss = U × A × ΔT
Original heat loss = 5.0 × 15 × 20 = 1500 W (or J/s)
New heat loss = 1.8 × 15 × 20 = 540 W (or J/s)
Reduction = 1500 - 540 = 960 W (or J/s)
Answer: 960 W (or 960 J/s)
Award 1 mark for correct formula, 1 mark for correct calculation of both values, 1 mark for correct reduction with units.

Question 18: Motor Efficiency (7 marks)

(a) Useful work done [2 marks]

Work done = force × distance = weight × height
Weight = mg = 2.0 kg × 10 m/s² = 20 N
Work done = 20 N × 1.5 m = 30 J
Answer: 30 J
Award 1 mark for correct weight calculation, 1 mark for correct work done with units.

(b) Electrical energy supplied [2 marks]

E = VIt
E = 12 V × 1.5 A × 4.0 s = 72 J
Answer: 72 J
Award 1 mark for correct formula and substitution, 1 mark for correct answer with units.

(c) Efficiency [2 marks]

Efficiency = (useful work output / energy input) × 100%
Efficiency = (30 J / 72 J) × 100% = 41.7% (or 42%)
Answer: 41.7% (accept 42%)
Award 1 mark for correct formula, 1 mark for correct answer.

(d) Reason for efficiency less than 100% [1 mark]

Any valid reason: energy lost as heat in the motor windings / friction in the motor bearings / sound energy produced / energy lost in lifting mechanism.
Answer: Energy is lost as heat due to resistance in the motor windings (or other valid reason).
Award 1 mark for any valid reason.

Question 19: Total Internal Reflection (4 marks)

(a) What happens at point P [1 mark]

Total internal reflection occurs / the ray is reflected back into the glass block.
Answer: Total internal reflection occurs.
Award 1 mark for correct phenomenon.

(b) Explanation [1 mark]

The angle of incidence (42°) is greater than the critical angle (41°).
Answer: Angle of incidence (42°) > critical angle (41°).
Award 1 mark for correct comparison.

(c) Condition for total internal reflection [1 mark]

Light must travel from a denser medium to a less dense medium (e.g., from glass to air).
AND the angle of incidence must be greater than the critical angle.
Answer: Light travels from optically denser to less dense medium AND angle of incidence > critical angle.
Award 1 mark for stating either condition (both not required for 1 mark).

(d) Practical application [1 mark]

Any valid: optical fibres (for telecommunications/endoscopes) / prism periscopes / binoculars.
Answer: Optical fibres (or other valid application).
Award 1 mark for any valid application.

Question 20: Energy Sources and Power Generation (7 marks)

(a) Comparison of environmental impacts [2 marks]

Coal-fired: produces high CO₂ emissions (820 g/kWh), contributing to climate change/global warming.
Nuclear: produces very low CO₂ emissions (12 g/kWh), much better for climate change.
However, nuclear produces radioactive waste which requires long-term storage.
Answer: Coal produces much more CO₂ (820 vs 12 g/kWh). Nuclear produces radioactive waste.
Award 1 mark for comparing CO₂ emissions using data, 1 mark for mentioning nuclear waste.

(b) Why wind turbines have variable reliability [1 mark]

Wind speed is not constant / wind does not blow all the time / depends on weather conditions.
Answer: Wind speed varies / wind is not always available.
Award 1 mark for correct explanation.

(c) Efficiency of wind turbine [2 marks]

Efficiency = (useful power output / power input) × 100%
Power input = 2000 J/s = 2000 W
Efficiency = (500 W / 2000 W) × 100% = 25%
Answer: 25%
Award 1 mark for correct formula, 1 mark for correct answer.

(d) Advantage and disadvantage of wind turbines [2 marks]

Advantage (any valid): renewable energy source / no fuel costs / low running costs / no air pollution during operation.
Disadvantage (any valid): visual impact on landscape / noise pollution / can harm birds / requires large areas of land / high initial construction costs.
Answer: Advantage: Renewable energy source. Disadvantage: Visual/noise impact on landscape.
Award 1 mark for valid advantage, 1 mark for valid disadvantage.

END OF ANSWER KEY

Total Marks: 65
