Secondary 4 Combined Science Chemistry Periodic Table Quiz
Free AI-Generated DeepSeek V4 Pro Secondary 4 Combined Science Chemistry Periodic Table quiz with questions and answers for Singapore students. This page is rendered as a direct URL so the questions and answers can be discovered without pressing in-page buttons.
These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.
Questions
Secondary 4 Combined Science Chemistry Quiz - Periodic Table
Name: _________________________ Class: _________________________ Date: _________________________ Score: ______ / 40
Duration: 45 minutes Total Marks: 40 Instructions: Answer ALL questions in the spaces provided. Show all working for calculation questions. The Periodic Table may be used.
Section A: Multiple Choice (10 marks)
Circle the correct answer for each question.
1. Which element is in Group 2 and Period 3 of the Periodic Table? A. Beryllium B. Magnesium C. Calcium D. Aluminium
[1 mark]
2. An element X forms an oxide with the formula X₂O. To which group does X belong? A. Group 1 B. Group 2 C. Group 16 D. Group 17
[1 mark]
3. Which property decreases down Group 7? A. Atomic radius B. Melting point C. Reactivity D. Number of electron shells
[1 mark]
4. Element Y has the electronic structure 2,8,2. Which statement about Y is correct? A. It is in Period 2 of the Periodic Table. B. It forms ions with a charge of 2−. C. It is a non-metal. D. It is in Group 2 of the Periodic Table.
[1 mark]
5. Which element is most likely to be a transition element? A. Element P: forms a white oxide, low melting point B. Element Q: forms coloured compounds, acts as a catalyst C. Element R: soft, reacts vigorously with water D. Element S: diatomic gas at room temperature
[1 mark]
6. Which row correctly describes the trend in atomic radius across Period 3 from sodium to chlorine?
| Trend | Reason | |
|---|---|---|
| A | Decreases | Nuclear charge increases, shielding constant |
| B | Decreases | Nuclear charge decreases, shielding constant |
| C | Increases | Nuclear charge increases, shielding constant |
| D | Increases | Nuclear charge decreases, shielding constant |
[1 mark]
7. Element Z is a solid at room temperature, conducts electricity, and has a high melting point. It forms a basic oxide. Z is most likely a: A. Non-metal in Group 16 B. Metal in Group 1 C. Metal in Group 2 D. Transition element
[1 mark]
8. Which element has the highest melting point? A. Sodium B. Magnesium C. Aluminium D. Silicon
[1 mark]
9. An element has the proton number 17. In which group and period is it located?
| Group | Period | |
|---|---|---|
| A | 7 | 3 |
| B | 17 | 3 |
| C | 7 | 2 |
| D | 17 | 2 |
[1 mark]
10. Which statement about Group 0 elements is correct? A. They are highly reactive. B. They exist as diatomic molecules. C. Their boiling points increase down the group. D. They form ionic compounds with metals.
[1 mark]
Section B: Structured Questions (20 marks)
Answer all questions in the spaces provided.
11. The table below shows some properties of elements in Period 3.
| Element | Na | Mg | Al | Si | P | S | Cl |
|---|---|---|---|---|---|---|---|
| Melting point (°C) | 98 | 650 | 660 | 1410 | 44 | 119 | −101 |
| Electrical conductivity | Good | Good | Good | Semi | Poor | Poor | Poor |
(a) Describe the general trend in melting point across Period 3 from sodium to silicon. [1 mark]
(b) Explain why silicon has a much higher melting point than phosphorus. Refer to structure and bonding in your answer. [3 marks]
(c) Explain why electrical conductivity decreases across Period 3 from sodium to chlorine. [2 marks]
[Total: 6 marks]
12. Potassium is a Group 1 element with proton number 19.
(a) Write the electronic structure of a potassium atom. [1 mark]
(b) State the group and period of potassium in the Periodic Table. Explain how the electronic structure determines its position. [2 marks]
Group: _______ Period: _______
Explanation: ______________________________________________
(c) Describe what you would observe when a small piece of potassium is added to a trough of cold water. Write a balanced chemical equation for the reaction. [3 marks]
Observations: ____________________________________________
Equation: ________________________________________________
[Total: 6 marks]

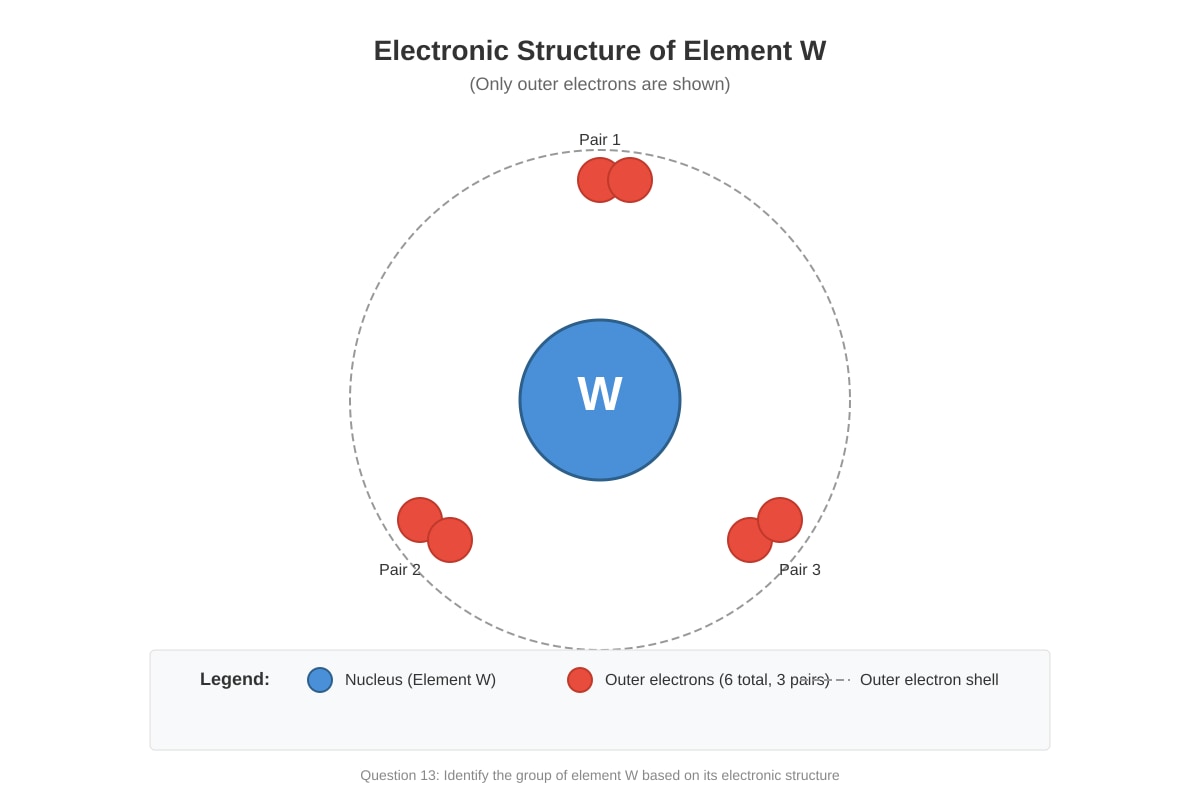

13. The diagram below represents the electronic structure of an atom of element W. Only outer electrons are shown.
[Diagram description: An atom with 6 outer electrons arranged in 3 pairs around the symbol W]
(a) Identify the group to which element W belongs. Explain your answer. [2 marks]
(b) Element W is in Period 2. Identify element W and write its electronic structure. [2 marks]
(c) Element W reacts with hydrogen to form a compound with the formula H₂W. Draw a dot-and-cross diagram to show the bonding in H₂W. Show outer electrons only. [2 marks]
[Draw in the space below]
(d) Predict whether the oxide of element W is acidic, basic, or amphoteric. Explain your answer. [2 marks]
[Total: 8 marks]
14. The graph below shows the atomic radii of the first 20 elements in the Periodic Table plotted against their proton numbers.
[Graph description: Atomic radius (pm) on y-axis vs Proton number on x-axis.
Peaks at Li (152), Na (186), K (227).
Troughs at Ne (38), Ar (71).
General sawtooth pattern decreasing across each period, with sharp increase at start of next period.]
(a) Describe the trend in atomic radius across Period 2 from lithium to neon. [1 mark]
(b) Explain why atomic radius decreases across Period 2. [2 marks]
(c) Explain why there is a sharp increase in atomic radius from neon (proton number 10) to sodium (proton number 11). [2 marks]
(d) Using the graph, predict which element in Period 3 has the smallest atomic radius. Explain your choice. [2 marks]
(e) The atomic radius of potassium (227 pm) is larger than that of sodium (186 pm). Explain this difference in terms of atomic structure. [2 marks]
(f) Suggest why the atomic radius of chlorine (proton number 17) is smaller than that of sodium (proton number 11), even though chlorine has more electrons. [1 mark]
[Total: 10 marks]
15. The table below shows the melting points and formulae of oxides for some Period 3 elements.
| Element | Formula of oxide | Melting point of oxide (°C) | Nature of oxide |
|---|---|---|---|
| Na | Na₂O | 1275 | Basic |
| Mg | MgO | 2852 | Basic |
| Al | Al₂O₃ | 2072 | Amphoteric |
| Si | SiO₂ | 1710 | Acidic |
| P | P₄O₁₀ | 340 | Acidic |
| S | SO₂ | −72 | Acidic |
(a) Describe the trend in the nature of oxides across Period 3. [1 mark]
(b) Explain why sodium oxide (Na₂O) is basic while sulfur dioxide (SO₂) is acidic. [2 marks]
(c) Aluminium oxide is described as amphoteric. Explain what this term means and write a balanced equation for the reaction of aluminium oxide with hydrochloric acid. [3 marks]
Equation: ________________________________________________
(d) Silicon dioxide has a very high melting point. Explain this in terms of its structure and bonding. [2 marks]
(e) Suggest why the melting point of phosphorus(V) oxide (P₄O₁₀) is much lower than that of silicon dioxide (SiO₂). [2 marks]
[Total: 10 marks]
Section C: Data-Based Question (10 marks)
Study the information carefully and answer all questions.
16. The graph below shows the atomic radii of the first 20 elements in the Periodic Table plotted against their proton numbers.
[Graph description: Atomic radius (pm) on y-axis vs Proton number on x-axis.
Peaks at Li (152), Na (186), K (227).
Troughs at Ne (38), Ar (71).
General sawtooth pattern decreasing across each period, with sharp increase at start of next period.]
(a) Describe the trend in atomic radius across Period 2 from lithium to neon. [1 mark]
(b) Explain why atomic radius decreases across Period 2. [2 marks]
(c) Explain why there is a sharp increase in atomic radius from neon (proton number 10) to sodium (proton number 11). [2 marks]
(d) Using the graph, predict which element in Period 3 has the smallest atomic radius. Explain your choice. [2 marks]
(e) The atomic radius of potassium (227 pm) is larger than that of sodium (186 pm). Explain this difference in terms of atomic structure. [2 marks]
(f) Suggest why the atomic radius of chlorine (proton number 17) is smaller than that of sodium (proton number 11), even though chlorine has more electrons. [1 mark]
[Total: 10 marks]
17. The table below shows the melting points and formulae of oxides for some Period 3 elements.
| Element | Formula of oxide | Melting point of oxide (°C) | Nature of oxide |
|---|---|---|---|
| Na | Na₂O | 1275 | Basic |
| Mg | MgO | 2852 | Basic |
| Al | Al₂O₃ | 2072 | Amphoteric |
| Si | SiO₂ | 1710 | Acidic |
| P | P₄O₁₀ | 340 | Acidic |
| S | SO₂ | −72 | Acidic |
(a) Describe the trend in the nature of oxides across Period 3. [1 mark]
(b) Explain why sodium oxide (Na₂O) is basic while sulfur dioxide (SO₂) is acidic. [2 marks]
(c) Aluminium oxide is described as amphoteric. Explain what this term means and write a balanced equation for the reaction of aluminium oxide with hydrochloric acid. [3 marks]
Equation: ________________________________________________
(d) Silicon dioxide has a very high melting point. Explain this in terms of its structure and bonding. [2 marks]
(e) Suggest why the melting point of phosphorus(V) oxide (P₄O₁₀) is much lower than that of silicon dioxide (SiO₂). [2 marks]
[Total: 10 marks]
18. The table below shows some properties of elements in Period 3.
| Element | Na | Mg | Al | Si | P | S | Cl |
|---|---|---|---|---|---|---|---|
| Melting point (°C) | 98 | 650 | 660 | 1410 | 44 | 119 | −101 |
| Electrical conductivity | Good | Good | Good | Semi | Poor | Poor | Poor |
(a) Describe the general trend in melting point across Period 3 from sodium to silicon. [1 mark]
(b) Explain why silicon has a much higher melting point than phosphorus. Refer to structure and bonding in your answer. [3 marks]
(c) Explain why electrical conductivity decreases across Period 3 from sodium to chlorine. [2 marks]
[Total: 6 marks]
19. Potassium is a Group 1 element with proton number 19.
(a) Write the electronic structure of a potassium atom. [1 mark]
(b) State the group and period of potassium in the Periodic Table. Explain how the electronic structure determines its position. [2 marks]
Group: _______ Period: _______
Explanation: ______________________________________________
(c) Describe what you would observe when a small piece of potassium is added to a trough of cold water. Write a balanced chemical equation for the reaction. [3 marks]
Observations: ____________________________________________
Equation: ________________________________________________
[Total: 6 marks]
20. The diagram below represents the electronic structure of an atom of element W. Only outer electrons are shown.
[Diagram description: An atom with 6 outer electrons arranged in 3 pairs around the symbol W]
(a) Identify the group to which element W belongs. Explain your answer. [2 marks]
(b) Element W is in Period 2. Identify element W and write its electronic structure. [2 marks]
(c) Element W reacts with hydrogen to form a compound with the formula H₂W. Draw a dot-and-cross diagram to show the bonding in H₂W. Show outer electrons only. [2 marks]
[Draw in the space below]
(d) Predict whether the oxide of element W is acidic, basic, or amphoteric. Explain your answer. [2 marks]
[Total: 8 marks]
END OF QUIZ
Check your answers carefully before submitting.
Answers
Secondary 4 Combined Science Chemistry Quiz - Periodic Table
ANSWER KEY AND MARKING SCHEME
Total Marks: 40
Section A: Multiple Choice (10 marks)
| Question | Answer | Explanation |
|---|---|---|
| 1 | B | Magnesium has electronic structure 2,8,2 (3 shells = Period 3; 2 valence electrons = Group 2). Beryllium is Period 2; Calcium is Period 4; Aluminium is Group 13. |
| 2 | A | Formula X₂O means X has a charge of 1+ (since O is 2−). Group 1 elements form 1+ ions. |
| 3 | C | Reactivity decreases down Group 7 because atomic radius increases, making it harder for the nucleus to attract an additional electron. Atomic radius, melting point, and number of electron shells all increase down the group. |
| 4 | D | Electronic structure 2,8,2 has 3 shells (Period 3) and 2 valence electrons (Group 2). It forms 2+ ions and is a metal. |
| 5 | B | Transition elements typically form coloured compounds and act as catalysts. P is likely a Group 2 metal; R is a Group 1 metal; S is a Group 7 non-metal. |
| 6 | A | Across Period 3, nuclear charge increases while shielding remains approximately constant (electrons added to same shell). Greater nuclear attraction pulls electrons closer, decreasing atomic radius. |
| 7 | C | A solid metal that conducts electricity with a high melting point and forms a basic oxide is typical of Group 2 metals. Group 1 metals are softer with lower melting points. Transition elements also fit but "most likely" points to Group 2 given the basic oxide. |
| 8 | D | Silicon has a giant covalent structure (similar to diamond) with very strong covalent bonds throughout the lattice, giving it the highest melting point (1410°C) among these elements. |
| 9 | B | Proton number 17 = chlorine. Electronic structure 2,8,7: 3 shells = Period 3; 7 valence electrons = Group 17 (or Group 7). |
| 10 | C | Group 0 elements (noble gases) are monatomic and unreactive. Boiling points increase down the group because atomic size increases, leading to stronger intermolecular forces of attraction. |
Marking: 1 mark per correct answer. Total = 10 marks.
Section B: Structured Questions (20 marks)
Question 11 (6 marks)
(a) Melting point increases from sodium to silicon. [1 mark]
(b) Silicon has a giant covalent / giant molecular structure [1 mark]. It consists of a three-dimensional network of silicon atoms held together by strong covalent bonds [1 mark]. A large amount of energy is required to break these strong covalent bonds, resulting in a high melting point. Phosphorus exists as simple P₄ molecules with weak intermolecular forces of attraction between molecules. Only a small amount of energy is required to overcome these weak forces, resulting in a low melting point [1 mark].
(c) Across Period 3, the elements change from metals (Na, Mg, Al) to metalloid (Si) to non-metals (P, S, Cl) [1 mark]. Metals have delocalised electrons that can move freely and carry charge. Non-metals do not have delocalised electrons / have electrons held in fixed positions in covalent bonds or molecules, so they cannot conduct electricity [1 mark].
Question 12 (6 marks)
(a) 2,8,8,1 [1 mark]
(b) Group: 1 [½ mark]
Period: 4 [½ mark]
Explanation: Potassium has 4 electron shells, so it is in Period 4 [½ mark]. It has 1 valence electron, so it is in Group 1 [½ mark].
(c) Observations: Potassium floats on water / moves rapidly on the water surface [½ mark]; it melts into a silvery ball [½ mark]; it burns with a lilac flame [½ mark]; effervescence / gas bubbles produced [½ mark]; potassium becomes smaller and eventually disappears [½ mark]. (Any 3 observations for 1½ marks)
Equation: 2K(s) + 2H₂O(l) → 2KOH(aq) + H₂(g) [1½ marks — ½ for correct formulae, ½ for balancing, ½ for state symbols]
Question 13 (8 marks)
(a) Element W belongs to Group 16 (or Group 6) [1 mark]. It has 6 outer/valence electrons, and the group number for non-metals is determined by the number of valence electrons [1 mark].
(b) Element W is oxygen [1 mark]. Electronic structure: 2,6 [1 mark].
(c) Dot-and-cross diagram of H₂O:
- Oxygen atom with 6 outer electrons (e.g., as dots)
- Two hydrogen atoms each with 1 outer electron (e.g., as crosses)
- Two shared pairs between O and each H (O–H bonds)
- Two lone pairs on oxygen [2 marks — 1 for correct electron arrangement, 1 for correct bonding pairs and lone pairs]
(d) The oxide of oxygen is water (H₂O), which is neutral [1 mark]. Non-metal oxides are generally acidic, but water is an exception / water has a pH of 7 and does not react with acids or bases [1 mark].
Alternative answer if W is interpreted as sulfur: The oxide of sulfur (SO₂, SO₃) is acidic because sulfur is a non-metal, and non-metal oxides react with water to form acidic solutions / react with bases to form salts [2 marks].
Question 14 (10 marks)
(a) Atomic radius decreases across Period 2 from lithium to neon. [1 mark]
(b) Across Period 2, the number of protons / nuclear charge increases [1 mark]. Electrons are added to the same electron shell, so shielding remains approximately constant. The increased nuclear charge exerts a stronger attractive force on the electrons, pulling them closer to the nucleus, resulting in a smaller atomic radius [1 mark].
(c) Neon has 2 electron shells (electronic structure 2,8) while sodium has 3 electron shells (electronic structure 2,8,1) [1 mark]. The addition of a new electron shell in sodium means the outermost electrons are further from the nucleus, resulting in a much larger atomic radius [1 mark].
(d) Argon (proton number 18) has the smallest atomic radius in Period 3 [1 mark]. Across Period 3, atomic radius decreases as nuclear charge increases while electrons are added to the same shell. Argon, being the last element in Period 3, has the highest nuclear charge and therefore the strongest attraction on its electrons, giving it the smallest radius [1 mark].
(e) Potassium has 4 electron shells while sodium has 3 electron shells [1 mark]. The outermost electron in potassium is in the fourth shell, further from the nucleus than the outermost electron in sodium (third shell). Despite potassium having a greater nuclear charge, the increased distance and increased shielding by inner shells result in a larger atomic radius [1 mark].
(f) Chlorine has a greater nuclear charge (17 protons) than sodium (11 protons) [½ mark]. Both have electrons in 3 shells, so shielding is similar. The stronger nuclear attraction in chlorine pulls the electrons closer to the nucleus, resulting in a smaller atomic radius [½ mark].
Question 15 (10 marks)
(a) Across Period 3, the nature of oxides changes from basic (Na₂O, MgO) to amphoteric (Al₂O₃) to acidic (SiO₂, P₄O₁₀, SO₂). [1 mark]
(b) Sodium is a metal, and metal oxides are basic because they react with acids to form salt and water / contain O²⁻ ions that can accept H⁺ ions [1 mark]. Sulfur is a non-metal, and non-metal oxides are acidic because they react with water to form acidic solutions / react with bases to form salts / contain covalent bonds that react with water to release H⁺ ions [1 mark].
(c) Amphoteric means the oxide can react with both acids and bases / can behave as both an acid and a base [1 mark].
Equation: Al₂O₃(s) + 6HCl(aq) → 2AlCl₃(aq) + 3H₂O(l) [2 marks — 1 for correct formulae, 1 for correct balancing and state symbols]
(d) Silicon dioxide has a giant covalent / giant molecular structure [1 mark]. It consists of a three-dimensional network of silicon and oxygen atoms held together by strong covalent bonds throughout the lattice. A large amount of energy is required to break these strong covalent bonds, resulting in a very high melting point [1 mark].
(e) Phosphorus(V) oxide (P₄O₁₀) has a simple molecular structure with weak intermolecular forces of attraction between molecules [1 mark]. Only a small amount of energy is required to overcome these weak forces, resulting in a low melting point. Silicon dioxide has a giant covalent structure with strong covalent bonds requiring much more energy to break [1 mark].
Section C: Data-Based Questions (10 marks)
Question 16 (10 marks)
(a) Atomic radius decreases across Period 2 from lithium to neon. [1 mark]
(b) Across Period 2, the number of protons / nuclear charge increases [1 mark]. Electrons are added to the same electron shell, so shielding remains approximately constant. The increased nuclear charge exerts a stronger attractive force on the electrons, pulling them closer to the nucleus, resulting in a smaller atomic radius [1 mark].
(c) Neon has 2 electron shells (electronic structure 2,8) while sodium has 3 electron shells (electronic structure 2,8,1) [1 mark]. The addition of a new electron shell in sodium means the outermost electrons are further from the nucleus, resulting in a much larger atomic radius [1 mark].
(d) Argon (proton number 18) has the smallest atomic radius in Period 3 [1 mark]. Across Period 3, atomic radius decreases as nuclear charge increases while electrons are added to the same shell. Argon, being the last element in Period 3, has the highest nuclear charge and therefore the strongest attraction on its electrons, giving it the smallest radius [1 mark].
(e) Potassium has 4 electron shells while sodium has 3 electron shells [1 mark]. The outermost electron in potassium is in the fourth shell, further from the nucleus than the outermost electron in sodium (third shell). Despite potassium having a greater nuclear charge, the increased distance and increased shielding by inner shells result in a larger atomic radius [1 mark].
(f) Chlorine has a greater nuclear charge (17 protons) than sodium (11 protons) [½ mark]. Both have electrons in 3 shells, so shielding is similar. The stronger nuclear attraction in chlorine pulls the electrons closer to the nucleus, resulting in a smaller atomic radius [½ mark].
Question 17 (10 marks)
(a) Across Period 3, the nature of oxides changes from basic (Na₂O, MgO) to amphoteric (Al₂O₃) to acidic (SiO₂, P₄O₁₀, SO₂). [1 mark]
(b) Sodium is a metal, and metal oxides are basic because they react with acids to form salt and water / contain O²⁻ ions that can accept H⁺ ions [1 mark]. Sulfur is a non-metal, and non-metal oxides are acidic because they react with water to form acidic solutions / react with bases to form salts / contain covalent bonds that react with water to release H⁺ ions [1 mark].
(c) Amphoteric means the oxide can react with both acids and bases / can behave as both an acid and a base [1 mark].
Equation: Al₂O₃(s) + 6HCl(aq) → 2AlCl₃(aq) + 3H₂O(l) [2 marks — 1 for correct formulae, 1 for correct balancing and state symbols]
(d) Silicon dioxide has a giant covalent / giant molecular structure [1 mark]. It consists of a three-dimensional network of silicon and oxygen atoms held together by strong covalent bonds throughout the lattice. A large amount of energy is required to break these strong covalent bonds, resulting in a very high melting point [1 mark].
(e) Phosphorus(V) oxide (P₄O₁₀) has a simple molecular structure with weak intermolecular forces of attraction between molecules [1 mark]. Only a small amount of energy is required to overcome these weak forces, resulting in a low melting point. Silicon dioxide has a giant covalent structure with strong covalent bonds requiring much more energy to break [1 mark].
Question 18 (6 marks)
(a) Melting point increases from sodium to silicon. [1 mark]
(b) Silicon has a giant covalent / giant molecular structure [1 mark]. It consists of a three-dimensional network of silicon atoms held together by strong covalent bonds [1 mark]. A large amount of energy is required to break these strong covalent bonds, resulting in a high melting point. Phosphorus exists as simple P₄ molecules with weak intermolecular forces of attraction between molecules. Only a small amount of energy is required to overcome these weak forces, resulting in a low melting point [1 mark].
(c) Across Period 3, the elements change from metals (Na, Mg, Al) to metalloid (Si) to non-metals (P, S, Cl) [1 mark]. Metals have delocalised electrons that can move freely and carry charge. Non-metals do not have delocalised electrons / have electrons held in fixed positions in covalent bonds or molecules, so they cannot conduct electricity [1 mark].
Question 19 (6 marks)
(a) 2,8,8,1 [1 mark]
(b) Group: 1 [½ mark]
Period: 4 [½ mark]
Explanation: Potassium has 4 electron shells, so it is in Period 4 [½ mark]. It has 1 valence electron, so it is in Group 1 [½ mark].
(c) Observations: Potassium floats on water / moves rapidly on the water surface [½ mark]; it melts into a silvery ball [½ mark]; it burns with a lilac flame [½ mark]; effervescence / gas bubbles produced [½ mark]; potassium becomes smaller and eventually disappears [½ mark]. (Any 3 observations for 1½ marks)
Equation: 2K(s) + 2H₂O(l) → 2KOH(aq) + H₂(g) [1½ marks — ½ for correct formulae, ½ for balancing, ½ for state symbols]
Question 20 (8 marks)
(a) Element W belongs to Group 16 (or Group 6) [1 mark]. It has 6 outer/valence electrons, and the group number for non-metals is determined by the number of valence electrons [1 mark].
(b) Element W is oxygen [1 mark]. Electronic structure: 2,6 [1 mark].
(c) Dot-and-cross diagram of H₂O:
- Oxygen atom with 6 outer electrons (e.g., as dots)
- Two hydrogen atoms each with 1 outer electron (e.g., as crosses)
- Two shared pairs between O and each H (O–H bonds)
- Two lone pairs on oxygen [2 marks — 1 for correct electron arrangement, 1 for correct bonding pairs and lone pairs]
(d) The oxide of oxygen is water (H₂O), which is neutral [1 mark]. Non-metal oxides are generally acidic, but water is an exception / water has a pH of 7 and does not react with acids or bases [1 mark].
Alternative answer if W is interpreted as sulfur: The oxide of sulfur (SO₂, SO₃) is acidic because sulfur is a non-metal, and non-metal oxides react with water to form acidic solutions / react with bases to form salts [2 marks].
END OF ANSWER KEY
