Secondary 4 Combined Science Chemistry Preliminary Examination Paper 4

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Exam Practice (AI) — Preliminary Practice Paper

Combined Science Chemistry (Secondary 4) — Version 4 of 5

School: TuitionGoWhere Secondary School (AI)
Subject: Combined Science Chemistry
Level: Secondary 4
Paper: PRELIM Practice (Chemistry Component)
Version: 4 of 5
Duration: 1 hour 15 minutes
Total Marks: 65
Name: ___________________________
Class: ____________
Date: ____________

Instructions:

• Answer all questions in the spaces provided.
• Use a calculator where necessary. Show all working clearly.
• Chemical equations must be balanced and include states where requested.
• For data-based questions, use the provided figures or tables.

---

Section A: Multiple Choice and Short Answer (1–10) [15 marks]

1. Which of the following is a property of an acid? [1]
A. Turns red litmus paper blue
B. Has pH greater than 7
C. Reacts with metals to produce hydrogen gas
D. Feels soapy to touch

2. State the colour of litmus paper in a solution of pH 3. [1]

3. Name the salt formed when nitric acid reacts with potassium hydroxide. [1]

4. Which apparatus is most suitable for measuring exactly 25.0 cm³ of sodium hydroxide solution? [1]
A. Beaker
B. Measuring cylinder
C. Pipette
D. Burette

5. Give the formula of the hydroxide ion. [1]

6. A solution has pH 9. Is it acidic, neutral, or alkaline? [1]

7. Write the ionic equation for the reaction between hydrogen ions and hydroxide ions. [1]

8. Name one indicator that can show a range of colours across the pH scale. [1]

9. State one use of neutralisation in daily life. [1]

10. What gas is produced when hydrochloric acid reacts with calcium carbonate? [1]

---

Section B: Structured Response (11–16) [26 marks]

11. Describe a chemical test to show that oleic acid (which contains a C=C bond) is unsaturated. [2]

12. A student added bromine water to a sample of ethanoic acid and observed no colour change. Explain why. [2]

13. The following are terms used to describe chemical reactions:
{addition, neutralisation, redox, decomposition, substitution}
Using the terms, classify the following reactions: [4]
(a) $2\text{HCl} + \text{MgO} \rightarrow \text{MgCl}_2 + \text{H}_2\text{O}$
(b) $2\text{H}_2\text{O}_2 \rightarrow 2\text{H}_2\text{O} + \text{O}_2$
(c) $\text{Mg} + \text{CuSO}_4 \rightarrow \text{MgSO}_4 + \text{Cu}$
(d) $\text{CH}_2=\text{CH}_2 + \text{Br}_2 \rightarrow \text{CH}_2\text{BrCH}_2\text{Br}$

14. A farmer finds his soil is too acidic for planting. Suggest a substance he can add to neutralise the soil and explain how it works. [3]

15. 25.0 cm³ of 0.100 mol/dm³ hydrochloric acid is neutralised by 20.0 cm³ of sodium hydroxide solution. Calculate the concentration of the sodium hydroxide solution in mol/dm³. [3]
(Equation: $\text{HCl} + \text{NaOH} \rightarrow \text{NaCl} + \text{H}_2\text{O}$)

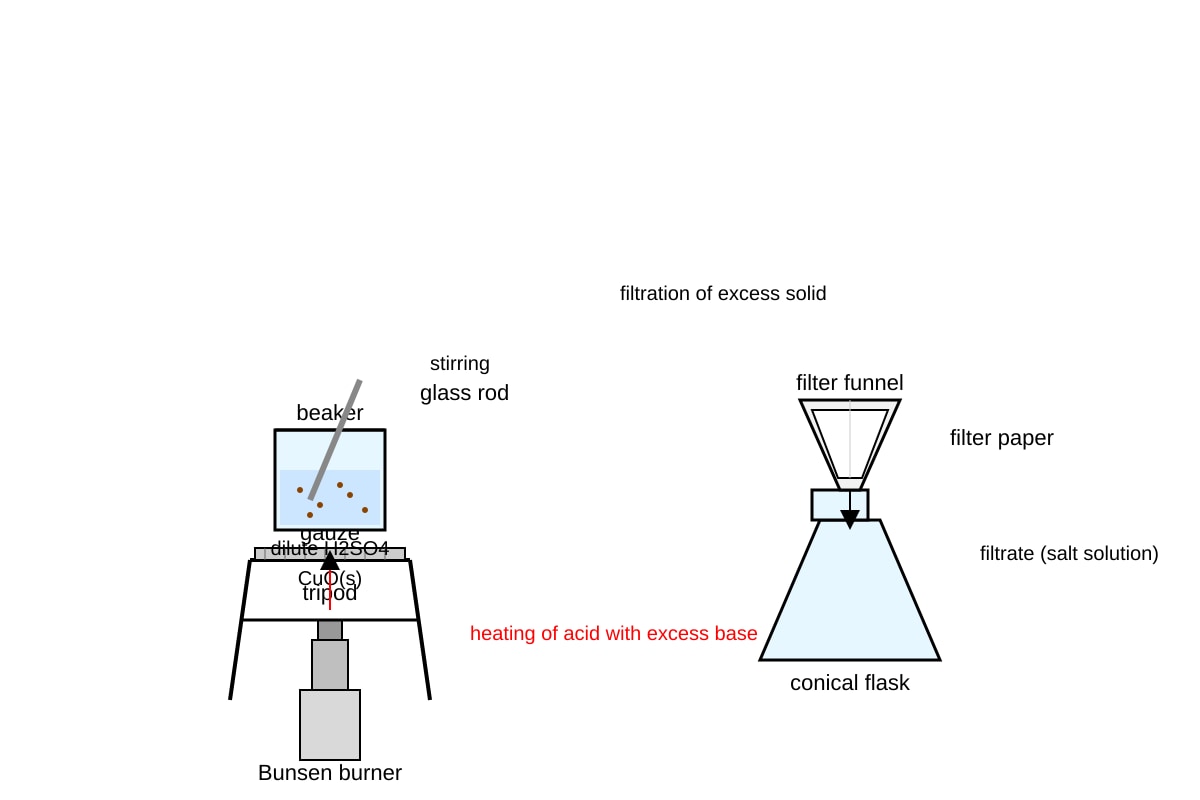

16. The diagram below shows an experimental setup for preparing a soluble salt by reacting an insoluble base with an acid.

Image pending generation: experimental_setup for Q16.

(a) Name the insoluble base used. [1]
(b) Why is excess base added? [1]
(c) Describe how to obtain pure crystals of the salt from the filtrate. [2]
(d) Write the balanced equation for the reaction. [1]

---

Section C: Data Interpretation and Extended Response (17–20) [24 marks]

17. The table shows pH values of solutions after adding different volumes of 0.1 mol/dm³ NaOH to 25 cm³ of 0.1 mol/dm³ HCl.

Volume NaOH added (cm³)	0	10	20	25	30	40
pH	1	1.5	2.0	7	12	13

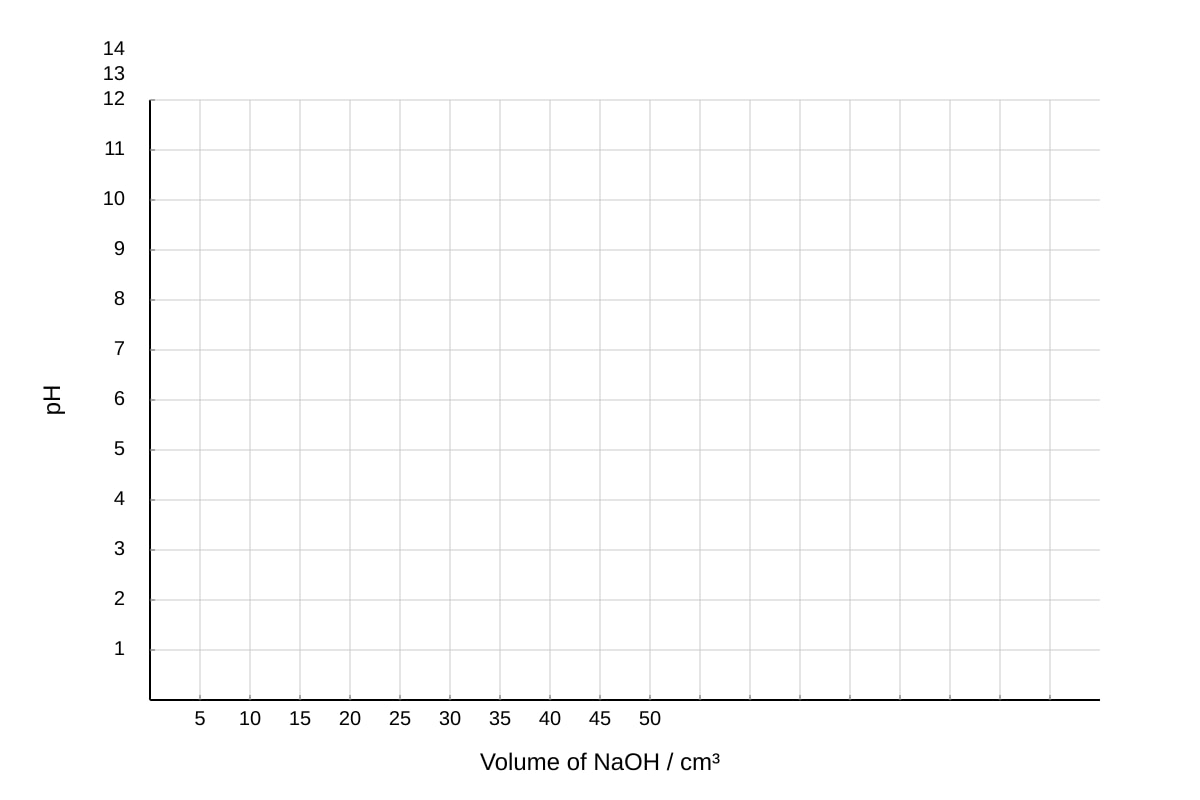

(a) Plot the pH against volume of NaOH on the grid provided. [2]

Image pending generation: graph for Q17.

(b) State the volume of NaOH required for neutralisation. [1]
(c) Explain, using collision theory, why the rate of reaction is faster at the start than near the end. [2]

18. Describe the effects of carbon monoxide on human beings. [2]

19. A student tests four unknown solutions A, B, C, D with litmus and pH paper. Results:

• A: blue litmus stays blue, pH 11
• B: red litmus stays red, pH 2
• C: no change in either, pH 7
• D: blue litmus turns red, pH 4
  (a) Classify each as acidic, neutral, or alkaline. [2]
  (b) Which solution could be hydrochloric acid? Give a reason. [2]
  (c) Suggest a method to prepare a salt using solution B and magnesium ribbon. [3]

20. A factory discharges waste acid into a river.
(a) Explain how this affects aquatic life using pH and neutralisation concepts. [3]
(b) Suggest two treatments to neutralise the waste before release. [2]
(c) Calculate the volume of 0.50 mol/dm³ sodium carbonate solution needed to neutralise 100 cm³ of 0.20 mol/dm³ sulfuric acid. [4]
(Equation: $\text{H}_2\text{SO}_4 + \text{Na}_2\text{CO}_3 \rightarrow \text{Na}_2\text{SO}_4 + \text{H}_2\text{O} + \text{CO}_2$)

Total Marks: 65

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Exam Practice (AI) — Preliminary Practice Paper

Combined Science Chemistry (Secondary 4) — Version 4 of 5 — Answer Key

Section A (1–10) — 15 marks

1. C [1]
Acids react with reactive metals (e.g. Mg, Zn) to produce H₂ gas. A and B describe bases; D describes alkalis (soapy feel).

2. Red [1]
pH 3 is acidic; litmus is red in acid, blue in alkali.

3. Potassium nitrate (KNO₃) [1]
Acid (HNO₃) + base (KOH) → salt + water; nitrate salt from nitric acid.

4. C (Pipette) [1]
Pipette measures fixed exact volume (25.0 cm³). Burette is for variable; cylinder/beaker less precise.

5. OH⁻ [1]
Hydroxide ion has charge –1.

6. Alkaline [1]
pH > 7 → alkaline (pH 7 neutral, <7 acidic).

7. H⁺(aq) + OH⁻(aq) → H₂O(l) [1]
Neutralisation ionic equation; spectator ions omitted.

8. Universal indicator [1]
Shows multiple colours across pH range (others: full-range pH paper).

9. Antacid for stomach acid / treating acidic soil / cleaning with vinegar [1]
Any valid daily neutralisation use.

10. Carbon dioxide (CO₂) [1]
Acid + carbonate → salt + water + CO₂.

---

Section B (11–16) — 26 marks

11. [2]

• Add bromine water to oleic acid. (1 mark)
• Orange/brown colour decolourises to colourless if unsaturated. (1 mark)
  Teaching: Unsaturation = C=C bond; bromine adds across double bond, removing colour.

12. [2]

• Ethanoic acid has no C=C bond (it is saturated). (1 mark)
• Bromine water only decolourises with unsaturated compounds; no reaction → no colour change. (1 mark)

13. [4 – 1 each]
(a) neutralisation (acid + base → salt + water)
(b) decomposition (one reactant → two products)
(c) redox (Mg oxidised, Cu²⁺ reduced)
(d) addition (two molecules combine)
Mark: award 1 per correct term.

14. [3]

• Add calcium hydroxide (lime) or calcium carbonate. (1)
• These are bases/alkalis that react with acid in soil. (1)
• Neutralisation raises pH toward 7, making soil suitable. (1)

15. [3]
Moles HCl = $c \times V = 0.100 \times \frac{25.0}{1000} = 0.00250$ mol [1]
Ratio 1:1 → moles NaOH = 0.00250 mol [1]
Conc NaOH = $\frac{0.00250}{20.0/1000} = 0.125$ mol/dm³ [1]
Answer: 0.125 mol/dm³.

16. [5]
(a) Copper(II) oxide, CuO(s) [1]
(b) Excess ensures all acid reacts [1]
(c) Heat filtrate to evaporate water; leave to crystallise; filter crystals [2]
(d) $\text{CuO} + \text{H}_2\text{SO}_4 \rightarrow \text{CuSO}_4 + \text{H}_2\text{O}$ [1]

---

Section C (17–20) — 24 marks

17. [7 total in sec C but Q17 = 5]
(a) Points plotted at (0,1),(10,1.5),(20,2),(25,7),(30,12),(40,13); smooth curve. [2]
(b) 25 cm³ [1]
(c) At start, high [H⁺] and [OH⁻] → frequent collisions; near end, fewer ions left → fewer effective collisions → slower. [2]

18. [2]

• CO binds irreversibly to haemoglobin. (1)
• Reduces O₂ transport → fatigue, headache, death. (1)

19. [7]
(a) A alkaline, B acidic, C neutral, D acidic [2: 0.5 each]
(b) B or D; B is strong acid like HCl (pH 2). D also acidic but less strong. [2]
(c) Add Mg ribbon to B; Mg + 2HCl → MgCl₂ + H₂; filter excess Mg; crystallise. [3]

20. [9]
(a) Lowers pH; harms organisms sensitive to pH; neutralisation by river limited. [3]
(b) Add lime (Ca(OH)₂) or sodium carbonate. [2]
(c) [4]
Moles H₂SO₄ = $0.20 \times 0.100 = 0.0200$ mol [1]
Ratio 1:1 → moles Na₂CO₃ = 0.0200 mol [1]
Volume = $\frac{0.0200}{0.50} = 0.0400$ dm³ = 40.0 cm³ [2]
Answer: 40.0 cm³.

Total: 65 marks
