TuitionGoWhere Practice Paper - Combined Science Chemistry Secondary 4
PRELIMINARY EXAMINATION — Version 1
TuitionGoWhere Secondary School (AI)
Subject: Combined Science (Chemistry)
Level: Secondary 4
Paper: Prelim Chemistry (5086/5088)
Duration: 1 hour 15 minutes
Total Marks: 65
Name: _________________________
Class: _________________________
Date: _________________________
INSTRUCTIONS TO CANDIDATES
- This paper consists of three sections: Section A, Section B, and Section C.
- Answer all questions in the spaces provided.
- Show all working for calculation questions. Marks are awarded for correct method.
- You may use a calculator.
- The number of marks is given in brackets [ ] at the end of each question or part question.
- A Periodic Table is provided at the end of this paper.
SECTION A: STRUCTURED QUESTIONS (25 marks)
Answer all questions in this section.
Question 1: Acids and Indicators [5 marks]
(a) A student tests three solutions with universal indicator and records the following results:
| Solution | Colour with universal indicator | pH |
|---|---|---|
| P | Red | 1 |
| Q | Green | 7 |
| R | Violet | 14 |
(i) Which solution is the most acidic? Explain your answer. [1]
(ii) Solution P is hydrochloric acid. Write a balanced chemical equation for the reaction between hydrochloric acid and sodium hydroxide. Include state symbols. [2]
(iii) The student adds a few drops of methyl orange to Solution R. State the colour observed. [1]
(b) State one use of sulfuric acid in industry. [1]
Question 2: Salt Preparation [6 marks]
A student prepares copper(II) sulfate crystals by reacting excess copper(II) oxide with dilute sulfuric acid.
(a) Write a balanced chemical equation for this reaction. Include state symbols. [2]
(b) The student adds copper(II) oxide until no more dissolves. Explain why excess copper(II) oxide is used. [1]
(c) Describe the steps the student should take after the reaction to obtain pure, dry crystals of copper(II) sulfate. [3]
Question 3: pH and Neutralisation [7 marks]
(a) A student measures the pH of soil and finds it to be 4.5.
(i) Explain why farmers add calcium hydroxide (slaked lime) to soil with this pH. [2]
(ii) Write a word equation for the reaction that occurs when calcium hydroxide neutralises an acid in the soil. [1]
(b) A solution of nitric acid has a concentration of 0.50 mol/dm³.
(i) Calculate the number of moles of nitric acid in 25.0 cm³ of this solution. [2]
(ii) Calculate the mass of nitric acid (HNO₃) in 25.0 cm³ of this solution.
[Relative atomic masses: H = 1, N = 14, O = 16] [2]
Question 4: Qualitative Analysis [7 marks]
A student carries out tests on an unknown salt, X.
Test 1: A small amount of X is heated strongly in a test tube. A brown gas is evolved, and a yellow residue remains when hot, which turns white on cooling.
Test 2: X is dissolved in distilled water. Aqueous sodium hydroxide is added dropwise until excess. A blue precipitate is formed, which is insoluble in excess sodium hydroxide.
Test 3: A fresh solution of X is prepared. Aqueous barium nitrate is added, followed by dilute nitric acid. A white precipitate is formed, which is insoluble in the acid.
(a) Identify the brown gas evolved in Test 1. [1]
(b) Identify the cation present in X. Give a reason for your answer, using evidence from Test 2. [2]
(c) Identify the anion present in X. Give a reason for your answer, using evidence from Test 3. [2]
(d) Name the salt X. [1]
(e) Write an ionic equation for the reaction occurring in Test 3. [1]
SECTION B: DATA-BASED QUESTIONS (20 marks)
Answer all questions in this section.
Question 5: Acid Rain Investigation [10 marks]
A group of students investigates the effect of acid rain on different materials. They set up four beakers as shown below:
| Beaker | Material tested | Solution added |
|---|---|---|
| A | Marble chips (calcium carbonate) | Dilute sulfuric acid (pH 2) |
| B | Marble chips (calcium carbonate) | Dilute nitric acid (pH 2) |
| C | Iron nail | Dilute sulfuric acid (pH 2) |
| D | Iron nail | Distilled water (pH 7) |
The students measure the mass of each material before and after 30 minutes of immersion. The results are shown in the table below:
| Beaker | Initial mass (g) | Final mass (g) | Mass change (g) |
|---|---|---|---|
| A | 5.00 | 4.20 | -0.80 |
| B | 5.00 | 4.15 | -0.85 |
| C | 3.50 | 3.35 | -0.15 |
| D | 3.50 | 3.50 | 0.00 |
(a) (i) State the purpose of Beaker D in this investigation. [1]
(ii) Explain why the mass of marble chips decreased in Beakers A and B. Write a balanced chemical equation for the reaction in Beaker B. [3]
(b) The reaction in Beaker A produced a smaller mass loss than expected. The students observed that the marble chips in Beaker A became coated with a white solid during the reaction.
(i) Name the white solid formed. [1]
(ii) Explain why this white solid caused the reaction to slow down. [2]
(c) The students repeated the investigation using powdered marble chips instead of large chips. Predict and explain the effect on the rate of reaction. [3]
Question 6: Ammonia and Fertilisers [10 marks]
Ammonia is manufactured industrially by the Haber process. The reaction is:
N₂(g) + 3H₂(g) ⇌ 2NH₃(g) ΔH = -92 kJ/mol

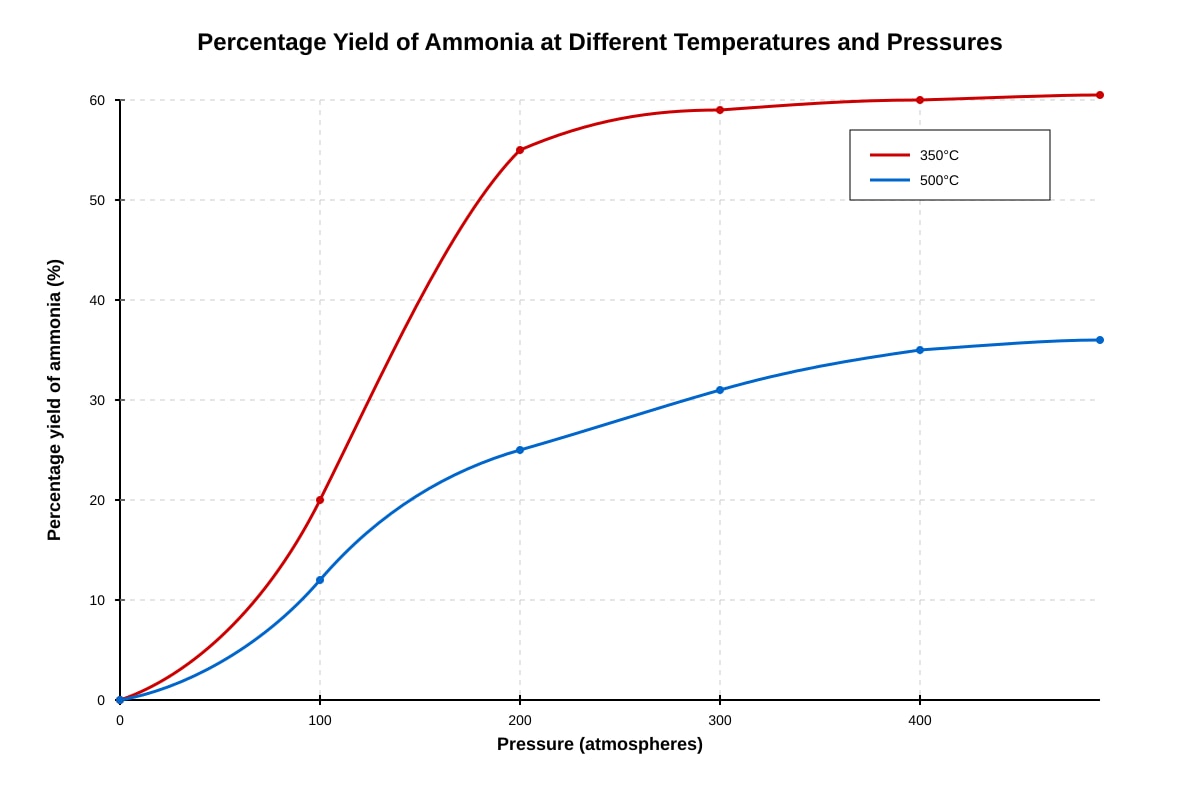

The graph below shows the percentage yield of ammonia at different temperatures and pressures.
[GRAPH DESCRIPTION]
Y-axis: Percentage yield of ammonia (%)
X-axis: Pressure (atmospheres), ranging from 0 to 400 atm
Two curves are shown:
- Curve labelled "350°C": starts at 0% at 0 atm, rises steeply to ~55% at 200 atm, then gradually to ~70% at 400 atm
- Curve labelled "500°C": starts at 0% at 0 atm, rises to ~25% at 200 atm, then gradually to ~35% at 400 atm
(a) (i) State the effect of increasing pressure on the yield of ammonia. Explain your answer in terms of the number of gas molecules on each side of the equation. [3]
(ii) State the effect of increasing temperature on the yield of ammonia. Explain your answer in terms of the enthalpy change of the reaction. [3]
(b) In industry, the Haber process is typically carried out at 450°C and 200 atm pressure, using an iron catalyst.
(i) Explain why a temperature of 450°C is used, even though it gives a lower yield than 350°C. [2]
(ii) State the purpose of the iron catalyst. [1]
(c) Ammonia is used to manufacture ammonium nitrate fertiliser. State one advantage and one disadvantage of using nitrogenous fertilisers in agriculture. [1]
Advantage: ___________________________________________________________________
Disadvantage: ________________________________________________________________
SECTION C: EXTENDED RESPONSE (20 marks)
Answer all questions in this section.
Question 7: Acids, Bases, and Salts in Context [10 marks]
(a) A student is given three unlabelled bottles containing colourless solutions. The solutions are:
- Dilute hydrochloric acid
- Sodium chloride solution
- Sodium hydroxide solution
Describe a series of tests the student could carry out to identify each solution. For each test, state the reagent used, the procedure, and the expected observation for each solution. [6]
(b) Explain why ammonium salts are important in agriculture. In your answer, describe how plants use nitrogen and explain why ammonium nitrate is a particularly effective fertiliser. [4]
Question 8: Salt Preparation Methods [10 marks]
(a) A student wants to prepare a pure, dry sample of lead(II) chloride (PbCl₂).
(i) Suggest a suitable method for preparing lead(II) chloride. Name the reactants you would use. [2]
(ii) Explain why the method you suggested is suitable, while other salt preparation methods are not appropriate for lead(II) chloride. [3]
(b) A student prepares sodium chloride by titration using sodium hydroxide solution and hydrochloric acid.
(i) Describe how the student can obtain pure, dry sodium chloride crystals from the reaction mixture without using an indicator. [3]
(ii) The student dissolves 5.85 g of the sodium chloride crystals in water and makes the solution up to 250 cm³. Calculate the concentration of this solution in mol/dm³.
[Relative atomic masses: Na = 23, Cl = 35.5] [2]
— END OF PAPER —
PERIODIC TABLE
[Standard Periodic Table with atomic numbers and relative atomic masses provided]
Answers
TuitionGoWhere Practice Paper - Combined Science Chemistry Secondary 4
PRELIMINARY EXAMINATION — Version 1 — ANSWER KEY & MARKING SCHEME
Total Marks: 65
SECTION A: STRUCTURED QUESTIONS (25 marks)
Question 1: Acids and Indicators [5 marks]
(a)(i) Solution P is the most acidic. [1 mark]
- Award 1 mark for identifying P AND stating it has the lowest pH (pH 1) / highest concentration of H⁺ ions.
(a)(ii) HCl(aq) + NaOH(aq) → NaCl(aq) + H₂O(l) [2 marks]
- Award 1 mark for correct formulae of all reactants and products.
- Award 1 mark for correct state symbols: (aq) for HCl, NaOH, NaCl; (l) for H₂O.
- Accept correct multiples (e.g., 2HCl + 2NaOH → 2NaCl + 2H₂O).
(a)(iii) Yellow [1 mark]
- Methyl orange is yellow in alkaline solutions (pH > 7). Solution R has pH 14.
(b) Any one of: [1 mark]
- Manufacture of fertilisers (e.g., ammonium sulfate, superphosphate)
- Manufacture of detergents
- As an electrolyte in car batteries
- Manufacture of paints and pigments
- Accept any other valid industrial use.
Question 2: Salt Preparation [6 marks]
(a) CuO(s) + H₂SO₄(aq) → CuSO₄(aq) + H₂O(l) [2 marks]
- Award 1 mark for correct formulae.
- Award 1 mark for correct state symbols: (s) for CuO, (aq) for H₂SO₄ and CuSO₄, (l) for H₂O.
(b) To ensure all the sulfuric acid has reacted / to ensure complete neutralisation of the acid. [1 mark]
- Accept: So that the acid is completely used up / to ensure the solution is neutral.
(c) Steps to obtain pure, dry crystals: [3 marks]
- Award 1 mark for: Filter the mixture to remove excess (unreacted) copper(II) oxide.
- Award 1 mark for: Heat the filtrate (copper(II) sulfate solution) to evaporate some water / until saturated / until crystallisation point.
- Award 1 mark for: Allow the solution to cool so crystals form, then filter and dry the crystals between filter paper / in a warm oven.
- Accept: Leave to evaporate slowly at room temperature for larger crystals (but must mention drying).
Question 3: pH and Neutralisation [7 marks]
(a)(i) [2 marks]
- Award 1 mark for: The soil is acidic (pH 4.5 is below 7).
- Award 1 mark for: Calcium hydroxide is a base/alkali which neutralises the acid in the soil, raising the pH to a level suitable for plant growth.
- Accept: To reduce soil acidity / to increase soil pH.
(a)(ii) Calcium hydroxide + acid → calcium salt + water [1 mark]
- Accept: Calcium hydroxide + hydrochloric acid → calcium chloride + water (if acid specified).
- Accept any valid word equation showing neutralisation.
(b)(i) Moles of HNO₃ in 25.0 cm³: [2 marks]
- Volume in dm³ = 25.0 ÷ 1000 = 0.0250 dm³ [1 mark for conversion]
- Moles = concentration × volume = 0.50 × 0.0250 = 0.0125 mol [1 mark for correct answer]
- Award 1 mark for correct method even if final answer is incorrect due to arithmetic error.
(b)(ii) Mass of HNO₃: [2 marks]
- Molar mass of HNO₃ = 1 + 14 + (3 × 16) = 63 g/mol [1 mark for correct molar mass]
- Mass = moles × molar mass = 0.0125 × 63 = 0.7875 g ≈ 0.788 g (3 s.f.) [1 mark for correct answer]
- Accept 0.79 g (2 s.f.) or 0.788 g.
Question 4: Qualitative Analysis [7 marks]
(a) Nitrogen dioxide (NO₂) [1 mark]
- Accept: NO₂ gas.
(b) Cation: Copper(II) ion / Cu²⁺ [1 mark]
- Reason: A blue precipitate formed with sodium hydroxide solution, which is insoluble in excess. This is characteristic of Cu²⁺ ions. [1 mark]
- Award 1 mark for correct cation, 1 mark for correct reasoning referencing the blue precipitate and insolubility in excess NaOH.
(c) Anion: Nitrate ion / NO₃⁻ [1 mark]
- Reason: The brown gas (NO₂) evolved on heating indicates the presence of nitrate ions. [1 mark]
- Also accept: The white precipitate with barium nitrate and dilute nitric acid indicates sulfate ions — BUT this contradicts the brown gas test. The brown gas confirms nitrate. The white precipitate in Test 3 is likely barium sulfate from sulfate impurity OR the question intends nitrate as the primary anion.
- Marking note: Primary evidence is the brown gas on heating (nitrate decomposition). Award marks for nitrate identification with correct reasoning. If student identifies sulfate based on Test 3, award 1 mark for sulfate with correct reasoning about barium sulfate precipitate, but note the contradiction with the brown gas test.
(d) Copper(II) nitrate / Cu(NO₃)₂ [1 mark]
- Accept: Copper nitrate.
(e) Ionic equation for Test 3 (if sulfate present): Ba²⁺(aq) + SO₄²⁻(aq) → BaSO₄(s) [1 mark]
- Marking note: If student identified nitrate as the anion, they may write "no reaction" or state that nitrate does not form a precipitate with barium ions. Award 1 mark for correct ionic equation consistent with their identified anion.
SECTION B: DATA-BASED QUESTIONS (20 marks)
Question 5: Acid Rain Investigation [10 marks]
(a)(i) Beaker D is the control experiment. [1 mark]
- Accept: To show that the iron nail does not react with distilled water / to compare the effect of acid vs. water / to ensure any mass change is due to the acid, not the water.
(a)(ii) [3 marks]
- Award 1 mark for: The marble chips (calcium carbonate) react with the acid, producing carbon dioxide gas which escapes, causing a decrease in mass.
- Award 1 mark for correct balanced equation: CaCO₃(s) + 2HNO₃(aq) → Ca(NO₃)₂(aq) + H₂O(l) + CO₂(g)
- Award 1 mark for correct state symbols.
- Accept correct multiples.
(b)(i) Calcium sulfate / CaSO₄ [1 mark]
(b)(ii) [2 marks]
- Award 1 mark for: The calcium sulfate formed is insoluble and forms a coating/layer on the surface of the marble chips.
- Award 1 mark for: This coating prevents the acid from coming into contact with the calcium carbonate underneath, so the reaction slows down/stops.
- Accept: The coating acts as a barrier between the reactants.
(c) [3 marks]
- Award 1 mark for: The rate of reaction would increase / the reaction would be faster.
- Award 1 mark for: Powdered marble chips have a larger surface area than large chips.
- Award 1 mark for: Larger surface area means more particles are exposed for collisions with acid particles, increasing the frequency of effective collisions per unit time.
- Accept reference to collision theory.
Question 6: Ammonia and Fertilisers [10 marks]
(a)(i) [3 marks]
- Award 1 mark for: Increasing pressure increases the yield of ammonia.
- Award 1 mark for: There are 4 moles of gas on the reactant side (1 N₂ + 3 H₂) and 2 moles of gas on the product side (2 NH₃).
- Award 1 mark for: According to Le Chatelier's principle, increasing pressure shifts the equilibrium to the side with fewer gas molecules (the product side), favouring the forward reaction and increasing ammonia yield.
(a)(ii) [3 marks]
- Award 1 mark for: Increasing temperature decreases the yield of ammonia.
- Award 1 mark for: The forward reaction is exothermic (ΔH = -92 kJ/mol).
- Award 1 mark for: According to Le Chatelier's principle, increasing temperature shifts the equilibrium in the endothermic direction (the reverse reaction), decreasing ammonia yield.
(b)(i) [2 marks]
- Award 1 mark for: At 350°C, the rate of reaction is too slow (even though the yield is higher).
- Award 1 mark for: 450°C is a compromise temperature that gives a reasonably fast rate of reaction while still maintaining an acceptable yield.
- Accept: Higher temperature increases the rate of reaction because more particles have energy greater than or equal to the activation energy.
(b)(ii) The iron catalyst speeds up the rate of reaction / lowers the activation energy / provides an alternative pathway with lower activation energy. [1 mark]
- Accept: The catalyst increases the rate of both forward and reverse reactions equally / does not affect the position of equilibrium.
(c) [1 mark total — ½ mark each]
- Advantage: Increases crop yield / provides nitrogen for plant growth / promotes leaf growth.
- Disadvantage: Can leach into water bodies causing eutrophication / can contaminate drinking water / excess can harm soil structure.
- Award ½ mark for each valid point.
SECTION C: EXTENDED RESPONSE (20 marks)
Question 7: Acids, Bases, and Salts in Context [10 marks]
(a) [6 marks] Award marks for a logical sequence of tests that can distinguish all three solutions. Suggested scheme:
Step 1: Test with litmus paper or universal indicator [2 marks]
- Award 1 mark for: Add blue litmus paper to a sample of each solution.
- Hydrochloric acid: turns blue litmus red.
- Sodium chloride: no change (stays blue).
- Sodium hydroxide: no change (stays blue).
- Award 1 mark for: Add red litmus paper to the two solutions that did not turn blue litmus red.
- Sodium chloride: no change (stays red).
- Sodium hydroxide: turns red litmus blue.
- OR use universal indicator: HCl → red/pink (pH 1-2), NaCl → green (pH 7), NaOH → violet/purple (pH 13-14).
Step 2: Confirmatory test (optional, for additional marks) [2 marks]
- Award 1 mark for: Test for chloride ions — add silver nitrate solution followed by dilute nitric acid.
- Hydrochloric acid and sodium chloride: white precipitate (AgCl) forms, insoluble in nitric acid.
- Sodium hydroxide: no precipitate.
- Award 1 mark for: Test for sodium ions — flame test.
- Sodium chloride and sodium hydroxide: golden-yellow flame.
- Hydrochloric acid: no characteristic flame colour (or pale green if impurities).
Alternative approach using pH indicator and chloride test:
- Use universal indicator to identify the acid (red), neutral (green), and alkali (purple) — 2 marks.
- Confirm chloride in HCl and NaCl with AgNO₃ test — 2 marks.
- Distinguish HCl from NaCl: HCl gives effervescence with carbonate; NaCl does not — 2 marks.
Marking guidance: Award up to 6 marks for a clear, logical procedure with correct reagents, observations, and conclusions. Partial marks for incomplete schemes.
(b) [4 marks]
- Award 1 mark for: Plants need nitrogen to make proteins / amino acids / chlorophyll / DNA.
- Award 1 mark for: Ammonium salts contain nitrogen in a form that plants can absorb (ammonium ions, NH₄⁺).
- Award 1 mark for: Ammonium nitrate is particularly effective because it contains nitrogen in two forms — ammonium ions (NH₄⁺) and nitrate ions (NO₃⁻).
- Award 1 mark for: This provides both a quick-acting source of nitrogen (nitrate is immediately available) and a slower-release source (ammonium is held by soil particles and converted to nitrate by bacteria).
- Accept: Ammonium nitrate has a high nitrogen content by mass compared to other fertilisers.
Question 8: Salt Preparation Methods [10 marks]
(a)(i) [2 marks]
- Award 1 mark for: Precipitation method / double decomposition.
- Award 1 mark for: Reactants — lead(II) nitrate solution and sodium chloride solution (or any soluble lead(II) salt and soluble chloride salt).
- Accept: Pb(NO₃)₂(aq) + 2NaCl(aq) → PbCl₂(s) + 2NaNO₃(aq)
(a)(ii) [3 marks]
- Award 1 mark for: Lead(II) chloride is insoluble in water.
- Award 1 mark for: The reaction between an acid and a base/metal/carbonate is not suitable because lead is unreactive / lead(II) oxide and lead(II) carbonate are insoluble and would react very slowly with acid.
- Award 1 mark for: Titration is not suitable because lead(II) chloride is insoluble and would precipitate during the titration, making endpoint detection impossible.
- Accept: Precipitation is the most suitable method because it produces an insoluble salt directly when two soluble solutions are mixed. The precipitate can be filtered, washed, and dried.
(b)(i) [3 marks]
- Award 1 mark for: Carry out a titration using sodium hydroxide and hydrochloric acid with an indicator (e.g., phenolphthalein or methyl orange) to determine the exact volumes needed for complete neutralisation.
- Award 1 mark for: Repeat the titration without the indicator, using the same volumes of acid and alkali determined from the first titration.
- Award 1 mark for: Evaporate the water from the neutral solution (sodium chloride solution) by heating until crystallisation point / saturated, then allow to cool to form crystals. Filter and dry the crystals.
- Accept: Use a pH meter instead of indicator in the first step.
(b)(ii) [2 marks]
- Molar mass of NaCl = 23 + 35.5 = 58.5 g/mol [½ mark implied in working]
- Moles of NaCl = mass ÷ molar mass = 5.85 ÷ 58.5 = 0.100 mol [1 mark]
- Volume in dm³ = 250 ÷ 1000 = 0.250 dm³
- Concentration = moles ÷ volume = 0.100 ÷ 0.250 = 0.400 mol/dm³ [1 mark]
- Award 1 mark for correct moles, 1 mark for correct concentration with units.
- Accept 0.40 mol/dm³ (2 s.f.).
END OF ANSWER KEY
MARKING SCHEME SUMMARY
| Section | Questions | Marks |
|---|---|---|
| A: Structured | Q1–Q4 | 25 |
| B: Data-Based | Q5–Q6 | 20 |
| C: Extended Response | Q7–Q8 | 20 |
| Total | 65 |
ASSESSMENT OBJECTIVES COVERAGE
| AO | Description | Approximate Weighting |
|---|---|---|
| A | Knowledge with Understanding | ~45% |
| B | Handling Information, Solving Problems | ~55% |
