Secondary 4 Combined Science Biology Human Physiology Quiz
Free Exam-Derived DeepSeek V4 Pro Secondary 4 Combined Science Biology Human Physiology quiz with questions and answers for Singapore students. This page is rendered as a direct URL so the questions and answers can be discovered without pressing in-page buttons.
These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.
Questions
Secondary 4 Combined Science Biology Quiz - Human Physiology
Name: _________________________ Class: _________________________ Date: _________________________ Score: ______ / 40
Duration: 45 minutes Total Marks: 40
Instructions:
- Answer ALL questions in the spaces provided.
- Write your answers clearly and legibly.
- Marks for each question are indicated in brackets.
- Show all working for calculation questions.
Section A: Short Answer (10 marks)
Answer all questions in this section.
1. (a) State the process by which oxygen from the alveoli reaches the red blood cells in the pulmonary capillaries. [1 mark]
(b) Name the enzyme that breaks down starch in the mouth. [1 mark]
(c) State the product formed by this enzyme. [1 mark]
2. A student measured their pulse rate before and after exercise. The results are shown below:
| Condition | Pulse rate (beats per minute) |
|---|---|
| Resting | 72 |
| After 5 minutes of running | 128 |
Explain why the pulse rate increased after exercise. [2 marks]
3. (a) State the function of the coronary arteries. [1 mark]
(b) Identify the blood vessel that carries deoxygenated blood from the heart to the lungs. [1 mark]
4. A person's urine was tested and found to contain glucose. Suggest a possible explanation for this observation. [1 mark]
5. (a) State one difference between the composition of blood in the renal artery and the renal vein. [1 mark]
(b) State another difference between the composition of blood in the renal artery and the renal vein. [1 mark]
Section B: Structured Questions (18 marks)
Answer all questions in this section.

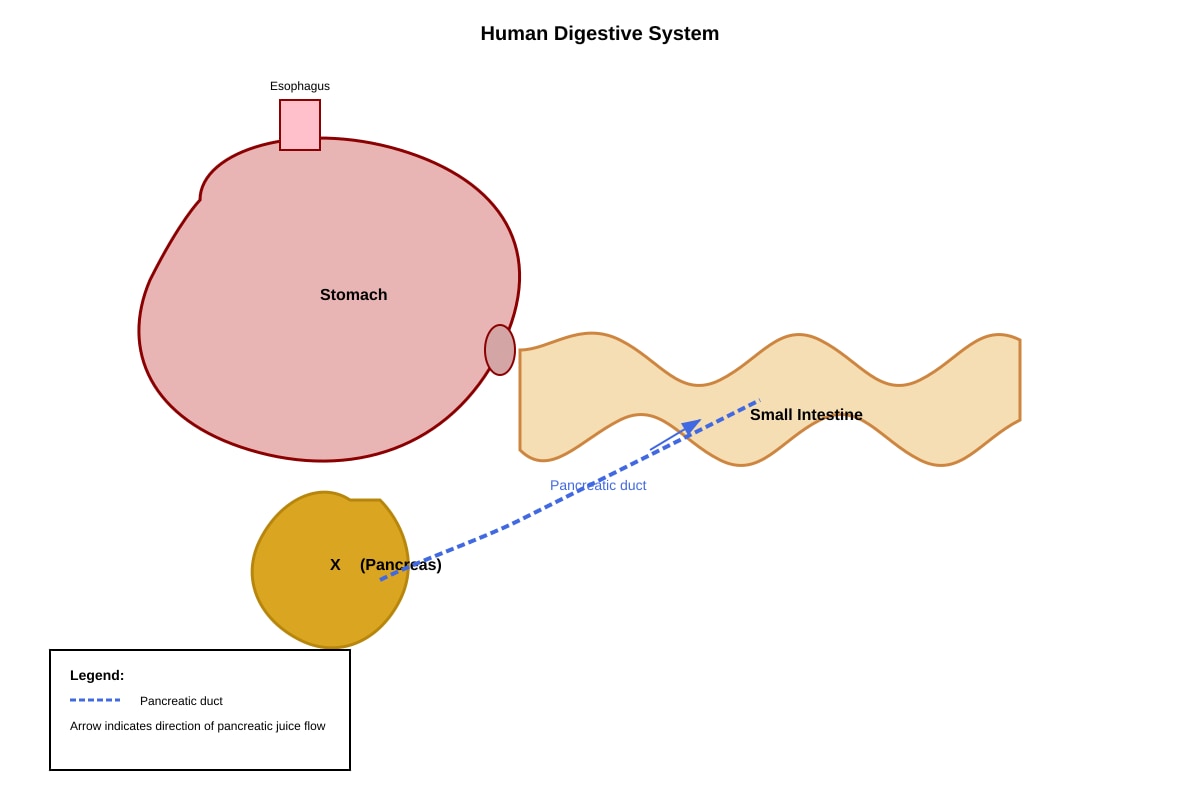

6. The diagram below shows part of the human digestive system.
[Diagram showing stomach, pancreas, and small intestine]
(a) Name the structure labelled X (the pancreas). [1 mark]
(b) The pancreas produces pancreatic juice that enters the small intestine. State two components of pancreatic juice and explain the function of each. [4 marks]
7. Explain why the contents of the stomach are acidic, but the contents of the small intestine are alkaline. [3 marks]
8. A student investigated the effect of temperature on the activity of amylase. The results are shown in the table below:
| Temperature (°C) | Time taken to digest starch (minutes) |
|---|---|
| 10 | 25 |
| 20 | 15 |
| 30 | 8 |
| 40 | 4 |
| 50 | 12 |
| 60 | No digestion observed |
Plot a graph of the results on the grid provided. Label both axes clearly. [4 marks]
[Grid space for graph]
9. Explain why the time taken to digest starch decreased between 10°C and 40°C. [3 marks]
10. Explain why no digestion was observed at 60°C. [3 marks]
Section C: Data Interpretation (7 marks)
Answer all questions in this section.
The graph below shows changes in blood glucose concentration after a meal.
[Graph showing blood glucose rising from 90 mg/dL to 140 mg/dL at 1 hour,
then decreasing to 90 mg/dL by 3 hours]
11. Describe the change in blood glucose concentration from 0 to 1 hour after the meal. [1 mark]
12. Describe the change in blood glucose concentration from 1 hour to 3 hours after the meal. [1 mark]
13. Name the hormone responsible for the decrease in blood glucose concentration after 1 hour. [1 mark]
14. Explain how this hormone increases the uptake of glucose by body cells. [2 marks]
15. Explain how this hormone promotes the conversion of glucose to glycogen in the liver. [2 marks]
Section D: Extended Response & Application (5 marks)
Answer all questions in this section.
16. A person with diabetes may have blood glucose concentration that remains high after a meal. Suggest a reason for this. [1 mark]
17. Suggest another reason why a person with diabetes may have high blood glucose after a meal. [1 mark]
18. State one structural adaptation of an alveolus for efficient gas exchange. [1 mark]
19. State a second structural adaptation of an alveolus. [1 mark]
20. State a third structural adaptation of an alveolus. [1 mark]
END OF QUIZ
Check your answers carefully before submitting.
Answers
Secondary 4 Combined Science Biology Quiz - Human Physiology
ANSWER KEY AND MARKING SCHEME
Total Marks: 40
Section A: Short Answer (10 marks)
1. (a) State the process by which oxygen from the alveoli reaches the red blood cells in the pulmonary capillaries. [1 mark]
Answer: Diffusion
Marking notes:
- Accept: “Diffusion down a concentration gradient”
- Do not accept: “Active transport” or “Osmosis”
(b) Name the enzyme that breaks down starch in the mouth. [1 mark]
Answer: Salivary amylase / Amylase
Marking notes:
- Accept: “Amylase”
(c) State the product formed by this enzyme. [1 mark]
Answer: Maltose
Marking notes:
- Do not accept: “Glucose” (maltose is the product of starch digestion in the mouth)
2. Explain why the pulse rate increased after exercise. [2 marks]
Answer:
- During exercise, muscles carry out more respiration / require more energy (1 mark)
- Therefore, the heart beats faster to deliver more oxygen / remove carbon dioxide, increasing pulse rate (1 mark)
Marking notes:
- Award 1 mark for linking to increased respiration/energy demand
- Award 1 mark for linking to increased oxygen delivery/blood flow/CO₂ removal
3. (a) State the function of the coronary arteries. [1 mark]
Answer: To supply oxygenated blood / oxygen and nutrients to the heart muscle / cardiac muscle
Marking notes:
- Must mention heart muscle or cardiac muscle specifically
- Do not accept: “Supply blood to the body” (too general)
(b) Identify the blood vessel that carries deoxygenated blood from the heart to the lungs. [1 mark]
Answer: Pulmonary artery
Marking notes:
- Must be specific: “Pulmonary artery”
- Do not accept: “Artery” alone or “Pulmonary vein”
4. A person's urine was tested and found to contain glucose. Suggest a possible explanation for this observation. [1 mark]
Answer: The person may have diabetes / blood glucose concentration exceeded the renal threshold / kidneys could not reabsorb all the glucose
Marking notes:
- Accept any reasonable physiological explanation linked to high blood glucose or kidney function
5. (a) State one difference between the composition of blood in the renal artery and the renal vein. [1 mark]
Answer: Renal artery contains more urea than renal vein (or other valid difference)
(b) State another difference between the composition of blood in the renal artery and the renal vein. [1 mark]
Answer: Renal artery contains more oxygen than renal vein (or other valid difference)
Marking notes for (a) and (b):
- Award 1 mark for each of two distinct, correct differences.
- Accept differences such as: renal vein contains less urea/oxygen, renal vein contains more carbon dioxide, renal artery contains more metabolic waste.
- Do not accept differences about blood cells unless specifically related to oxygen or CO₂ content.
Section B: Structured Questions (18 marks)
6. (a) Name the structure labelled X (the pancreas). [1 mark]
Answer: Pancreas
(b) State two components of pancreatic juice and explain the function of each. [4 marks]
Answer (any two of the following, each worth 2 marks: 1 for component, 1 for function):
- Pancreatic amylase – digests/breaks down starch into maltose
- Pancreatic lipase – digests/breaks down fats/lipids into fatty acids and glycerol
- Trypsin/protease – digests/breaks down proteins into polypeptides/amino acids
- Sodium hydrogen carbonate – neutralises stomach acid / creates alkaline pH for enzyme action
Marking notes:
- Must name the component AND state its function correctly for full marks.
- Accept “protease” or “trypsinogen/trypsin”.
- Function must include substrate and product(s).
7. Explain why the contents of the stomach are acidic, but the contents of the small intestine are alkaline. [3 marks]
Answer:
- The stomach produces hydrochloric acid (HCl), which provides the optimum/low pH for pepsin/protease activity (1 mark); the acid also kills bacteria in food (1 mark for either of these two reasons)
- The small intestine receives bile and pancreatic juice containing sodium hydrogen carbonate, which neutralises stomach acid / creates an alkaline pH (1 mark)
- This alkaline pH is the optimum for pancreatic and intestinal enzymes (e.g., trypsin, lipase, amylase) (1 mark)
Marking notes:
- Award up to 3 marks for a clear explanation that includes acid production in the stomach, neutralisation in the small intestine, and link to enzyme function in at least one location.
8. Plot a graph of the results on the grid provided. [4 marks]
Marking notes:
- Correct axes: x-axis = Temperature (°C), y-axis = Time taken to digest starch (minutes) (1 mark)
- Appropriate scales on both axes (1 mark)
- All 6 points plotted accurately (1 mark)
- Points joined with a smooth curve or straight lines (1 mark)
- Deduct 1 mark if axes are not labelled with units.
9. Explain why the time taken to digest starch decreased between 10°C and 40°C. [3 marks]
Answer:
- As temperature increases, the kinetic energy of enzyme and substrate molecules increases (1 mark)
- This increases the frequency of effective collisions between enzyme and substrate (1 mark)
- Therefore, the rate of enzyme activity / rate of reaction increases, so starch is digested faster / in less time (1 mark)
Marking notes:
- Must mention kinetic energy AND collision frequency.
- Must link to rate of reaction/digestion time.
- Accept reference to “enzyme‑substrate complexes formed more rapidly”.
10. Explain why no digestion was observed at 60°C. [3 marks]
Answer:
- At 60°C, the temperature is above the optimum for amylase (1 mark)
- The high temperature causes the enzyme to denature (1 mark)
- Denaturation changes the shape of the active site, so the substrate (starch) can no longer bind / fit into the active site, and no enzyme‑substrate complexes form (1 mark)
Marking notes:
- Must mention denaturation AND change in active site shape.
- Must link to loss of catalytic function.
- Do not accept: “The enzyme died” (enzymes are not alive).
Section C: Data Interpretation (7 marks)
11. Describe the change in blood glucose concentration from 0 to 1 hour after the meal. [1 mark]
Answer: Blood glucose concentration rises from 90 mg/dL to 140 mg/dL at 1 hour (or equivalent description using data from the graph).
12. Describe the change in blood glucose concentration from 1 hour to 3 hours after the meal. [1 mark]
Answer: Blood glucose concentration decreases from 140 mg/dL at 1 hour back to approximately 90 mg/dL by 3 hours (or equivalent description).
13. Name the hormone responsible for the decrease in blood glucose concentration after 1 hour. [1 mark]
Answer: Insulin
14. Explain how this hormone increases the uptake of glucose by body cells. [2 marks]
Answer:
- Insulin increases the permeability of cell membranes (of muscle and adipose cells) to glucose (1 mark)
- This allows more glucose to move from the blood into the cells, increasing glucose uptake (1 mark)
Marking notes:
- Award 1 mark for the effect on membrane permeability and 1 mark for increased glucose uptake into cells.
15. Explain how this hormone promotes the conversion of glucose to glycogen in the liver. [2 marks]
Answer:
- Insulin stimulates liver cells (and muscle cells) to convert excess glucose into glycogen (glycogenesis) (1 mark)
- This removes glucose from the blood, helping to lower blood glucose concentration (1 mark)
Marking notes:
- Must mention stimulation of glycogenesis in the liver (or liver and muscles) and removal of glucose from the blood.
Section D: Extended Response & Application (5 marks)
16. Suggest a reason why a person with diabetes may have high blood glucose after a meal. [1 mark]
Answer: The person may not produce enough insulin / may have insulin resistance (target cells do not respond properly to insulin) / beta cells of the pancreas are damaged
Marking notes:
- Accept any reasonable physiological explanation for impaired glucose regulation.
17. Suggest another reason why a person with diabetes may have high blood glucose after a meal. [1 mark]
Answer: The liver may not convert enough glucose to glycogen / cells may be unable to take up glucose efficiently (any distinct, valid reason)
Marking notes:
- The second reason must be different from the one given in Q16; accept any plausible alternative related to insulin deficiency or insulin resistance.
18. State one structural adaptation of an alveolus for efficient gas exchange. [1 mark]
Answer: The alveolar wall is one cell thick / thin (provides a short diffusion distance)
19. State a second structural adaptation of an alveolus. [1 mark]
Answer: Alveoli are numerous / provide a large surface area
20. State a third structural adaptation of an alveolus. [1 mark]
Answer: The alveolar surface is moist (allows gases to dissolve) / closely surrounded by many capillaries (maintains a steep concentration gradient)
Marking notes for 18–20:
- Award 1 mark for each distinct, correct adaptation.
- Accept any valid structural adaptations such as: thin wall, large surface area, moist surface, dense capillary network, elastic fibres.
- Each adaptation must be structurally relevant to gas exchange.
END OF ANSWER KEY
