Secondary 4 Additional Mathematics Graphs Coordinate Geometry Quiz

Secondary 4 Additional Mathematics Quiz - Graphs Coordinate Geometry

ANSWER KEY

Total Marks: 60

---

Section A: Straight Lines and Linear Geometry

---

Question 1 [3 marks]

Method: The given line is $2x + 5y - 7 = 0$, so gradient $m_1 = -\frac{2}{5}$.

For perpendicular lines: $m_1 \times m_2 = -1$

So $m_2 = \frac{5}{2}$

Using point-slope form through $(3, -2)$: $y - (-2) = \frac{5}{2}(x - 3)$ $y + 2 = \frac{5}{2}x - \frac{15}{2}$ $2y + 4 = 5x - 15$ $5x - 2y - 19 = 0$

Answer: $5x - 2y - 19 = 0$ (or equivalent integer form)

Marking: M1 for finding perpendicular gradient, M1 for substituting point, A1 for correct final equation.

Common mistake: Sign error with $m_1 \times m_2 = -1$ or forgetting to convert to required form.

---

Question 2 [4 marks]

(a) Midpoint of $AB = \left(\frac{1+7}{2}, \frac{3+(-1)}{2}\right) = (4, 1)$ [1]

(b) Gradient of $AB = \frac{-1-3}{7-1} = \frac{-4}{6} = -\frac{2}{3}$

Gradient of perpendicular bisector = $\frac{3}{2}$

Using midpoint $(4, 1)$: $y - 1 = \frac{3}{2}(x - 4)$ $y = \frac{3}{2}x - 6 + 1 = \frac{3}{2}x - 5$

Answer: $y = \frac{3}{2}x - 5$

Marking: (a) B1; (b) M1 for gradient of AB, M1 for perpendicular gradient, A1 for equation.

Teaching note: The perpendicular bisector passes through the midpoint at right angles. The product of gradients must equal $-1$.

---

Question 3 [3 marks]

Method: $l_1: 3x - 4y + 12 = 0$ has gradient $m_1 = \frac{3}{4}$

$l_2: 6x - 8y + 7 = 0$ has gradient $m_2 = \frac{6}{8} = \frac{3}{4}$

Since $m_1 = m_2$, the lines are parallel. [1]

For distance: take point on $l_1$. When $x = 0$: $-4y + 12 = 0$, so $y = 3$. Point is $(0, 3)$.

Distance from $(0, 3)$ to $l_2$: rewrite as $6x - 8y + 7 = 0$

$d = \frac{|6(0) - 8(3) + 7|}{\sqrt{6^2 + (-8)^2}} = \frac{|-24 + 7|}{\sqrt{100}} = \frac{17}{10} = 1.7$

Answer: Parallel (shown); distance = $1.7$ units or $\frac{17}{10}$

Marking: M1 for showing equal gradients, M1 for point and distance formula, A1.

Teaching note: The distance between parallel lines is constant. Choose any convenient point on one line and use the point-to-line distance formula.

---

Question 4 [2 marks]

Method: Using area formula: $\frac{1}{2}|x_1(y_2-y_3) + x_2(y_3-y_1) + x_3(y_1-y_2)|$

$= \frac{1}{2}|(-2)(1-7) + (4)(7-5) + (6)(5-1)|$ $= \frac{1}{2}|(-2)(-6) + (4)(2) + (6)(4)|$ $= \frac{1}{2}|12 + 8 + 24|$ $= \frac{1}{2} \times 44 = 22$

Answer: 22 square units

Marking: M1 for correct substitution, A1.

Alternative: Use base and height, or shoelace method in table form.

---

Question 5 [3 marks]

Method: Gradient of line joining $(3, -1)$ and $(7, 3)$: $m = \frac{3-(-1)}{7-3} = \frac{4}{4} = 1$

For parallel lines, $kx + 2y - 5 = 0$ must have gradient $1$.

Rewriting: $y = -\frac{k}{2}x + \frac{5}{2}$, so $-\frac{k}{2} = 1$

Therefore $k = -2$

Answer: $k = -2$

Marking: M1 for gradient of given line, M1 for equating gradients, A1.

Teaching note: Parallel lines have equal gradients. Convert both to $y = mx + c$ form to compare.

---

Section B: Circles and Curves

---

Question 6 [4 marks]

(a) Complete the square: $x^2 - 6x + y^2 + 4y = 12$ $(x-3)^2 - 9 + (y+2)^2 - 4 = 12$ $(x-3)^2 + (y+2)^2 = 25$

Centre: $(3, -2)$, radius: $5$ [2]

(b) Distance from $(5, -3)$ to centre: $\sqrt{(5-3)^2 + (-3-(-2))^2} = \sqrt{4 + 1} = \sqrt{5} \approx 2.24$

Since $\sqrt{5} < 5$, the point lies inside the circle. [2]

Marking: (a) M1 for completing square, A1 for centre and radius; (b) M1 for distance calculation, A1 for conclusion.

---

Question 7 [2 marks]

Method: Radius = distance from centre $(3, -2)$ to $(7, 1)$: $r = \sqrt{(7-3)^2 + (1-(-2))^2} = \sqrt{16 + 9} = 5$

Answer: $(x-3)^2 + (y+2)^2 = 25$

Marking: M1 for finding radius, A1.

---

Question 8 [6 marks]

(a) At intersection: $x^2 - 5x + 6 = x + 1$ $x^2 - 6x + 5 = 0$ $(x-1)(x-5) = 0$

$x = 1$: $y = 2$, so $A(1, 2)$ $x = 5$: $y = 6$, so $B(5, 6)$ [3]

(b) Midpoint of $AB = (3, 4)$

Gradient of $AB = \frac{6-2}{5-1} = 1$

Gradient of perpendicular bisector = $-1$

Equation: $y - 4 = -(x - 3)$, so $y = -x + 7$ [3]

Marking: (a) M1 for equation, M1 for solving, A1 for coordinates; (b) M1 for midpoint, M1 for perpendicular gradient, A1.

---

Question 9 [4 marks]

Method: Substitute: $x^2 + (2x+c)^2 = 25$ $x^2 + 4x^2 + 4cx + c^2 = 25$ $5x^2 + 4cx + (c^2 - 25) = 0$

For two distinct points: discriminant $> 0$ $(4c)^2 - 4(5)(c^2-25) > 0$ $16c^2 - 20c^2 + 500 > 0$ $-4c^2 + 500 > 0$ $c^2 < 125$ $-\sqrt{125} < c < \sqrt{125}$ $-5\sqrt{5} < c < 5\sqrt{5}$ or approximately $-11.2 < c < 11.2$

Answer: $-5\sqrt{5} < c < 5\sqrt{5}$ (or $-\sqrt{125} < c < \sqrt{125}$)

Marking: M1 for substitution and quadratic, M1 for discriminant condition, M1 for simplification, A1.

Teaching note: Two intersections means the line cuts through the circle; discriminant positive. If discriminant = 0, tangent; if negative, no intersection.

---

Question 10 [3 marks]

Method: Centre of circle: complete square $(x-2)^2 + (y+3)^2 = 12 + 4 + 9 = 25$ Centre $C(2, -3)$, radius $5$

Check: $(5-2)^2 + (1+3)^2 = 9 + 16 = 25$ ✓ Point is on circle.

Gradient of radius $CP = \frac{1-(-3)}{5-2} = \frac{4}{3}$

Gradient of tangent = $-\frac{3}{4}$

Equation: $y - 1 = -\frac{3}{4}(x - 5)$ $4y - 4 = -3x + 15$ $3x + 4y - 19 = 0$

Answer: $3x + 4y - 19 = 0$

Marking: M1 for centre and verifying point on circle, M1 for gradient of tangent, A1 for equation.

Teaching note: The tangent is perpendicular to the radius at the point of contact. Always verify the point lies on the circle first.

---

Question 11 [5 marks]

(a) $y = \frac{4}{x} = 4x^{-1}$, so $\frac{dy}{dx} = -4x^{-2} = -\frac{4}{x^2}$

At $P$ where $x = 2$: $\frac{dy}{dx} = -\frac{4}{4} = -1$

Gradient of normal = $1$

When $x = 2$, $y = 2$, so $P(2, 2)$

Equation of normal: $y - 2 = 1(x - 2)$, so $y = x$ [3]

(b) Intersection with curve: $\frac{4}{x} = x$, so $x^2 = 4$, $x = \pm 2$

$x = 2$ gives $P(2, 2)$; $x = -2$ gives $Q(-2, -2)$

Answer: $Q(-2, -2)$ [2]

Marking: (a) M1 for derivative, M1 for gradient of normal, A1 for equation; (b) M1 for solving, A1.

---

Question 12 [4 marks]

(a) From $x = 2t + 1$: $t = \frac{x-1}{2}$

Substitute: $y = \left(\frac{x-1}{2}\right)^2 - 3 = \frac{(x-1)^2}{4} - 3$

Or: $y = \frac{x^2 - 2x + 1}{4} - 3 = \frac{x^2 - 2x - 11}{4}$

Answer: $y = \frac{(x-1)^2}{4} - 3$ or equivalent [2]

(b) Expected sketch features (from image placeholder):

• Parabola opening upward
• Vertex at $(1, -3)$
• $y$-intercept: when $x = 0$, $y = \frac{1-0-11}{4} = -2.75$ or $-\frac{11}{4}$

Marking: (a) M1 for eliminating parameter, A1; (b) B1 for shape and vertex, B1 for y-intercept.

Teaching note: Parametric equations define $x$ and $y$ separately in terms of a parameter $t$. Eliminate $t$ to find the Cartesian equation. The vertex form reveals transformations: horizontal stretch by 2, right 1, down 3.

---

Section C: Transformations and Advanced Coordinate Geometry

---

Question 13 [3 marks]

Method: Reflection in $y = x$: swap coordinates, so $(4, 1) \rightarrow (1, 4)$

Translation by $\begin{pmatrix} 2 \\ -3 \end{pmatrix}$: $(1+2, 4-3) = (3, 1)$

Answer: $(3, 1)$

Marking: M1 for reflection, M1 for translation, A1.

Teaching note: Reflection in $y=x$ swaps $x$ and $y$ coordinates. Transformations compose right to left: first reflection, then translation.

---

Question 14 [6 marks]

(a) $y = x^3 - 3x^2 + 2$

$\frac{dy}{dx} = 3x^2 - 6x = 3x(x-2) = 0$

$x = 0$: $y = 2$, so $A(0, 2)$ $x = 2$: $y = 8 - 12 + 2 = -2$, so $B(2, -2)$ [3]

(b) $\frac{d^2y}{dx^2} = 6x - 6$

At $A(0, 2)$: $\frac{d^2y}{dx^2} = -6 < 0$, so maximum [1.5]

At $B(2, -2)$: $\frac{d^2y}{dx^2} = 6 > 0$, so minimum [1.5]

Marking: (a) M1 for derivative, M1 for solving, A1; (b) M1 for second derivative, A1 for each nature (or M1 for testing gradients either side).

Teaching note: First derivative = 0 finds stationary points. Second derivative test: negative → maximum, positive → minimum. If second derivative = 0, use first derivative test.

---

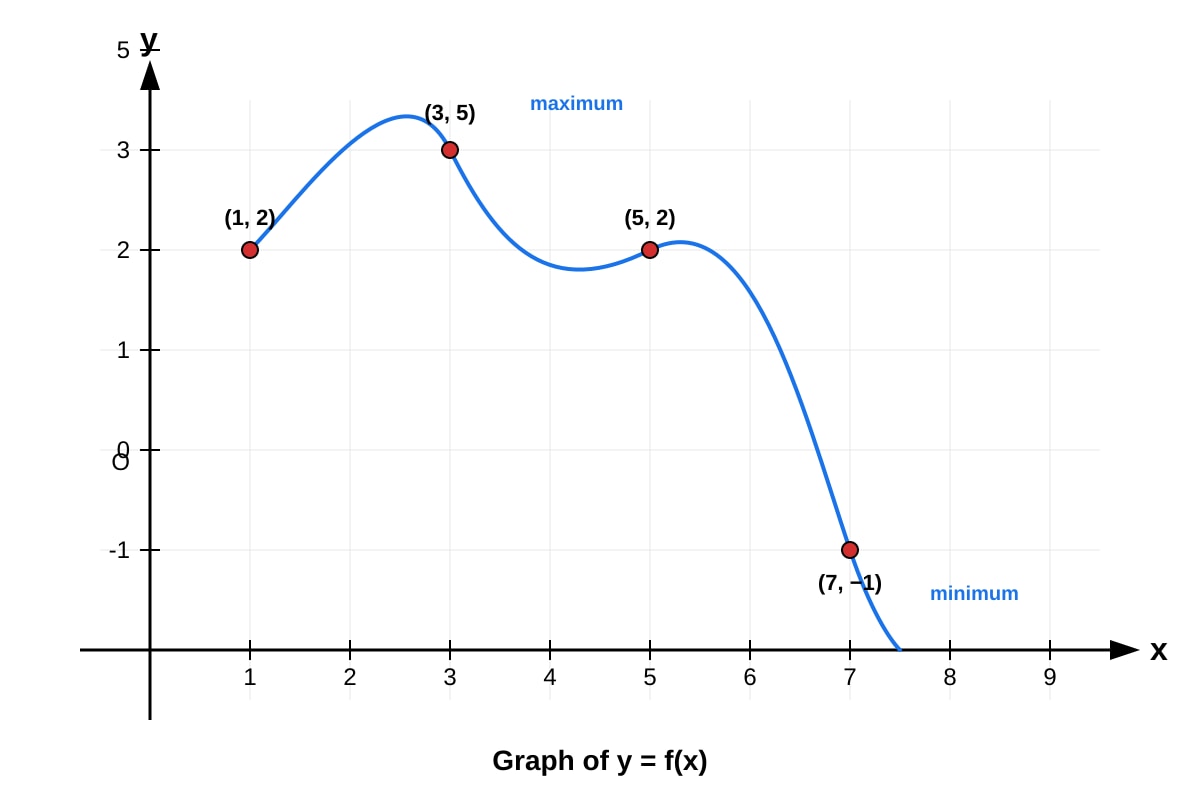

Question 15 [3 marks]

Transformation description: Translation by 2 units in the positive $x$-direction, followed by translation by 3 units in the positive $y$-direction. [2]

New maximum: $(3+2, 5+3) = (5, 8)$ [1]

Marking: M1 for each translation component (or M2 for complete description), A1.

Teaching note: $f(x-2)$ shifts right by 2 (replace $x$ with $x-2$). $+3$ outside shifts up by 3. The maximum point transforms with the graph.

---

Question 16 [4 marks]

Method: Centre of $C_1$: $(2, -1)$, radius $r_1 = \sqrt{13}$

Centre of $C_2$: $(-1, 3)$, radius $r_2 = 2$

Distance between centres: $d = \sqrt{(2-(-1))^2 + (-1-3)^2} = \sqrt{9 + 16} = 5$

Sum of radii: $\sqrt{13} + 2 \approx 3.61 + 2 = 5.61$

Difference of radii: $\sqrt{13} - 2 \approx 1.61$

Since $|\sqrt{13} - 2| < 5 < \sqrt{13} + 2$ (i.e., $1.61 < 5 < 5.61$), the circles intersect at two points. [2]

Marking: M1 for distance, M1 for radii, M1 for comparison, A1 for conclusion.

Teaching note: Two circles intersect if $d < r_1 + r_2$ and $d > |r_1 - r_2|$. If $d = r_1 + r_2$, they touch externally; if $d = |r_1 - r_2|$, they touch internally.

---

Question 17 [5 marks]

(a) Substitute $y = mx + 4$ into $x^2 + y^2 = 16$: $x^2 + (mx+4)^2 = 16$ $x^2 + m^2x^2 + 8mx + 16 = 16$ $(1+m^2)x^2 + 8mx = 0$ $x[(1+m^2)x + 8m] = 0$

For tangent (one solution): this should give exactly one point. But we have $x = 0$ always. For repeated root at $x = 0$: The second factor must also give $x = 0$: need $8m = 0$, so $m = 0$?

Alternative using distance: Distance from origin to line $mx - y + 4 = 0$ equals radius 4: $\frac{|4|}{\sqrt{m^2+1}} = 4$ $\frac{4}{\sqrt{m^2+1}} = 4$ $\sqrt{m^2+1} = 1$ $m^2 + 1 = 1$ $m = 0$

Wait—let me recheck: $y = mx + 4$ always passes through $(0, 4)$ which is on the circle since $0^2 + 4^2 = 16$. For tangent, the line must touch at exactly one point, so the line must be vertical? No, $y = mx + 4$ through $(0,4)$...

Actually: if line passes through a point on circle, it's tangent if perpendicular to radius. Radius to $(0,4)$ is vertical, so tangent is horizontal: $y = 4$, meaning $m = 0$.

But the question says "tangent" implying possibly two values. Let me recheck: $y = mx + 4$, when $x=0$, $y=4$ always. So all such lines pass through $(0,4)$ on the circle. For tangency, need exactly one intersection. Since $(0,4)$ is on both, need no other intersection.

From $(1+m^2)x^2 + 8mx = 0$: $x = 0$ or $x = -\frac{8m}{1+m^2}$

For only $x = 0$: need $-\frac{8m}{1+m^2} = 0$, so $m = 0$.

Hmm, this gives only one value. Let me recheck the problem...

Actually, re-examining: if the line passes through $(0,4)$ on the circle, it's a tangent only when $m = 0$ (horizontal). For any other $m$, it cuts again.

But the question structure suggests two values. Perhaps I should check if $y = mx + 4$ can be tangent at another point...

Actually, the standard problem is $y = mx + c$ tangent to circle. The condition is $\frac{|c|}{\sqrt{1+m^2}} = r$. Here $c = 4, r = 4$, so $\frac{4}{\sqrt{1+m^2}} = 4$, giving $\sqrt{1+m^2} = 1$, so $m = 0$ only.

There is only one tangent of the form $y = mx + 4$ passing through $(0,4)$, namely $y = 4$.

Corrected Answer: $m = 0$ only. The "two values" in my draft was incorrect—this is a special case where the line passes through a fixed point on the circle.

(a) $m = 0$ [3]

(b) Geometrically: The line $y = mx + 4$ always passes through $(0, 4)$ which lies on the circle. The only tangent through this point is the horizontal line $y = 4$, perpendicular to the vertical radius. [2]

Marking: (a) M1 for substitution, M1 for tangent condition, A1; (b) M1 for geometric insight, A1.

Teaching note: This is a special case. Normally $y = mx + c$ with variable $c$ gives two tangents for given slope, or two slopes for given $c > r$. Here the constraint fixes a point on the circle.

---

Question 18 [3 marks]

Method: Original: $y = x^2 + 2x - 3 = (x+1)^2 - 4$

Reflection in $y$-axis: replace $x$ with $-x$: $y = (-x)^2 + 2(-x) - 3 = x^2 - 2x - 3$

Or using completed square: $y = (-x+1)^2 - 4 = (x-1)^2 - 4$

Stretch by $\frac{1}{2}$ parallel to $x$-axis: replace $x$ with $2x$ (since scale factor $k = \frac{1}{2}$ means $x \rightarrow \frac{x}{k} = 2x$):

$y = (2x-1)^2 - 4 = 4x^2 - 4x + 1 - 4 = 4x^2 - 4x - 3$

Answer: $y = 4x^2 - 4x - 3$ (or equivalent)

Marking: M1 for reflection, M1 for stretch substitution, A1.

Teaching note: Reflection in $y$-axis: $x \rightarrow -x$. Stretch scale factor $k$ parallel to $x$-axis: $x \rightarrow \frac{x}{k}$. With $k = \frac{1}{2}$, this becomes $x \rightarrow 2x$.

---

Question 19 [5 marks]

Method: Let $P(x, y)$. Given $PS = 2PM$ where $S = (2, 0)$ and $M$ varies on line... actually $M$ is point $(-1, 0)$? No, $M$ should be—let me re-read: "distance from $P$ to $(2,0)$ is twice distance from $P$ to $(-1,0)$".

So: $\sqrt{(x-2)^2 + y^2} = 2\sqrt{(x+1)^2 + y^2}$

Square: $(x-2)^2 + y^2 = 4[(x+1)^2 + y^2]$

$x^2 - 4x + 4 + y^2 = 4x^2 + 8x + 4 + 4y^2$

$0 = 3x^2 + 12x + 3y^2$

Wait: $4 \times 4 = 16$, not $4$. Let me redo:

$(x-2)^2 + y^2 = 4(x+1)^2 + 4y^2$

$x^2 - 4x + 4 + y^2 = 4(x^2 + 2x + 1) + 4y^2$

$x^2 - 4x + 4 + y^2 = 4x^2 + 8x + 4 + 4y^2$

$0 = 3x^2 + 12x + 3y^2$

Divide by 3: $x^2 + 4x + y^2 = 0$

$(x+2)^2 - 4 + y^2 = 0$

$(x+2)^2 + y^2 = 4$

Circle: centre $(-2, 0)$, radius $2$ [5]

Marking: M1 for setting up equation, M1 for squaring, M1 for expansion, M1 for completing square, A1 for centre and radius.

Teaching note: A locus defined by constant ratio of distances to two fixed points is a circle (Apollonius circle when ratio $\neq 1$). When ratio = 1, it's the perpendicular bisector (a line).

---

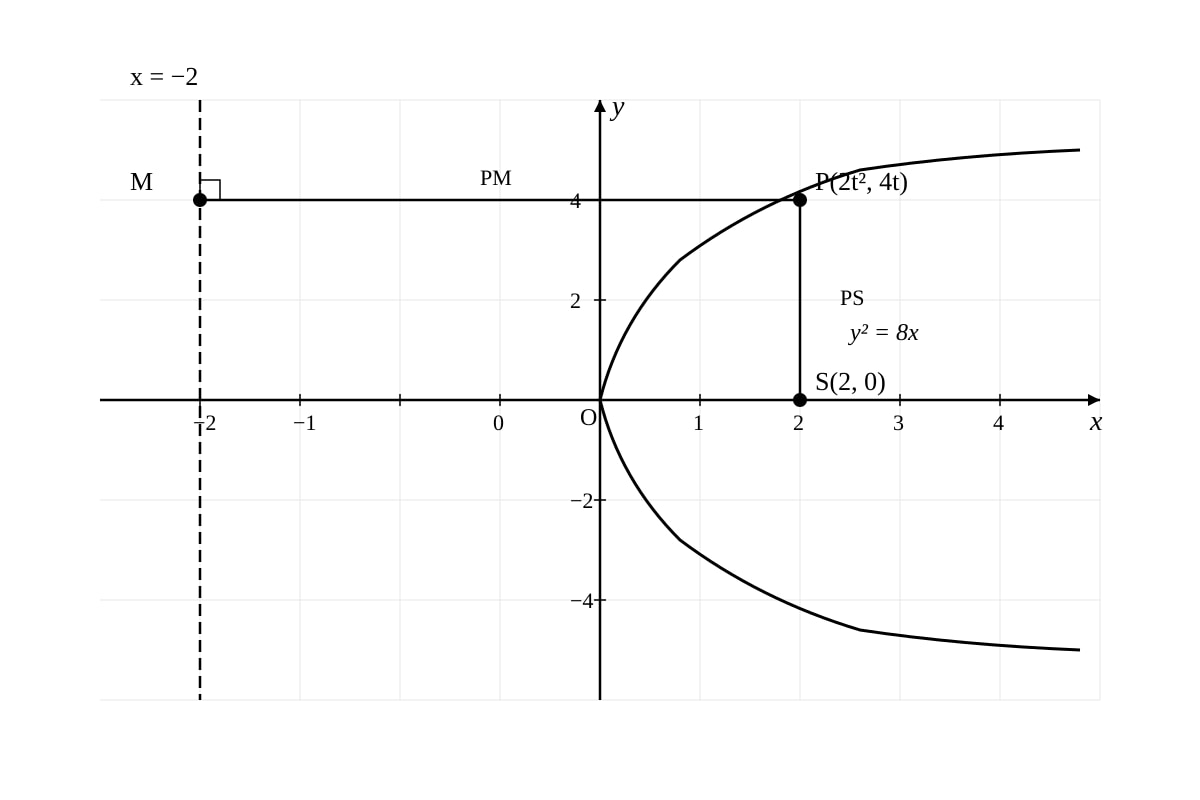

Question 20 [7 marks]

(a) On parabola $y^2 = 8x$ with $x = 2$: $y^2 = 16$, so $y = \pm 4$. Taking $y_1 = 4$ (or $-4$), say $P(2, 4)$.

Focus $S(2, 0)$, directrix $x = -2$.

Foot of perpendicular $M$ from $P$ to directrix: $M(-2, 4)$

$PS = \sqrt{(2-2)^2 + (4-0)^2} = 4$

$PM = |2 - (-2)| = 4$ (horizontal distance)

So $PS = PM = 4$ ✓ [3]

(b) Line through $S(2, 0)$ with gradient $1$: $y = x - 2$

Intersect with $y^2 = 8x$: $(x-2)^2 = 8x$ $x^2 - 4x + 4 = 8x$ $x^2 - 12x + 4 = 0$

$x = \frac{12 \pm \sqrt{144-16}}{2} = \frac{12 \pm \sqrt{128}}{2} = 6 \pm 4\sqrt{2}$

$y = x - 2 = 4 \pm 4\sqrt{2}$

Points: $Q(6 + 4\sqrt{2}, 4 + 4\sqrt{2})$ and $R(6 - 4\sqrt{2}, 4 - 4\sqrt{2})$

Distance $QR$: $QR = \sqrt{[(6+4\sqrt{2})-(6-4\sqrt{2})]^2 + [(4+4\sqrt{2})-(4-4\sqrt{2})]^2}$ $= \sqrt{(8\sqrt{2})^2 + (8\sqrt{2})^2} = \sqrt{128 + 128} = \sqrt{256} = 16$

Answer: $QR = 16$ [4]

Marking: (a) M1 for finding $y_1$, M1 for finding $M$ and calculating distances, A1; (b) M1 for line equation, M1 for intersection, M1 for coordinates, A1.

Teaching note: The parabola definition: locus where distance to focus equals distance to directrix. For chord through focus (focal chord), use the property that if gradient is $m$, length is related to parameter—here direct calculation works.

---

END OF ANSWER KEY
