Secondary 4 Additional Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ____________
Date: ____________
Score: ____________

Duration: 60 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Show all working clearly. Solutions by accurate drawing will not be accepted.
• Write your answers in the spaces provided.
• Use $\pi$ as needed; give exact values unless told to round.

---

Section A (Questions 1–5) — Short Answer [10 marks]

1. Given that $\sin \theta = \frac{3}{5}$ and $\theta$ is acute, find $\cos \theta$. [2]

---

2. Simplify $\sin^2 x + \cos^2 x$. [1]

---

3. Find the acute angle $\theta$ such that $\tan \theta = 1$. [1]

---

4. State the formula for the area of a triangle with two sides $a$, $b$ and included angle $C$. [1]

---

5. Write down the expansion of $\cos(A+B)$. [1]

---

---

Section B (Questions 6–10) — Structured Response [10 marks]

6. (a) Prove that $\frac{1-\cos^2 x}{\sin x} = \sin x$. [2]
(b) Hence state why the identity holds for $0 < x < \pi$. [1]

---

7. In $\triangle ABC$, $AB = 7$ cm, $AC = 10$ cm, and $\angle BAC = 50^\circ$. Find the length of $BC$. [2]

---

8. Given $\sin A = \frac{5}{13}$ and $A$ is acute, find $\tan A$. [2]

---

9. Solve $2\sin x - 1 = 0$ for $0^\circ \le x \le 360^\circ$. [2]

---

10. A circle has centre $(2,-3)$ and radius $4$. Write its equation in standard form. [1]

---

---

Section C (Questions 11–20) — Extended Application [20 marks]

11. (a) Show that $\tan^2 \theta + 1 = \sec^2 \theta$. [2]
(b) Hence solve $\sec^2 \theta - 3\tan \theta = 0$ for $0^\circ \le \theta \le 180^\circ$. [2]

---

12. In $\triangle PQR$, $p = 8$, $q = 11$, and $\angle R = 40^\circ$. Find the area of the triangle. [2]

---

13. Solve the equation $3\cos^2 x - 2\cos x - 1 = 0$ for $0 \le x \le 2\pi$. [3]

---

14. Points $A(1,2)$ and $B(5,6)$ lie on a circle. The perpendicular bisector of $AB$ passes through the centre. Find the equation of the perpendicular bisector of $AB$. [2]

---

15.

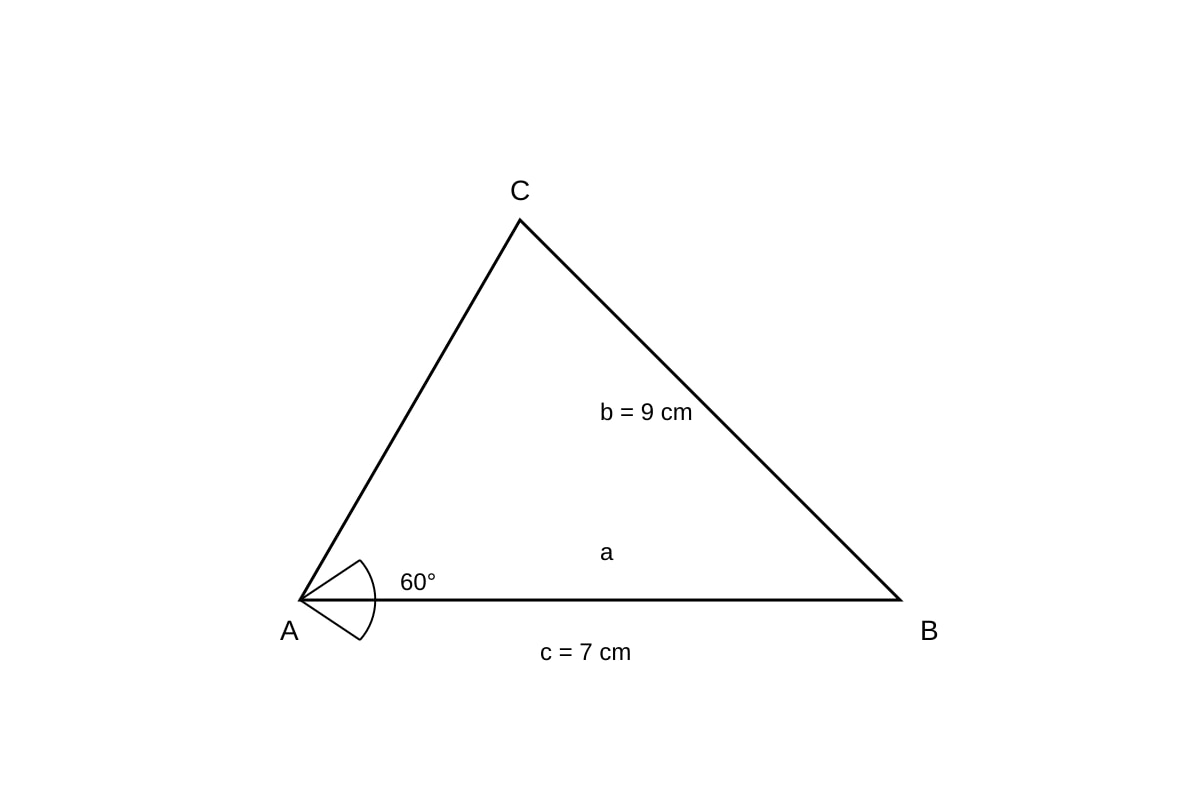

Generated diagram for Q15.

Using the diagram, find the length of side $a$ (BC). [2]

---

16. Prove the identity $\frac{\sin x}{1+\cos x} = \tan\left(\frac{x}{2}\right)$. [3]

---

17. A ladder of length $5$ m leans against a wall. The foot of the ladder is $3$ m from the wall. Find the angle the ladder makes with the ground. [2]

---

18. The circle $C$ has equation $x^2 + y^2 - 6x + 4y - 3 = 0$. Find the coordinates of its centre and its radius. [3]

---

19. Solve $\sin 2x = \cos x$ for $0^\circ \le x \le 180^\circ$. [3]

---

20. In $\triangle XYZ$, $x = 6$, $y = 8$, $z = 10$. (a) Find $\angle Z$ using the cosine rule. [2] (b) Hence find the area of $\triangle XYZ$. [1]

---

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Secondary 4 Additional Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 40
Topic: Geometry & Trigonometry

---

Section A Answers (Q1–5)

Q1. [2 marks]
Given $\sin\theta = \frac{3}{5}$, acute $\theta$.
Use $\sin^2\theta + \cos^2\theta = 1$:
$\cos^2\theta = 1 - \left(\frac{3}{5}\right)^2 = 1 - \frac{9}{25} = \frac{16}{25}$.
$\cos\theta = \frac{4}{5}$ (positive as $\theta$ acute).
Answer: $\frac{4}{5}$

Q2. [1 mark]
Identity: $\sin^2 x + \cos^2 x = 1$.
Answer: $1$

Q3. [1 mark]
$\tan\theta = 1 \Rightarrow \theta = 45^\circ$ (acute).
Answer: $45^\circ$

Q4. [1 mark]
Area = $\frac{1}{2}ab\sin C$.
Answer: $\frac{1}{2}ab\sin C$

Q5. [1 mark]
$\cos(A+B) = \cos A\cos B - \sin A\sin B$.
Answer: $\cos A\cos B - \sin A\sin B$

---

Section B Answers (Q6–10)

Q6. [3 marks total]
(a) [2] LHS = $\frac{1-\cos^2 x}{\sin x} = \frac{\sin^2 x}{\sin x} = \sin x$ (using $1-\cos^2 x = \sin^2 x$). = RHS.
(b) [1] For $0<x<\pi$, $\sin x > 0$ so division valid.
Answer: Shown.

Q7. [2 marks]
Cosine rule: $BC^2 = 7^2 + 10^2 - 2(7)(10)\cos 50^\circ$.
$= 49 + 100 - 140(0.6428) \approx 149 - 89.99 = 59.01$.
$BC \approx \sqrt{59.01} \approx 7.68$ cm.
Answer: $7.68$ cm (allow 7.7)

Q8. [2 marks]
$\sin A = 5/13$, acute $\Rightarrow$ opp=5, hyp=13, adj=$\sqrt{13^2-5^2}=12$.
$\tan A = \frac{5}{12}$.
Answer: $\frac{5}{12}$

Q9. [2 marks]
$2\sin x -1 =0 \Rightarrow \sin x = \frac{1}{2}$.
In $0^\circ\le x\le 360^\circ$: $x=30^\circ, 150^\circ$.
Answer: $30^\circ, 150^\circ$

Q10. [1 mark]
$(x-2)^2 + (y+3)^2 = 4^2 = 16$.
Answer: $(x-2)^2+(y+3)^2=16$

---

Section C Answers (Q11–20)

Q11. [4 marks]
(a) [2] $\tan^2\theta+1 = \frac{\sin^2\theta}{\cos^2\theta}+1 = \frac{\sin^2\theta+\cos^2\theta}{\cos^2\theta} = \frac{1}{\cos^2\theta} = \sec^2\theta$.
(b) [2] $\sec^2\theta -3\tan\theta=0 \Rightarrow \tan^2\theta+1-3\tan\theta=0$.
Let $t=\tan\theta$: $t^2-3t+1=0 \Rightarrow t = \frac{3\pm\sqrt{5}}{2}$.
$\theta = \tan^{-1}(2.618)\approx 69.1^\circ$, $\tan^{-1}(0.382)\approx 20.9^\circ$.
Answer: $20.9^\circ, 69.1^\circ$

Q12. [2 marks]
Area = $\frac{1}{2}pq\sin R = \frac{1}{2}(8)(11)\sin 40^\circ = 44(0.6428)=28.28$.
Answer: $28.3$ units²

Q13. [3 marks]
$3\cos^2 x -2\cos x -1=0$. Let $u=\cos x$: $3u^2-2u-1=0$.
$(3u+1)(u-1)=0 \Rightarrow u=-\frac{1}{3}$ or $1$.
$\cos x=1 \Rightarrow x=0, 2\pi$. $\cos x=-\frac{1}{3} \Rightarrow x=\cos^{-1}(-1/3)\approx 1.911, 2\pi-1.911=4.372$.
Answer: $0, 1.911, 4.372, 2\pi$

Q14. [2 marks]
Midpoint of AB = $(3,4)$. Gradient AB = $\frac{6-2}{5-1}=1$.
Perp bisector gradient = $-1$. Equation: $y-4 = -1(x-3) \Rightarrow y = -x+7$.
Answer: $y = -x+7$

Q15. [2 marks]
Using diagram: $a^2 = b^2+c^2-2bc\cos A = 9^2+7^2-2(9)(7)\cos 60^\circ$.
$=81+49-126(0.5)=130-63=67$. $a=\sqrt{67}\approx 8.19$ cm.
Answer: $\sqrt{67}$ cm or $8.19$ cm
(Image must show b=9, c=7, A=60° as labelled.)

Q16. [3 marks]
RHS: $\tan(x/2) = \frac{\sin(x/2)}{\cos(x/2)}$.
Multiply num/den by $2\sin(x/2)$: $= \frac{2\sin^2(x/2)}{2\sin(x/2)\cos(x/2)} = \frac{1-\cos x}{\sin x}$.
Thus $\frac{\sin x}{1+\cos x}$: multiply top/bottom by $1-\cos x$: $\frac{\sin x(1-\cos x)}{1-\cos^2 x} = \frac{\sin x(1-\cos x)}{\sin^2 x} = \frac{1-\cos x}{\sin x} = \tan(x/2)$. Shown.

Q17. [2 marks]
$\cos\theta = \frac{3}{5} \Rightarrow \theta = \cos^{-1}(0.6) \approx 53.1^\circ$.
Answer: $53.1^\circ$

Q18. [3 marks]
$x^2-6x + y^2+4y = 3$. Complete square: $(x-3)^2-9 + (y+2)^2-4 = 3$.
$(x-3)^2+(y+2)^2 = 16$. Centre $(3,-2)$, radius $4$.
Answer: Centre $(3,-2)$, radius $4$

Q19. [3 marks]
$\sin 2x = 2\sin x\cos x = \cos x$.
$\cos x(2\sin x -1)=0$.
$\cos x=0 \Rightarrow x=90^\circ$. $2\sin x=1 \Rightarrow \sin x=1/2 \Rightarrow x=30^\circ,150^\circ$.
Answer: $30^\circ, 90^\circ, 150^\circ$

Q20. [3 marks]
(a) [2] $z^2 = x^2+y^2-2xy\cos Z \Rightarrow 100 = 36+64-96\cos Z \Rightarrow 100=100-96\cos Z \Rightarrow \cos Z=0 \Rightarrow Z=90^\circ$.
(b) [1] Area = $\frac{1}{2}(6)(8)\sin 90^\circ = 24$.
Answer: (a) $90^\circ$ (b) $24$
