TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4

TuitionGoWhere Practice Paper (AI) — Version 4

Subject: Additional Mathematics
Level: Secondary 4
Paper: Practice Paper (Topic: Graphs & Coordinate Geometry)
Duration: 1 hour 15 minutes
Total Marks: 80
Name: ___________________________
Class: ______________
Date: ______________

Instructions:

• This practice paper contains 20 questions on Graphs & Coordinate Geometry.
• Show all working clearly. Answers without working may receive reduced marks.
• Solutions by accurate drawing will not be accepted; analytical methods must be used.
• Section A: 10 short questions (2 marks each). Section B: 6 mid questions (4 marks each). Section C: 4 extended questions (5 marks each).
• Total marks = 80.

Section A (Questions 1–10, 2 marks each, Total 20 marks)

1. The line $L_1$ passes through $(2, 3)$ and $(4, 7)$. Find the gradient of $L_1$.

2. Find the equation of the line perpendicular to $y = 2x + 1$ that passes through $(0, -3)$. Give your answer in the form $y = mx + c$.

3. The points $A(1, 2)$ and $B(5, 2)$ lie on a circle. State the coordinates of the midpoint of $AB$.

4. A circle has centre $(3, -2)$ and radius $4$. Write down its equation in standard form.

5. Find the distance between the points $P(-1, 4)$ and $Q(3, -2)$. Leave your answer in surd form if necessary.

6. The line $y = 3x - 5$ meets the $y$-axis at $R$. Find the coordinates of $R$.

7. Determine whether the point $(1, 1)$ lies on the line $2x + 3y = 5$.

8. The line $L$ has gradient $-\frac{1}{2}$ and passes through $(4, 0)$. Find the $x$-intercept of $L$.

9. Two lines have gradients $m_1 = 3$ and $m_2 = -\frac{1}{3}$. State whether they are perpendicular.

10. The circle $x^2 + y^2 = 25$ has centre $O$. Find the length of $O$ to the point $(3, 4)$.

Section B (Questions 11–16, 4 marks each, Total 24 marks)

11. The line $y = x + 1$ intersects the curve $y = x^2 - 3x + 1$ at points $A$ and $B$. Find the coordinates of $A$ and $B$.

12. A circle passes through $A(1, 3)$ and $B(5, 1)$, and its centre lies on the line $y = x$. Find the equation of the circle.

13. Find the coordinates of the stationary point of the curve $y = x^2 - 6x + 5$ and determine its nature.

14. The points $C(0, 0)$ and $D(6, 0)$ are endpoints of a diameter of a circle. Find the equation of the circle.

15. The line $2x - y = 3$ is tangent to the circle with centre $(1, 2)$. Find the radius of the circle.

16. Triangle $PQR$ has vertices $P(1, 1)$, $Q(4, 5)$, $R(7, 1)$. Find the equation of the perpendicular bisector of $PQ$.

Section C (Questions 17–20, 5 marks each, Total 20 marks)

17. The curve $y = x^2 - 4x + 1$ intersects the line $y = 2x - 5$ at $A$ and $B$. Find coordinates of $A$ and $B$, and the equation of the tangent to the curve at $A$.

18. A circle passes through $(2, 0)$ and $(0, 2)$, and its centre lies on $x + y = 4$. Find the equation and state if $(1, 1)$ is inside, on, or outside.

19. Solutions by accurate drawing will not be accepted.

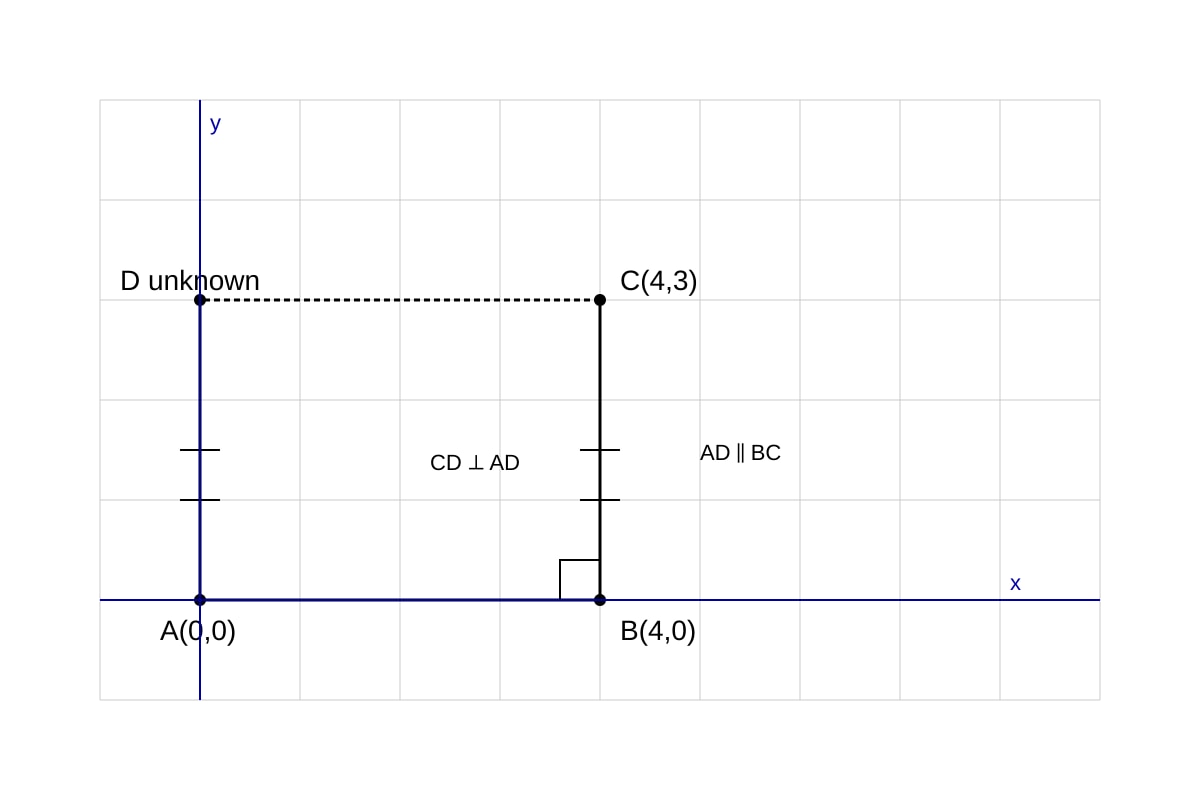

Image pending generation: diagram for Q19.

Using the diagram, find the coordinates of $D$ and the area of quadrilateral $ABCD$.

20. The curve $y = \frac{1}{x}$ and line $y = -x + 2$ intersect at $P$ and $Q$. Find $P$ and $Q$, and the midpoint of $PQ$.

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper Answer Key — Additional Mathematics Secondary 4 (Version 4)

Topic: Graphs & Coordinate Geometry
Total Marks: 80

Section A Answers (20 marks)

1. Gradient = $\frac{7-3}{4-2} = \frac{4}{2} = 2$. [2]
Teaching note: Gradient formula $m = \frac{y_2-y_1}{x_2-x_1}$. Common mistake: reversing subtraction order inconsistently.

2. Perpendicular gradient = $-\frac{1}{2}$. Through $(0,-3)$: $y = -\frac{1}{2}x - 3$. [2]
Note: Product of perpendicular gradients = $-1$.

3. Midpoint = $\left(\frac{1+5}{2}, \frac{2+2}{2}\right) = (3, 2)$. [2]

4. $(x-3)^2 + (y+2)^2 = 16$. [2]
Standard form: $(x-a)^2+(y-b)^2=r^2$.

5. $PQ = \sqrt{(3-(-1))^2 + (-2-4)^2} = \sqrt{16+36} = \sqrt{52} = 2\sqrt{13}$. [2]

6. At $y$-axis $x=0$: $y = -5$, so $R(0,-5)$. [2]

7. $2(1)+3(1)=5$, yes lies on line. [2]

8. Equation: $y = -\frac{1}{2}(x-4) = -\frac{1}{2}x+2$. $y=0 \Rightarrow x=4$. Already given; x-intercept is $4$. [2]

9. $3 \times (-\frac{1}{3}) = -1$, so perpendicular. [2]

10. Distance = $\sqrt{3^2+4^2}=5$, equals radius. [2]

Section B Answers (24 marks)

11. [4]
$x+1 = x^2-3x+1 \Rightarrow x^2-4x=0 \Rightarrow x(x-4)=0$
$x=0 \Rightarrow y=1$; $x=4 \Rightarrow y=5$.
$A(0,1), B(4,5)$. [4]

12. [4]
Centre $(h,h)$: $(h-1)^2+(h-3)^2=(h-5)^2+(h-1)^2$
$(h-3)^2=(h-5)^2 \Rightarrow h=4$. Centre $(4,4)$, $r^2=10$.
Equation: $(x-4)^2+(y-4)^2=10$. [4]

13. [4]
$\frac{dy}{dx}=2x-6=0 \Rightarrow x=3$, $y=9-18+5=-4$.
$\frac{d^2y}{dx^2}=2>0$ minimum. Point $(3,-4)$ min. [4]

14. [4]
Centre midpoint $(3,0)$, radius $3$. Equation $(x-3)^2+y^2=9$. [4]

15. [4]
Distance from $(1,2)$ to $2x-y-3=0$: $r=\frac{|2(1)-2-3|}{\sqrt{4+1}}=\frac{3}{\sqrt{5}}$. [4]

16. [4]
Midpoint $PQ=(2.5,3)$, grad $PQ=\frac{4}{3}$, perp grad $-\frac{3}{4}$.
Eq: $y-3=-\frac{3}{4}(x-2.5)$. [4]

Section C Answers (20 marks)

17. [5]
Intersection: $x^2-4x+1=2x-5 \Rightarrow x^2-6x+6=0$
$x=3\pm\sqrt{3}$. $A(3+\sqrt{3},1+2\sqrt{3}), B(3-\sqrt{3},1-2\sqrt{3})$.
$\frac{dy}{dx}=2x-4$, at A grad $=2+2\sqrt{3}$.
Tangent: $y-(1+2\sqrt{3})=(2+2\sqrt{3})(x-3-\sqrt{3})$. [5]

18. [5]
Centre $(h,4-h)$: $(h-2)^2+(4-h)^2=(h)^2+(4-h-2)^2$
Solve $h=2$, centre $(2,2)$, $r^2=8$. Eq $(x-2)^2+(y-2)^2=8$.
For $(1,1)$: $(1-2)^2+(1-2)^2=2<8$ inside. [5]

19. [5]
From diagram: $AD$ parallel $BC$ vertical so $D$ has x=0, y=3. $D(0,3)$.
Area = rectangle $4\times3=12$ sq units. [5]
Image must show D at (0,3), right angle at B.

20. [5]
$\frac{1}{x}=-x+2 \Rightarrow 1=-x^2+2x \Rightarrow x^2-2x+1=0 \Rightarrow (x-1)^2=0$
Only one intersection $(1,1)$ (tangent). Midpoint = $(1,1)$. [5]
