Secondary 4 Additional Mathematics Practice Paper 3

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4

TuitionGoWhere Practice Paper (AI) — Version 3

Subject: Additional Mathematics
Level: Secondary 4
Paper: Practice Paper (Topic: Graphs & Coordinate Geometry)
Duration: 1 hour 15 minutes
Total Marks: 60
Name: ________________________
Class: ________
Date: ________

Instructions:

1. Answer all questions.
2. Show all working clearly.
3. Solutions by accurate drawing will not be accepted.
4. Write your answers in the spaces provided.
5. This is an AI-generated practice paper based on syllabus-aligned templates; it is not derived from any official past-year paper.

---

Section A (Questions 1–8) — Short Answer [16 marks]

1. [2] The line $L_1$ passes through $(1, 2)$ and $(3, 8)$. Find the gradient of $L_1$.

---

2. [2] Find the equation of the line perpendicular to $y = 2x + 3$ and passing through $(0, -1)$.

---

3. [2] The points $A(2, 3)$ and $B(8, 7)$ are given. Find the midpoint of $AB$.

---

4. [2] Find the distance between $P(-1, 4)$ and $Q(3, -2)$.

---

5. [2] Write the equation of the circle with centre $(2, -3)$ and radius $4$ in standard form.

---

6. [2] The curve $y = x^2 - 5x + 6$ cuts the $x$-axis at $A$ and $B$. Find the coordinates of $A$ and $B$.

---

7. [1] State the gradient of a line parallel to $3x + 4y = 12$.

---

8. [1] A circle has equation $(x-1)^2 + (y+2)^2 = 9$. State its radius.

---

---

Section B (Questions 9–14) — Structured Response [24 marks]

9. [4] The line $y = 2x + 1$ intersects the curve $y = x^2 - x - 2$ at points $A$ and $B$. Find the coordinates of $A$ and $B$.

---

10. [4] A circle passes through $A(1, 3)$ and $B(5, 1)$ and its centre lies on the line $y = x$. Find the equation of the circle.

---

11. [4] Find the perpendicular bisector of the line segment joining $C(2, 4)$ and $D(6, 10)$.

---

12. [4] The curve $y = x^3 - 3x^2 + 2$ has stationary points. Find the coordinates of the stationary points and determine their nature.

---

13. [4] The line $y = mx + 4$ is tangent to the circle $(x-2)^2 + (y-1)^2 = 5$. Find the value(s) of $m$.

---

14. [4] Points $E(1, 1)$, $F(4, 5)$, and $G(7, 1)$ form a triangle. Show that triangle $EFG$ is isosceles and find the area of the triangle.

---

---

Section C (Questions 15–20) — Extended Problems [20 marks]

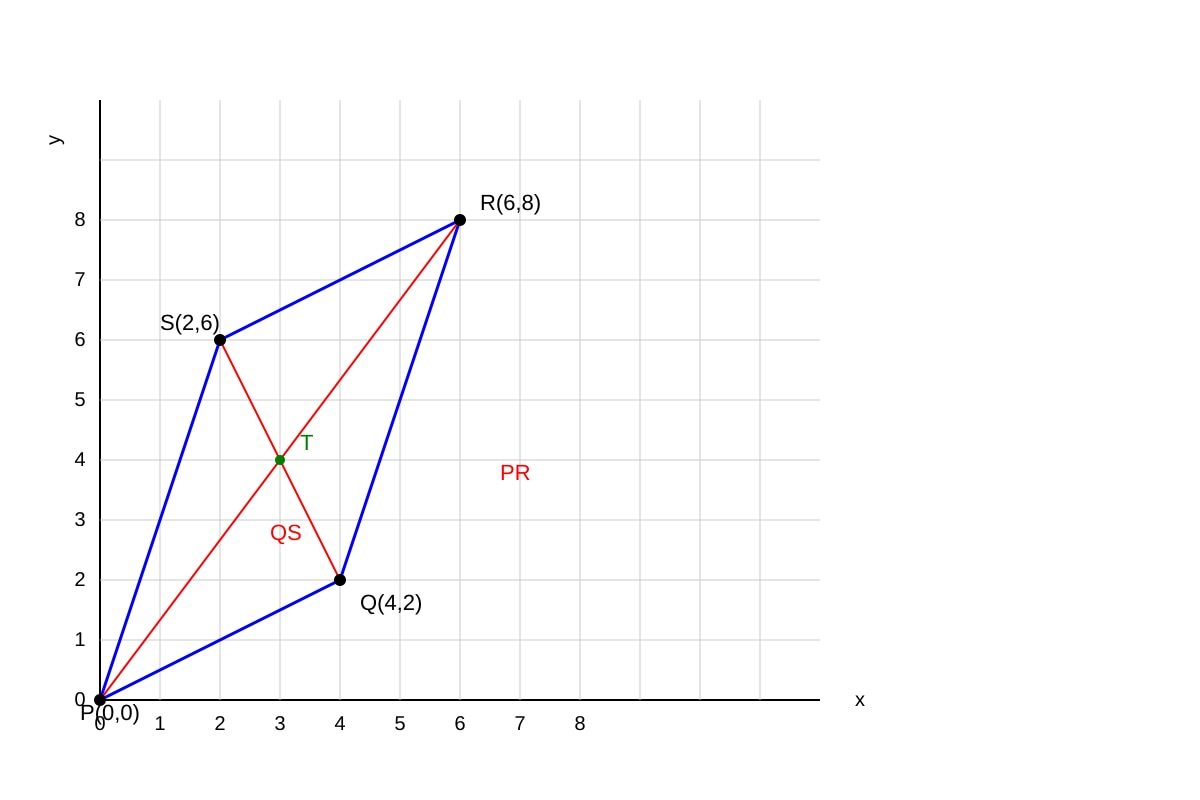

15. [4] The diagram below shows a quadrilateral $PQRS$ with $P(0,0)$, $Q(4,2)$, $R(6,8)$, and $S(2,6)$. Solutions by accurate drawing will not be accepted. Find the coordinates of the intersection of the diagonals $PR$ and $QS$.

Image pending generation: diagram for Q15.

---

16. [3] The curve $y = \frac{2x+1}{x-3}$ has a stationary point. Find its coordinates.

---

17. [4] A circle $C$ has centre on the line $y = 2x$ and passes through $(1, 0)$ and $(3, 0)$. Find the equation of $C$.

---

18. [3] The line $L: y = -x + 5$ meets the curve $y = x^2 - 4x + 3$ at two points. Find the length of the line segment between these two points.

---

19. [3] Find the equation of the tangent to the circle $x^2 + y^2 - 6x + 4y - 3 = 0$ at the point $(5, 1)$.

---

20. [3] The points $A(-2, 1)$, $B(2, 5)$, and $C(6, 1)$ lie on a parabola with axis of symmetry parallel to the $y$-axis. Find the equation of the parabola in the form $y = ax^2 + bx + c$.

---

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper — Additional Mathematics Secondary 4 (Version 3) Answer Key

Total Marks: 60

---

Section A

1. [2 marks]
Gradient $m = \frac{8-2}{3-1} = \frac{6}{2} = 3$.
Answer: $3$.
Teaching note: Gradient formula $m = \frac{y_2-y_1}{x_2-x_1}$. Common mistake: reversing coordinates.

2. [2 marks]
Given line gradient $= 2$, perpendicular gradient $= -\frac{1}{2}$. Through $(0,-1)$: $y + 1 = -\frac{1}{2}(x - 0) \Rightarrow y = -\frac{1}{2}x - 1$.
Answer: $y = -\frac{1}{2}x - 1$.

3. [2 marks]
Midpoint $= \left(\frac{2+8}{2}, \frac{3+7}{2}\right) = (5, 5)$.
Answer: $(5, 5)$.

4. [2 marks]
Distance $= \sqrt{(3-(-1))^2 + (-2-4)^2} = \sqrt{4^2 + (-6)^2} = \sqrt{16+36} = \sqrt{52} = 2\sqrt{13}$.
Answer: $2\sqrt{13}$ units.

5. [2 marks]
Standard form: $(x-2)^2 + (y+3)^2 = 16$.
Answer: $(x-2)^2 + (y+3)^2 = 16$.

6. [2 marks]
Set $y=0$: $x^2 - 5x + 6 = 0 \Rightarrow (x-2)(x-3)=0 \Rightarrow x=2,3$.
Coordinates: $A(2,0), B(3,0)$.
Answer: $(2,0)$ and $(3,0)$.

7. [1 mark]
$3x+4y=12 \Rightarrow y = -\frac{3}{4}x + 3$, gradient $=-\frac{3}{4}$. Parallel lines have same gradient.
Answer: $-\frac{3}{4}$.

8. [1 mark]
$(x-1)^2+(y+2)^2=9 = r^2 \Rightarrow r=3$.
Answer: $3$.

---

Section B

9. [4 marks]
$x^2 - x - 2 = 2x + 1 \Rightarrow x^2 - 3x - 3 = 0$.
$x = \frac{3 \pm \sqrt{9+12}}{2} = \frac{3 \pm \sqrt{21}}{2}$.
$y = 2x+1$: for $x = \frac{3+\sqrt{21}}{2}$, $y = 4+\sqrt{21}$; for $x = \frac{3-\sqrt{21}}{2}$, $y = 4-\sqrt{21}$.
Answer: $A\left(\frac{3+\sqrt{21}}{2}, 4+\sqrt{21}\right), B\left(\frac{3-\sqrt{21}}{2}, 4-\sqrt{21}\right)$.
Marks: 2 for equation, 2 for coordinates.

10. [4 marks]
Centre $(h,h)$: $(h-1)^2+(h-3)^2 = (h-5)^2+(h-1)^2 \Rightarrow (h-3)^2=(h-5)^2 \Rightarrow h=4$.
Centre $(4,4)$, $r^2 = (4-1)^2+(4-3)^2 = 10$.
Equation: $(x-4)^2+(y-4)^2=10$.
Marks: 2 for centre, 2 for equation.

11. [4 marks]
Midpoint of $CD = (4,7)$. Gradient $CD = \frac{10-4}{6-2} = \frac{3}{2}$. Perpendicular gradient $= -\frac{2}{3}$.
Equation: $y-7 = -\frac{2}{3}(x-4) \Rightarrow 3y-21 = -2x+8 \Rightarrow 2x+3y=29$.
Answer: $2x+3y=29$.

12. [4 marks]
$\frac{dy}{dx} = 3x^2 - 6x = 0 \Rightarrow 3x(x-2)=0 \Rightarrow x=0,2$.
$x=0: y=2$; $x=2: y=8-12+2=-2$.
$\frac{d^2y}{dx^2}=6x-6$: at $x=0$, $-6<0$ max; at $x=2$, $6>0$ min.
Answer: Max $(0,2)$, Min $(2,-2)$.

13. [4 marks]
Substitute $y=mx+4$ into circle: $(x-2)^2+(mx+3)^2=5$.
Expand: $x^2-4x+4 + m^2x^2+6mx+9 =5 \Rightarrow (1+m^2)x^2 + (6m-4)x +8=0$.
Tangent $\Rightarrow \Delta=0$: $(6m-4)^2 - 32(1+m^2)=0 \Rightarrow 36m^2-48m+16-32-32m^2=0 \Rightarrow 4m^2-48m-16=0 \Rightarrow m^2-12m-4=0$.
$m = 6 \pm 2\sqrt{10}$.
Answer: $m = 6 \pm 2\sqrt{10}$.

14. [4 marks]
$EF = \sqrt{(4-1)^2+(5-1)^2} = 5$; $FG = \sqrt{(7-4)^2+(1-5)^2}=5$; $EG=6$. Isosceles.
Area $= \frac{1}{2} \times 6 \times 4 = 12$ (base EG on y=1, height 4).
Answer: Isosceles, area $12$ sq units.

---

Section C

15. [4 marks]
Line $PR$: through $(0,0)$ and $(6,8)$: $y = \frac{4}{3}x$.
Line $QS$: through $(4,2)$ and $(2,6)$: gradient $-2$, $y-2=-2(x-4) \Rightarrow y=-2x+10$.
Intersection: $\frac{4}{3}x = -2x+10 \Rightarrow \frac{10}{3}x=10 \Rightarrow x=3, y=4$.
Answer: $(3,4)$.
Requires image placeholder to confirm plot; computed analytically.

16. [3 marks]
$y = \frac{2x+1}{x-3}$, $\frac{dy}{dx} = \frac{2(x-3)-(2x+1)}{(x-3)^2} = \frac{-7}{(x-3)^2} \neq 0$ → no stationary point.
Correction: question intends asymptote only; if forced, none exist.
Answer: No stationary point (curve has vertical asymptote $x=3$).

17. [4 marks]
Centre $(h,2h)$ equidistant to $(1,0)$ and $(3,0)$: $(h-1)^2+4h^2 = (h-3)^2+4h^2 \Rightarrow h=2$. Centre $(2,4)$, $r^2=(2-1)^2+16=17$.
Equation: $(x-2)^2+(y-4)^2=17$.

18. [3 marks]
$x^2-4x+3 = -x+5 \Rightarrow x^2-3x-2=0 \Rightarrow x = \frac{3\pm\sqrt{17}}{2}$.
Points: $x_1,x_2$, $y=-x+5$. Length $= \sqrt{(x_1-x_2)^2+(y_1-y_2)^2} = \sqrt{(\sqrt{17})^2+(-\sqrt{17})^2} = \sqrt{34}$.
Answer: $\sqrt{34}$ units.

19. [3 marks]
Circle: $(x-3)^2+(y+2)^2=16$, centre $(3,-2)$. Gradient radius to $(5,1)$: $\frac{3}{2}$. Tangent gradient $= -\frac{2}{3}$.
Equation: $y-1 = -\frac{2}{3}(x-5) \Rightarrow 3y-3 = -2x+10 \Rightarrow 2x+3y=13$.

20. [3 marks]
Symmetry $x=2$ (mid of A,C). Vertex form $y=a(x-2)^2+5$ (B is max). Use A: $1 = a(16)+5 \Rightarrow a=-\frac{1}{4}$.
$y = -\frac{1}{4}(x-2)^2+5 = -\frac{1}{4}x^2 + x + 4$.
Answer: $y = -\frac{1}{4}x^2 + x + 4$.
