From Real Exams Exam Paper

Secondary 4 Additional Mathematics Preliminary Examination Paper 5

Free Sec 4 A Maths Prelim Paper 5, HY3 Exam version, with questions, answers, and O Level-style practice for Singapore students.

These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.

Secondary 4 Additional Mathematics From Real Exams Generated by Tencent HY3 Free Updated 2026-09-16

Back to Subject Browse Free Exam Papers

Questions

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4

School: TuitionGoWhere Secondary School (AI)
Subject: Additional Mathematics
Level: Secondary 4
Paper: Prelim Practice (Version 5 of 5)
Duration: 75 minutes
Total Marks: 60
Name: ___________________________
Class: ____________
Date: ____________

Instructions:

Answer all questions in the spaces provided.
Show all working clearly. Solutions by accurate drawing will not be accepted.
Write your answers in the units given.
The use of a calculator is allowed unless stated otherwise.

Section A (Questions 1–5) [15 marks]

1. [3 marks] The line $L_1$ passes through $A(2, 5)$ and is perpendicular to the line $y = 2x - 3$ . Find the equation of $L_1$ in the form $y = mx + c$ .

2. [3 marks] Find the coordinates of the point where the line $3x - 2y = 12$ crosses the $x$ -axis.

3. [3 marks] A circle $C$ has centre $(4, -1)$ and passes through the point $(7, 3)$ . Find the radius of $C$ .

4. [3 marks] The points $P(-2, 3)$ and $Q(4, 7)$ are given. Find the midpoint of $PQ$ .

5. [3 marks] The line $y = kx + 1$ is parallel to the line $2x + y = 5$ . Find the value of $k$ .

Section B (Questions 6–13) [24 marks]

6. [3 marks] Find the coordinates of the point of intersection of the lines $y = 3x - 2$ and $2x + y = 8$ .

7. [3 marks] The line $L$ passes through $(1, 2)$ and is perpendicular to the line joining $(1, 2)$ and $(5, 6)$ . Find the equation of $L$ .

8. [3 marks] Find the coordinates of the two points where the curve $y = x^2 - 5x + 6$ crosses the $x$ -axis.

9. [3 marks] A circle has equation $(x - 3)^2 + (y + 2)^2 = 25$ . State the coordinates of its centre and its radius.

10. [3 marks] The perpendicular bisector of the segment joining $A(0, 0)$ and $B(6, 8)$ passes through point $M$ . Find the coordinates of $M$ , the midpoint of $AB$ .

11. [3 marks] Find the coordinates of the stationary point of the curve $y = x^2 - 6x + 4$ . Determine whether it is a minimum or maximum.

12. [3 marks] The line $y = 2x + c$ is a tangent to the circle $x^2 + y^2 = 5$ . Find the possible values of $c$ .

13. [3 marks] Points $R(1, 1)$ , $S(4, 5)$ , and $T(7, 1)$ form a triangle. Show that $RS$ is perpendicular to $ST$ by finding their gradients.

Section C (Questions 14–20) [21 marks]

14. [3 marks] Solutions by accurate drawing will not be accepted.

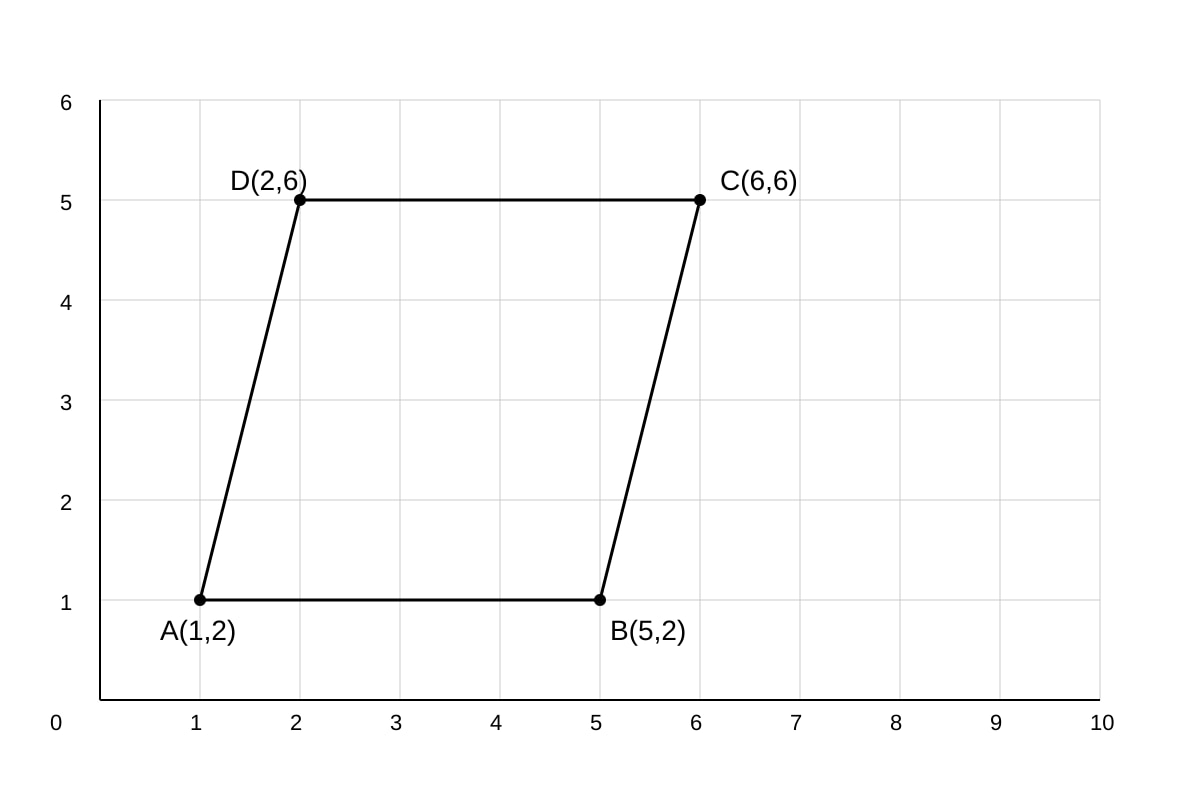

Diagram for Q14 (SEC4 Amaths)

Generated diagram for Q14.

Using the coordinates in the diagram, find the gradient of $AD$ .

15. [3 marks] The circle $C_1$ passes through $(0, 0)$ and has centre on the line $y = x$ . Given that it also passes through $(4, 0)$ , find the coordinates of its centre.

16. [3 marks] Find the coordinates of the stationary points of the curve $y = x^3 - 3x^2 + 2$ . State the nature of each.

17. [3 marks] The line $L_1: y = 2x + 1$ and $L_2: y = -x + 4$ intersect at $P$ . Find the coordinates of $P$ and the equation of the line perpendicular to $L_1$ through $P$ .

18. [3 marks] A circle is tangent to the $x$ -axis and has centre $(3, 4)$ . Find its equation in standard form.

19. [3 marks] The points $A(-1, 3)$ and $B(5, -1)$ lie on a line. Find the equation of the perpendicular bisector of $AB$ .

20. [3 marks] Solutions by accurate drawing will not be accepted.

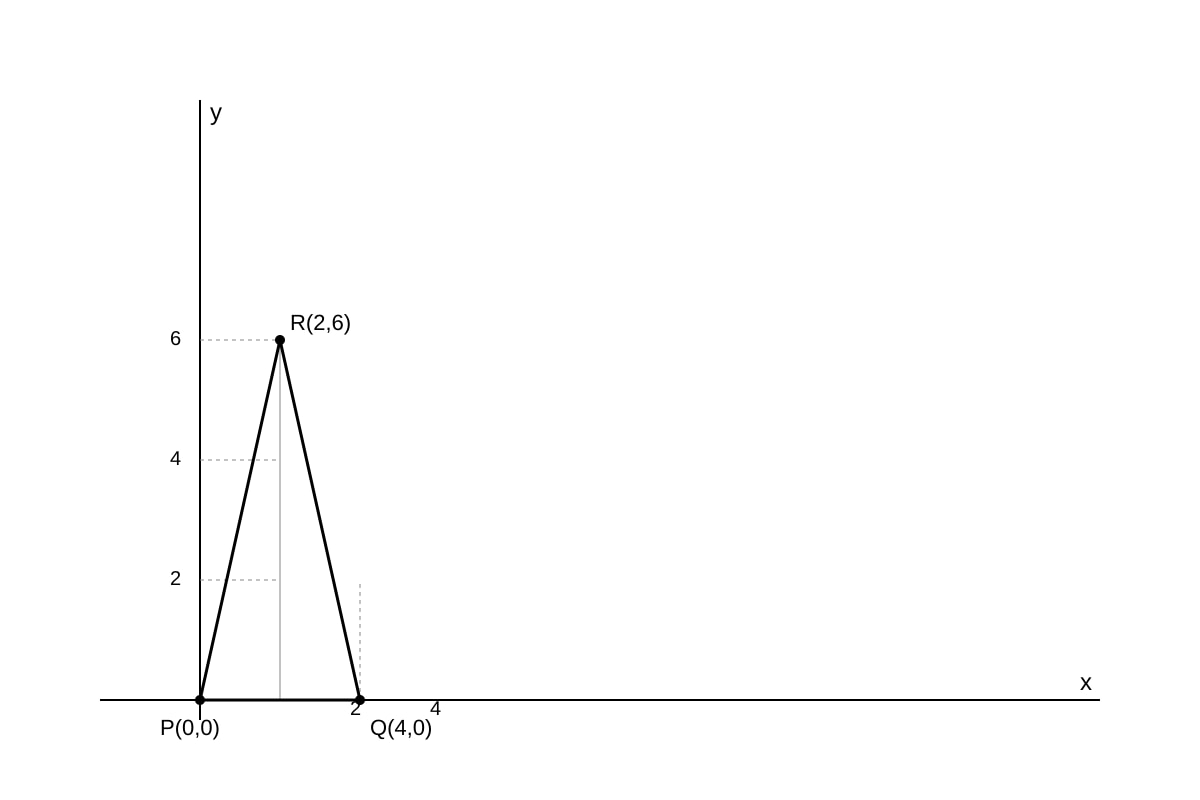

Diagram for Q20 (SEC4 Amaths)

Generated diagram for Q20.

Find the area of triangle $PQR$ using coordinate geometry.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4 (Version 5) Answer Key

Total Marks: 60

Section A

1. [3 marks]
Gradient of given line $y = 2x - 3$ is $m = 2$ .
Perpendicular gradient: $m_1 = -\frac{1}{2}$ .
Line through $(2,5)$ : $y - 5 = -\frac{1}{2}(x - 2)$
$y = -\frac{1}{2}x + 1 + 5 = -\frac{1}{2}x + 6$ .
Answer: $y = -\frac{1}{2}x + 6$ (3 marks: 1 for perpendicular gradient, 2 for equation)

2. [3 marks]
At $x$ -axis, $y = 0$ : $3x - 0 = 12 \Rightarrow x = 4$ .
Answer: $(4, 0)$ (3 marks: 1 substitution, 2 coordinate)

3. [3 marks]
$r = \sqrt{(7-4)^2 + (3-(-1))^2} = \sqrt{3^2 + 4^2} = \sqrt{25} = 5$ .
Answer: $5$ (3 marks: 2 for method, 1 final)

4. [3 marks]
Midpoint $= \left(\frac{-2+4}{2}, \frac{3+7}{2}\right) = (1, 5)$ .
Answer: $(1, 5)$ (3 marks)

5. [3 marks]
$2x + y = 5 \Rightarrow y = -2x + 5$ , gradient $-2$ . Parallel $\Rightarrow k = -2$ .
Answer: $k = -2$ (3 marks)

Section B

6. [3 marks]
Substitute $y = 3x - 2$ into $2x + y = 8$ : $2x + 3x - 2 = 8 \Rightarrow 5x = 10 \Rightarrow x = 2$ .
$y = 3(2) - 2 = 4$ .
Answer: $(2, 4)$ (3 marks)

7. [3 marks]
Gradient of join $= \frac{6-2}{5-1} = 1$ . Perpendicular gradient $= -1$ .
Line through $(1,2)$ : $y - 2 = -1(x - 1) \Rightarrow y = -x + 3$ .
Answer: $y = -x + 3$ (3 marks)

8. [3 marks]
Set $y=0$ : $x^2 - 5x + 6 = 0 \Rightarrow (x-2)(x-3)=0$ .
$x = 2$ or $x = 3$ .
Answer: $(2, 0)$ and $(3, 0)$ (3 marks: 1 each point)

9. [3 marks]
Compare $(x-3)^2 + (y+2)^2 = 25$ with $(x-a)^2+(y-b)^2=r^2$ .
Centre $(3, -2)$ , radius $\sqrt{25}=5$ .
Answer: centre $(3,-2)$ , radius $5$ (3 marks)

10. [3 marks]
Midpoint $M = \left(\frac{0+6}{2}, \frac{0+8}{2}\right) = (3, 4)$ .
Answer: $(3, 4)$ (3 marks)

11. [3 marks]
$\frac{dy}{dx} = 2x - 6 = 0 \Rightarrow x = 3$ . $y = 9 - 18 + 4 = -5$ .
$\frac{d^2y}{dx^2}=2>0$ → minimum.
Answer: $(3, -5)$ , minimum (3 marks: 1 diff, 1 coord, 1 nature)

12. [3 marks]
Substitute $y=2x+c$ into $x^2+y^2=5$ : $x^2+(2x+c)^2=5 \Rightarrow 5x^2+4cx+c^2-5=0$ .
Tangent ⇒ discriminant $=0$ : $(4c)^2 - 4(5)(c^2-5)=0 \Rightarrow 16c^2-20c^2+100=0 \Rightarrow -4c^2=-100 \Rightarrow c^2=25 \Rightarrow c=\pm5$ .
Answer: $c = 5$ or $c = -5$ (3 marks)

13. [3 marks]
Gradient $RS = \frac{5-1}{4-1} = \frac{4}{3}$ . Gradient $ST = \frac{1-5}{7-4} = -\frac{4}{3}$ .
Product $= -1$ ⇒ perpendicular.
Answer: shown (3 marks: 2 gradients, 1 conclusion)

Section C

14. [3 marks]
$A(1,2), D(2,6)$ : gradient $= \frac{6-2}{2-1} = 4$ .
Answer: $4$ (3 marks) [Uses diagram labels]

15. [3 marks]
Centre $(a,a)$ on $y=x$ . Passes $(0,0)$ and $(4,0)$ :
$a^2+a^2 = (a-4)^2+a^2 \Rightarrow 2a^2 = a^2-8a+16+a^2 \Rightarrow 0 = -8a+16 \Rightarrow a=2$ .
Centre $(2,2)$ .
Answer: $(2,2)$ (3 marks)

16. [3 marks]
$\frac{dy}{dx}=3x^2-6x=0 \Rightarrow 3x(x-2)=0 \Rightarrow x=0,2$ .
$x=0: y=2$ ; $x=2: y=8-12+2=-2$ .
$\frac{d^2y}{dx^2}=6x-6$ : at $x=0$ , $-6<0$ max; at $x=2$ , $6>0$ min.
Answer: $(0,2)$ max, $(2,-2)$ min (3 marks)

17. [3 marks]
$2x+1 = -x+4 \Rightarrow 3x=3 \Rightarrow x=1, y=3$ . $P(1,3)$ .
Perp to $L_1$ (grad 2): grad $-\frac{1}{2}$ : $y-3=-\frac{1}{2}(x-1) \Rightarrow y=-\frac{1}{2}x+\frac{7}{2}$ .
Answer: $P(1,3)$ , $y=-\frac{1}{2}x+\frac{7}{2}$ (3 marks)

18. [3 marks]
Centre $(3,4)$ , tangent x-axis ⇒ $r=4$ . Equation: $(x-3)^2+(y-4)^2=16$ .
Answer: $(x-3)^2+(y-4)^2=16$ (3 marks)

19. [3 marks]
Midpoint $= (2,1)$ . Gradient $AB = \frac{-1-3}{5+1} = -\frac{2}{3}$ . Perp grad $=\frac{3}{2}$ .
$y-1 = \frac{3}{2}(x-2) \Rightarrow y = \frac{3}{2}x - 2$ .
Answer: $y = \frac{3}{2}x - 2$ (3 marks)

20. [3 marks]
Area $= \frac{1}{2}|x_1(y_2-y_3)+x_2(y_3-y_1)+x_3(y_1-y_2)|$
$= \frac{1}{2}|0(0-6)+4(6-0)+2(0-0)| = \frac{1}{2}(24)=12$ .
Answer: $12$ square units (3 marks) [Uses diagram labels]
