Secondary 4 Additional Mathematics Preliminary Examination Paper 3

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4

TuitionGoWhere Exam Practice (AI)
Paper Type: PRELIM
Version: 3 of 5

Subject: Additional Mathematics
Level: Secondary 4
Paper: Prelim Practice Paper (Version 3)
Duration: 75 minutes
Total Marks: 60

Name: ___________________________
Class: ______________
Date: ______________

Instructions:

1. Answer all questions in the spaces provided.
2. Show all working clearly. Solutions by accurate drawing will not be accepted.
3. Write your answers in the units given.
4. Calculators may be used where appropriate.

---

Section A (Questions 1–8) — Short Answer [16 marks]

1. The line $L_1$ passes through $(2, 3)$ and $(4, 7)$. Find the gradient of $L_1$. [1]

---

2. Find the equation of the line perpendicular to $y = 2x - 5$ and passing through the origin. [2]

---

3. The points $A(1, 2)$ and $B(5, 6)$ lie on a line. Find the midpoint of $AB$. [1]

---

4. A circle has centre $(3, -2)$ and radius $4$. Write its equation in standard form. [2]

---

5. Find the coordinates where the line $y = 3x - 6$ cuts the $x$-axis. [1]

---

6. The line $y = mx + 1$ is parallel to $y = -x + 4$. State the value of $m$. [1]

---

7. Find the distance between $(0, 0)$ and $(3, 4)$. [1]

---

8. The circle $C$ has equation $(x-1)^2 + (y+3)^2 = 25$. State the coordinates of its centre. [1]

---

---

Section B (Questions 9–14) — Structured Response [24 marks]

9. The line $L_1$ passes through $A(1, 3)$ and $B(5, 11)$.
(a) Find the equation of $L_1$. [2]
(b) Find the coordinates of the point where $L_1$ meets the line $y = x + 1$. [2]

---

10. The points $P(2, 4)$ and $Q(8, 10)$ are endpoints of a diameter of a circle.
(a) Find the centre of the circle. [1]
(b) Find the radius of the circle. [2]
(c) Write down the equation of the circle. [1]

---

11. Solutions to this question by accurate drawing will not be accepted.

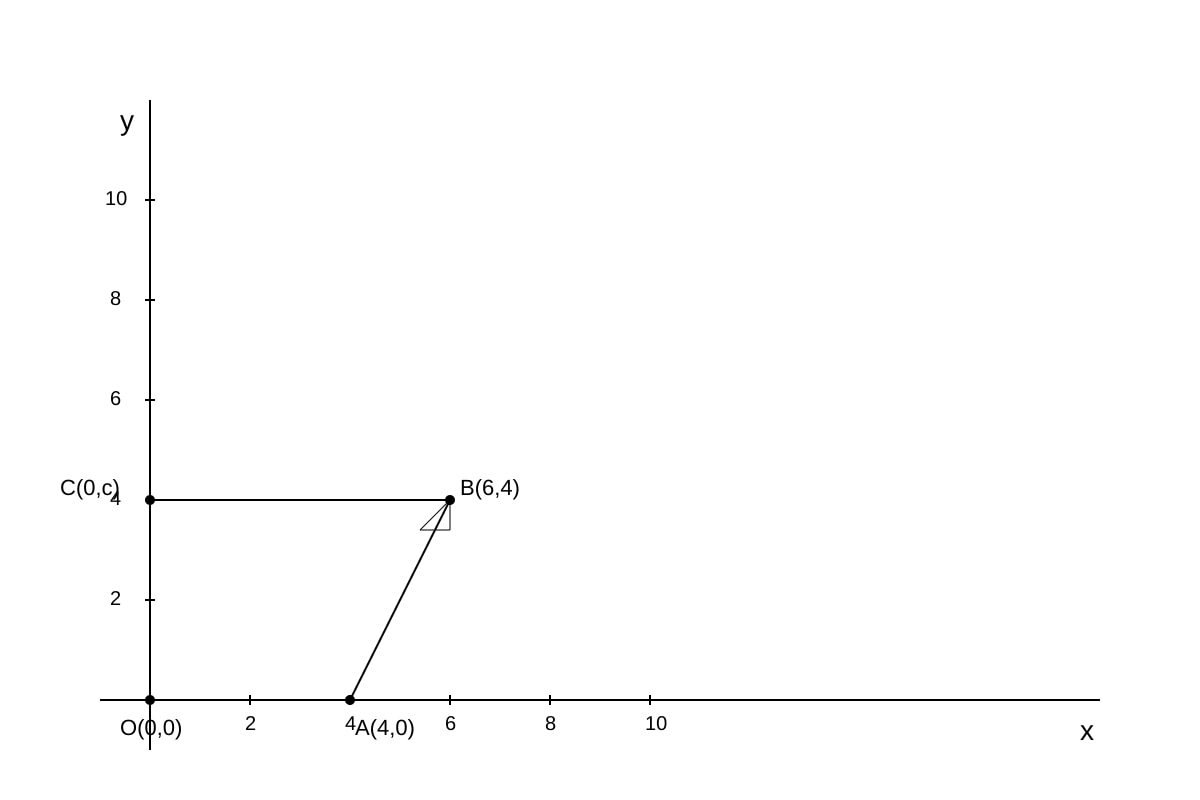

The quadrilateral $OABC$ has $O(0,0)$, $A(4,0)$, $B(6,4)$, and $C$ such that $BC$ is perpendicular to $AB$ and $C$ lies on the $y$-axis. Find the coordinates of $C$. [4]

Image pending generation: diagram for Q11.

---

12. The curve $y = x^3 - 3x^2 - 9x + 5$ is given.
(a) Find $\frac{dy}{dx}$. [1]
(b) Find the coordinates of the stationary points. [3]
(c) Determine the nature of each stationary point. [2]

---

13. The circle $C_1$ passes through $(0,0)$ and $(6,0)$, and its centre lies on the line $x = 3$.
(a) Find the coordinates of the centre of $C_1$. [2]
(b) Given the radius is $5$, find the equation of $C_1$. [2]

---

14. The line $L$ passes through $(1, 2)$ and is perpendicular to the line $2y = x - 3$.
(a) Find the gradient of $L$. [1]
(b) Find the equation of $L$. [2]
(c) Find the coordinates of the point where $L$ meets the $y$-axis. [1]

---

---

Section C (Questions 15–20) — Problem Solving [20 marks]

15. A triangle has vertices $D(1, 1)$, $E(7, 1)$, and $F(4, 5)$.
(a) Find the equation of the perpendicular bisector of $DE$. [3]
(b) Find the equation of the perpendicular bisector of $EF$. [3]
(c) Hence find the coordinates of the circumcentre of triangle $DEF$. [2]

---

16. The line $y = 2x + k$ is a tangent to the circle $x^2 + y^2 = 20$. Find the possible values of $k$. [4]

---

17. Solutions to this question by accurate drawing will not be accepted.

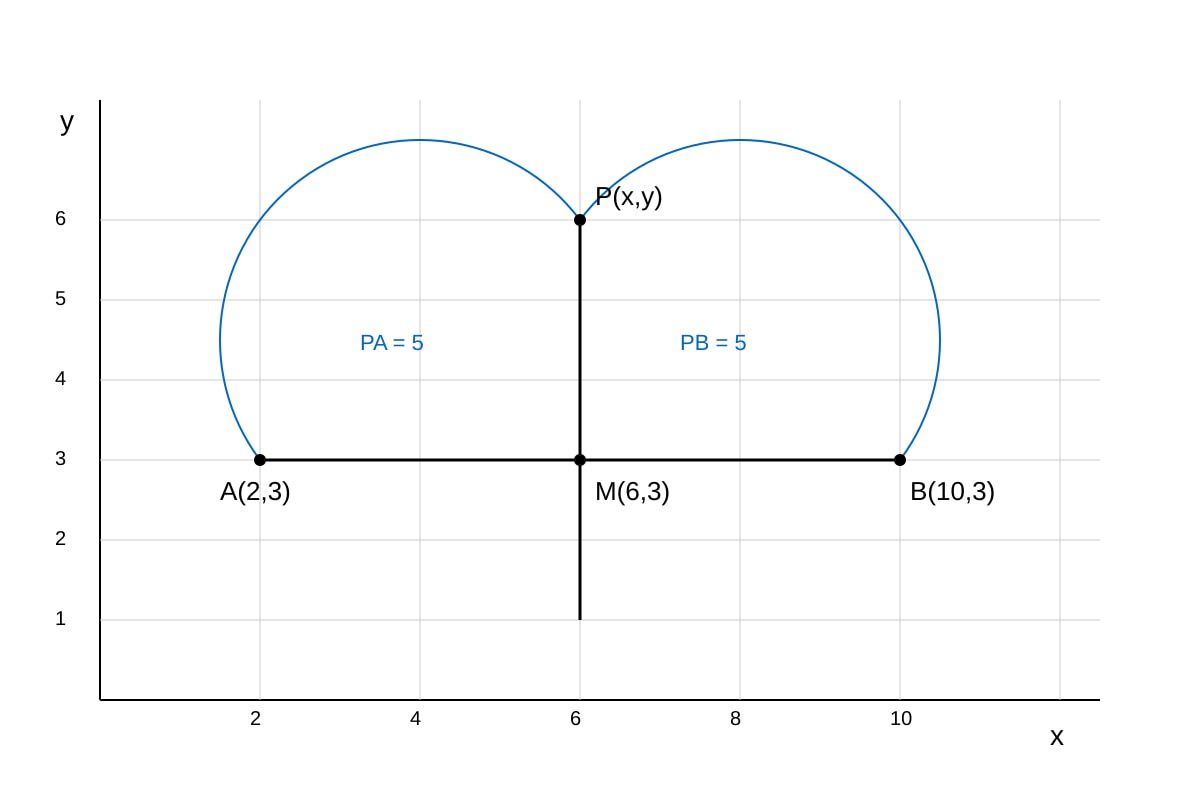

In the diagram, $A(2, 3)$, $B(10, 3)$, and $M$ is the midpoint of $AB$. The point $P$ lies on the perpendicular bisector of $AB$ such that $PA = PB = 5$. Find the coordinates of $P$. [4]

Image pending generation: diagram for Q17.

---

18. The curve $y = x^2 - 4x + 3$ meets the $x$-axis at $A$ and $B$, and the $y$-axis at $C$.
(a) Find the coordinates of $A$ and $B$. [2]
(b) Find the coordinates of $C$. [1]
(c) Find the area of triangle $ABC$. [2]

---

19. The points $R(-2, 1)$ and $S(4, 7)$ are given.
(a) Find the equation of the line $RS$. [2]
(b) The line $RS$ is extended to $T$ such that $S$ is the midpoint of $RT$. Find the coordinates of $T$. [2]

---

20. A circle has centre $(h, k)$ and passes through $(1, 2)$ and $(5, 2)$. The centre lies on the line $y = x - 1$.
(a) Show that $h = 3$. [2]
(b) Find $k$ and the radius of the circle. [2]
(c) Write the equation of the circle. [1]

---

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4 (Version 3) Answer Key

Total Marks: 60

---

Section A Answers

1. Gradient $= \frac{7-3}{4-2} = \frac{4}{2} = 2$. [1]
Teaching note: Gradient formula $m = \frac{y_2-y_1}{x_2-x_1}$. Student must subtract y's over x's in same order.

2. Given line gradient $= 2$. Perpendicular gradient $= -\frac{1}{2}$. Through $(0,0)$: $y = -\frac{1}{2}x$. [2]
Marks: 1 for perpendicular gradient, 1 for equation.
Common mistake: Using same gradient (parallel) instead of negative reciprocal.

3. Midpoint $= \left(\frac{1+5}{2}, \frac{2+6}{2}\right) = (3, 4)$. [1]

4. $(x-3)^2 + (y+2)^2 = 16$. [2]
Standard form $(x-a)^2+(y-b)^2=r^2$ with $a=3,b=-2,r=4$.

5. Set $y=0$: $0 = 3x-6 \Rightarrow x=2$. Point $(2,0)$. [1]

6. Parallel lines have equal gradient, so $m = -1$. [1]

7. Distance $= \sqrt{(3-0)^2+(4-0)^2} = \sqrt{9+16} = \sqrt{25} = 5$. [1]

8. Centre $(1, -3)$. [1]
From $(x-1)^2+(y+3)^2=25$, centre is $(1,-3)$.

---

Section B Answers

9.
(a) Gradient $= \frac{11-3}{5-1} = 2$. Equation: $y-3 = 2(x-1) \Rightarrow y = 2x+1$. [2]
(b) Solve $2x+1 = x+1 \Rightarrow x=0, y=1$. Point $(0,1)$. [2]

10.
(a) Centre $= \left(\frac{2+8}{2}, \frac{4+10}{2}\right) = (5,7)$. [1]
(b) Radius $= \sqrt{(8-5)^2+(10-7)^2} = \sqrt{9+9} = \sqrt{18} = 3\sqrt{2}$. [2]
(c) $(x-5)^2+(y-7)^2 = 18$. [1]

11. $A(4,0), B(6,4) \Rightarrow m_{AB} = \frac{4-0}{6-4}=2$. Perpendicular gradient $= -\frac{1}{2}$. Line $BC$: through $B(6,4)$, $y-4 = -\frac{1}{2}(x-6)$. At $x=0$: $y-4 = 3 \Rightarrow y=7$. So $C(0,7)$. [4]
Marks: 1 gradient AB, 1 perp gradient, 1 eqn BC, 1 coord C.
Image must show C on y-axis at (0,7) and right angle at B.

12.
(a) $\frac{dy}{dx} = 3x^2 - 6x - 9$. [1]
(b) Set $=0$: $3(x^2-2x-3)=0 \Rightarrow (x-3)(x+1)=0 \Rightarrow x=3,-1$.
$x=3: y=27-27-27+5=-22$; $x=-1: y=-1-3+9+5=10$. Points $(3,-22), (-1,10)$. [3]
(c) $\frac{d^2y}{dx^2}=6x-6$. At $x=3$: $12>0$ min; at $x=-1$: $-12<0$ max. [2]

13.
(a) Centre on $x=3$, passes through $(0,0)$ and $(6,0)$ symmetric → centre $(3, k)$. Using distance to $(0,0)$: $9+k^2 = 25 \Rightarrow k=\pm4$. Centre $(3,4)$ or $(3,-4)$. [2]
(b) With $r=5$: $(x-3)^2+(y-4)^2=25$ or $(x-3)^2+(y+4)^2=25$. [2]

14.
(a) $2y=x-3 \Rightarrow y=\frac{1}{2}x-\frac{3}{2}$, gradient $\frac{1}{2}$. Perp gradient $= -2$. [1]
(b) Through $(1,2)$: $y-2 = -2(x-1) \Rightarrow y = -2x+4$. [2]
(c) At $x=0$, $y=4$. Point $(0,4)$. [1]

---

Section C Answers

15.
(a) $DE$ midpoint $(4,1)$, gradient $0$ → perp bisector vertical $x=4$. [3]
(b) $EF$ midpoint $(5.5,3)$, $m_{EF}=\frac{5-1}{4-7}=-\frac{4}{3}$ → perp grad $\frac{3}{4}$. Eq: $y-3 = \frac{3}{4}(x-5.5)$. [3]
(c) At $x=4$: $y-3 = \frac{3}{4}(-1.5) = -1.125 \Rightarrow y=1.875 = \frac{15}{8}$. Circumcentre $(4, \frac{15}{8})$. [2]

16. Substitute $y=2x+k$ into $x^2+y^2=20$: $x^2+(2x+k)^2=20 \Rightarrow 5x^2+4kx+k^2-20=0$. Tangent ⇒ discriminant $0$: $(4k)^2-4(5)(k^2-20)=0 \Rightarrow 16k^2-20k^2+400=0 \Rightarrow -4k^2=-400 \Rightarrow k^2=100 \Rightarrow k=\pm10$. [4]

17. $M = (6,3)$. Perp bisector $x=6$. $PA=5$: $(6-2)^2+(y-3)^2=25 \Rightarrow 16+(y-3)^2=25 \Rightarrow (y-3)^2=9 \Rightarrow y=6$ or $0$. So $P(6,6)$ or $(6,0)$. [4]
Image must show both possible P positions on vertical line x=6.

18.
(a) $x^2-4x+3=0 \Rightarrow (x-1)(x-3)=0 \Rightarrow A(1,0), B(3,0)$. [2]
(b) $x=0 \Rightarrow y=3$, $C(0,3)$. [1]
(c) Base $AB=2$, height from C to x-axis $=3$, area $=\frac{1}{2}\times2\times3=3$. [2]

19.
(a) $m=\frac{7-1}{4+2}=1$. Eq: $y-1 = 1(x+2) \Rightarrow y=x+3$. [2]
(b) $S$ midpoint of $RT$: $(4,7) = (\frac{-2+x_T}{2}, \frac{1+y_T}{2}) \Rightarrow x_T=10, y_T=13$. $T(10,13)$. [2]

20.
(a) Centre equidistant from $(1,2)$ and $(5,2)$ ⇒ on perp bisector $x=3$, so $h=3$. [2]
(b) $y=x-1 \Rightarrow k=2$. Radius to $(1,2)$: $\sqrt{(1-3)^2+(2-2)^2}=2$. [2]
(c) $(x-3)^2+(y-2)^2=4$. [1]
