Secondary 4 Additional Mathematics Preliminary Examination Paper 1

Free Sec 4 A Maths Prelim Paper 1, HY3 Exam version, with questions, answers, and O Level-style practice for Singapore students.

These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.

Secondary 4 Additional Mathematics From Real Exams Generated by Tencent HY3 Free Updated 2026-09-16

Back to Subject Browse Free Exam Papers

Questions

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4

TuitionGoWhere Exam Practice (AI)
Subject: Additional Mathematics
Level: Secondary 4
Paper: PRELIM Practice Paper (Version 1 of 5)
Duration: 75 minutes
Total Marks: 80
Name: ___________________________
Class: _________
Date: ____________

Instructions:

Answer all questions in the spaces provided.
Show all working clearly. Solutions by accurate drawing will not be accepted.
Calculators may be used where appropriate.
Give answers exact where possible; otherwise to 3 significant figures.

Section A (Questions 1–8) [24 marks]

1. [2] The line $L_1$ passes through $(1, 3)$ and $(5, 11)$ . Find the gradient of $L_1$ .

2. [2] Find the equation of the line perpendicular to $y = 2x - 5$ and passing through $(0, 4)$ .

3. [3] Find the coordinates of the point where the line $y = 3x - 2$ meets the line $2x + y = 8$ .

4. [3] The line $AB$ has endpoints $A(2, -1)$ and $B(8, 5)$ . Find the coordinates of the midpoint of $AB$ .

5. [3] A circle $C$ has centre $(3, -2)$ and passes through $(6, 2)$ . Find the radius of $C$ .

6. [2] Write the equation of the circle with centre $(-1, 4)$ and radius $3$ in the form $(x - a)^2 + (y - b)^2 = r^2$ .

7. [3] Find the coordinates of the points where the line $y = x + 1$ cuts the x-axis and y-axis.

8. [3] The perpendicular bisector of $PQ$ , where $P(1, 2)$ and $Q(5, 6)$ , passes through $R$ . Find the equation of this perpendicular bisector.

Section B (Questions 9–14) [30 marks]

9. [4] The line $L_1: y = 2x + 1$ and $L_2: y = -x + 7$ intersect at $A$ .
(a) Find the coordinates of $A$ . [2]
(b) Hence find the equation of the line through $A$ parallel to $y = 3x - 4$ . [2]

10. [4] A circle has equation $x^2 + y^2 - 6x + 4y - 3 = 0$ .
(a) Find the coordinates of the centre. [2]
(b) Find the radius. [2]

11. [5] The points $A(1, 1)$ , $B(7, 1)$ and $C(4, 5)$ form a triangle.
(a) Find the equation of the median from $C$ to $AB$ . [3]
(b) Find the equation of the altitude from $C$ to $AB$ . [2]

12. [5] Solutions by accurate drawing will not be accepted.

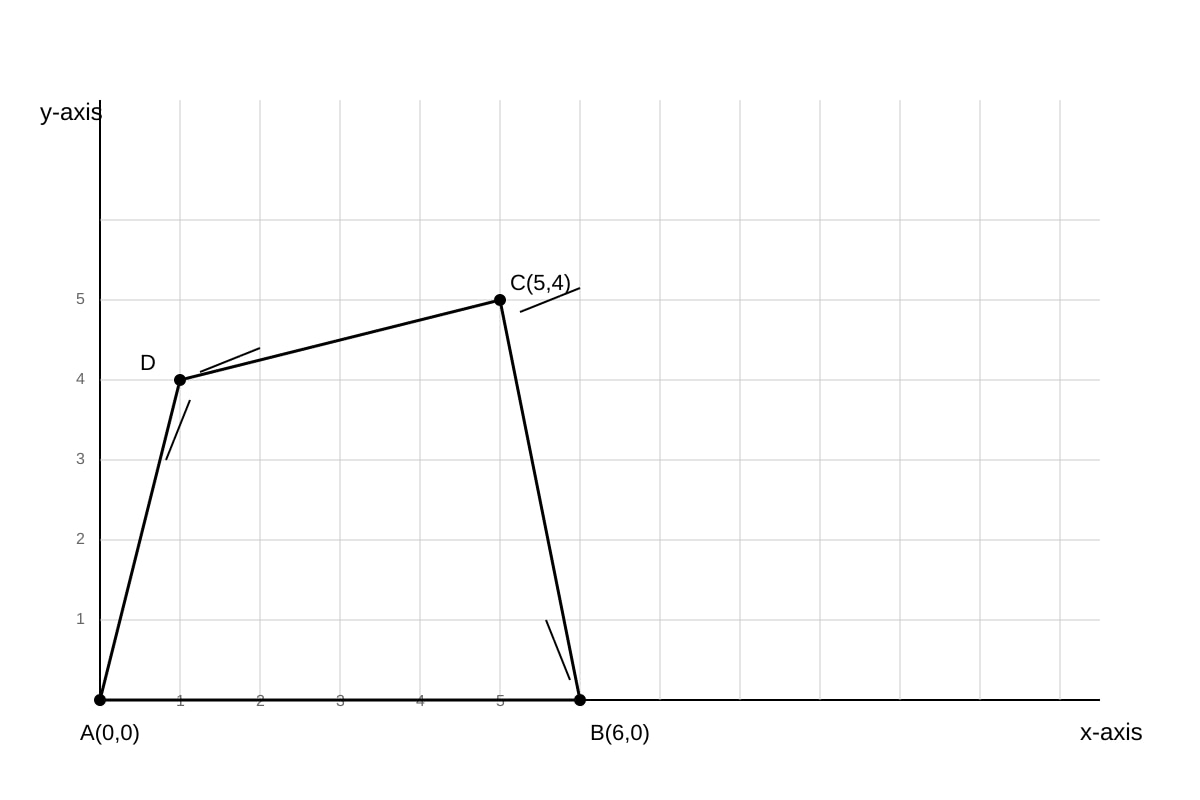

Diagram for Q12 (SEC4 Amaths)

Generated diagram for Q12.

Using the diagram, find the coordinates of $D$ . [5]

13. [6] The curve $y = x^3 - 3x^2 - 9x + 5$ is given.
(a) Find $\frac{dy}{dx}$ . [1]
(b) Find the coordinates of the stationary points. [3]
(c) Determine the nature of each stationary point. [2]

14. [6] A circle $C_1$ is tangent to the x-axis and its centre lies on the line $y = x$ . It also passes through $(4, 0)$ .
(a) Show that the centre is $(2, 2)$ . [3]
(b) Hence state the equation of $C_1$ . [1]
(c) Find the coordinates of the point where $C_1$ meets the y-axis. [2]

Section C (Questions 15–20) [26 marks]

15. [4] The line $L$ passes through $(2, 3)$ and is perpendicular to the line joining $(1, 1)$ and $(3, 5)$ . Find the equation of $L$ .

16. [4] Find the coordinates of the two points where the line $y = 2x - 1$ intersects the circle $x^2 + y^2 = 25$ .

17. [4] The points $P(-2, 1)$ , $Q(4, 1)$ and $R(1, 5)$ are vertices of a triangle. Find the equation of the perpendicular bisector of $PQ$ .

18. [4] A circle passes through $(0, 0)$ , $(0, 6)$ and $(8, 0)$ . Find the equation of the circle in standard form.

19. [5] Solutions by accurate drawing will not be accepted.

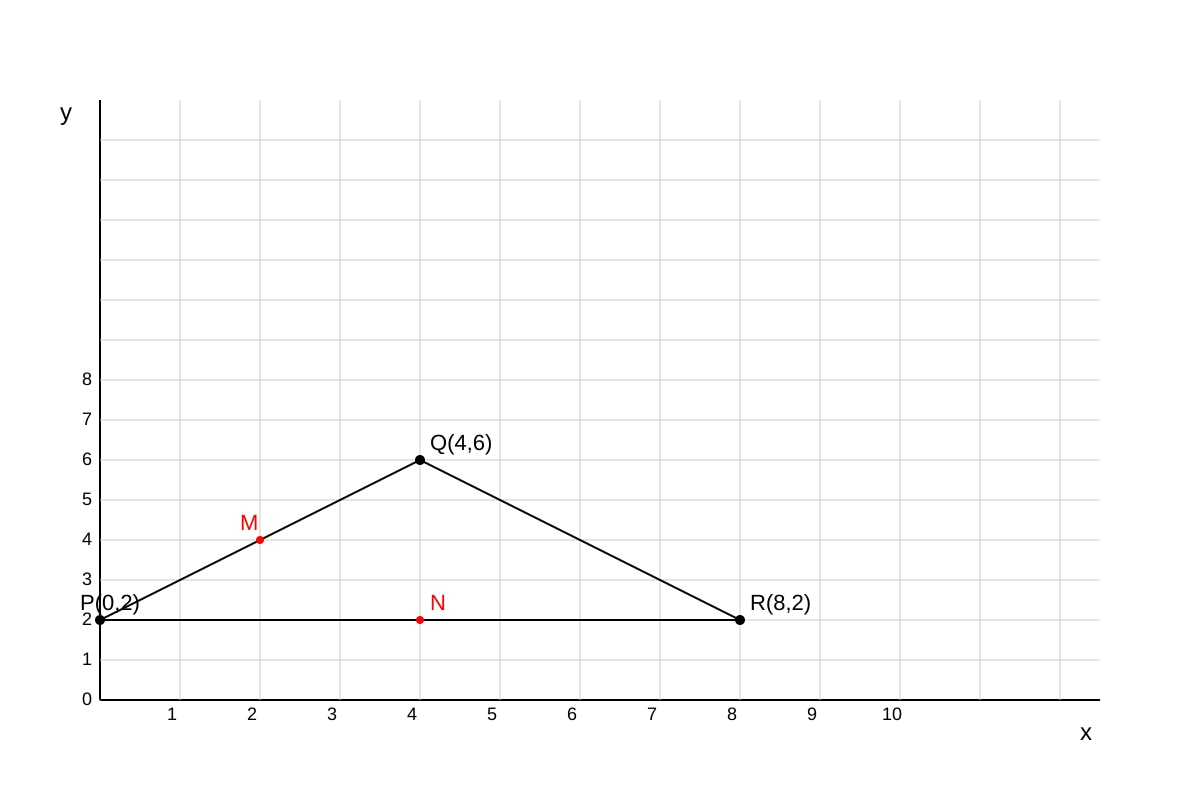

Graph for Q19 (SEC4 Amaths)

Generated graph for Q19.

(a) Find coordinates of $M$ and $N$ . [2]
(b) Show that $MN$ is parallel to $QR$ . [3]

20. [5] The curve is $y = \frac{1}{3}x^3 - x^2 - 3x + 2$ .
(a) Find the stationary points. [3]
(b) State the interval where the curve is decreasing. [2]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Additional Mathematics Secondary 4 (Answers)

Version 1 of 5 — Mark Scheme & Teaching Notes

Section A

1. [2] Gradient = $\frac{11 - 3}{5 - 1} = \frac{8}{4} = 2$ .
Teaching note: Gradient formula $m = \frac{y_2 - y_1}{x_2 - x_1}$ . Common mistake: reversing order inconsistently.

2. [2] Perpendicular gradient = $-\frac{1}{2}$ . Through $(0,4)$ : $y - 4 = -\frac{1}{2}(x - 0) \Rightarrow y = -\frac{1}{2}x + 4$ .
Marks: 1 for gradient, 1 for equation.

3. [3] Solve $3x - 2 = 8 - 2x \Rightarrow 5x = 10 \Rightarrow x = 2$ , $y = 4$ . Point $(2, 4)$ .
Marks: 1 substitution, 1 solve, 1 coordinate.

4. [3] Midpoint = $\left(\frac{2+8}{2}, \frac{-1+5}{2}\right) = (5, 2)$ .
Marks: 1 formula, 1 x, 1 y.

5. [3] $r = \sqrt{(6-3)^2 + (2+2)^2} = \sqrt{9 + 16} = 5$ .
Marks: 1 formula, 1 substitution, 1 answer.

6. [2] $(x + 1)^2 + (y - 4)^2 = 9$ .

7. [3] x-axis: $0 = x + 1 \Rightarrow x = -1 \Rightarrow (-1, 0)$ . y-axis: $y = 0 + 1 = 1 \Rightarrow (0, 1)$ .
Marks: 1 each.

8. [3] Midpoint PQ = $(3,4)$ , gradient PQ = 1, perp gradient = -1. Eq: $y - 4 = -1(x - 3) \Rightarrow y = -x + 7$ .
Marks: 1 mid+grad, 1 perp grad, 1 eq.

Section B

9. [4]
(a) [2] $2x+1 = -x+7 \Rightarrow 3x = 6 \Rightarrow x=2, y=5$ . $A(2,5)$ .
(b) [2] Parallel to $y=3x-4$ → gradient 3. Through $(2,5)$ : $y-5=3(x-2) \Rightarrow y=3x-1$ .

10. [4]
(a) [2] Complete square: $(x-3)^2 -9 + (y+2)^2 -4 -3=0 \Rightarrow$ centre $(3,-2)$ .
(b) [2] $r^2 = 16 \Rightarrow r=4$ .

11. [5]
(a) [3] Midpoint AB = $(4,1)$ . Line C to mid: gradient 0 → $y=1$ .
(b) [2] AB horizontal → altitude vertical $x=4$ .

12. [5] Since AD ∥ BC and CD ∥ AB, ABCD is parallelogram. $\vec{AB} = (6,0)$ , so $D = C + \vec{AB} = (5+6, 4+0) = (11,4)$ .
Marks: 2 property, 3 coords.

13. [6]
(a) [1] $\frac{dy}{dx} = 3x^2 - 6x - 9$ .
(b) [3] $3x^2-6x-9=0 \Rightarrow x^2-2x-3=0 \Rightarrow (x-3)(x+1)=0$ , $x=3,-1$ . $y(3)=-22$ , $y(-1)=10$ . Points $(3,-22), (-1,10)$ .
(c) [2] $\frac{d^2y}{dx^2}=6x-6$ . At $x=3$ : +12 min; at $x=-1$ : -12 max.

14. [6]
(a) [3] Centre $(a,a)$ , tangent x-axis → $r=|a|$ . Distance to $(4,0)$ : $(a-4)^2 + a^2 = a^2 \Rightarrow (a-4)^2=0 \Rightarrow a=2$ . Centre $(2,2)$ .
(b) [1] $(x-2)^2+(y-2)^2=4$ .
(c) [2] $x=0$ : $4+(y-2)^2=4 \Rightarrow y=2$ . Point $(0,2)$ .

Section C

15. [4] Gradient join = 2, perp = $-\frac{1}{2}$ . Through $(2,3)$ : $y-3=-\frac{1}{2}(x-2) \Rightarrow y=-\frac{1}{2}x+4$ .

16. [4] Sub: $x^2+(2x-1)^2=25 \Rightarrow 5x^2-4x-24=0$ . $x = \frac{4\pm\sqrt{16+480}}{10} = \frac{4\pm22}{10} \Rightarrow x=2.6, -1.8$ . $y=4.2, -4.6$ . Points $(2.6,4.2), (-1.8,-4.6)$ .

17. [4] Midpoint PQ = $(1,1)$ , PQ horizontal → perp bisector vertical $x=1$ .

18. [4] Centre = $(4,3)$ (mid of diameters), $r=5$ . Eq: $(x-4)^2+(y-3)^2=25$ .

19. [5]
(a) [2] $M(2,4), N(4,2)$ .
(b) [3] Gradient MN = $-1$ , gradient QR = $\frac{2-6}{8-4}=-1$ . Parallel.

20. [5]
(a) [3] $\frac{dy}{dx}=x^2-2x-3=0 \Rightarrow x=3,-1$ . $y(3)=-7, y(-1)=\frac{11}{3}$ . Points $(3,-7),(-1,\frac{11}{3})$ .
(b) [2] Decreasing where $\frac{dy}{dx}<0$ : $-1 < x < 3$ .
