TuitionGoWhere Practice Paper - Physics Secondary 3 (SA2)

School: TuitionGoWhere Secondary School (AI)
Subject: Physics
Level: Secondary 3
Paper: SA2 Practice (Version 4 of 5)
Duration: 75 minutes
Total Marks: 60
Name: ___________________________
Class: ___________
Date: ____________

Instructions:

Answer all questions in the spaces provided.
Show your working clearly where calculation is required.
Use $g = 10\ \text{m s}^{-2}$ unless stated otherwise.
Section A: Multiple Choice (1 mark each). Section B: Structured Short Answers. Section C: Extended Calculation & Explanation.

Section A: Multiple Choice (Questions 1–5, 1 mark each, Total 5 marks)

1. A boy pushes a box with a force of 20 N to the right. A frictional force of 5 N acts to the left. What is the resultant force on the box?
A. 15 N to the right
B. 25 N to the right
C. 15 N to the left
D. 25 N to the left

2. Which of the following quantities is a vector?
A. Mass
B. Temperature
C. Velocity
D. Time

3. A car accelerates from rest to $20\ \text{m s}^{-1}$ in 4 s. What is its acceleration?
A. $4\ \text{m s}^{-2}$
B. $5\ \text{m s}^{-2}$
C. $8\ \text{m s}^{-2}$
D. $80\ \text{m s}^{-2}$

4. The moment of a force about a pivot is maximum when the force is applied:
A. parallel to the lever arm
B. at the pivot C. perpendicular to the lever arm
D. at the centre of gravity

5. Pressure in a liquid increases with:
A. decreasing depth
B. decreasing density
C. increasing depth
D. decreasing gravitational field strength

Section B: Structured Short Answers (Questions 6–13, Total 27 marks)

6. A girl of mass 50 kg slides down a vertical rope with an acceleration of $2\ \text{m s}^{-2}$ .
(a) State the direction of the frictional force between the girl and the rope. [1]
(b) Calculate the frictional force. [2]

7. A block of mass 4 kg is pulled up a rough inclined plane at constant speed by a force of 30 N. The distance moved along the plane is 5 m and the vertical height gained is 2 m.
(a) Calculate the work done by the applied force. [2]
(b) Calculate the increase in gravitational potential energy. [2]
(c) Determine the energy lost to friction. [1]

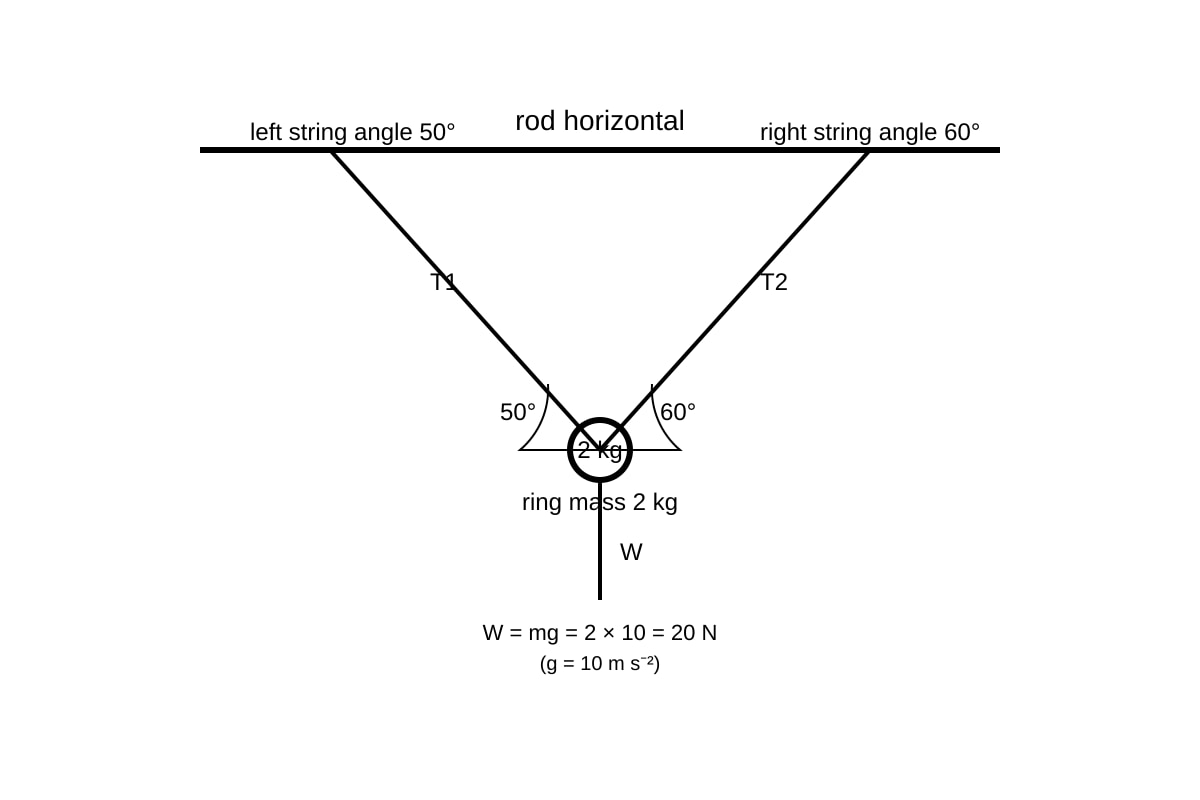

Diagram for Q8 (SEC3 Physics)

Generated diagram for Q8.

The ring in the diagram has mass 2 kg. Calculate the tension in each string. [4]

9. Define scalar and vector quantities, giving one example of each. [2]

10. A car of mass 1000 kg accelerates at $3\ \text{m s}^{-2}$ . Calculate the unbalanced force acting on it. [2]

11. A hydraulic press has a small piston of area $0.01\ \text{m}^2$ and a large piston of area $0.5\ \text{m}^2$ . A force of 50 N is applied to the small piston.
(a) State the principle that allows pressure to be transmitted equally. [1]
(b) Calculate the force on the large piston. [2]

12. A metal block has mass 400 g and volume $80\ \text{cm}^3$ . Calculate its density in $\text{kg m}^{-3}$ . [3]

13. Explain why a lower centre of gravity increases the stability of an object. [2]

Section C: Extended Calculation & Explanation (Questions 14–20, Total 28 marks)

14. A wooden block of mass 6 kg is pulled up a rough inclined plane at constant speed by a force of 40 N. Distance moved along plane = 3 m, vertical height = 1.2 m.
(a) Calculate work done by applied force. [2]
(b) Calculate gain in GPE. [2]
(c) Find friction force along the plane. [2]

15. A child of mass 30 kg slides down a rope with acceleration $4\ \text{m s}^{-2}$ .
(a) Draw a free-body diagram showing forces. [2]
(b) Calculate frictional force. [3]

16. Two masses $m_1 = 5\ \text{kg}$ and $m_2 = 10\ \text{kg}$ are $2\ \text{m}$ apart. Using $F = \frac{Gm_1m_2}{r^2}$ and $G = 6.67 \times 10^{-11}\ \text{N m}^2\text{kg}^{-2}$ , calculate the gravitational force between them. [3]

17. A velocity-time graph shows a straight line from $(0,0)$ to $(5,10)$ then horizontal to $(10,10)$ .
(a) Describe the motion from 0 to 5 s. [1]
(b) Calculate acceleration in first 5 s. [2]
(c) Calculate total displacement. [2]

18. A uniform rod of length 2 m and weight 20 N is pivoted at centre. A 10 N force is applied 0.5 m to the left of pivot. Where must a 5 N force be placed to balance? [4]

19. A pressure of $2000\ \text{Pa}$ is exerted by a force on area $0.1\ \text{m}^2$ .
(a) Calculate the force. [2]
(b) If area doubles, what is new pressure for same force? [1]

20. Explain using Newton’s laws why a passenger in a car moves forward when the car suddenly stops. [4]

End of Paper

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Physics Secondary 3 (SA2) Answer Key (Version 4)

Total Marks: 60

Section A: Multiple Choice

1. A [1] – Resultant = 20 N right – 5 N left = 15 N right.
2. C [1] – Velocity has magnitude and direction (vector). Mass, temp, time are scalars.
3. B [1] – $a = \frac{20-0}{4} = 5\ \text{m s}^{-2}$ .
4. C [1] – Moment = F × perpendicular distance; max when perpendicular.
5. C [1] – Liquid pressure ∝ depth.

Section B

6. (a) Upward (opposes downward motion) [1]
(b) $mg - f = ma \Rightarrow f = m(g-a) = 50(10-2)=400\ \text{N}$ [2]

7. (a) $W = Fd = 30 \times 5 = 150\ \text{J}$ [2]
(b) $\Delta PE = mgh = 4 \times 10 \times 2 = 80\ \text{J}$ [2]
(c) $150 - 80 = 70\ \text{J}$ [1]

8. Weight $W = mg = 2 \times 10 = 20\ \text{N}$ .
Vertical: $T_1\sin50^\circ + T_2\sin60^\circ = 20$
Horizontal: $T_1\cos50^\circ = T_2\cos60^\circ$
Solve: $T_1 = 13.6\ \text{N}, T_2 = 17.5\ \text{N}$ [4]

9. Scalar: magnitude only (e.g., mass). Vector: magnitude + direction (e.g., velocity). [2]

10. $F = ma = 1000 \times 3 = 3000\ \text{N}$ [2]

11. (a) Pascal’s principle [1]
(b) $\frac{F_2}{A_2} = \frac{F_1}{A_1} \Rightarrow F_2 = 50 \times \frac{0.5}{0.01} = 2500\ \text{N}$ [2]

12. $m = 0.4\ \text{kg}, V = 80 \times 10^{-6} = 8\times10^{-5}\ \text{m}^3$ ; $\rho = \frac{0.4}{8\times10^{-5}} = 5000\ \text{kg m}^{-3}$ [3]

13. Lower CG means line of action of weight stays within base for larger tilt. [2]

Section C

14. (a) $W = 40 \times 3 = 120\ \text{J}$ [2]
(b) $\Delta PE = 6\times10\times1.2 = 72\ \text{J}$ [2]
(c) $f = \frac{120-72}{3} = 16\ \text{N}$ [2]

15. (a) Weight down, friction up. [2]
(b) $f = m(g-a)=30(10-4)=180\ \text{N}$ [3]

16. $F = \frac{6.67\times10^{-11}\times5\times10}{2^2} = 8.34\times10^{-10}\ \text{N}$ [3]

17. (a) Uniform acceleration [1]
(b) $a = 10/5 = 2\ \text{m s}^{-2}$ [2]
(c) Area = $\frac{1}{2}\times5\times10 + 5\times10 = 75\ \text{m}$ [2]

18. CW moment = $10\times0.5=5\ \text{Nm}$ . ACW: $5\times d = 5 \Rightarrow d=1\ \text{m}$ right of pivot [4]

19. (a) $F = PA = 2000\times0.1 = 200\ \text{N}$ [2]
(b) $P = 200/0.2 = 1000\ \text{Pa}$ [1]

20. 1st law: body in motion stays in motion. Car stops, passenger continues forward due to inertia. [4]
