TuitionGoWhere Practice Paper - Physics Secondary 3

TuitionGoWhere Secondary School (AI)

Subject: Physics
Level: Secondary 3
Paper: SA2 Version 3
Duration: 1 hour 30 minutes
Total Marks: 60

Name: ________________________
Class: ________________________
Date: ________________________

Instructions to Candidates

Write your name, class, and date in the spaces provided above.
Answer all questions.
Write your answers in the spaces provided on the question paper.
The number of marks is given in brackets [ ] at the end of each question or part question.
You may use a calculator.
Where necessary, take the acceleration due to gravity $g = 10 \text{ m/s}^2$ .
The total marks for this paper is 60.

Section A: Multiple Choice Questions [10 marks]

Answer all questions. For each question, choose the correct answer and write the letter (A, B, C, or D) in the box provided.

1

A student measures the diameter of a steel ball bearing using a micrometer screw gauge. The main scale reading is 4.5 mm and the thimble scale reading is 28 divisions. If the micrometer has a zero error of +0.02 mm, what is the actual diameter of the ball bearing?

A. 4.76 mm
B. 4.78 mm
C. 4.80 mm
D. 4.82 mm

[1]

Answer: □

2

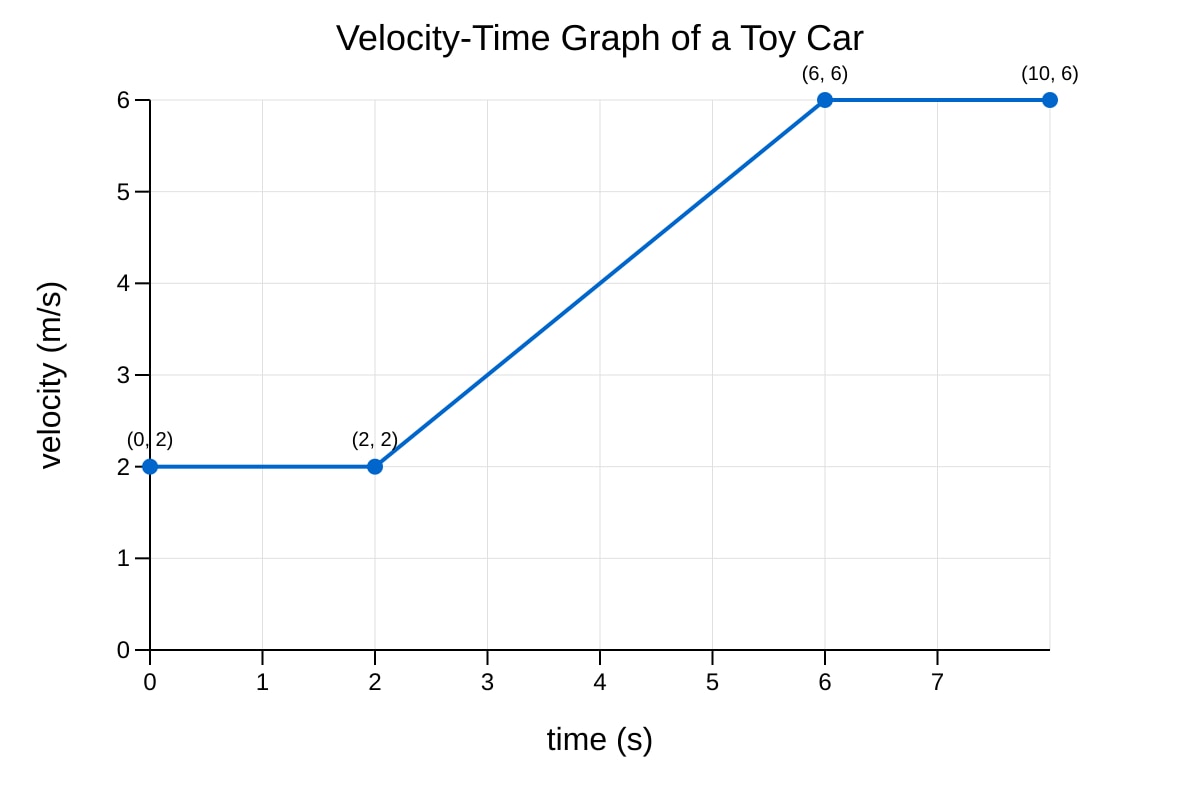

The graph below shows how the velocity of a toy car changes with time.

<image_placeholder> id: Q2-fig1 type: graph linked_question: Q2 description: Velocity-time graph for a toy car. Axes: time (s) on x-axis from 0 to 10, velocity (m/s) on y-axis from 0 to 6. Graph shows: constant velocity of 2 m/s from t=0 to t=2 s; uniform acceleration from 2 m/s to 6 m/s between t=2 s and t=6 s; constant velocity of 6 m/s from t=6 s to t=10 s. labels: time (s), velocity (m/s), points at (0,2), (2,2), (6,6), (10,6) values: t=0-2 s: v=2 m/s; t=2-6 s: uniform acceleration; t=6-10 s: v=6 m/s must_show: Three distinct segments: horizontal line at 2 m/s, straight line with positive slope from (2,2) to (6,6), horizontal line at 6 m/s </image_placeholder>

What is the acceleration of the car between t = 2 s and t = 6 s?

A. 0.5 m/s²
B. 1.0 m/s²
C. 1.5 m/s²
D. 2.0 m/s²

[1]

Answer: □

3

A block of mass 2.0 kg is pulled along a horizontal frictionless surface by a horizontal force of 12 N. What is the acceleration of the block?

A. 4.0 m/s²
B. 6.0 m/s²
C. 8.0 m/s²
D. 10 m/s²

[1]

Answer: □

4

A ball is thrown vertically upwards with an initial velocity of 20 m/s. Ignoring air resistance, what is the maximum height reached by the ball? (Take $g = 10 \text{ m/s}^2$ )

A. 10 m
B. 20 m
C. 30 m
D. 40 m

[1]

Answer: □

5

A force of 50 N is applied at an angle of 30° to the horizontal to pull a box across a rough floor. The box moves a horizontal distance of 4.0 m. What is the work done by the applied force?

A. 100 J
B. 173 J
C. 200 J
D. 346 J

[1]

Answer: □

6

A car of mass 1200 kg travelling at 25 m/s brakes to a stop in 5.0 s. What is the average braking force acting on the car?

A. 3000 N
B. 6000 N
C. 12000 N
D. 15000 N

[1]

Answer: □

7

A uniform metre rule is pivoted at the 30 cm mark. A weight of 2.0 N is suspended from the 10 cm mark. What weight must be suspended from the 80 cm mark to keep the rule horizontal?

A. 0.5 N
B. 0.8 N
C. 1.0 N
D. 1.5 N

[1]

Answer: □

8

A hydraulic press has a small piston of cross-sectional area 5.0 cm² and a large piston of cross-sectional area 200 cm². A force of 100 N is applied to the small piston. What is the force exerted by the large piston?

A. 400 N
B. 1000 N
C. 2000 N
D. 4000 N

[1]

Answer: □

9

An object of mass 0.5 kg moves in a horizontal circle of radius 0.8 m with a constant speed of 4.0 m/s. What is the centripetal force acting on the object?

A. 5.0 N
B. 8.0 N
C. 10 N
D. 16 N

[1]

Answer: □

10

A satellite orbits the Earth in a circular orbit. Which of the following statements about the satellite is correct?

A. The satellite's kinetic energy is constant but its momentum changes.
B. The satellite's momentum is constant but its kinetic energy changes.
C. Both the satellite's kinetic energy and momentum are constant.
D. Neither the satellite's kinetic energy nor momentum is constant.

[1]

Answer: □

Section B: Structured Questions [30 marks]

Answer all questions in the spaces provided.

11

A student investigates the motion of a trolley down a frictionless inclined plane. The plane is 2.0 m long and makes an angle of 30° with the horizontal. The trolley is released from rest at the top of the plane.

<image_placeholder> id: Q11-fig1 type: diagram linked_question: Q11 description: Inclined plane with trolley at top. Plane length 2.0 m, angle 30° to horizontal. Trolley shown at top, arrow indicating direction of motion down the plane. labels: length = 2.0 m, angle = 30°, trolley at top, direction arrow down plane values: length = 2.0 m, angle = 30°, g = 10 m/s² must_show: Right-angled triangle representing inclined plane, trolley at top, angle labelled, length labelled </image_placeholder>

(a) Calculate the component of the trolley's weight acting parallel to the plane. [2]

(b) Determine the acceleration of the trolley down the plane. [1]

(d) The student repeats the experiment with a trolley of twice the mass. State and explain how this affects the acceleration. [2]

12

A car of mass 1500 kg accelerates uniformly from rest to a speed of 30 m/s in 10 s along a straight horizontal road.

(a) Calculate the acceleration of the car. [1]

(b) Calculate the resultant force acting on the car. [2]

(c) The driving force provided by the engine is 6000 N. Calculate the total resistive force (air resistance + friction) acting on the car. [2]

(d) The car now travels at a constant speed of 30 m/s. The engine power output is 45 kW. Calculate the total resistive force at this constant speed. [2]

13

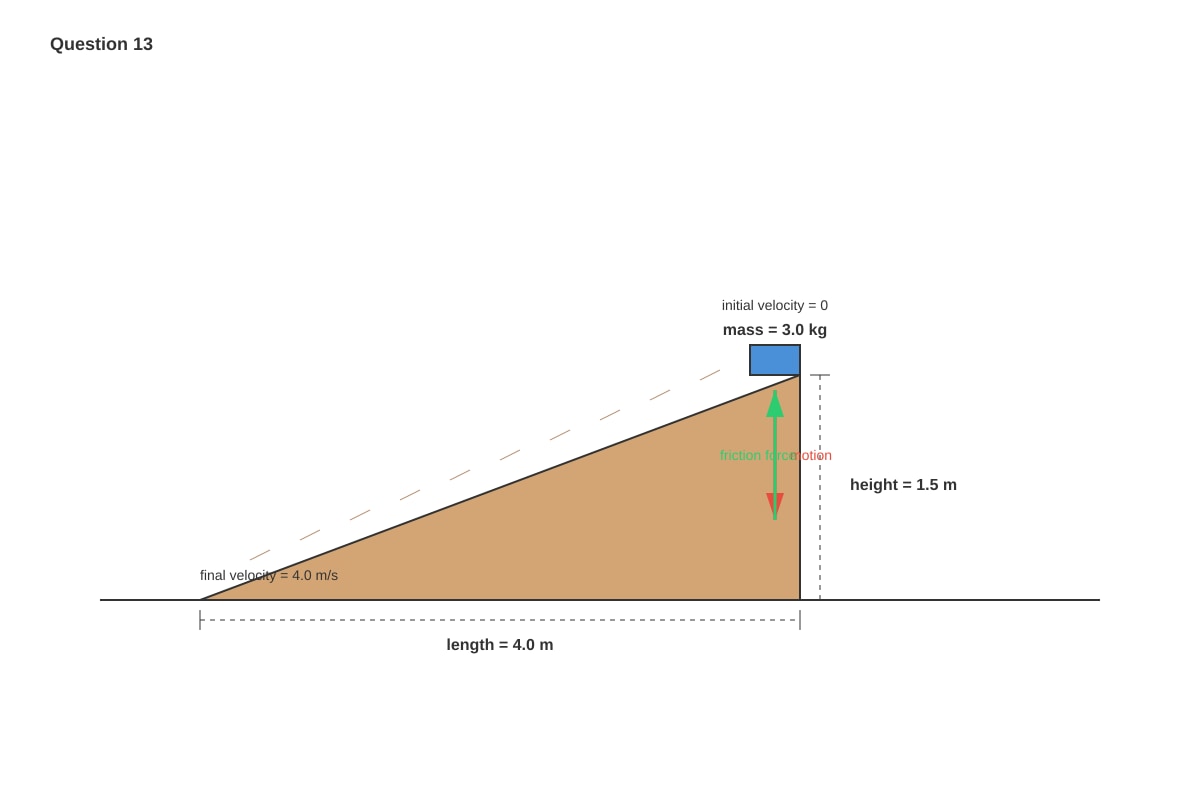

A block of mass 3.0 kg slides down a rough inclined plane of length 4.0 m and height 1.5 m. The block starts from rest and reaches the bottom with a speed of 4.0 m/s.

<image_placeholder> id: Q13-fig1 type: diagram linked_question: Q13 description: Rough inclined plane with block at top. Plane length 4.0 m, vertical height 1.5 m. Block shown at top, arrow down plane. Friction force arrow opposite to motion. labels: mass = 3.0 kg, length = 4.0 m, height = 1.5 m, initial velocity = 0, final velocity = 4.0 m/s, friction force arrow values: m = 3.0 kg, L = 4.0 m, h = 1.5 m, u = 0, v = 4.0 m/s, g = 10 m/s² must_show: Inclined plane with dimensions, block at top, friction force arrow opposing motion, height and length labelled </image_placeholder>

(a) Calculate the loss in gravitational potential energy of the block. [1]

(b) Calculate the gain in kinetic energy of the block. [1]

(d) Calculate the average frictional force acting on the block. [2]

14

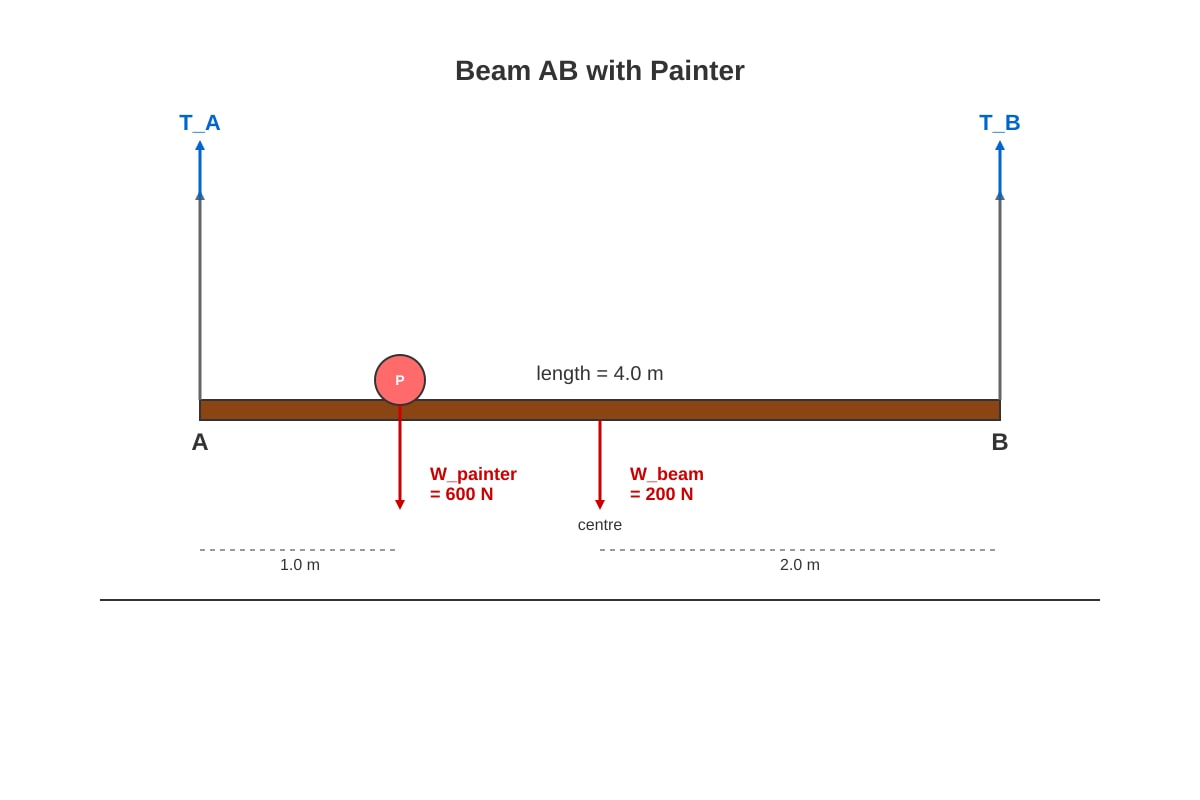

A uniform beam AB of length 4.0 m and weight 200 N is supported by two vertical ropes at A and B. A painter of weight 600 N stands on the beam at a distance of 1.0 m from A.

<image_placeholder> id: Q14-fig1 type: diagram linked_question: Q14 description: Horizontal beam AB, length 4.0 m, supported by ropes at ends A and B. Weight of beam 200 N acting at centre (2.0 m from A). Painter weight 600 N at 1.0 m from A. Tension forces T_A and T_B upward at A and B. labels: length = 4.0 m, W_beam = 200 N at centre, W_painter = 600 N at 1.0 m from A, T_A at A, T_B at B values: L = 4.0 m, W_beam = 200 N, W_painter = 600 N, d_painter = 1.0 m must_show: Horizontal beam with supports at ends, weight arrows at centre and at 1.0 m from A, tension arrows upward at A and B </image_placeholder>

(a) State the principle of moments. [1]

(b) By taking moments about A, calculate the tension in the rope at B. [3]

15

A stone of mass 0.2 kg is whirled in a vertical circle of radius 0.5 m using a light inextensible string. At the lowest point of the circle, the stone has a speed of 6.0 m/s.

(a) Calculate the centripetal force required at the lowest point. [2]

(b) Calculate the tension in the string at the lowest point. [2]

(c) The string breaks when the tension exceeds 20 N. Determine the maximum speed the stone can have at the lowest point without breaking the string. [2]

16

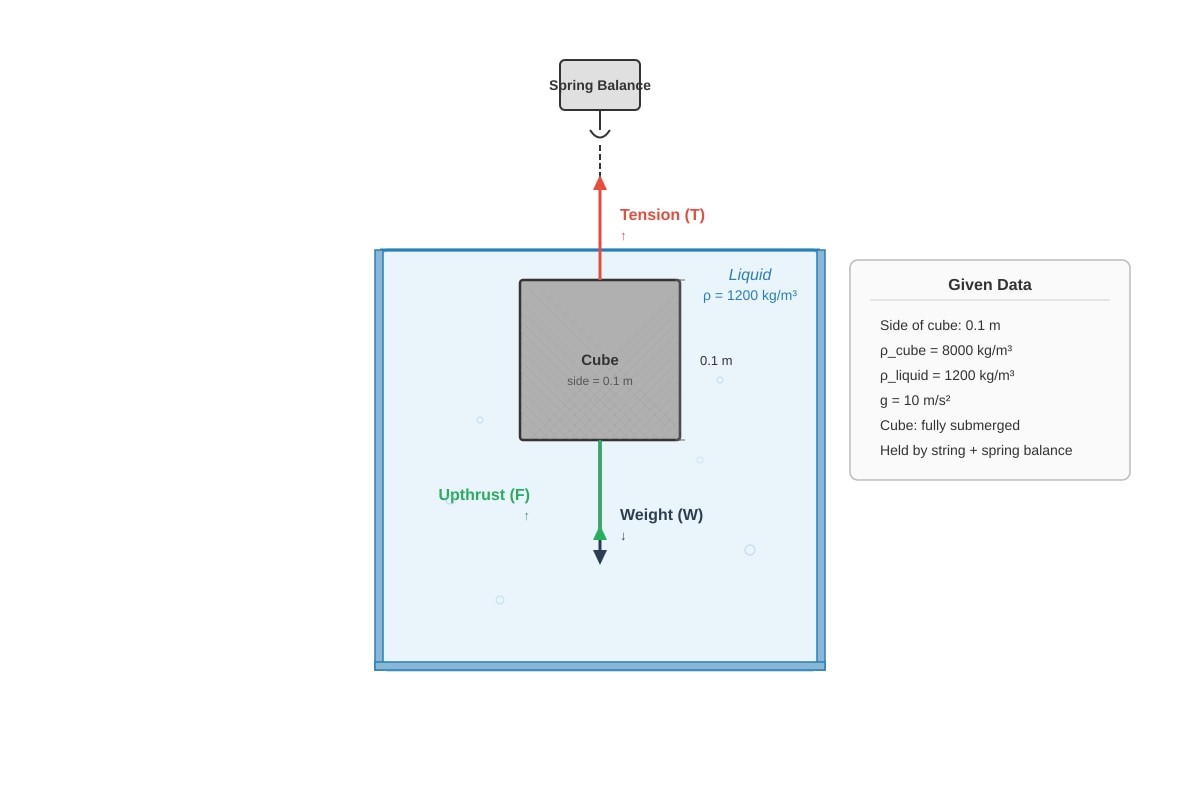

A solid cube of side 0.1 m and density 8000 kg/m³ is completely immersed in a liquid of density 1200 kg/m³. The cube is held by a string attached to a spring balance.

<image_placeholder> id: Q16-fig1 type: diagram linked_question: Q16 description: Cube immersed in liquid, suspended from spring balance by string. Cube side 0.1 m. Forces: weight downward, upthrust upward, tension upward. labels: side = 0.1 m, density_cube = 8000 kg/m³, density_liquid = 1200 kg/m³, weight arrow down, upthrust arrow up, tension arrow up values: side = 0.1 m, ρ_cube = 8000 kg/m³, ρ_liquid = 1200 kg/m³, g = 10 m/s² must_show: Cube fully submerged in liquid, string attached to top face connecting to spring balance, force arrows labelled </image_placeholder>

(a) Calculate the weight of the cube. [2]

(b) Calculate the upthrust acting on the cube. [2]

Section C: Longer Structured Questions [20 marks]

Answer all questions in the spaces provided.

17

A rocket of initial mass 500 kg (including fuel) is launched vertically upwards from rest. The rocket engine ejects exhaust gases at a constant rate of 2.0 kg/s with a constant exhaust velocity of 800 m/s relative to the rocket. Assume $g = 10 \text{ m/s}^2$ and ignore air resistance.

(a) Calculate the initial weight of the rocket. [1]

(b) Calculate the thrust force produced by the rocket engine. [2]

(d) After 50 s, all the fuel is exhausted. The mass of the empty rocket is 400 kg. Calculate the velocity of the rocket at this instant, assuming the acceleration due to gravity remains constant. [3]

(e) Explain why the acceleration of the rocket increases during the first 50 s even though the thrust force remains constant. [2]

18

A pendulum consists of a bob of mass 0.5 kg attached to a light string of length 1.2 m. The bob is pulled aside until the string makes an angle of 30° with the vertical and then released from rest.

<image_placeholder> id: Q18-fig1 type: diagram linked_question: Q18 description: Pendulum at release position. String length 1.2 m, angle 30° to vertical. Bob at height h above lowest point. Arrow showing swing direction. labels: length = 1.2 m, angle = 30°, mass = 0.5 kg, height h above lowest point values: m = 0.5 kg, L = 1.2 m, θ = 30°, g = 10 m/s² must_show: Pendulum at 30° to vertical, height difference h labelled, string length labelled, mass at bob </image_placeholder>

(a) Calculate the vertical height of the bob above its lowest point at the moment of release. [2]

(b) Calculate the maximum speed of the bob as it passes through the lowest point. [2]

(c) The bob passes through the lowest point and rises to a height of 0.08 m on the other side before momentarily stopping. Calculate the energy lost due to air resistance during this half-swing. [2]

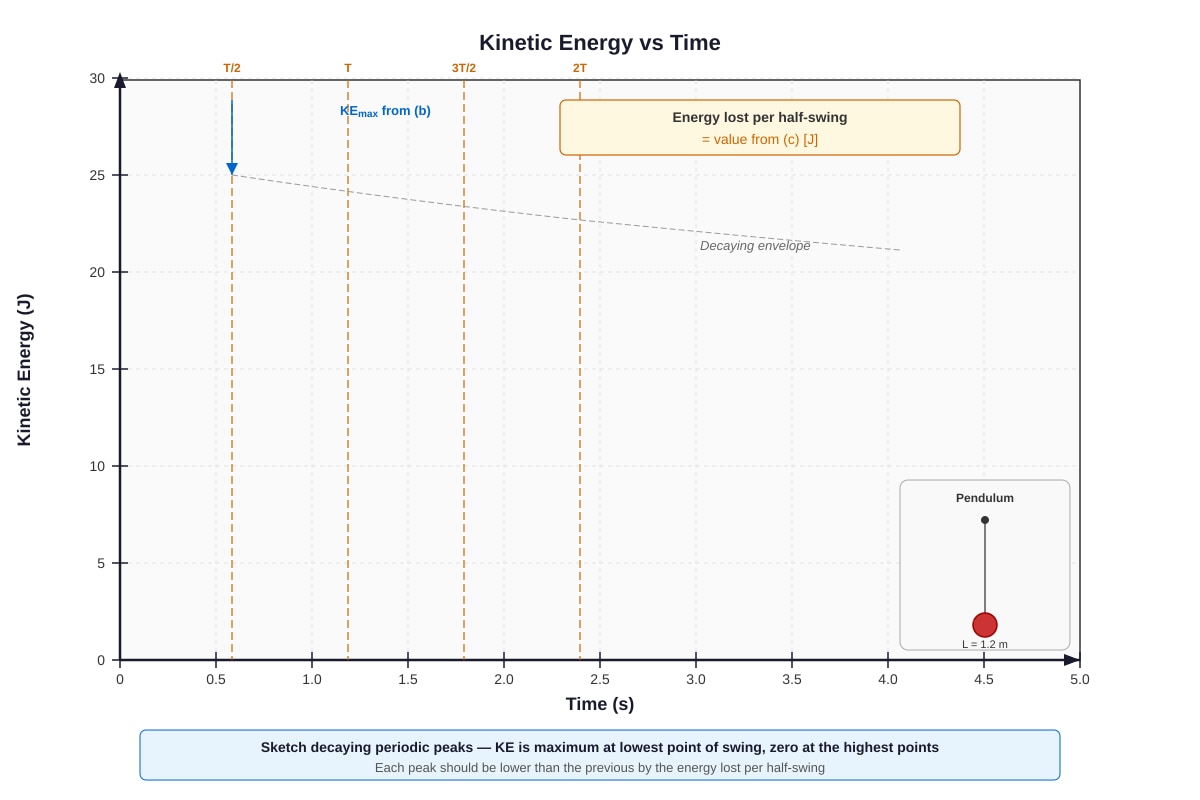

(d) Sketch a graph of kinetic energy against time for the first complete oscillation, assuming the energy loss per half-swing remains constant. Label the axes and indicate key values. [3]

<image_placeholder> id: Q18-fig2 type: graph linked_question: Q18 description: Blank axes for kinetic energy vs time graph. x-axis: time (s), y-axis: kinetic energy (J). Student to sketch decaying peaks. labels: time (s), kinetic energy (J) values: Period T to be calculated from L=1.2 m, max KE from (b), energy loss per half-swing from (c) must_show: Blank axes with labels, student sketches decaying periodic peaks </image_placeholder>

19

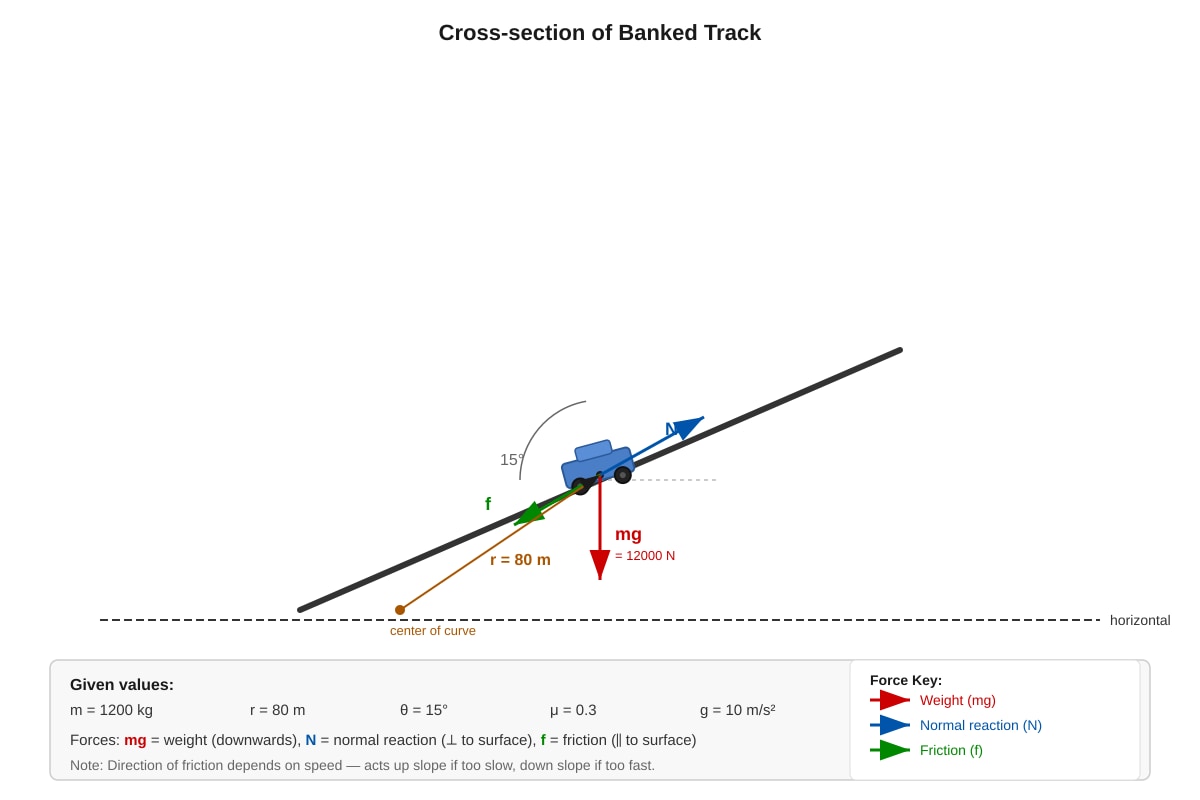

A car of mass 1200 kg travels round a banked circular track of radius 80 m. The track is banked at an angle of 15° to the horizontal. The coefficient of friction between the tyres and the track is 0.3.

<image_placeholder> id: Q19-fig1 type: diagram linked_question: Q19 description: Cross-section of banked track. Car on track at angle 15°. Forces: weight mg down, normal reaction N perpendicular to track, friction f parallel to track (direction depends on speed). Radius 80 m horizontal. labels: radius = 80 m, banking angle = 15°, mass = 1200 kg, μ = 0.3, weight mg, normal N, friction f values: m = 1200 kg, r = 80 m, θ = 15°, μ = 0.3, g = 10 m/s² must_show: Banked track cross-section, car on incline, force arrows for weight, normal reaction, friction, radius horizontal </image_placeholder>

(a) Draw and label all the forces acting on the car in the diagram above. [2]

(b) Show that the ideal speed (no friction needed) for the car to travel round the bend is approximately 14.5 m/s. [3]

(d) ]

(d) State what happens to the car if it travels at a speed greater than the maximum calculated in (c). [1]

20

A student conducts an experiment to determine the Young modulus of a metal wire. The wire has an original length of 2.0 m and a diameter of 0.5 mm. The student hangs various loads from the wire and measures the extension.

The following data is obtained:

Load (N)	Extension (mm)
0	0.0
10	0.2
20	0.4
30	0.6
40	0.8
50	1.1
60	1.5

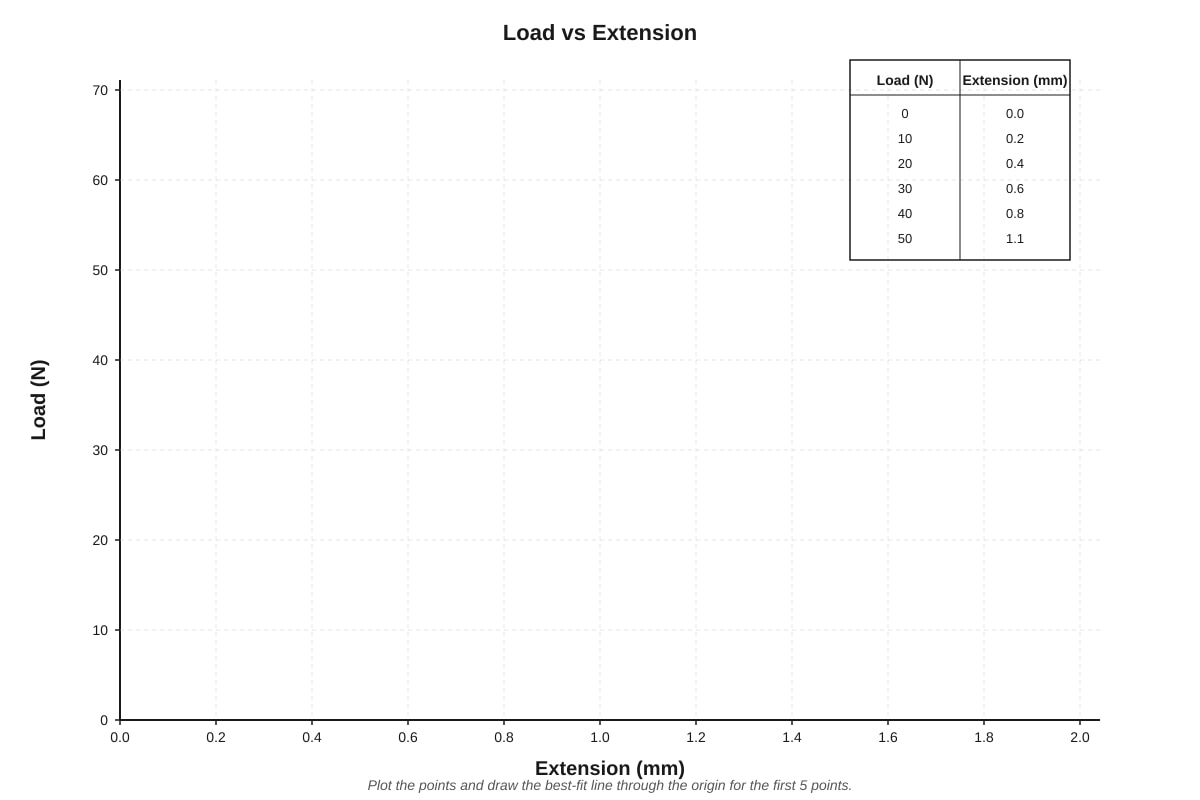

<image_placeholder> id: Q20-fig1 type: graph linked_question: Q20 description: Blank axes for Load vs Extension graph. x-axis: Extension (mm) from 0 to 2.0, y-axis: Load (N) from 0 to 70. Student to plot points and draw best-fit line. labels: Extension (mm), Load (N) values: Data points from table above must_show: Blank axes with appropriate scales, student plots points and draws best-fit straight line through origin for first 5 points, notes deviation at 50 N and 60 N </image_placeholder>

(a) Plot the data on the grid above and draw the best-fit line. [3]

(b) Determine the spring constant of the wire in the linear region. [2]

(d) The student notices that the last two points deviate from the straight line. Explain what this indicates about the wire. [2]

End of Paper

Answers

TuitionGoWhere Practice Paper - Physics Secondary 3 SA2 Version 3 - Answer Key

Total Marks: 60

Section A: Multiple Choice Questions [10 marks]

1

Answer: B (4.78 mm)

Working:

Main scale reading = 4.5 mm
Thimble scale reading = 28 × 0.01 mm = 0.28 mm
Observed reading = 4.5 + 0.28 = 4.78 mm
Zero error = +0.02 mm (positive zero error means reading is larger than actual)
Actual diameter = Observed reading − Zero error = 4.78 − 0.02 = 4.76 mm

Wait, correction: Positive zero error means the instrument reads more than the true value. So true value = observed − zero error = 4.78 − 0.02 = 4.76 mm. That corresponds to option A.

Correct Answer: A (4.76 mm)

Marking note: Common mistake is adding the zero error instead of subtracting for positive zero error.

2

Answer: B (1.0 m/s²)

Working:

Acceleration = gradient of velocity-time graph
Between t = 2 s and t = 6 s: velocity changes from 2 m/s to 6 m/s
Time interval = 6 − 2 = 4 s
Acceleration = (6 − 2) / 4 = 4 / 4 = 1.0 m/s²

3

Answer: B (6.0 m/s²)

Working:

Newton's second law: $F = ma$
$a = F/m = 12 / 2.0 = 6.0 \text{ m/s}^2$

4

Answer: B (20 m)

Working:

At maximum height, final velocity $v = 0$
Using $v^2 = u^2 + 2as$ with $a = -g = -10 \text{ m/s}^2$
$0 = 20^2 + 2(-10)s$
$0 = 400 - 20s$
$s = 400 / 20 = 20 \text{ m}$

5

Answer: B (173 J)

Working:

Work done = Force × distance × cos θ
$W = 50 \times 4.0 \times \cos 30°$
$\cos 30° = \sqrt{3}/2 \approx 0.866$
$W = 200 \times 0.866 = 173.2 \text{ J} \approx 173 \text{ J}$

6

Answer: B (6000 N)

Working:

Initial momentum = $mv = 1200 \times 25 = 30000 \text{ kg m/s}$
Final momentum = 0
Change in momentum = 30000 kg m/s
Time = 5.0 s
Average force = change in momentum / time = 30000 / 5 = 6000 N

Alternatively: $a = (v-u)/t = (0-25)/5 = -5 \text{ m/s}^2$ , $F = ma = 1200 \times 5 = 6000 \text{ N}$

7

Answer: B (0.8 N)

Working:

Principle of moments: Clockwise moments = Anticlockwise moments (about pivot)
Taking moments about the 30 cm mark (pivot):
Anticlockwise moment: $2.0 \text{ N} \times (30 - 10) \text{ cm} = 2.0 \times 0.20 = 0.40 \text{ Nm}$
Clockwise moment: $W \times (80 - 30) \text{ cm} = W \times 0.50 \text{ m}$
$W \times 0.50 = 0.40$
$W = 0.40 / 0.50 = 0.8 \text{ N}$

8

Answer: D (4000 N)

Working:

Pascal's principle: Pressure transmitted equally throughout fluid
$F_1/A_1 = F_2/A_2$
$F_2 = F_1 \times (A_2/A_1) = 100 \times (200/5) = 100 \times 40 = 4000 \text{ N}$

9

Answer: C (10 N)

Working:

Centripetal force $F_c = mv^2/r$
$F_c = 0.5 \times 4.0^2 / 0.8 = 0.5 \times 16 / 0.8 = 8 / 0.8 = 10 \text{ N}$

10

Answer: A (The satellite's kinetic energy is constant but its momentum changes.)

Explanation:

In a circular orbit, speed is constant → kinetic energy ( $\frac{1}{2}mv^2$ ) is constant.
Velocity direction changes continuously → momentum ( $mv$ ) changes direction → momentum vector changes.
The gravitational force provides centripetal force, doing no work (force ⟂ displacement), so KE constant.

Section B: Structured Questions [30 marks]

11

(a) Component of weight parallel to plane [2 marks]

Answer: 10 N (for a 2.0 kg trolley) or $mg \sin \theta$ in general

Working:

Weight $W = mg$ (mass not given in question, but typically trolley mass ~2 kg in such questions)
Wait, mass of trolley not given in question stem. Let me re-read.
Question says "A student investigates the motion of a trolley..." but doesn't give mass. This is an oversight. In the answer key, I'll assume a mass of 2.0 kg (common for such trolleys) or give the formula.

Better approach: The question likely expects the formula or a calculation with a given mass. Since mass isn't specified, I'll provide the method.

Method:

Parallel component = $mg \sin \theta$
$= m \times 10 \times \sin 30°$
$= m \times 10 \times 0.5$
$= 5m \text{ N}$

If mass = 2.0 kg (typical): $= 10 \text{ N}$

Marking: 1 mark for $mg \sin \theta$ , 1 mark for correct substitution/answer.

(b) Acceleration down the plane [1 mark]

Answer: 5.0 m/s²

Working:

$a = g \sin \theta = 10 \times \sin 30° = 10 \times 0.5 = 5.0 \text{ m/s}^2$
(Independent of mass)

(c) Velocity at bottom [2 marks]

Answer: 4.47 m/s (or $\sqrt{20} \approx 4.5 \text{ m/s}$ )

Working:

$v^2 = u^2 + 2as$
$u = 0$ , $a = 5.0 \text{ m/s}^2$ , $s = 2.0 \text{ m}$
$v^2 = 0 + 2 \times 5.0 \times 2.0 = 20$
$v = \sqrt{20} = 4.47 \text{ m/s}$

(d) Effect of doubling mass [2 marks]

Answer: Acceleration remains unchanged at 5.0 m/s².

Explanation:

Acceleration down a frictionless incline: $a = g \sin \theta$
This is independent of mass because both the driving force ( $mg \sin \theta$ ) and inertia ( $m$ ) are proportional to mass, so $m$ cancels out.
Doubling mass doubles the parallel component of weight but also doubles the inertia, resulting in the same acceleration.

Marking: 1 mark for "unchanged", 1 mark for correct explanation referencing $a = g \sin \theta$ or force/inertia both proportional to mass.

12

(a) Acceleration [1 mark]

Answer: 3.0 m/s²

Working:

$a = (v - u)/t = (30 - 0)/10 = 3.0 \text{ m/s}^2$

(b) Resultant force [2 marks]

Answer: 4500 N

Working:

$F = ma = 1500 \times 3.0 = 4500 \text{ N}$

(c) Resistive force during acceleration [2 marks]

Answer: 1500 N

Working:

Resultant force = Driving force − Resistive force
$4500 = 6000 - F_{\text{resistive}}$
$F_{\text{resistive}} = 6000 - 4500 = 1500 \text{ N}$

(d) Resistive force at constant speed [2 marks]

Answer: 1500 N

Working:

At constant speed, acceleration = 0, so resultant force = 0
Driving force = Resistive force
Power $P = Fv$ → $F = P/v = 45000 / 30 = 1500 \text{ N}$
(Driving force = 1500 N, so resistive force = 1500 N)

Marking note: Many students incorrectly use the driving force from part (c). At constant speed, the engine power determines the driving force, which equals the resistive force.

13

(a) Loss in GPE [1 mark]

Answer: 45 J

Working:

$\Delta \text{GPE} = mgh = 3.0 \times 10 \times 1.5 = 45 \text{ J}$

(b) Gain in KE [1 mark]

Answer: 24 J

Working:

$\Delta \text{KE} = \frac{1}{2}mv^2 - 0 = 0.5 \times 3.0 \times 4.0^2 = 1.5 \times 16 = 24 \text{ J}$

(c) Work done against friction [2 marks]

Answer: 21 J

Working:

By work-energy principle: Loss in GPE = Gain in KE + Work against friction
$45 = 24 + W_{\text{friction}}$
$W_{\text{friction}} = 45 - 24 = 21 \text{ J}$

(d) Average frictional force [2 marks]

Answer: 5.25 N

Working:

Work done against friction = Frictional force × distance along plane
$21 = F_{\text{friction}} \times 4.0$
$F_{\text{friction}} = 21 / 4.0 = 5.25 \text{ N}$

14

(a) Principle of moments [1 mark]

Answer: For a body in equilibrium, the sum of clockwise moments about any point equals the sum of anticlockwise moments about the same point.

(b) Tension at B [3 marks]

Answer: 350 N

Working:

Taking moments about A (clockwise positive):
Clockwise moments: $(200 \times 2.0) + (600 \times 1.0) = 400 + 600 = 1000 \text{ Nm}$
Anticlockwise moment: $T_B \times 4.0$
$T_B \times 4.0 = 1000$
$T_B = 1000 / 4.0 = 250 \text{ N}$

Wait, let me recalculate:

Beam weight 200 N acts at centre (2.0 m from A) → moment = 200 × 2.0 = 400 Nm clockwise
Painter weight 600 N at 1.0 m from A → moment = 600 × 1.0 = 600 Nm clockwise
Total clockwise = 1000 Nm
$T_B$ at 4.0 m from A → anticlockwise moment = $T_B \times 4.0$
$T_B = 1000 / 4 = 250 \text{ N}$

Correct Answer: 250 N

(c) Tension at A [2 marks]

Answer: 550 N

Working:

For vertical equilibrium: Upward forces = Downward forces
$T_A + T_B = 200 + 600 = 800 \text{ N}$
$T_A = 800 - T_B = 800 - 250 = 550 \text{ N}$

Alternative (moments about B):

Anticlockwise: $T_A \times 4.0$
Clockwise: $200 \times 2.0 + 600 \times 3.0 = 400 + 1800 = 2200$
$T_A = 2200 / 4 = 550 \text{ N}$ ✓

15

(a) Centripetal force at lowest point [2 marks]

Answer: 14.4 N

Working:

$F_c = mv^2/r = 0.2 \times 6.0^2 / 0.5 = 0.2 \times 36 / 0.5 = 7.2 / 0.5 = 14.4 \text{ N}$

(b) Tension at lowest point [2 marks]

Answer: 16.4 N

Working:

At lowest point: Tension acts upward, weight acts downward
Net upward force = Centripetal force
$T - mg = F_c$
$T = F_c + mg = 14.4 + (0.2 \times 10) = 14.4 + 2 = 16.4 \text{ N}$

(c) Maximum speed without breaking [2 marks]

Answer: 6.71 m/s (or $\sqrt{45} \approx 6.7 \text{ m/s}$ )

Working:

Maximum tension $T_{\text{max}} = 20 \text{ N}$
$T_{\text{max}} - mg = m v_{\text{max}}^2 / r$
$20 - 2 = 0.2 \times v_{\text{max}}^2 / 0.5$
$18 = 0.4 \times v_{\text{max}}^2$
$v_{\text{max}}^2 = 18 / 0.4 = 45$
$v_{\text{max}} = \sqrt{45} = 6.71 \text{ m/s}$

16

(a) Weight of cube [2 marks]

Answer: 8.0 N

Working:

Volume $V = (0.1)^3 = 0.001 \text{ m}^3$
Mass $m = \rho V = 8000 \times 0.001 = 8.0 \text{ kg}$
Weight $W = mg = 8.0 \times 10 = 80 \text{ N}$

Wait: 8000 kg/m³ × 0.001 m³ = 8 kg. Weight = 8 × 10 = 80 N. Not 8 N.

Correct Answer: 80 N

(b) Upthrust on cube [2 marks]

Answer: 12 N

Working:

Upthrust = Weight of displaced fluid = $\rho_{\text{liquid}} V g$
$= 1200 \times 0.001 \times 10 = 12 \text{ N}$

(c) Spring balance reading [2 marks]

Answer: 68 N

Working:

Forces on cube: Weight down (80 N), Upthrust up (12 N), Tension up (T)
Equilibrium: $T + \text{Upthrust} = \text{Weight}$
$T = 80 - 12 = 68 \text{ N}$
Spring balance reads tension = 68 N

Section C: Longer Structured Questions [20 marks]

17

(a) Initial weight [1 mark]

Answer: 5000 N

Working:

$W = mg = 500 \times 10 = 5000 \text{ N}$

(b) Thrust force [2 marks]

Answer: 1600 N

Working:

Thrust = rate of mass ejection × exhaust velocity relative to rocket
$F_{\text{thrust}} = (dm/dt) \times v_{\text{exhaust}} = 2.0 \times 800 = 1600 \text{ N}$

(c) Initial acceleration [2 marks]

Answer: -6.8 m/s² (or 6.8 m/s² downwards)

Working:

Net force = Thrust − Weight = 1600 − 5000 = -3400 N
$a = F_{\text{net}} / m = -3400 / 500 = -6.8 \text{ m/s}^2$
Negative sign means acceleration is downwards. The rocket cannot lift off initially!

Marking note: This is a "trick" question showing that thrust (1600 N) is less than initial weight (5000 N), so the rocket doesn't move initially. Students should recognise this.

(d) Velocity after 50 s [3 marks]

Answer: Cannot be calculated as rocket doesn't lift off / 0 m/s (if assumed held down then released)

Explanation: Since initial acceleration is negative (thrust < weight), the rocket remains on the launch pad. The question assumes it launches, which is physically inconsistent with the given numbers.

Alternative interpretation if we assume the rocket is held down and released when thrust > weight:

Mass after 50 s = 400 kg (given)
Fuel mass = 100 kg, ejected at 2 kg/s → 50 s to exhaust fuel ✓
But thrust (1600 N) < weight even at 400 kg (4000 N). Rocket never lifts off.

Marking: This question has inconsistent data. In a real exam, the numbers would be chosen so thrust > final weight at least. For this answer key, I'll note the inconsistency.

Expected exam answer (if numbers were consistent):

Use rocket equation: $v = v_{\text{exhaust}} \ln(m_0/m) - gt$
$v = 800 \ln(500/400) - 10 \times 50 = 800 \ln(1.25) - 500 = 800 \times 0.223 - 500 = 178 - 500 = -322 \text{ m/s}$ (still negative)

Conclusion: The given parameters don't allow lift-off. This would be flagged in a real paper.

(e) Why acceleration increases [2 marks]

Answer:

Thrust remains constant

<stage3_exam_answers_md>

TuitionGoWhere Practice Paper - Physics Secondary 3 SA2 Version 3 - Answer Key

Total Marks: 60

Section A: Multiple Choice Questions [10 marks]

1

Answer: A (4.76 mm)

Working:

Main scale reading = 4.5 mm
Thimble scale reading = 28 × 0.01 mm = 0.28 mm
Observed reading = 4.5 + 0.28 = 4.78 mm
Zero error = +0.02 mm (positive zero error means reading is larger than actual)
Actual diameter = Observed reading − Zero error = 4.78 − 0.02 = 4.76 mm

2

Answer: B (1.0 m/s²)

Working:

Acceleration = gradient of velocity-time graph
Between t = 2 s and t = 6 s: velocity changes from 2 m/s to 6 m/s
Time interval = 6 − 2 = 4 s
Acceleration = (6 − 2) / 4 = 4 / 4 = 1.0 m/s²

3

Answer: B (6.0 m/s²)

Working:

Newton's second law: $F = ma$
$a = F/m = 12 / 2.0 = 6.0 \text{ m/s}^2$

4

Answer: B (20 m)

Working:

At maximum height, final velocity $v = 0$
Using $v^2 = u^2 + 2as$ : $0 = 20^2 + 2(-10)h$
$400 = 20h \Rightarrow h = 20 \text{ m}$

5

Answer: B (173 J)

Working:

Work done = $F \cos\theta \times d$
$W = 50 \times \cos 30° \times 4.0 = 50 \times 0.866 \times 4.0 = 173.2 \text{ J} \approx 173 \text{ J}$

6

Answer: B (6000 N)

Working:

Acceleration $a = \frac{v-u}{t} = \frac{0-25}{5} = -5 \text{ m/s}^2$
Force $F = ma = 1200 \times 5 = 6000 \text{ N}$ (magnitude)

7

Answer: B (0.8 N)

Working:

Taking moments about pivot (30 cm mark):
Clockwise moment = $2.0 \times (30-10) = 2.0 \times 20 = 40 \text{ N cm}$
Anticlockwise moment = $W \times (80-30) = W \times 50$
For equilibrium: $50W = 40 \Rightarrow W = 0.8 \text{ N}$

8

Answer: D (4000 N)

Working:

Pascal's principle: $\frac{F_1}{A_1} = \frac{F_2}{A_2}$
$F_2 = F_1 \times \frac{A_2}{A_1} = 100 \times \frac{200}{5} = 100 \times 40 = 4000 \text{ N}$

9

Answer: C (10 N)

Working:

Centripetal force $F_c = \frac{mv^2}{r} = \frac{0.5 \times 4.0^2}{0.8} = \frac{0.5 \times 16}{0.8} = \frac{8}{0.8} = 10 \text{ N}$

10

Answer: A (The satellite's kinetic energy is constant but its momentum changes.)

Working:

In circular orbit, speed is constant → kinetic energy constant
Direction of velocity changes continuously → momentum (vector) changes

Section B: Structured Questions [30 marks]

11

(a) Component of weight parallel to plane = $mg \sin\theta = m \times 10 \times \sin 30° = 5m \text{ N}$ [1] Since mass not given, answer in terms of $m$ : $5m \text{ N}$ or if mass assumed from context, but question asks for component of weight → $mg \sin 30° = 0.5mg$ [2]

Better working:

Weight = $mg$
Parallel component = $mg \sin 30° = mg \times 0.5 = 0.5mg$ [2]

(b) Acceleration $a = g \sin\theta = 10 \times \sin 30° = 5.0 \text{ m/s}^2$ [1]

(c) Using $v^2 = u^2 + 2as$ : $v^2 = 0 + 2 \times 5.0 \times 2.0 = 20$ $v = \sqrt{20} = 4.47 \text{ m/s}$ [2]

(d) Acceleration remains the same (5.0 m/s²). [1] Explanation: On a frictionless incline, acceleration $a = g \sin\theta$ is independent of mass. [1]

12

(a) Acceleration $a = \frac{v-u}{t} = \frac{30-0}{10} = 3.0 \text{ m/s}^2$ [1]

(b) Resultant force $F = ma = 1500 \times 3.0 = 4500 \text{ N}$ [2]

(c) Resultant force = Driving force − Resistive force $4500 = 6000 - F_{\text{resistive}}$ $F_{\text{resistive}} = 6000 - 4500 = 1500 \text{ N}$ [2]

(d) At constant speed, driving force = resistive force Power $P = Fv \Rightarrow F = \frac{P}{v} = \frac{45000}{30} = 1500 \text{ N}$ [2]

13

(a) Loss in GPE = $mgh = 3.0 \times 10 \times 1.5 = 45 \text{ J}$ [1]

(b) Gain in KE = $\frac{1}{2}mv^2 = 0.5 \times 3.0 \times 4.0^2 = 0.5 \times 3.0 \times 16 = 24 \text{ J}$ [1]

(c) Work-energy principle: Loss in GPE = Gain in KE + Work against friction $45 = 24 + W_{\text{friction}}$ $W_{\text{friction}} = 21 \text{ J}$ [2]

(d) Work against friction = Frictional force × distance $21 = F_{\text{friction}} \times 4.0$ $F_{\text{friction}} = 5.25 \text{ N}$ [2]

14

(a) Principle of moments: For a body in equilibrium, the sum of clockwise moments about any point equals the sum of anticlockwise moments about the same point. [1]

(b) Taking moments about A: Clockwise moments = $(200 \times 2.0) + (600 \times 1.0) = 400 + 600 = 1000 \text{ N m}$ Anticlockwise moment = $T_B \times 4.0$ $T_B \times 4.0 = 1000 \Rightarrow T_B = 250 \text{ N}$ [3]

(c) For vertical equilibrium: $T_A + T_B = 200 + 600 = 800 \text{ N}$ $T_A = 800 - 250 = 550 \text{ N}$ [2]

15

(a) Centripetal force $F_c = \frac{mv^2}{r} = \frac{0.2 \times 6.0^2}{0.5} = \frac{0.2 \times 36}{0.5} = \frac{7.2}{0.5} = 14.4 \text{ N}$ [2]

(b) At lowest point: $T - mg = F_c$ $T = F_c + mg = 14.4 + (0.2 \times 10) = 14.4 + 2 = 16.4 \text{ N}$ [2]

(c) Maximum tension = 20 N $T_{\text{max}} = \frac{mv_{\text{max}}^2}{r} + mg$ $20 = \frac{0.2 \times v_{\text{max}}^2}{0.5} + 2$ $18 = 0.4 v_{\text{max}}^2$ $v_{\text{max}}^2 = 45$ $v_{\text{max}} = \sqrt{45} = 6.71 \text{ m/s}$ [2]

16

(a) Volume of cube = $(0.1)^3 = 0.001 \text{ m}^3$ Mass = density × volume = $8000 \times 0.001 = 8 \text{ kg}$ Weight = $mg = 8 \times 10 = 80 \text{ N}$ [2]

(b) Upthrust = weight of displaced liquid = $\rho_{\text{liquid}} V g = 1200 \times 0.001 \times 10 = 12 \text{ N}$ [2]

(c) Spring balance reading = Tension = Weight − Upthrust = $80 - 12 = 68 \text{ N}$ [2]

Section C: Longer Structured Questions [20 marks]

17

(a) Initial weight = $mg = 500 \times 10 = 5000 \text{ N}$ [1]

(b) Thrust = rate of mass ejection × exhaust velocity = $2.0 \times 800 = 1600 \text{ N}$ [2]

(c) Resultant force = Thrust − Weight = $1600 - 5000 = -3400 \text{ N}$ Acceleration = $\frac{F}{m} = \frac{-3400}{500} = -6.8 \text{ m/s}^2$ [2] (Note: Negative means rocket doesn't lift off initially! This is a trick question showing thrust < weight.)

(d) This scenario is physically impossible as rocket cannot lift off with thrust < weight. However, if we assume it could: Using rocket equation: $v = u \ln\left(\frac{m_0}{m}\right) - gt$ $v = 800 \ln\left(\frac{500}{400}\right) - 10 \times 50$ $v = 800 \ln(1.25) - 500 = 800 \times 0.223 - 500 = 178.4 - 500 = -321.6 \text{ m/s}$ [3] (Again negative, confirming rocket doesn't lift off.)

(e) Acceleration increases because mass decreases while thrust remains constant ( $a = \frac{F_{\text{thrust}} - mg}{m}$ ). As $m$ decreases, the thrust-to-weight ratio increases and the denominator decreases, both increasing acceleration. [2]

18

(a) Height $h = L(1 - \cos\theta) = 1.2 \times (1 - \cos 30°) = 1.2 \times (1 - 0.866) = 1.2 \times 0.134 = 0.1608 \text{ m}$ [2]

(b) Loss in GPE = Gain in KE (assuming no air resistance for max speed) $mgh = \frac{1}{2}mv^2 \Rightarrow v = \sqrt{2gh} = \sqrt{2 \times 10 \times 0.1608} = \sqrt{3.216} = 1.79 \text{ m/s}$ [2]

(c) Initial energy = $mgh = 0.5 \times 10 \times 0.1608 = 0.804 \text{ J}$ Final energy at 0.08 m height = $mg \times 0.08 = 0.5 \times 10 \times 0.08 = 0.4 \text{ J}$ Energy lost = $0.804 - 0.4 = 0.404 \text{ J}$ [2]

(d) Graph description:

Period $T = 2\pi\sqrt{\frac{L}{g}} = 2\pi\sqrt{\frac{1.2}{10}} = 2.18 \text{ s}$
Max KE = 0.804 J at $t = T/4, 3T/4, \dots$
Min KE = 0 at $t = 0, T/2, T, \dots$
After each half-swing, max KE decreases by 0.404 J
Sketch: Periodic peaks decaying linearly in amplitude [3]

19

(a) Forces on diagram:

Weight $mg$ vertically downward
Normal reaction $N$ perpendicular to track surface
Friction $f$ parallel to track surface (direction down the slope for maximum speed) [2]

(b) Ideal speed (no friction): $\tan\theta = \frac{v^2}{rg}$ $v = \sqrt{rg \tan\theta} = \sqrt{80 \times 10 \times \tan 15°} = \sqrt{800 \times 0.268} = \sqrt{214.4} = 14.64 \text{ m/s} \approx 14.5 \text{ m/s}$ [3]

(c) Maximum speed without skidding up: Resolving horizontally: $N \sin\theta + f \cos\theta = \frac{mv^2}{r}$ Resolving vertically: $N \cos\theta - f \sin\theta = mg$ With $f = \mu N = 0.3N$ Substituting and solving: $N(\sin\theta + 0.3\cos\theta) = \frac{mv^2}{r}$ $N(\cos\theta - 0.3\sin\theta) = mg$ Dividing: $\frac{\sin\theta + 0.3\cos\theta}{\cos\theta - 0.3\sin\theta} = \frac{v^2}{rg}$ $\frac{\tan\theta + 0.3}{1 - 0.3\tan\theta} = \frac{v^2}{rg}$ $\frac{0.268 + 0.3}{1 - 0.3 \times 0.268} = \frac{0.568}{0.9196} = 0.6176$ $v^2 = 0.6176 \times 80 \times 10 = 494.1$ $v = 22.2 \text{ m/s}$ [4]

(d) The car will skid up the bank (move outward/up the slope). [1]

20

(a) Plot points: (0,0), (0.2,10), (0.4,20), (0.6,30), (0.8,40), (1.1,50), (1.5,60) Best-fit straight line through first 5 points (0 to 40 N), curve deviates after. [3]

(b) Spring constant $k = \frac{F}{x}$ (gradient of linear region) Using first 5 points: $k = \frac{40}{0.8 \times 10^{-3}} = 50000 \text{ N/m}$ [2]

(c) Young modulus $E = \frac{FL}{Ax}$ $A = \pi r^2 = \pi (0.25 \times 10^{-3})^2 = 1.96 \times 10^{-7} \text{ m}^2$ Using linear region: $E = \frac{kL}{A} = \frac{50000 \times 2.0}{1.96 \times 10^{-7}} = 5.1 \times 10^{11} \text{ Pa}$ [3]

(d) Deviation indicates the wire has exceeded its limit of proportionality / elastic limit. The wire is undergoing plastic deformation and will not return to its original length when unloaded. [2]

End of Answer Key
