Secondary 3 Elementary Mathematics Quiz - Graphs Coordinate Geometry

Name: ___________________________
Class: ____________
Date: ____________
Score: ____________ / 40

Duration: 60 minutes
Total Marks: 40

Instructions:

1. Answer all 20 questions.
2. Show your working clearly where required.
3. Write your answers in the spaces provided.
4. Use a calculator where necessary.

---

Section A: Gradient, Midpoint and Distance (Questions 1–5)

1. Find the gradient of the line passing through the points $A(2, 3)$ and $B(6, 11)$. [2]

Answer: ____________

2. Find the midpoint of the line segment joining $P(-4, 5)$ and $Q(8, -1)$. [2]

Answer: ____________

3. Calculate the distance between $R(1, 2)$ and $S(4, 6)$. Give your answer in exact surd form. [2]

Answer: ____________

4. The line $L$ passes through $(0, -2)$ and has gradient $3$. Write down the equation of $L$ in the form $y = mx + c$. [1]

Answer: ____________

5. A line has equation $2x - 5y = 10$. Find its gradient. [1]

Answer: ____________

---

Section B: Equations of Lines and Parallel/Perpendicular (Questions 6–10)

6. Find the equation of the line parallel to $y = 2x + 1$ that passes through $(3, -4)$. Give your answer in the form $y = mx + c$. [2]

Answer: ____________

7. Find the equation of the line perpendicular to $y = -\frac{1}{3}x + 2$ that passes through the origin. [2]

Answer: ____________

8. The points $A(1, 1)$, $B(4, 5)$ and $C(7, 1)$ are given. (a) Find the gradient of $AB$. [1] (b) Find the gradient of $BC$. [1] (c) What type of triangle is $ABC$? [1]

Answers: (a) ____________ (b) ____________ (c) ____________

9. The line $y = 3x - 2$ crosses the $x$-axis at point $P$. Find the coordinates of $P$. [2]

Answer: ____________

10. A line passes through $(2, 3)$ and is parallel to the line $4x + y = 7$. Find its equation in the form $ax + by = c$. [2]

Answer: ____________

---

Section C: Quadratic Graphs and Coordinate Geometry (Questions 11–15)

11. The quadratic function $y = (x - 2)^2 + 3$ is given. State the coordinates of its vertex. [1]

Answer: ____________

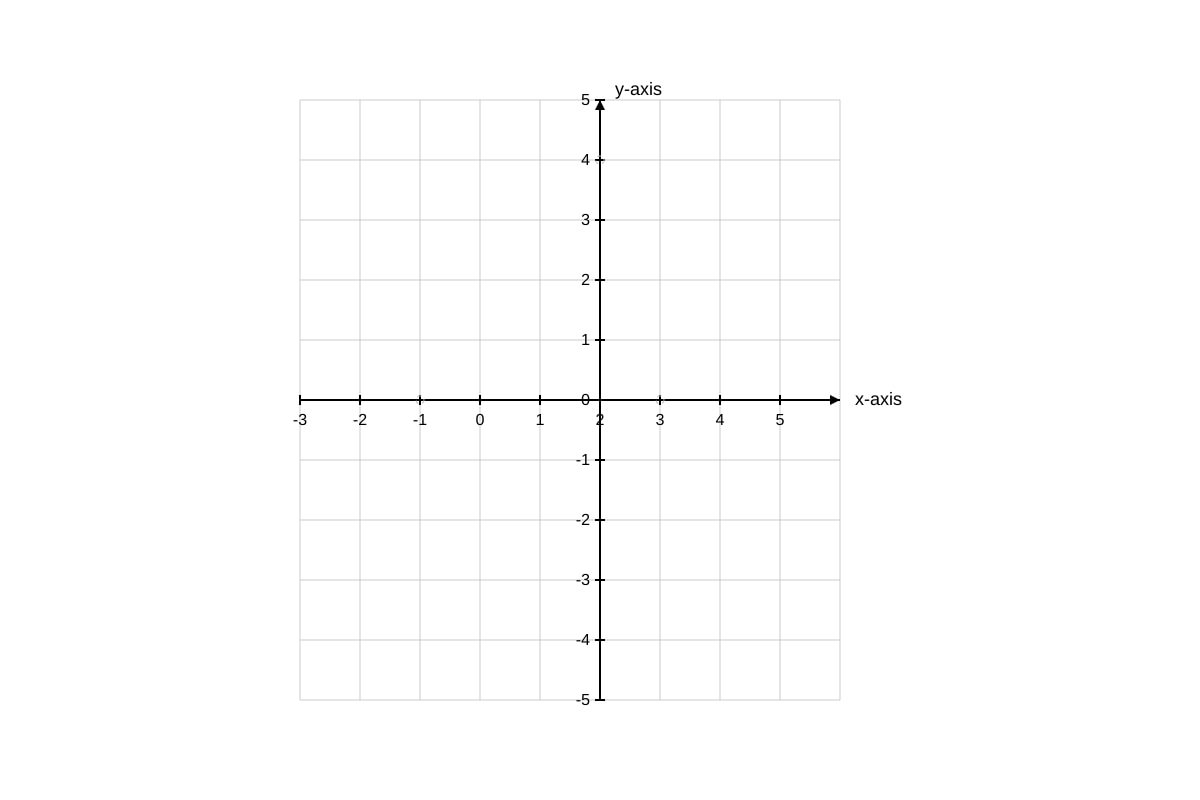

12. Sketch the graph of $y = -(x + 1)(x - 3)$ on the grid below. Label the $x$-intercepts and the vertex. [3]

Image pending generation: graph for Q12.

Answer: (sketch on grid above)

13. The graph of $y = x^2 - 4x + 3$ crosses the $x$-axis at two points. Find these $x$-intercepts. [2]

Answer: ____________

14. A parabola has equation $y = 2(x - 1)^2 - 8$. (a) State the vertex. [1] (b) Find the $y$-intercept. [1] (c) Find the $x$-intercepts. [2]

Answers: (a) ____________ (b) ____________ (c) ____________

15. The points $D(0, 0)$ and $E(6, 8)$ are endpoints of a diameter of a circle. Find the centre and radius of the circle. [3]

Answer: Centre ____________ Radius ____________

---

Section D: Mixed Application (Questions 16–20)

16. The line $y = mx + 4$ passes through $(2, 10)$. Find $m$. [1]

Answer: ____________

17. Triangle $XYZ$ has vertices $X(-2, 1)$, $Y(4, 1)$, $Z(1, 5)$. Find the area of triangle $XYZ$. [3]

Answer: ____________

18. The diagram shows a line segment $AB$ where $A(-3, 2)$ and $B(5, -4)$. (a) Find the midpoint of $AB$. [1] (b) Find the length of $AB$. [2]

Answers: (a) ____________ (b) ____________

19. Solve the simultaneous equations $y = x + 1$ and $y = x^2 - 3x + 1$. [3]

Answer: ____________

20. A straight line passes through $(1, 2)$ and $(4, 8)$. (a) Find the gradient. [1] (b) Find the equation of the line. [2]

Answers: (a) ____________ (b) ____________

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

Secondary 3 Elementary Mathematics Quiz - Graphs Coordinate Geometry (Answer Key)

Total Marks: 40
Topic: Graphs & Coordinate Geometry
Note: This is syllabus-first practice content generated from LLM-inferred templates. It is not claimed to be derived from past-year exam papers.

---

Section A: Gradient, Midpoint and Distance

Q1. Gradient = $\frac{11 - 3}{6 - 2} = \frac{8}{4} = 2$
Marks: 2
Teaching note: Gradient formula is $m = \frac{y_2 - y_1}{x_2 - x_1}$. Subtract $y$-coordinates then $x$-coordinates in the same order.
Common mistake: Reversing order for numerator and denominator.

Q2. Midpoint = $\left(\frac{-4 + 8}{2}, \frac{5 + (-1)}{2}\right) = (2, 2)$
Marks: 2
Teaching note: Midpoint formula averages the $x$-coordinates and $y$-coordinates: $\left(\frac{x_1+x_2}{2}, \frac{y_1+y_2}{2}\right)$.

Q3. Distance = $\sqrt{(4-1)^2 + (6-2)^2} = \sqrt{3^2 + 4^2} = \sqrt{9+16} = \sqrt{25} = 5$
Marks: 2
Teaching note: Distance formula is $\sqrt{(x_2-x_1)^2 + (y_2-y_1)^2}$. Here the result is a whole number, so exact form is $5$.
(If surd was expected, e.g. $\sqrt{20}=2\sqrt{5}$, keep surd.)

Q4. $y = 3x - 2$
Marks: 1
Teaching note: $y = mx + c$, $m=3$, passes through $(0,-2)$ so $c = -2$.

Q5. Rearrange: $2x - 5y = 10 \Rightarrow 5y = 2x - 10 \Rightarrow y = \frac{2}{5}x - 2$. Gradient = $\frac{2}{5}$.
Marks: 1
Teaching note: Gradient is the coefficient of $x$ when equation is in $y = mx + c$ form.

---

Section B: Equations of Lines and Parallel/Perpendicular

Q6. Parallel line has same gradient $m=2$. Through $(3,-4)$: $-4 = 2(3) + c \Rightarrow c = -10$. Equation: $y = 2x - 10$.
Marks: 2
Teaching note: Parallel lines have equal gradients.

Q7. Perpendicular gradient = negative reciprocal of $-\frac{1}{3}$ = $3$. Through $(0,0)$: $c=0$. Equation: $y = 3x$.
Marks: 2
Teaching note: For perpendicular lines, $m_1 \times m_2 = -1$.

Q8.
(a) $m_{AB} = \frac{5-1}{4-1} = \frac{4}{3}$ [1]
(b) $m_{BC} = \frac{1-5}{7-4} = \frac{-4}{3}$ [1]
(c) Since $AB$ and $BC$ have different gradients and lengths $AB = BC = 5$, triangle is isosceles. [1]
Marks: 3
Teaching note: Compute side lengths: $AB = \sqrt{3^2+4^2}=5$, $BC = \sqrt{3^2+(-4)^2}=5$. Two equal sides → isosceles.

Q9. At $x$-axis, $y=0$: $0 = 3x - 2 \Rightarrow x = \frac{2}{3}$. So $P\left(\frac{2}{3}, 0\right)$.
Marks: 2
Teaching note: $x$-intercept found by setting $y=0$.

Q10. $4x + y = 7 \Rightarrow y = -4x + 7$, gradient = $-4$. Parallel line through $(2,3)$: $y - 3 = -4(x - 2) \Rightarrow y = -4x + 11 \Rightarrow 4x + y = 11$.
Marks: 2
Teaching note: Keep in $ax+by=c$ form as requested.

---

Section C: Quadratic Graphs and Coordinate Geometry

Q11. Vertex = $(2, 3)$
Marks: 1
Teaching note: For $y = (x-p)^2 + q$, vertex is $(p, q)$.

Q12. $y = -(x+1)(x-3)$: $x$-intercepts at $x=-1, 3$; axis $x=1$; $y$ at $x=1$: $-(2)(-2)=4$, vertex $(1,4)$; downward parabola.
Marks: 3 (1 for intercepts, 1 for vertex, 1 for shape)
Teaching note: Sketch must show inverted U crossing $x$-axis at $-1$ and $3$, peak at $(1,4)$.

Q13. $x^2 - 4x + 3 = 0 \Rightarrow (x-1)(x-3)=0 \Rightarrow x=1$ or $x=3$.
Marks: 2
Teaching note: Factorise quadratic to find $x$-intercepts.

Q14.
(a) Vertex $(1, -8)$ [1]
(b) $y$-intercept: $x=0 \Rightarrow y = 2(1) - 8 = -6$ [1]
(c) $2(x-1)^2 - 8 = 0 \Rightarrow (x-1)^2 = 4 \Rightarrow x-1 = \pm2 \Rightarrow x=3$ or $x=-1$ [2]
Marks: 4
Teaching note: Vertex form gives vertex directly; set $x=0$ for $y$-intercept; set $y=0$ for $x$-intercepts.

Q15. Centre = midpoint of $DE$ = $\left(\frac{0+6}{2}, \frac{0+8}{2}\right) = (3,4)$. Radius = $\frac{1}{2}\sqrt{6^2+8^2} = \frac{10}{2} = 5$.
Marks: 3 (2 for centre, 1 for radius)
Teaching note: Centre of circle with diameter endpoints is midpoint; radius is half the distance.

---

Section D: Mixed Application

Q16. $10 = m(2) + 4 \Rightarrow 2m = 6 \Rightarrow m = 3$.
Marks: 1

Q17. Using shoelace: $X(-2,1), Y(4,1), Z(1,5)$.
Area = $\frac{1}{2}|(-2\cdot1 + 4\cdot5 + 1\cdot1) - (1\cdot4 + 1\cdot1 + 5\cdot(-2))|$
= $\frac{1}{2}|(-2+20+1) - (4+1-10)| = \frac{1}{2}|19 - (-5)| = \frac{1}{2}(24) = 12$ sq units.
Marks: 3
Teaching note: Base $XY = 6$, height from $Z$ to line $y=1$ is $4$, area = $\frac{1}{2}\times6\times4 = 12$.

Q18.
(a) Midpoint = $\left(\frac{-3+5}{2}, \frac{2+(-4)}{2}\right) = (1, -1)$ [1]
(b) Length = $\sqrt{(5-(-3))^2 + (-4-2)^2} = \sqrt{8^2 + (-6)^2} = \sqrt{100} = 10$ [2]
Marks: 3

Q19. $x+1 = x^2 - 3x + 1 \Rightarrow x^2 - 4x = 0 \Rightarrow x(x-4)=0 \Rightarrow x=0$ or $x=4$.
Then $y = 1$ or $y = 5$. Points: $(0,1), (4,5)$.
Marks: 3
Teaching note: Substitute linear into quadratic, solve for $x$, then find $y$.

Q20.
(a) $m = \frac{8-2}{4-1} = \frac{6}{3} = 2$ [1]
(b) $y - 2 = 2(x - 1) \Rightarrow y = 2x$ [2]
Marks: 3
