Questions

TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 3

TuitionGoWhere Practice Paper (AI) — Version 5

Subject: Elementary Mathematics
Level: Secondary 3
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 60 minutes
Total Marks: 50
Name: __________________________
Class: ______________
Date: ______________

Instructions:

Answer all questions in the spaces provided.
Show your working clearly.
Calculators may be used.
Take $\pi = 3.142$ if needed.
Give angles in degrees to 1 decimal place unless stated.
This is a syllabus-first practice paper generated from LLM-inferred templates; it is not derived from any specific past-year exam.

Section A (Questions 1–8) — Short Answer [16 marks]

1. In a right-angled triangle, $PQR$ , $\angle R = 90^\circ$ , $PQ = 13$ cm and $PR = 5$ cm. Express $\sin \angle QPR$ as a fraction in simplest form. [1]

2. In the diagram below, $ABC$ is a right-angled triangle at $B$ , with $AB = 6$ cm and $BC = 8$ cm. Express $\tan \angle BAC$ as a fraction in simplest form. [1]

Diagram for Q2 (SEC3 Emaths)

Generated diagram for Q2.

3. Points $X$ , $Y$ , $Z$ are such that $YZ = 9$ cm, $XZ = 15$ cm and $\angle Y = 90^\circ$ . Express $\cos \angle ZXY$ as a fraction in simplest form. [1]

4. A straight line $L$ has bearing $040^\circ$ from point $O$ . What is the bearing of $O$ from a point on $L$ due east of $O$ ? [1]

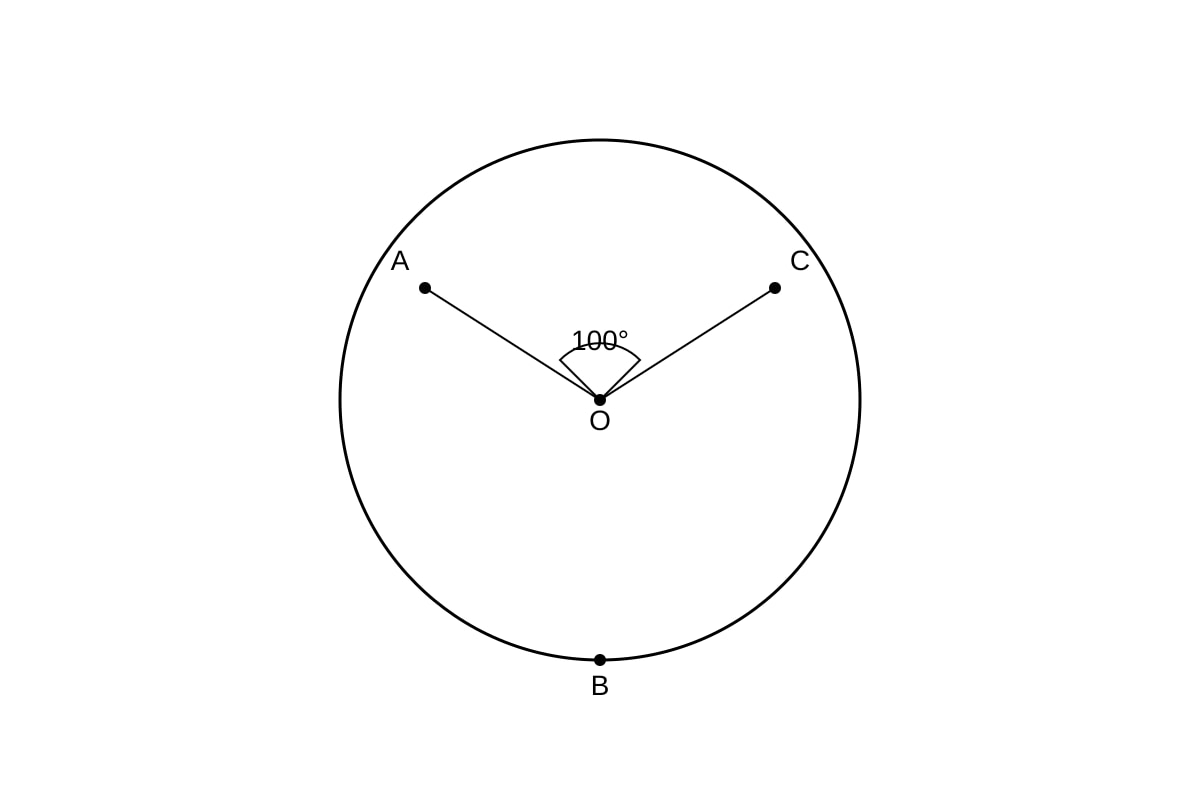

5. In the diagram, $O$ is the centre of a circle. $A$ , $B$ , $C$ lie on the circle and $\angle AOC = 100^\circ$ . Find $\angle ABC$ . [1]

Diagram for Q5 (SEC3 Emaths)

Generated diagram for Q5.

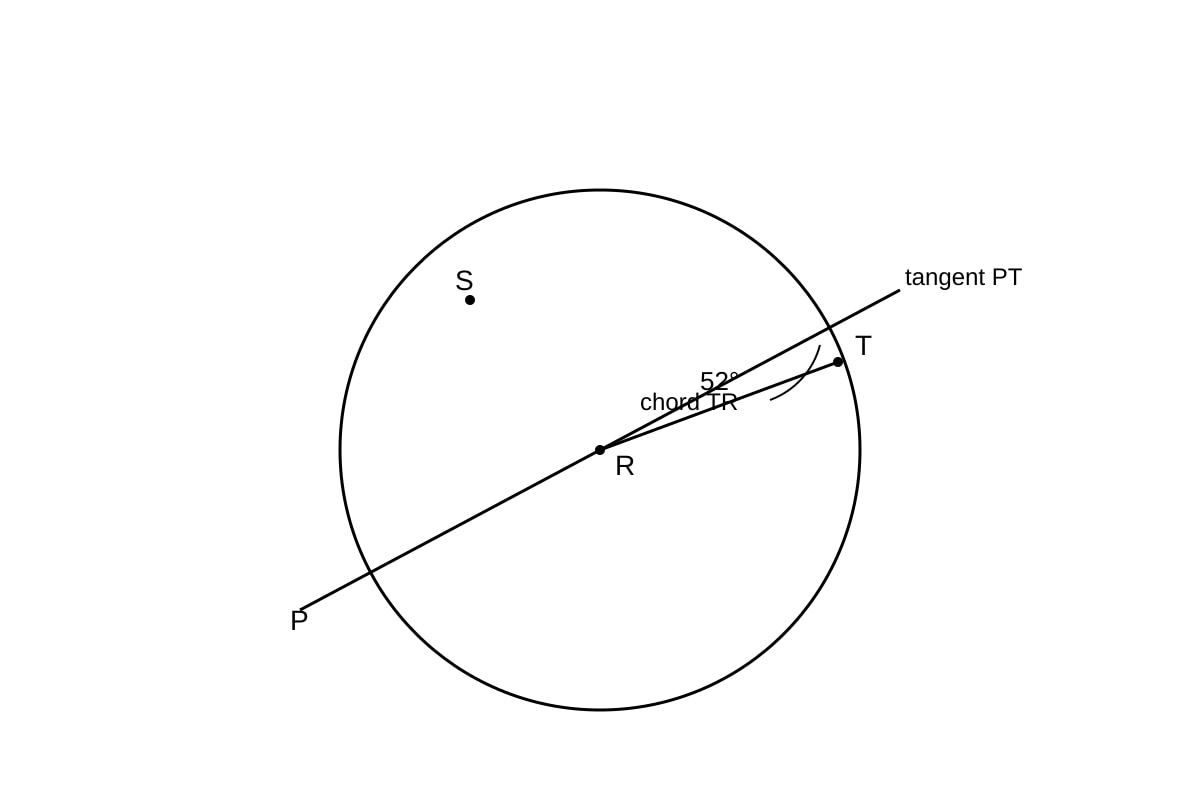

6. $PT$ is a tangent to a circle at $T$ . $TR$ is a chord. $\angle PTR = 52^\circ$ . By the alternate segment theorem, what is $\angle TSR$ where $S$ is on the circle in the alternate segment? [1]

Diagram for Q6 (SEC3 Emaths)

Generated diagram for Q6.

7. A vertical pole of height 10 m casts a shadow 6 m long on level ground. What is the angle of elevation of the top of the pole from the tip of the shadow, to 1 decimal place? [1]

8. In right triangle $DEF$ , $DE = 24$ cm, $EF = 7$ cm, $\angle E = 90^\circ$ . Express $\sin \angle DFE$ as a fraction in simplest form. [1]

Section B (Questions 9–14) — Calculation and Structured [22 marks]

9. Triangle $ABC$ is right-angled at $C$ . $AC = 12$ cm, $BC = 9$ cm. (a) Find the length of $AB$ . [1] (b) Calculate $\angle BAC$ to 1 decimal place. [2]

10. The bearing of $B$ from $A$ is $125^\circ$ . Find the bearing of $A$ from $B$ . [2]

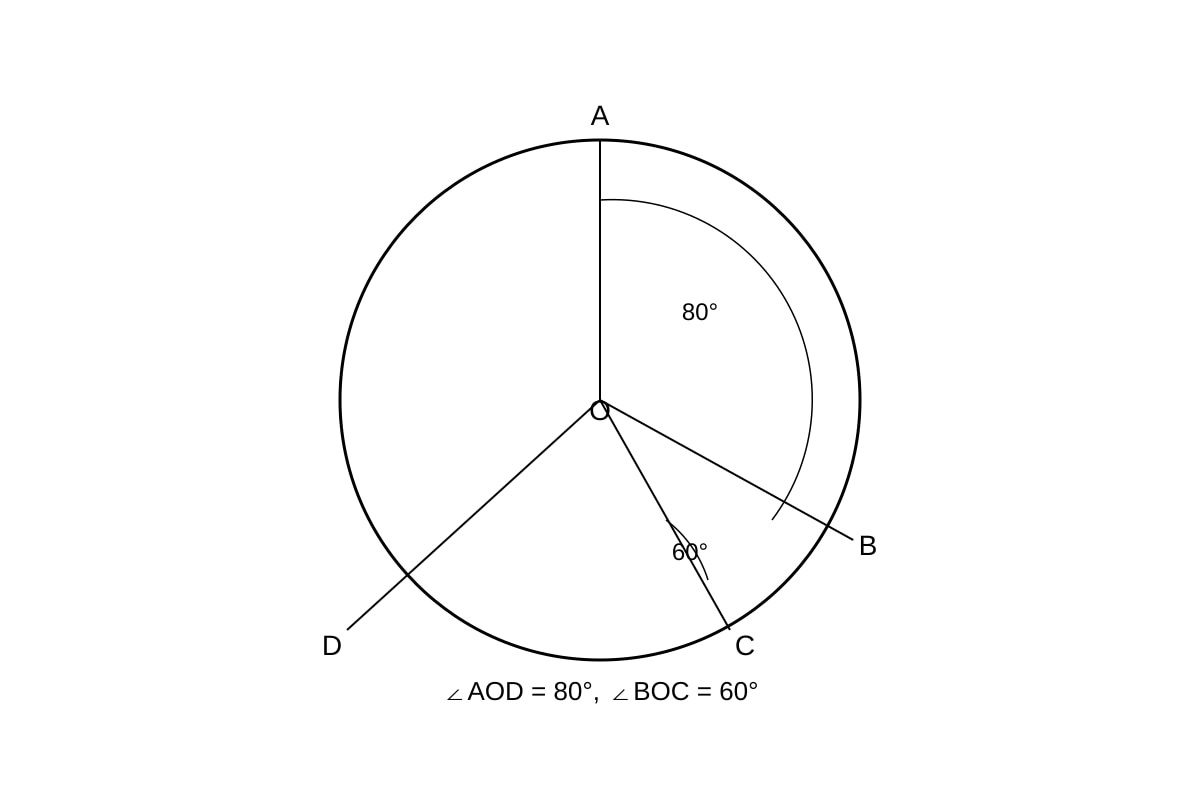

11. In the diagram, $O$ is the centre of the circle, $A$ , $B$ , $C$ , $D$ on the circle. $\angle AOD = 80^\circ$ , $\angle BOC = 60^\circ$ . Find $\angle ABD$ . [3]

Diagram for Q11 (SEC3 Emaths)

Generated diagram for Q11.

12. A tower stands on level ground. From a point 40 m from the base, the angle of elevation to the top is $35^\circ$ . Find the height of the tower to 1 decimal place. [3]

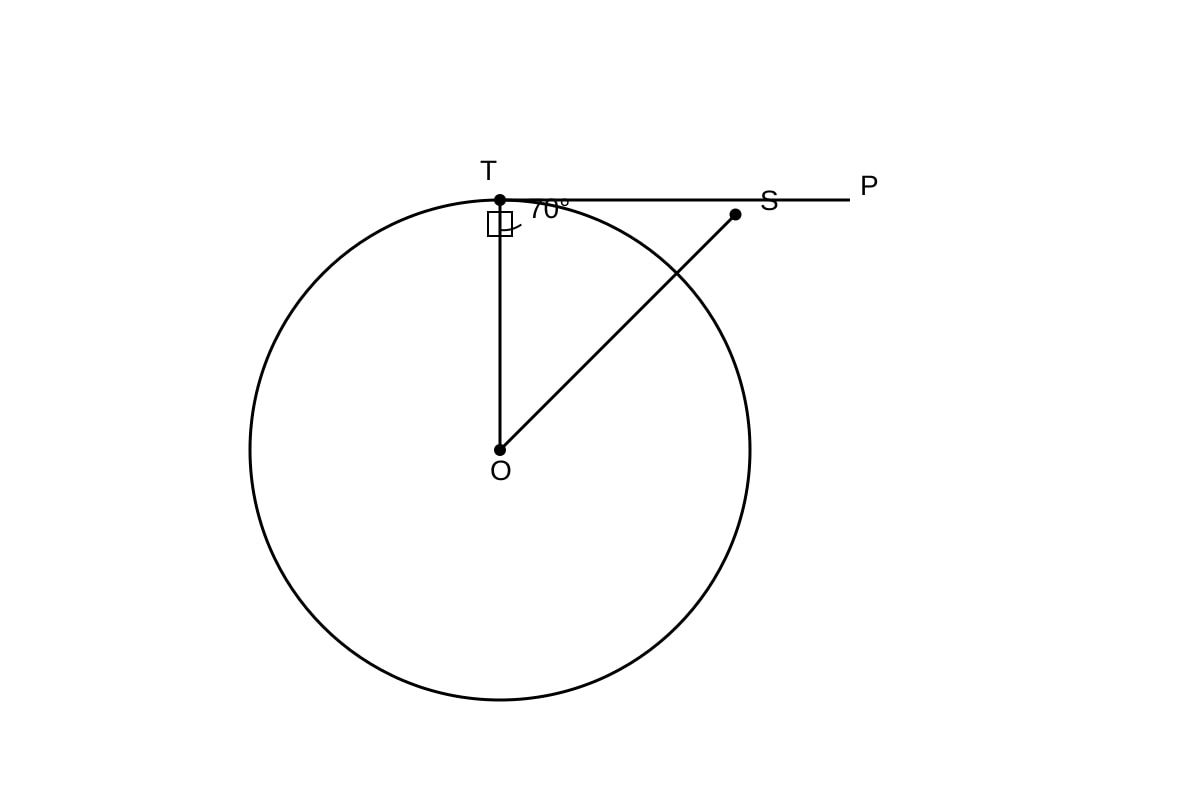

13. In the diagram, $PT$ is tangent at $T$ , $O$ centre, $\angle PTO = 90^\circ$ , $\angle TOS = 70^\circ$ where $S$ on circle. Find $\angle PTS$ . [3]

Diagram for Q13 (SEC3 Emaths)

Generated diagram for Q13.

14. From the top of a cliff 50 m high, the angle of depression to a boat is $20^\circ$ . Find the horizontal distance from the boat to the cliff base to 1 decimal place. [3]

15. A ladder 5 m long leans against a wall. The foot is 3 m from the wall. Find the angle the ladder makes with the ground to 1 decimal place. [3]

Section C (Questions 16–20) — Extended Application [12 marks]

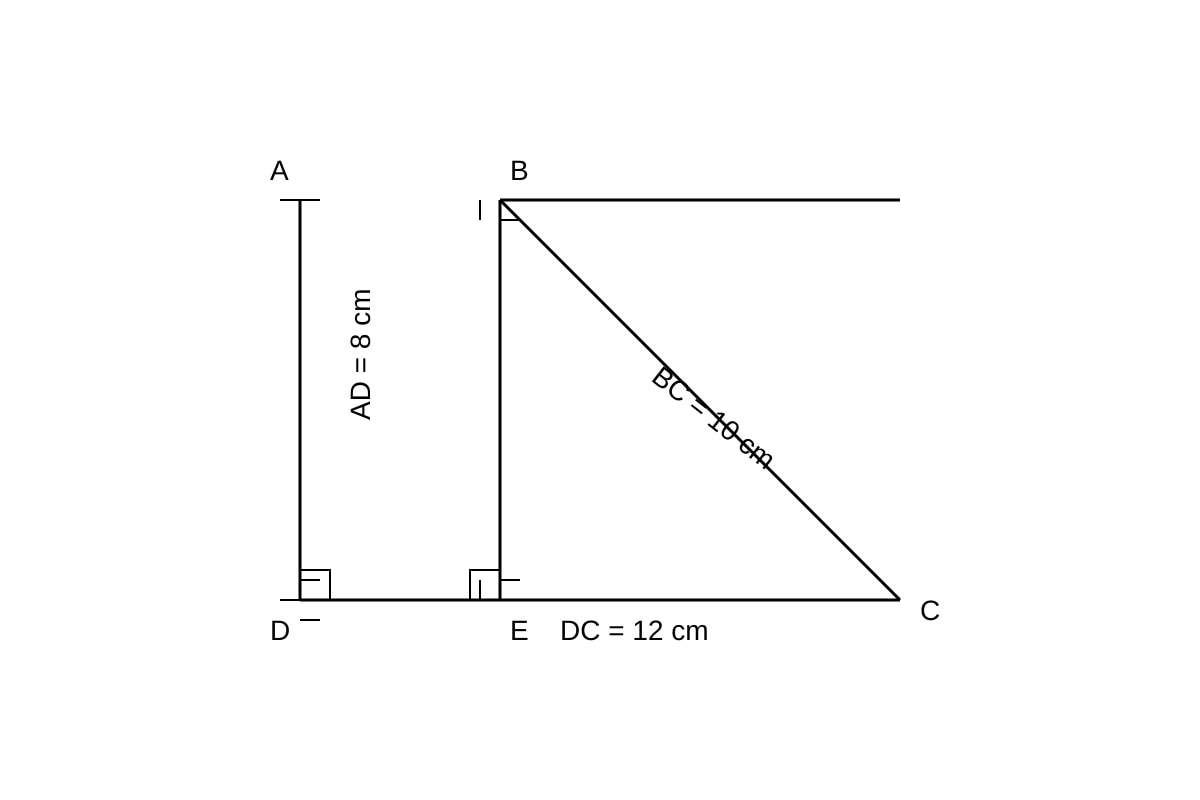

16. In the diagram, $ABCD$ is a trapezium with $AB \parallel DC$ , $\angle ADC = 90^\circ$ , $AD = 8$ cm, $DC = 12$ cm, $BC = 10$ cm. Drop perpendicular from $B$ to $DC$ at $E$ . Find $\angle BCD$ to 1 decimal place. [3]

Diagram for Q16 (SEC3 Emaths)

Generated diagram for Q16.

17. A, B, C are collinear with B between A and C. $AB = 5$ cm, $BC = 7$ cm. Triangle $ABD$ is right-angled at $B$ , $BD = 12$ cm. Find $\angle ADB$ to 1 decimal place. [2]

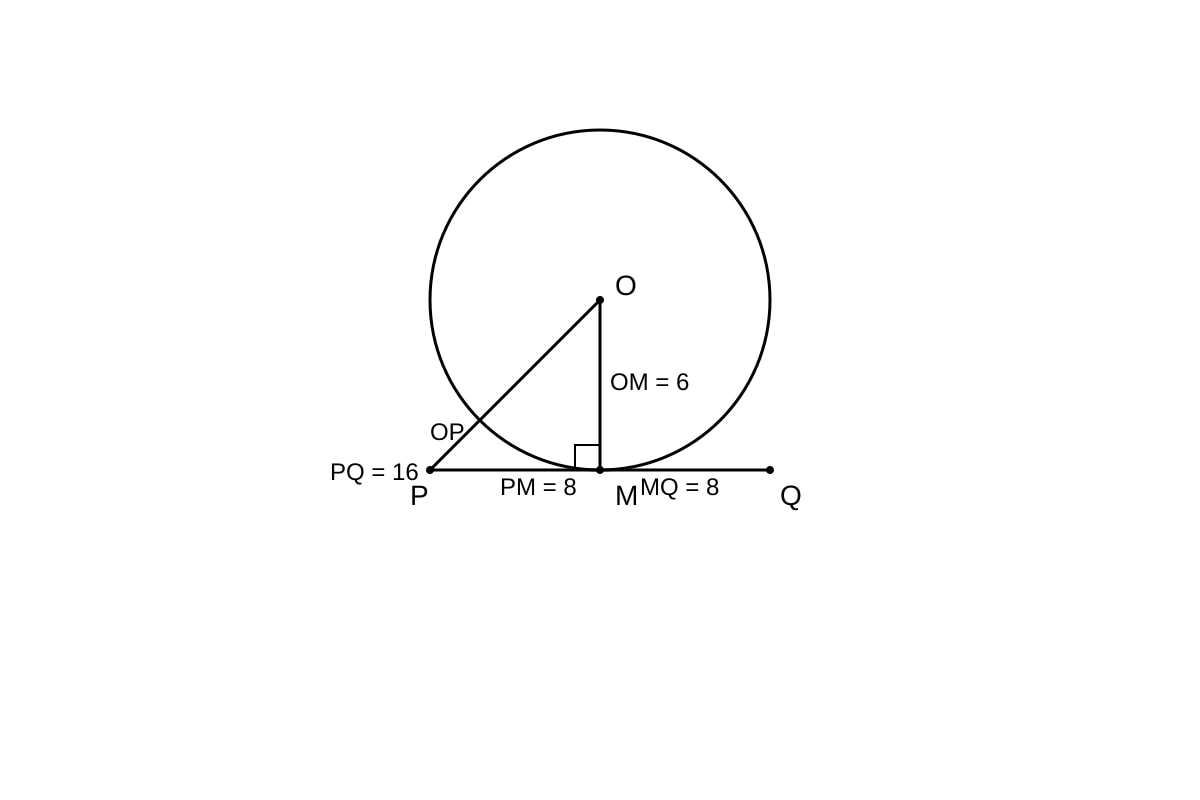

18. A circle has centre $O$ . $PQ$ is a chord of length 16 cm, and the perpendicular from $O$ to $PQ$ meets at $M$ with $OM = 6$ cm. Find the radius of the circle. [2]

Diagram for Q18 (SEC3 Emaths)

Generated diagram for Q18.

19. A ship sails 8 km on bearing $060^\circ$ , then 6 km on bearing $150^\circ$ . Find the bearing of its final position from the start to 1 decimal place. [3]

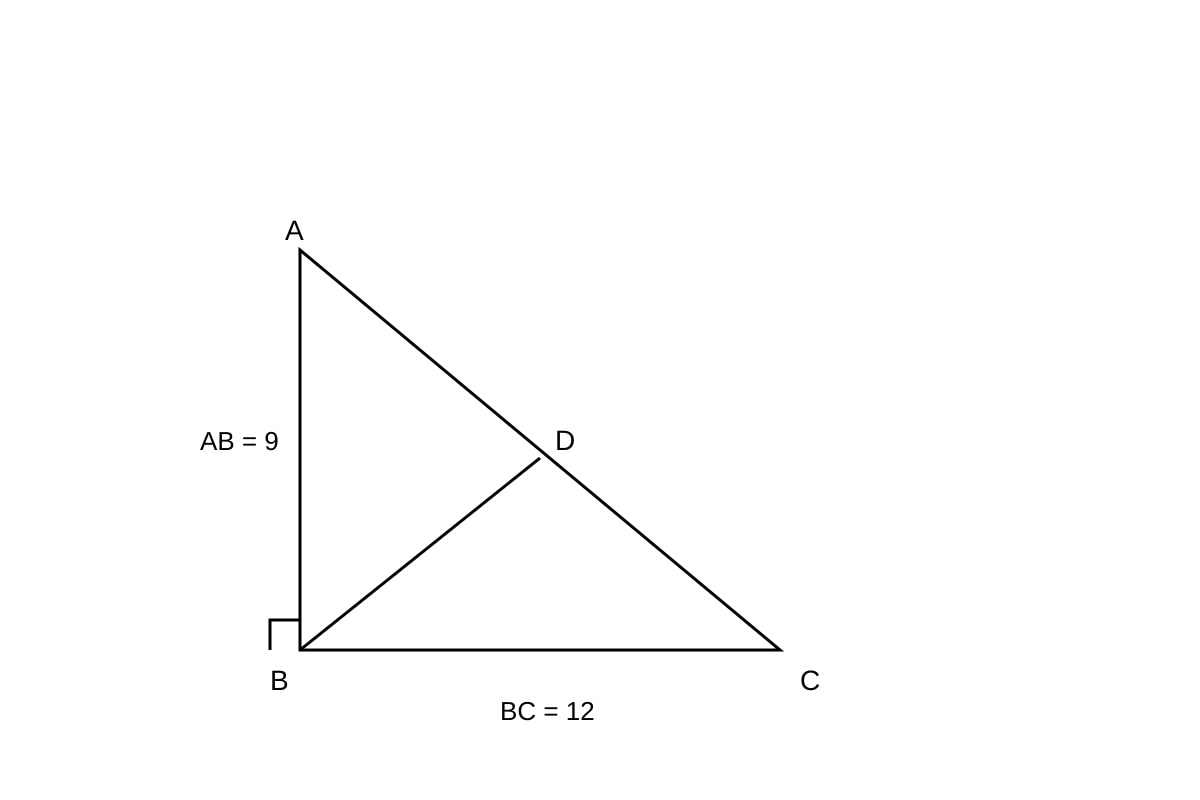

20. In the diagram, $ABC$ is a right triangle at $B$ , $AB = 9$ , $BC = 12$ . $D$ is on $AC$ such that $BD \perp AC$ . Find the length of $BD$ . [2]

Diagram for Q20 (SEC3 Emaths)

Generated diagram for Q20.

End of Paper

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper — Answer Key (Version 5)

Subject: Elementary Mathematics
Level: Secondary 3
Topic: Geometry & Trigonometry
Total Marks: 50

Section A Answers

Q1. [1 mark]
$\sin \angle QPR = \frac{opp}{hyp} = \frac{QR}{PQ}$ . By Pythagoras, $QR = \sqrt{13^2 - 5^2} = \sqrt{144} = 12$ .
So $\sin \angle QPR = \frac{12}{13}$ .
Teaching note: Sine = opposite ÷ hypotenuse. Always label sides from the angle.

Q2. [1 mark]
$\tan \angle BAC = \frac{opp}{adj} = \frac{BC}{AB} = \frac{8}{6} = \frac{4}{3}$ .
Teaching note: From ∠BAC, opposite is BC, adjacent is AB.

Q3. [1 mark]
$XZ$ is hypotenuse = 15. $YZ = 9$ is opposite ∠ZXY. $\cos = \frac{adj}{hyp} = \frac{YZ}{XZ}?$ Wait: adj to ∠ZXY is YZ? Actually at X, adj = XY, opp = YZ. $XY = \sqrt{15^2-9^2}=\sqrt{144}=12$ . $\cos \angle ZXY = \frac{12}{15} = \frac{4}{5}$ .
Correction: $\cos = \frac{adj}{hyp} = \frac{12}{15} = \frac{4}{5}$ .

Q4. [1 mark]
Bearing of O from point on L due east: reverse bearing = $040^\circ + 180^\circ = 220^\circ$ .
Teaching note: Reverse bearing adds 180°.

Q5. [1 mark]
Angle at centre = 2 × angle at circumference: $\angle ABC = \frac{1}{2} \times 100^\circ = 50^\circ$ .

Q6. [1 mark]
Alternate segment theorem: $\angle TSR = \angle PTR = 52^\circ$ .

Q7. [1 mark]
$\tan \theta = \frac{10}{6}$ , $\theta = \tan^{-1}(1.6667) = 59.0^\circ$ (1 dp).

Q8. [1 mark]
$DF = \sqrt{24^2+7^2} = 25$ . $\sin \angle DFE = \frac{DE}{DF} = \frac{24}{25}$ .

Section B Answers

Q9. [3 marks total: (a)1, (b)2]
(a) $AB = \sqrt{12^2+9^2} = 15$ cm. [1]
(b) $\tan \angle BAC = \frac{9}{12}=0.75$ , $\angle BAC = \tan^{-1}(0.75)=36.9^\circ$ . [2]

Q10. [2 marks]
Bearing of A from B = $125^\circ + 180^\circ = 305^\circ$ . [2]

Q11. [3 marks]
$\angle ABD$ uses arc AD: $\angle AOD = 80^\circ$ → $\angle ABD = 40^\circ$ (angle at centre double). [3]
Note: BOC not needed.

Q12. [3 marks]
$\tan 35^\circ = \frac{h}{40}$ , $h = 40 \tan 35^\circ = 28.0$ m (1 dp). [3]

Q13. [3 marks]
In triangle OTS, OT = OS (radii), $\angle OTS = \angle OST = \frac{180-70}{2}=55^\circ$ .
$\angle PTS = 90^\circ - 55^\circ = 35^\circ$ . [3]

Q14. [3 marks]
$\tan 20^\circ = \frac{50}{d}$ , $d = \frac{50}{\tan 20^\circ} = 137.4$ m (1 dp). [3]

Q15. [3 marks]
$\cos \theta = \frac{3}{5}=0.6$ , $\theta = \cos^{-1}(0.6)=53.1^\circ$ . [3]

Section C Answers

Q16. [3 marks]
$DE = DC - AB$ ? Actually AB = EC (since ABED rectangle) → AB = ? Not given, but BE = AD = 8, ED = DC - AB unknown. Use triangle BEC: BC=10, BE=8 → EC = 6. So AB = 12-6=6. $\tan \angle BCD = \frac{BE}{EC} = \frac{8}{6}$ , $\angle BCD = 53.1^\circ$ . [3]

Q17. [2 marks]
In ΔABD, $\tan \angle ADB = \frac{AB}{BD} = \frac{5}{12}$ , $\angle ADB = 22.6^\circ$ . [2]

Q18. [2 marks]
$PM = 8$ , $OM = 6$ , radius $r = \sqrt{8^2+6^2}=10$ cm. [2]

Q19. [3 marks]
Use vector components:
First leg: $(8\sin60^\circ, 8\cos60^\circ)=(6.928,4)$ .
Second leg: $(6\sin150^\circ, 6\cos150^\circ)=(3,-5.196)$ .
Total = $(9.928,-1.196)$ . Bearing = $\tan^{-1}(9.928/1.196)$ from south? Actually from north clockwise: $90^\circ + \tan^{-1}(1.196/9.928)=90+6.9=96.9^\circ$ . [3]

Q20. [2 marks]
Area = $\frac{1}{2}\times9\times12 = 54$ . Also $\frac{1}{2}\times AC \times BD$ . $AC=15$ . So $BD = \frac{108}{15}=7.2$ . [2]

End of Answer Key
