TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 3

TuitionGoWhere Practice Paper (AI) — Version 3 of 5

Subject: Elementary Mathematics
Level: Secondary 3
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 60 minutes
Total Marks: 50
Name: ___________________________
Class: ____________
Date: ____________

Instructions:

1. Answer all questions in this paper.
2. Show your working clearly where required.
3. Calculators may be used.
4. Give answers to the stated degree of accuracy.
5. This is a syllabus-first practice paper generated from LLM-inferred templates. It is not derived from any specific past-year examination.

---

Section A (Questions 1–8) — Short Answer [16 marks]

1. In the right-angled triangle $PQR$, $\angle PRQ = 90^\circ$, $PQ = 13$ cm and $PR = 5$ cm. Express $\sin \angle PQR$ as a fraction in simplest form. [1]

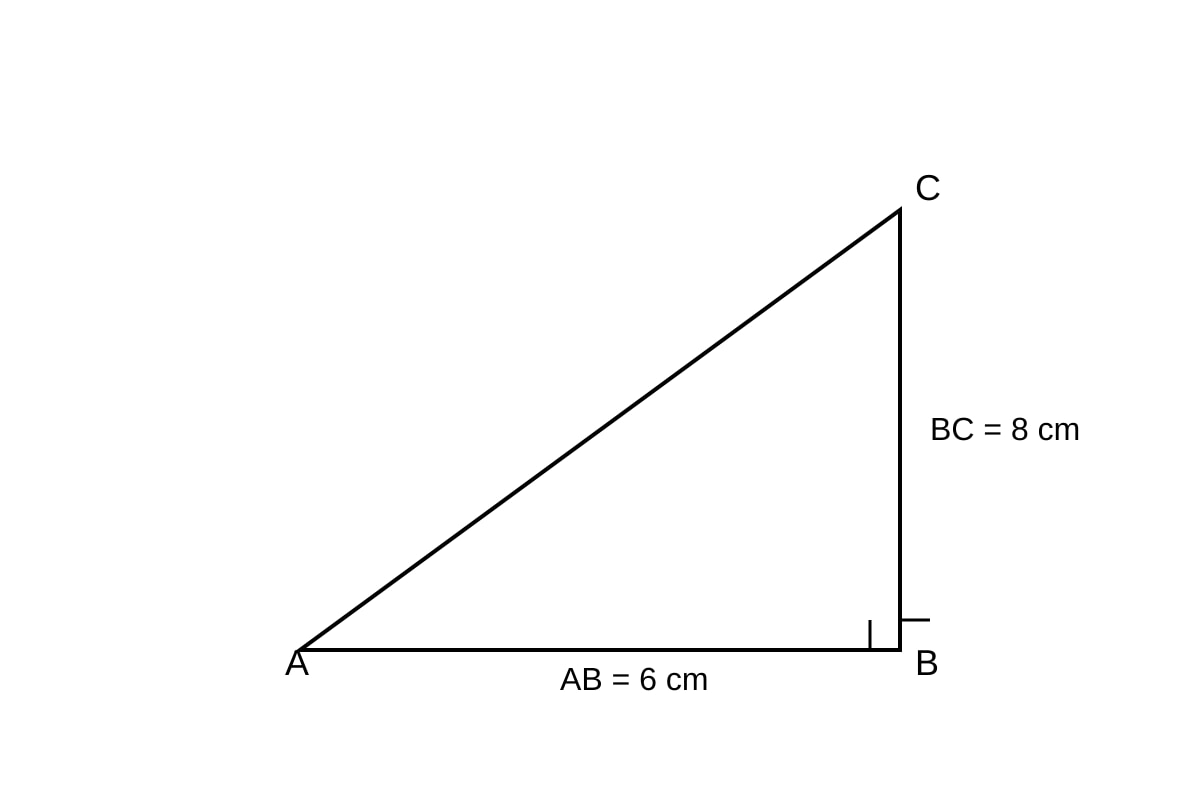

2. In the diagram below, $ABC$ is a right-angled triangle at $B$. $AB = 6$ cm, $BC = 8$ cm. Express $\tan \angle BAC$ as a fraction in simplest form.

Image pending generation: diagram for Q2.

[1]

3. Points $X$, $Y$, $Z$ are such that $YZ = 9$ m, $XZ = 15$ m and $\angle XYZ = 90^\circ$. Express $\cos \angle XZY$ as a fraction in simplest form. [1]

4. A vertical flagpole casts a shadow of 12 m on level ground. The angle of elevation of the top of the flagpole from the tip of the shadow is $35^\circ$. Calculate the height of the flagpole, correct to 1 decimal place. [2]

5. Find the bearing of point $B$ from point $A$ if the angle measured clockwise from North at $A$ to the line $AB$ is $128^\circ$. [1]

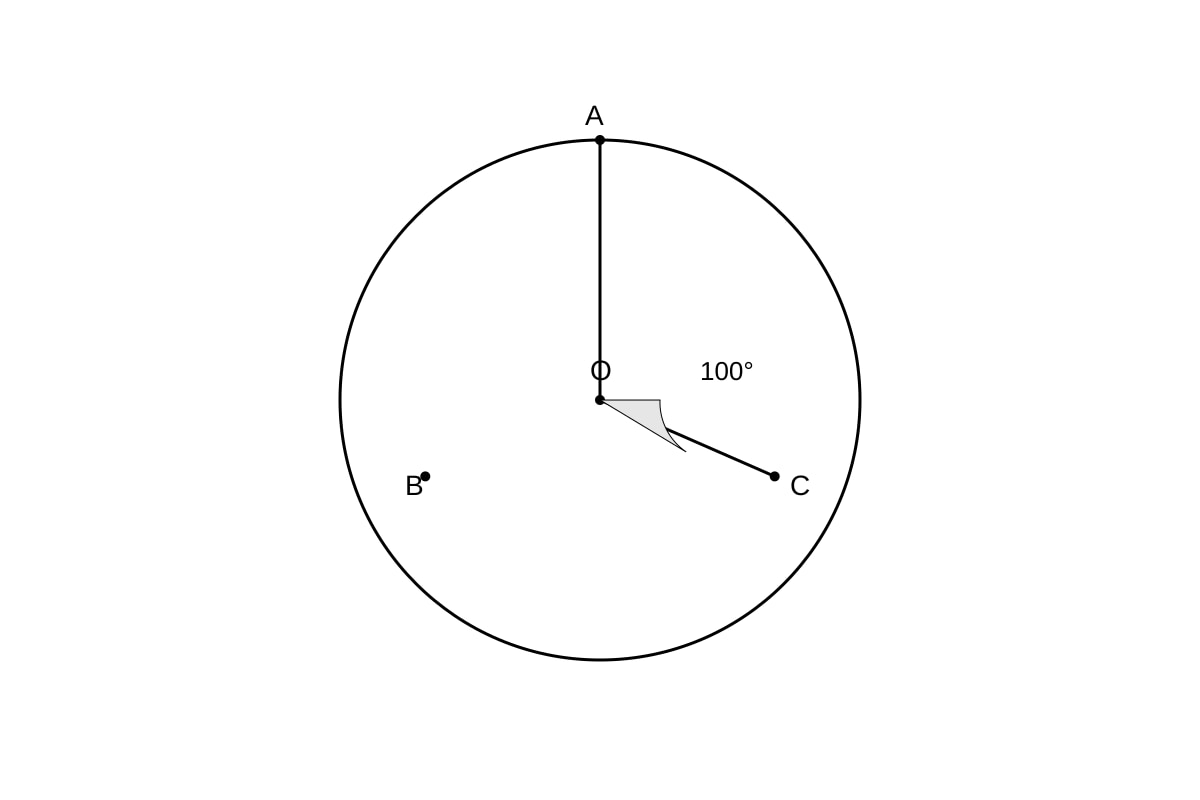

6. In the diagram, $O$ is the centre of a circle and $A$, $B$, $C$ lie on the circle. $\angle AOC = 100^\circ$. Find $\angle ABC$.

Image pending generation: diagram for Q6.

[1]

7. A ladder leans against a wall. The foot of the ladder is 4 m from the wall and the ladder is 5 m long. Calculate the angle the ladder makes with the ground, correct to the nearest degree. [2]

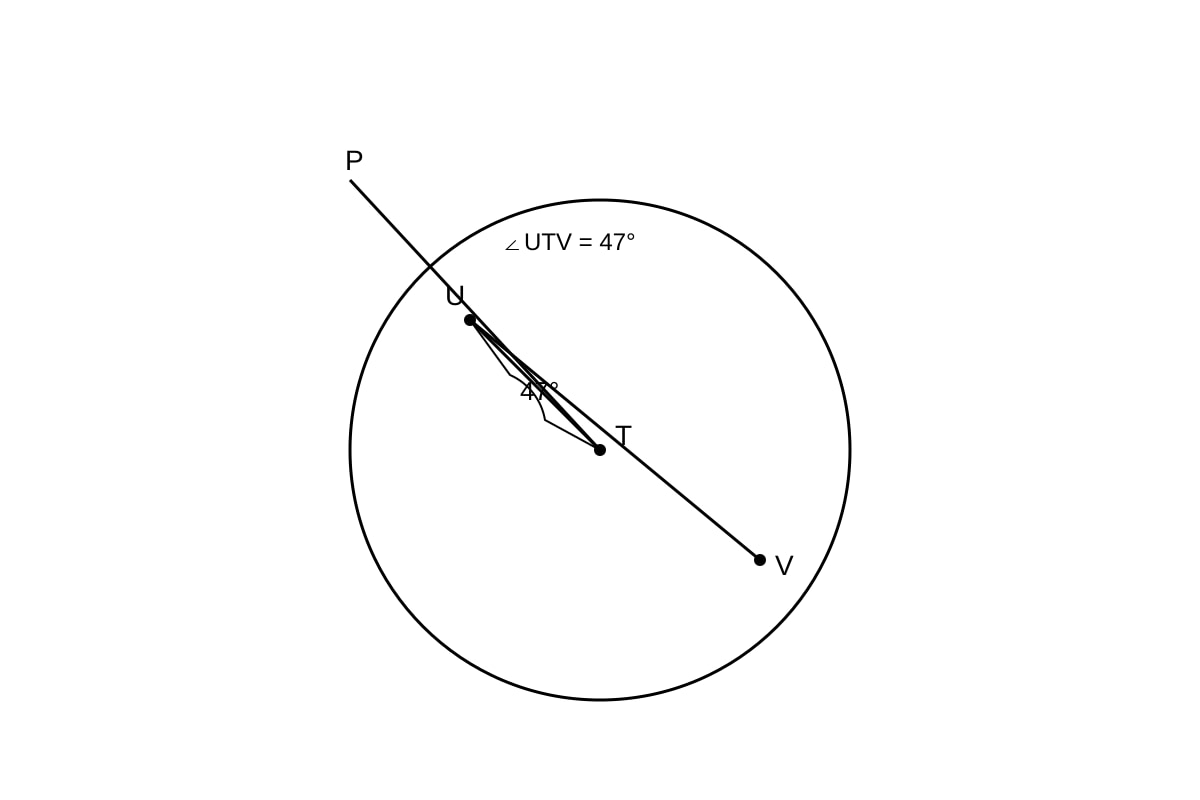

8. In the diagram, $PT$ is a tangent to the circle at $T$ and $T$, $U$, $V$ are points on the circle. $\angle UTV = 47^\circ$. State the value of $\angle UTP$.

Image pending generation: diagram for Q8.

[1]

---

Section B (Questions 9–14) — Structured Problems [20 marks]

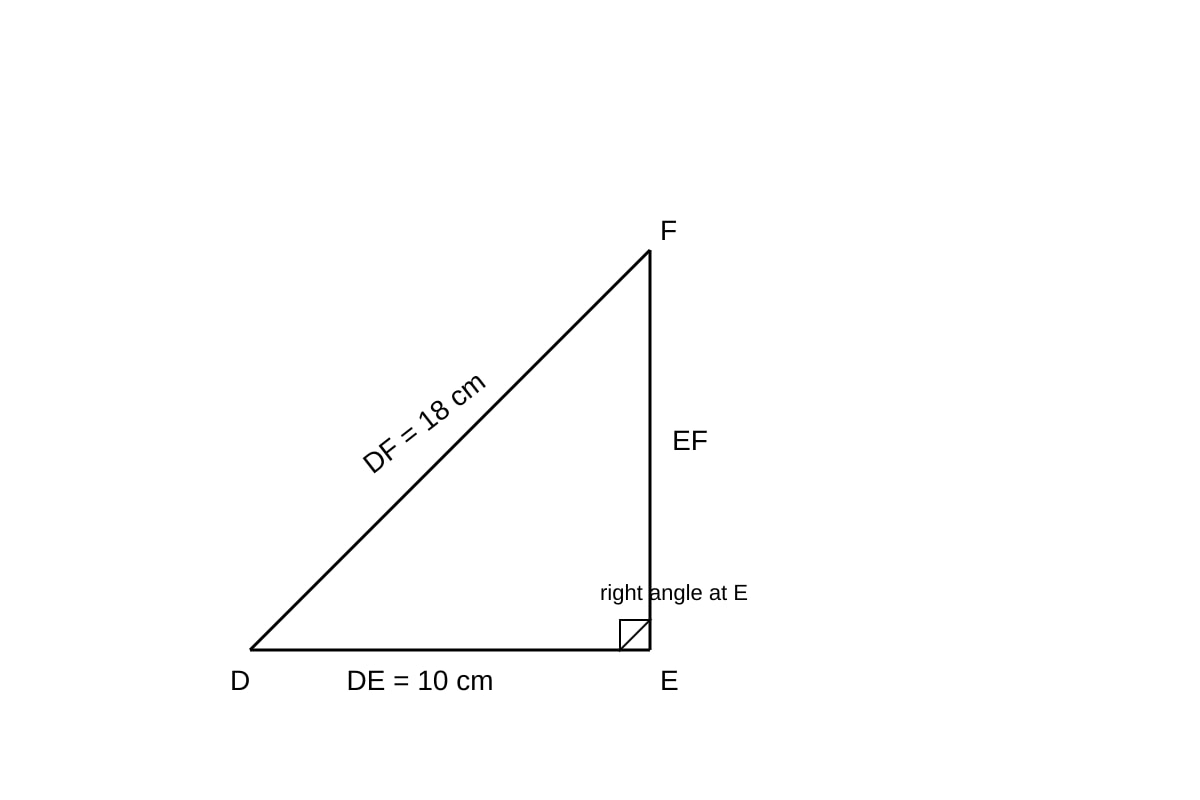

9. In the diagram, triangle $DEF$ is right-angled at $E$. $DE = 10$ cm, $DF = 18$ cm. (a) Find $EF$. [2] (b) Calculate $\angle EFD$, correct to 1 decimal place. [2]

Image pending generation: diagram for Q9.

10. Points $A$, $B$, $C$ are collinear with $B$ between $A$ and $C$. $AB = 7$ m. Triangle $BCD$ is right-angled at $C$ with $CD = 24$ m and $BD = 25$ m. (a) Find $BC$. [2] (b) Find the bearing of $D$ from $A$ if the bearing of $C$ from $A$ is $060^\circ$ and line $AC$ is due East of North by that bearing. [2]

11. A tower of height 30 m stands on level ground. From a point 40 m from the base, the angle of elevation to the top is $\theta$. (a) Show that $\tan \theta = 0.75$. [1] (b) Calculate $\theta$, correct to 1 decimal place. [2]

12. In the diagram, $O$ is the centre of the circle. $A$, $B$, $C$, $D$ lie on the circle. $AC$ is a diameter. $\angle CBD = 35^\circ$. Find $\angle CAD$.

Image pending generation: diagram for Q12.

[2]

13. A cliff is 80 m high. From a boat, the angle of elevation to the top of the cliff is $22^\circ$. Calculate the distance of the boat from the foot of the cliff, correct to the nearest metre. [3]

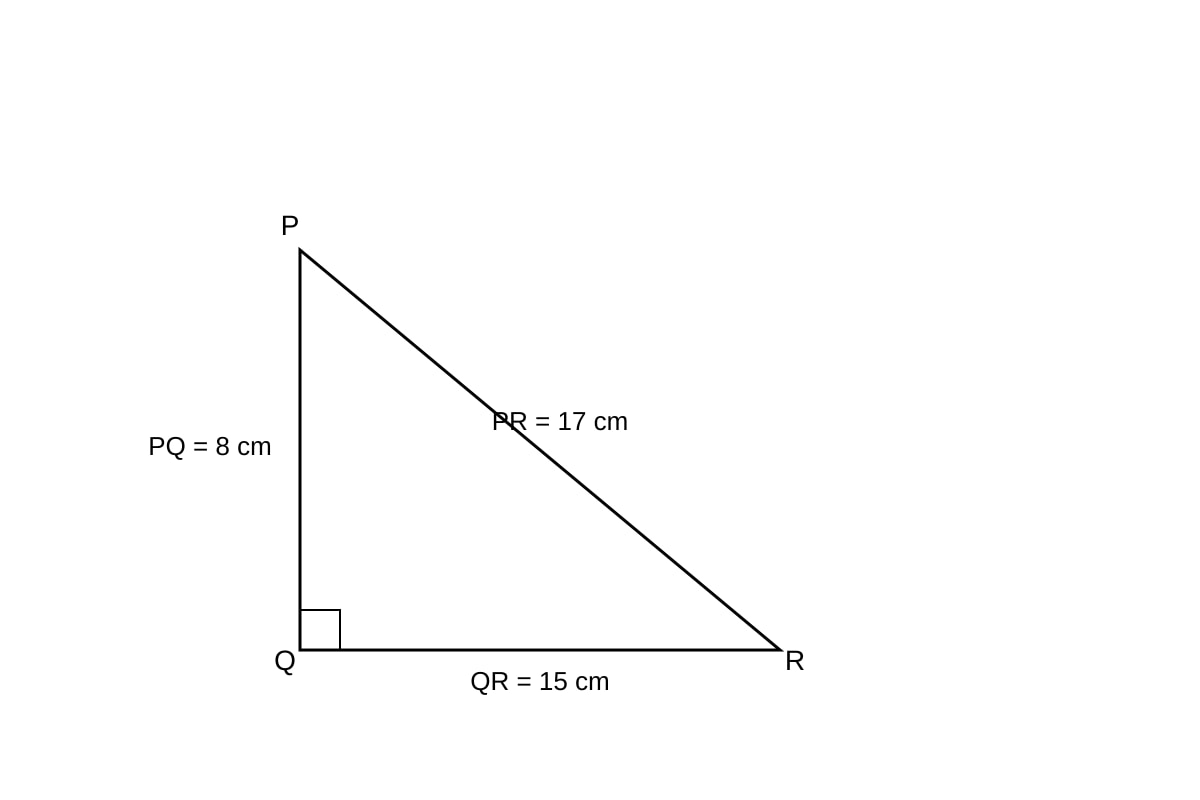

14. In the diagram, $PQR$ is a triangle with $PQ = 8$ cm, $QR = 15$ cm, $PR = 17$ cm. (a) Show that $\angle PQR = 90^\circ$. [2] (b) Express $\sin \angle QPR$ as a fraction in simplest form. [1]

Image pending generation: diagram for Q14.

---

Section C (Questions 15–20) — Extended Application [14 marks]

15. A lighthouse 20 m tall stands on a rock platform 15 m above sea level. From a ship, the angle of elevation to the top of the lighthouse is $14^\circ$. (a) Find the total height from sea level to the top. [1] (b) Calculate the horizontal distance of the ship from the rock platform, correct to the nearest metre. [2]

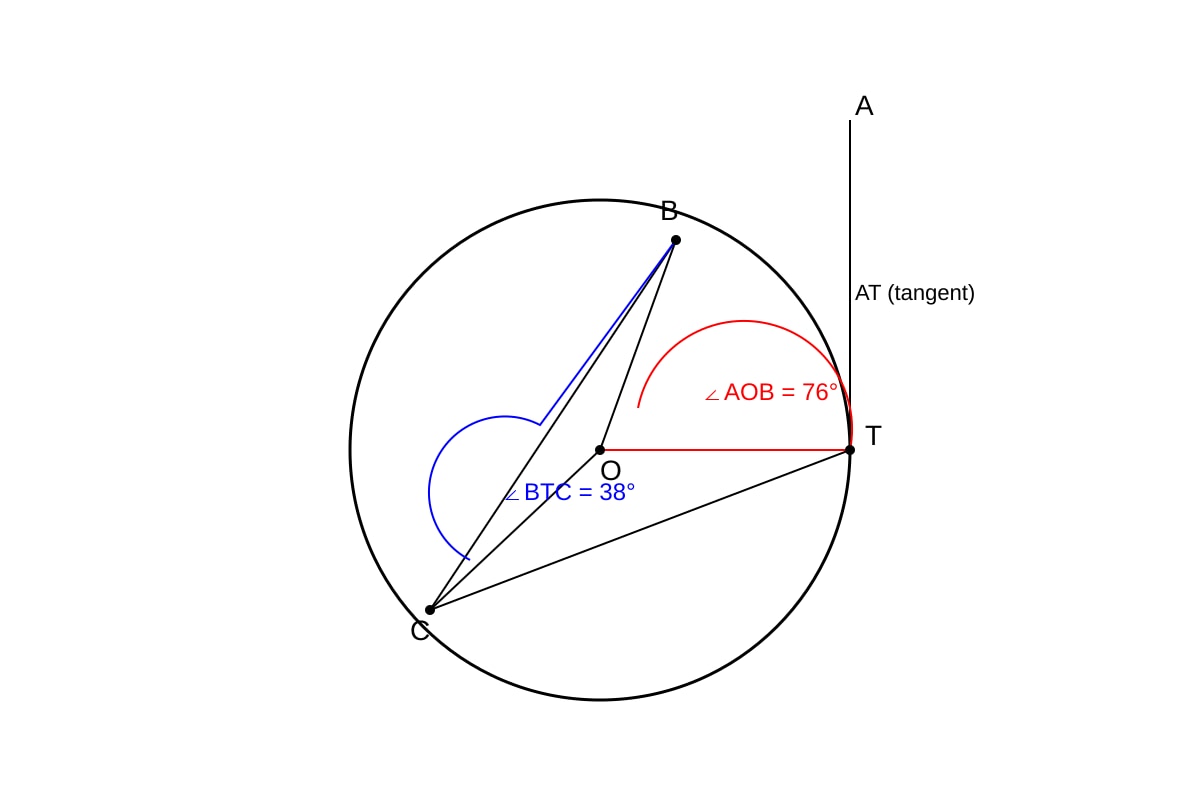

16. In the diagram, $O$ is the centre of the circle, $AT$ is a tangent at $T$. $\angle AOB = 76^\circ$ and $B$, $T$, $C$ are on the circle with $\angle BTC = 38^\circ$. Find $\angle ATC$.

Image pending generation: diagram for Q16.

[2]

17. A drone flies from $P$ to $Q$ on a bearing of $045^\circ$ for 100 m, then from $Q$ to $R$ on a bearing of $135^\circ$ for 100 m. (a) Sketch the path $PQR$ and mark the bearings. [1] (b) Find the distance $PR$, correct to the nearest metre. [2]

18. In the diagram, $ABC$ is a right triangle at $B$, $BD$ is perpendicular to $AC$. $AB = 9$ cm, $BC = 12$ cm. (a) Find $AC$. [2] (b) Find the length $BD$. [2]

Image pending generation: diagram for Q18.

19. A building and a tower are 200 m apart. From the top of the building (height 50 m), the angle of depression to the base of the tower is $20^\circ$. Find the height of the tower, correct to the nearest metre. [3]

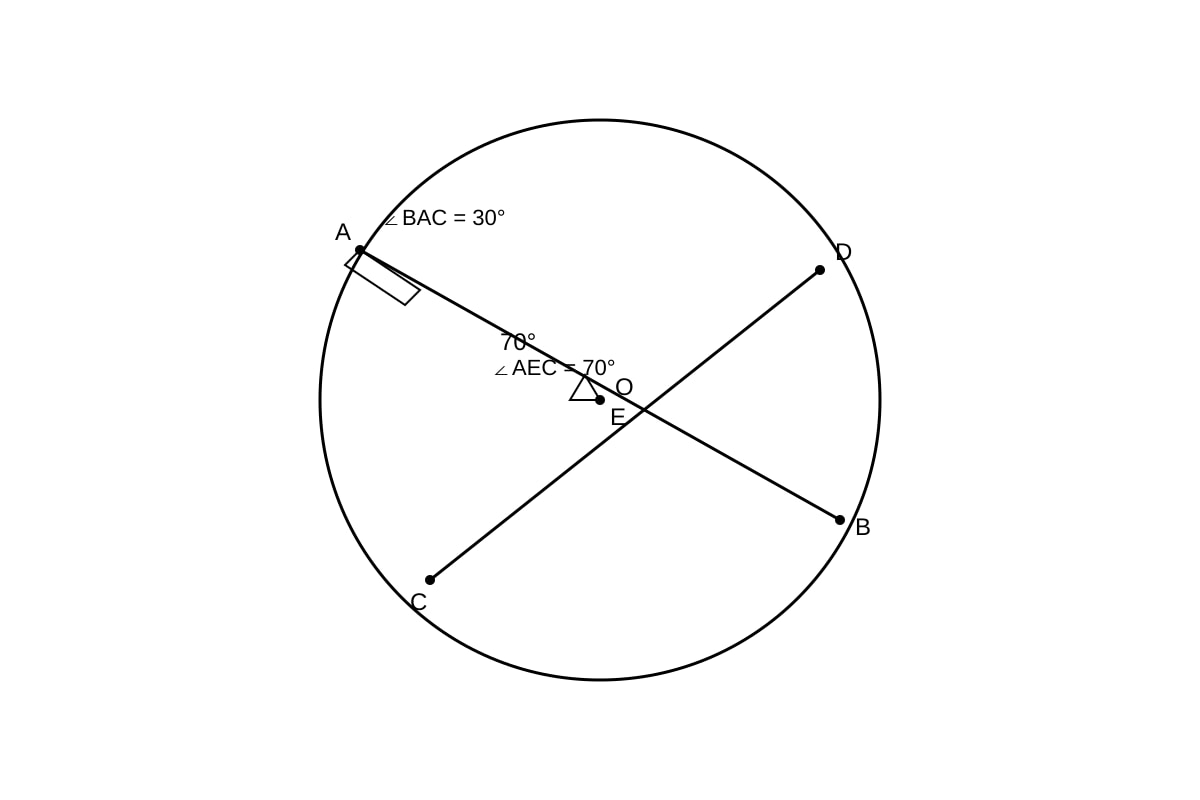

20. In the diagram, $O$ is the centre of the circle, $AB$ and $CD$ are chords intersecting at $E$ inside the circle. $\angle AEC = 70^\circ$, $\angle BAC = 30^\circ$. Find $\angle BDC$.

Image pending generation: diagram for Q20.

[2]

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper — Answer Key (Version 3)

Subject: Elementary Mathematics
Level: Secondary 3
Topic: Geometry & Trigonometry
Total Marks: 50

---

Section A Answers

Q1. [1 mark]
By Pythagoras: $QR = \sqrt{13^2 - 5^2} = \sqrt{169 - 25} = \sqrt{144} = 12$ cm.
$\sin \angle PQR = \frac{\text{opp}}{\text{hyp}} = \frac{PR}{PQ} = \frac{5}{13}$.
Answer: $\frac{5}{13}$
Teaching note: Opposite to $\angle PQR$ is $PR$, hypotenuse is $PQ$. Simplify fraction if needed.

Q2. [1 mark]
$\tan \angle BAC = \frac{\text{opp}}{\text{adj}} = \frac{BC}{AB} = \frac{8}{6} = \frac{4}{3}$.
Answer: $\frac{4}{3}$
From image: Right angle at B, AB=6 (adjacent), BC=8 (opposite).

Q3. [1 mark]
$\cos \angle XZY = \frac{\text{adj}}{\text{hyp}} = \frac{YZ}{XZ} = \frac{9}{15} = \frac{3}{5}$.
Answer: $\frac{3}{5}$

Q4. [2 marks]
Let height = $h$. $\tan 35^\circ = \frac{h}{12} \Rightarrow h = 12 \tan 35^\circ \approx 12 \times 0.7002 = 8.402$ m.
Answer: 8.4 m (1 dp)
Marks: 1 for correct trig setup, 1 for answer.

Q5. [1 mark]
Bearing is measured clockwise from North. Given as $128^\circ$.
Answer: $128^\circ$

Q6. [1 mark]
Angle at centre = $2 \times$ angle at circumference (same arc $AC$). $\angle ABC = \frac{1}{2} \times 100^\circ = 50^\circ$.
Answer: $50^\circ$

Q7. [2 marks]
$\cos \theta = \frac{4}{5} = 0.8 \Rightarrow \theta = \cos^{-1}(0.8) \approx 36.87^\circ$.
Answer: $37^\circ$ (nearest degree)
Marks: 1 for ratio, 1 for angle.

Q8. [1 mark]
Alternate segment theorem: angle between tangent and chord equals angle in alternate segment. $\angle UTP = \angle UTV = 47^\circ$.
Answer: $47^\circ$

---

Section B Answers

Q9. [4 marks total]
(a) [2] $EF = \sqrt{DF^2 - DE^2} = \sqrt{18^2 - 10^2} = \sqrt{324 - 100} = \sqrt{224} = 4\sqrt{14} \approx 14.97$ cm.
(b) [2] $\sin \angle EFD = \frac{DE}{DF} = \frac{10}{18} = \frac{5}{9} \Rightarrow \angle EFD = \sin^{-1}(5/9) \approx 33.7^\circ$.
Answer: (a) $\sqrt{224}$ cm or 15.0 cm; (b) $33.7^\circ$
Marks: 2 for Pythagoras, 2 for trig + answer.

Q10. [4 marks]
(a) [2] $BC = \sqrt{BD^2 - CD^2} = \sqrt{25^2 - 24^2} = \sqrt{625 - 576} = \sqrt{49} = 7$ m.
(b) [2] Since $AC$ collinear and bearing of C from A is $060^\circ$, line AD is same direction; D is east of C by 24 m but bearing from A unchanged at $060^\circ$.
Answer: (a) 7 m; (b) $060^\circ$

Q11. [3 marks]
(a) [1] $\tan \theta = \frac{30}{40} = 0.75$. Shown.
(b) [2] $\theta = \tan^{-1}(0.75) \approx 36.87^\circ \Rightarrow 36.9^\circ$ (1 dp).
Answer: (b) $36.9^\circ$

Q12. [2 marks]
Angle in semicircle: $\angle ABC = 90^\circ$. In $\triangle BCD$, $\angle BCD = 90^\circ - 35^\circ = 55^\circ$? Actually $\angle CAD = \angle CBD$ (same segment CD). So $\angle CAD = 35^\circ$.
Answer: $35^\circ$
From image: same chord CD, angles in same segment equal.

Q13. [3 marks]
$\tan 22^\circ = \frac{80}{d} \Rightarrow d = \frac{80}{\tan 22^\circ} \approx \frac{80}{0.4040} \approx 198.0$ m.
Answer: 198 m
Marks: 1 setup, 2 for calc and rounding.

Q14. [3 marks]
(a) [2] $8^2 + 15^2 = 64 + 225 = 289 = 17^2$. Converse of Pythagoras → right angle at Q.
(b) [1] $\sin \angle QPR = \frac{QR}{PR} = \frac{15}{17}$.
Answer: (a) shown; (b) $\frac{15}{17}$

---

Section C Answers

Q15. [3 marks]
(a) [1] Total height = $15 + 20 = 35$ m.
(b) [2] $\tan 14^\circ = \frac{35}{d} \Rightarrow d = \frac{35}{\tan 14^\circ} \approx \frac{35}{0.2493} \approx 140.4$ m → 140 m.
Answer: (a) 35 m; (b) 140 m

Q16. [2 marks]
$\angle ACB = \frac{1}{2}\angle AOB = 38^\circ$ (same arc AB). $\angle ATC = \angle ACB = 38^\circ$ (alternate segment).
Answer: $38^\circ$

Q17. [3 marks]
(a) [1] Sketch: P to Q NE, Q to R SE, right angle at Q.
(b) [2] $PR = \sqrt{100^2 + 100^2} = \sqrt{20000} \approx 141$ m.
Answer: (b) 141 m

Q18. [4 marks]
(a) [2] $AC = \sqrt{9^2 + 12^2} = \sqrt{81+144} = \sqrt{225} = 15$ cm.
(b) [2] Area = $\frac{1}{2}\times 9\times 12 = \frac{1}{2}\times 15\times BD \Rightarrow BD = \frac{108}{15} = 7.2$ cm.
Answer: (a) 15 cm; (b) 7.2 cm

Q19. [3 marks]
Horizontal distance = 200 m. Vertical drop from building top to tower base = $200 \tan 20^\circ \approx 72.8$ m. Tower height = $50 + 72.8 = 122.8$ m → 123 m.
Answer: 123 m

Q20. [2 marks]
In $\triangle AEC$: $\angle ACE = 180^\circ - 70^\circ - 30^\circ = 80^\circ$. $\angle BDC = \angle BAC = 30^\circ$ (same segment BC).
Answer: $30^\circ$
