TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 3

TuitionGoWhere Practice Paper (AI) — Version 2 of 5

Subject: Elementary Mathematics
Level: Secondary 3
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 60 minutes
Total Marks: 50
Name: ___________________________
Class: ______________
Date: ______________

Instructions

Answer all questions in the spaces provided.
Show all working clearly.
Calculators may be used.
Give answers to the stated degree of accuracy where required.
This practice paper is generated from syllabus-first and LLM-inferred templates; it is not derived from any official past-year exam.

Section A (Questions 1–8) — Short Answer [16 marks]

Each question carries 2 marks unless stated.

1. In right-angled triangle $ABC$ , $\angle B = 90^\circ$ , $AB = 5$ cm and $BC = 12$ cm. Find the length of $AC$ .

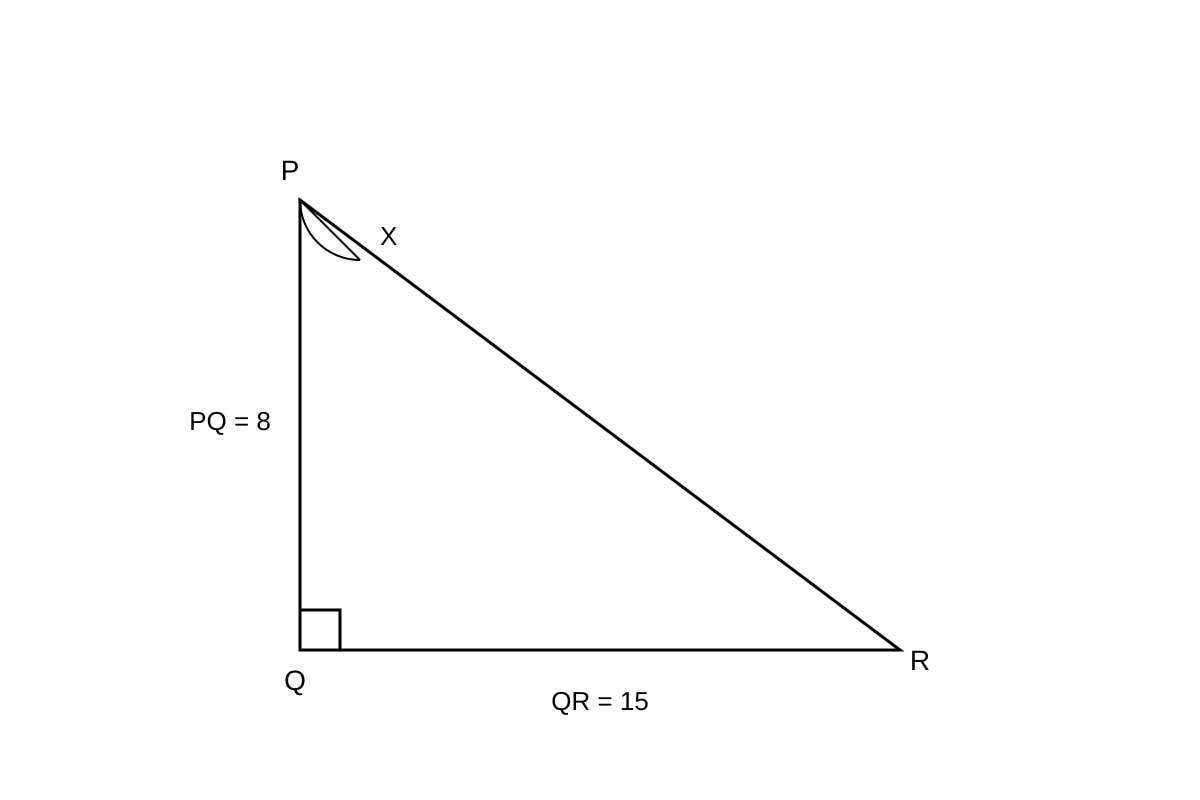

2. Express $\sin \angle X$ as a fraction in simplest form from the diagram below.

Diagram for Q2 (SEC3 Emaths)

Generated diagram for Q2.

3. Find the bearing of $B$ from $A$ if the angle measured clockwise from North at $A$ to line $AB$ is $125^\circ$ .

4. A vertical pole of height $20$ m casts a shadow of length $15$ m on horizontal ground. Find the angle of elevation of the top of the pole from the tip of the shadow.

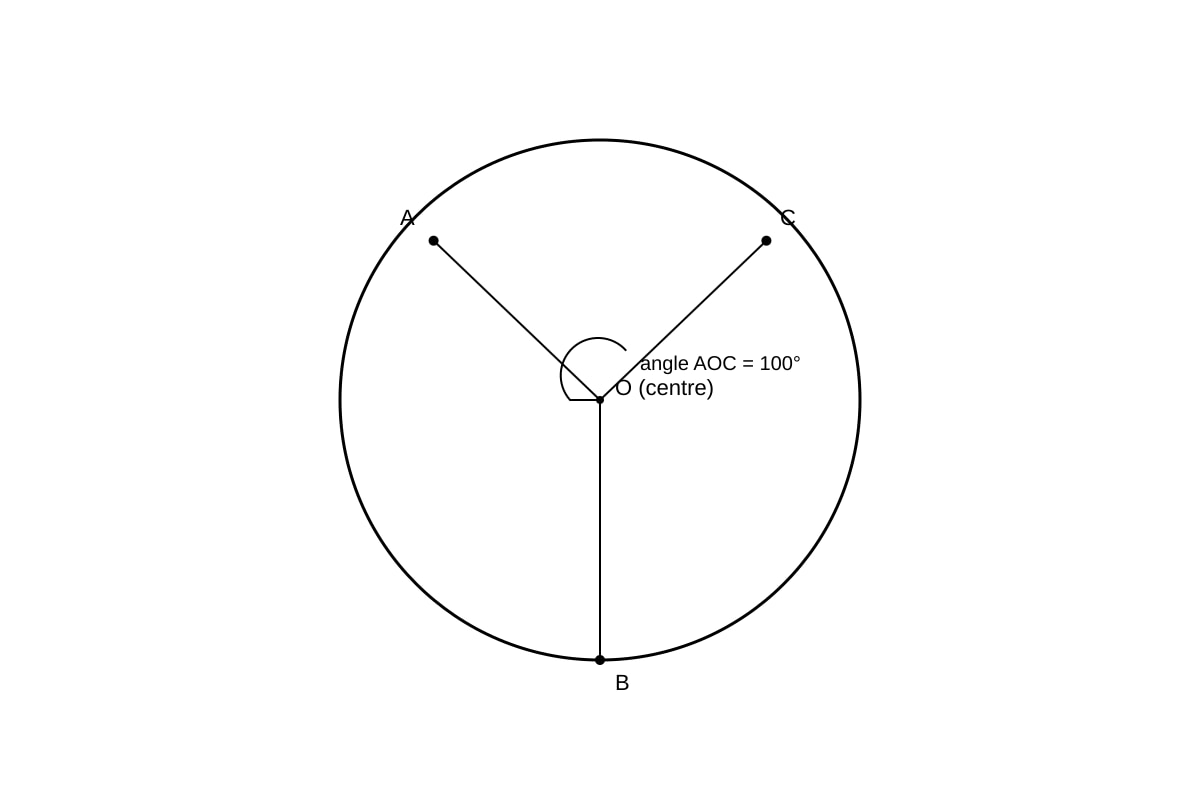

5. In the diagram, $O$ is the centre of a circle. $A$ , $B$ , $C$ lie on the circle and $\angle AOC = 100^\circ$ . Find $\angle ABC$ .

Diagram for Q5 (SEC3 Emaths)

Generated diagram for Q5.

6. Points $P$ , $Q$ , $R$ are collinear with $Q$ between $P$ and $R$ . $PQ = 7$ cm, $QR = 9$ cm. Find $PR$ .

7. A ladder $13$ m long leans against a wall. The foot of the ladder is $5$ m from the wall. Find the height the ladder reaches up the wall.

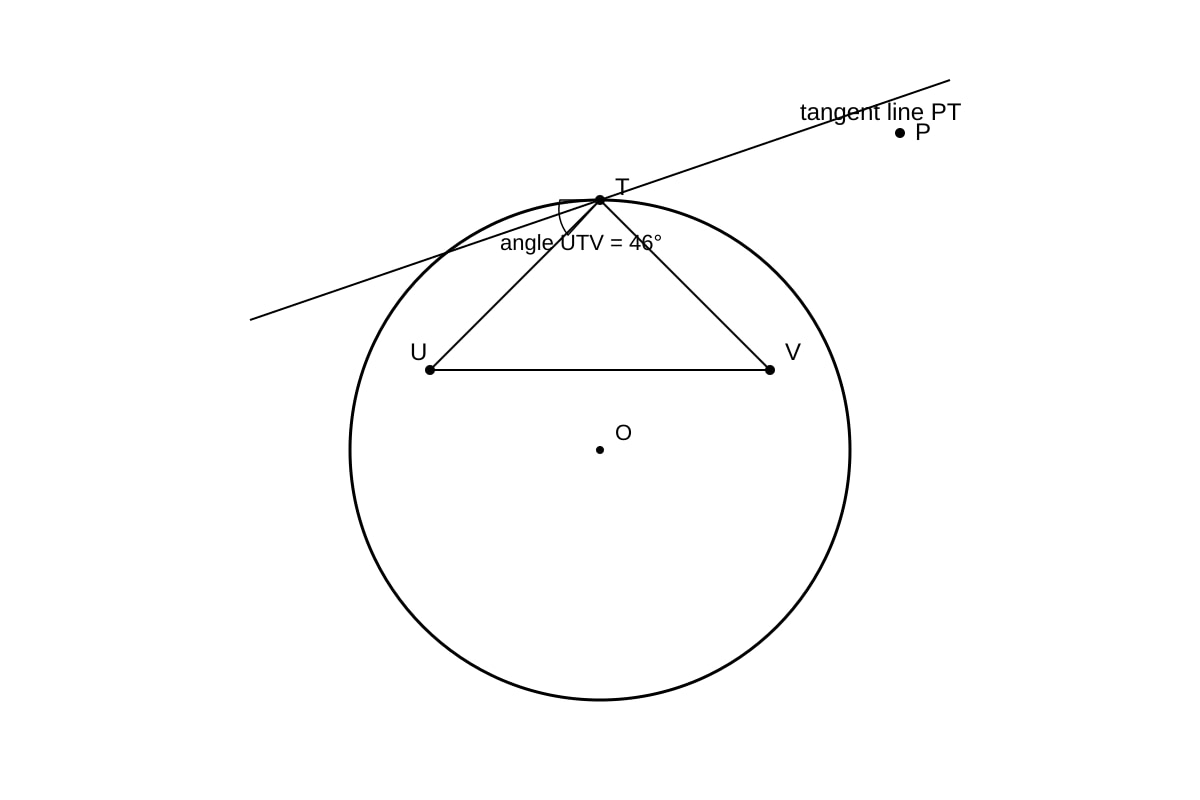

8. In the diagram, $PT$ is a tangent to the circle at $T$ and $T$ , $U$ , $V$ are on the circle. $\angle UTV = 46^\circ$ . Find $\angle PTU$ using the alternate segment theorem.

Diagram for Q8 (SEC3 Emaths)

Generated diagram for Q8.

Section B (Questions 9–14) — Structured [18 marks]

9. Triangle $DEF$ is right-angled at $E$ . $DE = 6$ cm, $DF = 10$ cm. (a) Find $EF$ . [2] (b) Find $\angle DFE$ , correct to 1 decimal place. [2]

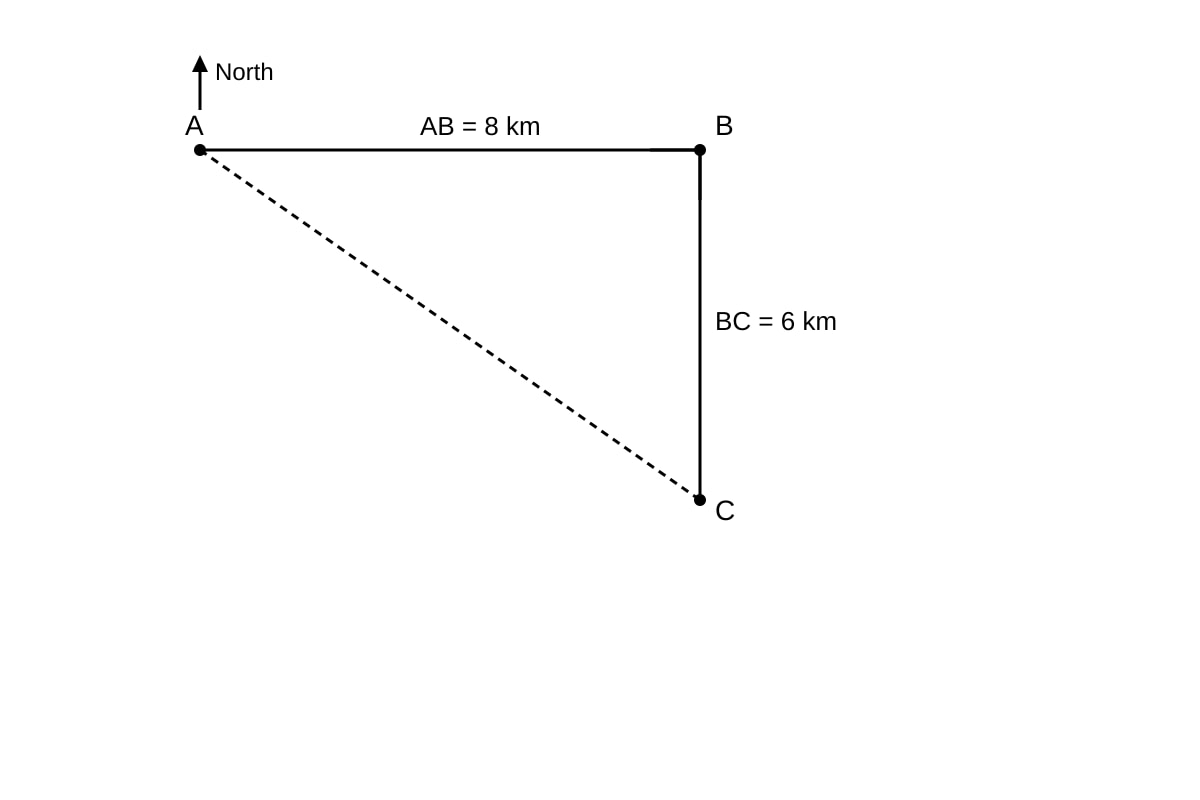

10. The diagram shows points $A$ , $B$ , $C$ with $B$ due east of $A$ and $C$ due south of $B$ . $AB = 8$ km, $BC = 6$ km. (a) Find the distance $AC$ . [2] (b) Find the bearing of $C$ from $A$ . [2]

Diagram for Q10 (SEC3 Emaths)

Generated diagram for Q10.

11. A tower stands on level ground. From a point $40$ m from its base, the angle of elevation to the top is $30^\circ$ . (a) Find the height of the tower. [2] (b) From a point $20$ m closer, find the new angle of elevation to the nearest degree. [2]

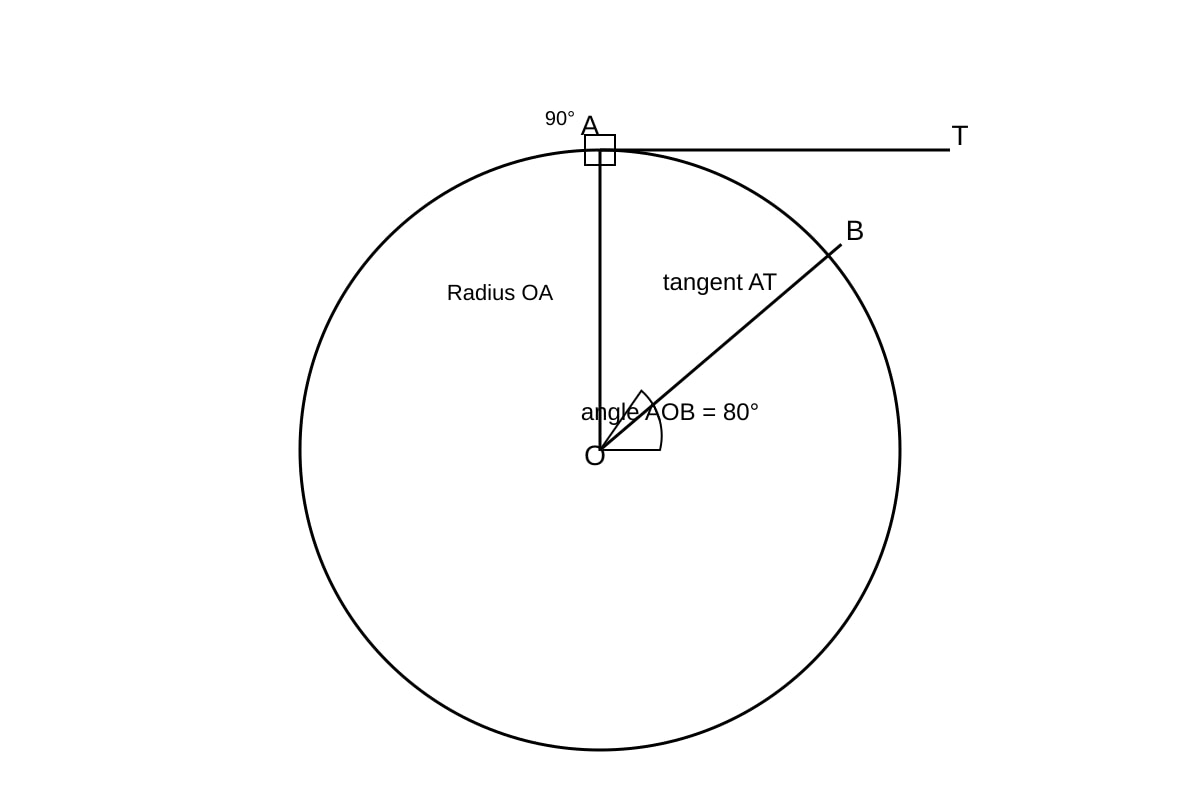

12. In the circle with centre $O$ , $\angle AOB = 80^\circ$ and $AT$ is tangent at $A$ . Find $\angle BAT$ .

Diagram for Q12 (SEC3 Emaths)

Generated diagram for Q12.

(a) State the theorem used. [1] (b) Calculate $\angle BAT$ . [2]

13. Right-angled triangle $XYZ$ has $\angle Y = 90^\circ$ , $XY = 9$ , $YZ = 12$ . (a) Find $XZ$ . [2] (b) Find $\tan \angle Z$ . [1] (c) Find $\angle X$ to the nearest degree. [1]

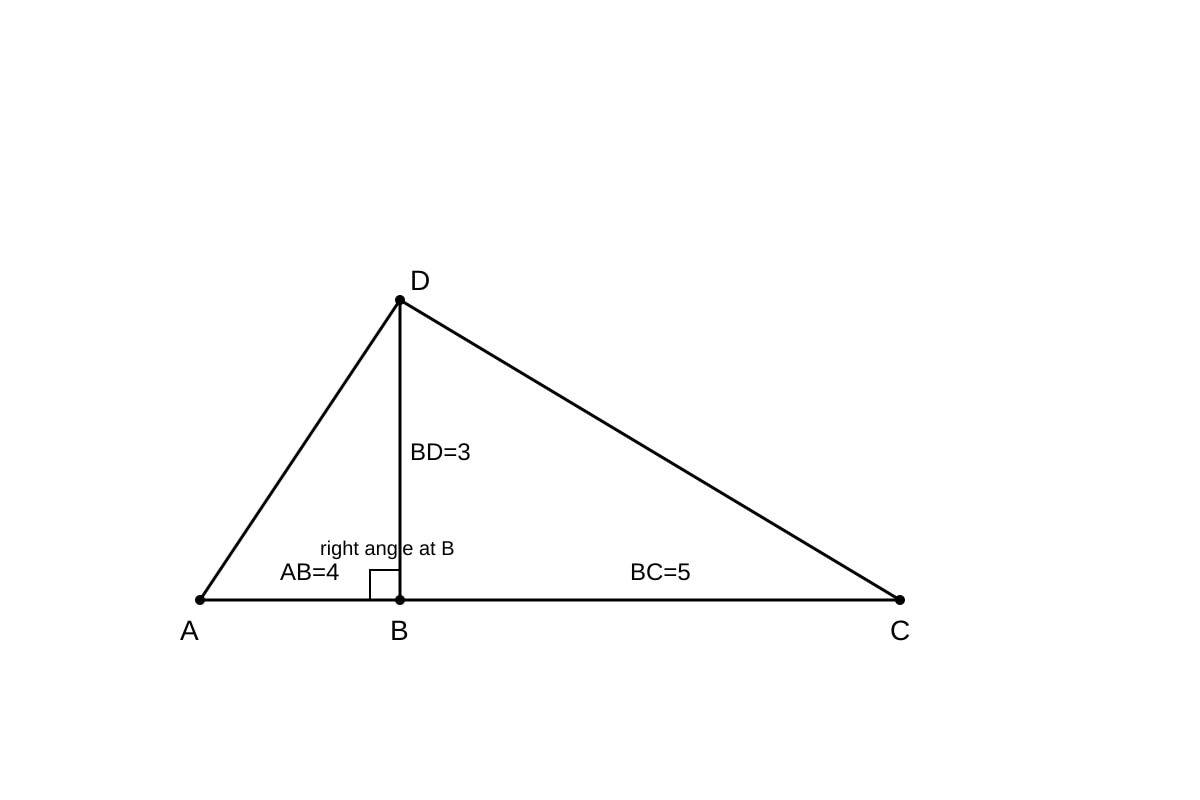

14. Collinear points $A$ , $B$ , $C$ with $B$ between $A$ and $C$ . $AB = 4$ cm, $BC = 5$ cm. A perpendicular $BD = 3$ cm is drawn at $B$ . Find the area of triangle $ADC$ . [3]

Diagram for Q14 (SEC3 Emaths)

Generated diagram for Q14.

Section C (Questions 15–20) — Extended [16 marks]

15. A building $60$ m high is observed from two points $P$ and $Q$ on level ground, on the same side of the building. From $P$ , angle of elevation to top is $25^\circ$ ; from $Q$ , it is $40^\circ$ . $Q$ is nearer the building. (a) Find distance from $Q$ to building base. [2] (b) Find distance $PQ$ . [2]

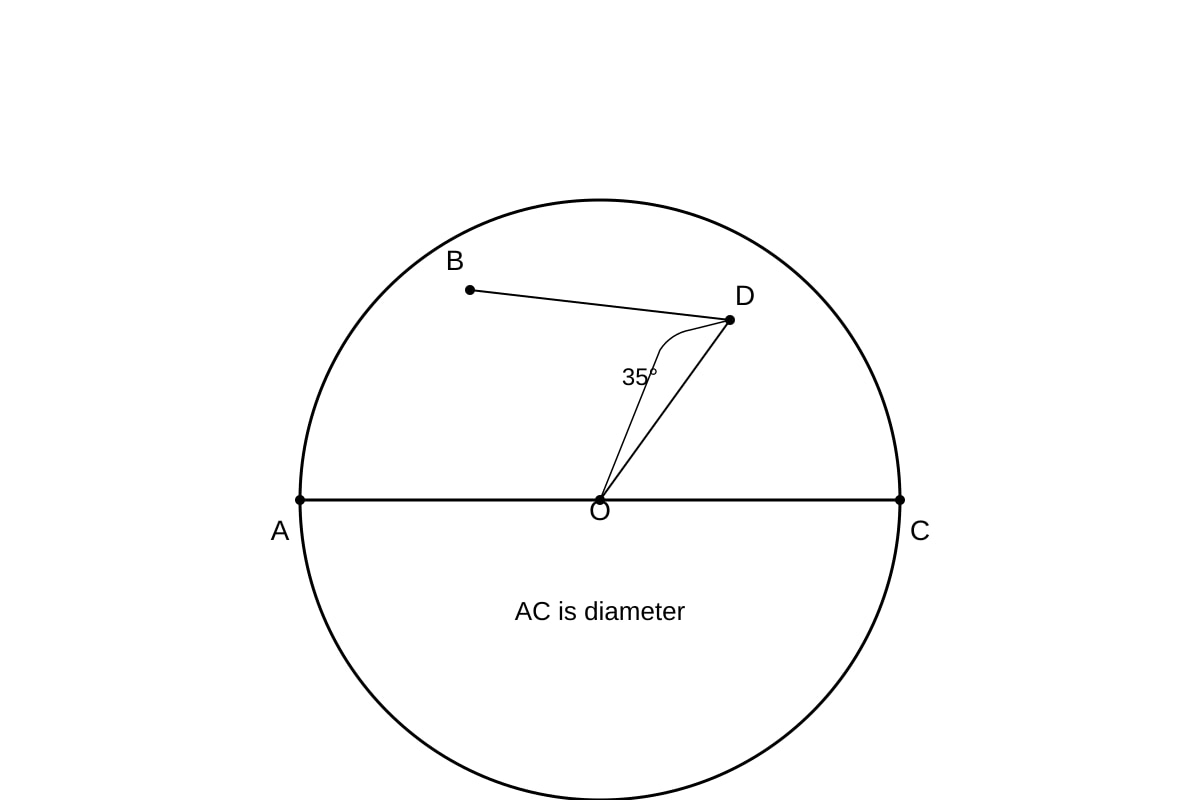

16. In the diagram, $O$ is centre, $A$ , $B$ , $C$ , $D$ on circle. $AC$ is diameter. $\angle CBD = 35^\circ$ . Find $\angle CAD$ .

Diagram for Q16 (SEC3 Emaths)

Generated diagram for Q16.

(a) State why $\angle ABC = 90^\circ$ . [1] (b) Find $\angle BAC$ . [1] (c) Find $\angle CAD$ . [1]

17. A ship sails $10$ km on a bearing of $060^\circ$ from $X$ to $Y$ , then $8$ km on a bearing of $150^\circ$ from $Y$ to $Z$ . (a) Find the bearing of $Z$ from $X$ . [3] (b) Find distance $XZ$ to 1 decimal place. [2]

18. Triangle $PQR$ right-angled at $R$ , $PR = 15$ , $QR = 8$ . (a) Find $PQ$ . [1] (b) Find $\sin \angle P$ and $\cos \angle P$ as fractions. [2] (c) Verify $\sin^2 \angle P + \cos^2 \angle P = 1$ . [1]

19. From the top of a cliff $80$ m high, the angle of depression to a boat is $20^\circ$ . Find the distance from the boat to the foot of the cliff. [3]

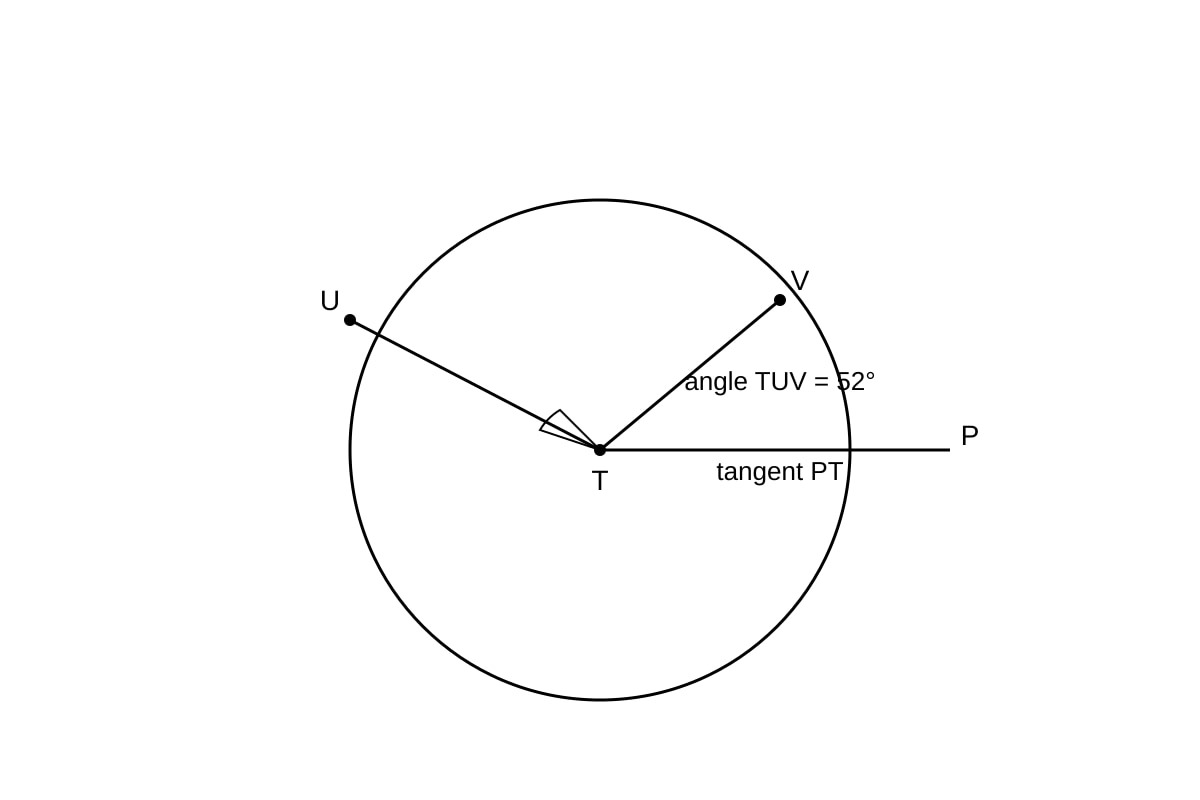

20. In the diagram, $PT$ tangent at $T$ , $T$ , $U$ , $V$ on circle, $\angle TUV = 52^\circ$ . Find $\angle VTP$ .

Diagram for Q20 (SEC3 Emaths)

Generated diagram for Q20.

(a) Name the theorem. [1] (b) Calculate $\angle VTP$ . [2]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper — Answer Key (Version 2)

Subject: Elementary Mathematics
Level: Secondary 3
Topic: Geometry & Trigonometry
Total Marks: 50

Section A Answers (16 marks)

Q1. $AC = 13$ cm. [2]
Working: Pythagoras: $AC^2 = AB^2 + BC^2 = 5^2 + 12^2 = 25 + 144 = 169$ , so $AC = \sqrt{169} = 13$ .
Teaching: In a right triangle, hypotenuse² = sum of squares of other two sides.

Q2. $\sin \angle X = \frac{8}{17}$ [2]
Working: Hypotenuse $PR = \sqrt{8^2 + 15^2} = \sqrt{64+225} = \sqrt{289} = 17$ . Opposite to X (at P) is QR = 15? Wait: angle X at P, opposite = QR = 15, hypotenuse = 17, so $\sin X = 15/17$ . Correction: diagram shows PQ=8 (adjacent), QR=15 (opposite), so $\sin X = 15/17$ .
Teaching: $\sin = \text{opp}/\text{hyp}$ . Simplify if needed; here $15/17$ already simplest.

Q3. Bearing = $125^\circ$ [2]
Working: Bearing is clockwise from North; given as $125^\circ$ , so answer is $125^\circ$ .
Teaching: Bearings written as 3-digit numbers sometimes but $125^\circ$ acceptable.

Q4. Angle = $53.1^\circ$ (or $\tan^{-1}(20/15)$ ) [2]
Working: $\tan \theta = 20/15 = 4/3$ , $\theta = \tan^{-1}(4/3) \approx 53.1^\circ$ .
Teaching: Angle of elevation from tip to top uses opposite = height, adjacent = shadow.

Q5. $\angle ABC = 50^\circ$ [2]
Working: Angle at centre = $100^\circ$ , angle at circumference (same arc) = half = $50^\circ$ .
Teaching: Angle at centre is twice angle at circumference subtended by same arc.

Q6. $PR = 16$ cm [2]
Working: $PR = PQ + QR = 7 + 9 = 16$ .
Teaching: Collinear with Q between means add segments.

Q7. Height = $12$ m [2]
Working: $h^2 + 5^2 = 13^2 \Rightarrow h^2 = 169 - 25 = 144 \Rightarrow h = 12$ .
Teaching: Wall and ground form right angle with ladder as hypotenuse.

Q8. $\angle PTU = 46^\circ$ [2]
Working: Alternate segment theorem: angle between tangent and chord = angle in alternate segment = $\angle UTV = 46^\circ$ .
Teaching: Tangent-chord angle equals inscribed angle on opposite arc.

Section B Answers (18 marks)

Q9. (a) $EF = 8$ cm [2] $EF^2 = 10^2 - 6^2 = 64$ , $EF=8$ .
(b) $\angle DFE = 36.9^\circ$ [2] $\sin^{-1}(6/10)=36.87^\circ$ .
Teaching: Identify sides relative to angle at F.

Q10. (a) $AC = 10$ km [2] $\sqrt{8^2+6^2}=10$ .
(b) Bearing $C$ from $A = 090^\circ + \tan^{-1}(6/8)= 090+36.9 = 126.9^\circ \approx 127^\circ$ [2]
Teaching: Bearing from North at A clockwise to line AC.

Q11. (a) Height $= 40 \tan 30^\circ \approx 23.1$ m [2]
(b) New dist = 20 m, $\tan \theta = 23.1/20 = 1.155$ , $\theta \approx 49^\circ$ [2]
Teaching: Angle of elevation uses opposite/adjacent.

Q12. (a) Tangent-radius theorem [1]
(b) $\angle BAT = 40^\circ$ [2] Triangle OAB is isosceles, $\angle OAB = (180-80)/2 = 50^\circ$ , tangent perpendicular to radius so $\angle OAT = 90^\circ$ , thus $\angle BAT = 90-50 = 40^\circ$ .
Teaching: Radius to tangent is $90^\circ$ .

Q13. (a) $XZ = 15$ [2] $\sqrt{9^2+12^2}=15$ .
(b) $\tan \angle Z = 9/12 = 3/4$ [1]
(c) $\angle X = 53^\circ$ [1] $\tan^{-1}(12/9)$ .
Teaching: At Z, opposite is XY=9.

Q14. Area = $13.5$ cm² [3]
Base AC = 4+5=9, height BD=3, area = $\frac12 \times 9 \times 3 = 13.5$ .
Teaching: Triangle ADC has same height from D to line AC.

Section C Answers (16 marks)

Q15. (a) $d_Q = 60/\tan 40^\circ \approx 71.5$ m [2]
(b) $d_P = 60/\tan 25^\circ \approx 128.7$ m, $PQ = 128.7-71.5 = 57.2$ m [2]
Teaching: Nearer point has larger angle.

Q16. (a) Angle in semicircle = $90^\circ$ [1]
(b) $\angle BAC = 90-35 = 55^\circ$ [1]
(c) $\angle CAD = \angle CBD = 35^\circ$ (same segment) [1]
Teaching: AC diameter so ABC right; angles in same segment equal.

Q17. (a) Use vector/components: $X\to Y$ : E $10\sin60=8.66$ , N $10\cos60=5$ . $Y\to Z$ : bearing 150 → E $8\sin150=4$ , S $8\cos150=-6.93$ (i.e., south 6.93). Total E = 12.66, N = -1.93. Bearing = $90 + \tan^{-1}(1.93/12.66) \approx 98.7^\circ$ [3]
(b) $XZ = \sqrt{12.66^2+1.93^2} \approx 12.8$ km [2]
Teaching: Bearings converted to east/north components.

Q18. (a) $PQ = 17$ [1] $\sqrt{15^2+8^2}$ .
(b) $\sin P = 8/17$ , $\cos P = 15/17$ [2]
(c) $(8/17)^2+(15/17)^2 = (64+225)/289 = 1$ [1]
Teaching: At P, opposite = QR=8, adjacent = PR=15.

Q19. Distance = $80 / \tan 20^\circ \approx 219.8$ m [3]
Teaching: Angle of depression equals angle of elevation from boat.

Q20. (a) Alternate segment theorem [1]
(b) $\angle VTP = 52^\circ$ [2] Equals $\angle TUV$ .
Teaching: Tangent-chord angle equals angle in alternate segment.
