TuitionGoWhere Exam Practice (AI) - SA2 Practice Paper

Elementary Mathematics Secondary 3 (Version 5)

School: TuitionGoWhere Secondary School (AI)
Subject: Elementary Mathematics
Level: Secondary 3
Paper: SA2 Practice Paper (Version 5)
Duration: 60 minutes
Total Marks: 60
Name: ___________________________
Class: ________
Date: ____________

Instructions:

Answer all questions in the spaces provided.
Show all working clearly.
Calculators may be used.
Give answers to the required degree of accuracy where stated.
Take $g = 9.8\ \text{m/s}^2$ if needed (not required here).

Section A (Questions 1–8) — Short Answer [16 marks]

1. In a right-angled triangle, $PQ = 5\ \text{cm}$ and $PR = 13\ \text{cm}$ , with $\angle PQR = 90^\circ$ . Express $\sin \angle PRQ$ as a fraction in simplest form. [1]

2. Triangle $ABC$ is right-angled at $B$ . $AB = 8\ \text{cm}$ , $BC = 15\ \text{cm}$ . Express $\cos \angle BAC$ as a fraction in simplest form. [1]

3. In right-angled triangle $XYZ$ , $\angle Y = 90^\circ$ , $XY = 7\ \text{cm}$ , $YZ = 24\ \text{cm}$ . Express $\tan \angle XZY$ as a fraction in simplest form. [1]

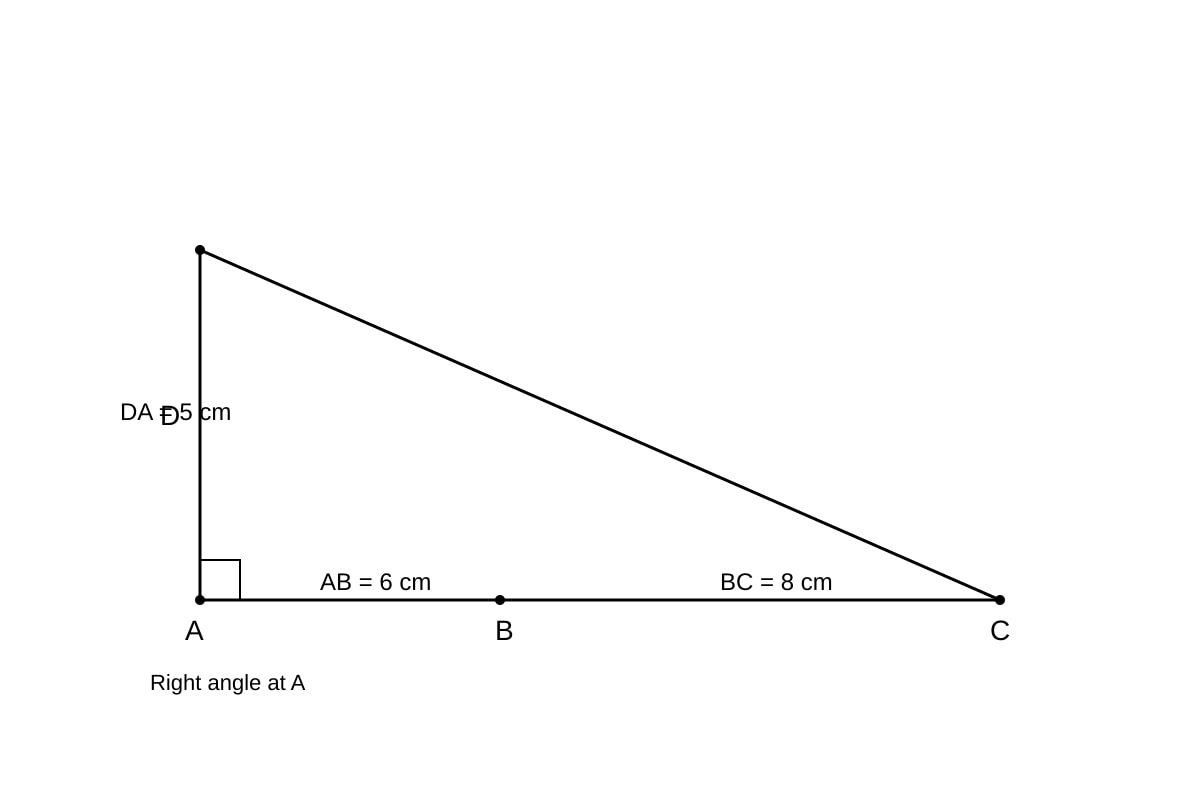

4. Points $A$ , $B$ , $C$ are collinear with $B$ between $A$ and $C$ . $AB = 6\ \text{cm}$ , $BC = 8\ \text{cm}$ . From point $D$ , $DA \perp AC$ and $DA = 5\ \text{cm}$ . Find the length of $DC$ . [2]

Diagram for Q4 (SEC3 Emaths)

Generated diagram for Q4.

5. Find the bearing of $B$ from $A$ if $B$ is due east of $A$ . [1]

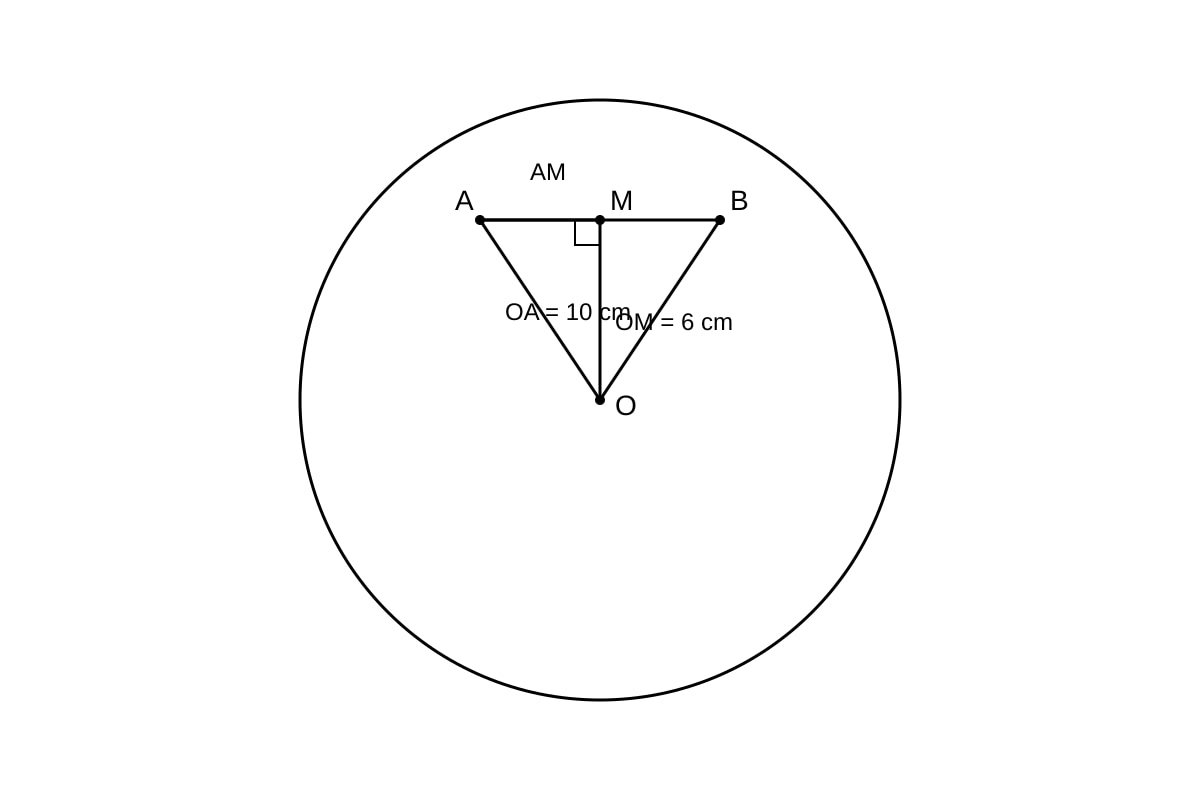

6. In the diagram, $O$ is the centre of a circle, $AB$ is a chord, $M$ is midpoint of $AB$ , $OM \perp AB$ . If $OA = 10\ \text{cm}$ and $OM = 6\ \text{cm}$ , find $AB$ . [2]

Diagram for Q6 (SEC3 Emaths)

Generated diagram for Q6.

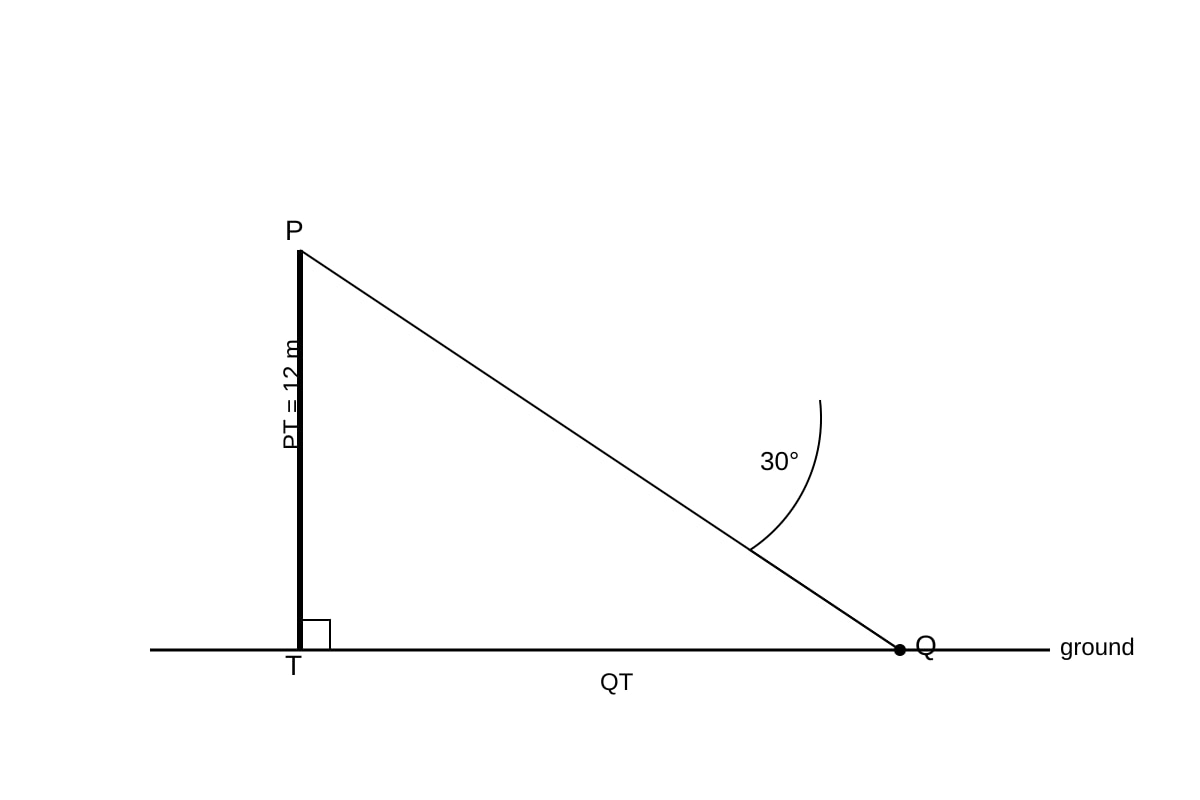

7. A vertical pole $PT$ of height $12\ \text{m}$ stands on level ground. From point $Q$ on the ground, the angle of elevation of $P$ is $30^\circ$ . Find the distance $QT$ to 1 decimal place. [2]

Diagram for Q7 (SEC3 Emaths)

Generated diagram for Q7.

8. In triangle $LMN$ , $\angle L = 90^\circ$ , $LM = 9\ \text{cm}$ , $LN = 12\ \text{cm}$ . Find $\angle LNM$ to the nearest degree. [2]

Section B (Questions 9–14) — Calculation and Diagram Interpretation [24 marks]

9. In right-angled triangle $ABC$ , $\angle B = 90^\circ$ , $AB = 9\ \text{cm}$ , $BC = 12\ \text{cm}$ . (a) Find $AC$ . [1] (b) Calculate $\angle ACB$ to 1 decimal place. [2]

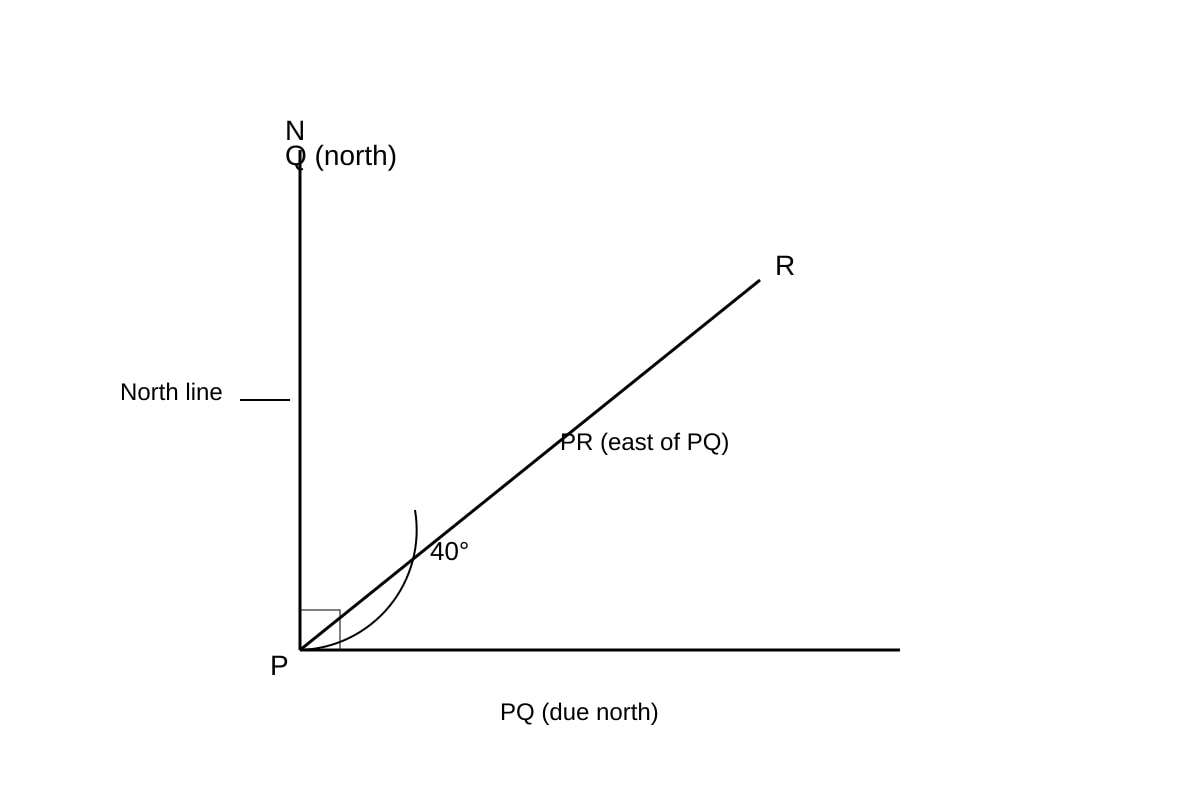

10. The diagram shows points $P$ , $Q$ , $R$ with $Q$ due north of $P$ and $R$ is such that $\angle QPR = 40^\circ$ and $PR$ is east of $PQ$ . Find the bearing of $R$ from $P$ . [2]

Diagram for Q10 (SEC3 Emaths)

Generated diagram for Q10.

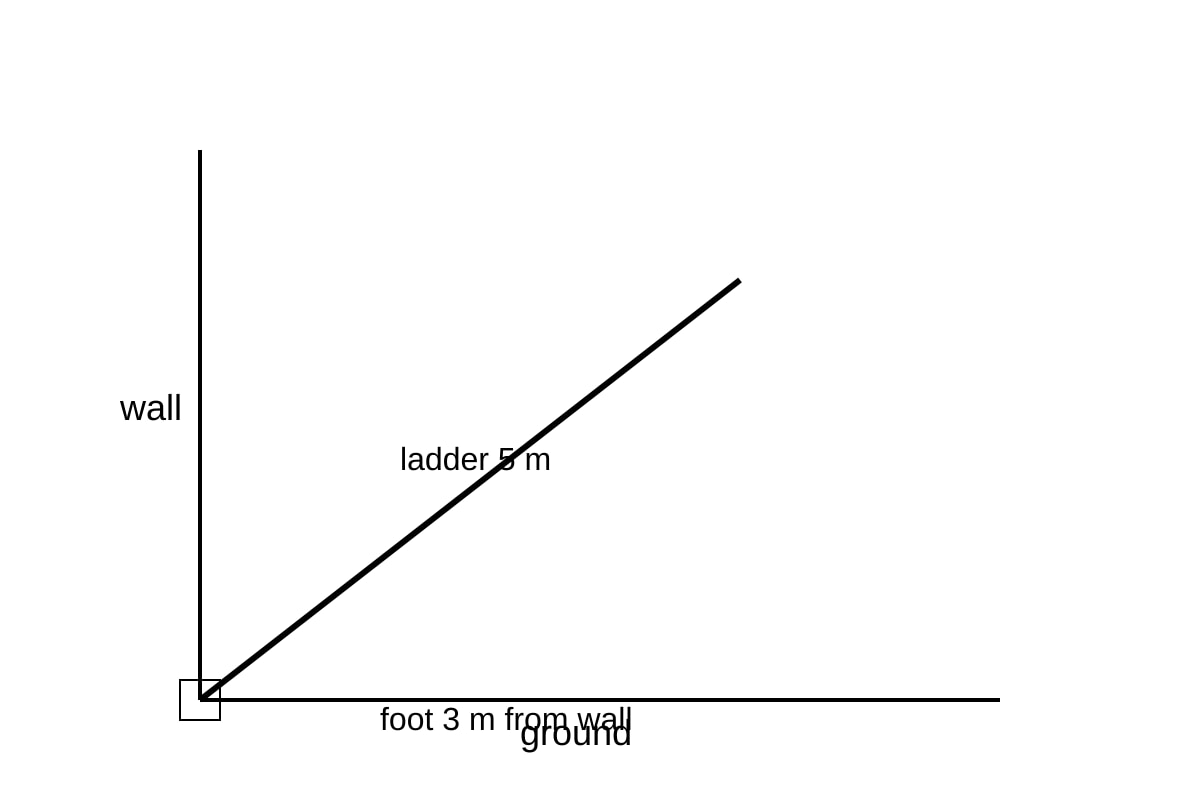

11. A ladder $5\ \text{m}$ long leans against a wall. The foot of the ladder is $3\ \text{m}$ from the wall. Find the angle the ladder makes with the ground to 1 decimal place. [3]

Diagram for Q11 (SEC3 Emaths)

Generated diagram for Q11.

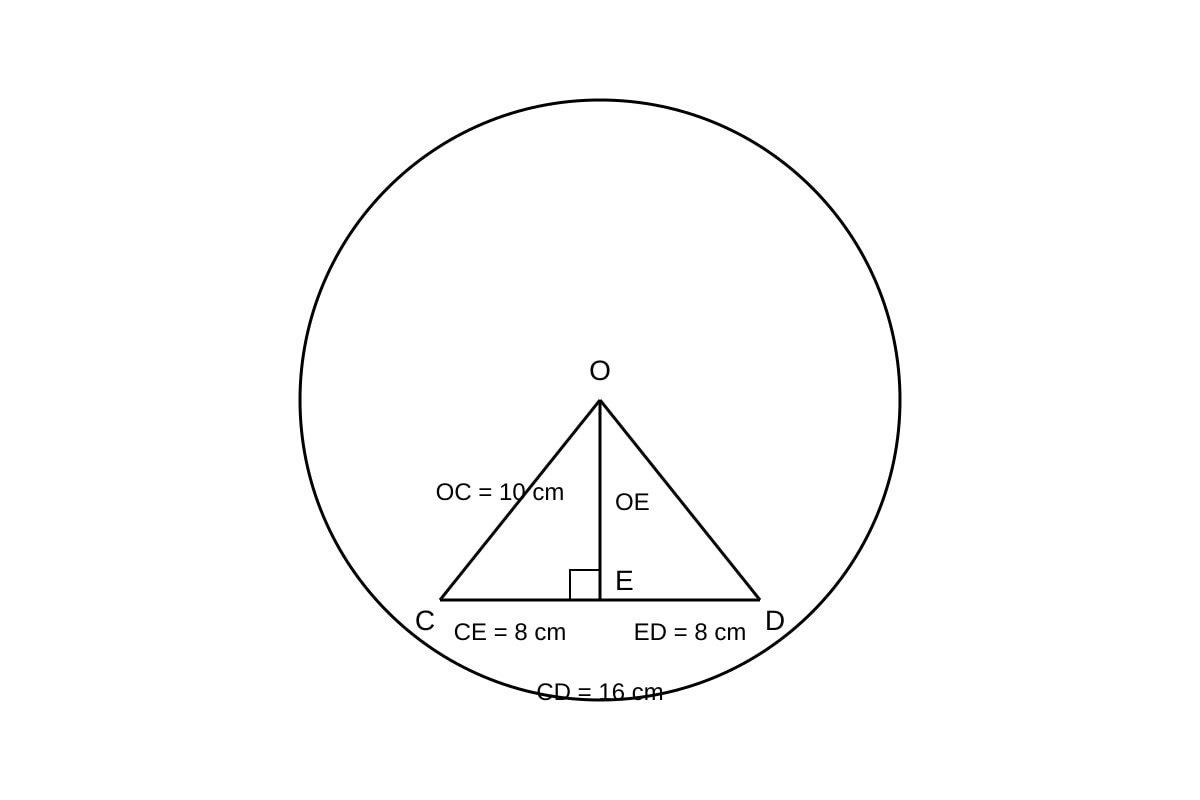

12. In the circle with centre $O$ , chord $CD = 16\ \text{cm}$ and radius $OC = 10\ \text{cm}$ . The perpendicular from $O$ to $CD$ meets $CD$ at $E$ . Find $OE$ . [3]

Diagram for Q12 (SEC3 Emaths)

Generated diagram for Q12.

13. Points $A$ , $B$ , $C$ are collinear. $AB = 10\ \text{cm}$ , $BC = 15\ \text{cm}$ . $D$ is a point such that $DB \perp AC$ and $DB = 8\ \text{cm}$ . (a) Find $AD$ . [2] (b) Find $\angle DAB$ to 1 decimal place. [2]

Diagram for Q13 (SEC3 Emaths)

Generated diagram for Q13.

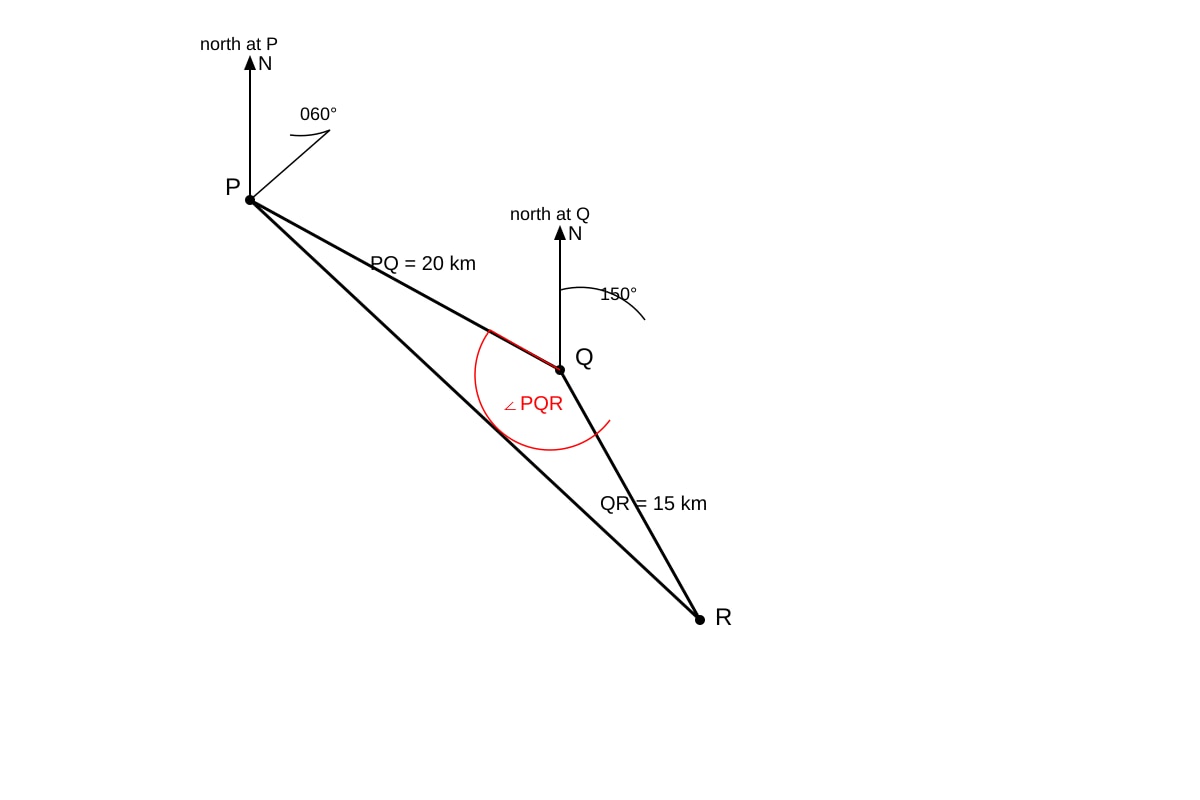

14. A ship sails from $P$ to $Q$ on a bearing of $060^\circ$ for $20\ \text{km}$ , then to $R$ on a bearing of $150^\circ$ for $15\ \text{km}$ . (a) Find the angle $\angle PQR$ . [2] (b) Using cosine rule, find $PR$ to 1 decimal place. [3]

Diagram for Q14 (SEC3 Emaths)

Generated diagram for Q14.

Section C (Questions 15–20) — Structured Problems [20 marks]

15. A right-angled triangle has sides $a = 6$ , $b = 8$ , $c$ (hypotenuse). (a) Find $c$ . [1] (b) Express $\sin \theta$ where $\theta$ is opposite side $a$ . [1] (c) Calculate $\theta$ to nearest degree. [2]

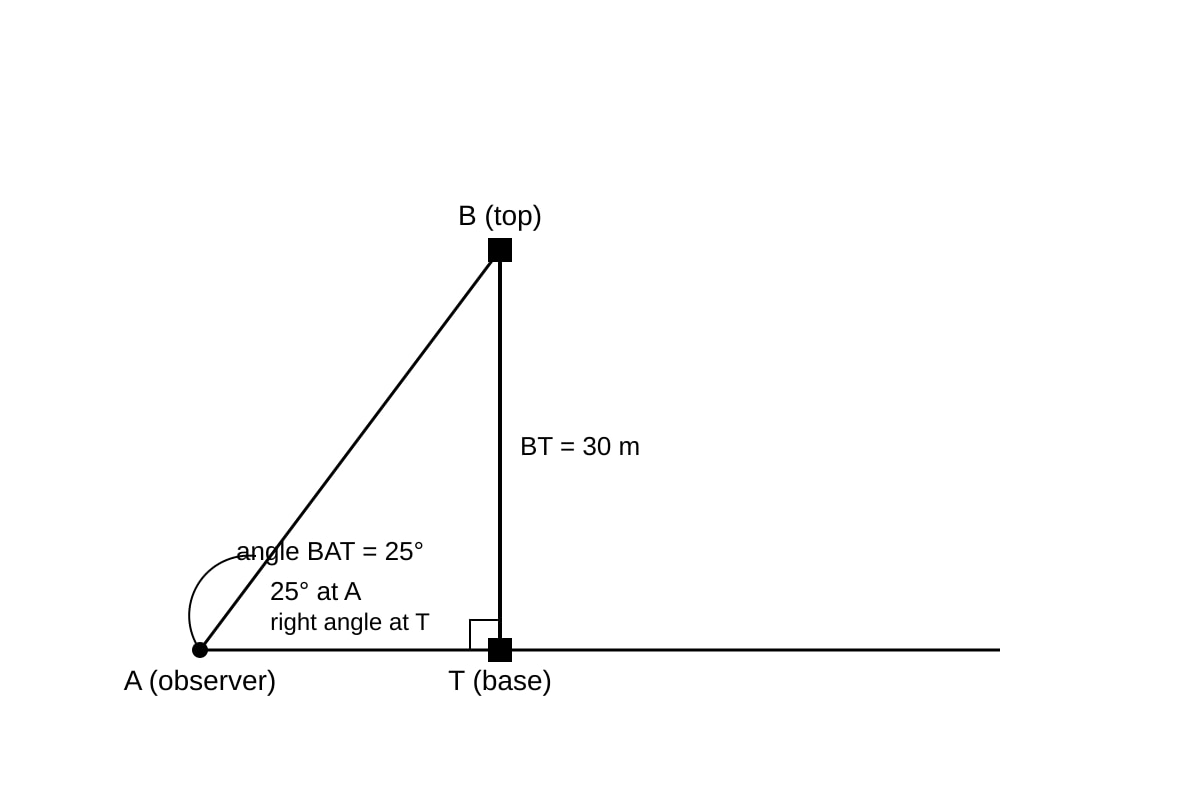

16. From a point $A$ on level ground, the angle of elevation to the top $B$ of a tower $BT$ is $25^\circ$ . The tower is $30\ \text{m}$ tall. Find the distance $AT$ to 1 decimal place. [3]

Diagram for Q16 (SEC3 Emaths)

Generated diagram for Q16.

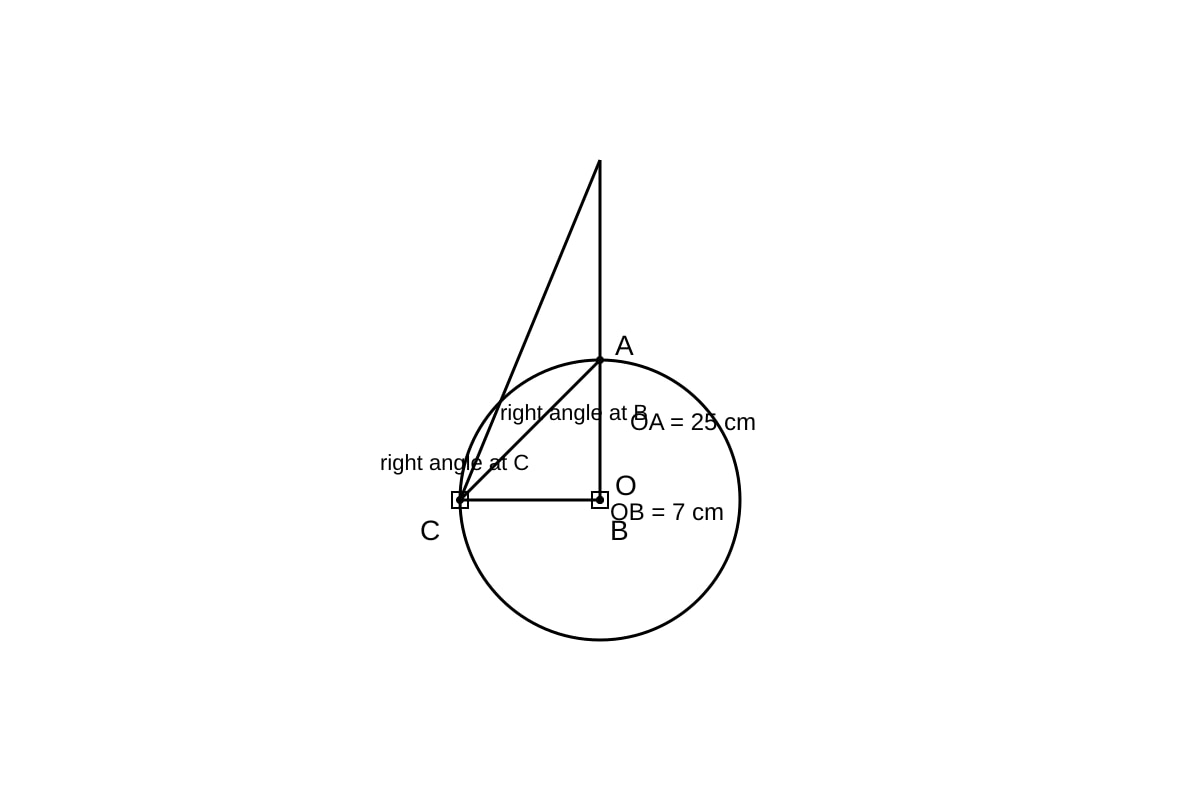

17. In the diagram, $O$ is centre of circle, $AB$ and $AC$ are tangents from $A$ , $OB = 7\ \text{cm}$ , $OA = 25\ \text{cm}$ . (a) Find $AB$ . [2] (b) Find $\angle OAB$ to 1 decimal place. [2]

Diagram for Q17 (SEC3 Emaths)

Generated diagram for Q17.

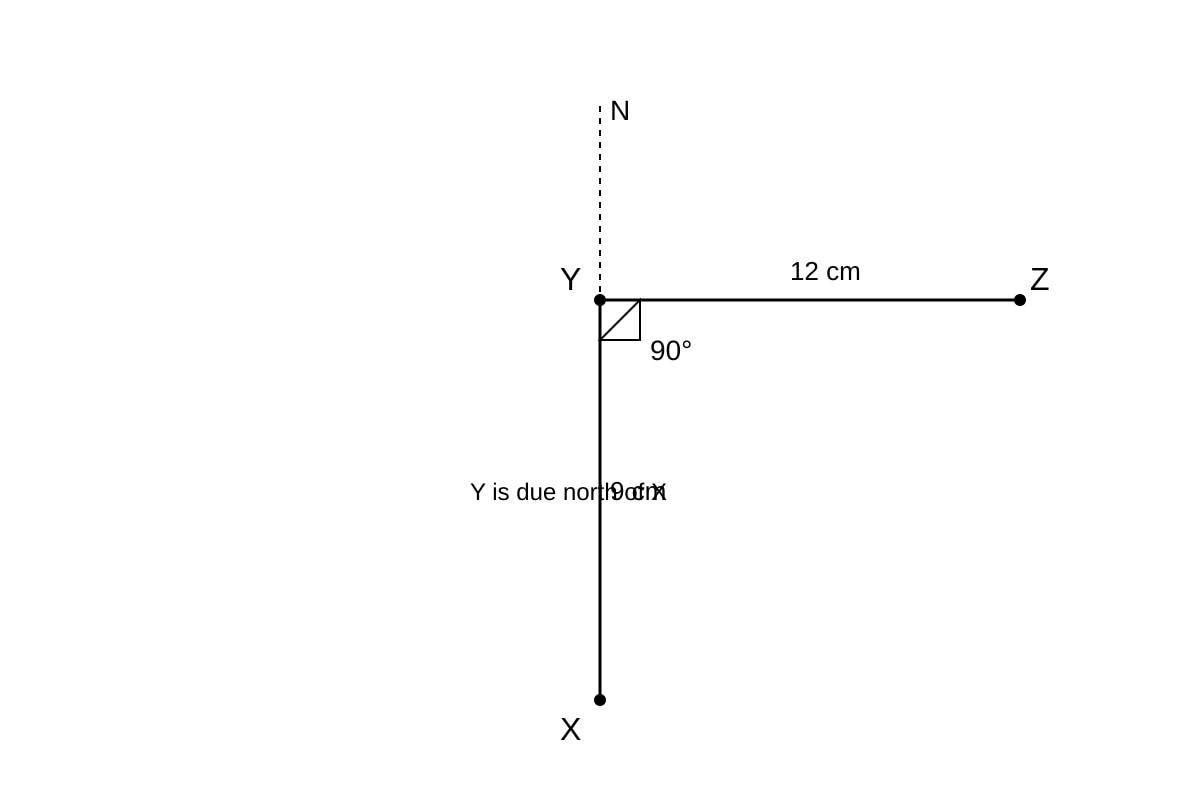

18. Points $X$ , $Y$ , $Z$ are such that $XY = 9\ \text{cm}$ , $YZ = 12\ \text{cm}$ , $\angle XYZ = 90^\circ$ . Find the bearing of $Z$ from $X$ if $Y$ is due north of $X$ . [3]

Diagram for Q18 (SEC3 Emaths)

Generated diagram for Q18.

19. A triangle $PQR$ has $PQ = 13\ \text{cm}$ , $QR = 5\ \text{cm}$ , $PR = 12\ \text{cm}$ . (a) Show that $\angle QRP = 90^\circ$ . [2] (b) Find $\angle PQR$ to 1 decimal place. [2]

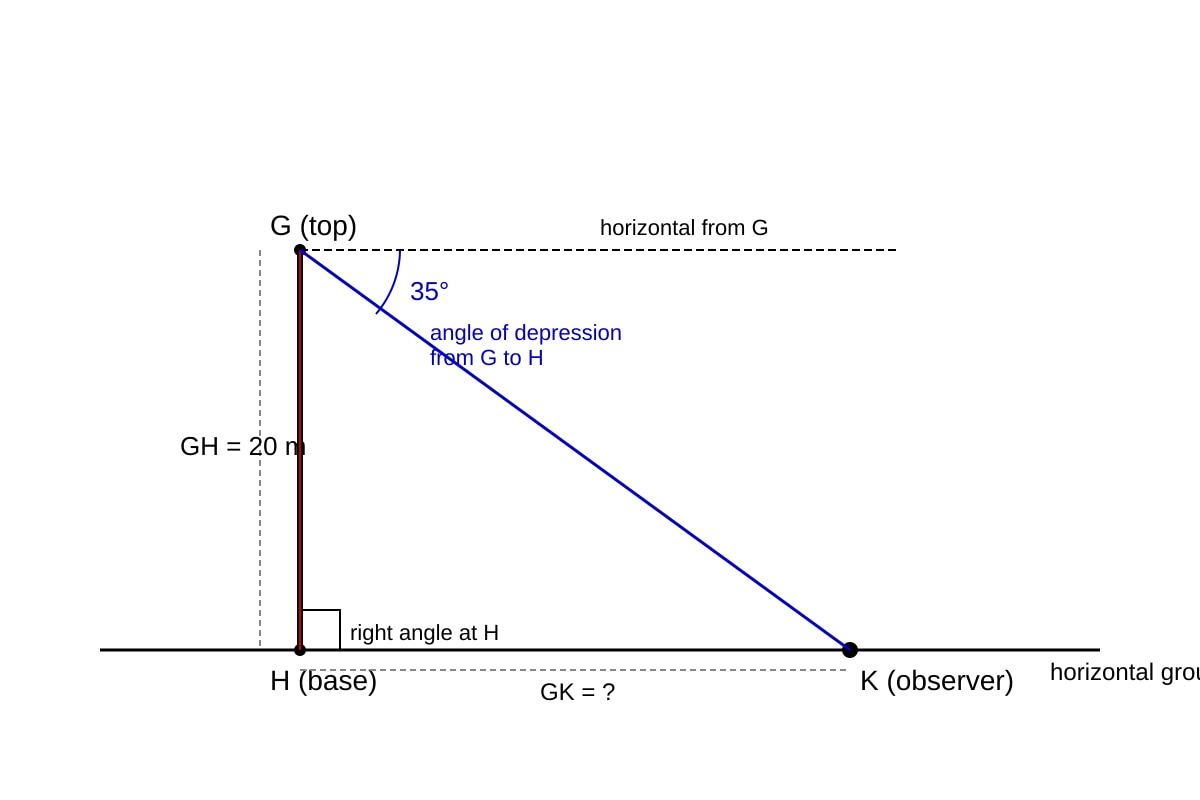

20. A vertical flagpole $GH$ of height $20\ \text{m}$ stands on horizontal ground. From point $K$ , the angle of depression of $H$ is $35^\circ$ . Find the distance $GK$ to 1 decimal place. [3]

Diagram for Q20 (SEC3 Emaths)

Generated diagram for Q20.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Exam Practice (AI) - SA2 Practice Paper (Version 5) Answer Key

Elementary Mathematics Secondary 3

Total Marks: 60

Section A

1. $\sin \angle PRQ = \frac{5}{13}$ [1]
Working: $PQ$ opposite $\angle PRQ$ , $PR$ hypotenuse. $\sin = \frac{\text{opp}}{\text{hyp}} = \frac{5}{13}$ . Simplest form.

2. $\cos \angle BAC = \frac{8}{17}$ [1]
Working: $AC = \sqrt{8^2+15^2} = 17$ . Adjacent to $\angle BAC$ is $AB=8$ , hyp $=17$ . $\cos = 8/17$ .

3. $\tan \angle XZY = \frac{7}{24}$ [1]
Working: Opposite $XY=7$ , adjacent $YZ=24$ . $\tan = 7/24$ .

4. $DC = \sqrt{5^2 + 14^2} = \sqrt{221} \approx 14.87\ \text{cm}$ [2]
Working: $AC = AB+BC = 14$ . $\triangle DAC$ right at $A$ : $DC = \sqrt{DA^2+AC^2} = \sqrt{25+196} = \sqrt{221}$ .
Marks: 1 for $AC=14$ , 1 for final.

5. $090^\circ$ [1]
Bearing of east from north clockwise = $90^\circ$ , written $090^\circ$ .

6. $AB = 16\ \text{cm}$ [2]
Working: $AM = \sqrt{OA^2-OM^2} = \sqrt{100-36}=8$ . $AB=2\times8=16$ .
Marks: 1 for $AM$ , 1 for $AB$ .

7. $QT = 20.8\ \text{m}$ [2]
Working: $\tan 30^\circ = \frac{12}{QT} \Rightarrow QT = \frac{12}{\tan30^\circ} = 20.78\ldots \approx 20.8$ .
Marks: 1 for formula, 1 for answer.

8. $\angle LNM = 37^\circ$ [2]
Working: $\tan \angle LNM = \frac{9}{12}=0.75 \Rightarrow \angle = \tan^{-1}(0.75)=36.87^\circ \approx 37^\circ$ .
Marks: 1 for ratio, 1 for angle.

Section B

9. (a) $AC = 15\ \text{cm}$ [1]
(b) $\angle ACB = 36.9^\circ$ [2]
Working: (a) $AC=\sqrt{9^2+12^2}=15$ . (b) $\tan \angle ACB = 9/12 \Rightarrow 36.87^\circ$ .
Marks: (a) 1; (b) 1 ratio, 1 answer.

10. Bearing = $040^\circ$ [2]
Working: From north at P, PR is $40^\circ$ clockwise. Bearing $=040^\circ$ .

11. Angle = $53.1^\circ$ [3]
Working: $\cos \theta = \frac{3}{5}=0.6 \Rightarrow \theta = \cos^{-1}(0.6)=53.13^\circ$ .
Marks: 1 identify ratio, 1 calc, 1 answer.

12. $OE = 6\ \text{cm}$ [3]
Working: $CE=8$ , $OE=\sqrt{10^2-8^2}=\sqrt{36}=6$ .
Marks: 1 half-chord, 1 calc, 1 answer.

13. (a) $AD = \sqrt{10^2+8^2}=\sqrt{164}\approx 12.81\ \text{cm}$ [2]
(b) $\angle DAB = \tan^{-1}(8/10)=38.7^\circ$ [2]
Marks: (a) 2 for working+ans; (b) 1 ratio, 1 ans.

14. (a) $\angle PQR = 90^\circ$ [2]
(b) $PR = \sqrt{20^2+15^2-2(20)(15)\cos90^\circ}=25.0\ \text{km}$ [3]
Working: bearing diff = $150-60=90^\circ$ . Cosine rule: $PR^2=400+225=625$ .
Marks: (a) 2; (b) 1 formula, 2 ans.

Section C

15. (a) $c=10$ [1] (b) $\sin\theta=6/10=3/5$ [1] (c) $\theta=37^\circ$ [2]
Working: $c=\sqrt{36+64}=10$ ; $\sin^{-1}(0.6)=36.87^\circ$ .

16. $AT = 64.3\ \text{m}$ [3]
Working: $\tan25^\circ = 30/AT \Rightarrow AT = 30/\tan25^\circ = 64.34\ldots$

17. (a) $AB = \sqrt{25^2-7^2}=\sqrt{576}=24\ \text{cm}$ [2]
(b) $\angle OAB = \sin^{-1}(7/25)=16.3^\circ$ [2]
Marks: (a) 2; (b) 1 ratio, 1 ans.

18. Bearing of Z from X = $053^\circ$ [3]
Working: $\tan^{-1}(12/9)=53.13^\circ$ from north (Y is north of X). Bearing $=053^\circ$ .

19. (a) $5^2+12^2=13^2 \Rightarrow 25+144=169$ so right angle at R [2]
(b) $\angle PQR = \sin^{-1}(12/13)=67.4^\circ$ [2]

20. $GK = 28.6\ \text{m}$ [3]
Working: Angle of depression = angle at K = $35^\circ$ . $\tan35^\circ = 20/GK \Rightarrow GK = 20/\tan35^\circ = 28.56\ldots$
