Secondary 3 Elementary Mathematics Semestral Assessment 2 (End of Year) Paper 4

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Exam Practice (AI) — SA2 Practice Paper

Elementary Mathematics Secondary 3 — Geometry & Trigonometry (Version 4)

School: TuitionGoWhere Secondary School (AI)
Subject: Elementary Mathematics
Level: Secondary 3
Paper: SA2 Practice (Geometry & Trigonometry)
Version: 4 of 5
Duration: 60 minutes
Total Marks: 60

Name: ________________________
Class: ________
Date: ____________

Instructions:

1. Answer all questions in the spaces provided.
2. Show all working clearly. Marks are awarded for correct methods and final answers.
3. Use a calculator where necessary. Give angles in degrees to 1 decimal place unless stated.
4. Diagrams are not drawn to scale unless indicated.

---

Section A (Questions 1–5) — Short Answer [10 marks]

1. In right-angled triangle $ABC$, $\angle B = 90^\circ$, $AB = 5$ cm, $BC = 12$ cm. Express $\sin \angle A$ as a fraction in simplest form. [2]

---

2. Points $P$, $Q$, $R$ are collinear. $QR = 8$ m, $PR = 15$ m. Find $PQ$. [1]

---

3. In the diagram below, $\triangle XYZ$ is right-angled at $Y$, with $XY = 3$, $YZ = 4$. Express $\tan \angle Z$ as a fraction. [1]

Image pending generation: diagram for Q3.

---

4. A bearing is measured clockwise from North. State the bearing of a point due South of another. [1]

---

5. In right-angled triangle $DEF$, $\angle E = 90^\circ$, $DE = 6$, $DF = 10$. Express $\cos \angle D$ as a fraction in simplest form. [1]

---

---

Section B (Questions 6–13) — Calculation and Diagram Interpretation [28 marks]

6. Triangle $PQR$ is right-angled at $Q$. $PQ = 9$ cm, $QR = 12$ cm. (a) Find $PR$ using Pythagoras' theorem. [2] (b) Calculate $\angle RPQ$ to 1 decimal place. [2]

---

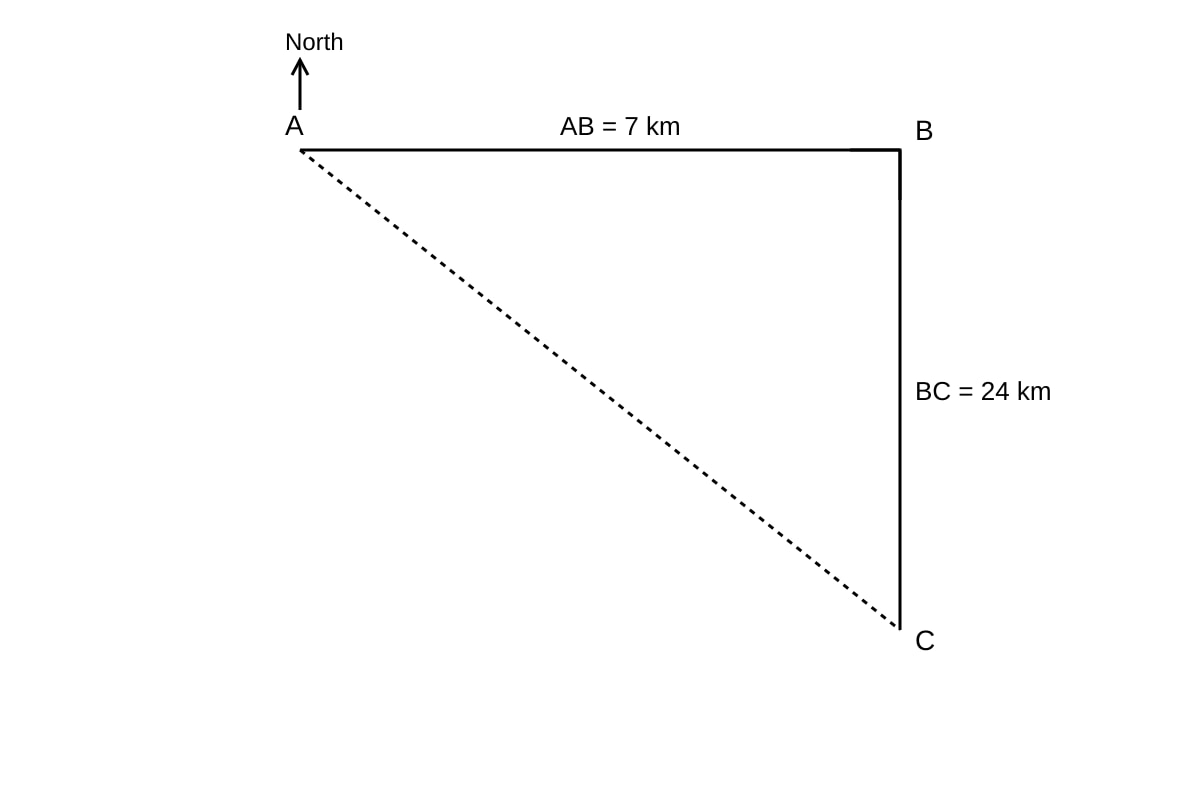

7. The diagram shows points $A$, $B$, $C$ with $B$ due East of $A$ and $C$ due South of $B$. $AB = 7$ km, $BC = 24$ km. Find the bearing of $C$ from $A$. [3]

Image pending generation: diagram for Q7.

---

8. In $\triangle STU$, $\angle T = 90^\circ$, $ST = 5$, $TU = 12$. Calculate $\angle S$ to the nearest degree. [2]

---

9. Points $X$, $Y$, $Z$ are collinear with $Y$ between $X$ and $Z$. $XY = 6$ cm, $XZ = 14$ cm. Find $YZ$. [1]

---

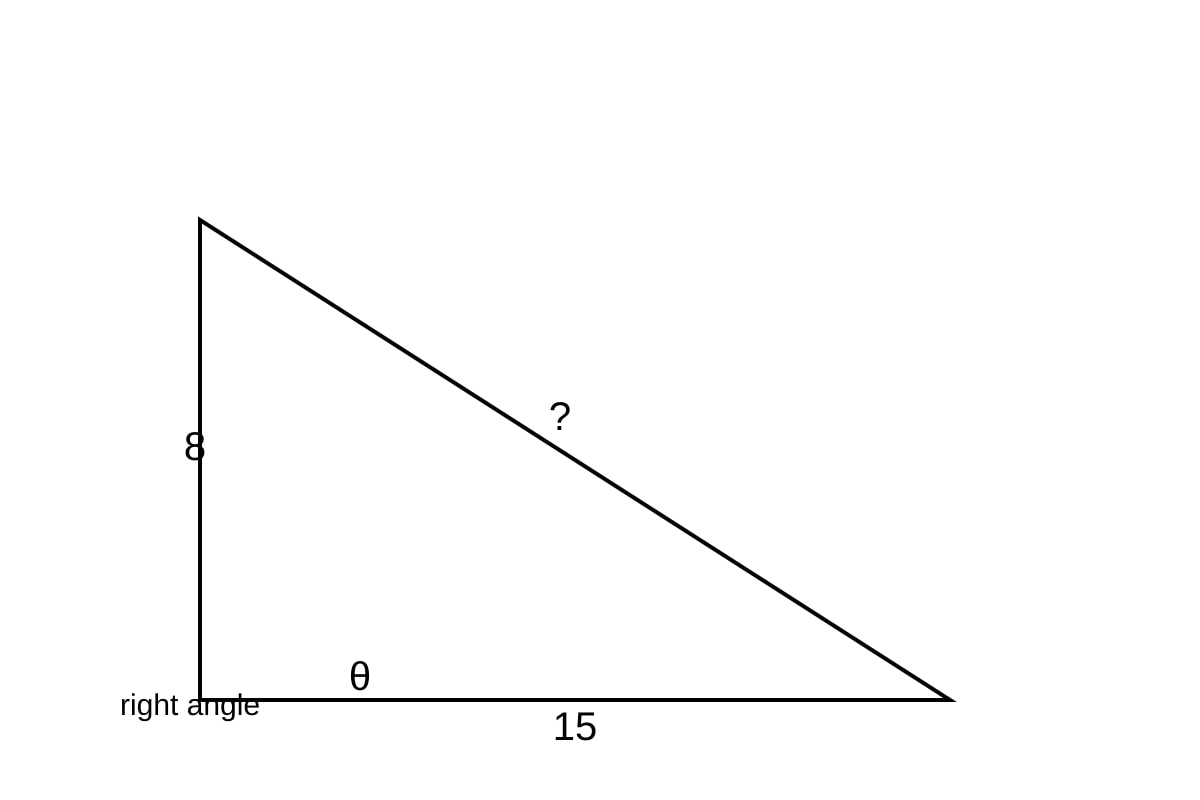

10. The diagram shows a right-angled triangle with sides 8 and 15. Express $\sin \theta$ as a fraction in simplest form, where $\theta$ is the angle opposite the side of length 8. [2]

Image pending generation: diagram for Q10.

---

11. In the figure, $A$, $B$, $C$ are collinear and $\triangle BCD$ is right-angled at $C$. $AB = 10$, $BC = 6$, $CD = 8$. Find $\angle DBC$ to 1 decimal place. [3]

Image pending generation: diagram for Q11.

---

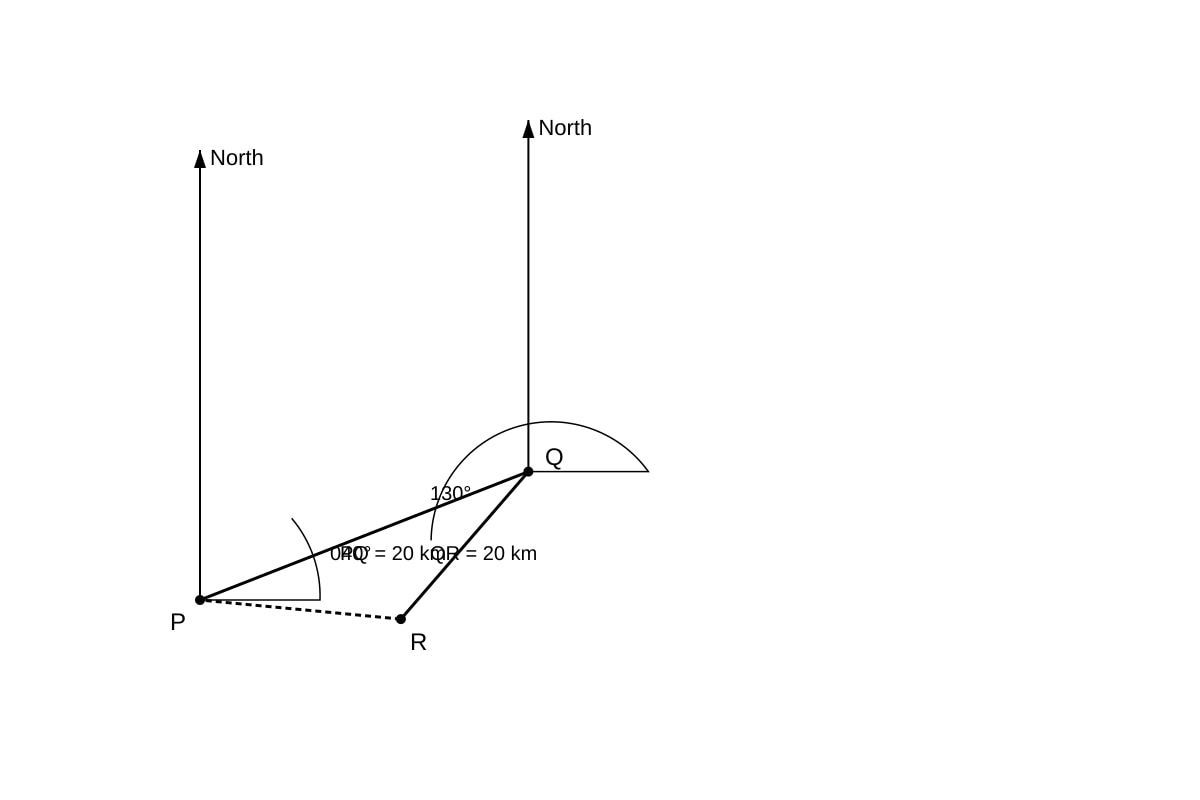

12. A ship sails from $P$ to $Q$ on a bearing of $040^\circ$, then from $Q$ to $R$ on a bearing of $130^\circ$. If $PQ = QR = 20$ km, find the bearing of $R$ from $P$. [3]

Image pending generation: diagram for Q12.

---

13. Right-angled triangle $GHJ$ has $GH = 3$, $HJ = 4$, $\angle H = 90^\circ$. Find $GJ$ and then $\cos \angle G$. [3]

---

---

Section C (Questions 14–20) — Structured Problems [22 marks]

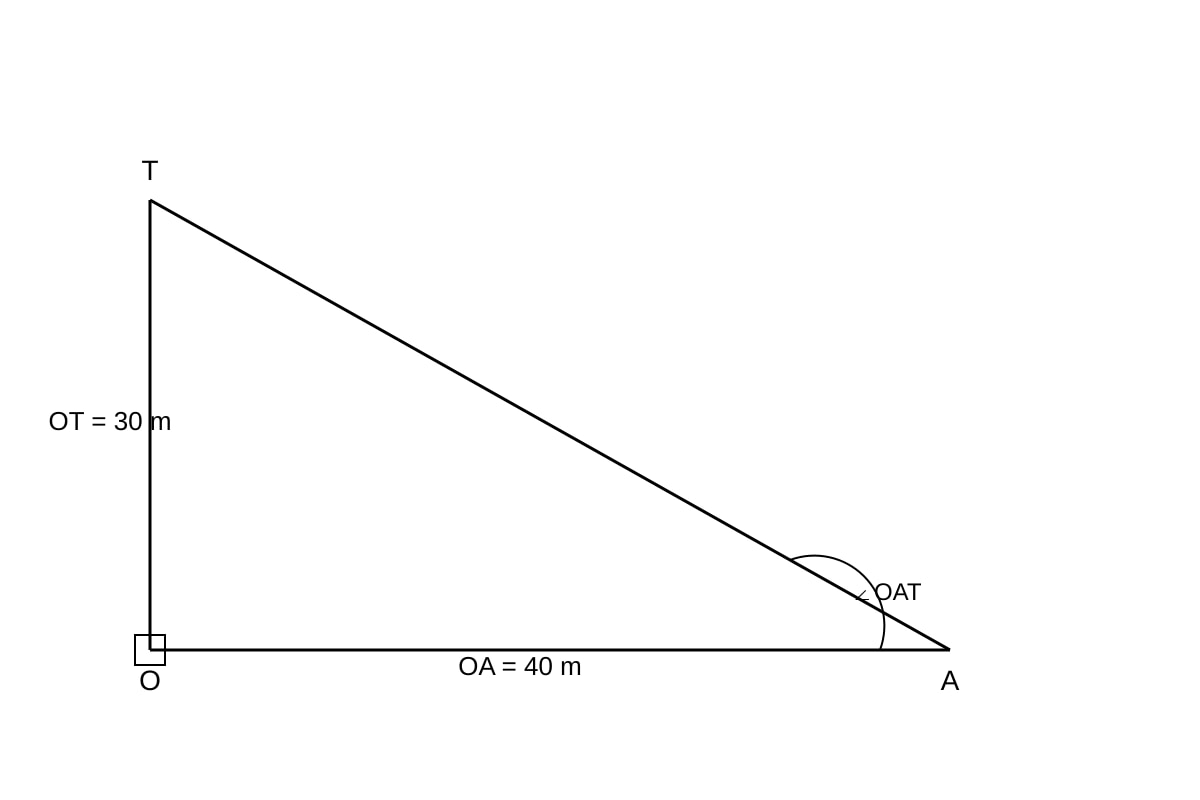

14. The diagram shows a vertical tower $OT$ of height 30 m at point $O$ on level ground. From point $A$, 40 m from $O$, the angle of elevation to $T$ is $\angle OAT$. (a) Express $\tan \angle OAT$ as a fraction. [1] (b) Calculate $\angle OAT$ to 1 decimal place. [2]

Image pending generation: diagram for Q14.

---

15. In $\triangle ABC$, $\angle B = 90^\circ$, $AB = 8$, $BC = 15$. (a) Find $AC$. [2] (b) Find $\sin \angle C$ as a fraction. [1] (c) Calculate $\angle A$ to 1 decimal place. [2]

---

16. Points $D$, $E$, $F$ are collinear. $DE = 12$ cm, $EF = 9$ cm. A point $G$ is not on the line such that $\triangle DEG$ is right-angled at $E$ with $EG = 5$ cm. Find $\angle EDG$ to 1 decimal place. [3]

Image pending generation: diagram for Q16.

---

17. A triangle has sides 5, 12, 13. Show it is right-angled and find the tangent of the smaller acute angle. [3]

---

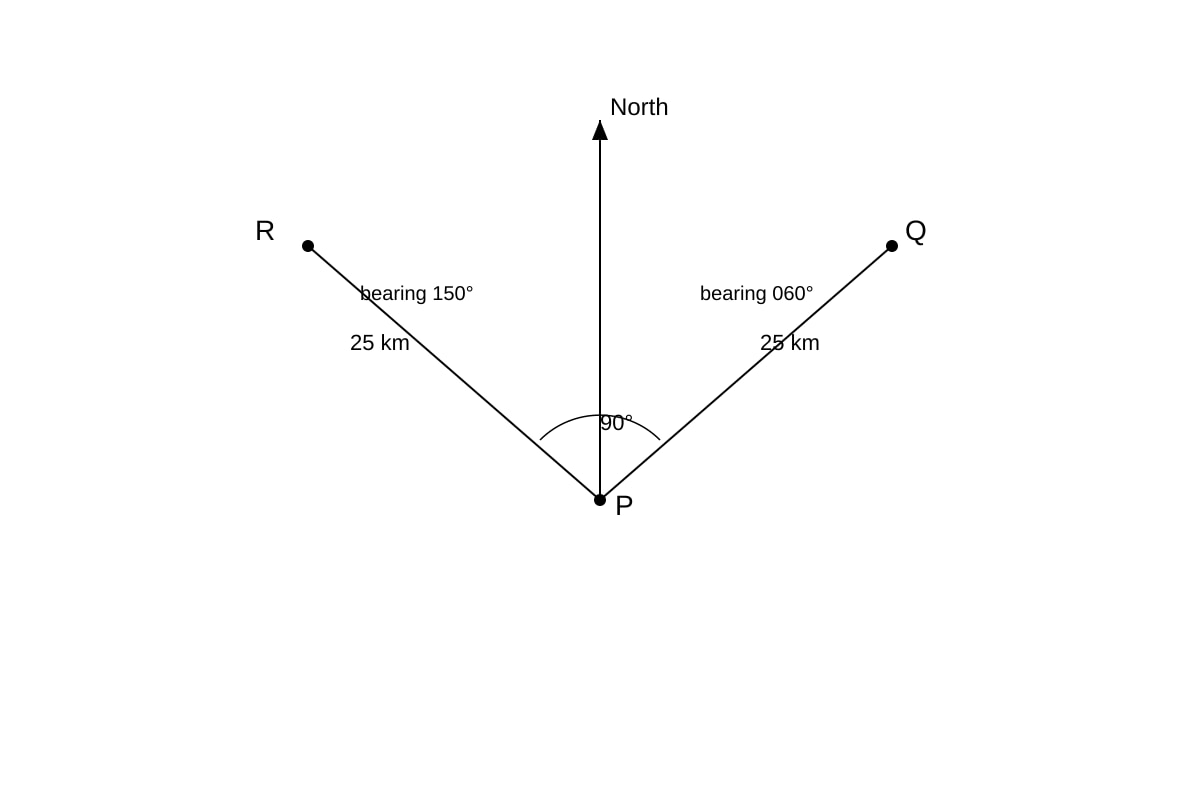

18. From a point $P$, $Q$ is on a bearing of $060^\circ$ and $R$ is on a bearing of $150^\circ$. Both are 25 km from $P$. Find the distance $QR$. [3]

Image pending generation: diagram for Q18.

---

19. In the diagram, $\triangle PQR$ is right-angled at $Q$, with $PQ = 9$, $QR = 12$. Point $S$ lies on $PR$ such that $QS \perp PR$. (a) Find $PR$. [1] (b) Find the area of $\triangle PQR$. [1] (c) Using area, find $QS$. [2]

Image pending generation: diagram for Q19.

---

20. A ladder 13 m long leans against a wall. The foot is 5 m from the wall. (a) Find the height up the wall. [2] (b) Find the angle between the ladder and the ground to 1 decimal place. [2]

---

Total Marks: 60

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Exam Practice (AI) — SA2 Practice Paper Answer Key

Elementary Mathematics Secondary 3 — Geometry & Trigonometry (Version 4)

Total Marks: 60

---

Section A (Q1–5) — Short Answer

Q1. [2 marks]
$\triangle ABC$: $B=90^\circ$, $AB=5$, $BC=12$.
Hypotenuse $AC = \sqrt{5^2 + 12^2} = \sqrt{25+144} = \sqrt{169} = 13$.
$\sin \angle A = \frac{\text{opp}}{\text{hyp}} = \frac{BC}{AC} = \frac{12}{13}$.
Answer: $\frac{12}{13}$
Teaching note: Opposite to $\angle A$ is $BC$. Simplify if needed; here already simplest.
Common mistake: Using $AB/AC = 5/13$ (that is $\cos A$).

Q2. [1 mark]
Collinear $P,Q,R$, $QR=8$, $PR=15$ → $PQ = PR - QR = 15 - 8 = 7$ (assuming Q between P and R as typical).
Answer: 7 m
Note: If order differs, state assumption. Evidence implies segment addition.

Q3. [1 mark]
From diagram: right at Y, $XY=3$, $YZ=4$. $\tan \angle Z = \frac{\text{opp}}{\text{adj}} = \frac{XY}{YZ} = \frac{3}{4}$.
Answer: $\frac{3}{4}$

Q4. [1 mark]
Due South = clockwise $180^\circ$ from North.
Answer: $180^\circ$

Q5. [1 mark]
$\triangle DEF$, $E=90^\circ$, $DE=6$, $DF=10$ (hyp). $\cos \angle D = \frac{DE}{DF} = \frac{6}{10} = \frac{3}{5}$.
Answer: $\frac{3}{5}$

---

Section B (Q6–13) — Calculation and Diagram

Q6. [4 marks total: (a) 2, (b) 2]
(a) $PR = \sqrt{9^2+12^2} = \sqrt{81+144} = \sqrt{225} = 15$ cm. [2]
(b) $\tan \angle RPQ = \frac{QR}{PQ} = \frac{12}{9} = 1.333\ldots$ → $\angle RPQ = \tan^{-1}(1.333\ldots) \approx 53.1^\circ$. [2]
Answer: (a) 15 cm (b) 53.1°

Q7. [3 marks]
Right angle at B, $AB=7$, $BC=24$. $AC = \sqrt{7^2+24^2} = 25$.
Angle from North at A to AB is $90^\circ$ (East). $\tan \angle BAC = 24/7$ → $\angle BAC = \tan^{-1}(24/7) \approx 73.74^\circ$.
Bearing of C from A = $90^\circ + 73.74^\circ = 163.74^\circ \approx 163.7^\circ$. [3]
Answer: 163.7°

Q8. [2 marks]
$SU = \sqrt{5^2+12^2} = 13$. $\sin \angle S = \frac{TU}{SU} = \frac{12}{13}$ → $\angle S = \sin^{-1}(12/13) \approx 67.38^\circ \approx 67^\circ$.
Answer: 67°

Q9. [1 mark]
$YZ = XZ - XY = 14 - 6 = 8$ cm.
Answer: 8 cm

Q10. [2 marks]
Hyp = $\sqrt{8^2+15^2} = 17$. $\sin \theta = 8/17$.
Answer: $\frac{8}{17}$

Q11. [3 marks]
In $\triangle BCD$, right at C, $BC=6$, $CD=8$. $\tan \angle DBC = CD/BC = 8/6 = 4/3$.
$\angle DBC = \tan^{-1}(4/3) \approx 53.13^\circ \approx 53.1^\circ$. [3]
Answer: 53.1°

Q12. [3 marks]
Bearing PQ = 040, QR = 130 → turn angle at Q = $130-40 = 90^\circ$. Triangle PQR is isosceles right with legs 20.
$\angle QPR = 45^\circ$. Bearing R from P = $40 + 45 = 85^\circ$. [3]
Answer: 085°

Q13. [3 marks: GJ 1, cos 2]
$GJ = \sqrt{3^2+4^2} = 5$. [1]
$\cos \angle G = \frac{GH}{GJ} = \frac{3}{5}$. [2]
Answer: $GJ=5$, $\cos \angle G = 3/5$

---

Section C (Q14–20) — Structured

Q14. [3 marks: (a)1 (b)2]
(a) $\tan \angle OAT = \frac{OT}{OA} = \frac{30}{40} = \frac{3}{4}$. [1]
(b) $\angle OAT = \tan^{-1}(3/4) \approx 36.87^\circ \approx 36.9^\circ$. [2]
Answer: (a) 3/4 (b) 36.9°

Q15. [5 marks: (a)2 (b)1 (c)2]
(a) $AC = \sqrt{8^2+15^2} = 17$. [2]
(b) $\sin \angle C = \frac{AB}{AC} = \frac{8}{17}$. [1]
(c) $\tan \angle A = BC/AB = 15/8$ → $\angle A = \tan^{-1}(15/8) \approx 61.93^\circ \approx 61.9^\circ$. [2]
Answer: (a) 17 (b) 8/17 (c) 61.9°

Q16. [3 marks]
$\triangle DEG$ right at E, $DE=12$, $EG=5$. $\tan \angle EDG = EG/DE = 5/12$.
$\angle EDG = \tan^{-1}(5/12) \approx 22.62^\circ \approx 22.6^\circ$. [3]
Answer: 22.6°

Q17. [3 marks]
Check: $5^2+12^2 = 25+144 = 169 = 13^2$ → right-angled. [1]
Smaller acute angle opposite side 5: $\tan = 5/12$. [1]
Value = $5/12$. [1]
Answer: right-angled, tan = 5/12

Q18. [3 marks]
Angle between bearings = $150-60 = 90^\circ$. Triangle PQR right isosceles, $QR = \sqrt{25^2+25^2} = 25\sqrt{2} \approx 35.36$ km. [3]
Answer: $25\sqrt{2}$ km or 35.4 km

Q19. [4 marks: (a)1 (b)1 (c)2]
(a) $PR = \sqrt{9^2+12^2} = 15$. [1]
(b) Area = $\frac{1}{2}\times 9\times 12 = 54$. [1]
(c) Also Area = $\frac{1}{2}\times PR \times QS = \frac{1}{2}\times 15 \times QS = 54$ → $QS = 108/15 = 7.2$. [2]
Answer: (a) 15 (b) 54 (c) 7.2

Q20. [4 marks: (a)2 (b)2]
(a) Height = $\sqrt{13^2 - 5^2} = \sqrt{169-25} = \sqrt{144} = 12$ m. [2]
(b) $\cos \theta = 5/13$ → $\theta = \cos^{-1}(5/13) \approx 67.38^\circ \approx 67.4^\circ$. [2]
Answer: (a) 12 m (b) 67.4°
