TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 3

TuitionGoWhere Secondary School (AI)

Subject: Elementary Mathematics
Level: Secondary 3
Paper: SA2 (Version 2)
Duration: 1 hour 30 minutes
Total Marks: 60

Name: ________________________
Class: ________________________
Date: ________________________

INSTRUCTIONS TO CANDIDATES

Write your name, class, and date in the spaces provided above.
Answer all questions.
Write your answers in the spaces provided in this question paper.
Omission of essential working will result in loss of marks.
If the degree of accuracy is not specified in the question, and if the answer is not exact, give the answer to three significant figures. Give answers in degrees to one decimal place.
For $\pi$ , use either your calculator value or 3.142, unless the question requires the answer in terms of $\pi$ .
The number of marks is given in brackets [ ] at the end of each question or part question.
The total number of marks for this paper is 60.

Section A [30 marks]

Answer all questions in this section.

1

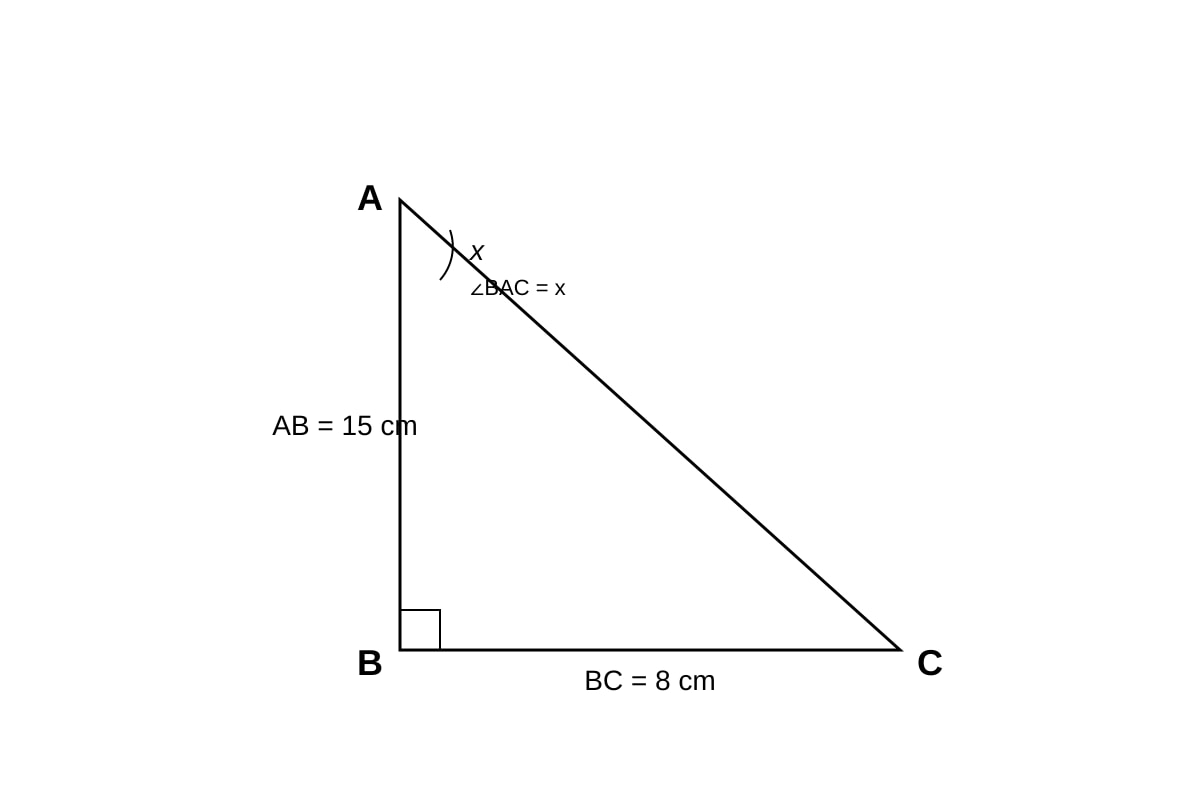

In the diagram, $ABC$ is a right-angled triangle with $\angle ABC = 90^\circ$ . $AB = 15$ cm and $BC = 8$ cm.

<image_placeholder> id: Q1-fig1 type: diagram linked_question: Q1 description: Right-angled triangle ABC with right angle at B. AB = 15 cm (vertical), BC = 8 cm (horizontal). Angle at A marked as x. labels: A, B, C, AB = 15 cm, BC = 8 cm, angle BAC = x values: AB = 15, BC = 8 must_show: Right angle symbol at B, side lengths labelled, angle x at A </image_placeholder>

(a) Calculate $\tan x$ .
(b) Find the value of $x$ correct to one decimal place.

[2]

2

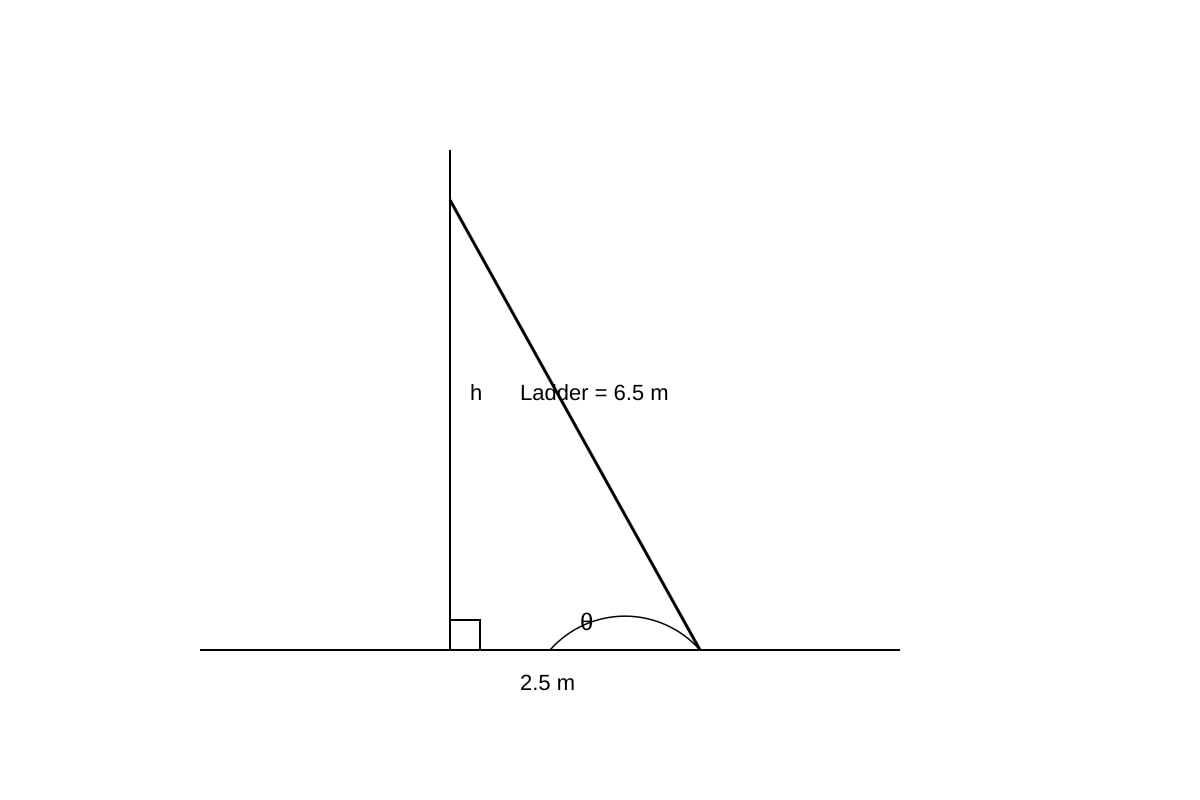

A ladder of length 6.5 m leans against a vertical wall. The foot of the ladder is 2.5 m from the wall.

<image_placeholder> id: Q2-fig1 type: diagram linked_question: Q2 description: Ladder leaning against vertical wall forming right-angled triangle. Ladder = 6.5 m (hypotenuse), distance from wall = 2.5 m (base). Angle between ladder and ground marked as θ. labels: Ladder = 6.5 m, base = 2.5 m, angle θ at ground values: hypotenuse = 6.5, adjacent = 2.5 must_show: Right angle at wall base, ladder as hypotenuse, angle θ labelled </image_placeholder>

(a) Calculate the angle the ladder makes with the ground, correct to one decimal place.
(b) Calculate the height the ladder reaches up the wall, correct to 3 significant figures.

[3]

3

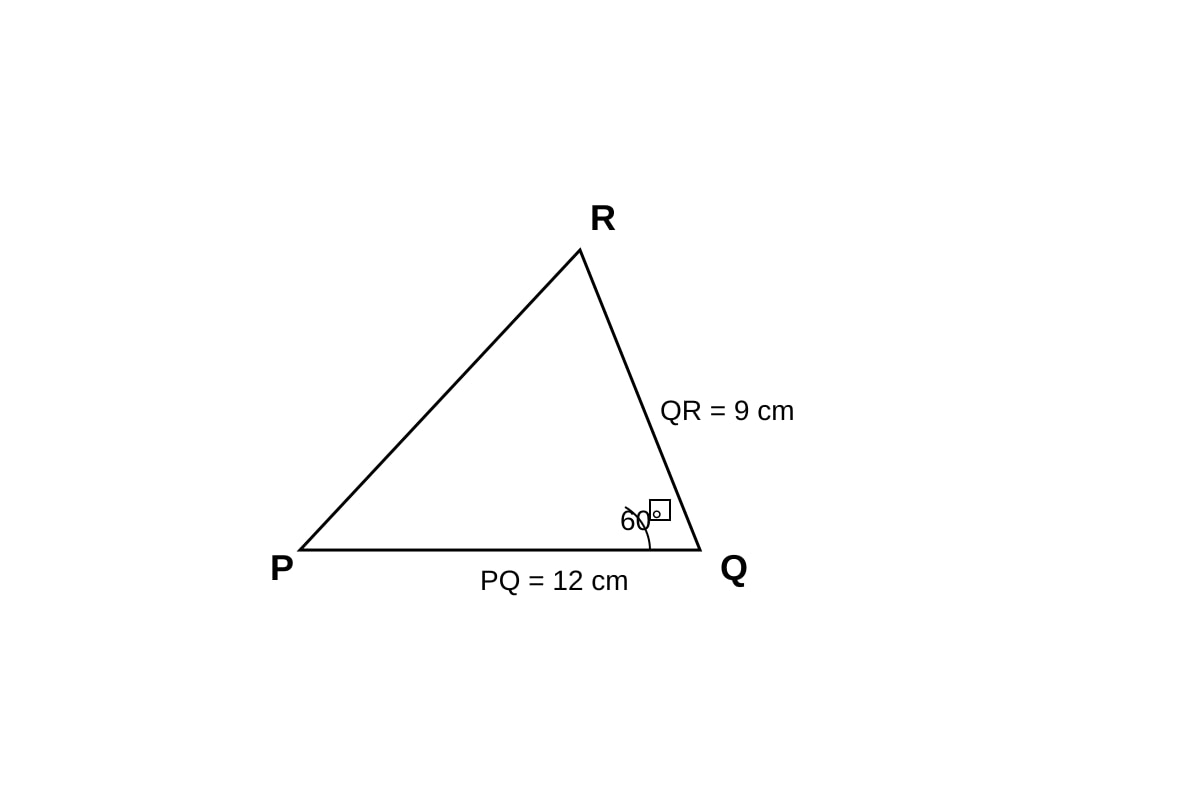

In the diagram, $PQR$ is a triangle with $PQ = 12$ cm, $QR = 9$ cm, and $\angle PQR = 60^\circ$ .

<image_placeholder> id: Q3-fig1 type: diagram linked_question: Q3 description: Triangle PQR with PQ = 12 cm, QR = 9 cm, angle PQR = 60°. Side PR opposite the 60° angle. labels: P, Q, R, PQ = 12 cm, QR = 9 cm, angle PQR = 60° values: PQ = 12, QR = 9, angle = 60 must_show: Triangle with given sides and included angle labelled </image_placeholder>

(a) Calculate the length of $PR$ , correct to 3 significant figures.
(b) Calculate the area of triangle $PQR$ , correct to 3 significant figures.

[3]

4

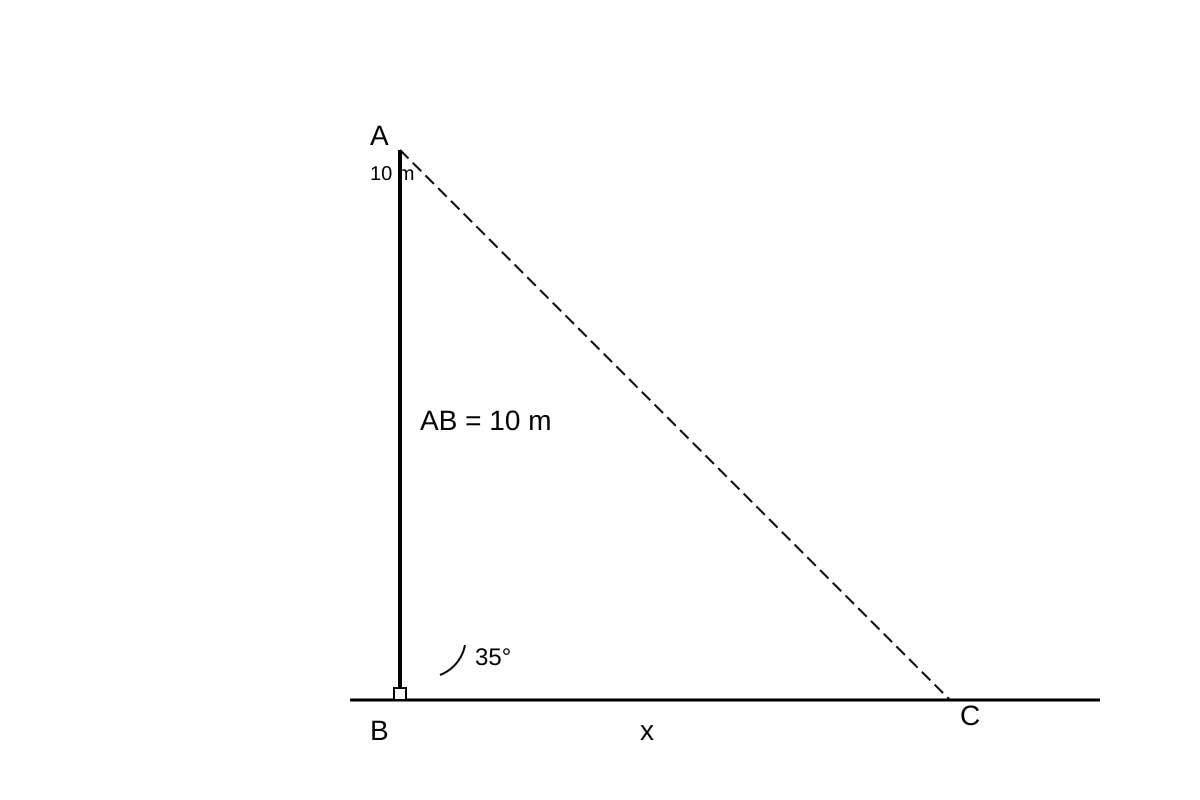

The diagram shows a vertical flagpole $AB$ of height 10 m standing on horizontal ground. From a point $C$ on the ground, the angle of elevation of the top of the flagpole $A$ is $35^\circ$ .

<image_placeholder> id: Q4-fig1 type: diagram linked_question: Q4 description: Vertical flagpole AB = 10 m. Point C on horizontal ground. Angle of elevation from C to A = 35°. Distance BC = x. labels: A (top), B (base), C (point on ground), AB = 10 m, angle ACB = 35° values: AB = 10, angle = 35 must_show: Right angle at B, vertical pole, horizontal ground, angle of elevation labelled </image_placeholder>

(a) Calculate the distance $BC$ , correct to 3 significant figures.
(b) A point $D$ is on the ground such that $BD = 15$ m. Calculate the angle of elevation of $A$ from $D$ , correct to one decimal place.

[3]

5

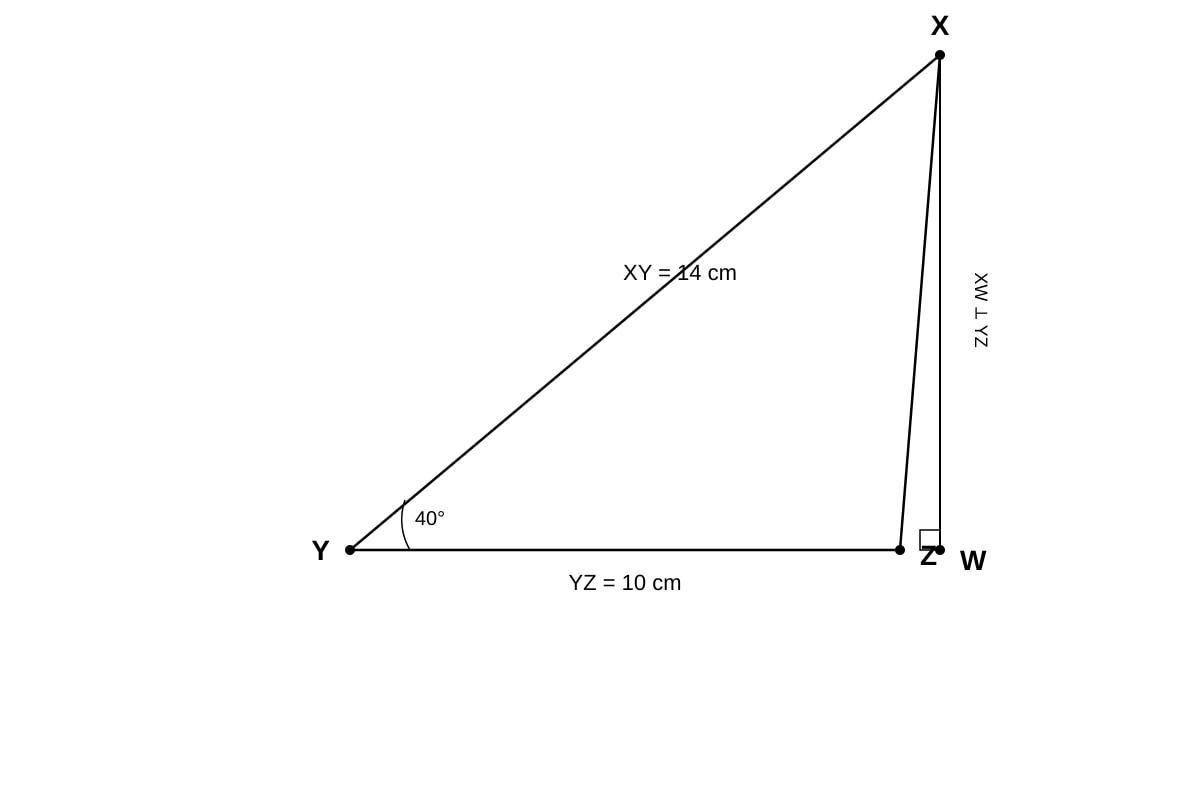

In triangle $XYZ$ , $XY = 14$ cm, $YZ = 10$ cm, and $\angle XYZ = 40^\circ$ . The perpendicular from $X$ to $YZ$ meets $YZ$ at $W$ .

<image_placeholder> id: Q5-fig1 type: diagram linked_question: Q5 description: Triangle XYZ with XY = 14, YZ = 10, angle XYZ = 40°. Perpendicular from X to YZ meets at W. XW is height. labels: X, Y, Z, W, XY = 14 cm, YZ = 10 cm, angle XYZ = 40°, XW ⟂ YZ values: XY = 14, YZ = 10, angle = 40 must_show: Triangle with perpendicular height from X to YZ, right angle at W </image_placeholder>

(a) Calculate the length of $XW$ , correct to 3 significant figures.
(b) Calculate the area of triangle $XYZ$ , correct to 3 significant figures.

[3]

6

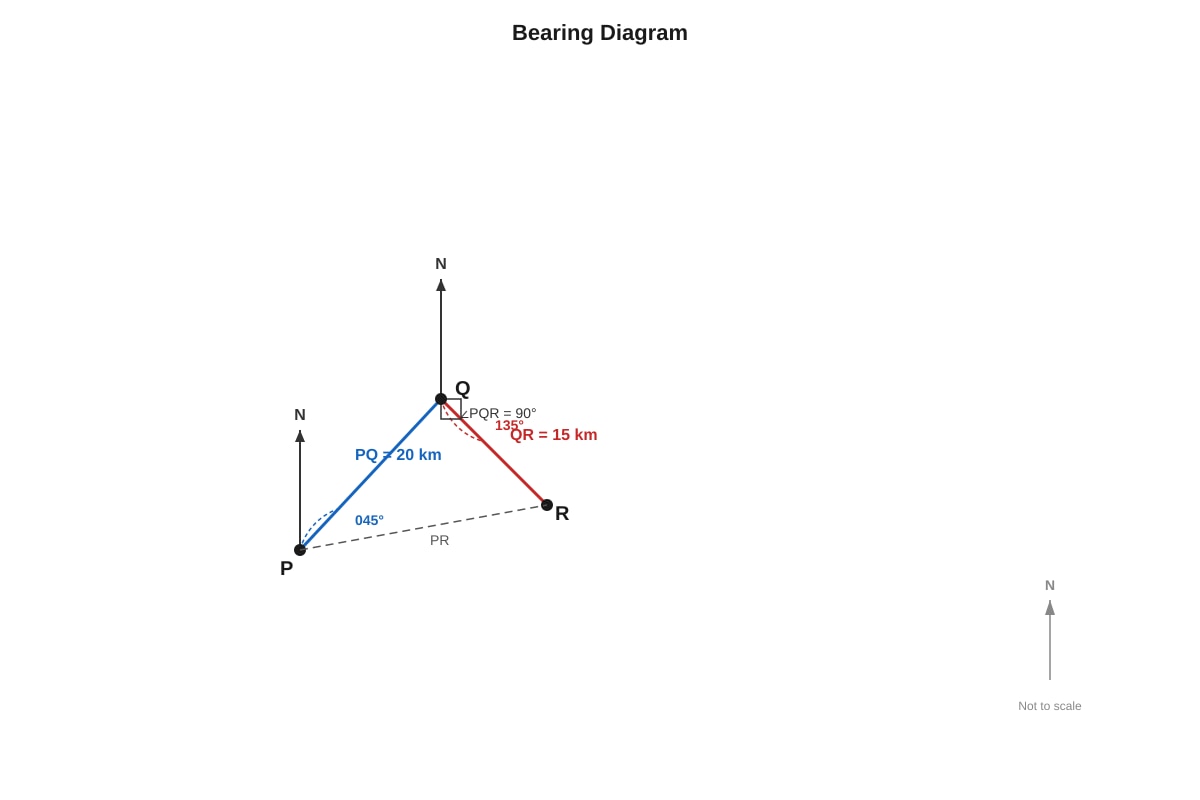

A ship sails from port $P$ on a bearing of $045^\circ$ for 20 km to point $Q$ . It then sails on a bearing of $135^\circ$ for 15 km to point $R$ .

<image_placeholder> id: Q6-fig1 type: diagram linked_question: Q6 description: Bearing diagram. North lines at P, Q. P to Q: bearing 045°, distance 20 km. Q to R: bearing 135°, distance 15 km. Angle PQR = 90°. labels: P, Q, R, North lines, bearing 045°, bearing 135°, PQ = 20 km, QR = 15 km values: PQ = 20, QR = 15, bearings 045 and 135 must_show: North lines parallel, bearings measured clockwise from north, right angle at Q </image_placeholder>

(a) Show that $\angle PQR = 90^\circ$ .
(b) Calculate the distance $PR$ , correct to 3 significant figures.
(c) Calculate the bearing of $R$ from $P$ , correct to one decimal place.

[4]

7

In the diagram, $O$ is the centre of a circle of radius 8 cm. $A$ and $B$ are points on the circle such that $\angle AOB = 120^\circ$ .

<image_placeholder> id: Q7-fig1 type: diagram linked_question: Q7 description: Circle centre O, radius 8 cm. Points A, B on circumference. Angle AOB = 120°. Chord AB drawn. Sector AOB shaded. labels: O, A, B, radius = 8 cm, angle AOB = 120°, chord AB values: radius = 8, angle = 120 must_show: Circle with centre O, radii OA and OB, angle 120° at centre, chord AB </image_placeholder>

(a) Calculate the length of chord $AB$ , correct to 3 significant figures.
(b) Calculate the area of the minor sector $AOB$ , correct to 3 significant figures.
(c) Calculate the area of the minor segment cut off by chord $AB$ , correct to 3 significant figures.

[4]

8

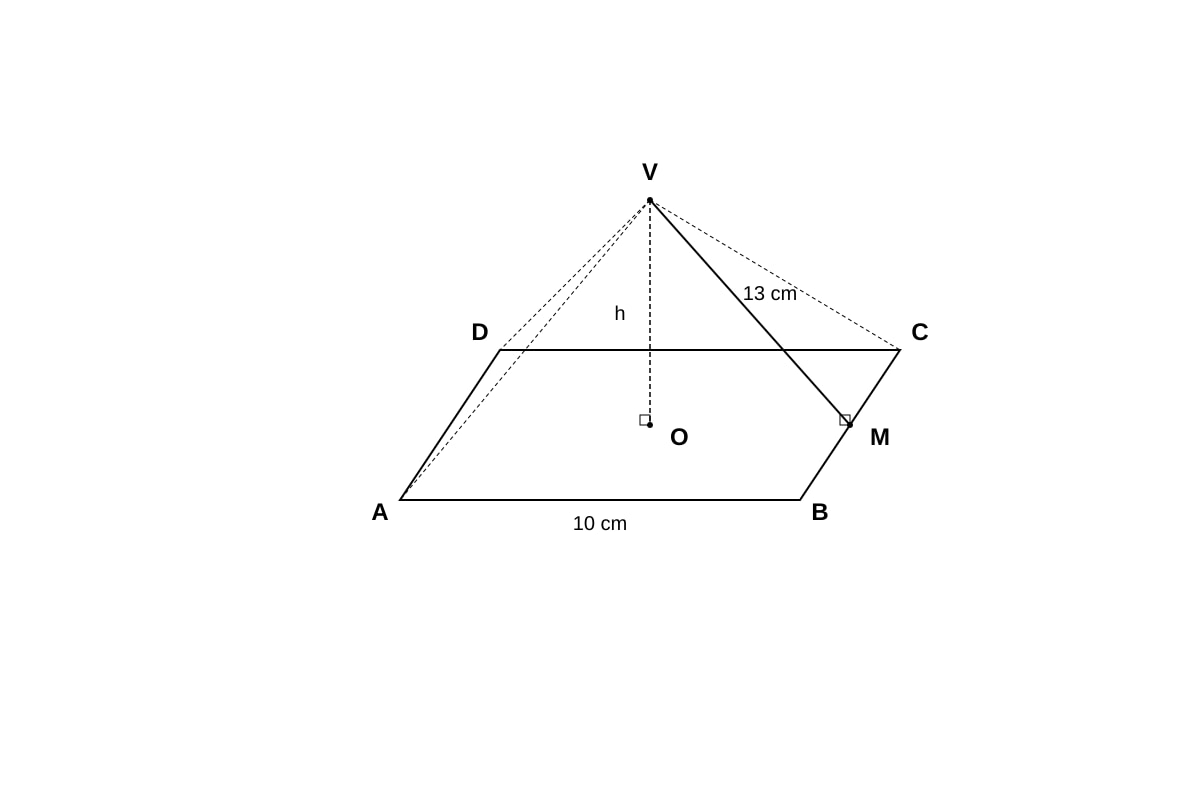

The diagram shows a right pyramid with a square base $ABCD$ of side 10 cm. The vertex $V$ is vertically above the centre $O$ of the base. The slant height $VM = 13$ cm, where $M$ is the midpoint of $BC$ .

<image_placeholder> id: Q8-fig1 type: diagram linked_question: Q8 description: Square-based pyramid VABCD. Base ABCD square side 10 cm. O centre of base. V above O. M midpoint of BC. VM = 13 cm (slant height). VO = height h. labels: V, A, B, C, D, O, M, base side = 10 cm, VM = 13 cm, VO = h values: base side = 10, VM = 13 must_show: Square base, vertex above centre, slant height to midpoint of side, height VO </image_placeholder>

(a) Calculate the height $VO$ of the pyramid, correct to 3 significant figures.
(b) Calculate the angle between the slant face $VBC$ and the base $ABCD$ , correct to one decimal place.
(c) Calculate the volume of the pyramid, correct to 3 significant figures.

[4]

9

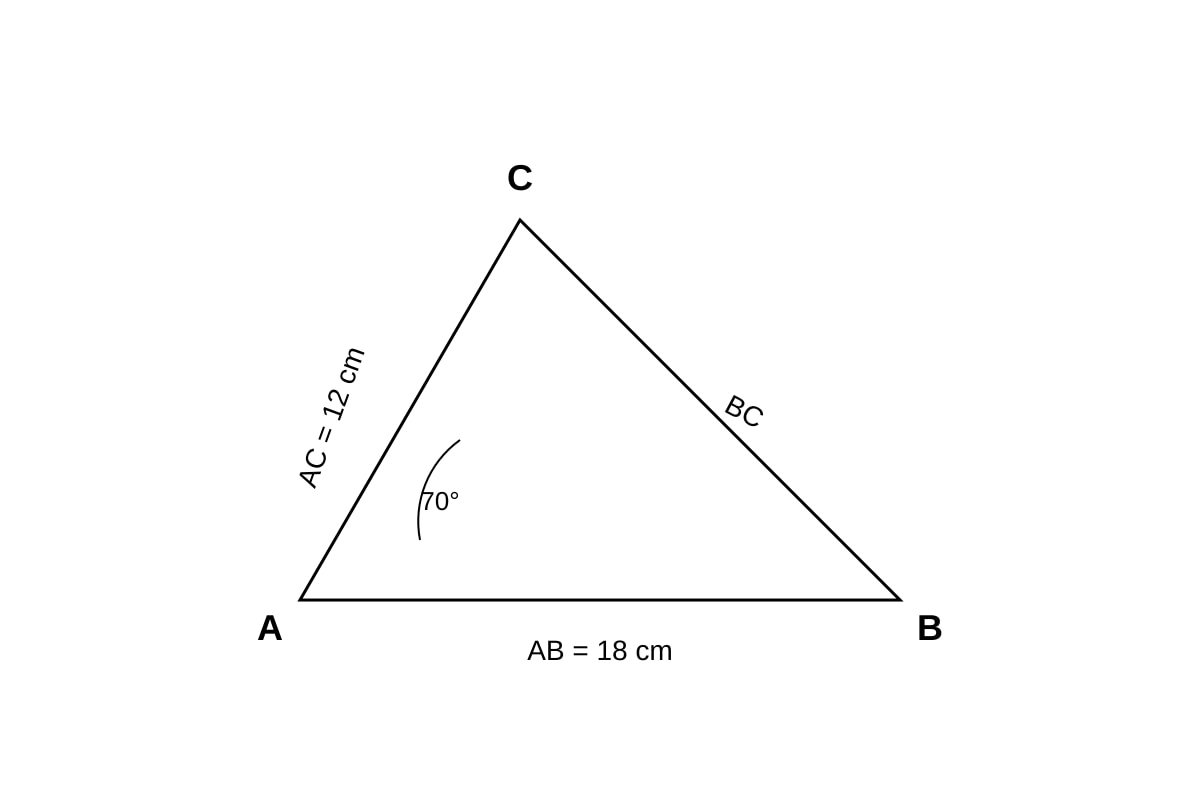

In triangle $ABC$ , $AB = 18$ cm, $AC = 12$ cm, and $\angle BAC = 70^\circ$ .

<image_placeholder> id: Q9-fig1 type: diagram linked_question: Q9 description: Triangle ABC with AB = 18, AC = 12, angle BAC = 70°. Side BC opposite angle A. labels: A, B, C, AB = 18 cm, AC = 12 cm, angle BAC = 70° values: AB = 18, AC = 12, angle = 70 must_show: Triangle with two sides and included angle labelled </image_placeholder>

(a) Calculate the length of $BC$ , correct to 3 significant figures.
(b) Calculate $\angle ABC$ , correct to one decimal place.
(c) Calculate the area of triangle $ABC$ , correct to 3 significant figures.

[4]

10

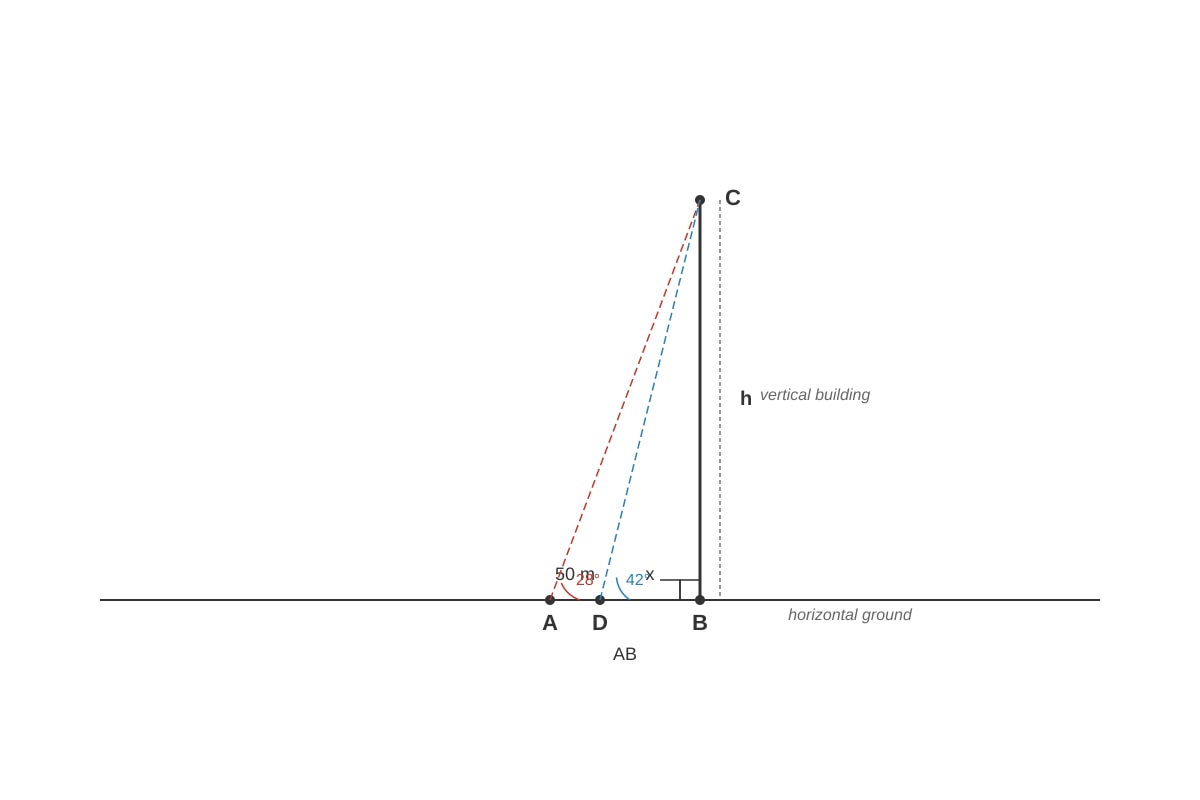

A man stands at point $A$ on horizontal ground and observes the top of a vertical building $BC$ at an angle of elevation of $28^\circ$ . He walks 50 m directly towards the building to point $D$ and observes the angle of elevation to be $42^\circ$ .

<image_placeholder> id: Q10-fig1 type: diagram linked_question: Q10 description: Building BC vertical. Point A on ground, angle of elevation to C = 28°. Point D on ground, AD = 50 m, angle of elevation to C = 42°. B is base of building. labels: A, D, B, C, AD = 50 m, angle CAB = 28°, angle CDB = 42°, BC = h values: AD = 50, angles 28 and 42 must_show: Two right triangles sharing vertical side BC, horizontal distances AB and DB </image_placeholder>

(a) Let the height of the building be $h$ metres and the distance $DB$ be $x$ metres. Write down two equations involving $h$ and $x$ using the tangent ratio.
(b) Solve these equations to find the height of the building, correct to 3 significant figures.

[4]

Section B [30 marks]

Answer all questions in this section.

11

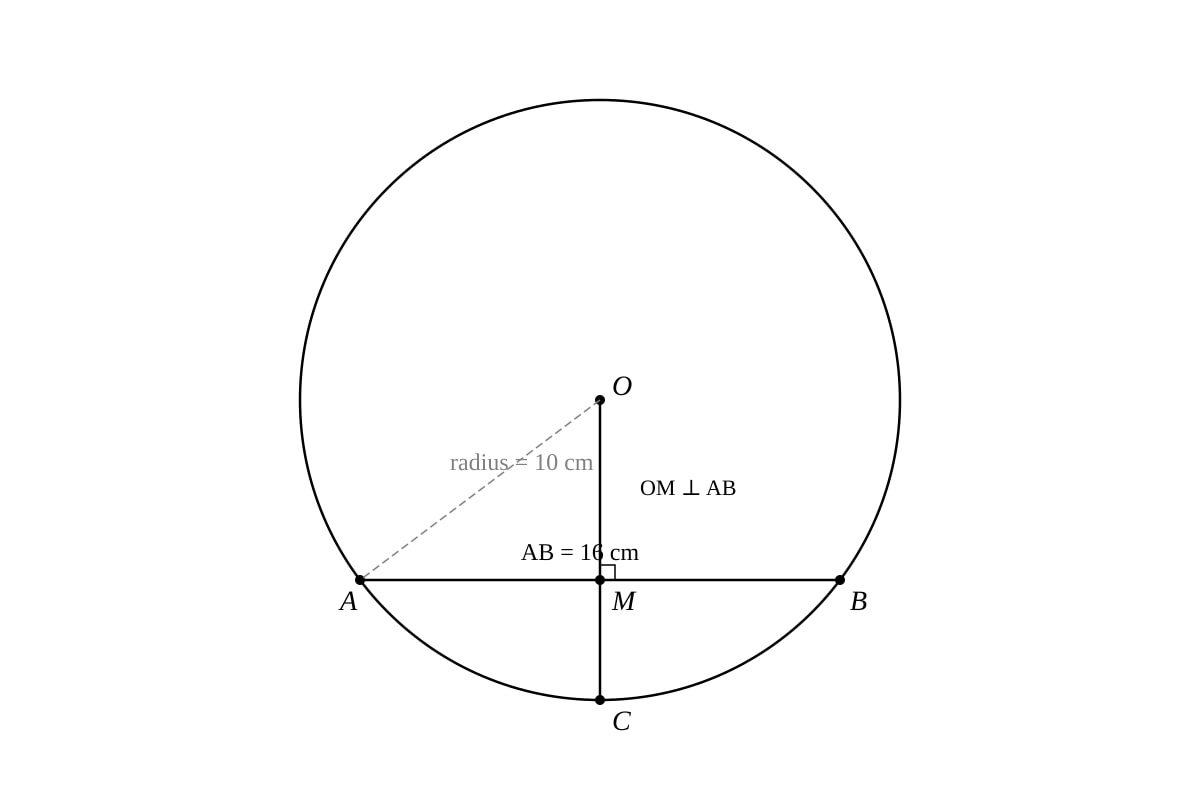

The diagram shows a circle with centre $O$ and radius 10 cm. $AB$ is a chord of length 16 cm. $M$ is the midpoint of $AB$ . The line $OM$ is extended to meet the circle at $C$ .

<image_placeholder> id: Q11-fig1 type: diagram linked_question: Q11 description: Circle centre O, radius 10 cm. Chord AB = 16 cm. M midpoint of AB. OM ⟂ AB. OM extended to C on circumference. labels: O, A, B, C, M, radius = 10 cm, AB = 16 cm, OM ⟂ AB values: radius = 10, AB = 16 must_show: Circle, chord AB, perpendicular from centre to chord, radius to midpoint, extension to circumference </image_placeholder>

(a) Calculate the length of $OM$ .
(b) Calculate the length of $MC$ .
(c) Calculate the area of the minor segment cut off by chord $AB$ , correct to 3 significant figures.

[5]

12

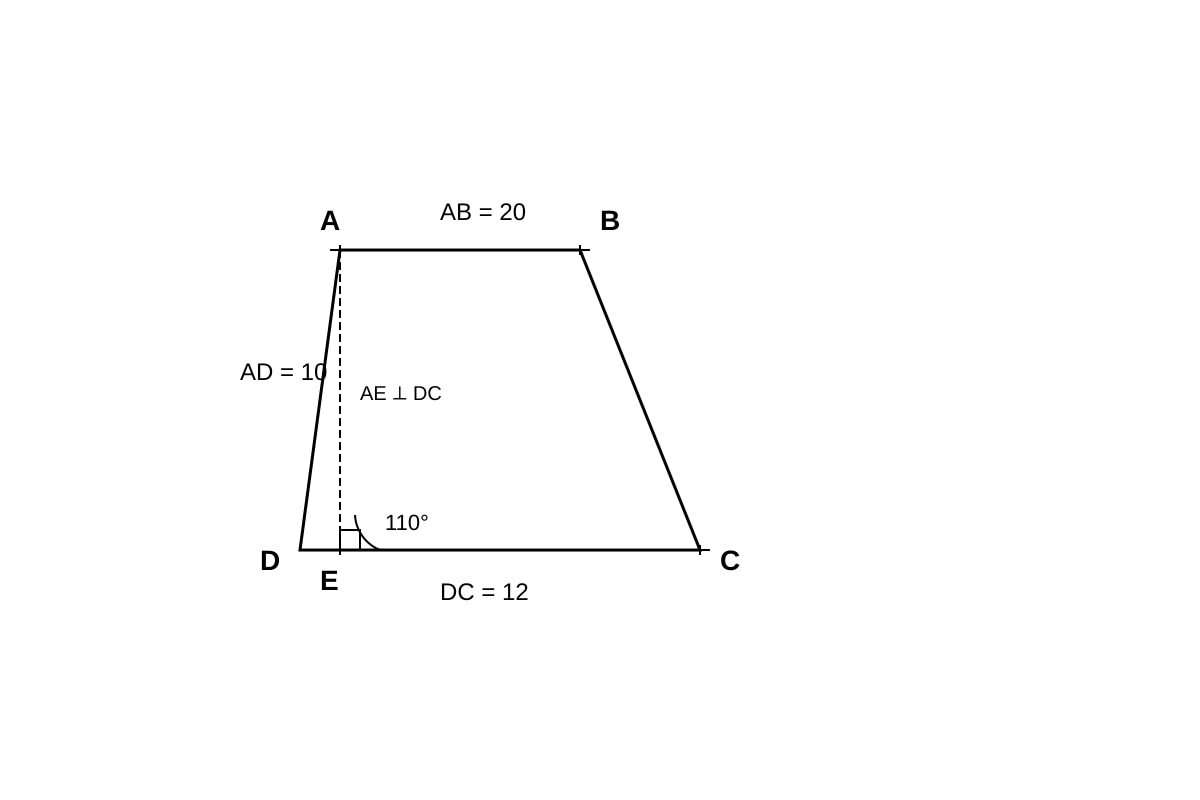

In the diagram, $ABCD$ is a trapezium with $AB \parallel DC$ . $AB = 20$ cm, $DC = 12$ cm, $AD = 10$ cm, and $\angle ADC = 110^\circ$ . The perpendicular from $A$ to $DC$ meets $DC$ at $E$ .

<image_placeholder> id: Q12-fig1 type: diagram linked_question: Q12 description: Trapezium ABCD, AB parallel DC. AB = 20, DC = 12, AD = 10, angle ADC = 110°. AE perpendicular to DC at E. labels: A, B, C, D, E, AB = 20, DC = 12, AD = 10, angle ADC = 110°, AE ⟂ DC values: AB = 20, DC = 12, AD = 10, angle = 110 must_show: Trapezium with parallel sides, perpendicular height from A to DC, angle 110° at D </image_placeholder>

(a) Calculate the length of $AE$ , correct to 3 significant figures.
(b) Calculate the length of $DE$ , correct to 3 significant figures.
(c) Calculate the area of trapezium $ABCD$ , correct to 3 significant figures.

[5]

13

A vertical tower $PQ$ stands on horizontal ground. From a point $A$ on the ground due south of the tower, the angle of elevation of the top $P$ is $30^\circ$ . From a point $B$ on the ground due east of the tower, the angle of elevation of $P$ is $25^\circ$ . The distance $AB = 100$ m.

<image_placeholder> id: Q13-fig1 type: diagram linked_question: Q13 description: 3D diagram. Tower PQ vertical. Point A due south, angle elevation 30°. Point B due east, angle elevation 25°. AB = 100 m. Q is base of tower. AQ and BQ are horizontal distances. labels: P (top), Q (base), A (south), B (east), PQ = h, angle PAQ = 30°, angle PBQ = 25°, AB = 100 m values: AB = 100, angles 30 and 25 must_show: Right angles at Q, AQ south, BQ east, AB horizontal distance 100 m </image_placeholder>

(a) Express $AQ$ and $BQ$ in terms of $h$ , the height of the tower.
(b) Using triangle $AQB$ , form an equation in $h$ and solve to find the height of the tower, correct to 3 significant figures.
(c) Calculate the angle of elevation of $P$ from the midpoint of $AB$ , correct to one decimal place.

[6]

14

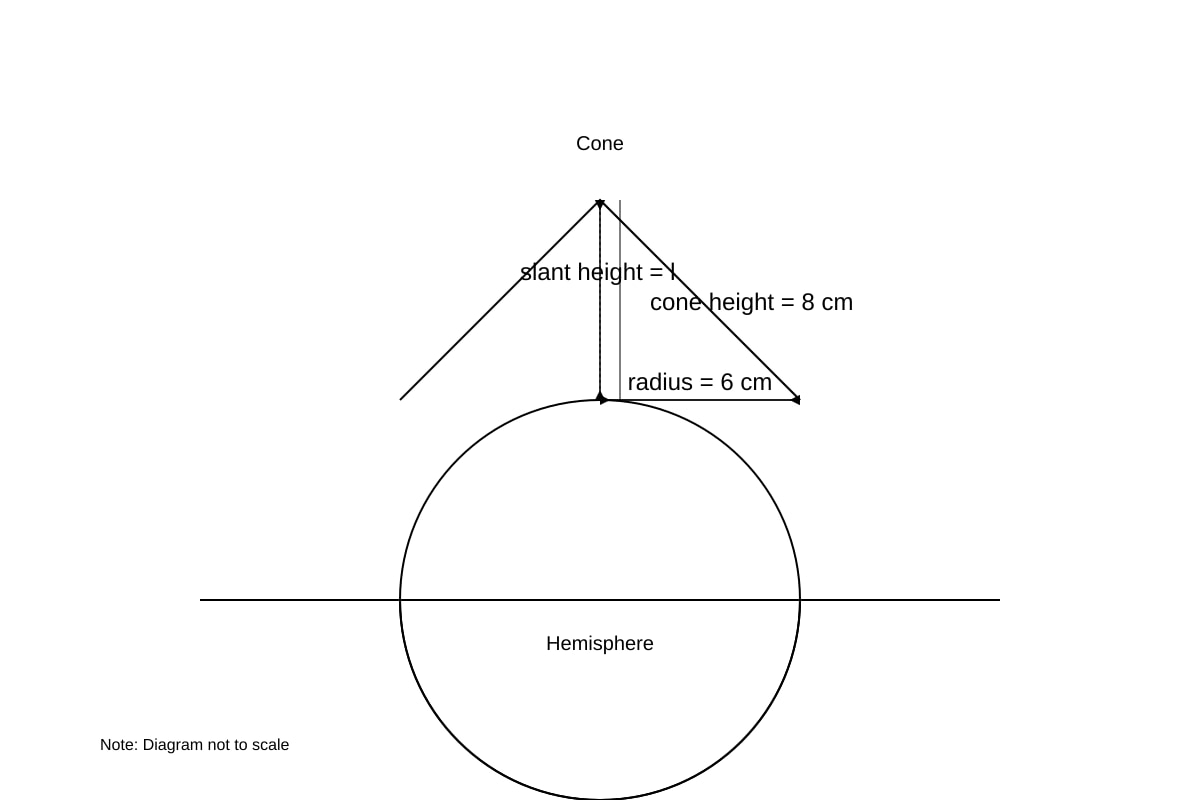

The diagram shows a solid consisting of a right circular cone of base radius 6 cm and height 8 cm, placed on top of a hemisphere of the same radius.

<image_placeholder> id: Q14-fig1 type: diagram linked_question: Q14 description: Composite solid: cone on top of hemisphere. Both radius = 6 cm. Cone height = 8 cm. Slant height of cone = l. labels: radius = 6 cm, cone height = 8 cm, slant height = l values: radius = 6, cone height = 8 must_show: Cone on hemisphere sharing same circular base, dimensions labelled </image_placeholder>

(a) Calculate the slant height of the cone.
(b) Calculate the total surface area of the solid, correct to 3 significant figures.
(c) Calculate the volume of the solid, correct to 3 significant figures.

[5]

15

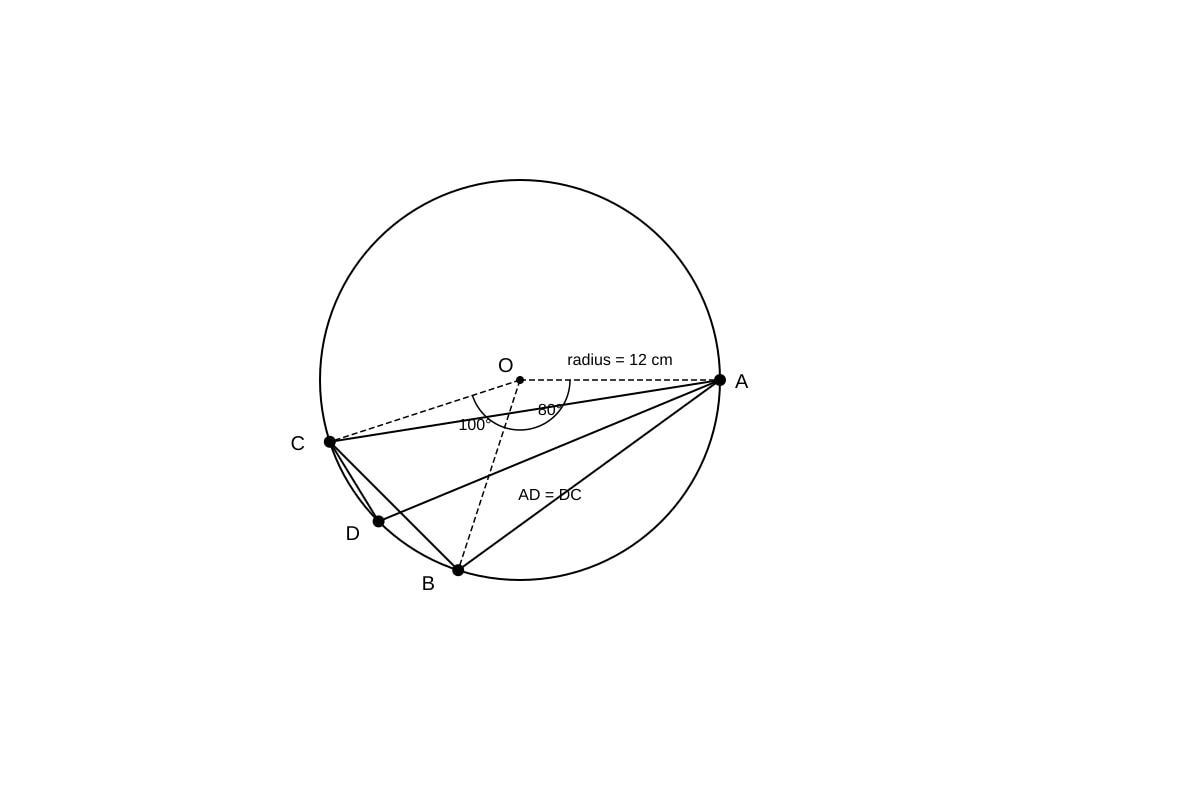

In the diagram, $O$ is the centre of a circle of radius 12 cm. $A$ , $B$ , and $C$ are points on the circle such that $\angle AOB = 80^\circ$ and $\angle BOC = 100^\circ$ . $D$ is a point on the minor arc $AC$ such that $AD = DC$ .

<image_placeholder> id: Q15-fig1 type: diagram linked_question: Q15 description: Circle centre O, radius 12 cm. Points A, B, C on circumference. Angle AOB = 80°, angle BOC = 100°. D on minor arc AC with AD = DC. Chords drawn. labels: O, A, B, C, D, radius = 12 cm, angle AOB = 80°, angle BOC = 100°, AD = DC values: radius = 12, angles 80 and 100 must_show: Circle with centre, three points with given central angles, D on minor arc AC </image_placeholder>

(a) Find $\angle AOC$ .
(b) Find $\angle ABC$ .
(c) Find $\angle ADC$ .
(d) Calculate the length of chord $AC$ , correct to 3 significant figures.

[5]

16

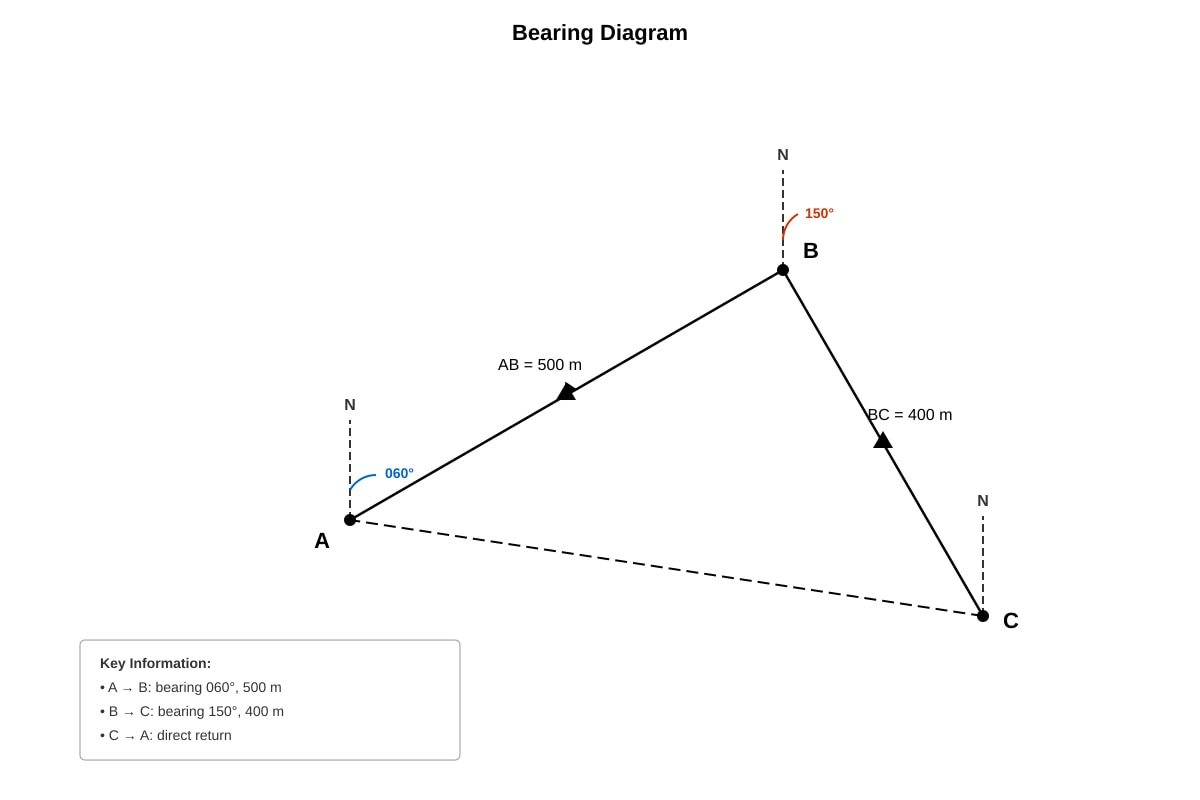

A drone flies from point $A$ to point $B$ on a bearing of $060^\circ$ for 500 m. It then flies from $B$ to $C$ on a bearing of $150^\circ$ for 400 m. Finally, it flies directly back to $A$ .

<image_placeholder> id: Q16-fig1 type: diagram linked_question: Q16 description: Bearing diagram. A to B: bearing 060°, 500 m. B to C: bearing 150°, 400 m. C to A direct. North lines at A, B, C. labels: A, B, C, North lines, bearing 060°, bearing 150°, AB = 500 m, BC = 400 m values: AB = 500, BC = 400, bearings 060 and 150 must_show: North lines parallel, bearings clockwise from north, triangle ABC </image_placeholder>

(a) Show that $\angle ABC = 90^\circ$ .
(b) Calculate the distance $CA$ , correct to 3 significant figures.
(c) Calculate the bearing of $A$ from $C$ , correct to one decimal place.
(d) Calculate the total distance flown by the drone, correct to 3 significant figures.

[6]

END OF PAPER

Answers

TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 3 (SA2 Version 2) - Answer Key

Total Marks: 60

Section A [30 marks]

1

(a) $\tan x = \frac{\text{opposite}}{\text{adjacent}} = \frac{BC}{AB} = \frac{8}{15}$

(b) $x = \tan^{-1}\left(\frac{8}{15}\right) = 28.072...^\circ = 28.1^\circ$ (1 d.p.)

Marks: (a) 1, (b) 1
Note: Identify opposite and adjacent correctly relative to angle $x$ . Angle $x$ is at $A$ , so opposite is $BC = 8$ , adjacent is $AB = 15$ .

2

(a) $\cos \theta = \frac{\text{adjacent}}{\text{hypotenuse}} = \frac{2.5}{6.5} = \frac{5}{13}$
$\theta = \cos^{-1}\left(\frac{5}{13}\right) = 67.380...^\circ = 67.4^\circ$ (1 d.p.)

(b) Height $h = \sqrt{6.5^2 - 2.5^2} = \sqrt{42.25 - 6.25} = \sqrt{36} = 6.00$ m (3 s.f.)
Alternatively: $h = 6.5 \sin \theta = 6.5 \times \sin 67.380...^\circ = 6.00$ m

Marks: (a) 1, (b) 2 (1 for method, 1 for answer)
Note: Use Pythagoras or trigonometry. Carry full precision for $\theta$ when using it to find $h$ .

3

(a) Using Cosine Rule:
$PR^2 = PQ^2 + QR^2 - 2(PQ)(QR)\cos 60^\circ$
$PR^2 = 12^2 + 9^2 - 2(12)(9)(0.5)$
$PR^2 = 144 + 81 - 108 = 117$
$PR = \sqrt{117} = 10.816... = 10.8$ cm (3 s.f.)

(b) Area $= \frac{1}{2} \times PQ \times QR \times \sin 60^\circ$
$= \frac{1}{2} \times 12 \times 9 \times \frac{\sqrt{3}}{2}$
$= 27\sqrt{3} = 46.765... = 46.8$ cm $^2$ (3 s.f.)

Marks: (a) 2 (1 for correct cosine rule, 1 for answer), (b) 1
Note: Cosine rule for side opposite known angle. Area formula $\frac{1}{2}ab\sin C$ uses included angle.

4

(a) $\tan 35^\circ = \frac{AB}{BC} = \frac{10}{BC}$
$BC = \frac{10}{\tan 35^\circ} = \frac{10}{0.7002...} = 14.281... = 14.3$ m (3 s.f.)

(b) $\tan(\angle ADB) = \frac{AB}{DB} = \frac{10}{15} = \frac{2}{3}$
$\angle ADB = \tan^{-1}\left(\frac{2}{3}\right) = 33.690...^\circ = 33.7^\circ$ (1 d.p.)

Marks: (a) 1, (b) 2 (1 for correct ratio, 1 for answer)
Note: Angle of elevation uses tangent = opposite/adjacent. In (b), adjacent is $BD = 15$ m.

5

(a) In right triangle $XYW$ : $\sin 40^\circ = \frac{XW}{XY} = \frac{XW}{14}$
$XW = 14 \sin 40^\circ = 14 \times 0.6427... = 8.998... = 9.00$ cm (3 s.f.)

(b) Area $= \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times YZ \times XW$
$= \frac{1}{2} \times 10 \times 8.998... = 44.99... = 45.0$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 2 (1 for method using perpendicular height, 1 for answer)
Note: $XW$ is perpendicular height to base $YZ$ . Use $\sin$ since $XW$ is opposite the $40^\circ$ angle in triangle $XYW$ .

6

(a) Bearing of $Q$ from $P$ is $045^\circ$ , so $\angle NPQ = 45^\circ$ where $N$ is north.
Bearing of $R$ from $Q$ is $135^\circ$ , so $\angle N'QR = 135^\circ$ where $N'$ is north at $Q$ .
Since north lines are parallel, $\angle PQN' = 45^\circ$ (alternate angles).
$\angle PQR = \angle N'QR - \angle PQN' = 135^\circ - 45^\circ = 90^\circ$ .

(b) Triangle $PQR$ is right-angled at $Q$ .
$PR^2 = PQ^2 + QR^2 = 20^2 + 15^2 = 400 + 225 = 625$
$PR = \sqrt{625} = 25.0$ km (3 s.f.)

(c) $\tan(\angle QPR) = \frac{QR}{PQ} = \frac{15}{20} = 0.75$
$\angle QPR = \tan^{-1}(0.75) = 36.869...^\circ$
Bearing of $R$ from $P$ = $045^\circ + 36.869...^\circ = 81.869...^\circ = 081.9^\circ$ (1 d.p.)

Marks: (a) 1, (b) 1, (c) 2 (1 for finding angle, 1 for bearing)
Note: Bearings are measured clockwise from north. North lines are parallel. For bearing from $P$ , add $\angle QPR$ to the initial bearing $045^\circ$ .

7

(a) Triangle $AOB$ is isosceles with $OA = OB = 8$ .
Drop perpendicular from $O$ to $AB$ at $M$ . Then $AM = MB$ and $\angle AOM = 60^\circ$ .
$\sin 60^\circ = \frac{AM}{OA} = \frac{AM}{8}$
$AM = 8 \sin 60^\circ = 8 \times \frac{\sqrt{3}}{2} = 4\sqrt{3}$
$AB = 2 \times AM = 8\sqrt{3} = 13.856... = 13.9$ cm (3 s.f.)
Alternatively using Cosine Rule: $AB^2 = 8^2 + 8^2 - 2(8)(8)\cos 120^\circ = 128 - 128(-0.5) = 192$ , $AB = \sqrt{192} = 8\sqrt{3}$ .

(b) Area of sector $= \frac{120}{360} \times \pi \times 8^2 = \frac{1}{3} \times 64\pi = \frac{64\pi}{3} = 67.020... = 67.0$ cm $^2$ (3 s.f.)

(c) Area of triangle $AOB = \frac{1}{2} \times 8 \times 8 \times \sin 120^\circ = 32 \times \frac{\sqrt{3}}{2} = 16\sqrt{3} = 27.712...$ cm $^2$
Area of segment = Area of sector - Area of triangle
$= 67.020... - 27.712... = 39.308... = 39.3$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 1, (c) 2 (1 for triangle area, 1 for subtraction and answer)
Note: Segment area = sector area - triangle area. Use $\sin 120^\circ = \sin 60^\circ = \frac{\sqrt{3}}{2}$ .

8

(a) $OM = \frac{1}{2} \times BC = 5$ cm (half side of square base)
In right triangle $VOM$ : $VO^2 = VM^2 - OM^2 = 13^2 - 5^2 = 169 - 25 = 144$
$VO = \sqrt{144} = 12.0$ cm (3 s.f.)

(b) Angle between face $VBC$ and base $ABCD$ is $\angle VMO$ (angle between slant height and its projection on base).
$\cos(\angle VMO) = \frac{OM}{VM} = \frac{5}{13}$
$\angle VMO = \cos^{-1}\left(\frac{5}{13}\right) = 67.380...^\circ = 67.4^\circ$ (1 d.p.)

(c) Volume $= \frac{1}{3} \times \text{base area} \times \text{height} = \frac{1}{3} \times 10^2 \times 12 = \frac{1}{3} \times 100 \times 12 = 400$ cm $^3$

Marks: (a) 1, (b) 2 (1 for identifying correct angle, 1 for answer), (c) 1
Note: Angle between plane and base = angle between line in plane perpendicular to intersection and its projection. Here $VM \perp BC$ and $OM \perp BC$ , so $\angle VMO$ is the required angle.

9

(a) Cosine Rule:
$BC^2 = AB^2 + AC^2 - 2(AB)(AC)\cos 70^\circ$
$BC^2 = 18^2 + 12^2 - 2(18)(12)\cos 70^\circ$
$BC^2 = 324 + 144 - 432(0.3420...)$
$BC^2 = 468 - 147.75... = 320.24...$
$BC = \sqrt{320.24...} = 17.895... = 17.9$ cm (3 s.f.)

(b) Sine Rule:
$\frac{\sin \angle ABC}{AC} = \frac{\sin 70^\circ}{BC}$
$\sin \angle ABC = \frac{12 \times \sin 70^\circ}{17.895...} = \frac{12 \times 0.9396...}{17.895...} = 0.6303...$
$\angle ABC = \sin^{-1}(0.6303...) = 39.06...^\circ = 39.1^\circ$ (1 d.p.)
Check: Angle is acute since $AC < AB$ .

(c) Area $= \frac{1}{2} \times AB \times AC \times \sin 70^\circ$
$= \frac{1}{2} \times 18 \times 12 \times 0.9396... = 101.48... = 101$ cm $^2$ (3 s.f.)

Marks: (a) 2 (1 for cosine rule, 1 for answer), (b) 1, (c) 1
Note: Use cosine rule for side opposite known angle. Sine rule for unknown angle. Area uses included angle.

10

(a) From triangle $ABC$ : $\tan 28^\circ = \frac{h}{x + 50}$ $\Rightarrow$ $h = (x + 50)\tan 28^\circ$
From triangle $DBC$ : $\tan 42^\circ = \frac{h}{x}$ $\Rightarrow$ $h = x \tan 42^\circ$

(b) Equate: $(x + 50)\tan 28^\circ = x \tan 42^\circ$
$x \tan 28^\circ + 50 \tan 28^\circ = x \tan 42^\circ$
$50 \tan 28^\circ = x(\tan 42^\circ - \tan 28^\circ)$
$x = \frac{50 \tan 28^\circ}{\tan 42^\circ - \tan 28^\circ} = \frac{50 \times 0.5317...}{0.9004... - 0.5317...} = \frac{26.585...}{0.3687...} = 72.10...$ m
$h = x \tan 42^\circ = 72.10... \times 0.9004... = 64.92... = 64.9$ m (3 s.f.)

Marks: (a) 2 (1 for each correct equation), (b) 2 (1 for solving for $x$ or $h$ , 1 for final answer)
Note: Two right triangles share height $h$ . Set up two tangent equations and solve simultaneously. Common error: using $x$ for $AB$ instead of $DB$ .

Section B [30 marks]

11

(a) $OM \perp AB$ (radius to midpoint of chord), so $AM = \frac{16}{2} = 8$ cm.
In right triangle $OAM$ : $OM^2 = OA^2 - AM^2 = 10^2 - 8^2 = 100 - 64 = 36$
$OM = \sqrt{36} = 6$ cm

(b) $OC = 10$ cm (radius), $OM = 6$ cm
$MC = OC - OM = 10 - 6 = 4$ cm

(c) $\angle AOM = \cos^{-1}\left(\frac{OM}{OA}\right) = \cos^{-1}\left(\frac{6}{10}\right) = 53.130...^\circ$
$\angle AOB = 2 \times 53.130...^\circ = 106.260...^\circ$
Area of sector $AOB = \frac{106.260...}{360} \times \pi \times 10^2 = 92.729...$ cm $^2$
Area of triangle $AOB = \frac{1}{2} \times 10 \times 10 \times \sin 106.260...^\circ = 50 \times 0.96 = 48$ cm $^2$
Area of segment $= 92.729... - 48 = 44.729... = 44.7$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 1, (c) 3 (1 for angle, 1 for sector area, 1 for triangle area and subtraction)
Note: Perpendicular from centre bisects chord. Central angle found via cosine. Segment = sector - triangle.

12

(a) $\angle ADE = 180^\circ - 110^\circ = 70^\circ$ (angles on straight line)
In right triangle $ADE$ : $\sin 70^\circ = \frac{AE}{AD} = \frac{AE}{10}$
$AE = 10 \sin 70^\circ = 10 \times 0.9396... = 9.396... = 9.40$ cm (3 s.f.)

(b) $\cos 70^\circ = \frac{DE}{AD} = \frac{DE}{10}$
$DE = 10 \cos 70^\circ = 10 \times 0.3420... = 3.420... = 3.42$ cm (3 s.f.)

(c) $EC = DC - DE = 12 - 3.420... = 8.579...$ cm
Area of trapezium $= \frac{1}{2}(AB + DC) \times AE = \frac{1}{2}(20 + 12) \times 9.396...$
$= 16 \times 9.396... = 150.34... = 150$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 1, (c) 3 (1 for finding $EC$ or using trapezium formula, 1 for correct substitution, 1 for answer)
Note: $\angle ADC = 110^\circ$ is obtuse, so the interior angle at $D$ for the right triangle is $70^\circ$ . Height $AE$ is perpendicular to both parallel sides.

13

(a) In right triangle $PAQ$ : $\tan 30^\circ = \frac{h}{AQ}$ $\Rightarrow$ $AQ = \frac{h}{\tan 30^\circ} = h\sqrt{3}$
In right triangle $PBQ$ : $\tan 25^\circ = \frac{h}{BQ}$ $\Rightarrow$ $BQ = \frac{h}{\tan 25^\circ}$

(b) Triangle $AQB$ is right-angled at $Q$ (south and east are perpendicular).
$AB^2 = AQ^2 + BQ^2$
$100^2 = (h\sqrt{3})^2 + \left(\frac{h}{\tan 25^\circ}\right)^2$
$10000 = 3h^2 + \frac{h^2}{\tan^2 25^\circ}$
$10000 = h^2\left(3 + \frac{1}{0.4663

<stage3_exam_answers_md>

TuitionGoWhere Practice Paper - Elementary Mathematics Secondary 3 (SA2 Version 2) - Answer Key

Total Marks: 60

Section A [30 marks]

1

(a) $\tan x = \frac{\text{opposite}}{\text{adjacent}} = \frac{BC}{AB} = \frac{8}{15}$

(b) $x = \tan^{-1}\left(\frac{8}{15}\right) = 28.072...^\circ = 28.1^\circ$ (1 d.p.)

Marks: (a) 1, (b) 1
Note: Identify opposite and adjacent correctly relative to angle $x$ . Angle $x$ is at $A$ , so opposite is $BC = 8$ , adjacent is $AB = 15$ .

2

(a) $\cos \theta = \frac{\text{adjacent}}{\text{hypotenuse}} = \frac{2.5}{6.5} = \frac{5}{13}$
$\theta = \cos^{-1}\left(\frac{5}{13}\right) = 67.380...^\circ = 67.4^\circ$ (1 d.p.)

(b) Height $h = \sqrt{6.5^2 - 2.5^2} = \sqrt{42.25 - 6.25} = \sqrt{36} = 6.00$ m (3 s.f.)
Alternatively: $h = 6.5 \sin \theta = 6.5 \times \sin 67.380...^\circ = 6.00$ m

Marks: (a) 1, (b) 2 (1 for method, 1 for answer)
Note: Use Pythagoras or trigonometry. Carry full precision for $\theta$ when using it to find $h$ .

3

(a) Using Cosine Rule:
$PR^2 = PQ^2 + QR^2 - 2(PQ)(QR)\cos 60^\circ$
$PR^2 = 12^2 + 9^2 - 2(12)(9)(0.5)$
$PR^2 = 144 + 81 - 108 = 117$
$PR = \sqrt{117} = 10.816... = 10.8$ cm (3 s.f.)

(b) Area $= \frac{1}{2} \times PQ \times QR \times \sin 60^\circ$
$= \frac{1}{2} \times 12 \times 9 \times \frac{\sqrt{3}}{2}$
$= 27\sqrt{3} = 46.765... = 46.8$ cm $^2$ (3 s.f.)

Marks: (a) 2 (1 for correct cosine rule, 1 for answer), (b) 1
Note: Cosine rule for side opposite known angle. Area formula $\frac{1}{2}ab\sin C$ uses included angle.

4

(a) $\tan 35^\circ = \frac{AB}{BC} = \frac{10}{BC}$
$BC = \frac{10}{\tan 35^\circ} = \frac{10}{0.7002...} = 14.281... = 14.3$ m (3 s.f.)

(b) $\tan(\angle ADB) = \frac{AB}{DB} = \frac{10}{15} = \frac{2}{3}$
$\angle ADB = \tan^{-1}\left(\frac{2}{3}\right) = 33.690...^\circ = 33.7^\circ$ (1 d.p.)

Marks: (a) 1, (b) 2 (1 for correct ratio, 1 for answer)

5

(a) In right triangle $XYW$ , $\sin 40^\circ = \frac{XW}{XY} = \frac{XW}{14}$
$XW = 14 \sin 40^\circ = 14 \times 0.6427... = 8.998... = 9.00$ cm (3 s.f.)

(b) Area $= \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times YZ \times XW$
$= \frac{1}{2} \times 10 \times 8.998... = 44.99... = 45.0$ cm $^2$ (3 s.f.)
Alternatively: Area $= \frac{1}{2} \times XY \times YZ \times \sin 40^\circ = \frac{1}{2} \times 14 \times 10 \times \sin 40^\circ = 45.0$ cm $^2$

Marks: (a) 1, (b) 2 (1 for method, 1 for answer)

6

(a) Bearing of $Q$ from $P$ is $045^\circ$ , so North line at $P$ to $PQ$ is $45^\circ$ .
Bearing of $R$ from $Q$ is $135^\circ$ , so North line at $Q$ to $QR$ is $135^\circ$ .
Since North lines are parallel, interior angles sum to $180^\circ$ .
Angle between $PQ$ and South at $Q$ = $45^\circ$ (alternate angles).
$\angle PQR = 135^\circ - 45^\circ = 90^\circ$ . (Shown)

(b) Triangle $PQR$ is right-angled at $Q$ .
$PR^2 = PQ^2 + QR^2 = 20^2 + 15^2 = 400 + 225 = 625$
$PR = \sqrt{625} = 25.0$ km (3 s.f.)

(c) $\tan(\angle QPR) = \frac{QR}{PQ} = \frac{15}{20} = 0.75$
$\angle QPR = \tan^{-1}(0.75) = 36.869...^\circ$
Bearing of $R$ from $P$ = $045^\circ + 36.869...^\circ = 081.869...^\circ = 081.9^\circ$ (1 d.p.)

Marks: (a) 1, (b) 2 (1 for Pythagoras, 1 for answer), (c) 1

7

(a) Chord length $AB = 2r \sin\left(\frac{\theta}{2}\right) = 2 \times 8 \times \sin 60^\circ = 16 \times \frac{\sqrt{3}}{2} = 8\sqrt{3} = 13.856... = 13.9$ cm (3 s.f.)
Alternatively: Cosine rule in $\triangle AOB$ : $AB^2 = 8^2 + 8^2 - 2(8)(8)\cos 120^\circ = 128 - 128(-0.5) = 192$ , $AB = \sqrt{192} = 13.9$ cm.

(b) Area of sector $= \frac{120}{360} \times \pi r^2 = \frac{1}{3} \times \pi \times 64 = \frac{64\pi}{3} = 67.020... = 67.0$ cm $^2$ (3 s.f.)

(c) Area of $\triangle AOB = \frac{1}{2} r^2 \sin 120^\circ = \frac{1}{2} \times 64 \times \frac{\sqrt{3}}{2} = 16\sqrt{3} = 27.712...$ cm $^2$
Area of segment = Area of sector $-$ Area of triangle
$= 67.020... - 27.712... = 39.308... = 39.3$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 1, (c) 2 (1 for triangle area, 1 for segment area)

8

(a) $OM = \frac{10}{2} = 5$ cm (half side of square base)
In right $\triangle VOM$ , $VO^2 = VM^2 - OM^2 = 13^2 - 5^2 = 169 - 25 = 144$
$VO = \sqrt{144} = 12.0$ cm (3 s.f.)

(b) Angle between face $VBC$ and base $ABCD$ is $\angle VMO$ (angle between slant height and its projection).
$\tan(\angle VMO) = \frac{VO}{OM} = \frac{12}{5} = 2.4$
$\angle VMO = \tan^{-1}(2.4) = 67.380...^\circ = 67.4^\circ$ (1 d.p.)

(c) Volume $= \frac{1}{3} \times \text{base area} \times \text{height} = \frac{1}{3} \times 10^2 \times 12 = \frac{1}{3} \times 100 \times 12 = 400$ cm $^3$ (exact, 3 s.f. = 400)

Marks: (a) 2 (1 for $OM=5$ , 1 for $VO$ ), (b) 1, (c) 1

9

(a) Cosine Rule:
$BC^2 = AB^2 + AC^2 - 2(AB)(AC)\cos 70^\circ$
$BC^2 = 18^2 + 12^2 - 2(18)(12)\cos 70^\circ$
$BC^2 = 324 + 144 - 432 \times 0.3420... = 468 - 147.75... = 320.24...$
$BC = \sqrt{320.24...} = 17.895... = 17.9$ cm (3 s.f.)

(b) Sine Rule:
$\frac{\sin \angle ABC}{AC} = \frac{\sin 70^\circ}{BC}$
$\sin \angle ABC = \frac{12 \times \sin 70^\circ}{17.895...} = \frac{12 \times 0.9396...}{17.895...} = 0.6303...$
$\angle ABC = \sin^{-1}(0.6303...) = 39.07...^\circ = 39.1^\circ$ (1 d.p.)
(Note: Angle is acute since $AC < AB$ )

(c) Area $= \frac{1}{2} \times AB \times AC \times \sin 70^\circ = \frac{1}{2} \times 18 \times 12 \times 0.9396... = 101.48... = 101$ cm $^2$ (3 s.f.)

Marks: (a) 2, (b) 1, (c) 1

10

(a) From $\triangle ABC$ : $\tan 28^\circ = \frac{h}{x + 50} \implies h = (x + 50)\tan 28^\circ$
From $\triangle DBC$ : $\tan 42^\circ = \frac{h}{x} \implies h = x \tan 42^\circ$

(b) Equate: $x \tan 42^\circ = (x + 50)\tan 28^\circ$
$x(\tan 42^\circ - \tan 28^\circ) = 50 \tan 28^\circ$
$x = \frac{50 \tan 28^\circ}{\tan 42^\circ - \tan 28^\circ} = \frac{50 \times 0.5317...}{0.9004... - 0.5317...} = \frac{26.585...}{0.3687...} = 72.10...$ m
$h = x \tan 42^\circ = 72.10... \times 0.9004... = 64.92... = 64.9$ m (3 s.f.)

Marks: (a) 2 (1 for each equation), (b) 2 (1 for solving $x$ , 1 for $h$ )

Section B [30 marks]

11

(a) $OM \perp AB$ , so $AM = \frac{16}{2} = 8$ cm.
In right $\triangle OAM$ , $OM^2 = OA^2 - AM^2 = 10^2 - 8^2 = 100 - 64 = 36$
$OM = 6$ cm

(b) $OC = 10$ cm (radius), $MC = OC - OM = 10 - 6 = 4$ cm

(c) Area of sector $AOB$ : $\angle AOB = 2 \sin^{-1}\left(\frac{AM}{OA}\right) = 2 \sin^{-1}(0.8) = 106.26...^\circ$
Sector area $= \frac{106.26...}{360} \times \pi \times 10^2 = 92.729...$ cm $^2$
Area of $\triangle AOB = \frac{1}{2} \times AB \times OM = \frac{1}{2} \times 16 \times 6 = 48$ cm $^2$
Segment area $= 92.729... - 48 = 44.729... = 44.7$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 1, (c) 3 (1 for angle/sector area, 1 for triangle area, 1 for segment)

12

(a) $AE = AD \sin \angle ADC = 10 \sin 110^\circ = 10 \sin 70^\circ = 10 \times 0.9396... = 9.396... = 9.40$ cm (3 s.f.)

(b) $DE = AD \cos \angle ADC = 10 \cos 110^\circ = -10 \cos 70^\circ = -10 \times 0.3420... = -3.420...$
Length $DE = 3.42$ cm (3 s.f.) (The negative sign indicates $E$ lies on extension of $DC$ past $D$ )

(c) Since $AB \parallel DC$ , height of trapezium $= AE = 9.396...$ cm
Area $= \frac{1}{2}(AB + DC) \times h = \frac{1}{2}(20 + 12) \times 9.396... = 16 \times 9.396... = 150.34... = 150$ cm $^2$ (3 s.f.)

Marks: (a) 1, (b) 1, (c) 3 (1 for height, 1 for formula, 1 for answer)

13

(a) In $\triangle PAQ$ , $\tan 30^\circ = \frac{h}{AQ} \implies AQ = \frac{h}{\tan 30^\circ} = h\sqrt{3}$
In $\triangle PBQ$ , $\tan 25^\circ = \frac{h}{BQ} \implies BQ = \frac{h}{\tan 25^\circ}$

(b) $\triangle AQB$ is right-angled at $Q$ (South and East are perpendicular).
$AB^2 = AQ^2 + BQ^2$
$100^2 = (h\sqrt{3})^2 + \left(\frac{h}{\tan 25^\circ}\right)^2$
$10000 = 3h^2 + \frac{h^2}{\tan^2 25^\circ}$
$10000 = h^2\left(3 + \frac{1}{0.4663...^2}\right) = h^2(3 + 4.599...) = 7.599... h^2$
$h^2 = \frac{10000}{7.599...} = 1315.8...$
$h = \sqrt{1315.8...} = 36.27... = 36.3$ m (3 s.f.)

(c) Midpoint $M$ of $AB$ : $MQ = \frac{1}{2}AB = 50$ m (midpoint of hypotenuse in right triangle).
$\tan(\angle PMQ) = \frac{h}{MQ} = \frac{36.27...}{50} = 0.7255...$
$\angle PMQ = \tan^{-1}(0.7255...) = 35.97...^\circ = 36.0^\circ$ (1 d.p.)

Marks: (a) 2, (b) 3 (1 for Pythagoras, 1 for equation, 1 for answer), (c) 1

14

(a) Slant height $l = \sqrt{r^2 + h^2} = \sqrt{6^2 + 8^2} = \sqrt{36 + 64} = \sqrt{100} = 10$ cm

(b) Total Surface Area = Curved surface of cone + Curved surface of hemisphere
$= \pi r l + 2\pi r^2 = \pi(6)(10) + 2\pi(6^2) = 60\pi + 72\pi = 132\pi = 414.69... = 415$ cm $^2$ (3 s.f.)
(Note: Base of cone and flat face of hemisphere are internal, not counted)

(c) Volume = Volume of cone + Volume of hemisphere
$= \frac{1}{3}\pi r^2 h + \frac{2}{3}\pi r^3 = \frac{1}{3}\pi(36)(8) + \frac{2}{3}\pi(216) = 96\pi + 144\pi = 240\pi = 753.98... = 754$ cm $^3$ (3 s.f.)

Marks: (a) 1, (b) 2 (1 for cone CSA, 1 for hemisphere CSA + total), (c) 2 (1 for cone vol, 1 for hemisphere vol + total)

15

(a) $\angle AOC = \angle AOB + \angle BOC = 80^\circ + 100^\circ = 180^\circ$
(So $AC$ is a diameter)

(b) $\angle ABC$ is angle at circumference subtended by arc $AC$ (major arc).
Reflex $\angle AOC = 360^\circ - 180^\circ = 180^\circ$ .
$\angle ABC = \frac{1}{2} \times \text{reflex } \angle AOC = \frac{1}{2} \times 180^\circ = 90^\circ$
(Alternatively: Angle in semicircle = $90^\circ$ )

(c) $AD = DC \implies$ arc $AD$ = arc $DC \implies \angle AOD = \angle DOC = \frac{180^\circ}{2} = 90^\circ$ .
$\angle ADC$ is angle at circumference subtended by arc $ABC$ (major arc $AC$ via $B$ ).
Reflex $\angle AOC$ (via $B$ ) = $360^\circ - 180^\circ = 180^\circ$ ? Wait.
Arc $ABC$ corresponds to central angle $\angle AOB + \angle BOC = 180^\circ$ .
$\angle ADC = \frac{1}{2} \times (\text{angle subtended by arc } ABC \text{ at centre}) = \frac{1}{2} \times 180^\circ = 90^\circ$ .
Alternatively: Cyclic quadrilateral $ABCD$ : $\angle ABC + \angle ADC = 180^\circ \implies 90^\circ + \angle ADC = 180^\circ \implies \angle ADC = 90^\circ$ .

(d) $AC$ is diameter $= 2 \times 12 = 24$ cm.
(Or chord length: $2r \sin(\frac{180^\circ}{2}) = 24 \sin 90^\circ = 24$ cm)

Marks: (a) 1, (b) 1, (c) 1, (d) 2 (1 for diameter recognition, 1 for answer)

16

(a) Bearing $A \to B = 060^\circ$ . North at $B$ parallel to North at $A$ .
Angle between $AB$ and North at $B$ (back-bearing) = $060^\circ$ (alternate angles).
Bearing $B \to C = 150^\circ$ .
$\angle ABC = 150^\circ - 60^\circ = 90^\circ$ . (Shown)

(b) Right triangle $ABC$ , right angle at $B$ .
$CA^2 = AB^2 + BC^2 = 500^2 + 400^2 = 250000 + 160000 = 410000$
$CA = \sqrt{410000} = 640.31... = 640$ m (3 s.f.)

(c) $\tan(\angle BAC) = \frac{BC}{AB} = \frac{400}{500} = 0.8$
$\angle BAC = \tan^{-1}(0.8) = 38.659...^\circ$
Bearing of $A$ from $C$ : Need angle clockwise from North at $C$ to $CA$ .
At $C$ , North line parallel to North at $A$ .
Angle between $CA$ and South at $C$ = $\angle BAC = 38.659...^\circ$ (alternate angles).
Bearing = $180^\circ + 38.659...^\circ = 218.659...^\circ = 218.7^\circ$ (1 d.p.)

(d) Total distance $= AB + BC + CA = 500 + 400 + 640.31... = 1540.31... = 1540$ m (3 s.f.)

Marks: (a) 1, (b) 2, (c) 2 (1 for $\angle BAC$ , 1 for bearing), (d) 1

END OF ANSWER KEY
