Secondary 3 Combined Science Quiz - Physical Sciences

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 50 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Section A: Multiple-choice style short items (1 mark each).
• Section B: Structured short answers (2 marks each).
• Section C: Extended structured responses (3–4 marks each).
• Write your answers clearly in the spaces provided.
• Use SI units and show working where calculations are involved.

---

Section A (Questions 1–5, 1 mark each)

1. State the SI unit for energy.

---

2. Give one example of a renewable source of energy.

---

3. What is the formula for kinetic energy?

---

4. Name the force that opposes motion between two surfaces in contact.

---

5. What type of energy is stored in a stretched rubber band?

---

---

Section B (Questions 6–15, 2 marks each)

6. A 2 kg object is lifted to a height of 5 m. Calculate its gravitational potential energy. (Take $g = 10 \text{ m s}^{-2}$)

---

7. A car of mass 1000 kg moves at $20 \text{ m s}^{-1}$. Calculate its kinetic energy.

---

8. State the principle of conservation of energy in your own words.

---

9. A ball of mass 0.5 kg is dropped from 10 m. Calculate its potential energy at the top. ($g = 10 \text{ m s}^{-2}$)

---

10. Explain why a falling object reaches terminal velocity.

---

11.

Image pending generation: graph for 11.

Using the graph in Q11-fig1, describe the relationship between kinetic energy and speed.

---

12. A machine uses 200 J of input energy and produces 120 J of useful output. Calculate its efficiency.

---

13. State two forms of energy that are produced when a moving car brakes.

---

14. A spring is compressed and stores 5 J of elastic potential energy. State what happens to this energy when the spring is released.

---

15. Explain why a thermal power station is less than 100% efficient.

---

---

Section C (Questions 16–20, 3–4 marks each)

16. A roller coaster cart of mass 300 kg starts from rest at a height of 15 m. Assuming no energy loss, calculate:
(a) its potential energy at the top,
(b) its kinetic energy at the bottom,
(c) its speed at the bottom. ($g = 10 \text{ m s}^{-2}$)

---

17.

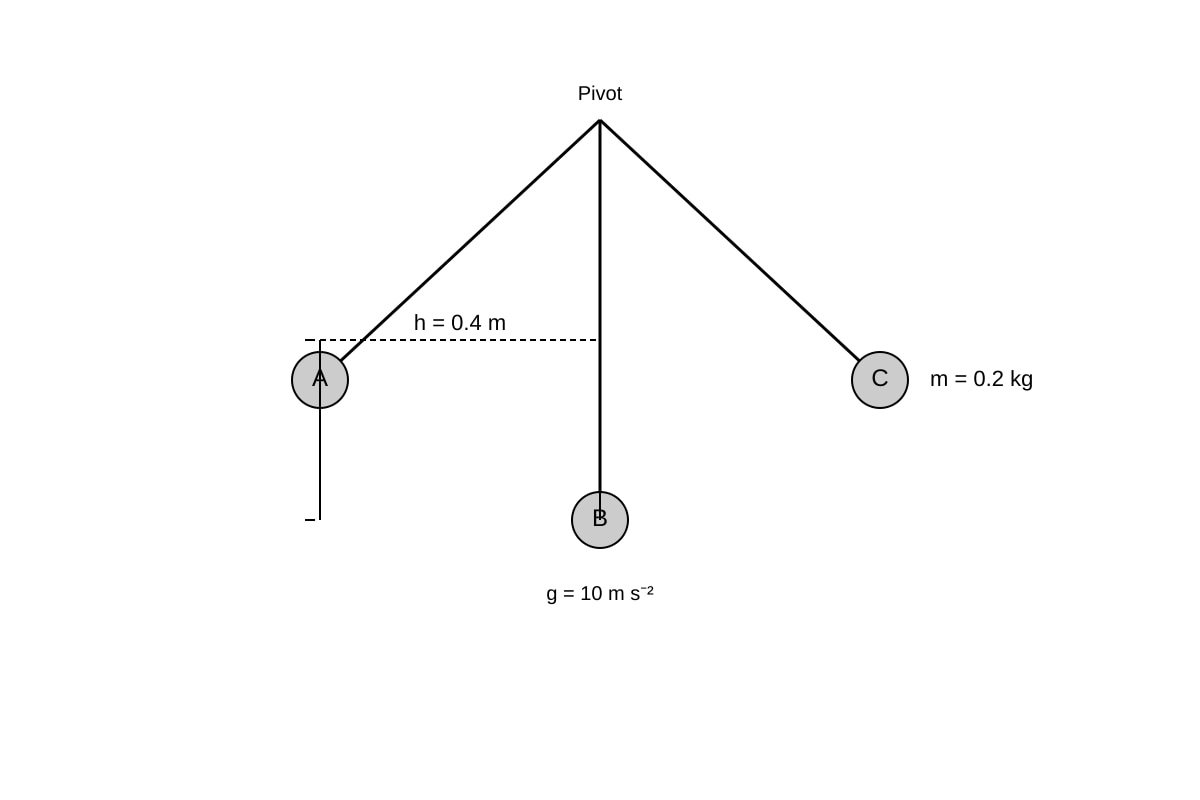

Image pending generation: diagram for 17.

Using Q17-fig1, calculate the speed of the bob at position B using conservation of energy. Show your steps.

---

18. Describe the energy conversions that take place in a hydroelectric power station from the reservoir to the home socket. (4 marks)

---

19. A student claims: "In a closed system, if a lamp uses 60 J of electrical energy, 60 J of light energy must be produced." Explain why this statement is incorrect using the principle of conservation of energy. (3 marks)

---

20.

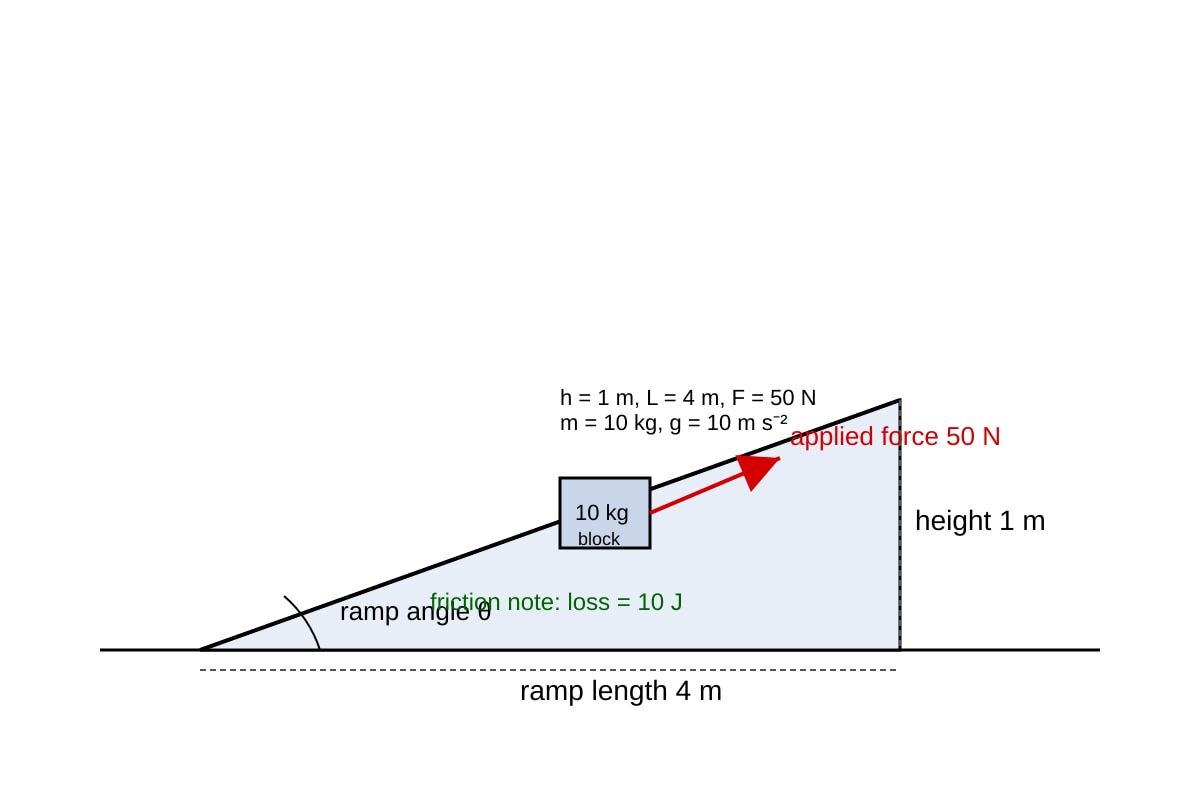

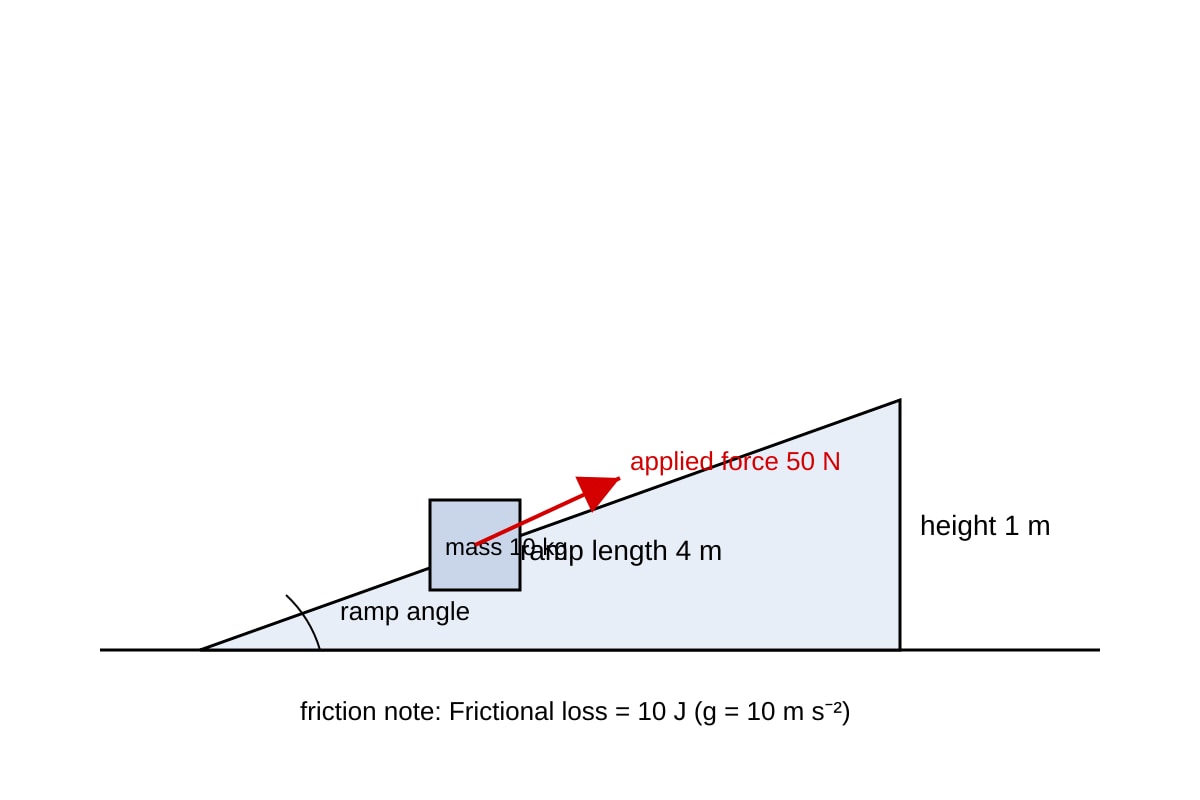

Image pending generation: experimental_setup for 20.

Using Q20-fig1, calculate:
(a) work done by the applied force,
(b) gain in gravitational potential energy of the block,
(c) efficiency of the ramp setup. (4 marks)

---

</stage5_quiz_answers_md>

<stage5_quiz_answers_md>

Secondary 3 Combined Science Quiz - Physical Sciences (Answer Key)

Total Marks: 40
Topic: Physical Sciences (Energy, Work, Efficiency)

---

Section A (1 mark each)

1. Joule (J)
Teaching note: The SI unit for all forms of energy is the joule, symbol J. Do not confuse with watt (W), which is power.

2. Solar / Wind / Hydro / Biomass (any one)
Teaching note: Renewable sources replenish naturally. Accept any valid example; non-renewable examples like coal are not accepted.

3. $E_k = \frac{1}{2}mv^2$
Teaching note: Kinetic energy depends on mass and the square of speed. $m$ in kg, $v$ in m/s.

4. Friction
Teaching note: Friction acts opposite to the direction of motion and converts kinetic energy to heat.

5. Elastic potential energy
Teaching note: Energy stored due to deformation (stretching/compressing) is elastic potential energy.

---

Section B (2 marks each)

6. $PE = mgh = 2 \times 10 \times 5 = 100 \text{ J}$ [2]
Step-by-step: $m=2$, $g=10$, $h=5$; substitute: $2 \times 10 \times 5 = 100$. Unit J. Common mistake: using wrong $g$ or forgetting unit.

7. $E_k = \frac{1}{2}mv^2 = 0.5 \times 1000 \times 20^2 = 200\,000 \text{ J}$ [2]
Step-by-step: $v^2 = 400$; $0.5 \times 1000 = 500$; $500 \times 400 = 200\,000$ J. Mark both formula and value.

8. Energy cannot be created or destroyed, only converted from one form to another; total energy is constant. [2]
Marking: 1 mark principle of no creation/destruction, 1 mark conversion/closed system.

9. $PE = mgh = 0.5 \times 10 \times 10 = 50 \text{ J}$ [2]
Working shown; unit required.

10. Air resistance increases with speed until it equals weight; net force zero, constant speed. [2]
Marking: 1 mark air resistance balances weight, 1 mark constant speed / no acceleration.

11. Kinetic energy is directly proportional to square of speed ($E_k \propto v^2$). [2]
From graph: curve is not linear; doubling speed quadruples KE. Accept "increases with $v^2$".

12. Efficiency = $\frac{120}{200} \times 100\% = 60\%$ [2]
Formula and substitution shown; unit %.

13. Heat (thermal) and sound energy [2]
1 mark each. Brakes convert KE to heat and sound.

14. Converted to kinetic energy (and possibly heat/sound). [2]
1 mark release, 1 mark conversion to KE.

15. Some input energy is lost as heat to surroundings; not all converted to useful electrical energy. [2]
Marking: 1 mark energy loss, 1 mark not 100% due to thermal loss.

---

Section C (3–4 marks each)

16. (a) $PE = mgh = 300 \times 10 \times 15 = 45\,000 \text{ J}$ [1]
(b) $KE = 45\,000 \text{ J}$ (by conservation) [1]
(c) $v = \sqrt{2gh} = \sqrt{2 \times 10 \times 15} = \sqrt{300} \approx 17.3 \text{ m s}^{-1}$ [2]
Teaching: At bottom all PE → KE; use $KE=\frac{1}{2}mv^2$ → $v=\sqrt{2gh}$. Show root step.

17. $PE_{top} = mgh = 0.2 \times 10 \times 0.4 = 0.8 \text{ J}$ [1]
At B, $PE \to KE$: $\frac{1}{2}mv^2 = 0.8$ [1]
$v^2 = \frac{2 \times 0.8}{0.2} = 8$; $v = \sqrt{8} \approx 2.83 \text{ m s}^{-1}$ [2]
Image must show h=0.4 m, m=0.2 kg. Common error: wrong height used.

18. GPE of water → KE of falling water [1] → KE to rotational KE in turbine [1] → electrical energy in generator [1] → transmitted to home as electrical energy [1].
Marking descriptors: each conversion 1 mark.

19. Conservation says energy changes form, not destroyed [1]; lamp converts 60 J electrical to light + heat [1]; total output = 60 J but light < 60 J due to heat [1].
Teaching: Efficiency < 100%; heat is also produced.

20. (a) $W = F \times d = 50 \times 4 = 200 \text{ J}$ [1]
(b) $GPE = mgh = 10 \times 10 \times 1 = 100 \text{ J}$ [1]
(c) Useful = 100 J; input = 200 J; efficiency = $\frac{100}{200} \times 100\% = 50\%$ [2]
Image must show ramp L=4 m, h=1 m, m=10 kg, F=50 N. Friction loss ignored in useful gain. </stage5_quiz_answers_md>
