TuitionGoWhere Practice Paper - Combined Science Secondary 3

TuitionGoWhere Practice Paper (AI) — Version 1 of 5

Subject: Combined Science
Level: Secondary 3
Paper: Practice Paper (Physical Sciences)
Duration: 1 hour
Total Marks: 40
Name: ______________________
Class: ______________
Date: ______________

Instructions:

This practice paper covers the Physical Sciences topic for Secondary 3 Combined Science.
Answer all questions in the spaces provided.
Show your working clearly for calculation questions.
Use appropriate units in your answers.
The paper is syllabus-first and generated from LLM-inferred templates. It is not derived from official past-year papers.

Section A: Multiple Choice and Short Answer (Questions 1–8, total 12 marks)

1. State the Principle of Conservation of Energy. [1]

2. A ball of mass 0.4 kg is dropped from a height of 5 m. Using the principle of conservation of energy, calculate the kinetic energy just before it hits the ground. (Take $g = 10 \text{ m s}^{-2}$ ) [3]

3. Name the force that is responsible for the rise of red dye in a plant shoot during a transpiration experiment. [1]

4. State one function and one adaptation of xylem. [2]
Function: ________________________________________
Adaptation: ______________________________________

5. A potato strip is placed in distilled water for 2 hours. Explain why the strip becomes more rigid. [3]

6. Describe the pathway of oxygenated blood from the lungs to the body tissues, including the role of the left ventricle and aortic valve. [4]

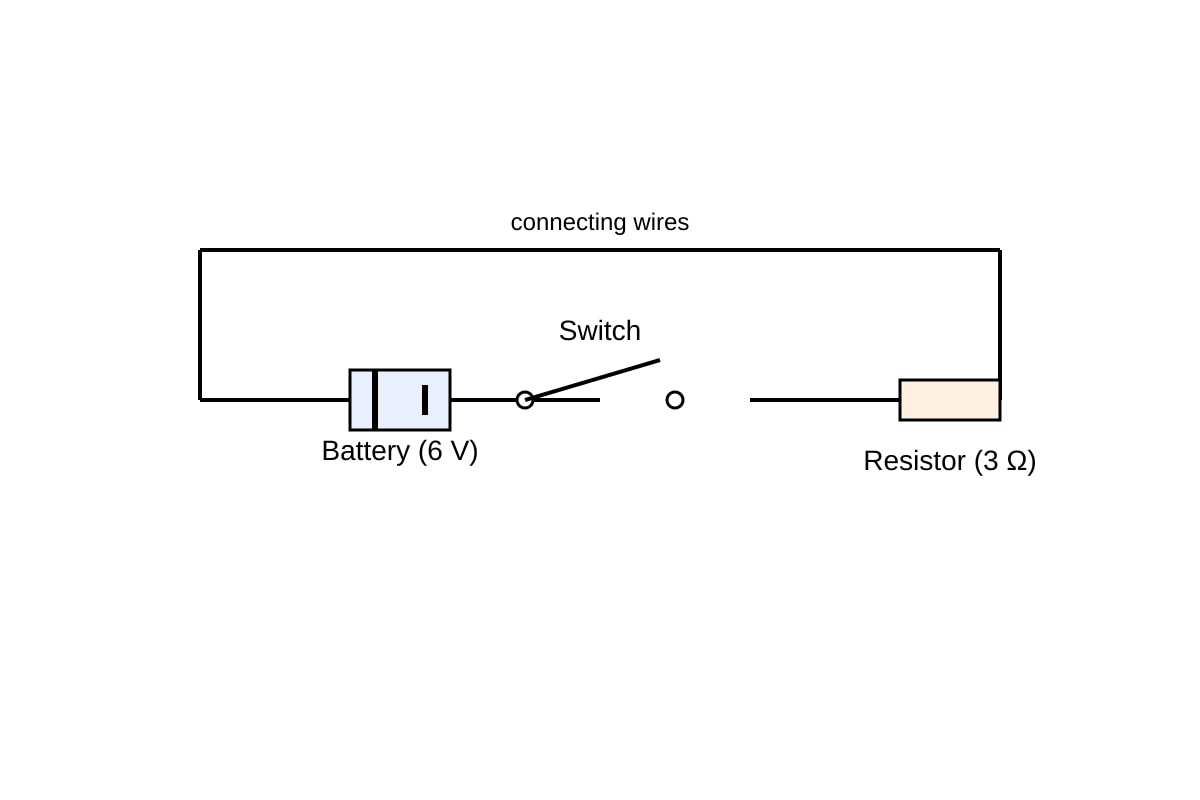

7. The diagram below shows a simple circuit.

Diagram for Q7 (SEC3 Combined Science)

Generated diagram for Q7.

Calculate the current flowing through the circuit. [2]

8. State the main energy transformation that occurs in a solar panel. [1]

Section B: Structured Response (Questions 9–14, total 16 marks)

9. A pendulum bob of mass 0.2 kg is pulled to a height of 0.5 m and released.
(a) Calculate the gravitational potential energy at the highest point. [2]
(b) State the kinetic energy at the lowest point using conservation of energy. [1]

10. Describe the pathway of water through a plant from the soil to leaving the leaves. [5]

11. Compare aerobic and anaerobic respiration in human muscle cells by providing word equations and explaining two differences. [4]

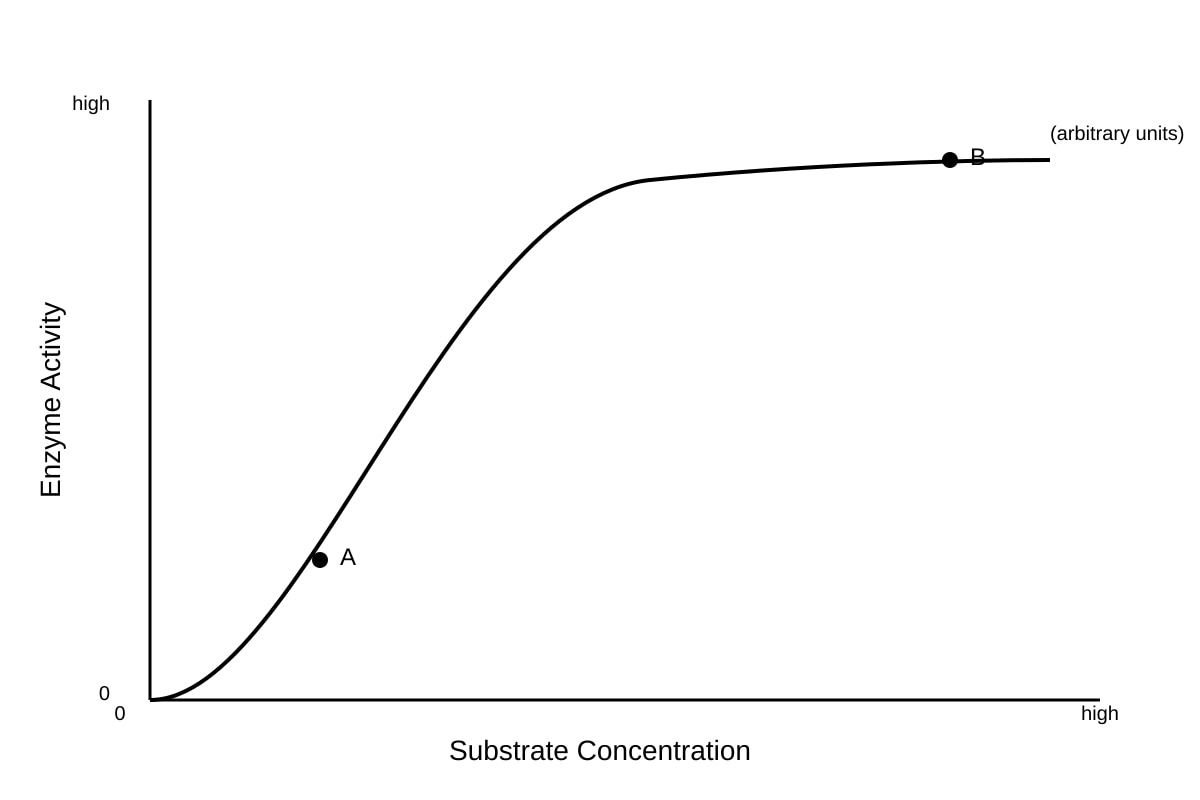

12. The graph shows the effect of substrate concentration on the activity of an enzyme.

Graph for Q12 (SEC3 Combined Science)

Generated graph for Q12.

Explain the shape of the curve between point A and point B. [3]

13. A 2 kg object is pushed with a force of 10 N across a frictionless surface for 4 m. Calculate the work done and the resulting kinetic energy gained. [3]

14. State two differences between scalar and vector quantities, and give one example of each. [3]

Section C: Extended Application (Questions 15–20, total 12 marks)

15. A roller coaster car of mass 500 kg starts from rest at a height of 20 m. Assuming no energy loss, calculate its speed at the bottom of the track. (Take $g = 10 \text{ m s}^{-2}$ ) [3]

16. Explain why a metal rod feels colder than a wooden rod at the same room temperature when touched. [2]

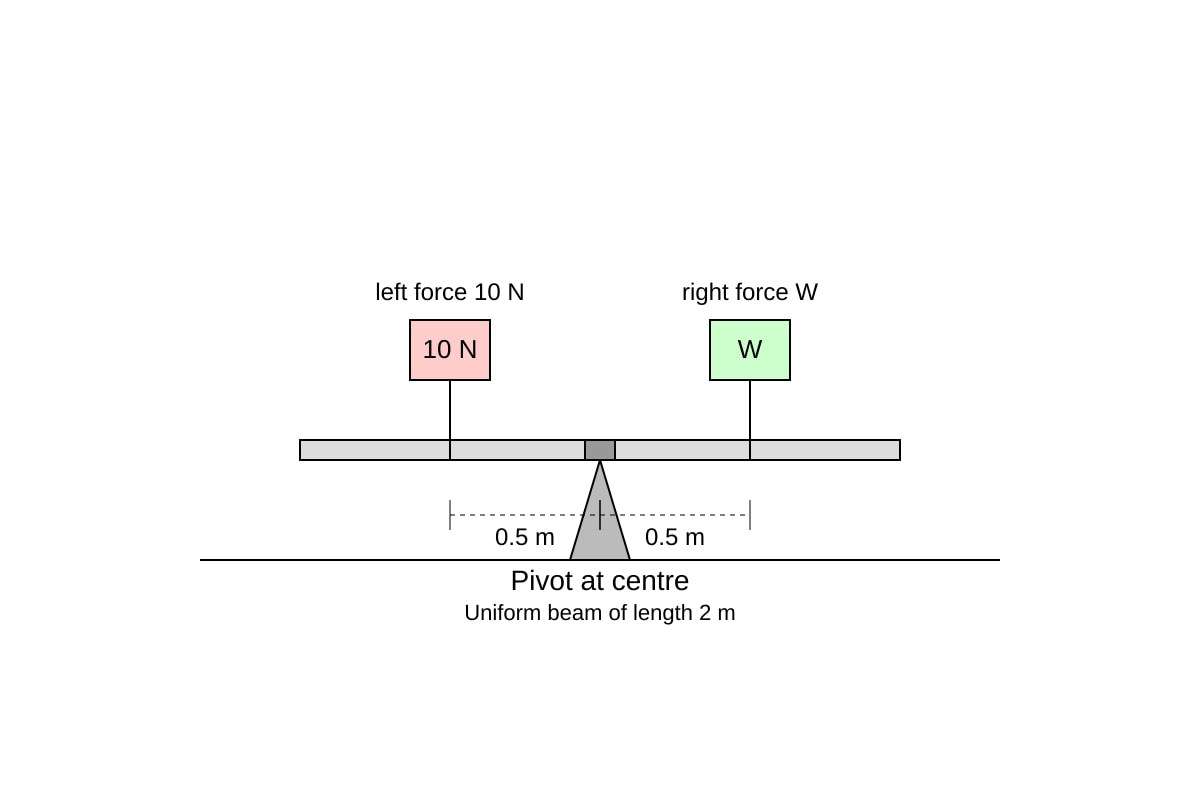

17. The figure shows a beam balanced on a pivot.

Diagram for Q17 (SEC3 Combined Science)

Generated diagram for Q17.

Calculate the weight W needed for equilibrium. [2]

18. Describe how a convex lens forms a real image of a distant object. [2]

19. A student connects two resistors (4 Ω and 6 Ω) in parallel to a 12 V supply. Calculate the total resistance and the current from the supply. [3]

20. State the function of the aorta and explain how its wall structure is suited to its function. [2]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper Answer Key — Combined Science Secondary 3 (Version 1)

Topic: Physical Sciences
Level: Secondary 3
Total Marks: 40

Section A Answers (12 marks)

1. [1 mark]
Energy cannot be created or destroyed, only converted from one form to another (total energy in a closed system is constant).
Teaching note: This is the Principle of Conservation of Energy. Students often omit "total" or "closed system"; both ideas are needed for full credit.

2. [3 marks]
Potential energy at top = $mgh = 0.4 \times 10 \times 5 = 20 \text{ J}$ [2]
By conservation of energy, KE at bottom = 20 J [1].
Working: $m=0.4$ , $g=10$ , $h=5$ . PE converts fully to KE. Common mistake: using wrong $g$ or forgetting unit J.

3. [1 mark]
Transpiration pull (or capillary action).
Note: Main force is transpiration pull; capillarity is secondary.

4. [2 marks]
Function: Transport water and mineral salts from roots to leaves [1].
Adaptation: Lignified walls for strength / hollow lumen / no cross-walls [1].

5. [3 marks]
Water potential is higher in distilled water than in potato cells [1].
Water enters potato cells by osmosis [1].
Cells become turgid, making strip rigid [1].
Teaching: Osmosis is net water movement from high to low water potential.

6. [4 marks]
Oxygenated blood from lungs via pulmonary veins → left atrium [1].
Left atrium contracts → left ventricle [1].
Left ventricle contracts, raising pressure [1].
Aortic valve opens, blood forced into aorta → body [1].

7. [2 marks]
$V = IR \Rightarrow I = V/R = 6/3 = 2 \text{ A}$ [2].
From image: series circuit 6 V, 3 Ω. Current = 2 A.

8. [1 mark]
Light energy → electrical energy.

Section B Answers (16 marks)

9. [3 marks]
(a) PE = $mgh = 0.2 \times 10 \times 0.5 = 1.0 \text{ J}$ [2].
(b) KE at lowest = 1.0 J [1] by conservation.

10. [5 marks]
Water absorbed by root hair [1] → through cortex/endodermis [1] → xylem in root [1] → up stem via xylem [1] → leaves, exits stomata by transpiration [1].

11. [4 marks]
Aerobic: Glucose + Oxygen → Carbon dioxide + Water + Energy [2].
Anaerobic: Glucose → Lactic acid + Energy [1].
Differences: aerobic uses O₂, anaerobic does not [0.5]; aerobic yields more energy [0.5].

12. [3 marks]
From A to B, more substrate → more enzyme-substrate complexes → activity rises [2].
Levels off as enzymes become saturated [1].
Image: curve rises then plateaus at B.

13. [3 marks]
Work done = $F \times d = 10 \times 4 = 40 \text{ J}$ [2].
KE gained = 40 J (frictionless) [1].

14. [3 marks]
Scalar: magnitude only (e.g., mass) [1]; Vector: magnitude + direction (e.g., force) [1]; Difference stated [1].

Section C Answers (12 marks)

15. [3 marks]
PE at top = $mgh = 500 \times 10 \times 20 = 100000 \text{ J}$ [1].
KE = $\frac{1}{2}mv^2 = 100000$ [1] → $v^2 = 400$ → $v = 20 \text{ m s}^{-1}$ [1].

16. [2 marks]
Metal has higher thermal conductivity [1], draws heat from hand faster → feels colder [1].

17. [2 marks]
Clockwise moment = $10 \times 0.5 = 5 \text{ Nm}$ [1].
For balance, $W \times 0.5 = 5$ → $W = 10 \text{ N}$ [1].

18. [2 marks]
Distant object → rays parallel → refracted by lens to converge at focal point forming real inverted image [2].

19. [3 marks]
$\frac{1}{R_T} = \frac{1}{4} + \frac{1}{6} = \frac{5}{12}$ → $R_T = 2.4\ \Omega$ [2].
$I = V/R_T = 12 / 2.4 = 5 \text{ A}$ [1].

20. [2 marks]
Function: carries oxygenated blood from heart to body [1].
Wall: thick muscular to withstand high pressure [1].
