Questions

TuitionGoWhere Exam Practice (AI) - Combined Science Secondary 3

School: TuitionGoWhere Secondary School (AI) Subject: Combined Science Level: Secondary 3 Paper: SA2 Practice Paper (Version 4 of 5) Duration: 60 minutes Total Marks: 60 Name: ___________________________ Class: ___________________________ Date: ___________________________

Instructions:

Answer all questions in the spaces provided.
Show your working clearly for calculation questions.
Use SI units where required.
Section A: 10 short questions (1–3 marks each). Section B: 6 structured questions (3–5 marks each). Section C: 4 data/interpretation questions (4–6 marks each).

Section A (14 marks)

State the Principle of Conservation of Energy. [2]
A box of mass $5.0\ \text{kg}$ is lifted vertically by $2.0\ \text{m}$ . Calculate the gain in gravitational potential energy. ( $g = 10\ \text{N/kg}$ ) [2]
Name the force that opposes motion when a block slides on a rough surface. [1]
A car travels $100\ \text{m}$ in $5.0\ \text{s}$ at constant speed. What is its speed? [1]
State one form of energy that is stored in a stretched spring. [1]
An object is in equilibrium under three forces. What is the condition for the resultant force? [1]
A metal block has mass $200\ \text{g}$ and volume $25\ \text{cm}^3$ . Calculate its density in $\text{g/cm}^3$ . [2]
State the direction of the frictional force on a book sliding to the right on a table. [1]
A battery provides $6.0\ \text{V}$ and a current of $2.0\ \text{A}$ flows. State the formula for electrical power. [1]
A liquid column of height $0.50\ \text{m}$ exerts pressure. Name the formula for pressure due to a liquid column. [1]

Section B (26 marks)

(a) Define work done. [1] (b) A force of $20\ \text{N}$ moves an object $4.0\ \text{m}$ in the direction of the force. Calculate the work done. [2]
A ball of mass $0.50\ \text{kg}$ is dropped from rest and falls $20\ \text{m}$ . ( $g = 10\ \text{N/kg}$ ) (a) Calculate the loss in gravitational potential energy. [2] (b) State what this energy becomes just before impact. [1]
Describe how oxygenated blood from the lungs is forced into the aorta. [4]
A $12\ \text{V}$ battery is connected to a resistor of $4.0\ \Omega$ . (a) Calculate the current using Ohm's law. [2] (b) Calculate the power dissipated. [2]
Explain why a potato strip placed in pure water becomes rigid and bends a plastic rod upward (osmosis context). [3]
State one function and one adaptation of xylem. [2] function: ___________________________ adaptation: ___________________________

Section C (20 marks)

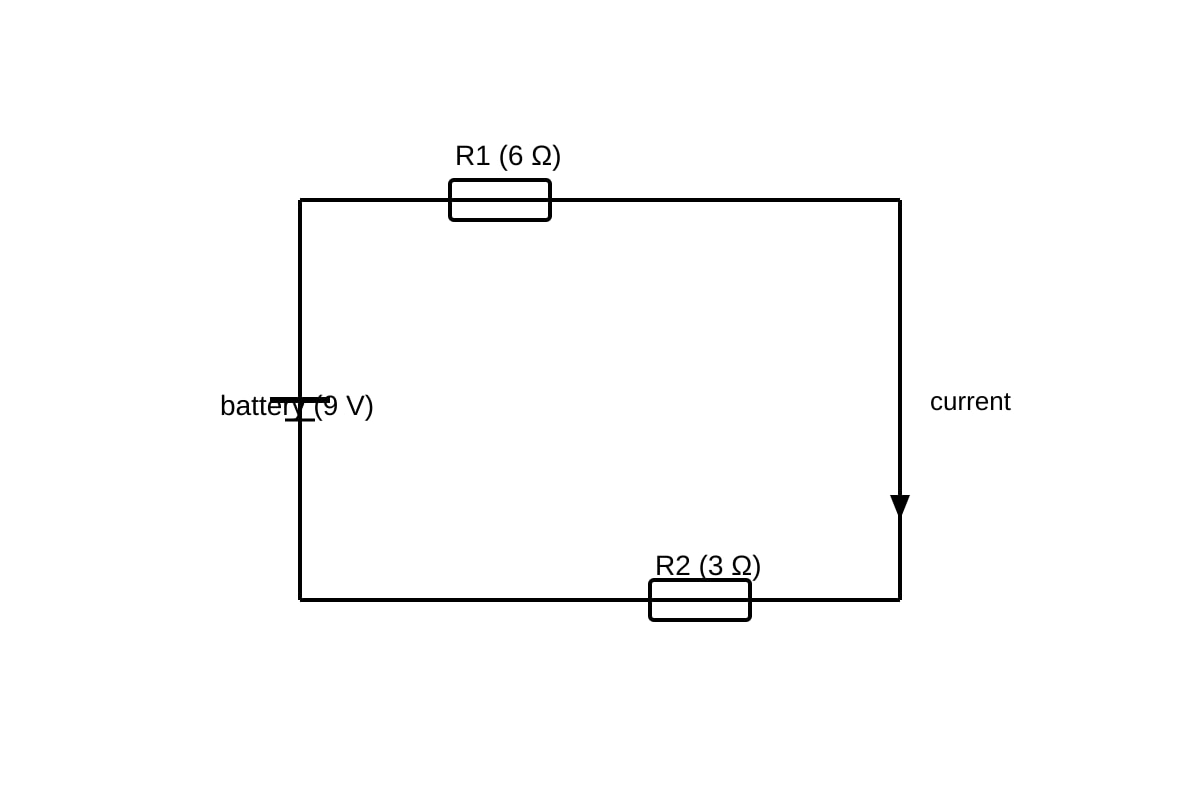

The diagram shows a simple circuit with two resistors.

Diagram for Q17 (SEC3 Combined Science)

Generated diagram for Q17.

(a) Calculate total resistance. [1] (b) Calculate current from battery. [2] (c) Calculate potential difference across R2. [2]

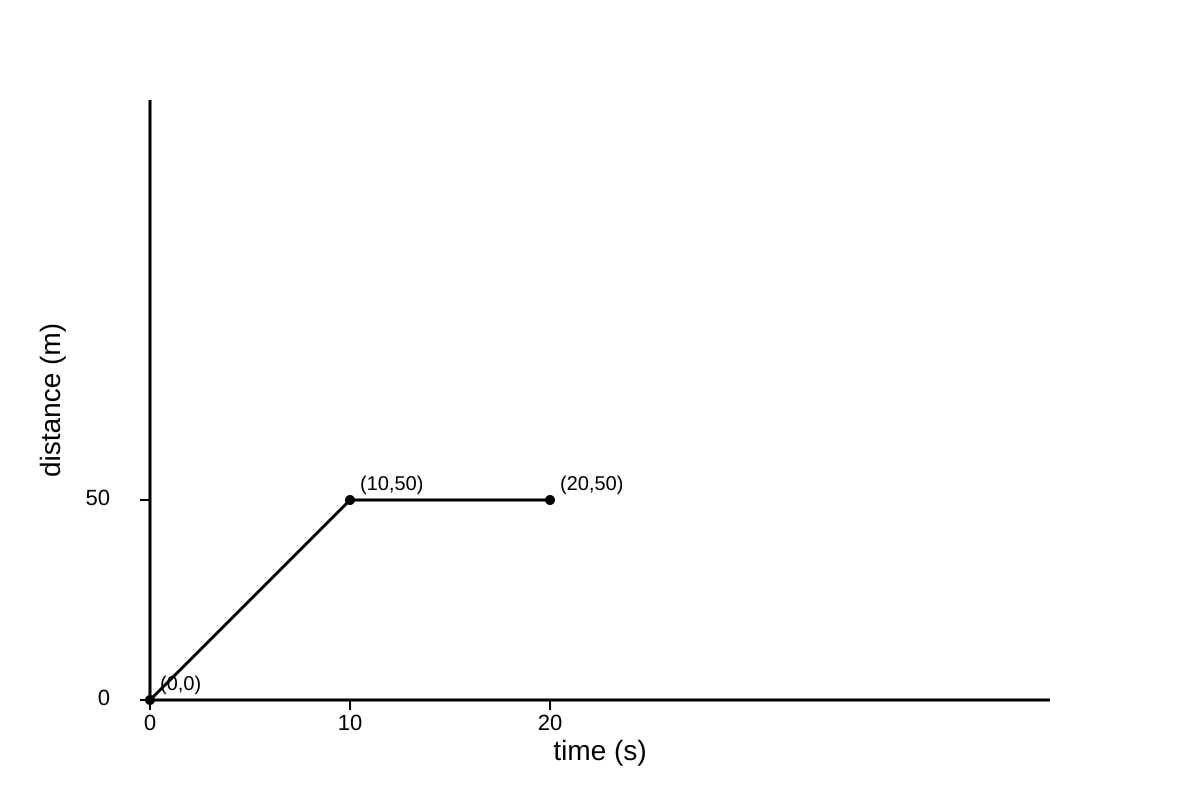

A student plots a distance–time graph for a cyclist.

Graph for Q18 (SEC3 Combined Science)

Generated graph for Q18.

(a) What is the speed during the first 10 s? [2] (b) What does the graph show from 10 s to 20 s? [1] (c) Calculate total distance travelled. [1]

A wooden rod with a potato cube at one end is placed in a beaker of water. After 2 hours the rod bends upward. (a) State the main force responsible for water movement into the potato. [1] (b) Describe the pathway of water from soil to leaving a plant leaf. [5]
A machine lifts a load of $500\ \text{N}$ through $4.0\ \text{m}$ using $2500\ \text{J}$ of energy. (a) Calculate useful work output. [2] (b) Calculate efficiency. [2] (c) State one reason for energy loss. [1]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Exam Practice (AI) - Combined Science Secondary 3

Answer Key (Version 4 of 5) — SA2 Practice

Section A

[2] Energy cannot be created or destroyed, only converted from one form to another; total energy in a closed system is constant.
- Teaching: This is the core conservation law. Award 1 mark for "cannot be created/destroyed" and 1 for "converted/closed system constant". Common mistake: confusing with conservation of mass.
[2] $E_p = mgh = 5.0 \times 10 \times 2.0 = 100\ \text{J}$ .
- Step: $m=5.0\ \text{kg}, g=10\ \text{N/kg}, h=2.0\ \text{m}$ . Substitute. Unit J. Common error: wrong g or missing unit.
[1] Friction.
- Teaching: Friction opposes relative motion between surfaces.
[1] $v = 100 / 5.0 = 20\ \text{m/s}$ .
- Teaching: speed = distance / time.
[1] Elastic potential energy.
- Teaching: stored when deformed elastically.
[1] Resultant force is zero.
- Teaching: equilibrium means no net force.
[2] $\rho = m/V = 200 / 25 = 8.0\ \text{g/cm}^3$ .
- Step: mass 200 g, vol 25 cm³. Division gives density.
[1] To the left (opposite motion).
- Teaching: friction acts opposite to sliding direction.
[1] $P = VI$ (or $P = IV$ ).
- Teaching: power = voltage × current.
[1] $p = h\rho g$ (liquid pressure formula).
- Teaching: pressure depends on height, density, g.

Section B

(a) [1] Work is done when a force moves an object in the direction of the force. (b) [2] $W = Fd = 20 \times 4.0 = 80\ \text{J}$ .
- Step: force 20 N, distance 4 m, same direction.
(a) [2] $\Delta E_p = mgh = 0.50 \times 10 \times 20 = 100\ \text{J}$ . (b) [1] Kinetic energy.
[4] Oxygenated blood returns from lungs via pulmonary veins to left atrium [1]; left atrium contracts increasing pressure [1]; blood flows into left ventricle [1]; left ventricle contracts forcing blood through aortic valve into aorta [1].
(a) [2] $I = V/R = 12 / 4.0 = 3.0\ \text{A}$ . (b) [2] $P = VI = 12 \times 3.0 = 36\ \text{W}$ (or $I^2R = 9 \times 4 = 36\ \text{W}$ ).
[3] Water has higher water potential than potato [1]; water enters potato by osmosis [1]; potato becomes turgid and pushes rod upward [1].
[2] Function: transports water/minerals or support [1]; Adaptation: lignified walls / hollow lumen / no cross-walls [1].

Section C

(a) [1] $R_T = 6 + 3 = 9\ \Omega$ (series). (b) [2] $I = V/R = 9 / 9 = 1.0\ \text{A}$ . (c) [2] $V_2 = IR_2 = 1.0 \times 3 = 3.0\ \text{V}$ .
- Visual: diagram shows series, labels confirm values.
(a) [2] $v = 50 / 10 = 5.0\ \text{m/s}$ . (b) [1] Stationary (no distance change). (c) [1] 50 m.
(a) [1] Osmosis (or transpiration pull if shoot context; here potato = osmosis). (b) [5] Water absorbed by root hair [1]; through cortex/endodermis [1]; into root xylem [1]; up stem xylem [1]; exits leaf stomata by transpiration [1].
(a) [2] $W = Fd = 500 \times 4.0 = 2000\ \text{J}$ . (b) [2] $\eta = (2000 / 2500) \times 100\% = 80\%$ . (c) [1] Heat/sound due to friction.

Total marks: 60. All sections sum correctly (14+26+20).
