From Real Exams Quiz
Secondary 3 Biology Cells Biomolecules Quiz
Free Sec 3 Biology Cells Biomolecules quiz, DeepSeek Exam version, with questions, answers, and O Level-style practice for Singapore students.
These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.
Questions
Free quiz and exam paper access
Enter your details to view this paper
Your access is remembered on this device.
Answers
Secondary 3 Biology Quiz - Cells Biomolecules - ANSWER KEY
Total Marks: 40
Section A: Multiple Choice (5 marks)
1. D - Rough endoplasmic reticulum [1] Radioactive amino acids are incorporated into proteins at ribosomes on the RER. The RER is the first organelle in the protein synthesis pathway.
2. C - A tissue in an organ [1] A group of similar cells performing the same function (producing insulin) is a tissue. The pancreas is the organ.
3. C - Golgi body – modification and packaging of proteins [1] Golgi body modifies proteins and packages them into vesicles for secretion.
4. B - A plant leaf [1] Cell wall, chloroplasts, and large central vacuole are characteristic of plant cells.
5. C - Enzymes lower the activation energy of a reaction [1] Enzymes are biological catalysts that lower activation energy; they are not used up, are specific, and denature at high temperatures.
Section B: Short Answer (10 marks)
6. Any two differences: [2]
- Plant cell has a cell wall; animal cell does not.
- Plant cell has chloroplasts; animal cell does not.
- Plant cell has a large central vacuole; animal cell has small, temporary vacuoles (if present).
- Plant cell has a fixed/regular shape; animal cell has an irregular shape. (Award 1 mark each for any two correct differences.)
7. (a) Structure 4 (Golgi body) [1] (b) Structure 3 (mitochondrion) is the site of aerobic respiration / produces energy (ATP) for the cell. [1]
8. Red blood cells do not have a nucleus to provide more space for haemoglobin [1], which enables them to carry more oxygen for transport around the body [1].
9. Osmosis is the net movement of water molecules [1] from a region of higher water potential to a region of lower water potential through a partially permeable membrane [1].
10. Any two factors: [2]
- Temperature
- pH
- Substrate concentration
- Enzyme concentration (Award 1 mark each for any two correct factors.)
Section C: Structured Response (15 marks)
11. (a) Cell: P (nerve cell) [1] Explanation: The nerve cell has a long axon which allows rapid transmission of electrical impulses/signals over long distances [1].
(b) Cell: S (epithelial cell) [1] Explanation: The epithelial cell has microvilli which increase the surface area for absorption of nutrients [1].

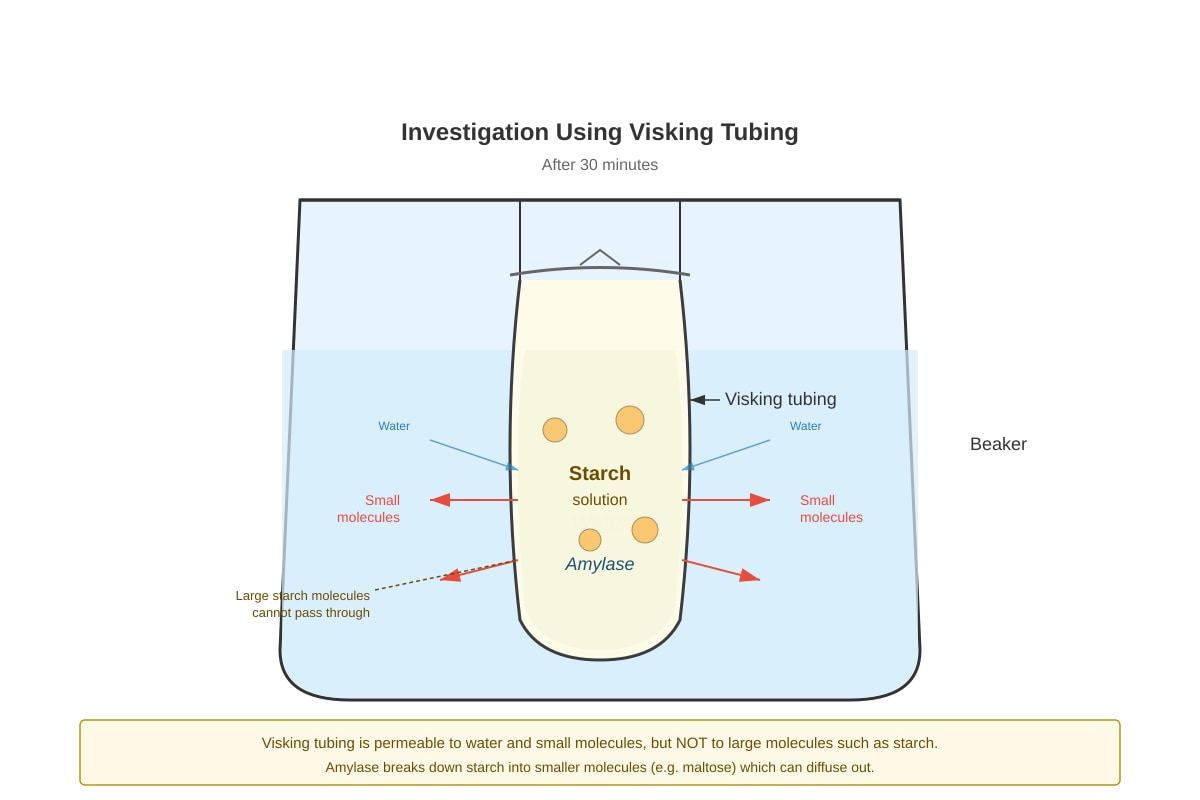

12. (a) Reducing sugars / maltose / glucose [1] Explanation: Amylase breaks down starch into reducing sugars (maltose). These are small molecules that can pass through the Visking tubing into the surrounding water [1].
(b) Starch molecules are too large to pass through the pores of the Visking tubing [1]. The Visking tubing acts as a partially permeable membrane that only allows small molecules to pass through [1].
13. Root hair cell adaptations (award up to 4 marks):
- Long, narrow extension/projection – increases surface area for absorption of water and mineral ions [1]
- Thin cell wall – reduces the diffusion distance for water and mineral ions [1]
- Large number of mitochondria – provides energy (ATP) for active transport of mineral ions against the concentration gradient [1]
- Cell membrane contains carrier proteins – for active transport of mineral ions [1]
- No chloroplasts – as root hair cells are underground and do not photosynthesise [1] (Award 1 mark for each correct adaptation with explanation, up to 4 marks.)
14. At pH 8, the enzyme would have very low or no activity / would be denatured [1]. Explanation: The enzyme extracted from the stomach works best at pH 2 (acidic conditions). At pH 8 (alkaline conditions), the shape of the active site changes [1], so the substrate can no longer fit into the active site (lock-and-key model disrupted). The enzyme is denatured [1].
15. Mitochondria and chloroplasts comparison: [3]
- Mitochondria are the site of aerobic respiration; chloroplasts are the site of photosynthesis [1].
- Both have a double membrane [1].
- Mitochondria have cristae (folded inner membrane); chloroplasts have thylakoids/grana [1]. (Award 1 mark for each correct point of comparison, up to 3 marks.)
Section D: Data-Based Question (10 marks)
16. (a) Graph: [4]
- Correct axes labels: x-axis "Temperature (°C)", y-axis "Rate of reaction (arbitrary units)" [1]
- Appropriate scales on both axes [1]
- All 6 points plotted accurately [1]
- Points joined with a smooth curve (not straight lines) [1]
(b) As temperature increases from 10°C to 40°C, the rate of reaction increases [1]. This is because the enzyme and substrate molecules have more kinetic energy, so they move faster and collide more frequently, increasing the chance of successful enzyme-substrate complex formation [1].
(c) Between 50°C and 60°C, the rate of reaction decreases sharply because the enzyme is denatured [1]. The high temperature breaks the bonds that maintain the three-dimensional shape of the enzyme, changing the shape of the active site so the substrate can no longer bind [1].
(d) 40°C [1]
(e) The rate of reaction at 70°C would be 0 (or close to 0) [1] because the enzyme would be completely denatured and unable to catalyse the reaction.

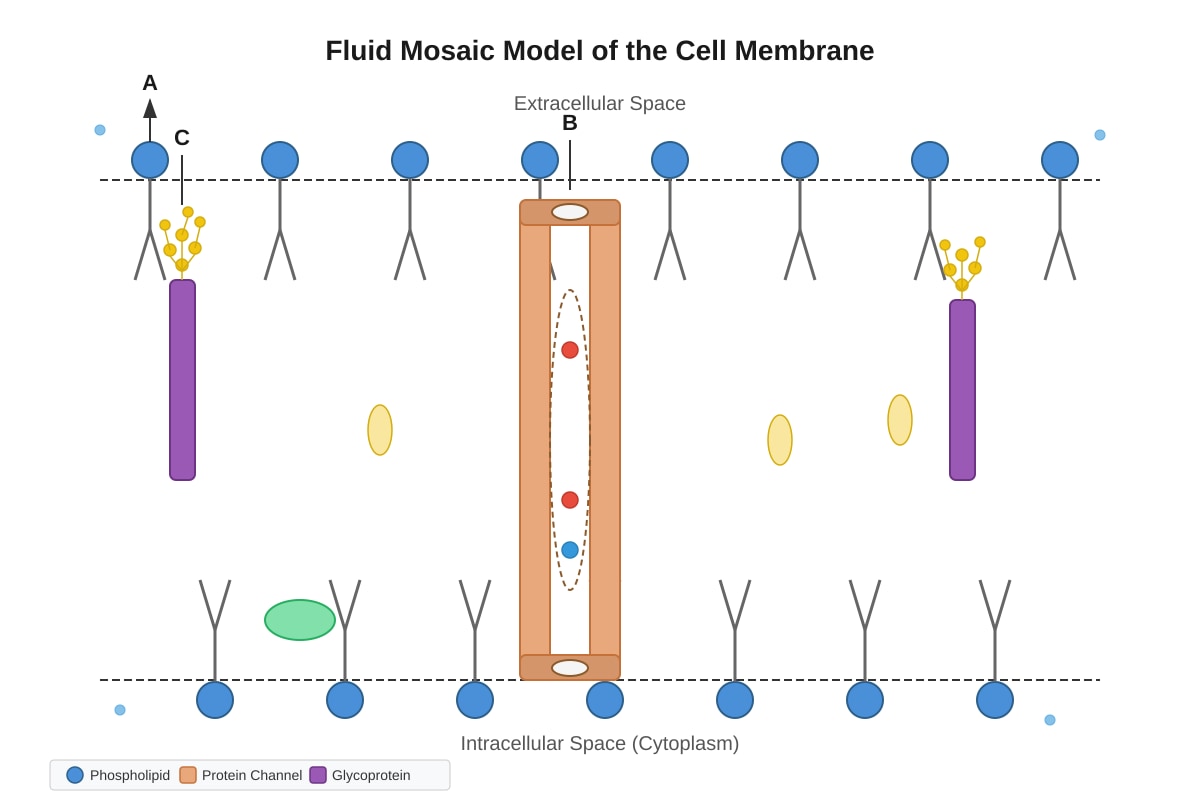

17. (a) Phospholipid / phospholipid molecule [1] (b) The protein channel allows specific molecules/ions to pass through the membrane / facilitates diffusion of substances across the membrane [1].
18. The concentrated sugar solution has a lower water potential than the potato cells [1]. Water moves out of the potato cells by osmosis, causing the cells to become plasmolysed/flaccid, so the potato becomes soft [1].
19. A plant cell has a strong, rigid cell wall that prevents it from bursting [1]. An animal cell lacks a cell wall, so in a hypotonic solution, water enters by osmosis and the cell swells and may burst (lyse) [1].
20. The lock-and-key hypothesis states that the active site of an enzyme has a specific shape that is complementary to the shape of the substrate [1]. The substrate fits into the active site like a key fits into a lock, forming an enzyme-substrate complex, and the reaction takes place [1].
END OF ANSWER KEY
