TuitionGoWhere Practice Paper - Biology Secondary 3
TuitionGoWhere Practice Paper (AI)
Subject: Biology
Level: Secondary 3
Paper: Practice Paper 4 (Cells & Biomolecules)
Duration: 1 hour 15 minutes
Total Marks: 50
Name: ________________________
Class: ________________________
Date: ________________________
Instructions
- This paper consists of three sections: Section A, Section B, and Section C.
- Answer all questions.
- Write your answers in the spaces provided.
- Marks are indicated in brackets [ ] at the end of each question or part question.
- You are advised to read each question carefully before answering.
- The use of an approved calculator is permitted.
Section A: Multiple Choice (10 marks)
Answer all questions in this section. For each question, choose the correct answer and write the letter (A, B, C, or D) in the box provided.
1. Which of the following organelles is responsible for modifying and packaging proteins for secretion from the cell?
A. Ribosome
B. Mitochondrion
C. Golgi body
D. Nucleus
[1 mark]
Answer: [ ]
2. A student placed a drop of blood on a microscope slide and observed it under high power. Which of the following cells would be the most numerous in the field of view?
A. White blood cells
B. Red blood cells
C. Platelets
D. Plasma cells
[1 mark]
Answer: [ ]

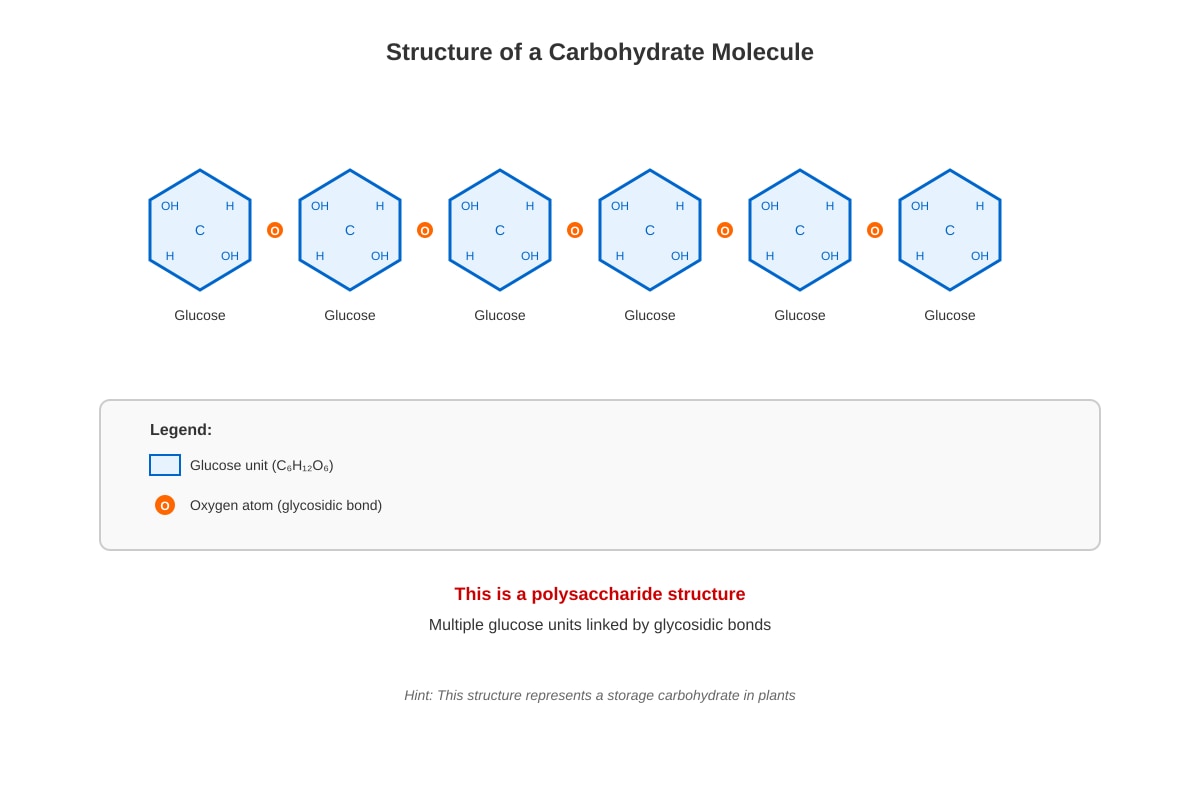

3. The diagram below shows the structure of a carbohydrate molecule.
[Diagram showing a chain of hexagon-shaped glucose units linked together]
What is the name of this carbohydrate?
A. Glucose
B. Sucrose
C. Starch
D. Glycogen
[1 mark]
Answer: [ ]
4. An enzyme has an optimum pH of 2. In which part of the human digestive system would this enzyme most likely function?
A. Mouth
B. Stomach
C. Small intestine
D. Large intestine
[1 mark]
Answer: [ ]
5. Which of the following correctly describes the movement of water by osmosis?
A. Movement of water molecules from a region of lower water potential to a region of higher water potential through a partially permeable membrane
B. Movement of water molecules from a region of higher water potential to a region of lower water potential through a partially permeable membrane
C. Movement of water molecules from a region of higher solute concentration to a region of lower solute concentration
D. Movement of water molecules requiring energy from ATP
[1 mark]
Answer: [ ]
6. A red blood cell was placed in a concentrated salt solution. After 10 minutes, the cell appeared shrivelled and shrunken. Which of the following explains this observation?
A. Water moved into the cell by osmosis because the salt solution had a higher water potential
B. Water moved out of the cell by osmosis because the salt solution had a lower water potential
C. Salt moved into the cell by diffusion, causing the cell to shrink
D. Salt moved out of the cell by active transport, causing the cell to shrink
[1 mark]
Answer: [ ]
7. Which of the following is not a function of proteins in living organisms?
A. Acting as enzymes to catalyse biochemical reactions
B. Forming the main structural component of cell walls
C. Transporting oxygen in the blood
D. Forming antibodies to fight infections
[1 mark]
Answer: [ ]
8. A student carried out a Benedict's test on an unknown solution and obtained a brick-red precipitate. What can the student conclude?
A. The solution contains starch
B. The solution contains protein
C. The solution contains reducing sugar
D. The solution contains fat
[1 mark]
Answer: [ ]

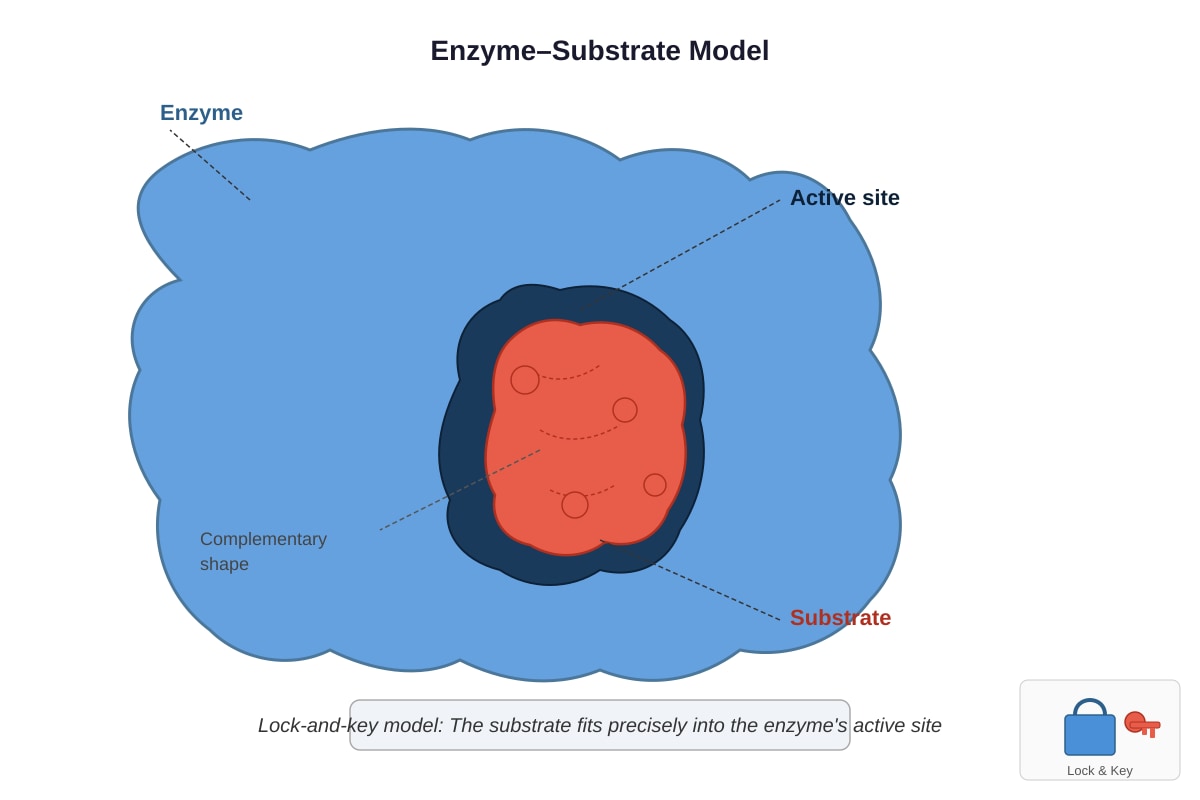

9. The diagram below shows an enzyme and its substrate.
[Diagram showing an enzyme with a specific active site shape and a substrate with a complementary shape fitting into it]
Which of the following statements best explains why this enzyme cannot catalyse the breakdown of a different substrate?
A. The enzyme is denatured at high temperatures
B. The enzyme is specific to substrates with a complementary shape to its active site
C. The enzyme requires a cofactor to function
D. The enzyme works best at an optimum pH
[1 mark]
Answer: [ ]
10. A group of similar cells working together to perform a specific function is called a:
A. Organelle
B. Tissue
C. Organ
D. Organ system
[1 mark]
Answer: [ ]
Section B: Structured Questions (25 marks)
Answer all questions in this section. Write your answers in the spaces provided.

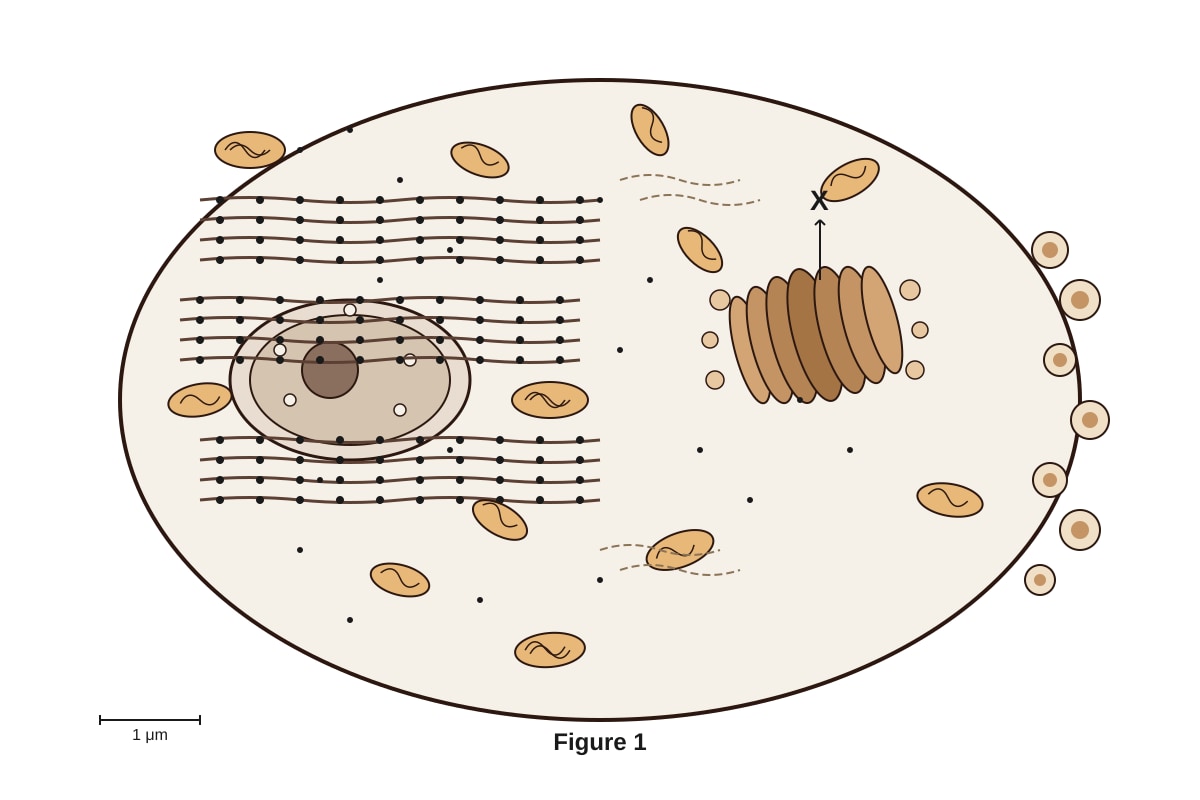

11. Figure 1 shows an electron micrograph of a cell from the pancreas of a mammal.
[Diagram showing a cell with extensive rough endoplasmic reticulum, numerous mitochondria, a prominent Golgi body, and secretory vesicles near the cell membrane]
(a) Identify the organelle labelled X. [1]
(b) State the function of organelle X. [1]
(c) Explain why pancreatic cells contain large amounts of organelle X. [2]
(d) Name one other organelle, visible in Figure 1, that would also be abundant in pancreatic cells, and explain your choice. [2]
Organelle: ____________________________________________________________________
Explanation: __________________________________________________________________
[Total: 6 marks]
12. A student investigated the effect of temperature on the activity of the enzyme catalase, which breaks down hydrogen peroxide into water and oxygen. The student measured the volume of oxygen produced in 2 minutes at different temperatures. The results are shown in Table 1.
Table 1
| Temperature (°C) | Volume of oxygen produced (cm³) |
|---|---|
| 10 | 4 |
| 20 | 9 |
| 30 | 16 |
| 40 | 22 |
| 50 | 15 |
| 60 | 2 |
| 70 | 0 |
(a) Plot a graph of the results on the grid provided. Label both axes clearly. [3]
[Grid space for graph plotting]
(b) State the optimum temperature for catalase activity. [1]
(c) Explain why the volume of oxygen produced decreased at temperatures above 40°C. [2]
(d) Suggest why no oxygen was produced at 70°C. [1]
[Total: 7 marks]
13. Figure 2 shows two different cells: a red blood cell and a root hair cell.
[Diagram showing a biconcave red blood cell with no nucleus and a root hair cell with a long protrusion]
(a) State the function of a red blood cell. [1]
(b) Describe one structural adaptation of a red blood cell and explain how this adaptation helps the cell perform its function. [2]
Adaptation: ___________________________________________________________________
Explanation: __________________________________________________________________
(c) State the function of a root hair cell. [1]
(d) Describe one structural adaptation of a root hair cell and explain how this adaptation helps the cell perform its function. [2]
Adaptation: ___________________________________________________________________
Explanation: __________________________________________________________________
[Total: 6 marks]
14. A student tested four different food samples (A, B, C, and D) for the presence of nutrients. The results are shown in Table 2.
Table 2
| Food Sample | Benedict's Test | Iodine Test | Biuret Test | Ethanol Emulsion Test |
|---|---|---|---|---|
| A | Blue | Blue-black | Blue | Clear |
| B | Brick-red | Brown | Blue | Clear |
| C | Blue | Brown | Purple | Clear |
| D | Blue | Brown | Blue | Cloudy white |
(a) Which food sample contains starch? Give a reason for your answer. [1]
(b) Which food sample contains reducing sugar? Give a reason for your answer. [1]
(c) Which food sample contains both protein and fat? Explain your answer. [2]
(d) Describe how you would carry out the ethanol emulsion test for fats. [2]
[Total: 6 marks]
Section C: Data-Based and Extended Response Questions (15 marks)
Answer all questions in this section. Write your answers in the spaces provided.
15. A group of students investigated the effect of different concentrations of sucrose solution on potato strips. They cut five potato strips of equal size and mass, and placed each strip in a different concentration of sucrose solution for 30 minutes. The strips were then removed, blotted dry, and reweighed. The results are shown in Table 3.
Table 3
| Concentration of sucrose solution (mol/dm³) | Initial mass (g) | Final mass (g) | Change in mass (g) | Percentage change in mass (%) |
|---|---|---|---|---|
| 0.0 | 2.50 | 2.75 | +0.25 | +10.0 |
| 0.2 | 2.50 | 2.60 | +0.10 | +4.0 |
| 0.4 | 2.50 | 2.50 | 0.00 | 0.0 |
| 0.6 | 2.50 | 2.38 | -0.12 | -4.8 |
| 0.8 | 2.50 | 2.25 | -0.25 | -10.0 |
(a) Calculate the percentage change in mass for the potato strip placed in 0.6 mol/dm³ sucrose solution. Show your working. [2]
(b) Explain why the potato strip in 0.0 mol/dm³ sucrose solution increased in mass. [2]
(c) Explain why there was no change in mass for the potato strip in 0.4 mol/dm³ sucrose solution. [2]
(d) Predict what would happen to a potato strip placed in a 1.0 mol/dm³ sucrose solution. Explain your answer. [2]
[Total: 8 marks]
16. Proteins are large biological molecules made up of amino acids. They perform many essential functions in living organisms.
(a) Name the chemical elements found in all proteins. [1]
(b) Describe how amino acids are joined together to form a protein. [2]
(c) Enzymes are proteins that act as biological catalysts. Using the lock-and-key model, explain how an enzyme catalyses the breakdown of a specific substrate. [4]
[Total: 7 marks]
— End of Paper —
Answers
TuitionGoWhere Practice Paper - Biology Secondary 3
Answer Key and Marking Scheme
Paper: Practice Paper 4 (Cells & Biomolecules)
Total Marks: 50
Section A: Multiple Choice (10 marks)
| Question | Answer | Explanation |
|---|---|---|
| 1 | C | The Golgi body modifies, sorts, and packages proteins into secretory vesicles for export from the cell. Ribosomes synthesise proteins; mitochondria produce energy; the nucleus contains genetic material. |
| 2 | B | Red blood cells are the most numerous cells in blood, making up about 40-45% of blood volume. They far outnumber white blood cells and platelets. |
| 3 | C | The diagram shows a chain of glucose units linked together, which is the structure of starch (a polysaccharide). Glucose is a monosaccharide; sucrose is a disaccharide; glycogen is also a polysaccharide but is more highly branched. |
| 4 | B | The stomach produces hydrochloric acid, creating a highly acidic environment with a pH of around 1.5-2.0. Pepsin, a protease enzyme in the stomach, has an optimum pH of about 2. |
| 5 | B | Osmosis is the net movement of water molecules from a region of higher water potential to a region of lower water potential through a partially permeable membrane. It is a passive process that does not require energy. |
| 6 | B | The concentrated salt solution has a lower water potential than the cell contents. Water moves out of the cell by osmosis down the water potential gradient, causing the cell to shrivel. |
| 7 | B | Cell walls are made of cellulose (in plants), not proteins. Proteins function as enzymes, transport molecules (e.g., haemoglobin), and antibodies. |
| 8 | C | A brick-red precipitate in Benedict's test indicates the presence of reducing sugars. Starch gives a blue-black colour with iodine; protein gives a purple colour with biuret; fat gives a cloudy white emulsion with ethanol. |
| 9 | B | The lock-and-key model states that enzymes are specific because only substrates with a complementary shape can fit into the enzyme's active site. A different substrate would not fit and therefore cannot be catalysed. |
| 10 | B | A tissue is a group of similar cells working together to perform a specific function. An organelle is a structure within a cell; an organ is made of different tissues; an organ system is a group of organs working together. |
Section B: Structured Questions (25 marks)
Question 11 (6 marks)
(a) Identify the organelle labelled X. [1]
Answer: Rough endoplasmic reticulum (RER) / Endoplasmic reticulum with ribosomes
Award 1 mark for correct identification. Accept "rough ER".
(b) State the function of organelle X. [1]
Answer: Site of protein synthesis / transports proteins within the cell / proteins synthesised by ribosomes on its surface are transported through its channels
Award 1 mark for any correct function. Must mention protein synthesis or protein transport.
(c) Explain why pancreatic cells contain large amounts of organelle X. [2]
Answer: Pancreatic cells produce and secrete large amounts of digestive enzymes, which are proteins. The rough endoplasmic reticulum provides extensive surface area with ribosomes for synthesising these proteins. The RER also transports the synthesised proteins to the Golgi body for packaging and secretion.
Award 1 mark for stating that pancreatic cells produce many proteins/enzymes. Award 1 mark for linking this to the RER's role in protein synthesis/transport. Accept any reasonable explanation showing understanding of the link between cell function and organelle abundance.
(d) Name one other organelle, visible in Figure 1, that would also be abundant in pancreatic cells, and explain your choice. [2]
Answer:
- Golgi body/Golgi apparatus — modifies, sorts, and packages proteins (digestive enzymes) into secretory vesicles for secretion from the cell. Pancreatic cells secrete many enzymes, so they need extensive Golgi bodies.
- Mitochondria — provide energy (ATP) through aerobic respiration for active processes including protein synthesis and secretion. Pancreatic cells are metabolically active and require much energy.
- Secretory vesicles — store and transport digestive enzymes to the cell membrane for secretion.
Award 1 mark for naming a correct organelle. Award 1 mark for a valid explanation linking the organelle's function to the secretory role of pancreatic cells. Accept any of the above answers with appropriate reasoning.
Question 12 (7 marks)
(a) Plot a graph of the results on the grid provided. Label both axes clearly. [3]
Answer:
- X-axis: Temperature (°C) — correctly labelled with appropriate scale
- Y-axis: Volume of oxygen produced (cm³) — correctly labelled with appropriate scale
- All 7 points plotted accurately
- Points joined with a smooth curve (or straight lines between points)
Award 1 mark for correctly labelled axes with units. Award 1 mark for accurate plotting of all points (± half a small square). Award 1 mark for appropriate line (smooth curve or point-to-point).
(b) State the optimum temperature for catalase activity. [1]
Answer: 40°C
Award 1 mark for correct answer.
(c) Explain why the volume of oxygen produced decreased at temperatures above 40°C. [2]
Answer: At temperatures above 40°C, the enzyme molecules gain too much kinetic energy. The high temperature begins to break the hydrogen bonds and other bonds that maintain the enzyme's specific three-dimensional shape. The active site loses its specific shape, so the substrate (hydrogen peroxide) can no longer fit into the active site as effectively. Fewer enzyme-substrate complexes form, so the rate of reaction decreases, producing less oxygen.
Award 1 mark for stating that the enzyme begins to denature/lose its shape at high temperatures. Award 1 mark for explaining that the active site shape changes, reducing enzyme-substrate complex formation. Accept any reasonable explanation showing understanding of denaturation.
(d) Suggest why no oxygen was produced at 70°C. [1]
Answer: At 70°C, the enzyme catalase is completely denatured. The active site has permanently lost its specific shape, so the substrate can no longer bind. No enzyme-substrate complexes can form, so no reaction occurs and no oxygen is produced.
Award 1 mark for stating that the enzyme is completely/fully denatured at 70°C. Accept "enzyme is denatured" or "active site destroyed".
Question 13 (6 marks)
(a) State the function of a red blood cell. [1]
Answer: To transport oxygen from the lungs to all parts of the body / to transport oxygen around the body
Award 1 mark for correct function. Accept "carries oxygen" or "transports oxygen".
(b) Describe one structural adaptation of a red blood cell and explain how this adaptation helps the cell perform its function. [2]
Answer:
- Adaptation: Biconcave shape / flattened disc shape
- Explanation: This increases the surface area to volume ratio, allowing faster diffusion of oxygen into and out of the cell.
- OR
- Adaptation: No nucleus / no organelles
- Explanation: This provides more space for haemoglobin, the protein that binds and carries oxygen, maximising the oxygen-carrying capacity of each cell.
- OR
- Adaptation: Contains haemoglobin
- Explanation: Haemoglobin binds reversibly to oxygen, allowing the cell to pick up oxygen in the lungs and release it in tissues.
Award 1 mark for correctly stating a structural adaptation. Award 1 mark for a clear explanation linking the structure to the function of oxygen transport. Accept any valid adaptation with correct explanation.
(c) State the function of a root hair cell. [1]
Answer: To absorb water and dissolved mineral ions/salts from the soil
Award 1 mark for correct function. Must mention both water and mineral ions/salts, or accept "absorption of water and minerals".
(d) Describe one structural adaptation of a root hair cell and explain how this adaptation helps the cell perform its function. [2]
Answer:
- Adaptation: Long, narrow extension / hair-like projection
- Explanation: This greatly increases the surface area to volume ratio, allowing more water and mineral ions to be absorbed from the soil by osmosis and active transport respectively.
- OR
- Adaptation: Many mitochondria
- Explanation: Mitochondria produce energy (ATP) through aerobic respiration, which is needed for the active transport of mineral ions from the soil into the cell against the concentration gradient.
- OR
- Adaptation: Thin cell wall
- Explanation: This reduces the diffusion distance for water and mineral ions, allowing faster absorption.
Award 1 mark for correctly stating a structural adaptation. Award 1 mark for a clear explanation linking the structure to the function of absorption. Accept any valid adaptation with correct explanation.
Question 14 (6 marks)
(a) Which food sample contains starch? Give a reason for your answer. [1]
Answer: Food sample A contains starch. The iodine test gave a blue-black colour, which is a positive result for starch.
Award 1 mark for correct identification with valid reason. Must mention the blue-black colour with iodine.
(b) Which food sample contains reducing sugar? Give a reason for your answer. [1]
Answer: Food sample B contains reducing sugar. Benedict's test gave a brick-red precipitate, which is a positive result for reducing sugar.
Award 1 mark for correct identification with valid reason. Must mention the brick-red precipitate with Benedict's test.
(c) Which food sample contains both protein and fat? Explain your answer. [2]
Answer: None of the individual food samples contain both protein and fat.
- Food sample C contains protein (biuret test gave purple colour) but no fat (ethanol emulsion test remained clear).
- Food sample D contains fat (ethanol emulsion test gave cloudy white) but no protein (biuret test remained blue).
Award 1 mark for correctly stating that no single sample contains both. Award 1 mark for explaining the results for samples C and D. Accept alternative answer if student identifies that samples C and D together contain both nutrients, but must clearly explain that no single sample has both.
(d) Describe how you would carry out the ethanol emulsion test for fats. [2]
Answer:
- Add about 2 cm³ of the food sample to a clean, dry test tube.
- Add about 2 cm³ of ethanol to the test tube.
- Shake the test tube vigorously to dissolve any fats present.
- Pour the liquid into another test tube containing about 2 cm³ of water.
- Observe the result: a cloudy white emulsion indicates the presence of fats.
Award 1 mark for adding ethanol and shaking. Award 1 mark for pouring into water and observing for cloudy white emulsion. Accept any reasonable description of the correct procedure.
Section C: Data-Based and Extended Response Questions (15 marks)
Question 15 (8 marks)
(a) Calculate the percentage change in mass for the potato strip placed in 0.6 mol/dm³ sucrose solution. Show your working. [2]
Answer: Percentage change in mass = (Change in mass ÷ Initial mass) × 100% = (-0.12 ÷ 2.50) × 100% = -0.048 × 100% = -4.8%
Award 1 mark for correct formula/substitution. Award 1 mark for correct answer (-4.8%). Accept answer given in table; working must be shown for full marks.
(b) Explain why the potato strip in 0.0 mol/dm³ sucrose solution increased in mass. [2]
Answer: The 0.0 mol/dm³ sucrose solution is distilled water, which has a higher water potential than the potato cells. Water moves into the potato cells by osmosis, from the region of higher water potential (the solution) to the region of lower water potential (the cell contents), through the partially permeable cell membranes. The cells become turgid, and the potato strip increases in mass.
Award 1 mark for stating that water moves into the cells by osmosis. Award 1 mark for explaining the water potential gradient (higher water potential outside, lower inside). Accept any reasonable explanation showing understanding of osmosis.
(c) Explain why there was no change in mass for the potato strip in 0.4 mol/dm³ sucrose solution. [2]
Answer: At 0.4 mol/dm³ sucrose solution, the water potential of the solution is equal to the water potential of the potato cells. There is no net movement of water into or out of the cells by osmosis. The solution is isotonic to the cell contents, so the mass remains unchanged.
Award 1 mark for stating that water potentials are equal. Award 1 mark for explaining that there is no net movement of water. Accept "isotonic" or "same water potential".
(d) Predict what would happen to a potato strip placed in a 1.0 mol/dm³ sucrose solution. Explain your answer. [2]
Answer: The potato strip would decrease in mass / lose mass. The 1.0 mol/dm³ sucrose solution has a much lower water potential than the potato cells. Water would move out of the potato cells by osmosis, from the region of higher water potential (inside the cells) to the region of lower water potential (the solution). The cells would become flaccid/plasmolysed, and the potato strip would decrease in mass. The percentage decrease would be greater than at 0.8 mol/dm³ (more than 10% decrease).
Award 1 mark for predicting a decrease in mass. Award 1 mark for explaining the water potential gradient and water movement out of cells. Accept any reasonable prediction with correct explanation.
Question 16 (7 marks)
(a) Name the chemical elements found in all proteins. [1]
Answer: Carbon, hydrogen, oxygen, and nitrogen. (Some proteins also contain sulfur and phosphorus.)
Award 1 mark for all four elements: C, H, O, N. Accept "carbon, hydrogen, oxygen, nitrogen". Do not penalise if sulfur or phosphorus are also mentioned.
(b) Describe how amino acids are joined together to form a protein. [2]
Answer: Amino acids are joined together by condensation reactions. During this process, the carboxyl group (-COOH) of one amino acid reacts with the amino group (-NH₂) of another amino acid, releasing a molecule of water. A peptide bond is formed between the two amino acids. Many amino acids are linked together in this way to form a long polypeptide chain, which folds into a specific three-dimensional shape to become a functional protein.
Award 1 mark for stating that amino acids are joined by peptide bonds / condensation reactions. Award 1 mark for describing the process (water removed, peptide bond formed, long chain produced). Accept any reasonable description showing understanding of protein synthesis.
(c) Enzymes are proteins that act as biological catalysts. Using the lock-and-key model, explain how an enzyme catalyses the breakdown of a specific substrate. [4]
Answer: According to the lock-and-key model:
- The enzyme has a specific three-dimensional shape with an active site that is complementary in shape to the substrate molecule (like a lock and key).
- The substrate molecule fits precisely into the enzyme's active site, forming an enzyme-substrate complex.
- The enzyme lowers the activation energy required for the reaction to occur.
- The bonds in the substrate are weakened/broken, and the substrate is broken down into smaller product molecules.
- The products no longer fit the active site and are released.
- The enzyme remains unchanged and can be reused to catalyse the breakdown of more substrate molecules.
- The enzyme is specific — only substrates with a complementary shape to the active site can bind and be catalysed.
Award 1 mark for describing the complementary shape of active site and substrate. Award 1 mark for describing enzyme-substrate complex formation. Award 1 mark for explaining that the enzyme lowers activation energy / breaks bonds in substrate. Award 1 mark for stating that products are released and enzyme can be reused / enzyme specificity. Accept any reasonable explanation covering the key points of the lock-and-key model.
— End of Answer Key —
