Secondary 3 Additional Mathematics Quiz - Geometry Trigonometry

TuitionGoWhere Practice Quiz (AI)
Subject: Additional Mathematics
Level: Secondary 3
Topic: Geometry & Trigonometry
Version: 1 of 5
Name: ______________________
Class: _________
Date: ____________
Score: _______ / 50
Duration: 60 minutes

Instructions:

1. Answer all 20 questions.
2. Show all working clearly. Marks are awarded for correct methods and final answers.
3. Non-exact answers should be given to 3 significant figures unless stated otherwise.
4. This quiz is syllabus-first generated from LLM-inferred templates. It is not derived from any specific past-year exam paper.

---

Section A (Questions 1–5) — Basic Trigonometric Functions and Identities [10 marks]

1. [2 marks] Given that $\sin \theta = \frac{3}{5}$ and $\theta$ is acute, find the value of $\cos \theta$.

---

2. [2 marks] Without using a calculator, simplify $\frac{\sin^2 x + \cos^2 x}{\sec^2 x - \tan^2 x}$.

---

3. [2 marks] Solve the equation $2\sin x - 1 = 0$ for $0^\circ \le x \le 360^\circ$.

---

4. [2 marks] Express $\cos(90^\circ - \theta)$ in terms of $\sin \theta$ or $\cos \theta$.

---

5. [2 marks] Given $\tan A = \frac{5}{12}$ and $A$ is acute, find $\sec A$.

---

---

Section B (Questions 6–10) — Trigonometric Equations and Addition Formulae [15 marks]

6. [3 marks] Solve $3\cos x = 2\sin x$ for $0^\circ \le x \le 360^\circ$.

---

7. [3 marks] Using the identity $\sin(A + B) = \sin A \cos B + \cos A \sin B$, find the exact value of $\sin 75^\circ$ in surd form.

---

8. [3 marks] Solve the equation $\cos 2x = \sin x$ for $0^\circ \le x \le 360^\circ$.

---

9. [3 marks] Prove that $\frac{1 - \cos 2\theta}{\sin 2\theta} = \tan \theta$.

---

10. [3 marks] Given that $\sin P = \frac{8}{17}$ and $\cos Q = \frac{3}{5}$, where $P$ and $Q$ are acute, find $\cos(P - Q)$ using the appropriate addition formula.

---

---

Section C (Questions 11–15) — Coordinate Geometry and Trigonometry Applications [10 marks]

11. [2 marks] Find the equation of the circle with centre $(2, -3)$ and radius $4$.

---

12. [2 marks] A line passes through $(0, 0)$ and $(3, 4)$. Find the angle (to the nearest degree) that this line makes with the positive $x$-axis.

---

13. [2 marks] Find the coordinates of the point where the line $y = 2x + 1$ intersects the circle $x^2 + y^2 = 5$.

---

14. [2 marks] Write the equation $x^2 + y^2 - 6x + 4y - 3 = 0$ in the form $(x - a)^2 + (y - b)^2 = r^2$, and state the centre and radius.

---

15. [2 marks] The triangle $ABC$ has $AB = 6$ cm, $BC = 8$ cm, and $\angle ABC = 60^\circ$. Use the cosine rule to find the length of $AC$.

---

---

Section D (Questions 16–20) — Extended Trigonometric and Geometric Problems [15 marks]

16. [3 marks] In triangle $PQR$, $PQ = 10$ cm, $PR = 7$ cm, and $\angle QPR = 50^\circ$. Use the sine rule to find $\angle PRQ$ correct to 1 decimal place.

---

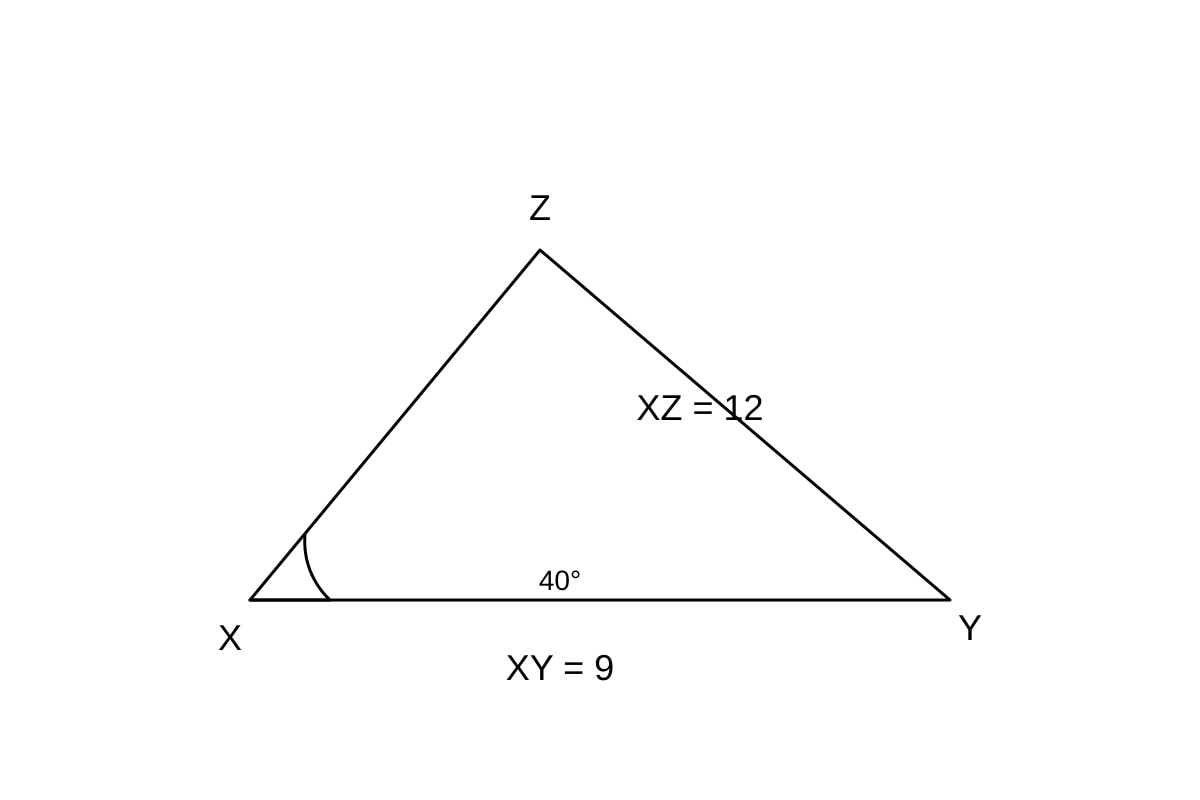

17. [3 marks] The diagram below shows a triangle $XYZ$ with $XY = 9$, $XZ = 12$, and $\angle YXZ = 40^\circ$. Find the area of triangle $XYZ$.

Image pending generation: diagram for Q17.

---

18. [3 marks] Solve the equation $3\tan^2 x - 1 = 0$ for $0^\circ \le x \le 360^\circ$.

---

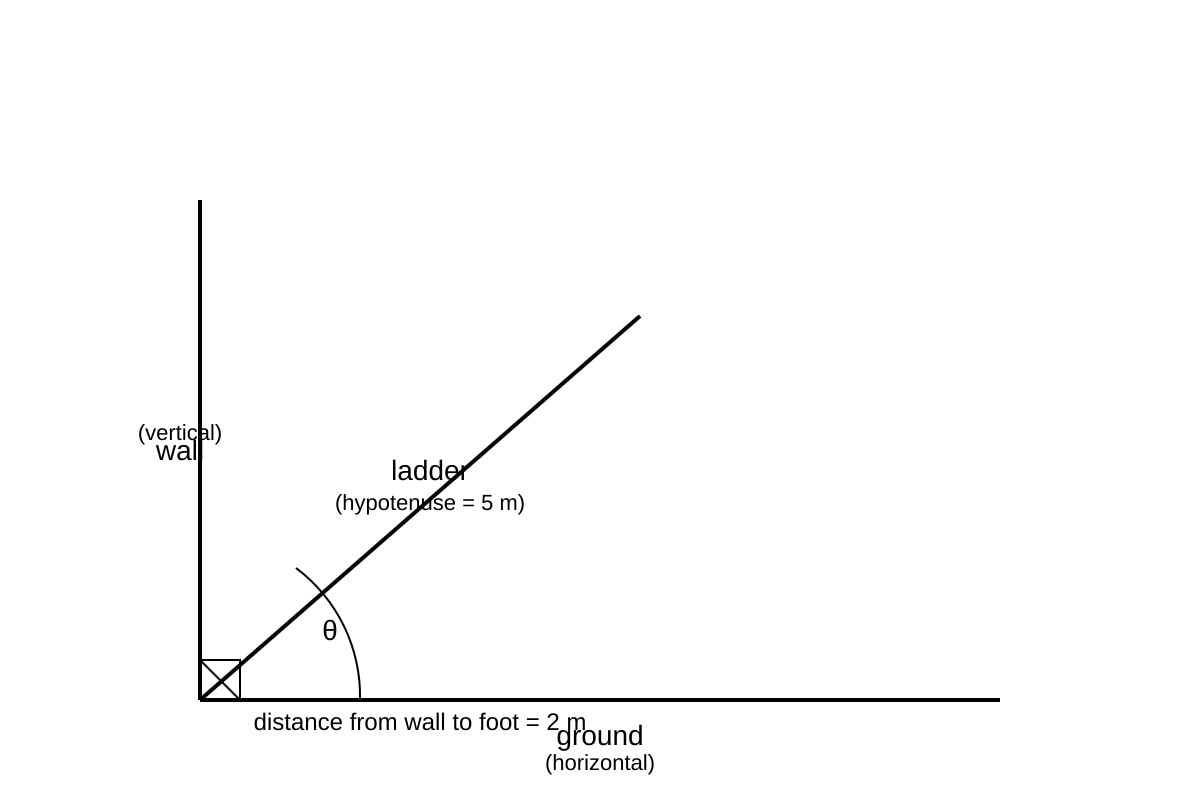

19. [3 marks] A ladder of length $5$ m leans against a wall so that the foot of the ladder is $2$ m from the wall. Find the angle the ladder makes with the ground.

Image pending generation: diagram for Q19.

---

20. [3 marks] Prove the identity $\sec^2 \theta - \tan^2 \theta = 1$ starting from $\sin^2 \theta + \cos^2 \theta = 1$.

---

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

Secondary 3 Additional Mathematics Quiz - Geometry Trigonometry (Answer Key)

Topic: Geometry & Trigonometry
Version: 1 of 5
Total Marks: 50

Teaching notes are provided for each question. This is syllabus-first generated content, not past-year exam derived.

---

Section A Answers

Q1 [2 marks]
Given $\sin \theta = \frac{3}{5}$, acute $\theta$.
Use $\sin^2 \theta + \cos^2 \theta = 1$:
$\cos^2 \theta = 1 - \left(\frac{3}{5}\right)^2 = 1 - \frac{9}{25} = \frac{16}{25}$.
Since $\theta$ acute, $\cos \theta > 0$, so $\cos \theta = \frac{4}{5}$.
Answer: $\frac{4}{5}$
Mark: 1 for identity, 1 for correct value.

Q2 [2 marks]
$\sin^2 x + \cos^2 x = 1$ and $\sec^2 x - \tan^2 x = 1$ (standard identities).
Fraction = $\frac{1}{1} = 1$.
Answer: $1$
Mark: 1 each identity recognised.

Q3 [2 marks]
$2\sin x - 1 = 0 \Rightarrow \sin x = \frac{1}{2}$.
In $0^\circ \le x \le 360^\circ$, $\sin x = \frac{1}{2}$ at $x = 30^\circ, 150^\circ$.
Answer: $30^\circ, 150^\circ$
Mark: 1 for equation, 1 for both angles.

Q4 [2 marks]
Complementary angle identity: $\cos(90^\circ - \theta) = \sin \theta$.
Answer: $\sin \theta$
Mark: 2 for correct identity.

Q5 [2 marks]
$\tan A = \frac{5}{12}$; acute $A$. Form right triangle: opp = 5, adj = 12, hyp = $\sqrt{5^2+12^2}=13$.
$\sec A = \frac{\text{hyp}}{\text{adj}} = \frac{13}{12}$.
Answer: $\frac{13}{12}$
Mark: 1 for triangle/identity, 1 for value.

---

Section B Answers

Q6 [3 marks]
$3\cos x = 2\sin x \Rightarrow \frac{\sin x}{\cos x} = \frac{3}{2} \Rightarrow \tan x = 1.5$.
$x = \tan^{-1}(1.5) \approx 56.3^\circ$.
In $0^\circ$–$360^\circ$, tangent positive in QI and QIII: $x = 56.3^\circ, 236.3^\circ$.
Answer: $56.3^\circ, 236.3^\circ$ (3 s.f.)
Mark: 1 rearrange, 1 base angle, 1 second solution.

Q7 [3 marks]
$\sin 75^\circ = \sin(45^\circ + 30^\circ) = \sin45\cos30 + \cos45\sin30$
$= \frac{\sqrt{2}}{2}\cdot\frac{\sqrt{3}}{2} + \frac{\sqrt{2}}{2}\cdot\frac{1}{2} = \frac{\sqrt{6}+\sqrt{2}}{4}$.
Answer: $\frac{\sqrt{6}+\sqrt{2}}{4}$
Mark: 1 split, 1 substitution, 1 simplification.

Q8 [3 marks]
$\cos 2x = 1 - 2\sin^2 x$. So $1 - 2\sin^2 x = \sin x$.
$2\sin^2 x + \sin x - 1 = 0 \Rightarrow (2\sin x - 1)(\sin x + 1) = 0$.
$\sin x = \frac{1}{2}$ or $\sin x = -1$.
$x = 30^\circ, 150^\circ, 270^\circ$.
Answer: $30^\circ, 150^\circ, 270^\circ$
Mark: 1 identity, 1 solve quadratic, 1 list all angles.

Q9 [3 marks]
LHS: $\frac{1 - \cos 2\theta}{\sin 2\theta} = \frac{1 - (1 - 2\sin^2\theta)}{2\sin\theta\cos\theta} = \frac{2\sin^2\theta}{2\sin\theta\cos\theta} = \frac{\sin\theta}{\cos\theta} = \tan\theta$ = RHS.
Answer: Proof shown.
Mark: 1 double-angle subs, 1 simplify, 1 final identity.

Q10 [3 marks]
Acute $P, Q$: $\cos P = \sqrt{1-(8/17)^2}=15/17$; $\sin Q = \sqrt{1-(3/5)^2}=4/5$.
$\cos(P-Q) = \cos P\cos Q + \sin P\sin Q = \frac{15}{17}\cdot\frac{3}{5} + \frac{8}{17}\cdot\frac{4}{5} = \frac{45+32}{85} = \frac{77}{85}$.
Answer: $\frac{77}{85}$
Mark: 1 missing ratios, 1 formula, 1 arithmetic.

---

Section C Answers

Q11 [2 marks]
$(x - 2)^2 + (y + 3)^2 = 4^2 = 16$.
Answer: $(x-2)^2+(y+3)^2=16$
Mark: 1 form, 1 radius squared.

Q12 [2 marks]
Gradient = $4/3$. Angle = $\tan^{-1}(4/3) \approx 53.1^\circ \Rightarrow 53^\circ$.
Answer: $53^\circ$
Mark: 1 gradient, 1 angle.

Q13 [2 marks]
Sub $y=2x+1$ into $x^2+y^2=5$: $x^2+(2x+1)^2=5 \Rightarrow 5x^2+4x-4=0$.
$x = \frac{-4\pm\sqrt{16+80}}{10} = \frac{-4\pm\sqrt{96}}{10} \approx 0.580, -1.380$.
$y \approx 2.16, -1.76$.
Answer: $(0.580, 2.16)$ and $(-1.38, -1.76)$
Mark: 1 solve, 1 coordinates.

Q14 [2 marks]
$x^2-6x + y^2+4y = 3 \Rightarrow (x-3)^2-9 + (y+2)^2-4 = 3 \Rightarrow (x-3)^2+(y+2)^2=16$.
Centre $(3,-2)$, radius $4$.
Answer: $(x-3)^2+(y+2)^2=16$, centre $(3,-2)$, r=4
Mark: 1 completion, 1 centre/radius.

Q15 [2 marks]
$AC^2 = 6^2+8^2-2(6)(8)\cos60^\circ = 36+64-48 = 52$.
$AC = \sqrt{52} = 2\sqrt{13} \approx 7.21$ cm.
Answer: $2\sqrt{13}$ cm
Mark: 1 cosine rule, 1 answer.

---

Section D Answers

Q16 [3 marks]
Sine rule: $\frac{\sin \angle PRQ}{10} = \frac{\sin 50^\circ}{7} \Rightarrow \sin \angle PRQ = \frac{10\sin50^\circ}{7} \approx 1.094$? Wait recalc: $\sin50^\circ\approx0.7660$, $10*0.7660/7\approx1.094>1$ impossible. Correct: side opposite $\angle PRQ$ is $PQ=10$, side opposite $50^\circ$ is $QR$ unknown — actually use $\frac{PR}{\sin Q} = \frac{PQ}{\sin R}$ not given QR. Use $\frac{\sin R}{PQ} = \frac{\sin P}{QR}$ but QR missing. Proper: $\frac{\sin \angle PRQ}{PQ} = \frac{\sin \angle QPR}{QR}$ — QR not known. Instead use cosine to find QR first: $QR^2=10^2+7^2-2(10)(7)\cos50^\circ\approx149-90.2=58.8$, $QR\approx7.67$. Then $\frac{\sin R}{10}=\frac{\sin50}{7.67}\Rightarrow \sin R\approx0.998\Rightarrow R\approx86.5^\circ$.
Answer: $86.5^\circ$
Mark: 1 cosine, 1 sine rule, 1 angle.

Q17 [3 marks]
Area = $\frac{1}{2}(9)(12)\sin40^\circ = 54\sin40^\circ \approx 34.7$ sq units.
Answer: $34.7$ (3 s.f.)
Mark: 1 formula, 1 sub, 1 value.
Image needed: triangle with given labels; area from two sides + included angle.

Q18 [3 marks]
$3\tan^2 x = 1 \Rightarrow \tan^2 x = 1/3 \Rightarrow \tan x = \pm 1/\sqrt{3}$.
$x = 30^\circ, 150^\circ, 210^\circ, 330^\circ$.
Answer: $30^\circ, 150^\circ, 210^\circ, 330^\circ$
Mark: 1 solve, 1 positive, 1 negative solutions.

Q19 [3 marks]
$\cos \theta = \frac{2}{5} = 0.4 \Rightarrow \theta = \cos^{-1}(0.4) \approx 66.4^\circ$.
Answer: $66.4^\circ$
Mark: 1 ratio, 1 inverse, 1 angle.
Image: right triangle, ladder hyp=5, adj=2, angle θ at ground.

Q20 [3 marks]
Divide $\sin^2\theta+\cos^2\theta=1$ by $\cos^2\theta$: $\frac{\sin^2\theta}{\cos^2\theta}+1 = \frac{1}{\cos^2\theta} \Rightarrow \tan^2\theta+1 = \sec^2\theta \Rightarrow \sec^2\theta-\tan^2\theta=1$.
Answer: Proof shown.
Mark: 1 divide, 1 identities, 1 rearrange.
