Secondary 3 Additional Mathematics Geometry Trigonometry Quiz

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Secondary 3 Additional Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Show your working clearly.
• Use LaTeX-style notation where appropriate.
• Section A: 10 short questions (1 mark each). Section B: 6 structured questions (2–3 marks each). Section C: 4 extended questions (3–4 marks each).

---

Section A (Questions 1–10, 1 mark each)

1. Given that $\sin \theta = \frac{3}{5}$ and $\theta$ is acute, find $\cos \theta$.
Answer: ____________________

2. Simplify $\sin^2 x + \cos^2 x$.
Answer: ____________________

3. Write down the exact value of $\tan 45^\circ$.
Answer: ____________________

4. State the identity for $\sec^2 A$ in terms of $\tan A$.
Answer: ____________________

5. If $\cos \theta = \frac{4}{5}$ and $\theta$ is acute, find $\sin \theta$.
Answer: ____________________

6. Expand $\sin( A + B )$ using the addition formula.
Answer: ____________________

7. Expand $\cos( 2A )$ using the double-angle formula.
Answer: ____________________

8. Given a right triangle with opposite side 5 and hypotenuse 13, find $\sin \theta$.
Answer: ____________________

9. State the value of $\sin 30^\circ$.
Answer: ____________________

10. If $\tan \theta = \frac{7}{24}$ and $\theta$ is acute, find $\sec \theta$.
Answer: ____________________

---

Section B (Questions 11–16, 2–3 marks each)

11. Solve the equation $2\sin x - 1 = 0$ for $0^\circ \le x \le 360^\circ$.
Working:
Answer: ____________________

12. Prove the identity $\frac{\sin x}{\cos x} + \frac{\cos x}{\sin x} = \frac{1}{\sin x \cos x}$.
Working:
Answer: ____________________

13. Find the length of side $a$ in triangle $ABC$ where $b = 8$, $c = 6$, and $\angle A = 60^\circ$ using the cosine rule.
Working:
Answer: ____________________

14. In triangle $PQR$, $p = 10$, $q = 7$, $\angle R = 45^\circ$. Find the area of the triangle.
Working:
Answer: ____________________

15. Given $\sin \theta = \frac{5}{13}$ and $\theta$ acute, find $\tan \theta$ and $\csc \theta$.
Working:
Answer: ____________________

16. Solve $\cos 2x = \frac{1}{2}$ for $0^\circ \le x \le 180^\circ$.
Working:
Answer: ____________________

---

Section C (Questions 17–20, 3–4 marks each)

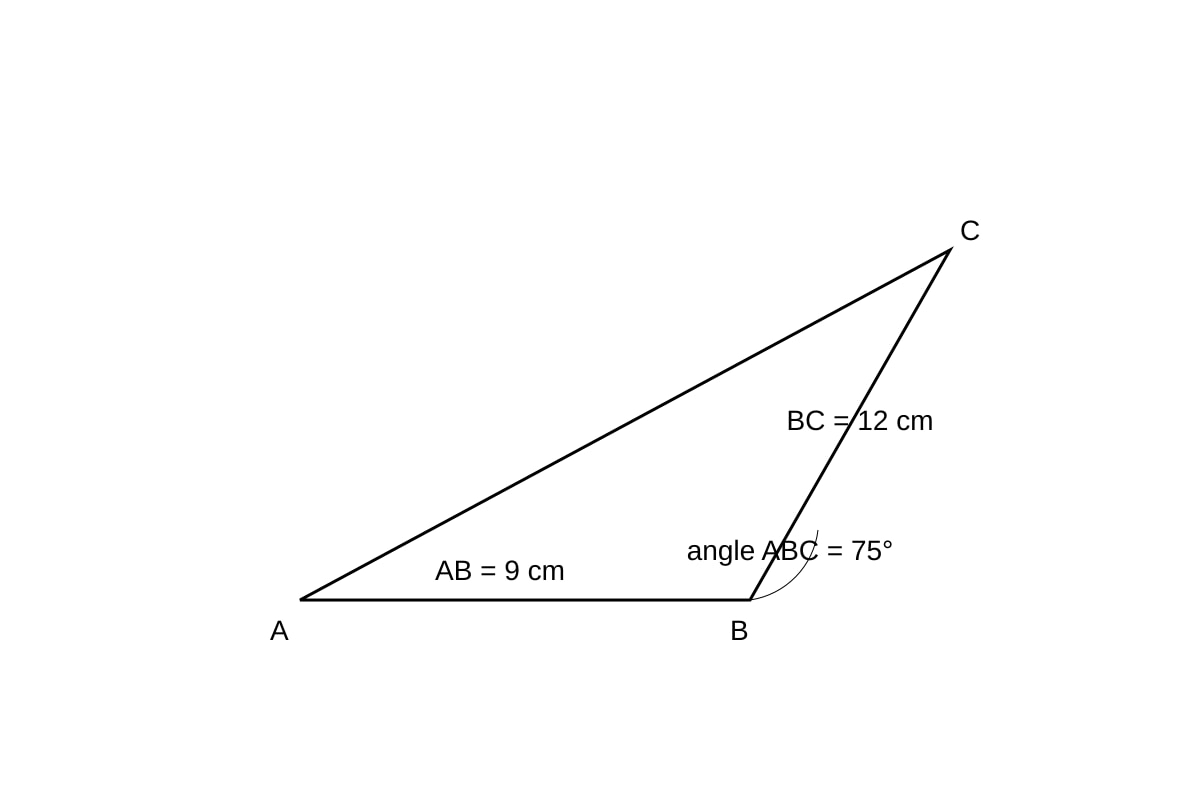

17. In the diagram below, triangle $ABC$ has $AB = 9$ cm, $BC = 12$ cm, and $\angle ABC = 75^\circ$. Find the length of $AC$ and the area of triangle $ABC$.

Generated diagram for Q17.

Working:
Answer: AC = ____________________ cm, Area = ____________________ cm²

18. (a) Show that $\sin 2A = 2\sin A \cos A$.
(b) Hence solve $\sin 2x = \cos x$ for $0^\circ \le x \le 360^\circ$.
Working:
Answer: (a) ____________________ (b) x = ____________________

19. A ladder of length 10 m leans against a wall, making an angle of $65^\circ$ with the ground. Find the height up the wall and the distance of the foot from the wall.
Working:
Answer: height = ____________________ m, distance = ____________________ m

20. Prove that $\frac{1 - \cos 2\theta}{\sin 2\theta} = \tan \theta$.
Working:
Answer: ____________________

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Secondary 3 Additional Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 40
Section A: 10 × 1 = 10 marks
Section B: Q11(2), Q12(2), Q13(3), Q14(2), Q15(3), Q16(2) = 14 marks
Section C: Q17(4), Q18(4), Q19(3), Q20(3) = 14 marks

---

Section A

1. $\cos \theta = \frac{4}{5}$
Teaching note: Use $\sin^2\theta + \cos^2\theta = 1$. $\cos\theta = \sqrt{1 - (3/5)^2} = \sqrt{16/25} = 4/5$ (acute ⇒ positive).

2. $1$
Teaching note: Fundamental Pythagorean identity.

3. $1$
Teaching note: Standard exact value.

4. $\sec^2 A = 1 + \tan^2 A$
Teaching note: Derived from dividing $\sin^2 A + \cos^2 A = 1$ by $\cos^2 A$.

5. $\sin \theta = \frac{3}{5}$
Teaching note: $\sin\theta = \sqrt{1 - (4/5)^2} = 3/5$.

6. $\sin A \cos B + \cos A \sin B$
Teaching note: Addition formula.

7. $\cos^2 A - \sin^2 A$ (or $2\cos^2 A - 1$ or $1 - 2\sin^2 A$)
Teaching note: Double-angle formula.

8. $\frac{5}{13}$
Teaching note: $\sin\theta = \text{opp}/\text{hyp}$.

9. $\frac{1}{2}$
Teaching note: Standard exact value.

10. $\sec \theta = \frac{25}{24}$
Teaching note: $\sec\theta = 1/\cos\theta$; $\cos\theta = 24/25$ from triangle 7-24-25, so $\sec = 25/24$.

---

Section B

11. (2 marks)
$2\sin x = 1 \Rightarrow \sin x = 1/2$.
Solutions: $x = 30^\circ, 150^\circ$.
Marking: 1 mark for $\sin x = 1/2$, 1 mark for both angles.

12. (2 marks)
LHS = $\frac{\sin^2 x + \cos^2 x}{\sin x \cos x} = \frac{1}{\sin x \cos x}$ = RHS.
Marking: 1 mark combine fractions, 1 mark use identity.

13. (3 marks)
$a^2 = b^2 + c^2 - 2bc\cos A = 64 + 36 - 2(8)(6)(0.5) = 100 - 48 = 52$.
$a = \sqrt{52} = 2\sqrt{13} \approx 7.21$.
Marking: 1 substitution, 1 simplification, 1 final answer.

14. (2 marks)
Area = $\frac{1}{2}pq\sin R = \frac{1}{2}(10)(7)\sin 45^\circ = 35 \times \frac{\sqrt{2}}{2} = 17.5\sqrt{2} \approx 24.75$.
Marking: 1 formula+sub, 1 answer.

15. (3 marks)
$\cos\theta = 12/13$, $\tan\theta = 5/12$, $\csc\theta = 13/5$.
Marking: 1 for cos, 1 for tan, 1 for csc.

16. (2 marks)
$2x = 60^\circ, 300^\circ \Rightarrow x = 30^\circ, 150^\circ$.
Marking: 1 for 2x values, 1 for x values.

---

Section C

17. (4 marks)
$AC^2 = 9^2 + 12^2 - 2(9)(12)\cos 75^\circ = 81 + 144 - 216(0.2588) = 225 - 55.90 = 169.10$.
$AC = \sqrt{169.10} \approx 13.00$ cm.
Area = $\frac{1}{2}(9)(12)\sin 75^\circ = 54 \times 0.9659 = 52.16$ cm².
Marking: 2 for AC, 2 for area. Image must show triangle with given labels.

18. (4 marks)
(a) $\sin 2A = \sin(A+A) = \sin A\cos A + \cos A\sin A = 2\sin A\cos A$.
(b) $2\sin x\cos x = \cos x \Rightarrow \cos x(2\sin x - 1)=0$.
$\cos x = 0 \Rightarrow x = 90^\circ, 270^\circ$; $\sin x = 1/2 \Rightarrow x = 30^\circ, 150^\circ$.
Marking: 2 for (a), 2 for (b) all 4 values.

19. (3 marks)
Height = $10\sin 65^\circ = 9.06$ m.
Distance = $10\cos 65^\circ = 4.23$ m.
Marking: 1 height, 1 distance, 1 units.

20. (3 marks)
LHS = $\frac{1 - (1 - 2\sin^2\theta)}{2\sin\theta\cos\theta} = \frac{2\sin^2\theta}{2\sin\theta\cos\theta} = \frac{\sin\theta}{\cos\theta} = \tan\theta$.
Marking: 1 use $\cos 2\theta$, 1 simplify, 1 final.
