Secondary 2 Mathematics Quiz - Graphs Coordinate Geometry

Name: __________________________
Class: __________________________
Date: __________________________
Score: _________ / 40

Duration: 45 minutes
Total Marks: 40

Instructions to Candidates:

Answer all questions.
Write your answers in the spaces provided.
Show all necessary working clearly; no marks will be given for correct answers without working.
The use of an approved calculator is expected.
If the degree of accuracy is not specified in the question, and if the answer is not exact, give the answer to three significant figures. Give answers in degrees to one decimal place.

Section A (10 Marks)

Answer all questions in this section. Each question carries 1 or 2 marks.

1. The coordinates of point $A$ are $(2, 5)$ and the coordinates of point $B$ are $(8, 13)$ . Find the length of the line segment $AB$ .

2. Find the coordinates of the midpoint of the line segment joining $P(-3, 7)$ and $Q(5, -1)$ .

3. Calculate the gradient of the straight line passing through the points $(1, 4)$ and $(4, 10)$ .

4. A straight line has a gradient of $-3$ and passes through the point $(0, 5)$ . Write down the equation of this line.

5. Determine the gradient of the line with equation $2y = 6x - 8$ .

Section B (10 Marks)

Answer all questions in this section. Each question carries 1 or 2 marks.

6. Find the $y$ -intercept of the line given by the equation $3x + 4y = 12$ .

7. Line $L_1$ has the equation $y = 2x + 1$ . Line $L_2$ is parallel to $L_1$ . State the gradient of $L_2$ .

8. Line $M_1$ has a gradient of $4$ . Line $M_2$ is perpendicular to $M_1$ . State the gradient of $M_2$ .

9. The point $(k, 6)$ lies on the line with equation $y = 3x - 3$ . Find the value of $k$ .

10. Find the equation of the line with gradient $2$ that passes through the point $(1, 3)$ . Give your answer in the form $y = mx + c$ .

Section C (12 Marks)

Answer all questions in this section. Each question carries 3 or 4 marks.

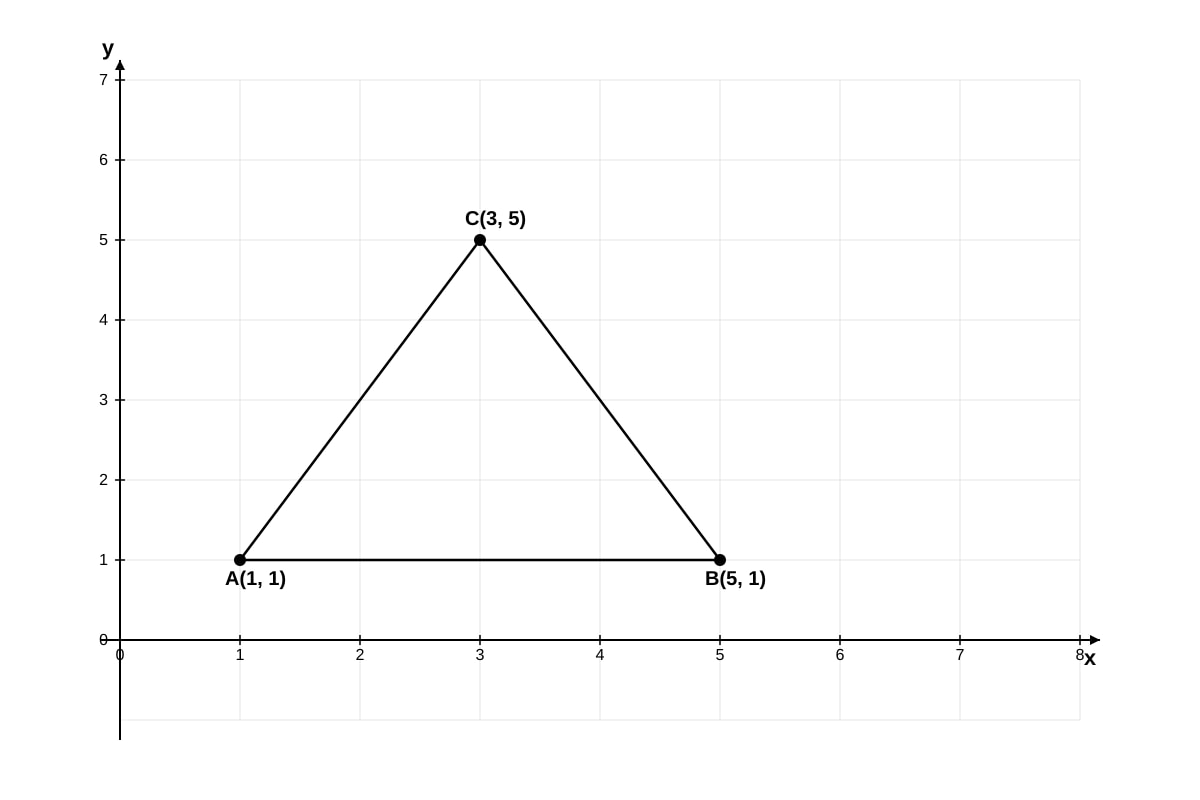

11. The diagram below shows a triangle $ABC$ plotted on a Cartesian plane.

<image_placeholder> id: Q11-fig1 type: diagram linked_question: Q11 description: A triangle ABC on a Cartesian grid. Point A is at (1, 1), Point B is at (5, 1), and Point C is at (3, 5). The axes are labeled x and y with grid lines. labels: A(1,1), B(5,1), C(3,5) values: Grid scale 1 unit per square. must_show: Vertices A, B, C clearly marked. Grid lines visible. </image_placeholder>

(a) Calculate the length of side $AC$ .
(b) Hence, or otherwise, calculate the area of triangle $ABC$ .

12. Find the equation of the straight line passing through the points $A(2, 5)$ and $B(6, 17)$ . Give your answer in the form $y = mx + c$ .

13. The line $L$ has the equation $4x + 2y = 10$ . (a) Find the gradient of line $L$ .
(b) Find the coordinates of the point where line $L$ crosses the $x$ -axis.

Section D (8 Marks)

Answer all questions in this section. Each question carries 4 marks.

14. Point $A$ has coordinates $(1, 2)$ and point $B$ has coordinates $(7, 8)$ . (a) Find the coordinates of the midpoint $M$ of $AB$ .
(b) Find the gradient of the line perpendicular to $AB$ .

15. The vertices of a quadrilateral $ABCD$ are $A(1, 1)$ , $B(5, 3)$ , $C(7, 7)$ , and $D(3, 5)$ . (a) Show that the diagonals $AC$ and $BD$ bisect each other by finding their midpoints.
(b) State the specific geometric name of quadrilateral $ABCD$ .

16. The line $L_1$ passes through points $(0, 4)$ and $(2, 0)$ . The line $L_2$ is perpendicular to $L_1$ and passes through the point $(2, 0)$ . (a) Find the equation of line $L_1$ .
(b) Find the equation of line $L_2$ .

17. Points $P(2, 3)$ , $Q(6, 3)$ , and $R(4, 7)$ form a triangle. (a) Show that triangle $PQR$ is isosceles by calculating the lengths of $PR$ and $QR$ .
(b) Calculate the area of triangle $PQR$ .

18. The line $y = 2x + 1$ intersects the line $y = -x + 7$ at point $K$ . (a) Find the coordinates of point $K$ .
(b) Find the distance from the origin $O(0,0)$ to point $K$ . Give your answer in surd form.

19. A line passes through points $A(-2, 1)$ and $B(4, 5)$ . (a) Find the equation of this line in the form $ax + by = c$ .
(b) Determine whether the point $C(10, 9)$ lies on this line. Show your working.

20. The midpoint of the line segment joining $A(3, k)$ and $B(7, 5)$ is $M(5, 2)$ . (a) Find the value of $k$ .
(b) Find the length of the line segment $AB$ .

Answers

Secondary 2 Mathematics Quiz - Graphs Coordinate Geometry (Answer Key)

Total Marks: 40

Section A

1. Length of $AB$
Answer: $10$ units
Working:
Use the distance formula: $d = \sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}$
$AB = \sqrt{(8 - 2)^2 + (13 - 5)^2}$
$AB = \sqrt{6^2 + 8^2}$
$AB = \sqrt{36 + 64} = \sqrt{100} = 10$
Marks: [2] (1 for substitution, 1 for correct answer)

2. Midpoint of $PQ$
Answer: $(1, 3)$
Working:
Midpoint formula: $\left(\frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2}\right)$
$x = \frac{-3 + 5}{2} = \frac{2}{2} = 1$
$y = \frac{7 + (-1)}{2} = \frac{6}{2} = 3$
Marks: [2] (1 for x-coord, 1 for y-coord)

3. Gradient of line
Answer: $2$
Working:
Gradient $m = \frac{y_2 - y_1}{x_2 - x_1}$
$m = \frac{10 - 4}{4 - 1} = \frac{6}{3} = 2$
Marks: [1]

4. Equation of line
Answer: $y = -3x + 5$
Working:
The equation of a line is $y = mx + c$ .
Given gradient $m = -3$ and $y$ -intercept $c = 5$ (since it passes through $(0,5)$ ).
Marks: [1]

5. Gradient of $2y = 6x - 8$
Answer: $3$
Working:
Rearrange into $y = mx + c$ :
$2y = 6x - 8$
$y = \frac{6x}{2} - \frac{8}{2}$
$y = 3x - 4$
Gradient $m = 3$ .
Marks: [1]

Section B

6. $y$ -intercept of $3x + 4y = 12$
Answer: $3$ (or coordinate $(0, 3)$ )
Working:
At $y$ -intercept, $x = 0$ .
$3(0) + 4y = 12$
$4y = 12$
$y = 3$
Marks: [1]

7. Gradient of parallel line
Answer: $2$
Working:
Parallel lines have equal gradients.
$L_1: y = 2x + 1 \implies m = 2$ .
Therefore, gradient of $L_2$ is also $2$ .
Marks: [1]

8. Gradient of perpendicular line
Answer: $-\frac{1}{4}$
Working:
Product of gradients of perpendicular lines is $-1$ .
$m_1 \times m_2 = -1$
$4 \times m_2 = -1$
$m_2 = -\frac{1}{4}$
Marks: [1]

9. Value of $k$
Answer: $3$
Working:
Substitute $x = k$ and $y = 6$ into $y = 3x - 3$ :
$6 = 3(k) - 3$
$9 = 3k$
$k = 3$
Marks: [2] (1 for substitution, 1 for answer)

10. Equation of line
Answer: $y = 2x + 1$
Working:
$y = mx + c$ . Given $m = 2$ , so $y = 2x + c$ .
Passes through $(1, 3)$ :
$3 = 2(1) + c$
$3 = 2 + c \implies c = 1$
Equation: $y = 2x + 1$
Marks: [2] (1 for finding c, 1 for equation)

Section C

11. Triangle $ABC$
Visual Context: $A(1,1)$ , $B(5,1)$ , $C(3,5)$ .

(a) Length of $AC$
Answer: $\sqrt{20}$ or $2\sqrt{5}$ or approx $4.47$
Working:
$AC = \sqrt{(3 - 1)^2 + (5 - 1)^2}$
$AC = \sqrt{2^2 + 4^2} = \sqrt{4 + 16} = \sqrt{20}$
Marks: [2]

(b) Area of $\triangle ABC$
Answer: $8$ units $^2$
Working:
Base $AB$ is horizontal. Length $AB = 5 - 1 = 4$ units.
Height is vertical distance from $C$ to line $AB$ . $y_C - y_A = 5 - 1 = 4$ units.
Area $= \frac{1}{2} \times \text{base} \times \text{height}$
Area $= \frac{1}{2} \times 4 \times 4 = 8$
Marks: [2] (1 for base/height identification, 1 for calculation)

12. Equation through $A(2, 5)$ and $B(6, 17)$
Answer: $y = 3x - 1$
Working:
Step 1: Find gradient $m$ .
$m = \frac{17 - 5}{6 - 2} = \frac{12}{4} = 3$
Step 2: Use $y = mx + c$ .
$y = 3x + c$
Substitute $(2, 5)$ : $5 = 3(2) + c \implies 5 = 6 + c \implies c = -1$
Equation: $y = 3x - 1$
Marks: [3] (1 for gradient, 1 for intercept, 1 for equation)

13. Line $4x + 2y = 10$
(a) Gradient
Answer: $-2$
Working:
$2y = -4x + 10$
$y = -2x + 5$
Gradient $m = -2$
Marks: [1]

(b) $x$ -intercept
Answer: $(2.5, 0)$ or $x = 2.5$
Working:
At $x$ -intercept, $y = 0$ .
$4x + 2(0) = 10$
$4x = 10$
$x = \frac{10}{4} = 2.5$
Marks: [2] (1 for setting y=0, 1 for answer)

Section D

14. Points $A(1, 2)$ and $B(7, 8)$
(a) Midpoint $M$
Answer: $(4, 5)$
Working:
$x = \frac{1+7}{2} = 4$
$y = \frac{2+8}{2} = 5$
Marks: [1]

(b) Gradient of perpendicular
Answer: $-1$
Working:
Gradient of $AB = \frac{8-2}{7-1} = \frac{6}{6} = 1$ .
Gradient of perpendicular $= -\frac{1}{1} = -1$ .
Marks: [2] (1 for grad AB, 1 for perp grad)

15. Quadrilateral $ABCD$ with $A(1, 1)$ , $B(5, 3)$ , $C(7, 7)$ , $D(3, 5)$
(a) Midpoints of diagonals
Answer: Both midpoints are $(4, 4)$ .
Working:
Midpoint of $AC$ : $\left(\frac{1+7}{2}, \frac{1+7}{2}\right) = (4, 4)$
Midpoint of $BD$ : $\left(\frac{5+3}{2}, \frac{3+5}{2}\right) = (4, 4)$
Since midpoints are identical, diagonals bisect each other.
Marks: [2]

(b) Geometric Name
Answer: Rhombus (Parallelogram is also acceptable but Rhombus is more specific).
Note: To be a rhombus, adjacent sides must be equal. $AB = \sqrt{16+4}=\sqrt{20}$ , $BC=\sqrt{4+16}=\sqrt{20}$ . It is a Rhombus.
Marks: [2] (1 for Parallelogram, 1 for Rhombus if checked, otherwise 1 for correct classification based on property shown). Award full marks for Rhombus.

16. Lines $L_1$ and $L_2$
(a) Equation of $L_1$ through $(0, 4)$ and $(2, 0)$
Answer: $y = -2x + 4$
Working:
Gradient $m = \frac{0 - 4}{2 - 0} = \frac{-4}{2} = -2$ .
$y$ -intercept is given as $4$ (point $(0,4)$ ).
Equation: $y = -2x + 4$ .
Marks: [2]

(b) Equation of $L_2$ perpendicular to $L_1$ through $(2, 0)$
Answer: $y = \frac{1}{2}x - 1$
Working:
Gradient of $L_1$ is $-2$ .
Gradient of $L_2$ ( $m_{\perp}$ ) $= -\frac{1}{-2} = \frac{1}{2}$ .
Equation: $y = \frac{1}{2}x + c$ .
Passes through $(2, 0)$ :
$0 = \frac{1}{2}(2) + c$
$0 = 1 + c \implies c = -1$ .
Equation: $y = \frac{1}{2}x - 1$ .
Marks: [2] (1 for correct gradient, 1 for correct equation)

17. Triangle $PQR$ with $P(2, 3)$ , $Q(6, 3)$ , $R(4, 7)$
(a) Show Isosceles
Answer: $PR = QR = \sqrt{20}$
Working:
$PR = \sqrt{(4-2)^2 + (7-3)^2} = \sqrt{2^2 + 4^2} = \sqrt{4+16} = \sqrt{20}$
$QR = \sqrt{(4-6)^2 + (7-3)^2} = \sqrt{(-2)^2 + 4^2} = \sqrt{4+16} = \sqrt{20}$
Since $PR = QR$ , the triangle is isosceles.
Marks: [2]

(b) Area of $\triangle PQR$
Answer: $8$ units $^2$
Working:
Base $PQ$ is horizontal. Length $PQ = 6 - 2 = 4$ .
Height is vertical distance from $R$ to $PQ$ . $y_R - y_P = 7 - 3 = 4$ .
Area $= \frac{1}{2} \times 4 \times 4 = 8$ .
Marks: [2]

18. Intersection of $y = 2x + 1$ and $y = -x + 7$
(a) Coordinates of $K$
Answer: $(2, 5)$
Working:
$2x + 1 = -x + 7$
$3x = 6 \implies x = 2$
$y = 2(2) + 1 = 5$
$K(2, 5)$
Marks: [2]

(b) Distance $OK$
Answer: $\sqrt{29}$
Working:
$O(0,0)$ , $K(2,5)$
$OK = \sqrt{(2-0)^2 + (5-0)^2} = \sqrt{4 + 25} = \sqrt{29}$
Marks: [2]

19. Line through $A(-2, 1)$ and $B(4, 5)$
(a) Equation in $ax + by = c$
Answer: $2x - 3y = -7$ (or equivalent e.g., $-2x + 3y = 7$ )
Working:
Gradient $m = \frac{5-1}{4-(-2)} = \frac{4}{6} = \frac{2}{3}$
$y - 1 = \frac{2}{3}(x + 2)$
$3(y - 1) = 2(x + 2)$
$3y - 3 = 2x + 4$
$2x - 3y = -7$
Marks: [2]

(b) Check point $C(10, 9)$
Answer: Yes, it lies on the line.
Working:
LHS: $2(10) - 3(9) = 20 - 27 = -7$
RHS: $-7$
LHS = RHS, so $C$ lies on the line.
Marks: [2]

20. Midpoint of $A(3, k)$ and $B(7, 5)$ is $M(5, 2)$
(a) Value of $k$
Answer: $-1$
Working:
$y$ -coord of midpoint: $\frac{k + 5}{2} = 2$
$k + 5 = 4$
$k = -1$
Marks: [2]

(b) Length of $AB$
Answer: $\sqrt{52}$ or $2\sqrt{13}$
Working:
$A(3, -1)$ , $B(7, 5)$
$AB = \sqrt{(7-3)^2 + (5-(-1))^2}$
$AB = \sqrt{4^2 + 6^2} = \sqrt{16 + 36} = \sqrt{52}$
Marks: [2]
