Secondary 2 Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40

Instructions:

Answer all 20 questions.
Show your working clearly where required.
Use a calculator only where helpful.
Write your answers in the spaces provided.

Section A: Basic Trigonometry and Angles (Questions 1–5)

1. In a right-angled triangle, the side opposite the angle is 5 cm and the hypotenuse is 13 cm. Find $\sin \theta$ , where $\theta$ is the angle opposite the 5 cm side. [2]

2. A ladder leans against a wall. The foot of the ladder is 4 m from the wall and the ladder is 5 m long. Find the angle the ladder makes with the ground. [2]

3. In right-angled triangle $ABC$ , $\angle B = 90^\circ$ , $AB = 8$ cm, $BC = 15$ cm. Find the length of $AC$ . [2]

4. Find the value of $\tan 30^\circ$ correct to 3 decimal places. [1]

5. A right-angled triangle has angle $40^\circ$ at $A$ , adjacent side 10 cm. Find the opposite side. [2]

Section B: Pythagoras and Similarity (Questions 6–10)

6. A rectangle has length 6 cm and width 8 cm. Find the length of its diagonal. [2]

7. Triangle $PQR$ is similar to triangle $XYZ$ . $PQ = 4$ cm, $XY = 10$ cm, $QR = 6$ cm. Find $YZ$ . [2]

8. Two triangles are similar. The ratio of their corresponding sides is $2:5$ . If the smaller triangle has area $16\text{ cm}^2$ , find the area of the larger triangle. [2]

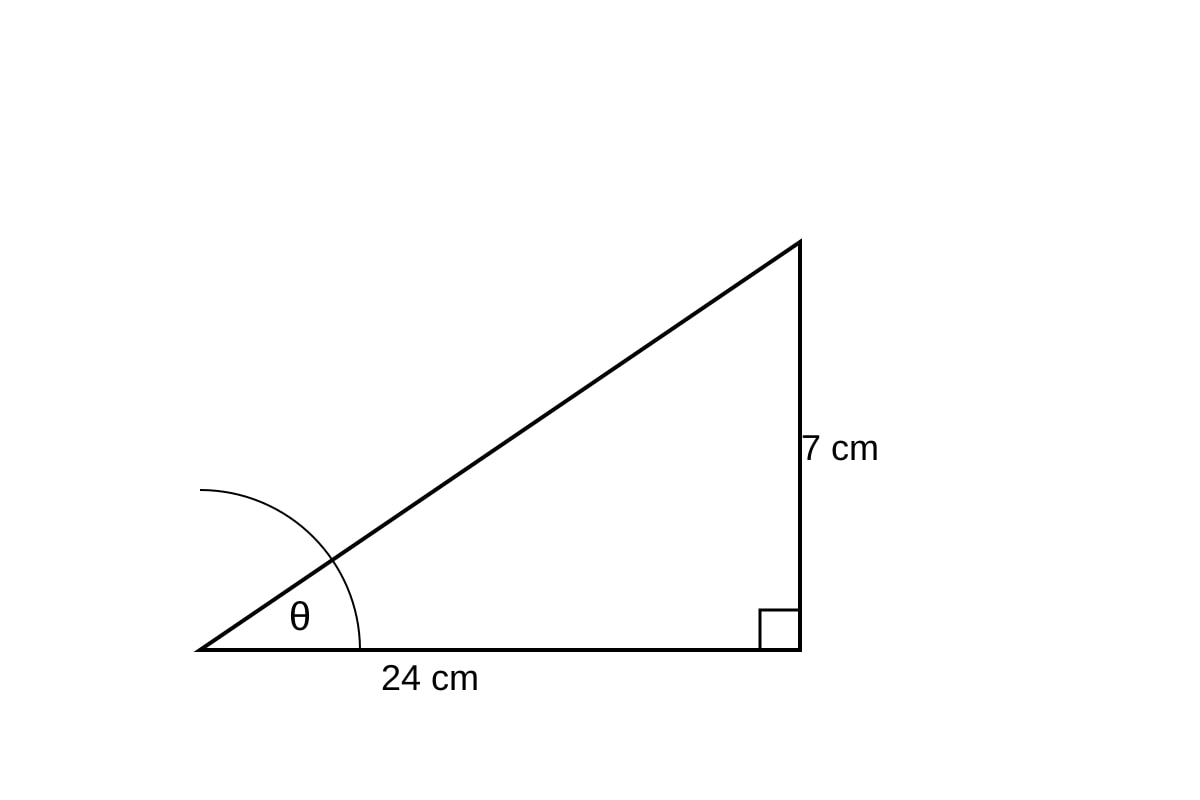

Diagram for Q9 (SEC2 Maths)

Generated diagram for Q9.

9. Using the diagram above, find $\cos \theta$ . [2]

10. A triangle has sides 9 cm, 12 cm, 15 cm. Show that it is right-angled. [2]

Section C: Applied Trigonometry and Proofs (Questions 11–15)

11. From a point 20 m from the base of a tower, the angle of elevation to the top is $35^\circ$ . Find the height of the tower. [3]

12. In triangle $ABC$ , $\angle A = 90^\circ$ , $AB = 12$ cm, $AC = 5$ cm. Find $\angle B$ . [3]

13. A kite string is 50 m long and makes an angle of $55^\circ$ with the ground. Find the horizontal distance from the boy to the point below the kite. [3]

14. Triangles $ABC$ and $DEC$ are similar because $\angle ACB = \angle DCE$ (vertically opposite) and $\angle ABC = \angle DEC = 90^\circ$ . If $AB = 3$ cm, $BC = 4$ cm, $DE = 6$ cm, find $EC$ . [3]

15. A ship sails 8 km north then 15 km east. Find the direct distance from start to finish. [2]

Section D: Challenging Problems (Questions 16–20)

16. A right-angled triangle has hypotenuse 17 cm and one side 8 cm. Find the other side and then $\tan$ of the angle opposite the 8 cm side. [3]

17. Two similar triangles have perimeters 24 cm and 36 cm. The area of the smaller is $32\text{ cm}^2$ . Find the area of the larger. [3]

18. From the top of a 60 m cliff, the angle of depression to a boat is $25^\circ$ . Find the distance from the boat to the foot of the cliff. [3]

19. In triangle $PQR$ , $PQ = 13$ cm, $QR = 5$ cm, $PR = 12$ cm. Prove it is right-angled and find the area. [3]

20. A pole of height 10 m casts a shadow of 6 m. At the same time, a building casts a shadow of 24 m. Using similarity, find the height of the building. [3]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Secondary 2 Mathematics Quiz - Geometry Trigonometry (Answers)

Total Marks: 40

Section A

Q1. [2 marks]
$\sin \theta = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{5}{13}$
Teaching note: Sine ratio is opposite ÷ hypotenuse. M1 for correct ratio, A1 for $\frac{5}{13}$ .

Q2. [2 marks]
$\cos \theta = \frac{4}{5} = 0.8 \Rightarrow \theta = \cos^{-1}(0.8) \approx 36.9^\circ$
Teaching note: Adjacent = 4, hypotenuse = 5. Use cosine then inverse. M1 correct ratio, A1 answer.

Q3. [2 marks]
$AC^2 = 8^2 + 15^2 = 64 + 225 = 289 \Rightarrow AC = 17$ cm
Teaching note: Pythagoras' theorem. M1 for $8^2+15^2$ , A1 for 17 cm.

Q4. [1 mark]
$\tan 30^\circ = 0.577$
Teaching note: From trig table or calculator.

Q5. [2 marks]
$\tan 40^\circ = \frac{\text{opp}}{10} \Rightarrow \text{opp} = 10 \times \tan 40^\circ \approx 8.39$ cm
Teaching note: M1 for setup, A1 for 8.39 cm.

Section B

Q6. [2 marks]
$d^2 = 6^2 + 8^2 = 100 \Rightarrow d = 10$ cm
Teaching note: Diagonal forms right triangle. M1, A1.

Q7. [2 marks]
Scale factor $= \frac{10}{4} = 2.5$ , $YZ = 6 \times 2.5 = 15$ cm
Teaching note: Similar triangles sides proportional. M1 scale factor, A1.

Q8. [2 marks]
Area scale $= (5/2)^2 = 6.25$ , area $= 16 \times 6.25 = 100\text{ cm}^2$
Teaching note: Area ratio = square of side ratio. M1, A1.

Q9. [2 marks]
Hypotenuse $= \sqrt{7^2+24^2} = 25$ , $\cos\theta = \frac{24}{25}$
Teaching note: From placeholder, adjacent 24, opp 7. M1 hypotenuse, A1.

Q10. [2 marks]
$9^2+12^2 = 81+144 = 225 = 15^2$ ⇒ right-angled
Teaching note: Converse of Pythagoras. M1 for sum, A1 conclusion.

Section C

Q11. [3 marks]
$\tan 35^\circ = \frac{h}{20} \Rightarrow h = 20\tan35^\circ \approx 14.0$ m
M1 ratio, M1 substitution, A1 14.0 m.

Q12. [3 marks]
$BC = \sqrt{12^2+5^2} = 13$ ; $\sin B = \frac{5}{13} \Rightarrow B = \sin^{-1}(5/13) \approx 22.6^\circ$
M1 hypotenuse, M1 ratio, A1 angle.

Q13. [3 marks]
$\cos 55^\circ = \frac{x}{50} \Rightarrow x = 50\cos55^\circ \approx 28.7$ m
M1, M1, A1.

Q14. [3 marks]
Scale $= 6/3 = 2$ , $EC = 4 \times 2 = 8$ cm
M1 similarity stated, M1 factor, A1.

Q15. [2 marks]
$d = \sqrt{8^2+15^2} = 17$ km
M1, A1.

Section D

Q16. [3 marks]
Other side $= \sqrt{17^2-8^2} = 15$ cm; $\tan = 8/15$
M1 side, M1 tan, A1.

Q17. [3 marks]
Side scale $= 36/24 = 1.5$ , area scale $= 2.25$ , area $= 32 \times 2.25 = 72\text{ cm}^2$
M1, M1, A1.

Q18. [3 marks]
$\tan 25^\circ = \frac{60}{d} \Rightarrow d = 60/\tan25^\circ \approx 128.6$ m
M1, M1, A1.

Q19. [3 marks]
$5^2+12^2=169=13^2$ right-angled; area $= \frac{1}{2}\times5\times12 = 30\text{ cm}^2$
M1 proof, M1 area setup, A1.

Q20. [3 marks]
$\frac{h}{10} = \frac{24}{6} = 4 \Rightarrow h = 40$ m
M1 ratio, M1 solve, A1.
