TuitionGoWhere Practice Paper - Geography Secondary 2

TuitionGoWhere Practice Paper (AI) — Version 3 of 5

Subject: Geography
Level: Secondary 2
Paper: Practice Paper (Map Graph Data Skills)
Duration: 45 minutes
Total Marks: 40
Name: ________________________
Class: ________
Date: ____________

Instructions:

This practice paper has three sections.
Answer all questions.
Use a ruler and pencil for map questions.
For data questions, refer to the figures provided.
Section marks and question marks add up to 40.

Section A: Map Skills (12 marks)

Questions 1–6

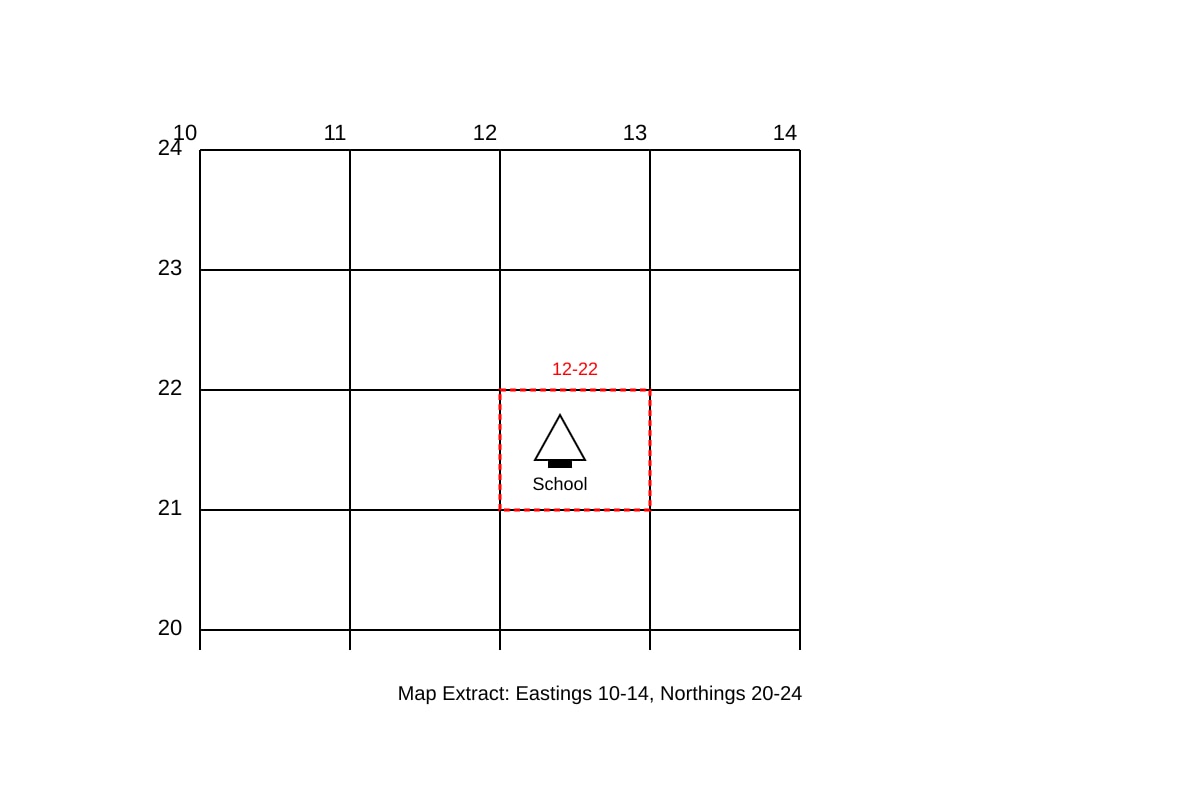

1. Study the map extract below. State the four-figure grid reference of the school. (1 mark)

Map for Q1 (SEC2 Geography)

Generated map for Q1.

2. Give the six-figure grid reference of the hospital shown on the map above. (2 marks)

3. Measure the straight-line distance from the school (12 22) to the hospital (13 23) if the map scale is 1 cm = 100 m and the measured map distance is 1.4 cm. State your answer in metres. (2 marks)

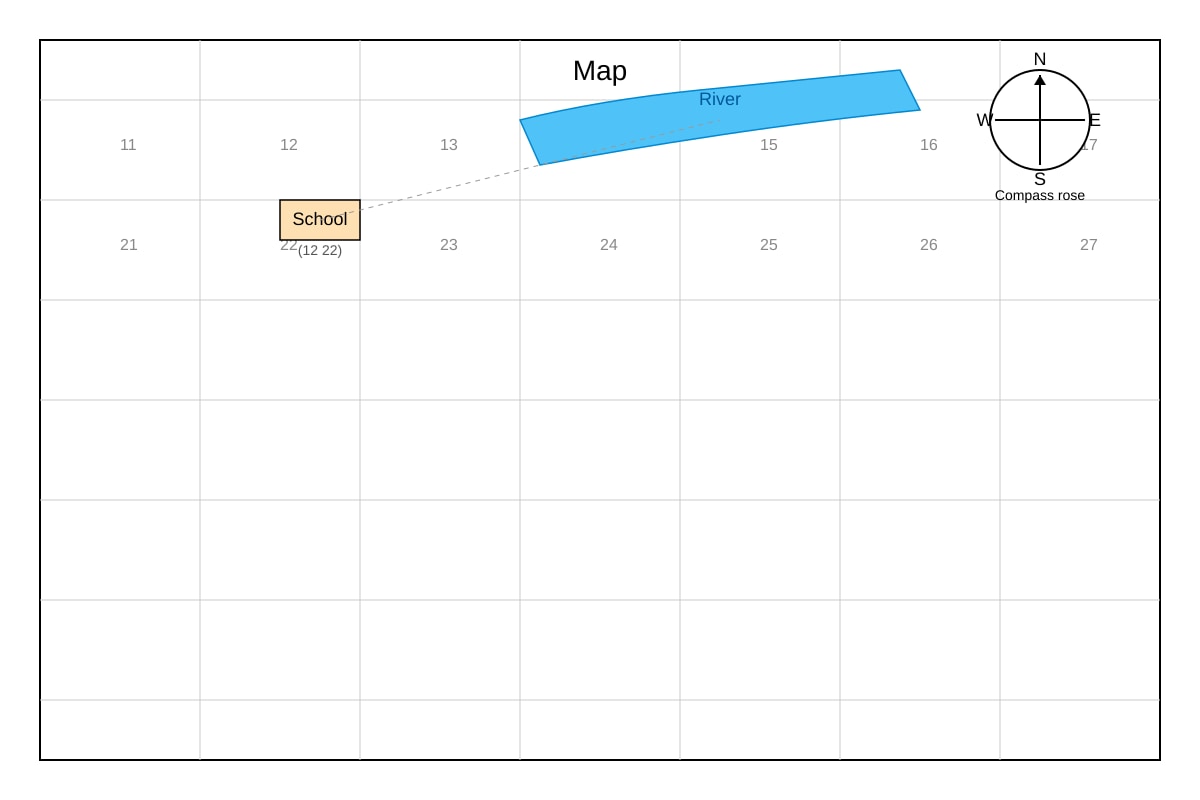

4. State the direction of the river from the school using the compass rose provided. (1 mark)

Map for Q4 (SEC2 Geography)

Generated map for Q4.

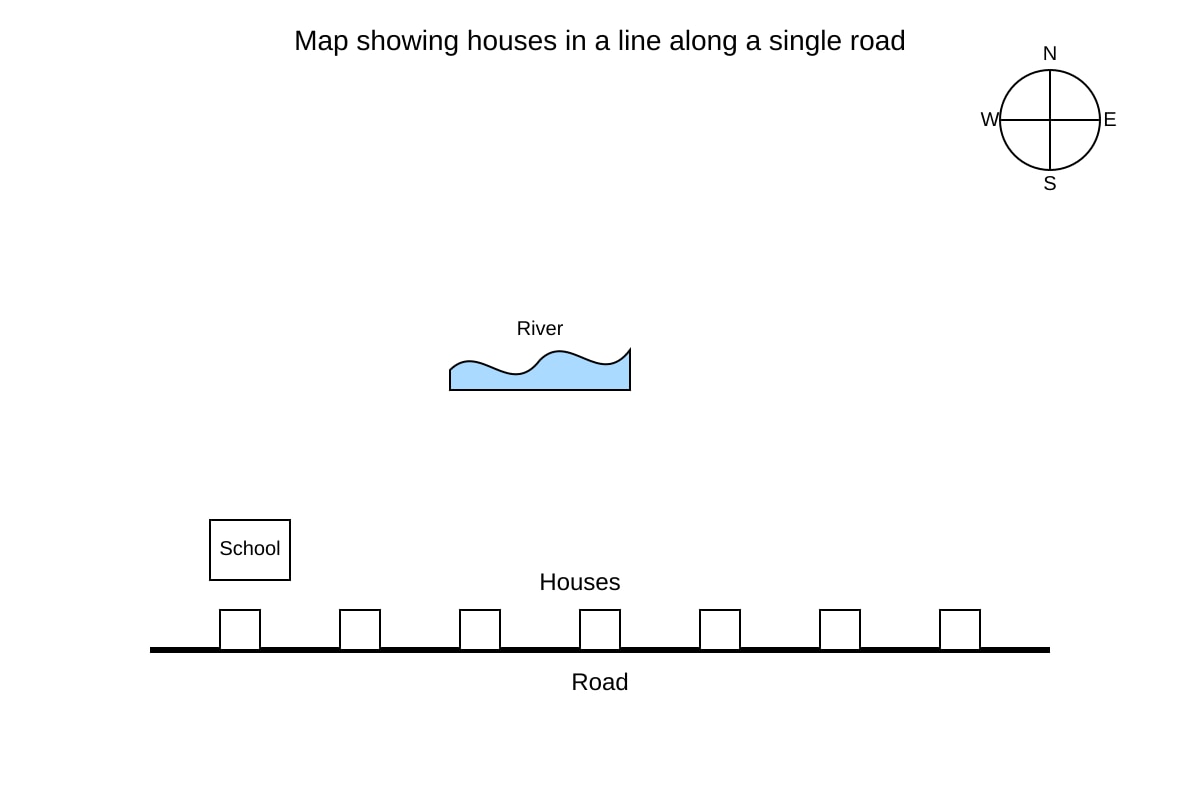

5. Name the type of settlement pattern shown by the houses along the road. (1 mark)

Map for Q5 (SEC2 Geography)

Generated map for Q5.

6. State two features you would find on a topographic map that are not shown on this extract. (2 marks)

(i) __________________________________________________
(ii) __________________________________________________

Section A Total: 12 marks

Section B: Graph and Data Interpretation (16 marks)

Questions 7–13

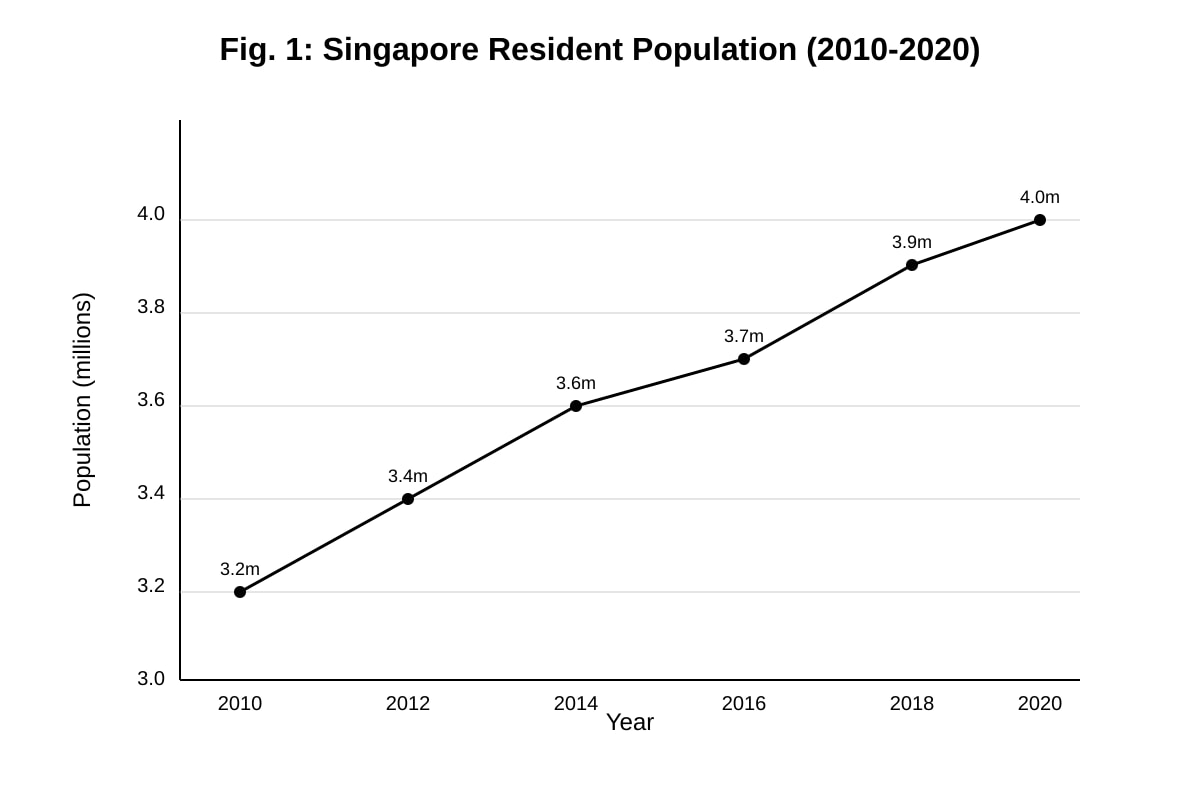

7. Study Fig. 1 below. Describe the trend in Singapore's resident population from 2010 to 2020. Refer to figures. (3 marks)

Graph for Q7 (SEC2 Geography)

Generated graph for Q7.

8. Using Fig. 1, calculate the percentage increase in resident population from 2010 to 2020. Show your working. (2 marks)

9. Study Fig. 2. State the year when rainfall was highest and give the value. (2 marks)

Graph for Q9 (SEC2 Geography)

Generated graph for Q9.

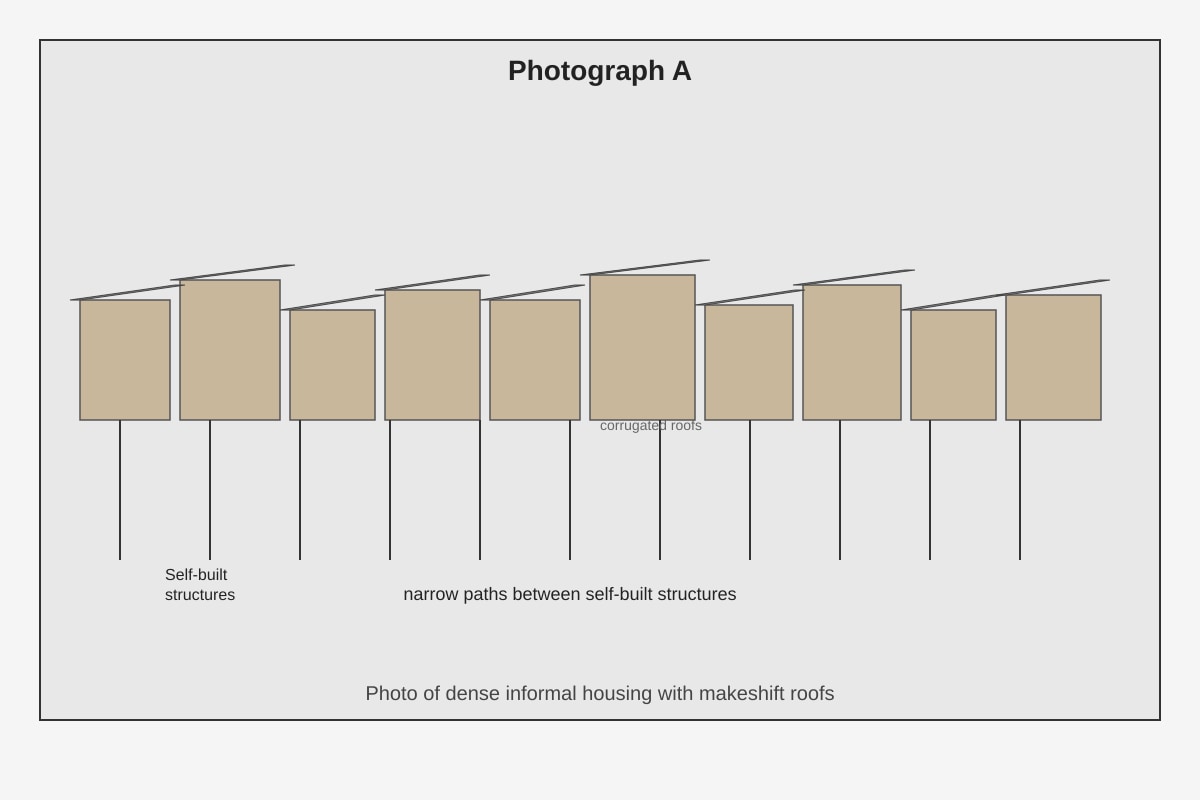

10. Study Photograph A. Describe two observable features of the squatter settlement. (2 marks)

Source Image for Q10 (SEC2 Geography)

Generated source_image for Q10.

(i) __________________________________________________
(ii) __________________________________________________

11. Explain why squatter settlements like the one in Photograph A often develop on the edges of cities. (3 marks)

12. Study Fig. 3, a pie chart of water use in Singapore. State the two largest categories and their percentages. (2 marks)

Chart for Q12 (SEC2 Geography)

Generated chart for Q12.

13. Using Fig. 3, explain one reason why domestic use is the highest category. (2 marks)

Section B Total: 16 marks

Section C: Applied Data Skills (12 marks)

Questions 14–20

14. A student recorded temperatures at two sites. Site X: 28°C, Site Y: 31°C. Calculate the difference. (1 mark)

15. State why a fieldworker would use a transect line. (1 mark)

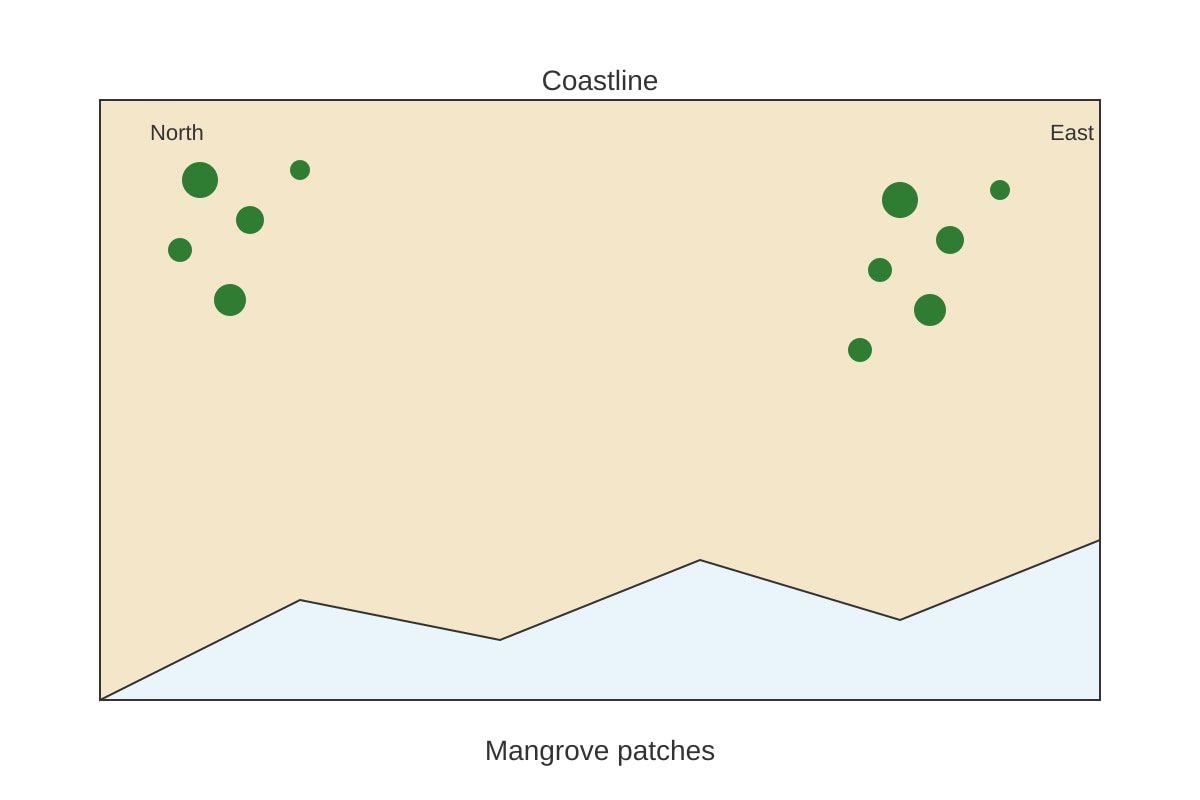

16. Study Fig. 4. Describe the distribution of mangroves along the coast. (2 marks)

Map for Q16 (SEC2 Geography)

Generated map for Q16.

17. Using the table below, calculate the mean rainfall for the three months. (2 marks)

Month	Rainfall (mm)
Jan	120
Feb	90
Mar	150

18. Explain how a bar graph is different from a pie chart in showing data. (2 marks)

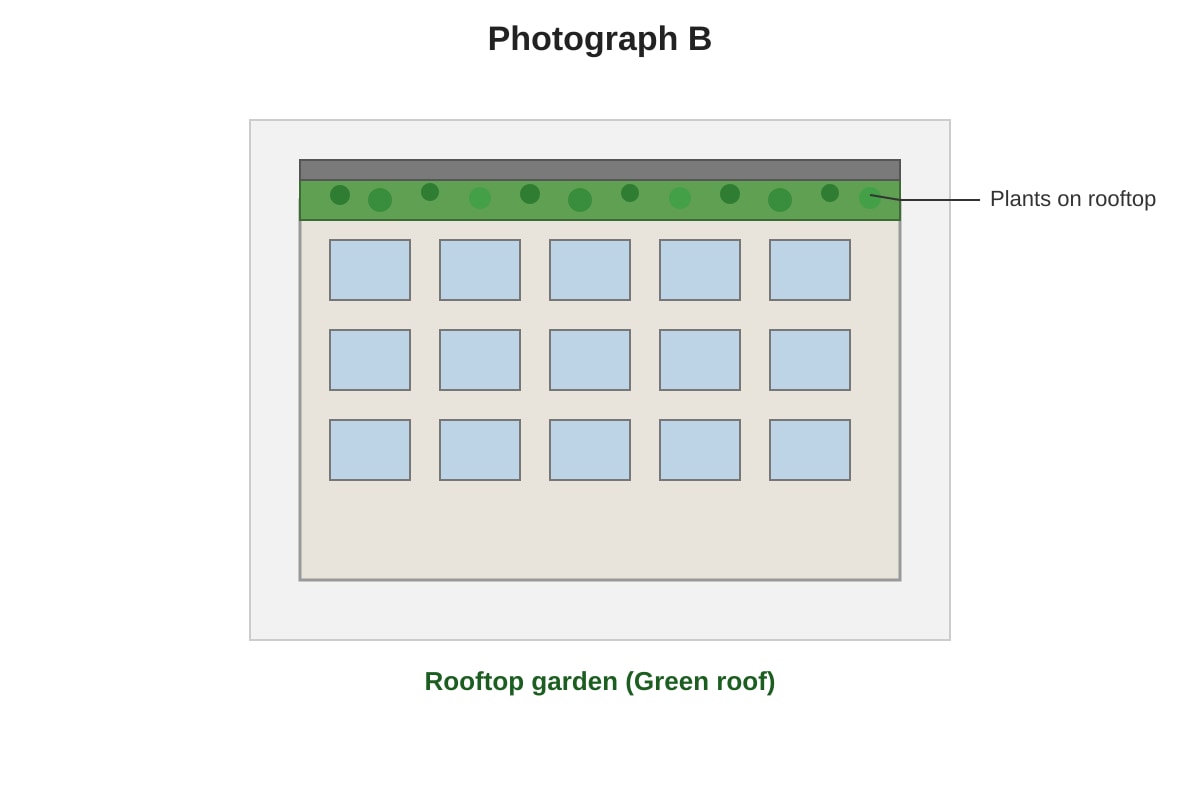

19. Study Photograph B. Identify the sustainable feature shown and explain its purpose. (2 marks)

Source Image for Q19 (SEC2 Geography)

Generated source_image for Q19.

20. A map has scale 1:25 000. What does this mean in words? (2 marks)

Section C Total: 12 marks

Total Marks: 40

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper Answer Key — Geography Secondary 2 (Version 3)

Section A: Map Skills (12 marks)

1. 1222 (1 mark)
Teaching note: Four-figure grid reference uses easting first (12) then northing (22). Common mistake: writing northing first (2212).

2. 125 223 (2 marks)
Breakdown: 1 mark for easting 125 (halfway between 12 and 13), 1 mark for northing 223. Six-figure splits square into tenths.

3. 140 m (2 marks)
Working: Map distance 1.4 cm × 100 m/cm = 140 m. 1 mark for method, 1 mark for answer.

4. North-east (1 mark)
From compass, river lies NE of school.

5. Linear settlement (1 mark)
Houses follow a line along road.

6. (2 marks)
Any two: contour lines, scale bar, legend, spot height, railway, boundary. 1 mark each.

Section A Total: 12 marks

Section B: Graph and Data Interpretation (16 marks)

7. (3 marks)
Trend: resident population increased steadily from 3.2 million in 2010 to 4.0 million in 2020 (1 mark). Rise was gradual with no major drops (1 mark). Referenced figures shown (1 mark).

8. (2 marks)
Working: ((4.0 - 3.2) / 3.2) × 100 = 25% (1 mark method, 1 mark answer).

9. (2 marks)
December, 280 mm (1 mark each).

10. (2 marks)
(i) Dense self-built structures (1 mark)
(ii) Narrow paths / corrugated roofs (1 mark)

11. (3 marks)
Lack of affordable formal housing in city (1 mark). Land at edges is cheaper or unused (1 mark). Migrants build informally there (1 mark).

12. (2 marks)
Domestic 45%, Industry 30% (1 mark each).

13. (2 marks)
Households use water daily for washing, cooking, etc. (1 mark) Large population makes total high (1 mark).

Section B Total: 16 marks

Section C: Applied Data Skills (12 marks)

14. 3°C (1 mark)
31 - 28 = 3.

15. (1 mark)
To study changes across a distance / sample systematically.

16. (2 marks)
Mangroves clustered in north and east (1 mark). Sparse or absent on south/west coast (1 mark).

17. (2 marks)
Mean = (120+90+150)/3 = 120 mm (1 mark method, 1 mark answer).

18. (2 marks)
Bar graph compares amounts using height (1 mark). Pie chart shows proportion of whole (1 mark).

19. (2 marks)
Rooftop garden (1 mark). Reduces heat, absorbs rainwater (1 mark).

20. (2 marks)
1 cm on map represents 25 000 cm (250 m) on ground (2 marks for clear statement).

Section C Total: 12 marks
Total Marks: 40
