Secondary 1 Science Chemistry Materials Quiz

Free Sec 1 Science Chemistry Materials quiz, Exam version, with questions, answers, and syllabus-aligned practice for Singapore students.

These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.

Secondary 1 Science From Real Exams Generated by Claude Sonnet 4 Updated 2026-08-17

Back to Subject Browse Free Exam Papers

Questions

Secondary 1 Science Quiz - Chemistry Materials

Name: _________________ Class: _________________ Date: _________________

Score: _____ / 40 Duration: 45 minutes

Instructions

Answer all questions in the spaces provided.
Show all working for calculations.
Use appropriate scientific terminology.
Read all questions carefully before answering.

Section A: Multiple Choice [5 marks]

Choose the best answer for each question.

1. Which of the following is a physical property of materials? A. Flammability B. Reactivity with acid C. Electrical conductivity D. Ability to rust Answer: _____ [1]

2. The separation technique most suitable for separating oil from water is: A. Filtration B. Evaporation C. Using a separating funnel D. Chromatography Answer: _____ [1]

3. Which statement about elements is correct? A. Elements can be broken down into simpler substances B. All elements are metals C. Elements contain only one type of atom D. Elements always exist as single atoms Answer: _____ [1]

4. The hardness of a material refers to its: A. Ability to conduct electricity B. Resistance to being scratched or dented C. Ability to be stretched without breaking D. Density compared to water Answer: _____ [1]

5. In chromatography, substances separate because they have different: A. Colours B. Densities C. Rates of movement through the medium D. Boiling points Answer: _____ [1]

Section B: Short Answer Questions [10 marks]

6. A student wants to measure the volume of an irregularly shaped stone. (a) Name the method that should be used. [1]

(b) Explain why this method is more suitable than using a measuring cylinder alone. [2]

7. Based on the hazard labels shown on a chemical container, state two precautions that should be taken when handling a corrosive chemical. [2]

Precaution 1: _________________________________________________

Precaution 2: _________________________________________________

8. A mixture contains salt, sand, and iron filings. (a) State the separation technique to remove the iron filings first. [1]

(b) Explain why this technique works for iron filings but not for salt or sand. [2]

9. Complete the table below by stating whether each substance is an element, compound, or mixture. [3]

Substance	Classification
Oxygen gas (O₂)
Salt water
Carbon dioxide (CO₂)

10. A student investigates the flexibility of different materials by bending them. (a) State one factor that should be kept constant in this investigation. [1]

(b) Suggest how the flexibility could be measured quantitatively. [2]

Section C: Structured Questions [15 marks]

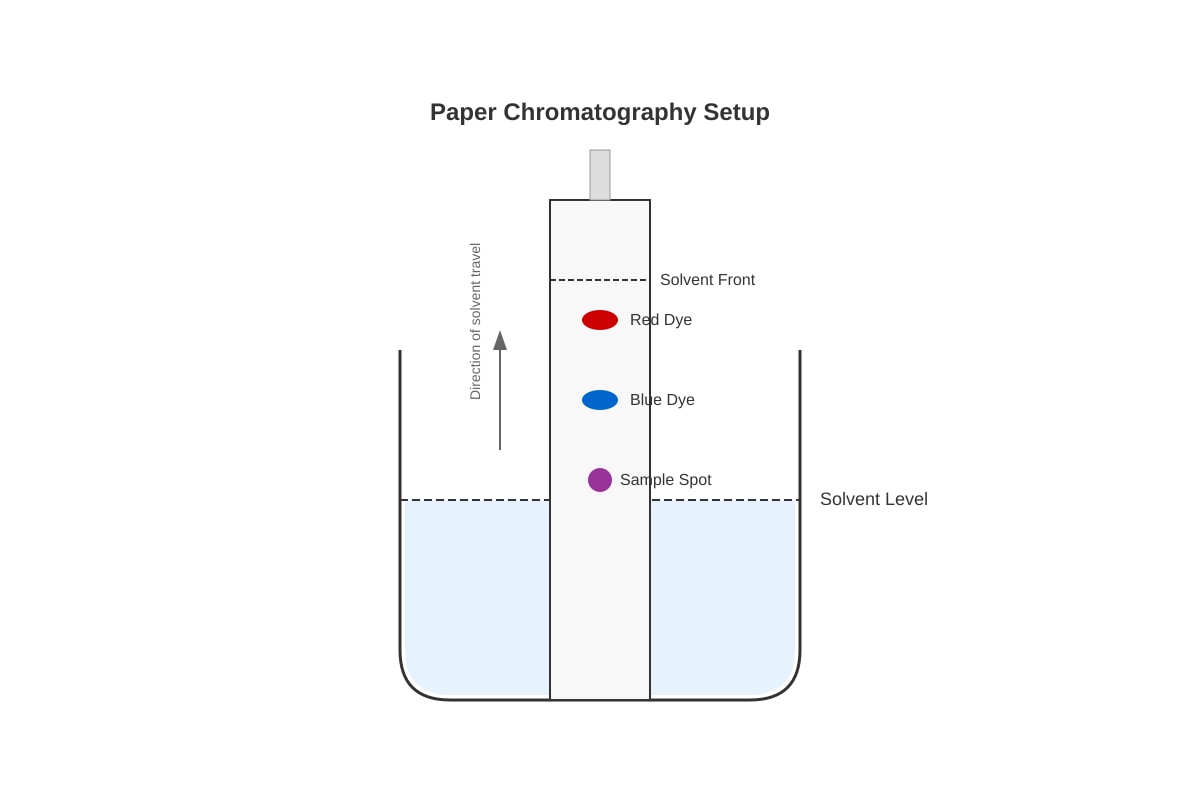

11. The diagram below shows the setup for paper chromatography to separate food dyes.

Diagram for placeholder 1 (SEC1 Science)

Generated diagram for this question.

(a) Explain why the sample spot is placed above the solvent level at the start. [2]

(b) The red dye travels further up the paper than the blue dye. What does this tell you about the solubility of these dyes in the solvent? [2]

12. A student conducts an experiment to investigate factors affecting the rate of dissolving sugar in water.

(a) State a hypothesis for this experiment. [1]

(b) Identify two factors that could affect the rate of dissolving. [2]

Factor 1: _________________________________________________

Factor 2: _________________________________________________

(d) Explain, using the particle model, why increasing temperature increases the rate of dissolving. [2]

13. The table shows the properties of four materials A, B, C, and D.

Material	Electrical Conductivity	Thermal Conductivity	Flexibility	Strength
A	Good	Good	Low	High
B	Poor	Poor	High	Low
C	Poor	Poor	Low	High
D	Good	Poor	High	Medium

(a) Which material would be most suitable for making electrical wires? Give a reason for your answer. [2] Material: _________________________________________________ Reason: _________________________________________________

(b) Which material would be most suitable for making a cooking pot handle? Give a reason for your answer. [2] Material: _________________________________________________ Reason: _________________________________________________

Section D: Extended Questions [10 marks]

14. A student wants to separate a mixture of ethanol and water using distillation.

(a) State the physical property that allows this separation to work. [1]

(b) Explain why ethanol is collected first during the distillation process. [2]

15. Describe the differences between pure substances and mixtures. Give one example of each and explain how you could test whether a substance is pure. [3]

16. A student has a mixture of copper sulfate crystals and sand. (a) Describe a method to separate this mixture completely. [2]

(b) Explain why this method works. [1]

17. State three physical properties that could be used to identify an unknown metal sample. For each property, briefly explain how it would be measured. [3]

Property 1: _________________________________________________ Measurement: _________________________________________________

Property 2: _________________________________________________ Measurement: _________________________________________________

Property 3: _________________________________________________ Measurement: _________________________________________________

18. Explain why different materials are chosen for different purposes. Use the example of materials used in cooking utensils to support your answer. [3]

19. A student observes that when salt is added to ice, the ice melts faster. (a) Is this a physical or chemical change? Give a reason for your answer. [2]

(b) Suggest why this happens in terms of particles. [1]

20. Compare and contrast filtration and distillation as separation techniques. Include when each method would be most appropriate to use. [4]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Secondary 1 Science Quiz - Chemistry Materials (Answer Key)

Section A: Multiple Choice [5 marks]

1. C. Electrical conductivity [1] Physical properties can be observed without changing the chemical composition of the material.

2. C. Using a separating funnel [1] Oil and water are immiscible liquids with different densities, making separating funnel the most suitable technique.

3. C. Elements contain only one type of atom [1] This is the defining characteristic of an element.

4. B. Resistance to being scratched or dented [1] Hardness is specifically about resistance to deformation or scratching.

5. C. Rates of movement through the medium [1] Different substances have different affinities for the mobile and stationary phases, causing different migration rates.

Section B: Short Answer Questions [10 marks]

6. (a) Volume displacement method / Water displacement method [1]

(b) The stone has an irregular shape, so its dimensions cannot be measured directly with a ruler. [1] The displacement method measures the actual volume by the amount of water displaced when the stone is submerged. [1]

7. Precaution 1: Wear protective gloves / Use protective clothing [1] Precaution 2: Wear eye protection / Use in well-ventilated area / Keep away from skin [1] Accept any two appropriate safety measures for corrosive chemicals

8. (a) Magnetic separation / Using a magnet [1]

(b) Iron filings are magnetic and will be attracted to a magnet, [1] while salt and sand are not magnetic and will not be affected by the magnet. [1]

Substance	Classification
Oxygen gas (O₂)	Element [1]
Salt water	Mixture [1]
Carbon dioxide (CO₂)	Compound [1]

10. (a) Length/width/thickness of material / Force applied / Temperature [1] Accept any appropriate controlled variable

(b) Measure the angle of bending before breaking / Measure the force needed to bend to a specific angle / Measure the distance the material can bend before breaking [2] Award 1 mark for method, 1 mark for quantitative aspect

Section C: Structured Questions [15 marks]

11. (a) To prevent the sample from dissolving directly into the solvent [1] and to ensure the solvent moves up through the sample by capillary action. [1]

(b) The red dye is more soluble in the solvent than the blue dye, [1] so it travels further up the paper with the solvent front. [1]

(c) It can separate and identify multiple components in a mixture / It requires only a small sample / It is quick and sensitive [1] Accept any appropriate advantage

12. (a) If the temperature of water increases, then the rate of dissolving sugar will increase. [1] Accept any testable hypothesis relating an independent variable to the rate of dissolving

(b) Factor 1: Temperature of water [1] Factor 2: Stirring/agitation / Surface area of sugar / Amount of sugar [1] Accept any two appropriate factors

(c) Measure the time taken for all sugar to dissolve completely / Measure the mass of sugar dissolved per unit time [2] Award 1 mark for time measurement, 1 mark for clear method

(d) Higher temperature increases the kinetic energy of water particles, [1] causing them to move faster and collide more frequently with sugar particles, increasing the rate of dissolving. [1]

13. (a) Material: A [1] Reason: It has good electrical conductivity and high strength, which are essential for electrical wires. [1]

(b) Material: B or C [1] Reason: It has poor thermal conductivity, preventing heat transfer to the hand / it won't conduct heat from the pot. [1]

(c) Plastic / Polymer / Rubber [1] Good electrical conductor but poor thermal conductor suggests a material like graphite or certain plastics

Section D: Extended Questions [10 marks]

14. (a) Different boiling points / Volatility [1]

(b) Ethanol has a lower boiling point than water, [1] so it vaporizes first and is collected as the first distillate. [1]

(c) Use a water bath instead of direct heating / Ensure good ventilation / Keep away from flames [1] Accept any appropriate safety measure for volatile liquids

15. Pure substances contain only one type of particle and have fixed properties like melting point. [1] Mixtures contain two or more substances that retain their individual properties. Example: Pure water vs salt water. [1] Test purity by measuring melting/boiling point - pure substances have sharp, fixed points while mixtures have ranges. [1]

16. (a) Add water to dissolve the copper sulfate, then filter to separate the sand. Evaporate the filtrate to recover copper sulfate crystals. [2]

(b) Copper sulfate is soluble in water while sand is insoluble, allowing separation by dissolution and filtration. [1]

17. Property 1: Density [1] Measurement: Measure mass and volume, then calculate density = mass/volume [1]

Property 2: Electrical conductivity [1] Measurement: Use a conductivity meter or simple circuit with bulb/ammeter [1]

Property 3: Melting point / Hardness / Magnetic properties [1] Measurement: Heat gradually and record temperature when melting begins / Scratch test with materials of known hardness / Test with magnet [1]

18. Materials are chosen based on their properties matching the required function. [1] Cooking pots need good thermal conductivity (metals like aluminum) to heat food evenly, while handles need poor thermal conductivity (plastic/wood) to prevent burns. [1] The base needs to be strong and durable while remaining non-reactive with food. [1]

19. (a) Physical change [1] because no new substances are formed - the ice just changes state from solid to liquid water. [1]

(b) Salt particles disrupt the regular arrangement of water molecules in ice, making it easier for them to move and melt. [1]

20. Filtration separates insoluble solids from liquids using particle size differences, while distillation separates liquids with different boiling points. [1] Filtration is faster and simpler for solid-liquid mixtures. [1] Distillation can separate miscible liquids and recover both components. [1] Use filtration for sand and water; use distillation for alcohol and water mixtures. [1]

Total: 40 marks

Marking Notes:

Award marks for scientifically accurate alternative answers
For calculations, award method marks even if final answer is incorrect
Accept appropriate scientific terminology and spelling variations
Partial marks may be awarded for incomplete but correct responses
