Secondary 1 Science Practice Paper 3

<!-- TuitionGoWhere generation metadata: stage=5-2; model=nvidia/nemotron-3-ultra-550b-a55b:free; model_label=NVIDIA Nemotron 3 Ultra 550B A55B Free; generated=2026-06-14; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Science Secondary 1

TuitionGoWhere Practice Paper (AI) - Version 3

Subject: Science
Level: Secondary 1 (G3)
Paper: Practice Paper - Physical Sciences (Forces, Energy & Work)
Duration: 1 hour 15 minutes
Total Marks: 50

Name: ________________________
Class: ________________________
Date: ________________________

---

Instructions to Candidates

1. Write your name, class, and date in the spaces provided above.
2. Answer all questions in the spaces provided.
3. The number of marks is given in brackets [ ] at the end of each question or part question.
4. The total marks for this paper is 50.
5. You may use a calculator.
6. Show all working for calculation questions.
7. For questions requiring explanations, write in complete sentences.

---

Section A: Multiple Choice Questions (10 marks)

Answer all questions. Choose the correct answer and write the letter (A, B, C, or D) in the box provided.

Question 1 [1]

A student lifts a 3 kg book from the floor to a table 0.8 m high. Which of the following correctly describes the energy conversion taking place?

A. Kinetic energy → Gravitational potential energy
B. Chemical energy → Gravitational potential energy
C. Gravitational potential energy → Chemical energy
D. Thermal energy → Kinetic energy

Answer: □

Question 2 [1]

A force of 15 N is used to push a box horizontally across a floor for a distance of 4 m. The work done on the box is:

A. 3.75 J
B. 19 J
C. 60 J
D. 600 J

Answer: □

Question 3 [1]

Which of the following situations involves NO work done on the object?

A. A girl pushes a trolley 5 m forward.
B. A boy holds a 10 N weight stationary above his head for 30 seconds.
C. A crane lifts a 500 N load 20 m upwards.
D. A car engine exerts a force to move the car 100 m.

Answer: □

Question 4 [1]

A 2 kg ball is dropped from a height of 10 m. Ignoring air resistance, what is the kinetic energy of the ball just before it hits the ground? (Take g = 10 N/kg)

A. 20 J
B. 100 J
C. 200 J
D. 400 J

Answer: □

Question 5 [1]

A machine has an efficiency of 80%. If the work input is 250 J, what is the useful work output?

A. 20 J
B. 200 J
C. 312.5 J
D. 400 J

Answer: □

Question 6 [1]

Which energy conversion occurs when a compressed spring is released and pushes a toy car forward?

A. Elastic potential energy → Kinetic energy
B. Chemical energy → Kinetic energy
C. Gravitational potential energy → Kinetic energy
D. Kinetic energy → Elastic potential energy

Answer: □

Question 7 [1]

A student runs up a flight of stairs. Compared to walking up the same stairs slowly, the student's:

A. Work done against gravity is greater.
B. Work done against gravity is smaller.
C. Power developed is greater.
D. Power developed is smaller.

Answer: □

Question 8 [1]

A 500 g object is moving at 4 m/s. Its kinetic energy is:

A. 4 J
B. 8 J
C. 16 J
D. 32 J

Answer: □

Question 9 [1]

In which situation is the gravitational potential energy of an object INCREASING?

A. A book falling off a shelf.
B. A ball rolling down a hill.
C. A rocket launching upwards.
D. A pendulum swinging downwards.

Answer: □

Question 10 [1]

A force of 20 N acts on an object at an angle of 60° to the horizontal. The object moves 5 m horizontally. The work done by the force is:

A. 50 J
B. 86.6 J
C. 100 J
D. 173.2 J

Answer: □

---

Section B: Structured Questions (25 marks)

Answer all questions in the spaces provided.

Question 11 [4]

A construction worker uses a pulley system to lift a 120 kg load vertically upwards by 6 m at constant velocity. Take g = 10 N/kg.

(a) Calculate the weight of the load.
Answer: ________________________ [1]

(b) State the minimum force the worker must apply to lift the load at constant velocity.
Answer: ________________________ [1]

(c) Calculate the work done by the worker in lifting the load.
Answer: ________________________ [1]

(d) State the energy conversion that takes place during the lifting process.
Answer: ________________________ [1]

Question 12 [5]

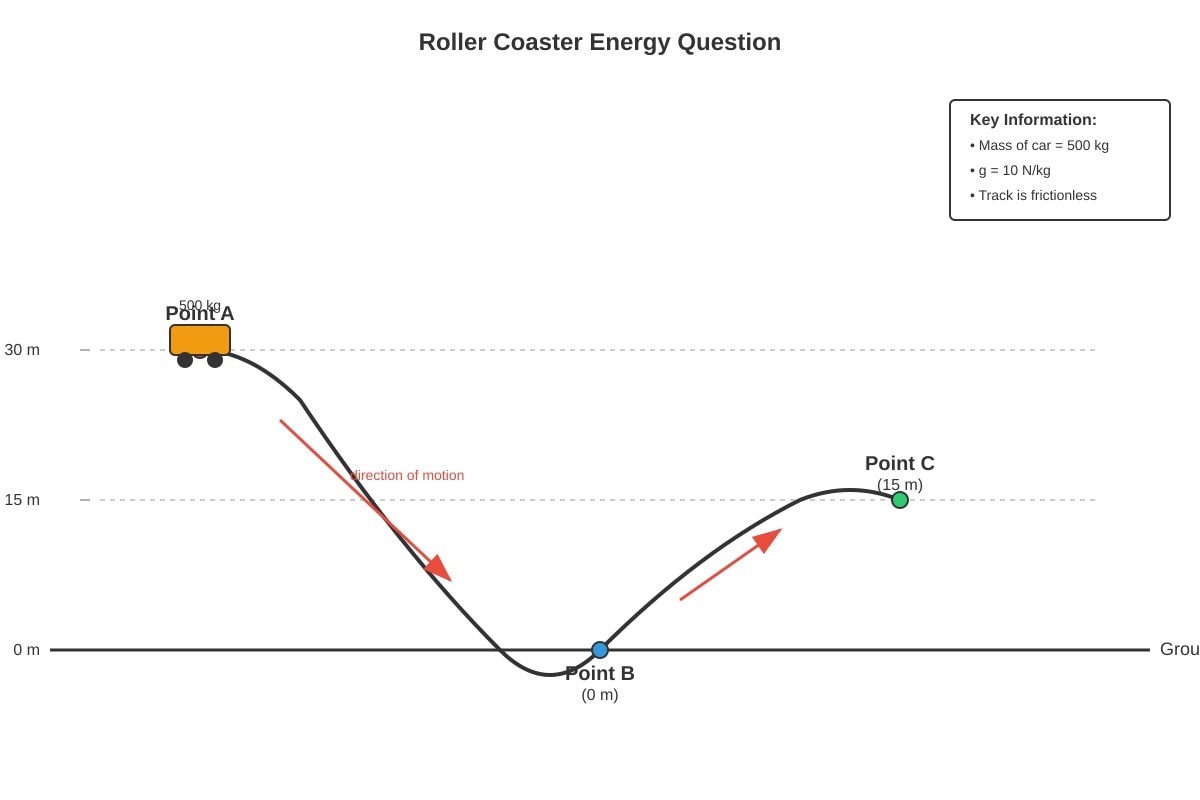

Generated diagram for Q12.

The diagram shows a roller coaster car of mass 500 kg at point A, 30 m above the ground. The car is released from rest and moves along the frictionless track to point B (ground level) and then up to point C (15 m above ground). Take g = 10 N/kg.

(a) Calculate the gravitational potential energy of the car at point A.
Answer: ________________________ [1]

(b) State the kinetic energy of the car at point B. Explain your answer.
Answer: ________________________ [2]

(c) Calculate the speed of the car at point B.
Answer: ________________________ [1]

(d) Calculate the kinetic energy of the car at point C.
Answer: ________________________ [1]

Question 13 [4]

A student investigates the relationship between the force applied to a spring and its extension. The table shows the results.

Force (N)	Extension (cm)
0	0
2	4
4	8
6	12
8	16

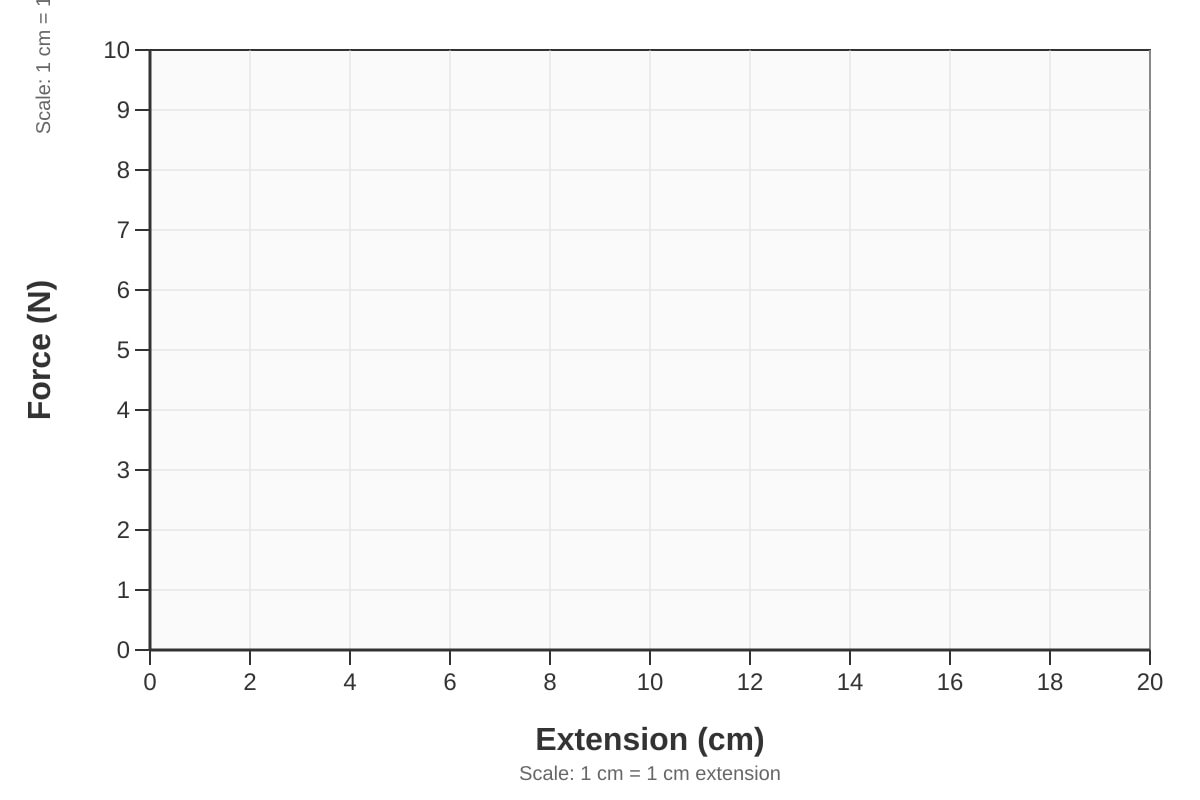

(a) Plot the graph of Force (y-axis) against Extension (x-axis) on the grid below.

Generated graph for Q13.

(b) State the relationship between force and extension shown by the graph.
Answer: ________________________ [1]

(c) The elastic potential energy stored in a stretched spring is given by the formula:
Elastic potential energy = ½ × Force × Extension
Calculate the elastic potential energy stored in the spring when the force is 6 N.
Answer: ________________________ [2]

Question 14 [6]

A 60 kg student runs up a flight of stairs with a vertical height of 3.5 m in 4.0 seconds. Take g = 10 N/kg.

(a) Calculate the work done by the student against gravity.
Answer: ________________________ [2]

(b) Calculate the power developed by the student.
Answer: ________________________ [2]

(c) The student's muscles convert chemical energy to mechanical energy with an efficiency of 25%. Calculate the amount of chemical energy used by the student's muscles during this run.
Answer: ________________________ [2]

Question 15 [6]

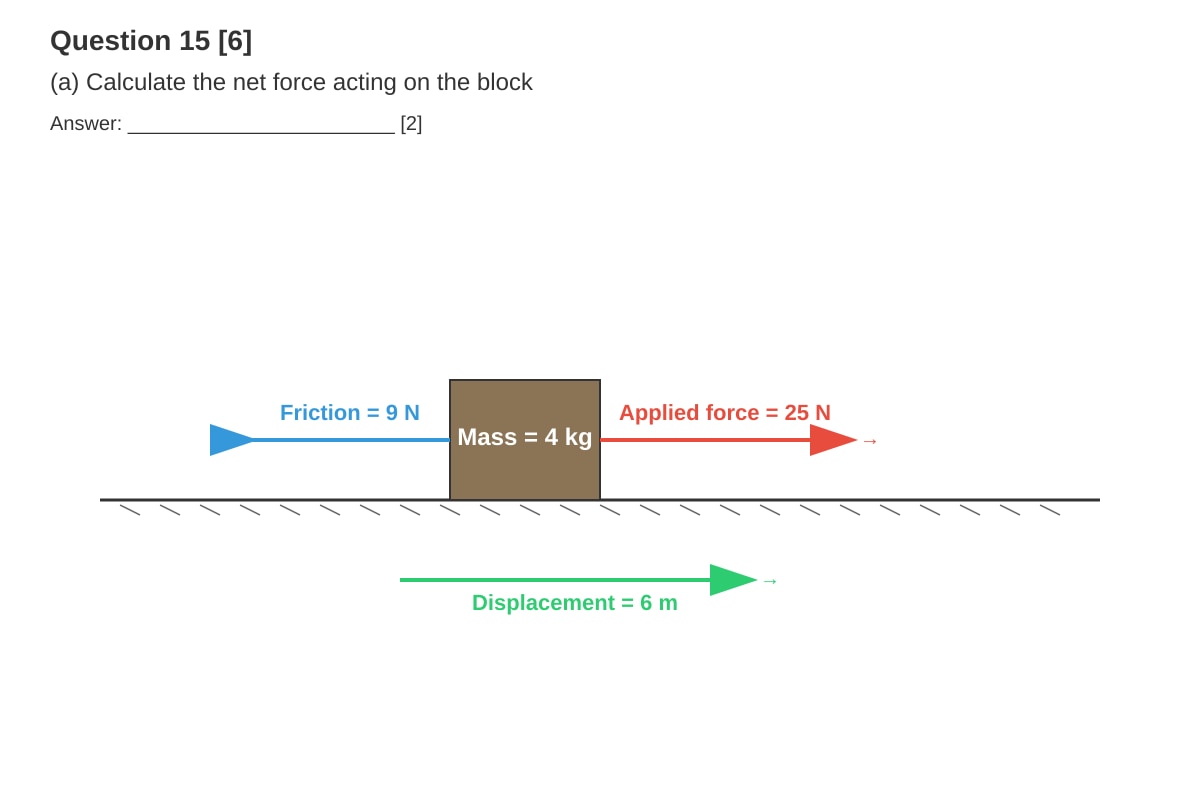

Generated diagram for Q15.

A block of mass 4 kg is pulled horizontally across a rough surface by a constant force of 25 N. The frictional force acting on the block is 9 N. The block moves a distance of 6 m.

(a) Calculate the net force acting on the block

<stage5_exam_md>

Question 15 [6]

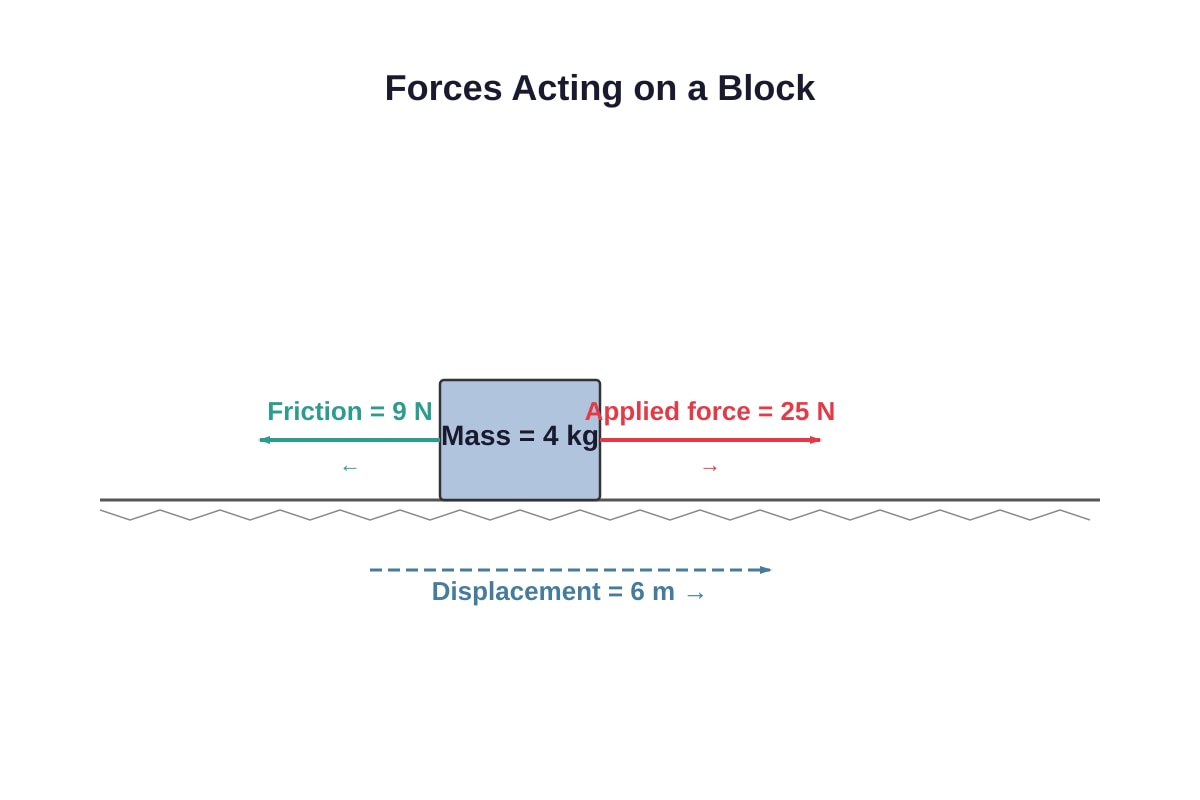

Generated diagram for Q15.

A block of mass 4 kg is pulled horizontally across a rough surface by a constant force of 25 N. The frictional force acting on the block is 9 N. The block moves a distance of 6 m.

(a) Calculate the net force acting on the block.
Answer: ________________________ [1]

(b) Calculate the work done by the applied force.
Answer: ________________________ [1]

(c) Calculate the work done against friction.
Answer: ________________________ [1]

(d) Calculate the gain in kinetic energy of the block.
Answer: ________________________ [1]

(e) If the block started from rest, calculate its final speed after moving 6 m.
Answer: ________________________ [2]

---

Section C: Free Response Questions (15 marks)

Answer all questions in the spaces provided.

Question 16 [8]

A hydroelectric power station generates electricity by releasing water from a high reservoir through turbines. Water falls through a vertical height of 80 m. The mass of water passing through the turbines per second is 500 kg. Take g = 10 N/kg.

(a) Calculate the gravitational potential energy lost by the water each second.
Answer: ________________________ [2]

(b) If the power station has an efficiency of 90%, calculate the electrical power output.
Answer: ________________________ [2]

(c) The electrical energy is transmitted through cables at high voltage. Explain why high voltage is used for long-distance power transmission.
Answer: ________________________ [2]

(d) Suggest one environmental advantage and one environmental disadvantage of hydroelectric power.
Answer: ________________________ [2]

Question 17 [7]

A pendulum consists of a 0.5 kg bob attached to a light string of length 1.2 m. The bob is pulled aside until the string makes an angle of 30° with the vertical and then released from rest. Take g = 10 N/kg.

(a) Calculate the vertical height gained by the bob when pulled aside. (Hint: Use geometry: height = L - L cos θ)
Answer: ________________________ [2]

(b) Calculate the gravitational potential energy of the bob at the release point relative to the lowest point.
Answer: ________________________ [1]

(c) State the kinetic energy of the bob at the lowest point of its swing, assuming no energy losses.
Answer: ________________________ [1]

(d) Calculate the maximum speed of the bob at the lowest point.
Answer: ________________________ [2]

(e) In reality, the bob eventually comes to rest. Explain what happens to the mechanical energy of the pendulum system.
Answer: ________________________ [1]

---

END OF PAPER

Total Marks: 50

<!-- TuitionGoWhere generation metadata: stage=5-2; model=nvidia/nemotron-3-ultra-550b-a55b:free; model_label=NVIDIA Nemotron 3 Ultra 550B A55B Free; generated=2026-06-14; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Science Secondary 1 (Answer Key)

Subject: Science
Level: Secondary 1 (G3)
Paper: Practice Paper - Physical Sciences (Forces, Energy & Work)
Total Marks: 50

---

Section A: Multiple Choice Questions (10 marks)

Question	Answer	Explanation
1	B	The student uses chemical energy from muscles to lift the book, increasing its gravitational potential energy.
2	C	Work done = Force × Distance = 15 N × 4 m = 60 J.
3	B	Work done = Force × Distance moved in direction of force. Holding a weight stationary involves no displacement, so no work is done.
4	C	GPE at top = mgh = 2 × 10 × 10 = 200 J. By conservation of energy, this converts to KE at bottom (ignoring air resistance).
5	B	Useful work output = Efficiency × Work input = 0.80 × 250 J = 200 J.
6	A	A compressed spring stores elastic potential energy, which converts to kinetic energy when released.
7	C	Work done against gravity depends only on vertical height (same in both cases). Power = Work/Time, so less time means greater power.
8	A	KE = ½mv² = 0.5 × 0.5 kg × (4 m/s)² = 0.5 × 0.5 × 16 = 4 J.
9	C	Gravitational potential energy increases when an object moves higher (rocket launching upwards).
10	A	Work done = F × d × cos θ = 20 N × 5 m × cos 60° = 100 × 0.5 = 50 J.

---

Section B: Structured Questions (25 marks)

Question 11 [4]

(a) Weight = mg = 120 kg × 10 N/kg = 1200 N [1]

(b) At constant velocity, net force = 0. Minimum force = Weight = 1200 N [1]

(c) Work done = Force × Distance = 1200 N × 6 m = 7200 J [1]

(d) Chemical energy (worker) → Gravitational potential energy (load) [1]

---

Question 12 [5]

(a) GPE at A = mgh = 500 kg × 10 N/kg × 30 m = 150,000 J [1]

(b) At point B (ground level), all GPE is converted to KE (frictionless track).
KE at B = GPE at A = 150,000 J [2]
Explanation: By conservation of energy, total mechanical energy is conserved. At A, energy is all GPE. At B, height = 0 so GPE = 0, thus all energy is KE.

(c) KE = ½mv² → 150,000 = 0.5 × 500 × v² → v² = 600 → v = √600 ≈ 24.5 m/s [1]

(d) At point C (height 15 m):
GPE at C = mgh = 500 × 10 × 15 = 75,000 J
Total energy = 150,000 J (conserved)
KE at C = Total energy - GPE at C = 150,000 - 75,000 = 75,000 J [1]

---

Question 13 [4]

(a) Graph plotting:

• Axes labelled correctly with units [1]
• Suitable scales (1 cm = 1 cm extension, 1 cm = 1 N) [1]
• Points plotted accurately: (0,0), (4,2), (8,4), (12,6), (16,8) [1]
• Best-fit straight line through origin [1]
  Total 4 marks for graph, but question allocates marks differently - see below

(b) Force is directly proportional to extension (Hooke's Law). The graph is a straight line passing through the origin. [1]

(c) At F = 6 N, Extension = 12 cm = 0.12 m
Elastic PE = ½ × Force × Extension = 0.5 × 6 N × 0.12 m = 0.36 J [2]
(1 mark for correct extension, 1 mark for correct calculation with units)

---

Question 14 [6]

(a) Work done against gravity = mgh = 60 kg × 10 N/kg × 3.5 m = 2100 J [2]
(1 mark for formula/substitution, 1 mark for answer with unit)

(b) Power = Work done / Time = 2100 J / 4.0 s = 525 W [2]
(1 mark for formula/substitution, 1 mark for answer with unit)

(c) Efficiency = Useful energy output / Chemical energy input
0.25 = 2100 J / Chemical energy input
Chemical energy input = 2100 J / 0.25 = 8400 J [2]
(1 mark for rearranging formula, 1 mark for answer with unit)

---

Question 15 [6]

(a) Net force = Applied force - Friction = 25 N - 9 N = 16 N (to the right) [1]

(b) Work done by applied force = Force × Distance = 25 N × 6 m = 150 J [1]

(c) Work done against friction = Friction × Distance = 9 N × 6 m = 54 J [1]

(d) Gain in KE = Net work done = Work by applied force - Work against friction
= 150 J - 54 J = 96 J
Alternatively: Gain in KE = Net force × Distance = 16 N × 6 m = 96 J [1]

(e) KE = ½mv² → 96 = 0.5 × 4 × v² → v² = 48 → v = √48 ≈ 6.93 m/s [2]
(1 mark for correct formula/substitution, 1 mark for answer with unit)

---

Section C: Free Response Questions (15 marks)

Question 16 [8]

(a) GPE lost per second = mgh = 500 kg × 10 N/kg × 80 m = 400,000 J/s (or 400,000 W) [2]
(1 mark for formula/substitution, 1 mark for answer with unit)

(b) Electrical power output = Efficiency × Input power = 0.90 × 400,000 W = 360,000 W (or 360 kW) [2]
(1 mark for formula/substitution, 1 mark for answer with unit)

(c) High voltage reduces the current for the same power (P = VI). Lower current reduces power loss in cables (P_loss = I²R), making transmission more efficient over long distances. [2]
(1 mark for linking high voltage to low current, 1 mark for explaining reduced power loss)

(d) Advantage: Renewable, no greenhouse gas emissions during operation, reliable base-load power.
Disadvantage: Disrupts river ecosystems, displaces communities, methane from reservoirs, high initial cost.
Any valid advantage and disadvantage [2]
(1 mark each)

---

Question 17 [7]

(a) Height gained = L - L cos θ = 1.2 - 1.2 cos 30° = 1.2 - 1.2(0.866) = 1.2 - 1.0392 = 0.1608 m ≈ 0.161 m [2]
(1 mark for correct formula/substitution, 1 mark for answer with unit)

(b) GPE = mgh = 0.5 kg × 10 N/kg × 0.1608 m = 0.804 J [1]

(c) By conservation of energy (no losses), KE at lowest point = GPE at release point = 0.804 J [1]

(d) KE = ½mv² → 0.804 = 0.5 × 0.5 × v² → v² = 3.216 → v = √3.216 ≈ 1.79 m/s [2]
(1 mark for correct formula/substitution, 1 mark for answer with unit)

(e) Mechanical energy is gradually converted to thermal energy (heat) and sound energy due to air resistance and friction at the pivot. The total energy is conserved but mechanical energy decreases. [1]

---

END OF ANSWER KEY

Total Marks: 50
