Secondary 1 Mathematics Quiz - Graphs Coordinate Geometry

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 50 minutes
Total Marks: 40

Instructions:

1. Answer all 20 questions.
2. Show your working clearly where required.
3. Use the grid or space provided for plotting and sketches.
4. This quiz is generated from syllabus-first templates and is not derived from any specific past-year exam.

---

Section A: Cartesian Coordinates (Questions 1–5)

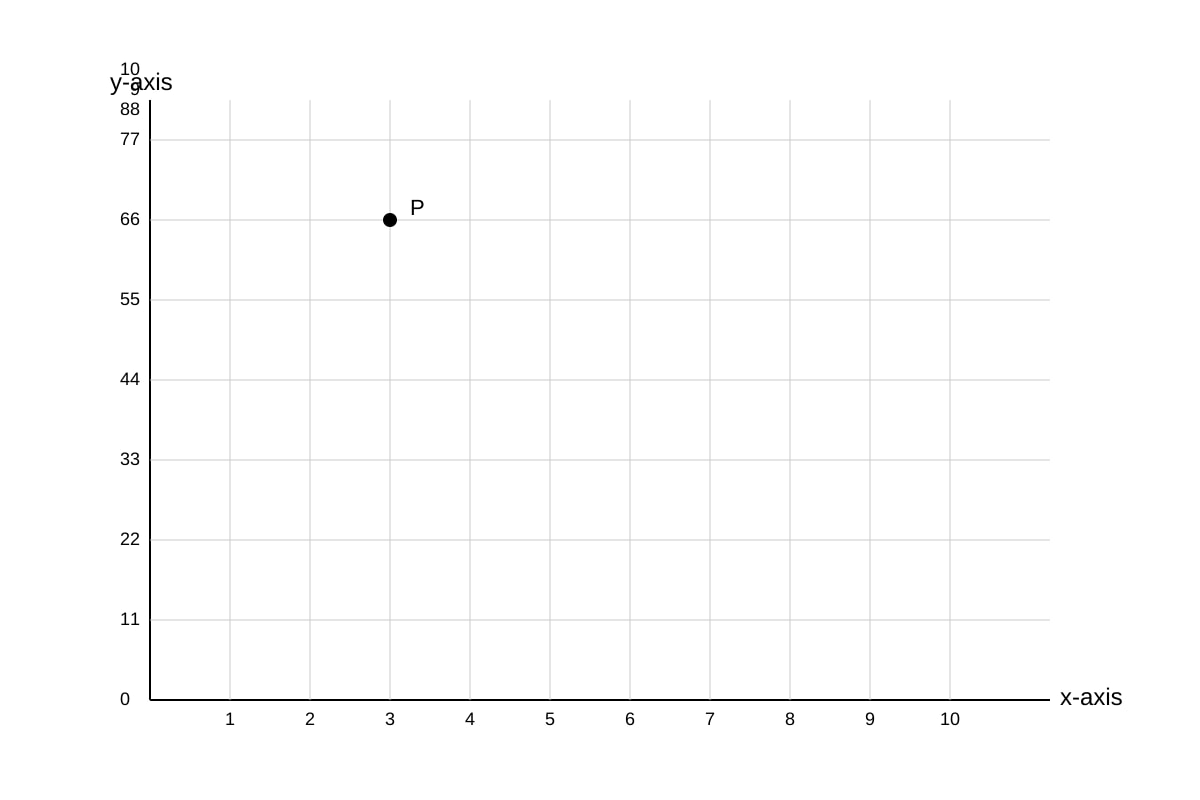

1. [1 mark] Write down the coordinates of point $P$ shown on the grid below.

Image pending generation: graph for Q1.

Answer: _______________

2. [1 mark] State the quadrant in which the point $(-4, 5)$ lies.

Answer: _______________

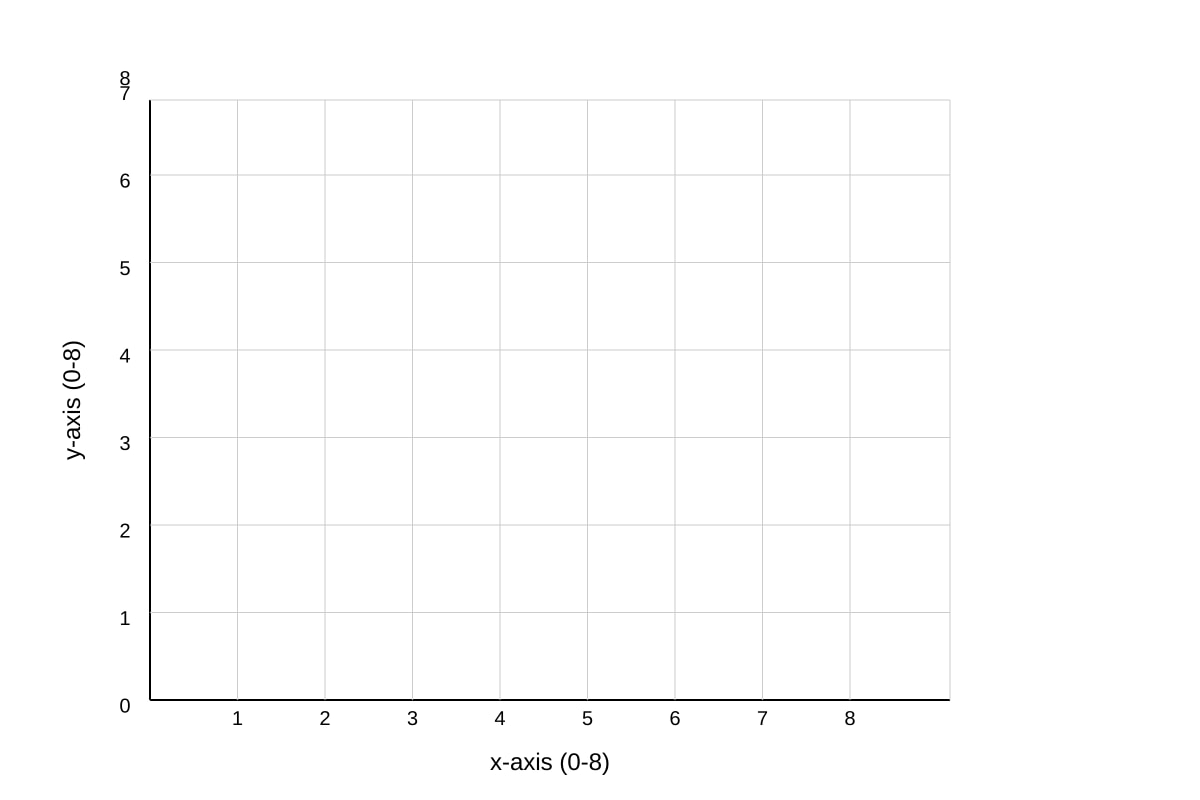

3. [2 marks] Plot the points $A(1,2)$, $B(4,2)$, and $C(1,6)$ on the grid below and join them to form a triangle.

Image pending generation: graph for Q3.

Answer: (Triangle drawn in grid above)

4. [1 mark] What is the distance between the points $(2,3)$ and $(2,8)$?

Answer: _______________

5. [2 marks] The coordinates of a point are $(x, y)$. If $x = -3$ and the point lies on the x-axis, what is $y$? Explain your answer.

Answer: _______________
Explanation: _______________

---

Section B: Linear Graphs and Gradient (Questions 6–12)

6. [1 mark] Write down the gradient of the line $y = 2x + 5$.

Answer: _______________

7. [2 marks] Find the gradient of the line passing through $(1,3)$ and $(4,9)$.

Answer: _______________

8. [2 marks] A line has gradient $-2$ and passes through $(0,4)$. Write down its equation in the form $y = mx + c$.

Answer: _______________

9. [2 marks] Complete the table of values for $y = x + 3$.

$x$	0	2	4
$y$

Answer: _______________

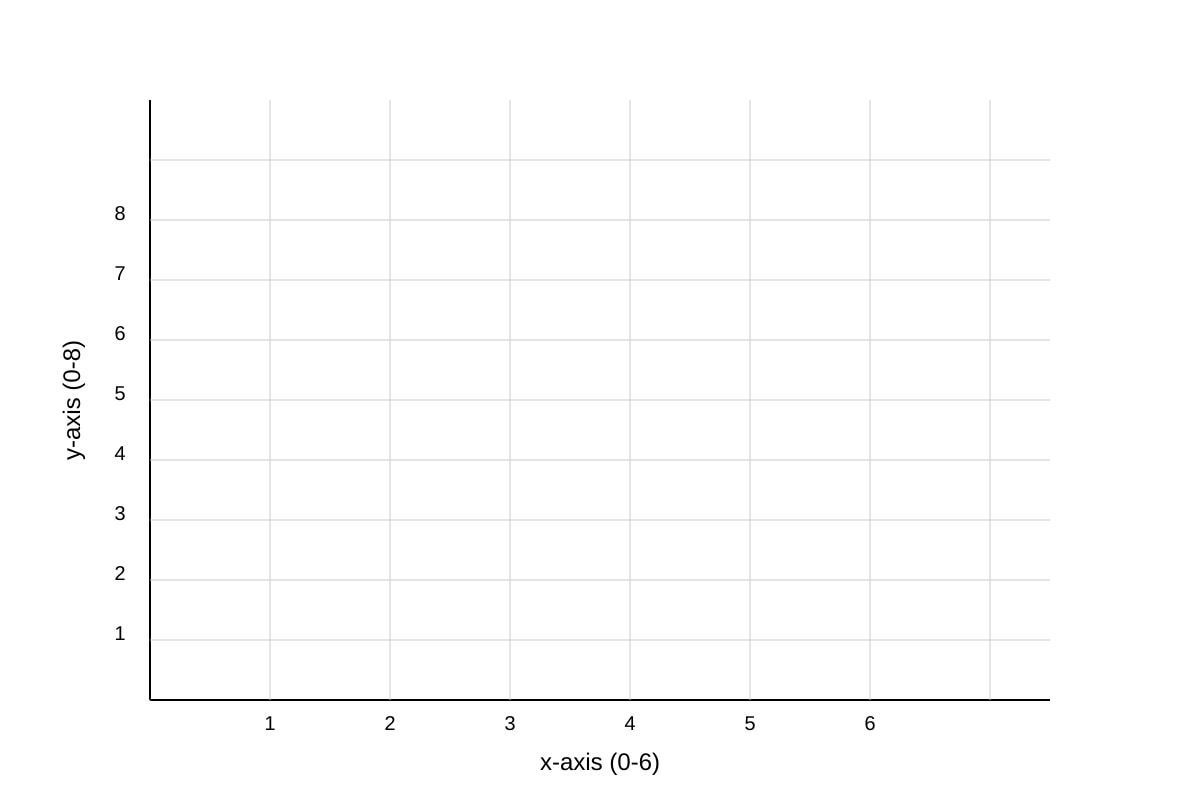

10. [3 marks] Using the table from Q9, plot the graph of $y = x + 3$ on the grid below.

Image pending generation: graph for Q10.

Answer: (Graph drawn above)

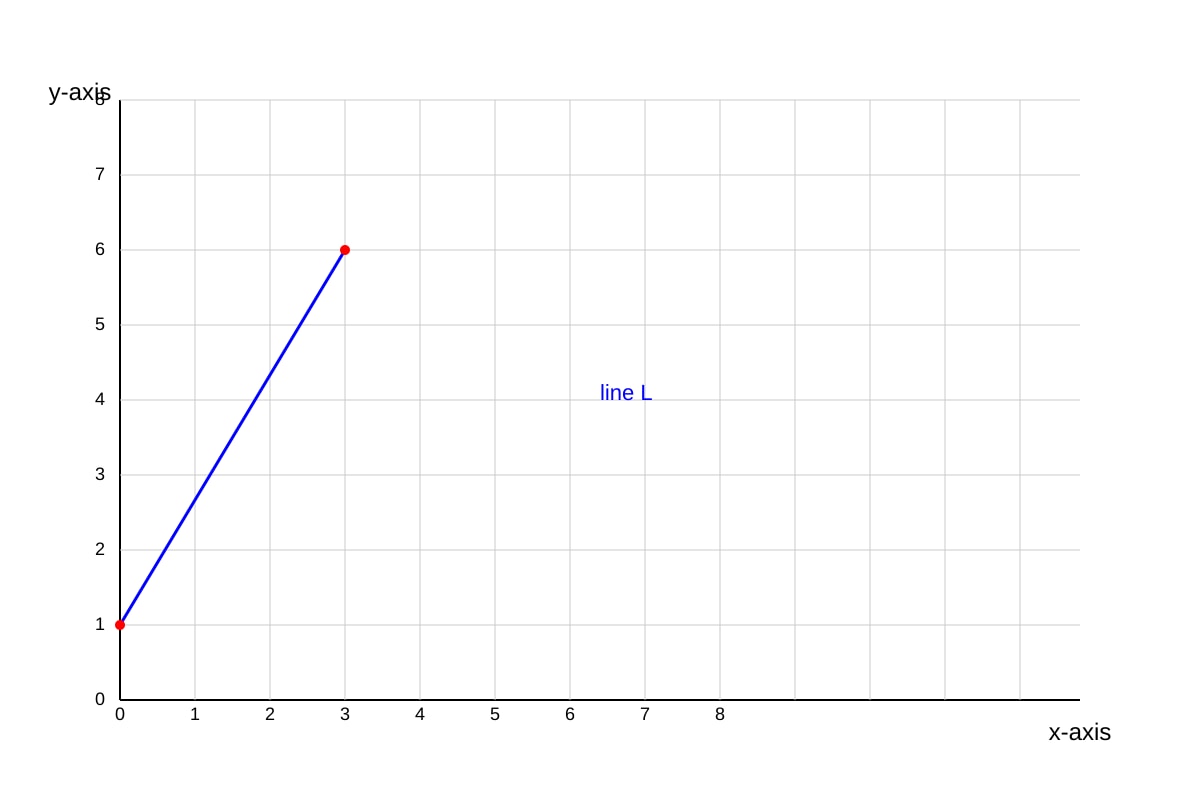

11. [2 marks] The graph below shows a straight line. Find its gradient.

Image pending generation: graph for Q11.

Answer: _______________

12. [2 marks] A line passes through $(2,5)$ with gradient $3$. Find the y-coordinate when $x = 4$.

Answer: _______________

---

Section C: Applications and Interpretation (Questions 13–20)

13. [2 marks] A taxi fare $y$ (in dollars) is given by $y = 3x + 2$, where $x$ is distance in km. What is the fare for 5 km?

Answer: _______________

14. [2 marks] From the equation in Q13, what does the number 2 represent in context?

Answer: _______________

15. [2 marks] Two points $R(0,0)$ and $S(3,4)$ are given. Find the length of $RS$.

Answer: _______________

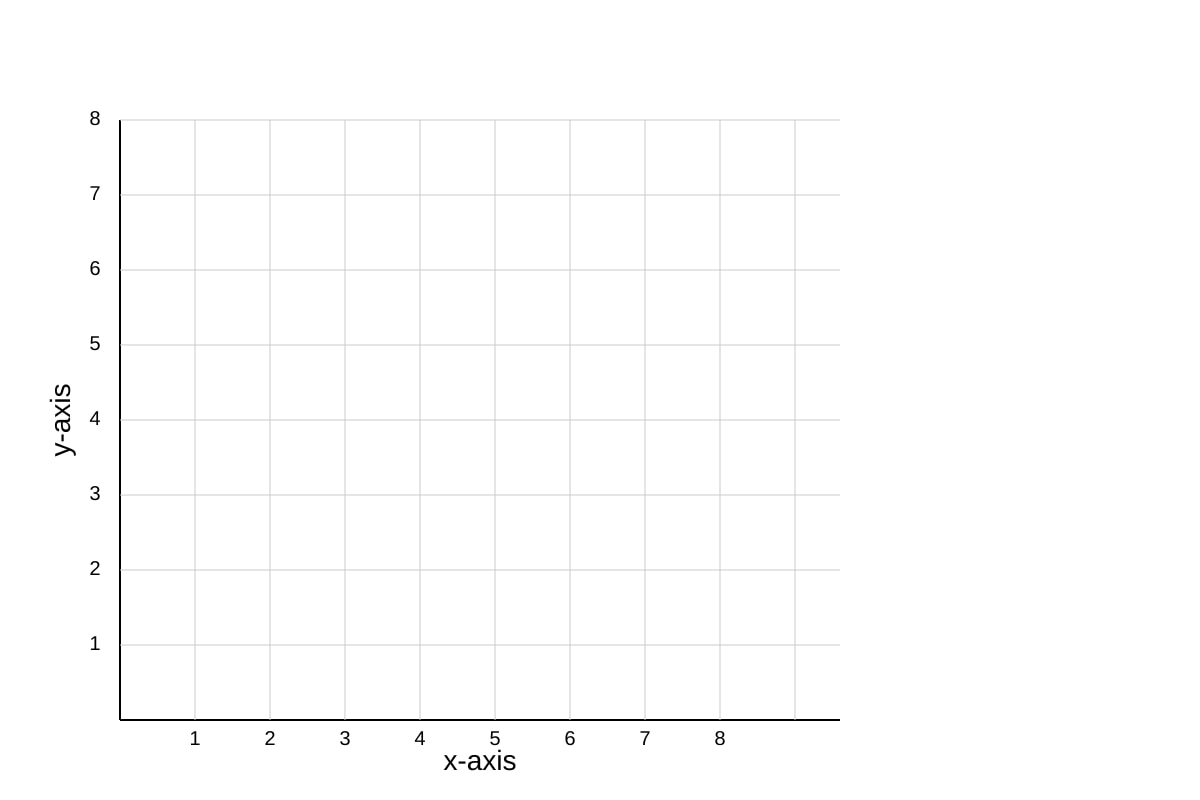

16. [2 marks] On the grid below, draw the line $y = -x + 6$.

Image pending generation: graph for Q16.

Answer: (Line drawn above)

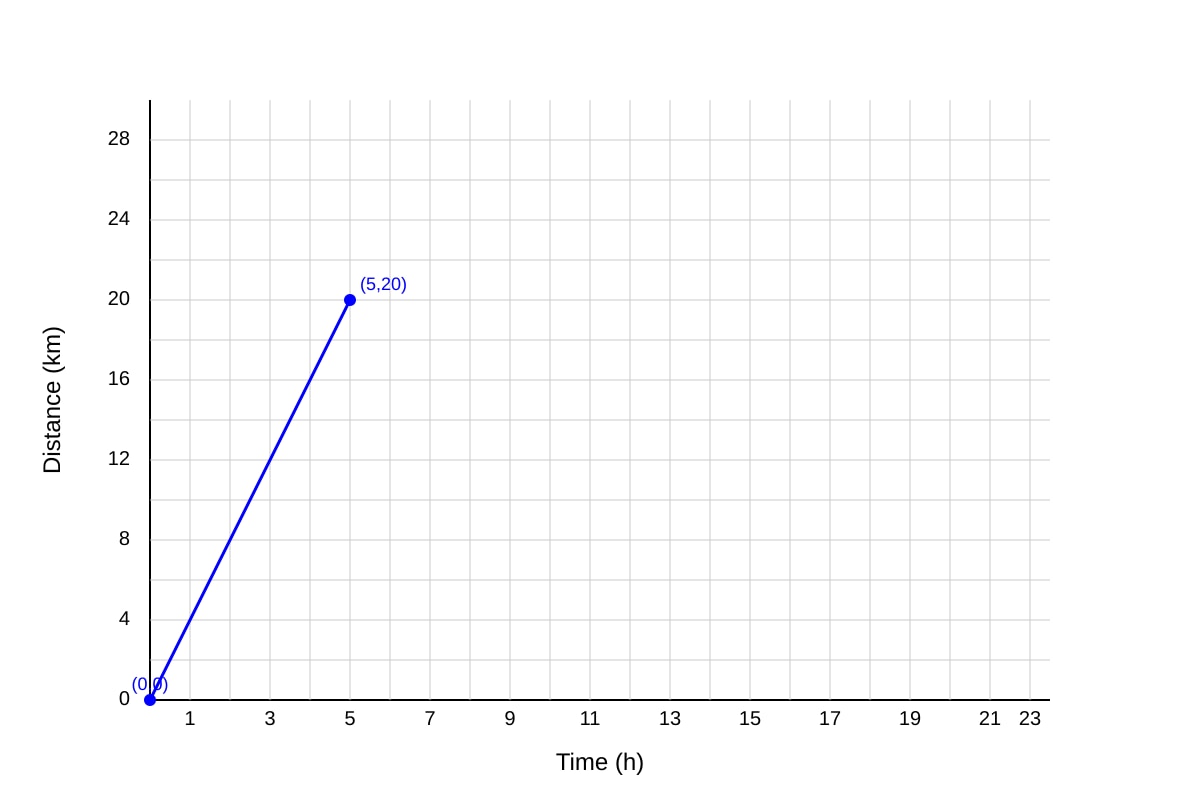

17. [3 marks] The graph shows distance travelled over time. Find the speed (gradient) from the line shown.

Image pending generation: graph for Q17.

Answer: _______________

18. [2 marks] Write the coordinates of the point where the line $y = 2x - 4$ crosses the x-axis.

Answer: _______________

19. [2 marks] A line has equation $y = -3x + 9$. At what point does it cross the y-axis?

Answer: _______________

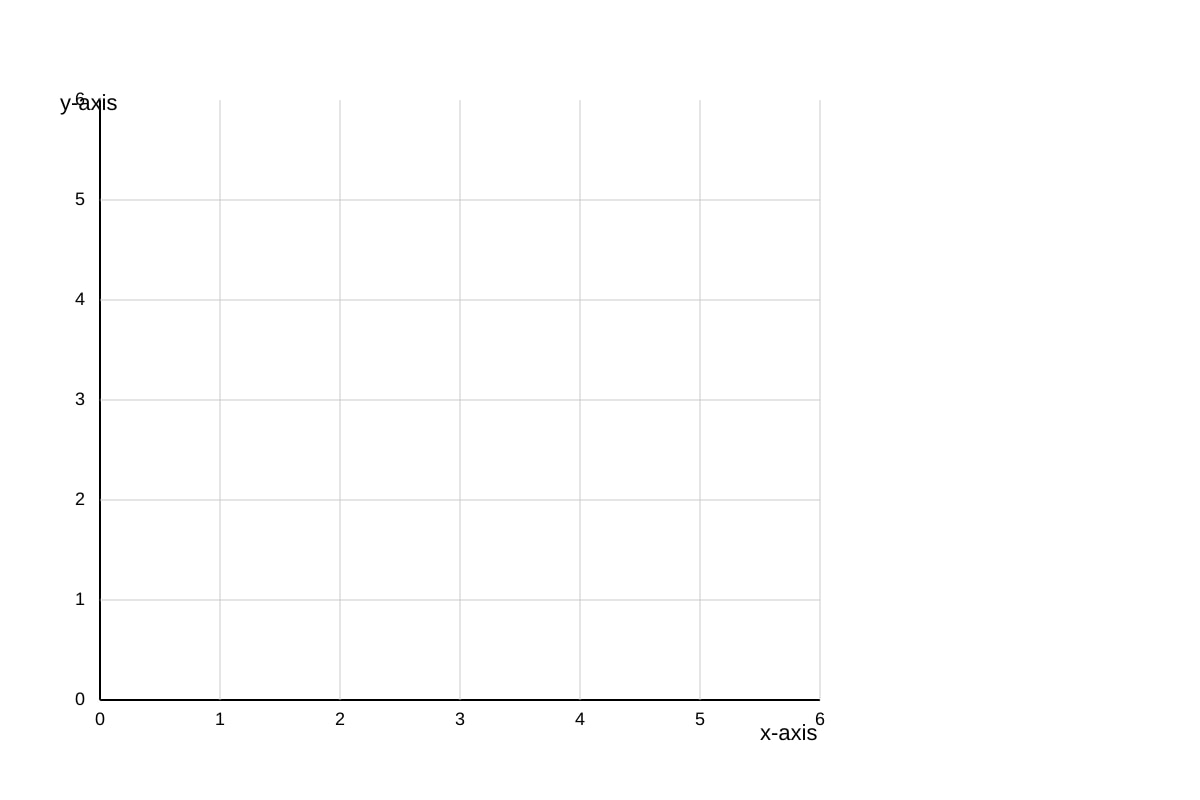

20. [3 marks] Plot the points $D(0,1)$, $E(3,1)$, $F(0,5)$ and state the type of triangle formed.

Image pending generation: graph for Q20.

Answer: _______________
Type: _______________

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

Secondary 1 Mathematics Quiz - Answer Key (Graphs Coordinate Geometry)

Total Marks: 40
Topic: Graphs & Coordinate Geometry (Syllabus N6)
Note: Generated from syllabus-first LLM templates; not past-year derived.

---

Q1. [1 mark]
Answer: $(3, 7)$
Teaching note: Coordinates are written as $(x, y)$. From the grid, point P is 3 units right and 7 units up.

Q2. [1 mark]
Answer: Quadrant II
Teaching note: $x$ negative, $y$ positive → Quadrant II. Quadrants go anti-clockwise from top-right (I).

Q3. [2 marks]
Answer: Triangle with vertices at $(1,2), (4,2), (1,6)$.
Marking: 1 mark for correct plots, 1 mark for joining.
Teaching note: Plot each point using x then y; join with straight lines.

Q4. [1 mark]
Answer: 5 units
Teaching note: Same x-coordinate, distance = $|8 - 3| = 5$.

Q5. [2 marks]
Answer: $y = 0$
Explanation: Any point on the x-axis has y-coordinate 0.
Marking: 1 mark answer, 1 mark reason.

Q6. [1 mark]
Answer: 2
Teaching note: In $y = mx + c$, $m$ is gradient. Here $m=2$.

Q7. [2 marks]
Gradient $= \frac{9-3}{4-1} = \frac{6}{3} = 2$
Answer: 2
Marking: 1 mark formula, 1 mark answer.

Q8. [2 marks]
Answer: $y = -2x + 4$
Teaching note: $m=-2$, $c=4$ (y-intercept at $(0,4)$). Form $y=mx+c$.

Q9. [2 marks]
$y = x+3$:
$x=0 → y=3$
$x=2 → y=5$
$x=4 → y=7$
Answer: 3, 5, 7
Marking: 1 mark each pair (max 2).

Q10. [3 marks]
Answer: Straight line through $(0,3),(2,5),(4,7)$.
Marking: 1 mark points, 2 marks line drawn correctly.

Q11. [2 marks]
Gradient $= \frac{7-1}{3-0} = \frac{6}{3} = 2$
Answer: 2

Q12. [2 marks]
$y - 5 = 3(x - 2)$ → $y = 3x - 1$; at $x=4$, $y = 11$
Answer: 11
Marking: 1 mark method, 1 mark answer.

Q13. [2 marks]
$y = 3(5) + 2 = 17$
Answer: $17

Q14. [2 marks]
Answer: Fixed starting fare (base charge) before distance.
Teaching note: In $y=mx+c$, $c=2$ is y-intercept = flag-down fare.

Q15. [2 marks]
$RS = \sqrt{(3-0)^2 + (4-0)^2} = \sqrt{9+16} = \sqrt{25} = 5$
Answer: 5 units

Q16. [2 marks]
Line through $(0,6)$ and $(6,0)$.
Marking: 1 mark points, 1 mark line.

Q17. [3 marks]
Speed $= \frac{20-0}{5-0} = 4$ km/h
Answer: 4 km/h
Marking: 1 mark identify gradient, 2 marks calc + unit.

Q18. [2 marks]
$y=0$: $0=2x-4 → x=2$
Answer: $(2,0)$

Q19. [2 marks]
$x=0$: $y=9$
Answer: $(0,9)$

Q20. [3 marks]
Points plotted; $DE$ horizontal, $DF$ vertical → right-angled triangle.
Answer: $(0,1),(3,1),(0,5)$; Type: right-angled triangle
Marking: 1 mark plot, 2 marks type + reason.
