Secondary 1 Mathematics Graphs Coordinate Geometry Quiz

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Secondary 1 Mathematics Quiz - Graphs Coordinate Geometry

Name: ___________________________
Class: _________
Date: ____________
Score: _______ / 40

Duration: 50 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Show your working clearly where required.
• For graph questions, use the provided grid or sketch clearly.
• Section A: 10 short questions (1 mark each). Section B: 6 questions (2 marks each). Section C: 4 questions (3 marks each).

---

Section A (1 mark each)

1. Write the coordinates of the point that is 4 units to the right of the origin and 3 units up.

---

2. State the x-coordinate of the point $( -2, 5 )$.

---

3. In which quadrant does the point $( -3, -4 )$ lie?

---

4. Plot the point $(2, -1)$ on the grid below.

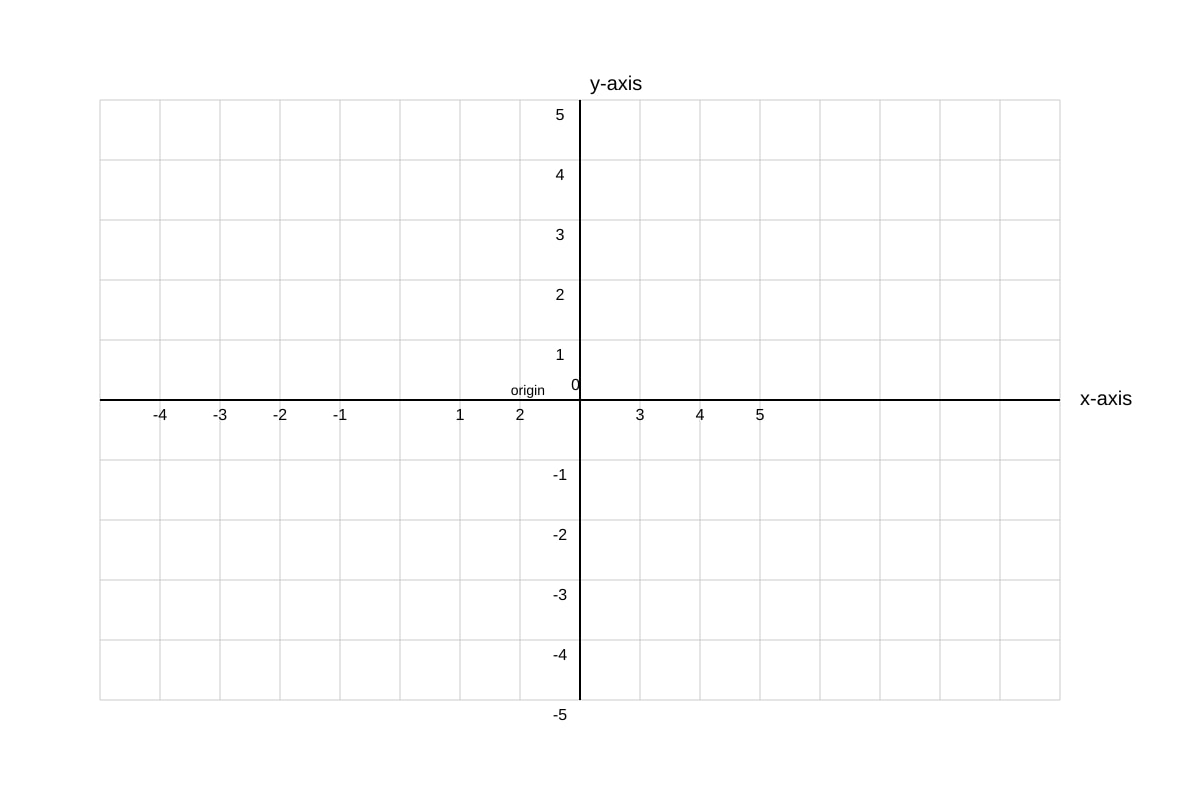

Generated graph for Q4.

5. What is the gradient of the line $y = 2x + 1$?

---

6. A line passes through $(0,0)$ and $(1,3)$. Write its gradient.

---

7. State the y-intercept of the line $y = -x + 4$.

---

8. Which axis does the point $(0, 6)$ lie on?

---

9. Write the equation of a horizontal line passing through $y = -2$.

---

10. Two points $A(1,2)$ and $B(1,5)$ lie on a vertical line. State the x-coordinate of any point on this line.

---

---

Section B (2 marks each)

11. Plot the points $P(1,1)$, $Q(3,1)$, $R(3,4)$ and $S(1,4)$ on the grid and state the name of the shape formed.

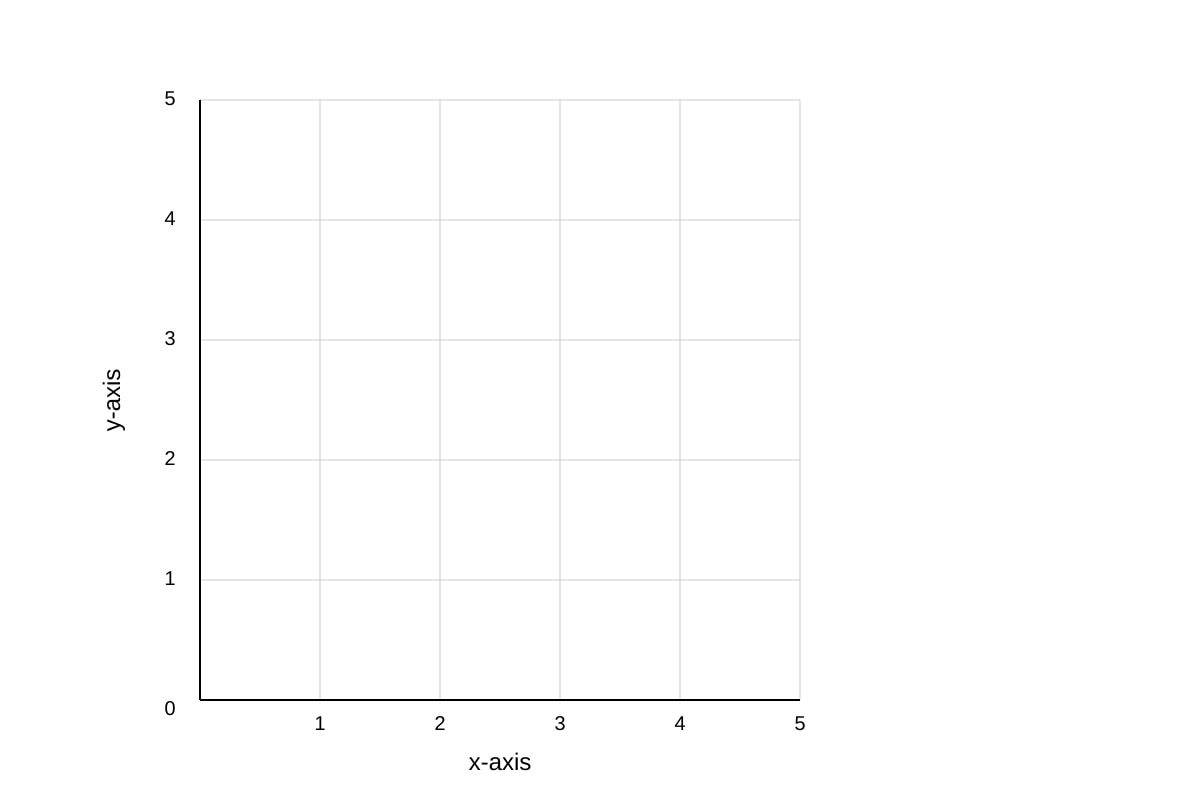

Generated graph for Q11.

Shape: _________________________

12. Find the gradient of the line passing through $(2,3)$ and $(4,7)$. Show your working.

---

13. A line has gradient $3$ and passes through $(0, -1)$. Write its equation in the form $y = ax + b$.

---

14. The line $y = -2x + 5$ crosses the x-axis at point $A$. Find the coordinates of $A$.

---

15. Complete the table of values for $y = x + 2$:

$x$	0	2	4
$y$

16. On the grid, draw the graph of $y = 2x - 1$ for $x = 0$ to $3$. Use the table:

$x$	0	1	2	3
$y$	-1	1	3	5

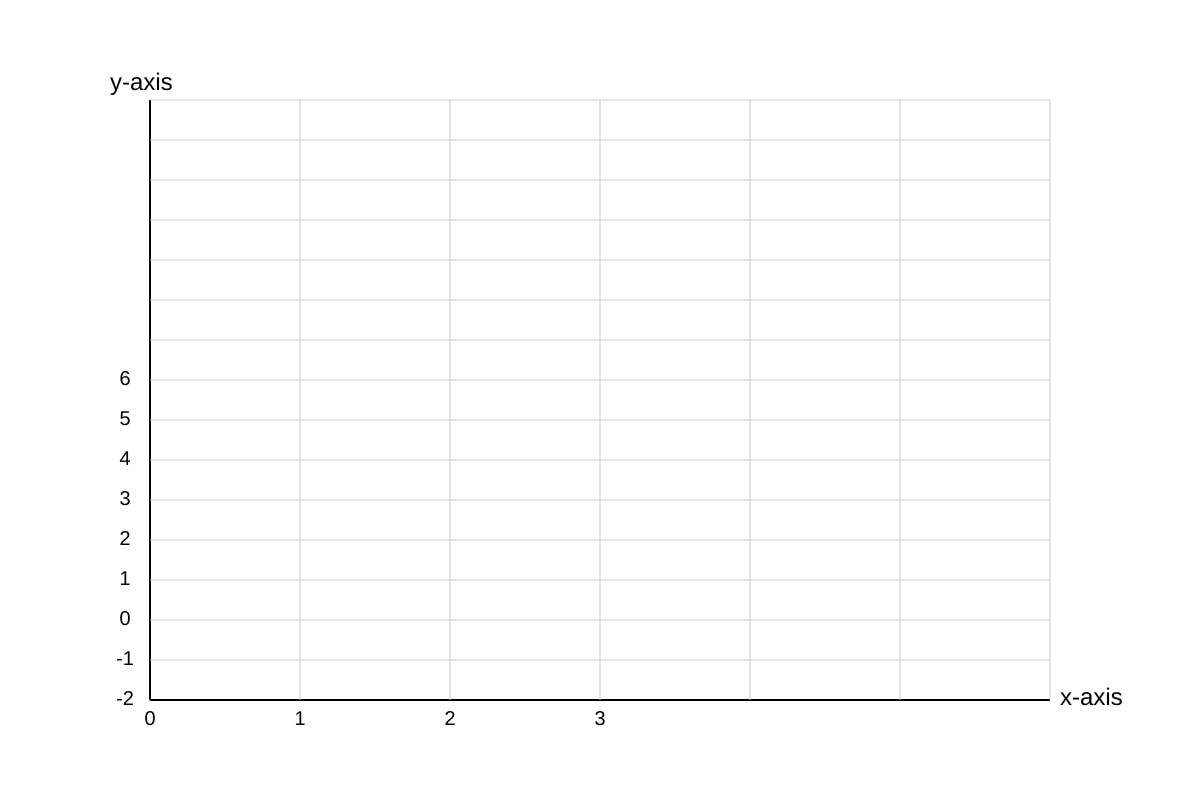

Generated graph for Q16.

---

Section C (3 marks each)

17. A line passes through $A(1,2)$ and $B(4,8)$.
(a) Find the gradient of $AB$.
(b) Find the equation of the line $AB$ in the form $y = ax + b$.
(c) State the y-intercept.

---

18. The vertices of a triangle are $D(0,0)$, $E(4,0)$, $F(0,3)$.
(a) Plot the triangle on the grid.
(b) Find the length of $DE$.
(c) Find the length of $DF$.

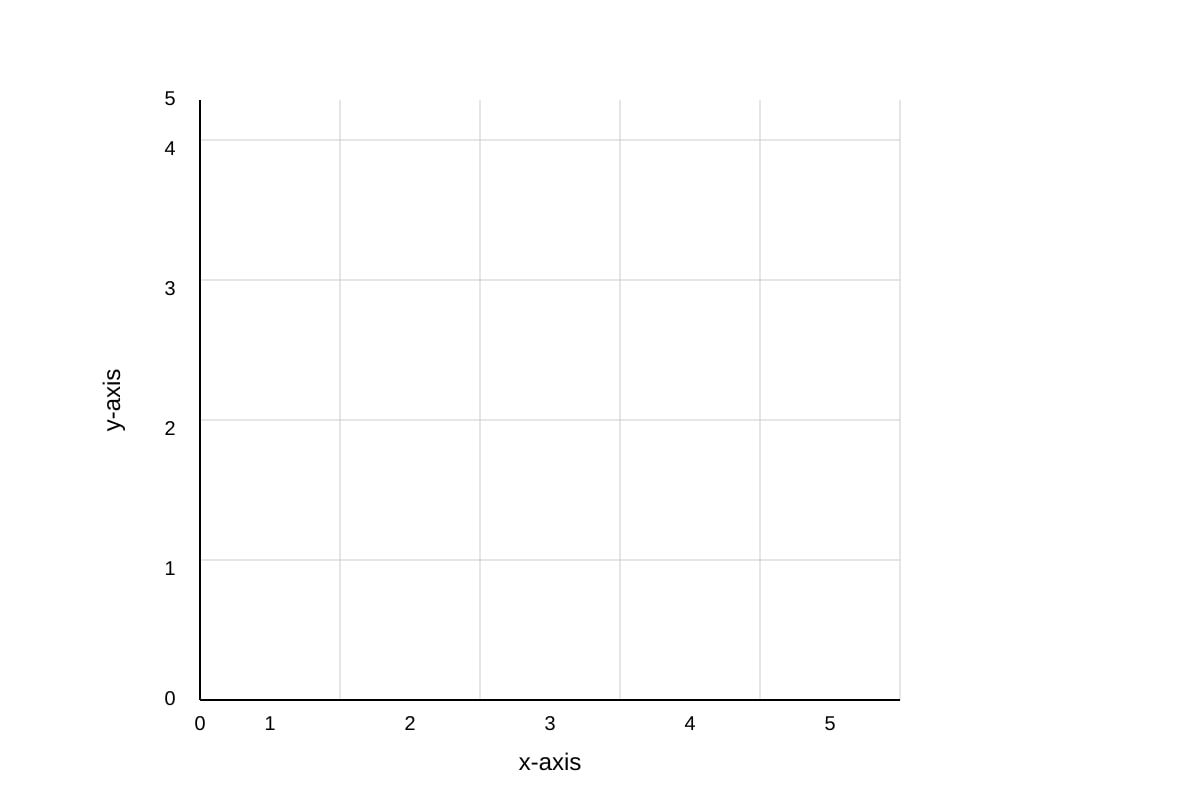

Generated graph for Q18.

19. A taxi fare $y$ (in dollars) is related to distance $x$ (in km) by $y = 3x + 4$.
(a) What is the fare for 2 km?
(b) What is the gradient and what does it represent?
(c) What is the y-intercept and what does it mean?

---

20. The graph shows a straight line through $(0,1)$ and $(2,5)$.
(a) Find the gradient.
(b) Write the equation.
(c) Find the y-value when $x = 5$.

---

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Secondary 1 Mathematics Quiz - Graphs Coordinate Geometry (Answer Key)

Total Marks: 40
Topic: Graphs & Coordinate Geometry (Sec 1 N6)

---

Section A (1 mark each)

1. $(4, 3)$
Teaching note: Moving right = positive x, up = positive y from origin $(0,0)$.

2. $-2$
Teaching note: Coordinates are $(x,y)$; x-coordinate is first number.

3. Quadrant III (or 3)
Teaching note: Both coordinates negative → bottom-left quadrant.

4. Point at $x=2, y=-1$ plotted on grid.
Marking: 1 mark for correct position.
Visual: Grid Q4-fig1 must show axes -5 to 5; point in quadrant IV.

5. $2$
Teaching note: In $y = ax+b$, $a$ is gradient.

6. $3$
Working: gradient = $(3-0)/(1-0)=3$.

7. $4$
Teaching note: y-intercept is $b$ in $y=ax+b$, point $(0,4)$.

8. y-axis
Teaching note: x-coordinate 0 → on y-axis.

9. $y = -2$
Teaching note: Horizontal line has equation $y = c$.

10. $1$
Teaching note: Vertical line through $x=1$ → all points have x=1.

---

Section B (2 marks each)

11. Shape: rectangle (or square is wrong; sides 2 and 3)
Working: Plot points → opposite sides equal, right angles.
Marking: 1 mark plot, 1 mark name.

12. Gradient = $2$
Working: $m = (7-3)/(4-2) = 4/2 = 2$.
Common mistake: subtract in wrong order.

13. $y = 3x - 1$
Working: through $(0,-1)$ → b = -1, m=3 → $y=3x-1$.

14. $A(2.5, 0)$
Working: set $y=0$: $0=-2x+5 → 2x=5 → x=2.5$.

15. Table:

$x$	0	2	4
$y$	2	4	6
Working: $y=x+2$ substitution.

16. Graph drawn through points $(0,-1),(1,1),(2,3),(3,5)$.
Marking: 2 marks for straight line correct.

---

Section C (3 marks each)

17.
(a) Gradient = $(8-2)/(4-1)=6/3=2$ [1]
(b) $y=2x+b$; use $(1,2)$: $2=2(1)+b → b=0$ → $y=2x$ [1]
(c) y-intercept = $0$ [1]

18.
(a) Triangle plotted [1]
(b) $DE = 4-0 = 4$ units [1]
(c) $DF = 3-0 = 3$ units [1]

19.
(a) $y=3(2)+4=10$ dollars [1]
(b) Gradient = $3$, represents cost per km [1]
(c) y-intercept = $4$, represents base fare [1]

20.
(a) $m=(5-1)/(2-0)=4/2=2$ [1]
(b) $y=2x+1$ (through $(0,1)$) [1]
(c) $x=5 → y=2(5)+1=11$ [1]
