Secondary 1 Mathematics Quiz - Graphs Coordinate Geometry

Name: _________________ Class: _______ Date: _____________

Score: _____ / 40 Duration: 45 minutes

Instructions

Answer all questions in the spaces provided.
Show all working clearly.
Calculators are allowed.
Diagrams are not drawn to scale unless stated otherwise.

Section A: Basic Coordinate Concepts [10 marks]

1. Plot the following points on the coordinate plane below: A(3, -2), B(-1, 4), C(0, -3) [Grid provided] [2 marks]

2. Find the coordinates of point D if ABCD forms a rectangle where A(2, 1), B(5, 1), and C(5, 4). Answer: D = ( ____ , ____ ) [1 mark]

3. Calculate the distance between points P(-3, 2) and Q(1, 5). Working:

Answer: ____________ [2 marks]

4. The midpoint of line segment RS is M(4, -1). If R has coordinates (7, 3), find the coordinates of S. Working:

Answer: S = ( ____ , ____ ) [2 marks]

5. State which quadrant each of the following points lies in: (a) (-5, 7) ____________ (b) (3, -4) ____________ (c) (-2, -6) ____________ [3 marks]

Section B: Linear Graphs and Gradients [15 marks]

6. Calculate the gradient of the line passing through points A(2, 5) and B(8, 17). Working:

Answer: ____________ [2 marks]

7. Find the gradient of the line with equation 3y = 2x - 12. Working:

Answer: ____________ [2 marks]

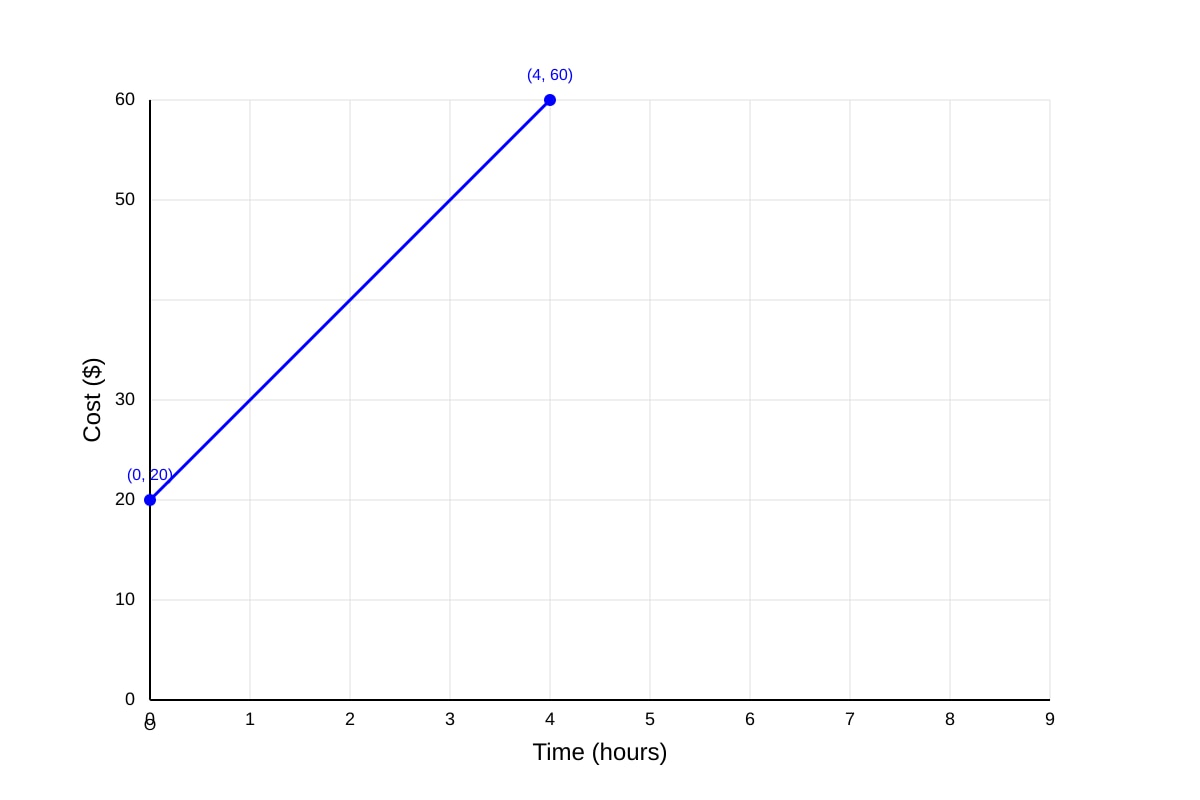

8. The graph below shows the cost of hiring a car.

Graph for placeholder 1 (SEC1 Maths)

Generated graph for this question.

(a) Calculate the gradient of the line. Working:

Answer: ____________ [2 marks]

(b) Explain what the gradient represents in this context. Answer: ________________________________________________ [1 mark]

9. Write down the equation of the line that passes through (0, 3) and has gradient -2. Answer: y = ____________ [1 mark]

10. A line has equation y = 4x - 7. (a) State the gradient of the line. ____________ (b) State the y-intercept of the line. ____________ [2 marks]

11. Find the x-intercept of the line 2x + 3y = 12. Working:

Answer: x = ____________ [2 marks]

12. Determine whether the lines y = 3x + 1 and y = 3x - 5 are parallel, perpendicular, or neither. Answer: ____________ Reason: ________________________________________________ [3 marks]

Section C: Graph Interpretation and Applications [15 marks]

13. The graph below shows the temperature of water being heated over time.

Graph for placeholder 2 (SEC1 Maths)

Generated graph for this question.

(a) What was the initial temperature of the water? ____________°C (b) Calculate the rate of temperature increase per minute. Working:

Answer: ____________°C per minute [3 marks]

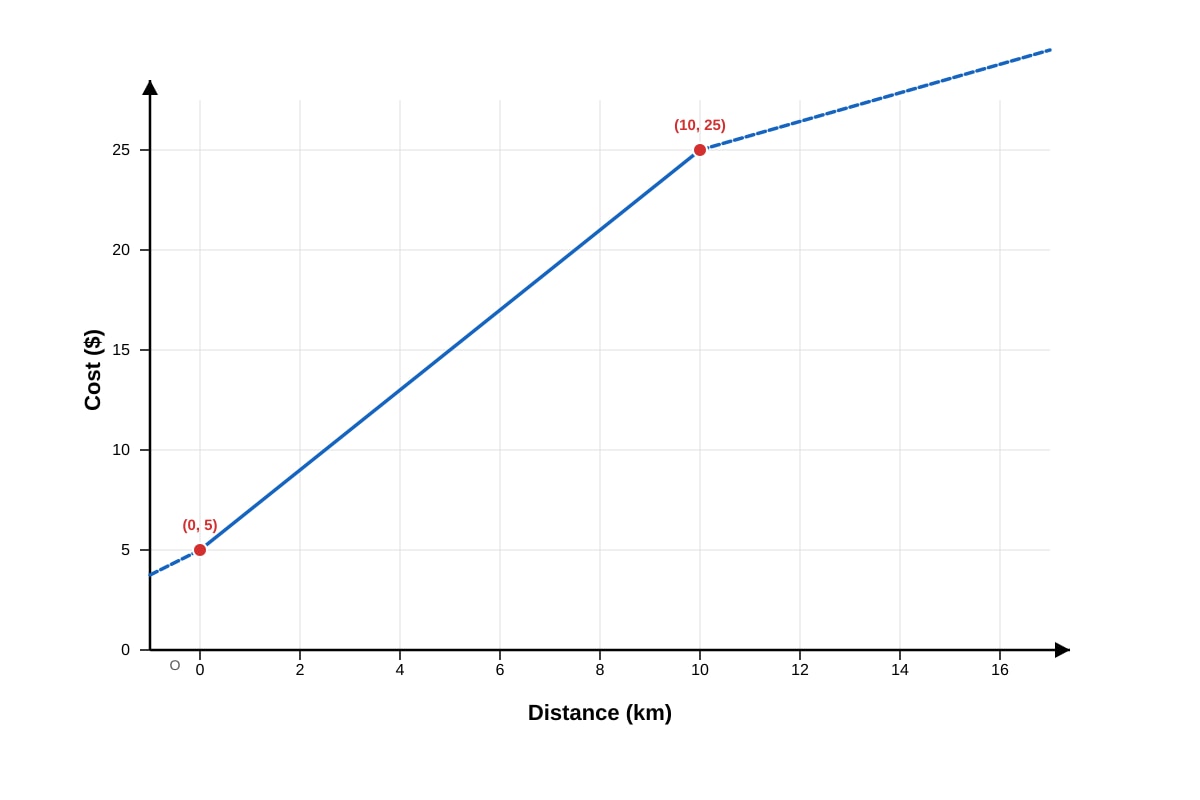

14. A taxi company charges a fixed fee plus an amount per kilometer. The graph shows the relationship between distance traveled and total cost.

Graph for placeholder 3 (SEC1 Maths)

Generated graph for this question.

(a) What is the fixed fee? $____________ (b) Calculate the cost per kilometer. Working:

Answer: $____________ per km (c) Write the equation relating cost (C) to distance (d). Answer: C = ____________ [4 marks]

15. The coordinates of three vertices of a parallelogram are A(1, 2), B(4, 6), and C(7, 2). Find the coordinates of the fourth vertex D. Working:

Answer: D = ( ____ , ____ ) [3 marks]

16. A line passes through points (2, 7) and (6, 15). (a) Find the equation of this line in the form y = mx + c. Working:

Answer: y = ____________ [3 marks]

(b) Use your equation to find the y-coordinate when x = 10. Working:

Answer: y = ____________ [2 marks]

17. The graph shows the journey of a cyclist. [Distance-time graph showing: 0-2 hours: distance increases from 0 to 40km; 2-3 hours: distance stays at 40km; 3-5 hours: distance increases from 40km to 80km]

(a) Calculate the cyclist's speed during the first 2 hours. Working:

Answer: ____________ km/h (b) What happened between 2 and 3 hours? Answer: ________________________________________________ (c) Calculate the cyclist's speed during the last 2 hours. Working:

Answer: ____________ km/h [5 marks]

18. Find the area of triangle ABC where A(-2, 1), B(4, 1), and C(1, 5). Working:

Answer: ____________ square units [3 marks]

19. Two lines have equations y = 2x + 3 and x + y = 7. Find their point of intersection. Working:

Answer: ( ____ , ____ ) [3 marks]

20. A rectangle has vertices at (1, 1), (1, 4), (5, 4), and (5, 1). The rectangle is translated 3 units right and 2 units down. Write down the coordinates of the vertices of the translated rectangle. Answer: ( ____ , ____ ), ( ____ , ____ ), ( ____ , ____ ), ( ____ , ____ ) [2 marks]

END OF QUIZ

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Secondary 1 Mathematics Quiz - Graphs Coordinate Geometry

Answer Key

Total Marks: 40

Section A: Basic Coordinate Concepts [10 marks]

1. Plot the following points: A(3, -2), B(-1, 4), C(0, -3) [2 marks]

Answer: Correct plotting of all three points
Marking: 2 marks for all correct, 1 mark for 2 correct, 0 marks for 1 or fewer correct

2. Find coordinates of D in rectangle ABCD [1 mark]

Answer: D = (2, 4)
Working: Since ABCD is a rectangle, opposite sides are parallel and equal. D must have same x-coordinate as A and same y-coordinate as C.

3. Distance between P(-3, 2) and Q(1, 5) [2 marks]

Working: Distance = √[(1-(-3))² + (5-2)²] = √[4² + 3²] = √[16 + 9] = √25 = 5
Answer: 5 units
Marking: 1 mark for correct formula/method, 1 mark for correct answer

4. Find coordinates of S [2 marks]

Working: Midpoint formula: M = ((x₁+x₂)/2, (y₁+y₂)/2) 4 = (7+x₂)/2, so x₂ = 1 -1 = (3+y₂)/2, so y₂ = -5
Answer: S = (1, -5)
Marking: 1 mark for correct method, 1 mark for correct coordinates

5. Identify quadrants [3 marks]

(a) (-5, 7): Quadrant II
(b) (3, -4): Quadrant IV
(c) (-2, -6): Quadrant III
Marking: 1 mark each

Section B: Linear Graphs and Gradients [15 marks]

6. Gradient through A(2, 5) and B(8, 17) [2 marks]

Working: Gradient = (17-5)/(8-2) = 12/6 = 2
Answer: 2
Marking: 1 mark for correct formula, 1 mark for correct answer

7. Gradient of 3y = 2x - 12 [2 marks]

Working: Rearrange to y = (2/3)x - 4
Answer: 2/3
Marking: 1 mark for rearranging, 1 mark for correct gradient

8. Car hire graph analysis [3 marks]

(a) Gradient = (60-20)/(4-0) = 40/4 = 10 [2 marks]
(b) The gradient represents the cost per hour of hiring the car ($10 per hour) [1 mark]

9. Equation through (0, 3) with gradient -2 [1 mark]

Answer: y = -2x + 3

10. Line y = 4x - 7 [2 marks]

(a) Gradient: 4 [1 mark]
(b) y-intercept: -7 [1 mark]

11. x-intercept of 2x + 3y = 12 [2 marks]

Working: At x-intercept, y = 0: 2x + 3(0) = 12, so x = 6
Answer: x = 6
Marking: 1 mark for method, 1 mark for answer

12. Compare lines y = 3x + 1 and y = 3x - 5 [3 marks]

Answer: Parallel
Reason: Both lines have the same gradient (3) but different y-intercepts
Marking: 1 mark for "parallel", 2 marks for correct reasoning

Section C: Graph Interpretation and Applications [15 marks]

13. Water heating graph [3 marks]

(a) Initial temperature: 20°C [1 mark]
(b) Rate = (80-20)/(8-0) = 60/8 = 7.5°C per minute [2 marks]

14. Taxi cost graph [4 marks]

(a) Fixed fee: $5 [1 mark]
(b) Cost per km = (25-5)/(10-0) = $2 per km [1 mark]
(c) Equation: C = 2d + 5 [2 marks]

15. Fourth vertex of parallelogram [3 marks]

Working: In parallelogram, opposite sides are equal vectors Vector AB = (3, 4), so vector DC = (3, 4) D = C - (3, 4) = (7, 2) - (3, 4) = (4, -2)
Answer: D = (4, -2)
Marking: 2 marks for method, 1 mark for correct coordinates

16. Line through (2, 7) and (6, 15) [5 marks]

(a) Gradient = (15-7)/(6-2) = 8/4 = 2 Using y = mx + c: 7 = 2(2) + c, so c = 3 Answer: y = 2x + 3 [3 marks]
(b) When x = 10: y = 2(10) + 3 = 23 [2 marks]

17. Cyclist journey graph [5 marks]

(a) Speed = 40km ÷ 2h = 20 km/h [2 marks]
(b) The cyclist stopped/rested (distance remained constant) [1 mark]
(c) Speed = (80-40)km ÷ (5-3)h = 40km ÷ 2h = 20 km/h [2 marks]

18. Area of triangle ABC [3 marks]

Working: Using coordinates A(-2, 1), B(4, 1), C(1, 5) Base AB = 6 units (horizontal line), Height = 4 units (vertical distance from C to line AB) Area = ½ × base × height = ½ × 6 × 4 = 12
Answer: 12 square units
Marking: 1 mark for identifying base and height, 2 marks for correct calculation

19. Intersection of y = 2x + 3 and x + y = 7 [3 marks]

Working: Substitute: x + (2x + 3) = 7 3x + 3 = 7, so x = 4/3 y = 2(4/3) + 3 = 8/3 + 9/3 = 17/3
Answer: (4/3, 17/3) or (1⅓, 5⅔)
Marking: 2 marks for method, 1 mark for correct coordinates

20. Translation of rectangle [2 marks]

Original: (1, 1), (1, 4), (5, 4), (5, 1)
Translated 3 right, 2 down: Add 3 to x-coordinates, subtract 2 from y-coordinates
Answer: (4, -1), (4, 2), (8, 2), (8, -1)
Marking: 2 marks for all correct, 1 mark for 3 correct, 0 marks for fewer than 3 correct

Common Marking Notes:

Accept equivalent forms of answers (e.g., fractions, decimals, mixed numbers)
Award method marks even if final answer is incorrect due to arithmetic errors
Require clear working to be shown for full marks on calculation questions
Accept reasonable approximations where appropriate (e.g., 7.5 instead of 15/2)
