Secondary 1 Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ___________
Date: ___________
Score: ___________

Duration: 60 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Show your working clearly where required.
• For diagram questions, use the provided figures or draw your own clearly labelled sketch.
• Section A: 10 short questions (1 mark each). Section B: 6 questions (2 marks each). Section C: 4 questions (3 marks each).

---

Section A (1 mark each, Questions 1–10)

1. In the triangle below, angle $A = 35^\circ$ and angle $B = 55^\circ$. Find angle $C$.
   _______________ $^\circ$

2. A regular hexagon has 6 sides. Find the sum of its interior angles.
   _______________ $^\circ$

3. Two parallel lines are cut by a transversal. One corresponding angle is $72^\circ$. What is the other corresponding angle?
   _______________ $^\circ$

4. In a right-angled triangle, if $\sin \theta = \frac{3}{5}$, what is $\cos \theta$ assuming the other side is 4?

   ---

5. Angles on a straight line add up to _______________ $^\circ$.

6. A triangle has angles $40^\circ$, $60^\circ$, and $x^\circ$. Find $x$.
   _______________ $^\circ$

7. In the figure, $AB \parallel CD$ and $EF$ is a transversal. If alternate angle at $E$ is $50^\circ$, the alternate angle at $F$ is _______________ $^\circ$.

8. The exterior angle of a regular polygon is $30^\circ$. How many sides does it have?

   ---

9. In a right triangle, $\tan \theta = \frac{5}{12}$. What is the hypotenuse length if opposite = 5?

   ---

10. Vertically opposite angles are always _______________ (equal / unequal).

---

Section B (2 marks each, Questions 11–16)

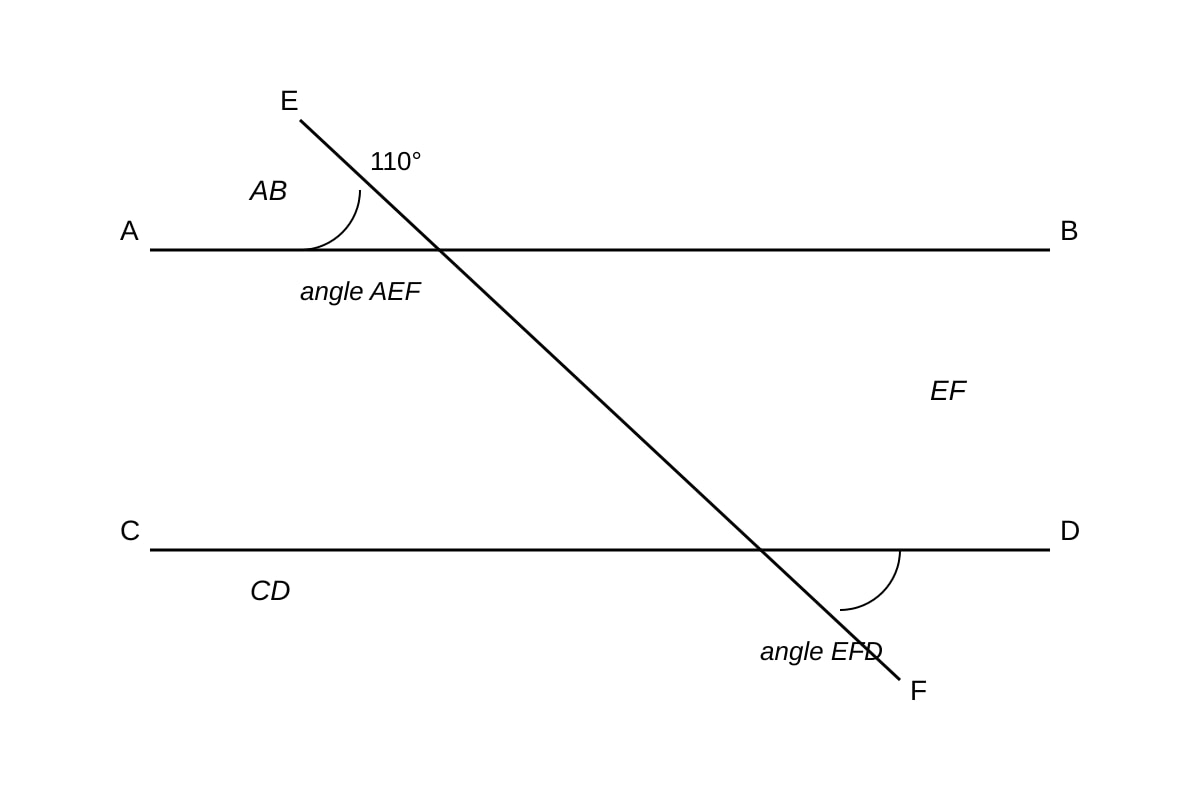

11. In the diagram below, $AB \parallel CD$, $EF$ cuts them. $\angle AEF = 110^\circ$. Find $\angle EFD$, stating your reason.

Generated diagram for Q11.

Angle: _______________ $^\circ$
Reason: __________________________________________________

12. A triangle has sides 3 cm, 4 cm, and 5 cm. Show it is right-angled using Pythagoras' theorem. Hence state the hypotenuse.
    Working:

---

Hypotenuse: _______________

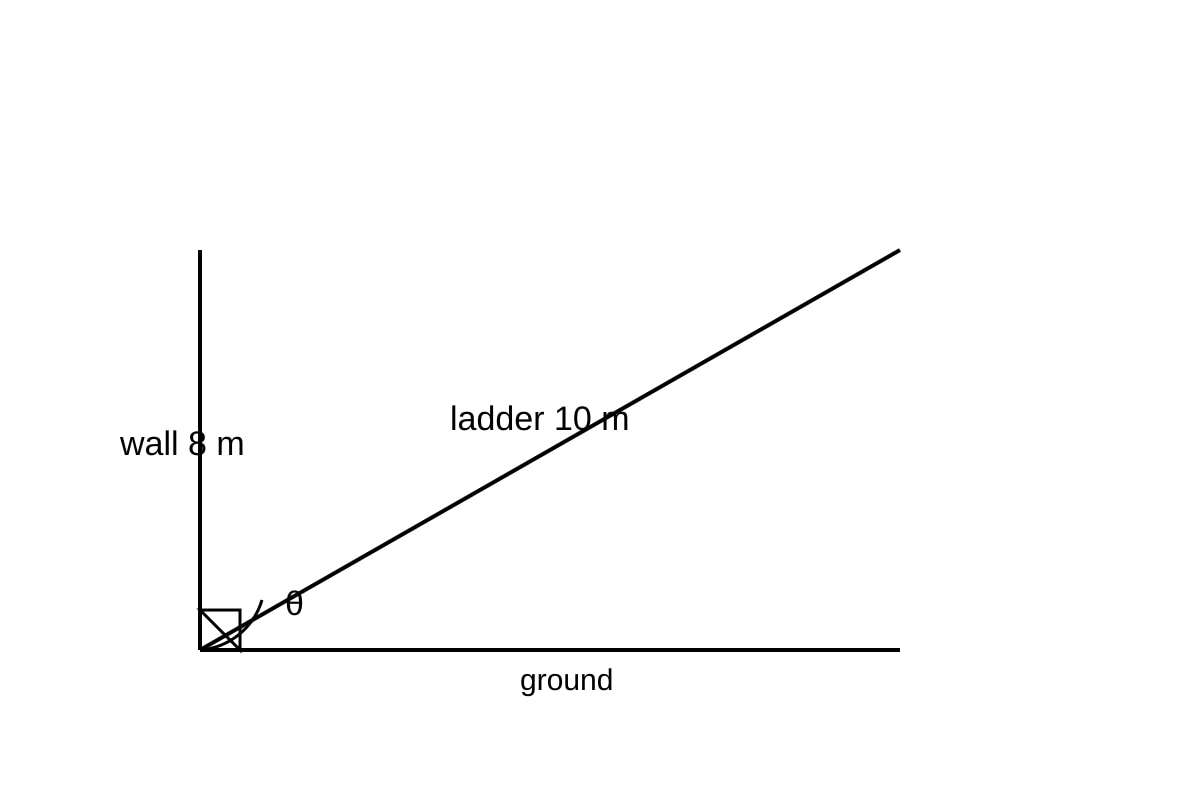

13. Find the angle of elevation $\theta$ if a ladder of length 10 m leans against a wall reaching 8 m high. Use $\sin \theta = \frac{\text{opposite}}{\text{hypotenuse}}$.

Generated diagram for Q13.

$\sin \theta$ = _______________
$\theta$ = _______________ $^\circ$ (nearest degree)

14. The interior angle sum of a polygon is $1080^\circ$. How many sides does it have? Show steps.
    Working:

---

Sides: _______________

15. In the figure, $PQ \parallel RS$, $TU$ is transversal. $\angle PQT = 65^\circ$. Find $\angle STU$ (corresponding).

Generated diagram for Q15.

Angle: _______________ $^\circ$

16. A right cone has base radius 3 cm and slant height 5 cm. Draw not needed. Find the vertical height using Pythagoras.
    Working:

---

Height: _______________ cm

---

Section C (3 marks each, Questions 17–20)

17. In triangle $ABC$, $\angle A = 90^\circ$, $AB = 6$ cm, $BC = 10$ cm. Find $AC$ and $\tan B$. Show full working.
    Working:

---

---

$AC$ = _______________ cm, $\tan B$ = _______________

18. Parallel lines $l$ and $m$ are cut by transversal $n$. $\angle 1 = 120^\circ$ (interior on left). Find the co-interior angle on the same side and the corresponding angle to $\angle 1$. State reasons.

Generated diagram for Q18.

Co-interior: _______________ $^\circ$ (reason: _______________)
Corresponding: _______________ $^\circ$ (reason: _______________)

19. A regular polygon has exterior angle $24^\circ$. Find number of sides, interior angle, and sum of interior angles.
    Working:

---

---

Sides: _______________
Interior: _______________ $^\circ$
Sum: _______________ $^\circ$

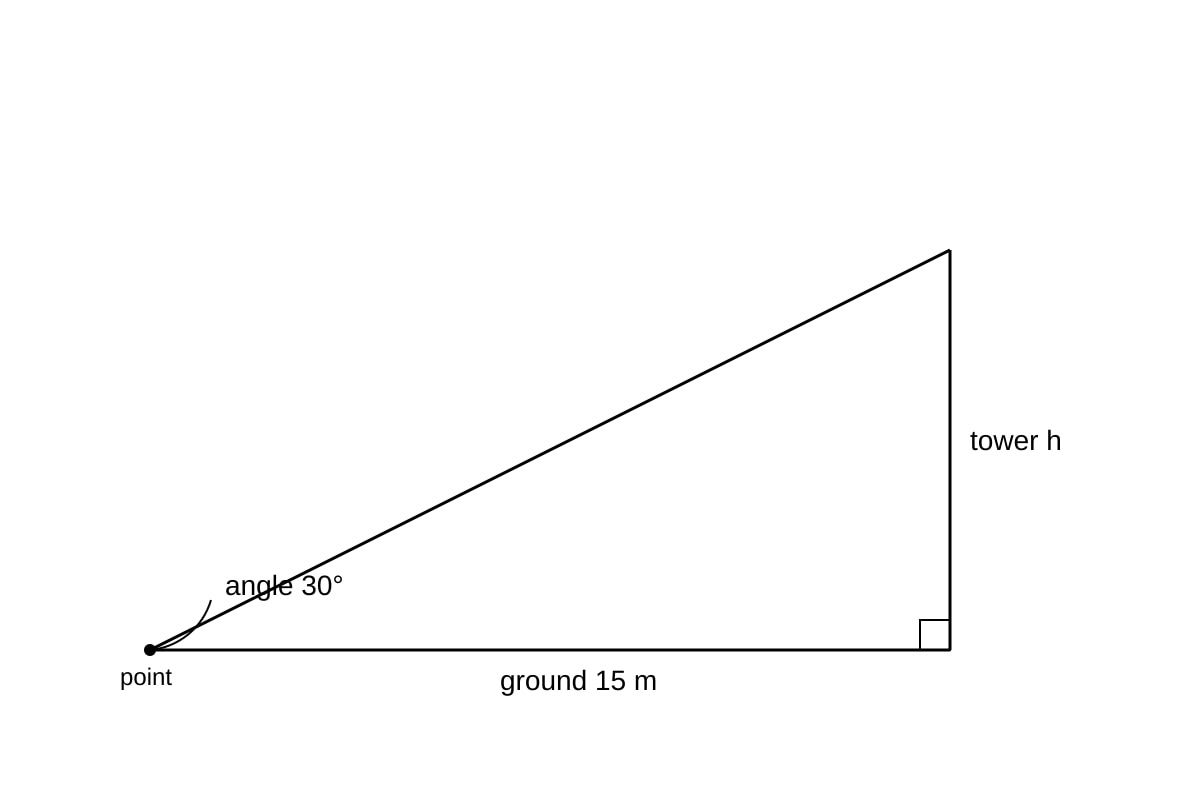

20. From a point 15 m from a tower, the angle of elevation to the top is $30^\circ$. Find tower height. Use $\tan 30^\circ = \frac{1}{\sqrt{3}}$. Show steps.

Generated diagram for Q20.

Working:

---

Height: _______________ m

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Secondary 1 Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 40
Section A: 10 × 1 = 10 marks
Section B: 6 × 2 = 12 marks
Section C: 4 × 3 = 12 marks

---

Section A (1 mark each)

Q1. $90^\circ$
Teaching note: Angle sum of triangle = $180^\circ$. $180 - 35 - 55 = 90$. Common mistake: forgetting sum is $180^\circ$.

Q2. $720^\circ$
Teaching note: Sum = $(n-2) \times 180 = (6-2) \times 180 = 720$.

Q3. $72^\circ$
Teaching note: Corresponding angles on parallel lines are equal.

Q4. $\frac{4}{5}$
Teaching note: Right triangle sides 3,4,5. $\cos = \text{adj}/\text{hyp} = 4/5$.

Q5. $180$
Teaching note: Angles on a straight line sum to $180^\circ$.

Q6. $80^\circ$
Teaching note: $180 - 40 - 60 = 80$.

Q7. $50^\circ$
Teaching note: Alternate angles between parallel lines are equal.

Q8. 12
Teaching note: $360 \div 30 = 12$ sides.

Q9. 13
Teaching note: Pythagoras: $\sqrt{5^2 + 12^2} = \sqrt{169} = 13$.

Q10. equal
Teaching note: Vertically opposite angles are equal.

---

Section B (2 marks each)

Q11. $70^\circ$, reason: co-interior angles sum to $180^\circ$ (or $AEF + EFD = 180$).
Working: $180 - 110 = 70$.
Marking: 1 mark angle, 1 mark reason.

Q12. $3^2+4^2=9+16=25=5^2$, hypotenuse = 5 cm.
Teaching note: Pythagoras $a^2+b^2=c^2$. Since equal, right-angled.
Marking: 1 mark working, 1 mark hypotenuse.

Q13. $\sin\theta = 8/10 = 0.8$, $\theta \approx 53^\circ$.
Working: $\sin\theta = 8/10 = 0.8 \Rightarrow \theta = \sin^{-1}(0.8) \approx 53^\circ$.
Marking: 1 mark sin, 1 mark angle.

Q14. $(n-2)\times180=1080 \Rightarrow n-2=6 \Rightarrow n=8$.
Marking: 1 mark steps, 1 mark answer.

Q15. $65^\circ$ (corresponding).
Marking: 1 mark angle, 1 mark identification.

Q16. $h = \sqrt{5^2-3^2} = \sqrt{16} = 4$ cm.
Marking: 1 mark working, 1 mark answer.

---

Section C (3 marks each)

Q17. $AC = \sqrt{10^2-6^2} = \sqrt{64}=8$ cm. $\tan B = AC/AB = 8/6 = 4/3$.
Working: Pythagoras, then ratio.
Marking: 1 mark AC, 1 mark tan, 1 mark working.

Q18. Co-interior = $60^\circ$ (supplement of $120$), Corresponding = $120^\circ$ (equal).
Marking: 1+1+1 for values and reasons.

Q19. Sides = $360/24 = 15$. Interior = $180-24 = 156^\circ$. Sum = $15\times156 = 2340^\circ$.
Marking: 1 each.

Q20. $\tan 30 = h/15 \Rightarrow h = 15/\sqrt{3} = 5\sqrt{3} \approx 8.66$ m.
Marking: 1 setup, 1 calc, 1 answer.
